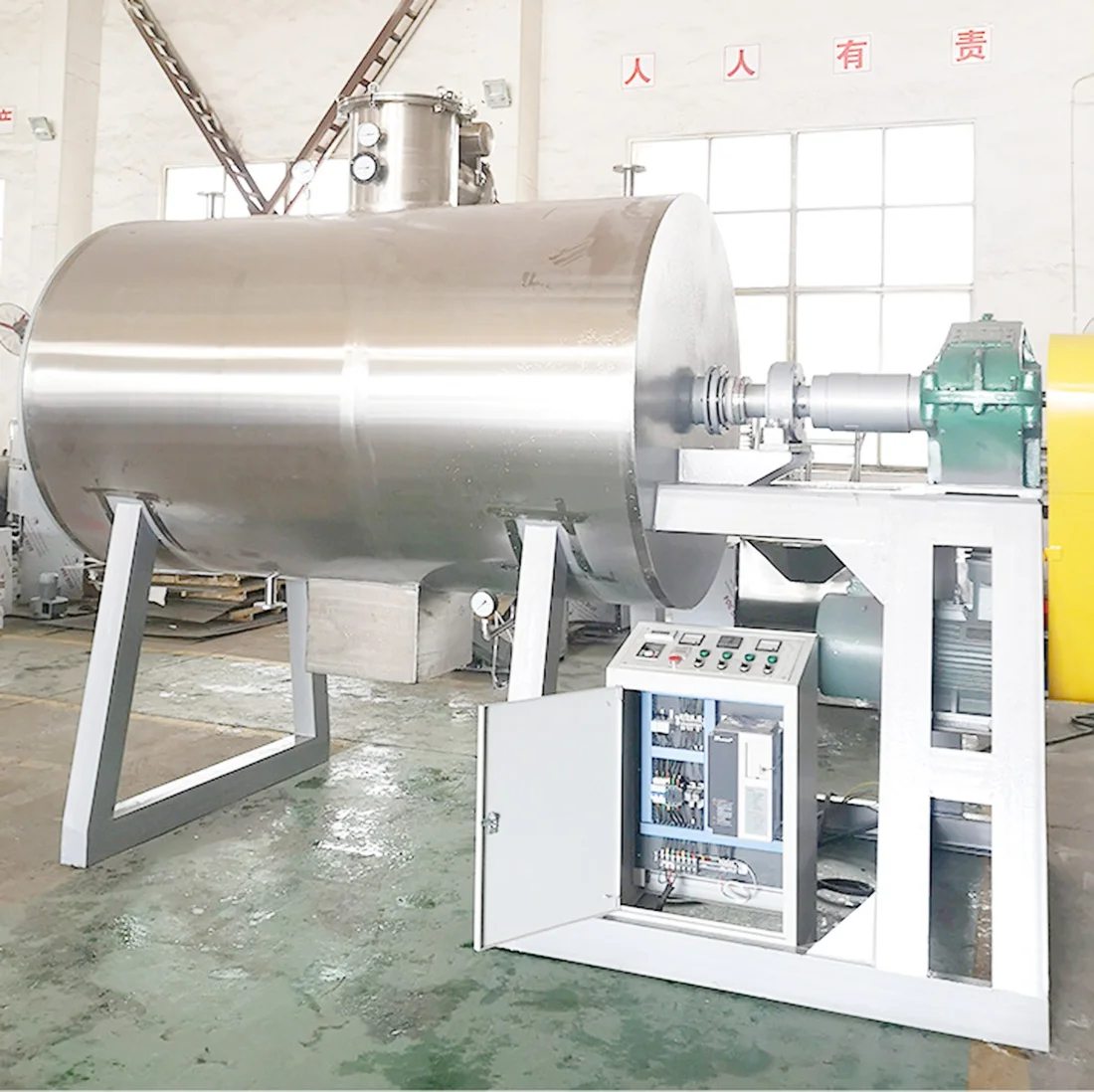

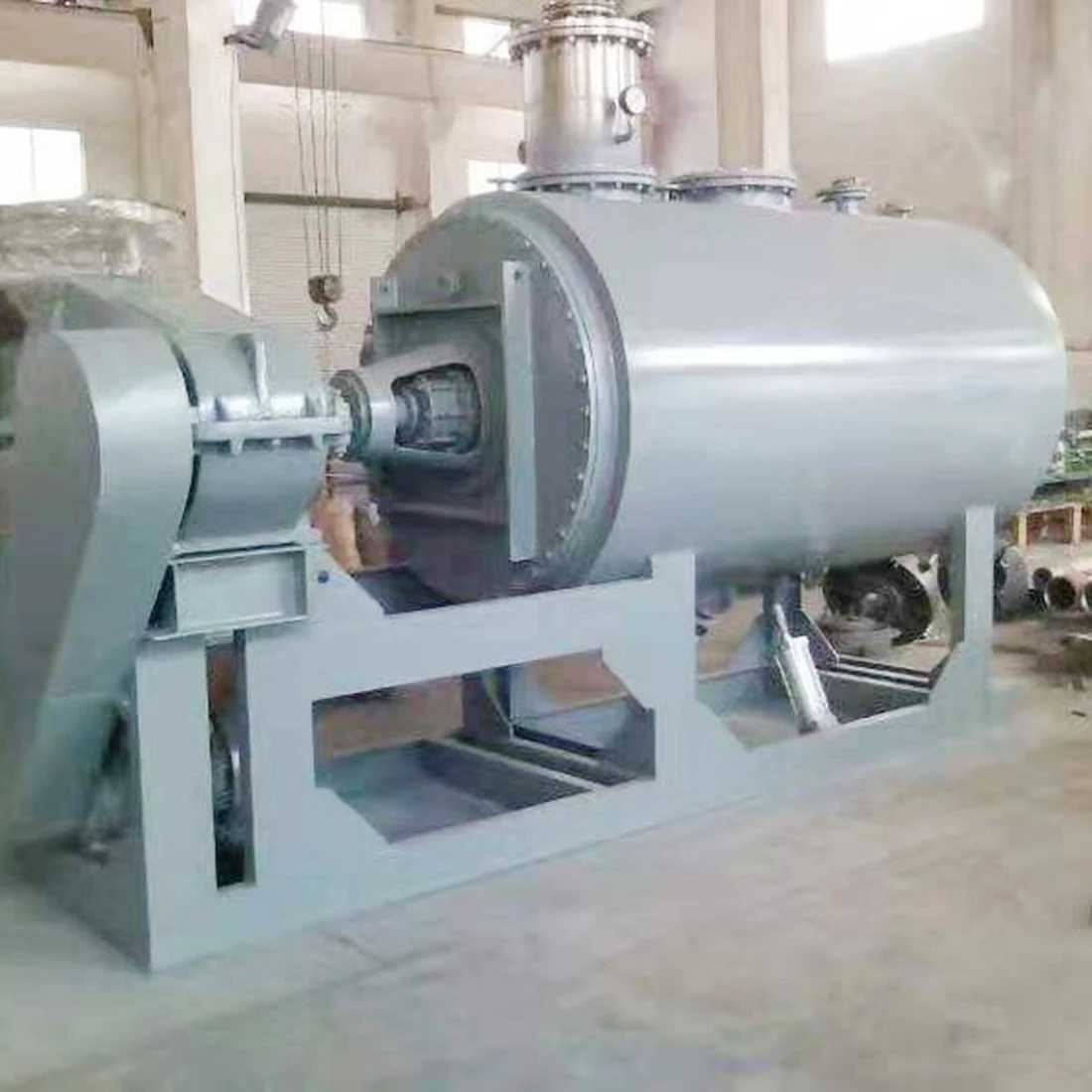

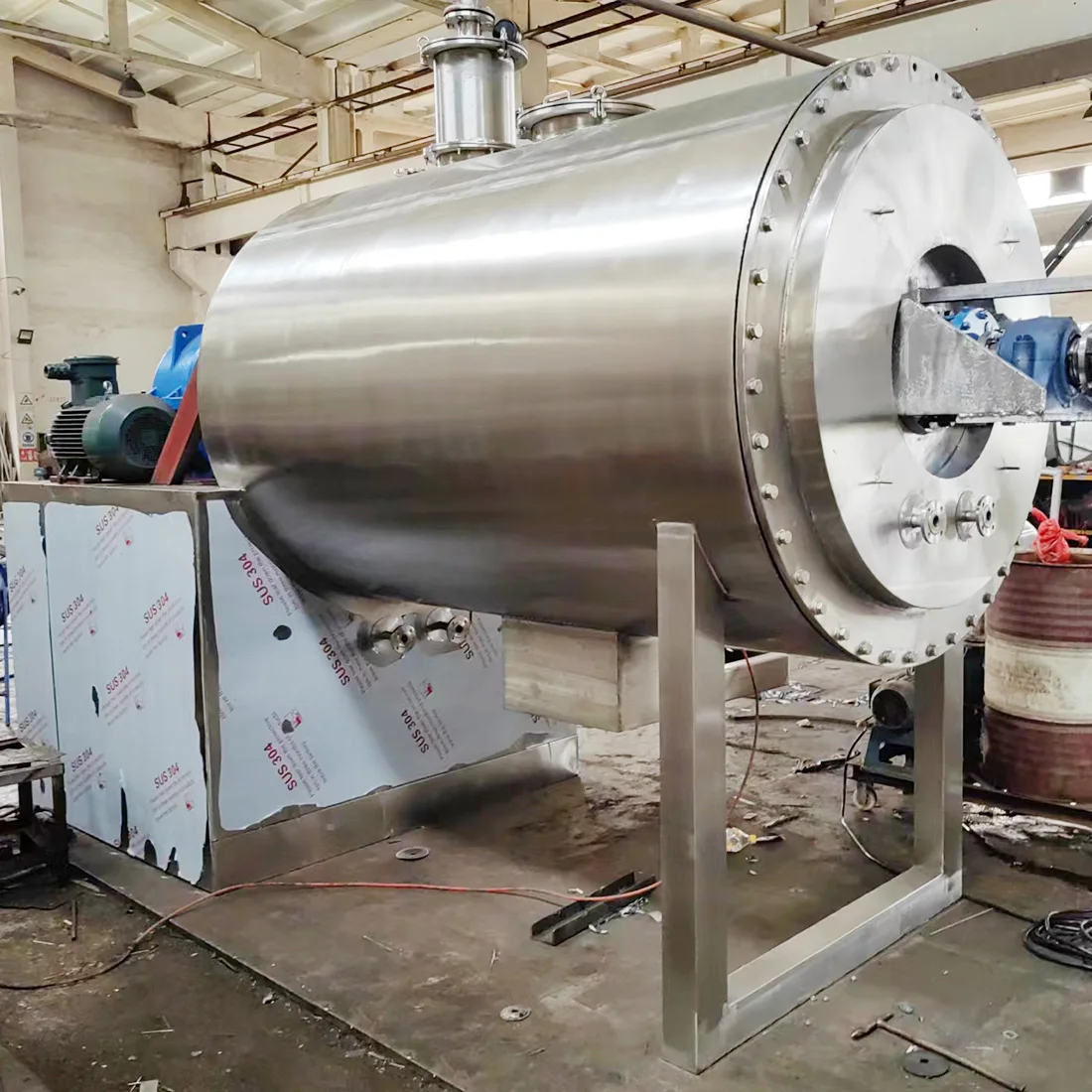

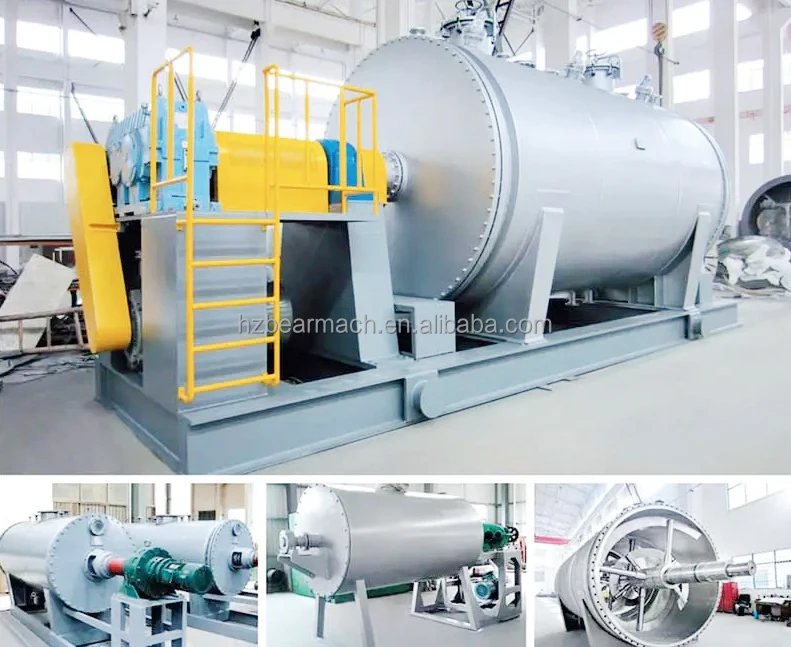

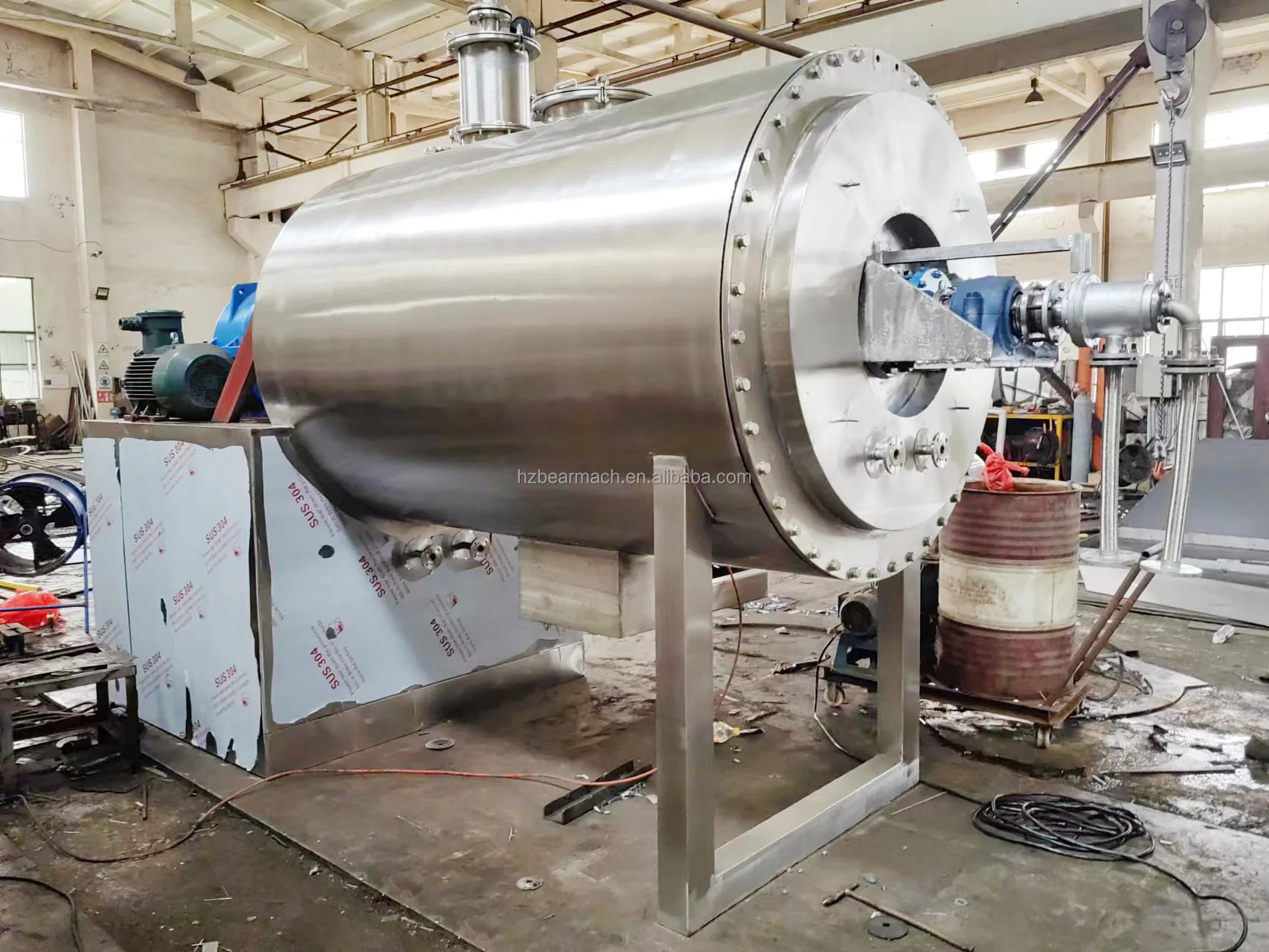

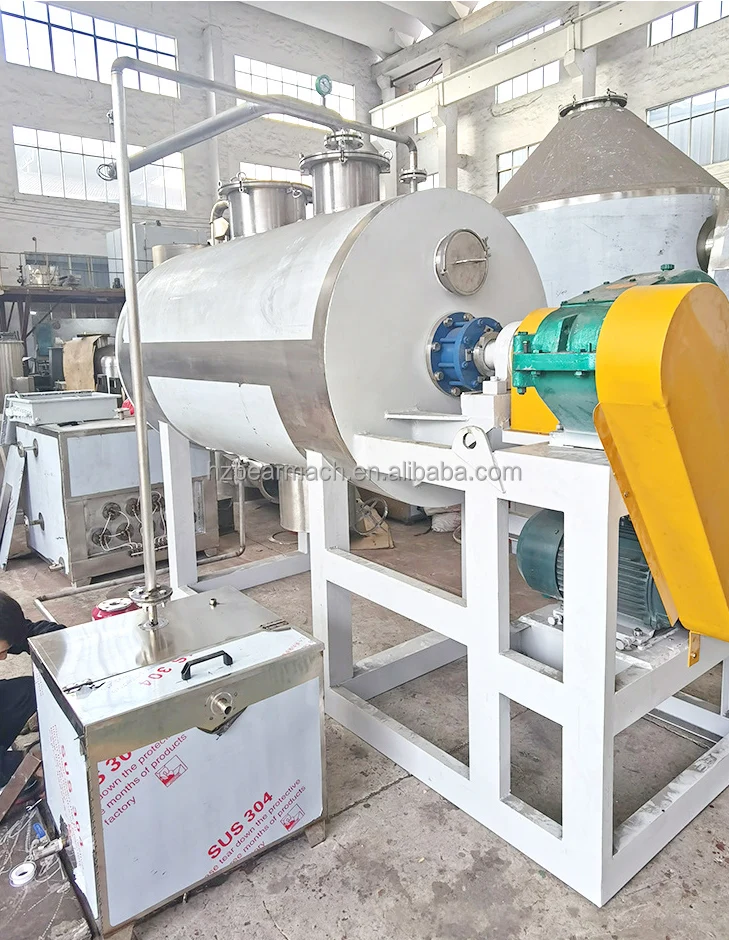

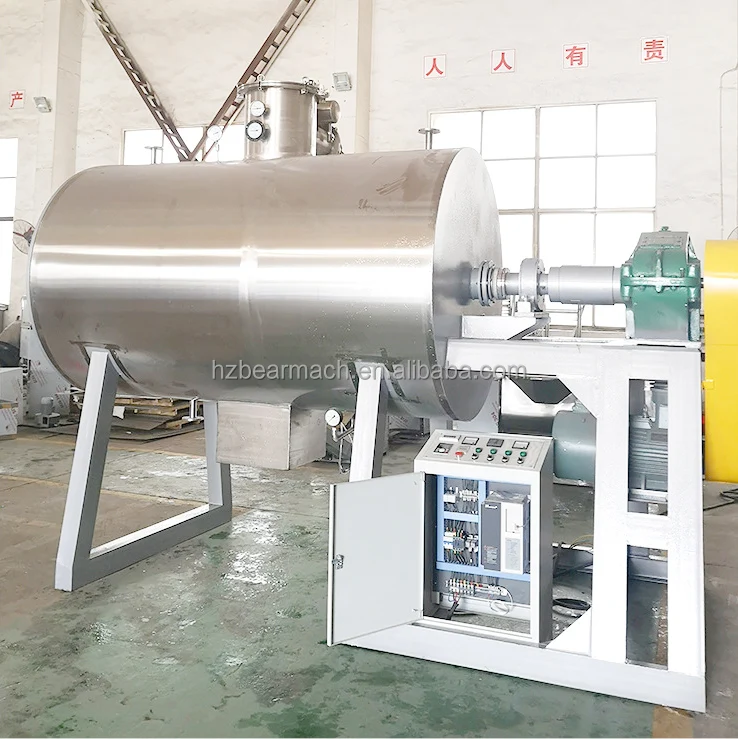

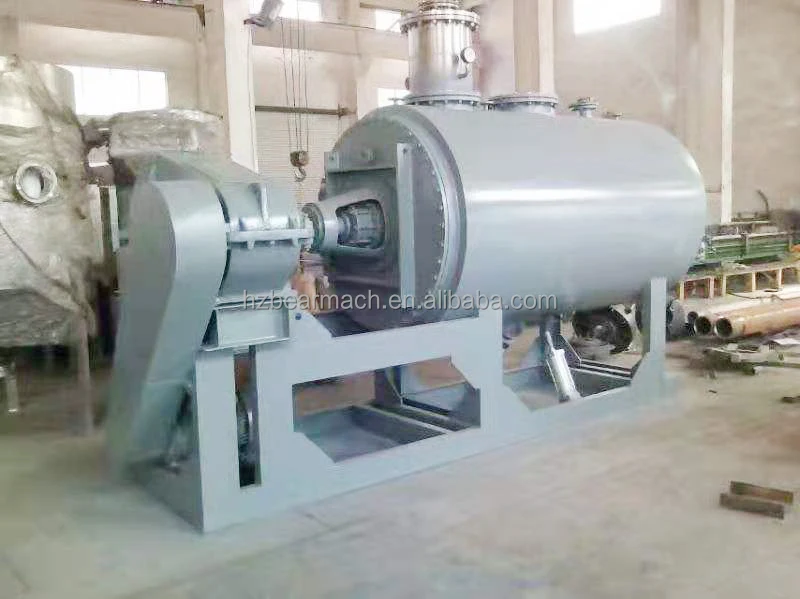

Iron hydroxide vacuum rake dryer nitrotoluene dryer chemical stainless steel dryer
- Category: >>>
- Supplier: Hangzhou Bear Machinery Co. Ltd.
Share on (1601001675458):
Product Overview
Description
Brief introduction
The operation of the rake dryer is less labor-intensive than the usual box-type dryer, the operating conditions are good, and the management is more convenient. The uniformity of heating of the material can avoid overheating of the material, and the moisture or solvent is easy to escape, and the product with low temperature can be obtained. The machine can adopt the method of simultaneous heating of the interlayer and rake teeth, which has a larger heat transfer area and high thermal efficiency, and nitrogen can be fed into the barrel to obtain higher drying efficiency.

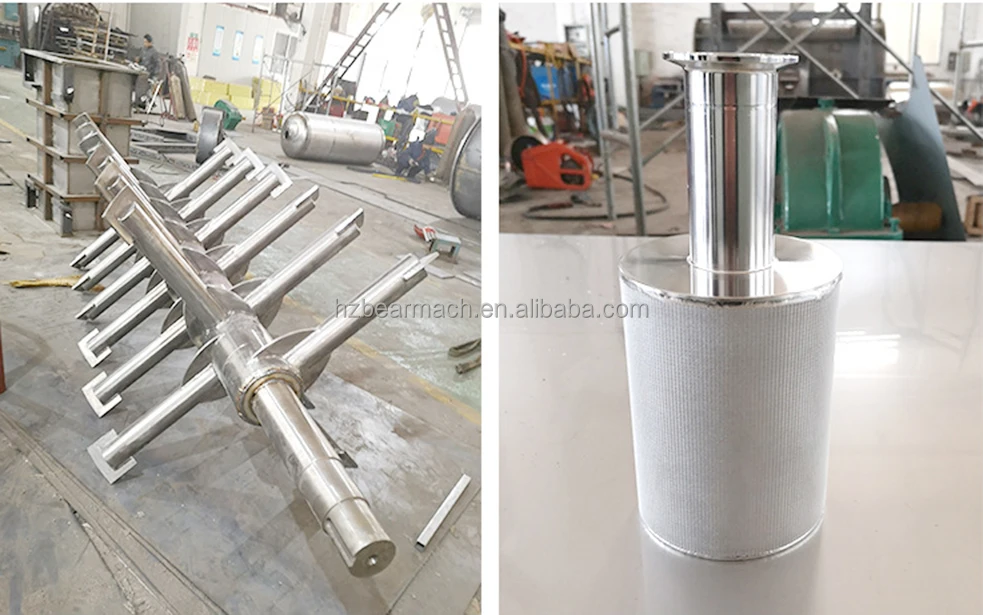

The rake dryer is designed for various paste, slurry, powder, fiber, granular and other materials. The transmission part adopts a durable and stable cylindrical gear reducer. The driving shaft and rake teeth are made of high Strength One-piece casting or internal heating thick-walled rake teeth can fully guarantee the stable operation of the vacuum rake dryer in various harsh working environments. And two or four percussion rods can be added inside its shell to facilitate the rapid drying and crushing of materials. Its heating medium can have a variety of options, such as: steam, heat transfer oil, hot water, etc.
PRODUCT PARAMENTERS
Model | ZPG-500 | ZPG-750 | ZPG-1000 | ZPG-1500 | ZPG-2000 | ZPG-3000 | ZPG-8000 | ||||||
Working volume(L) | 300 | 450 | 600 | 900 | 1200 | 1800 | 4500 | ||||||
Heating area (m2) | 6 | 7.6 | 9.3 | 12.3 | 14.6 | 15.3 | 18.08 | ||||||
Stirring speed (rpm) | 6-30 stepless speed adjustment | ||||||||||||
Power(kw) | 4 | 5.5 | 5.5 | 7.5 | 11 | 15 | 22 | ||||||
Mezzanine design pressure (hot water)(Mpa) | ≤0.3 | ||||||||||||
Vacuum degree inside the cylinder(Mpa) | -0.09-0.096 | 20 | 28 | 35 | 40 | 52 | 80 | ||||||
PRODUCT DESCRIPTION
The working principle of vacuum rake dryer

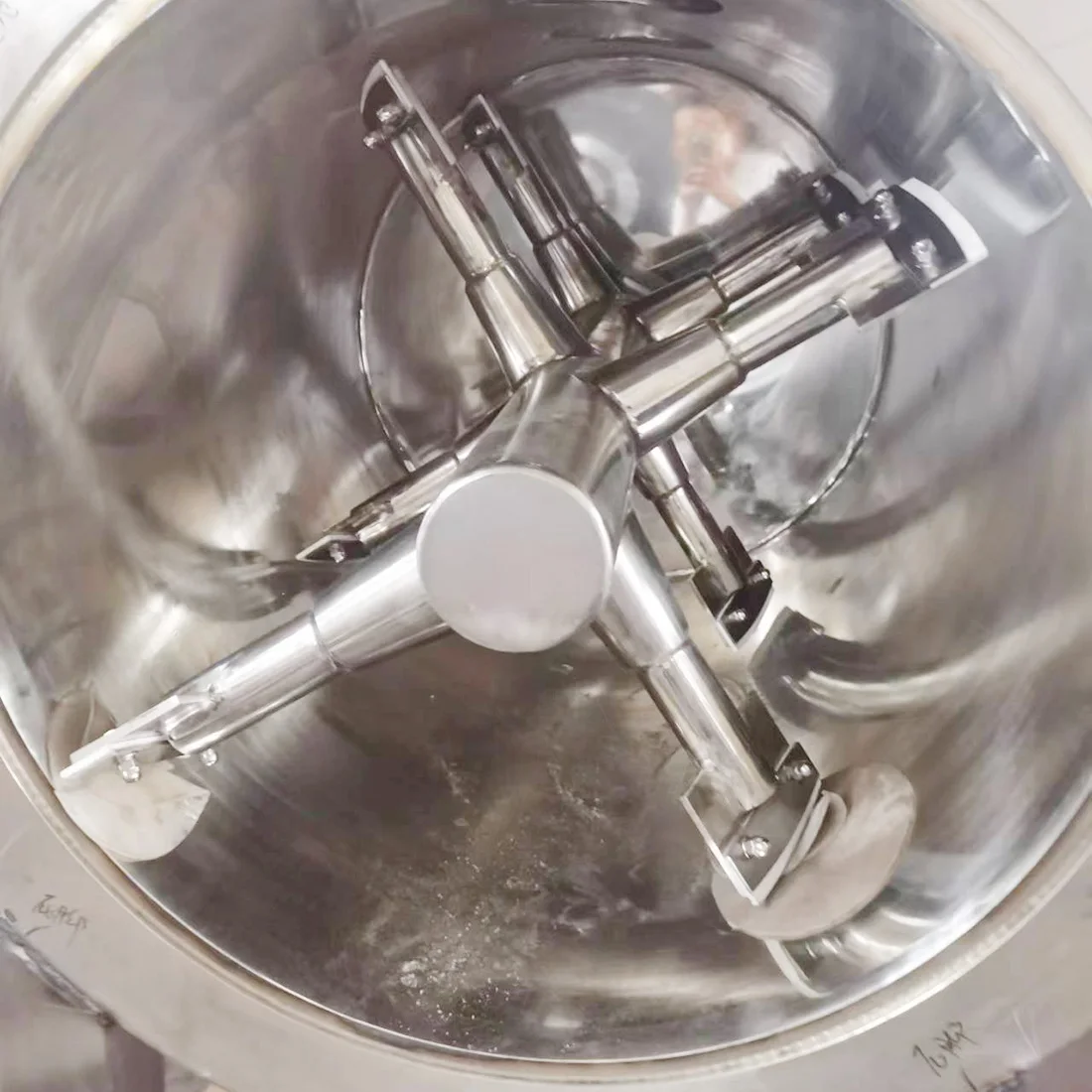

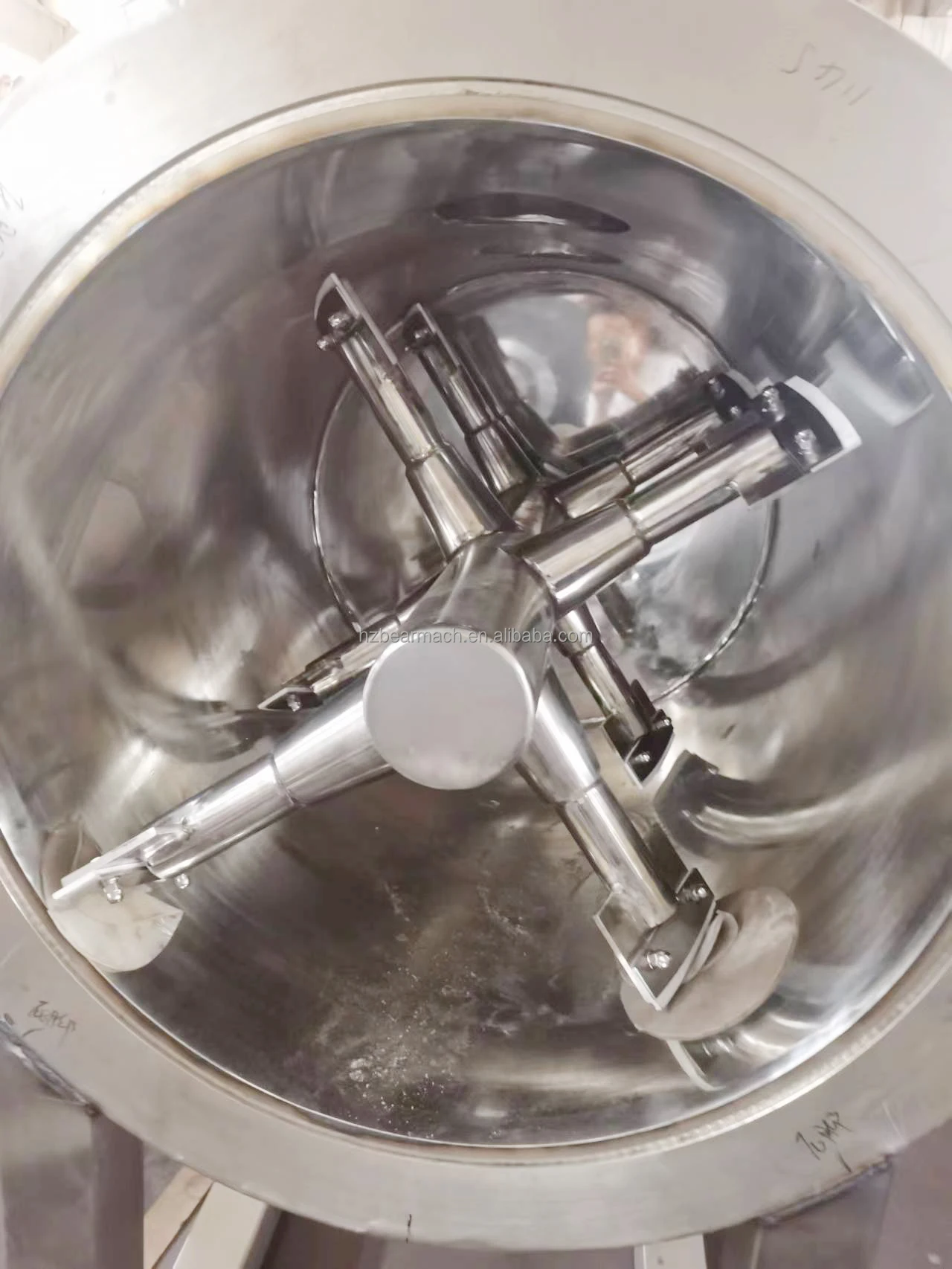

The vacuum rake dryer is a device that continuously discharges the water or solvent with a reduced boiling point under the vacuum state through the vacuum pipeline to achieve the purpose of drying the material. Inside the dryer shell, the rake teeth are driven by the transmission shaft. The rake teeth end and the axis are designed to have a certain angle. The main shaft rotates in the forward and reverse directions to move the material along the axial direction to facilitate drying and discharging. This machine is especially suitable for drying heat-sensitive materials, materials that are easily oxidized at high temperature, or materials that are easy to harden during drying, and materials that need to be recovered from the steam discharged during drying. After drying, the material is in powder form, so it is more suitable for the finished product in powder form. After drying, it can be packaged directly without crushing. The moisture content of the feed material of the rake vacuum dryer can reach 90%. The material to be dried is paste, slurry, granular, fibrous or powder. The moisture or solvent content of the dried material can be as low as 1%, or even 0.1%.
Features
During the drying process of the vacuum rake dryer, the rake teeth rotate continuously in positive and negative directions, which has strong applicability, and the dried materials are stirred evenly and dried quickly. Because it uses jacket heating and vacuum exhaust, it is suitable for almost all materials of different properties and states, especially for explosive and oxidizable materials; the products it produces are of high quality, easy to operate, and can recover volatile gases. The pollution to the environment is reduced, and the heat source consumption is relatively small.

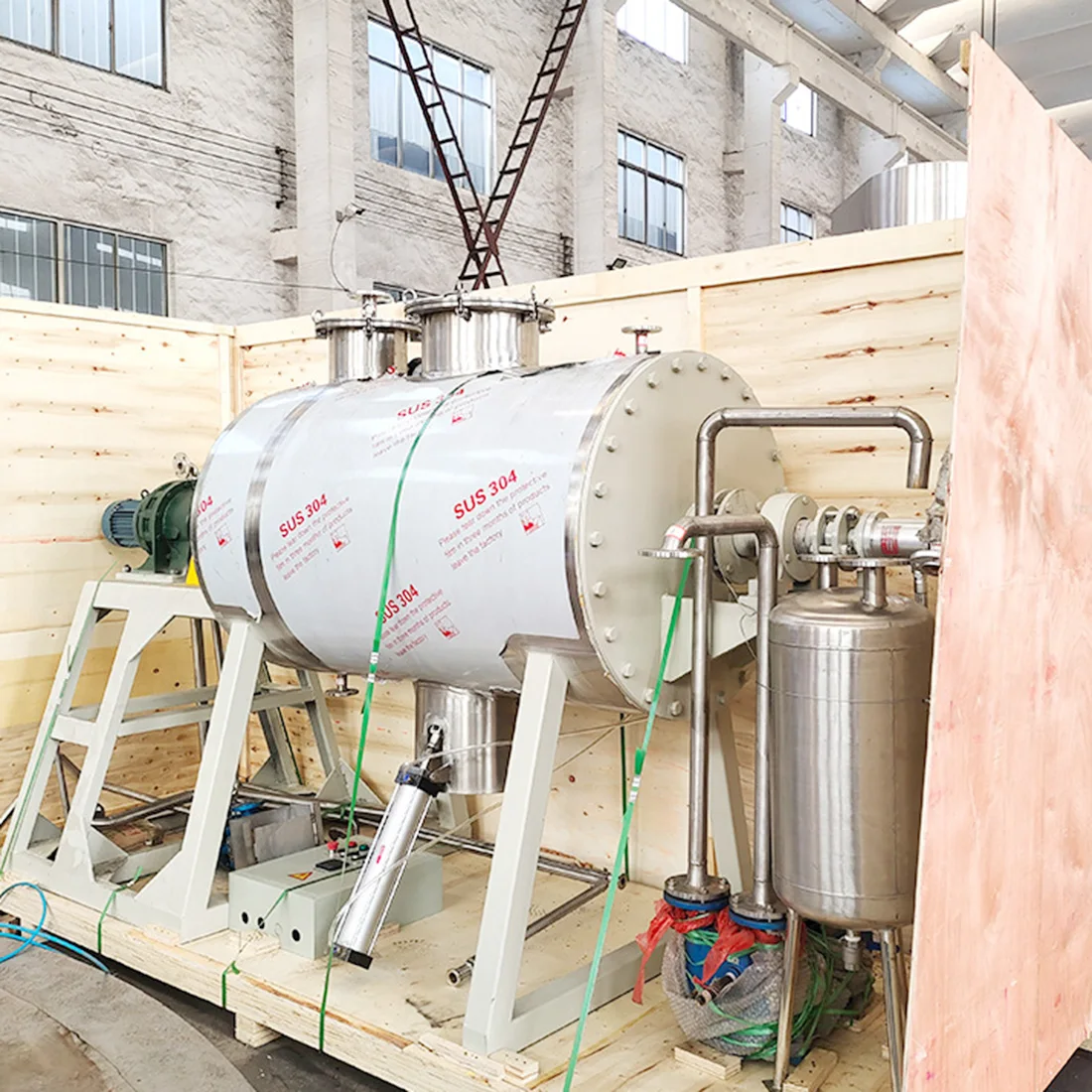

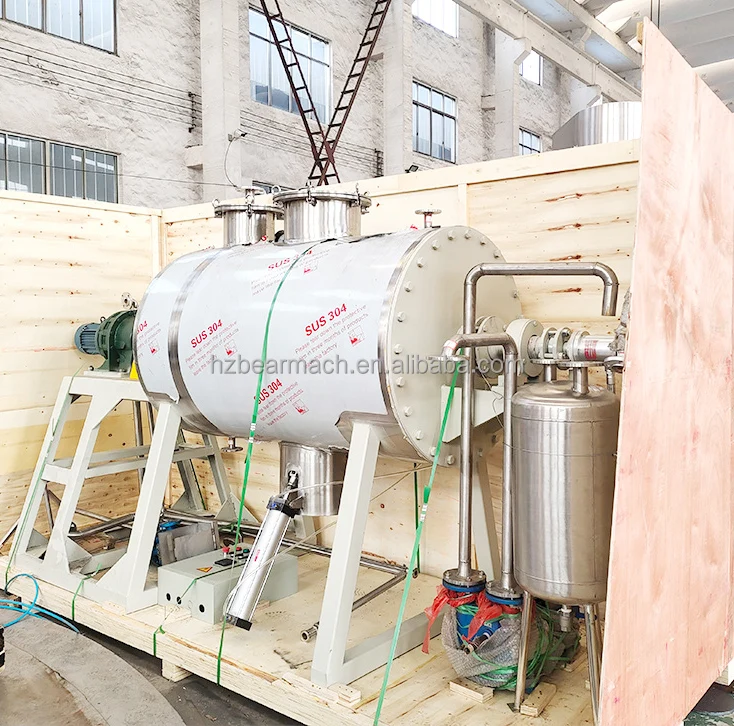

Packing&Shipping
1.We can load container at:qingdao,shanghai ,ningbo,tianjin,guangzhou etc.
2.We provide shipping method:Courier service,Air transport,Sea Transport
3.Can accept oder: Full container cargo load,Less container load
4.Our service:EXW,FOB,CIF,CNF,Door to Door etc.
5.We always choose the most economical and reliable shipping company to make sure you receive the goods in time.
