Product Overview
Description
Product Description

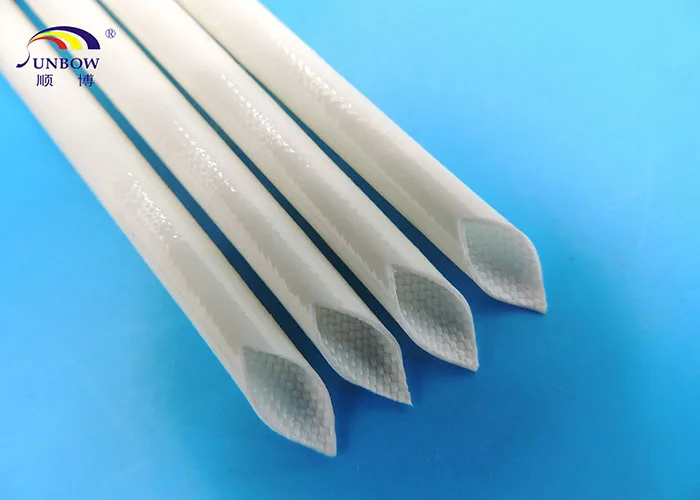

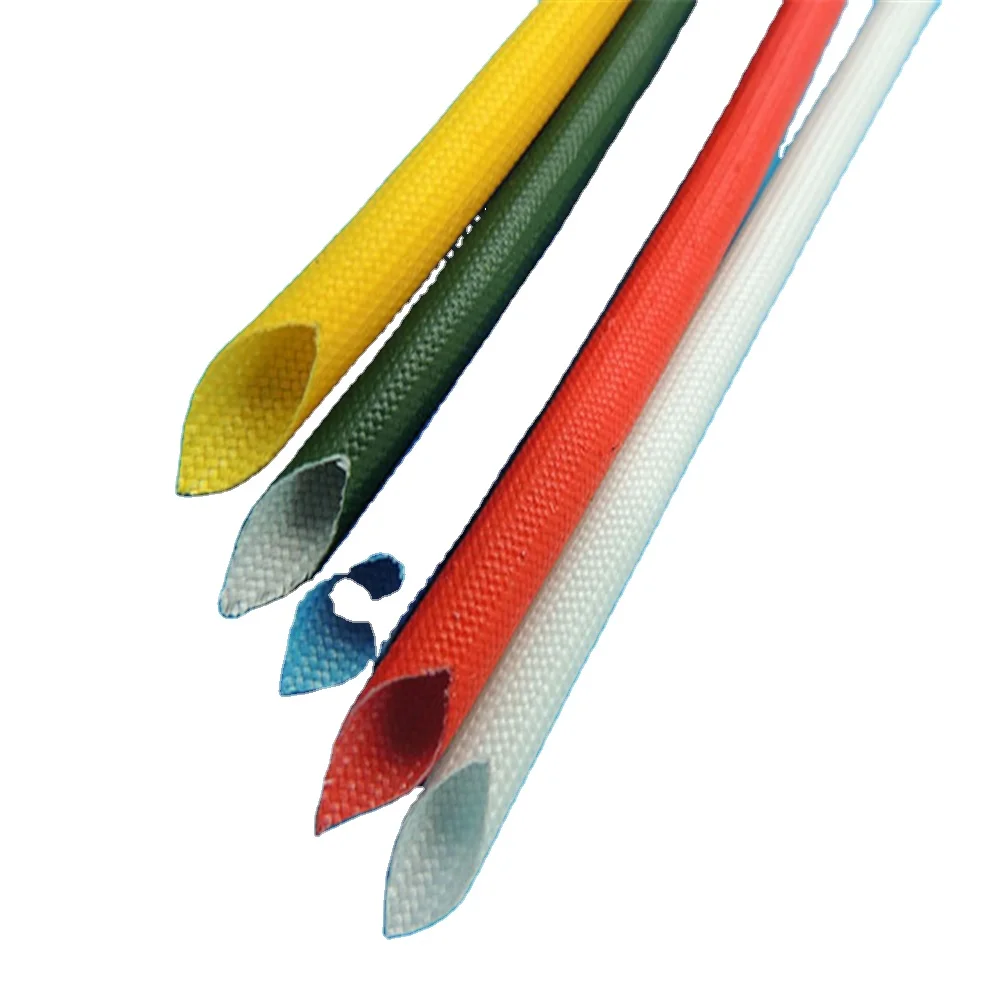

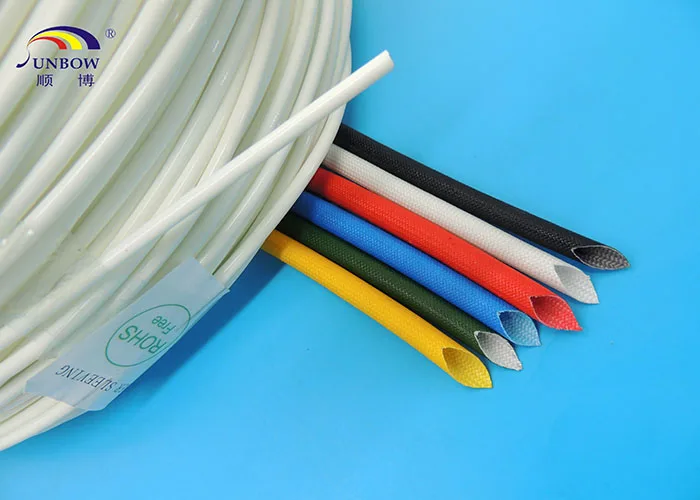

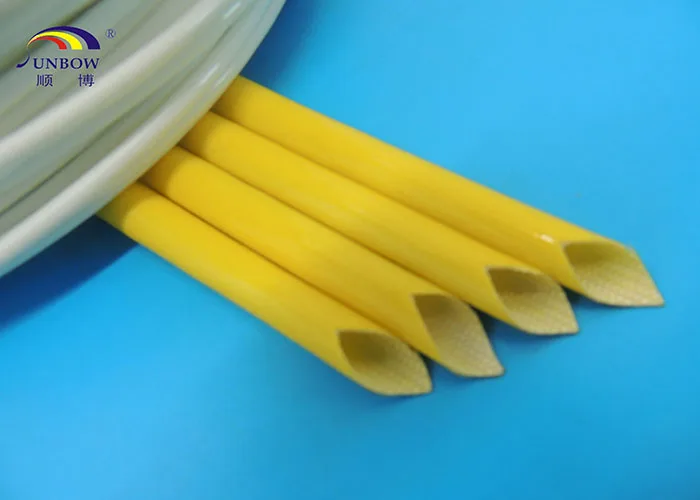

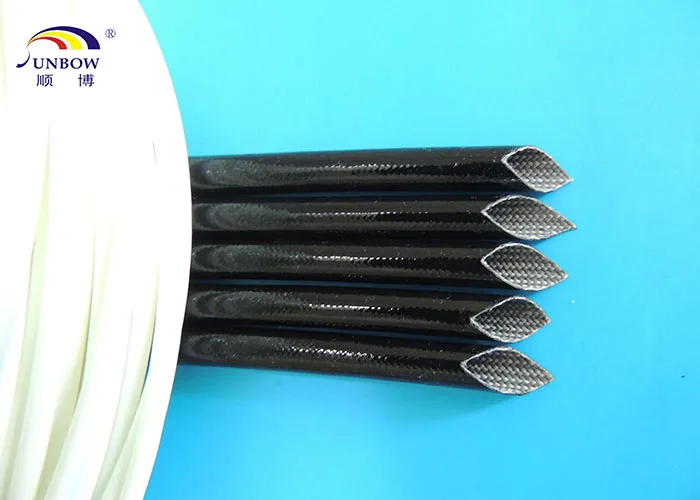

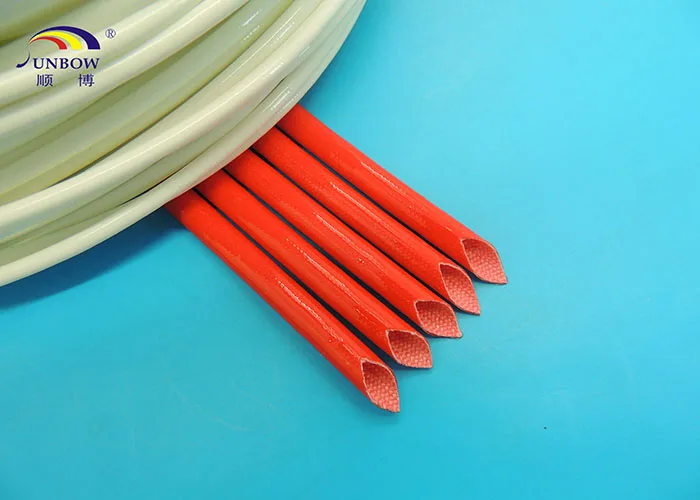

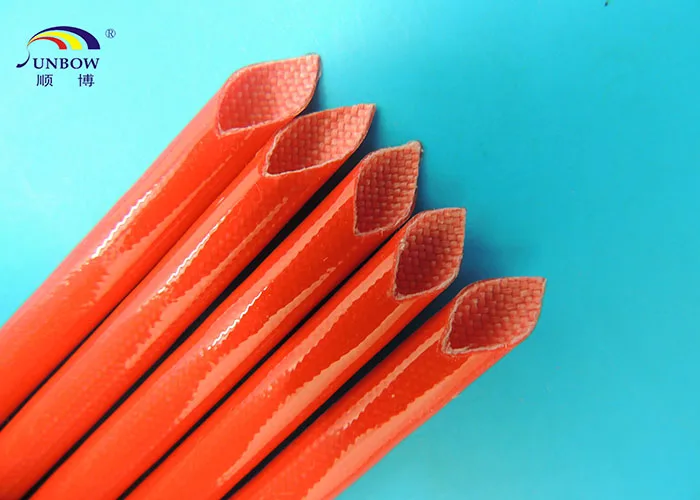

Fiberglass sleeving coated silicone resin
Model Number：SB-SGS-15
Working temperature: -60~200ºC
Structure
It is braided by non-alkali fiberglass, then coated with silicone resin and treated in high temperature.
Characteristics
Flammability: self-extinguishing, wear resistance, tear resistance, good
compatibility with same class impregnation varnishes, good mechanical resistance, very flexible.
compatibility with same class impregnation varnishes, good mechanical resistance, very flexible.
Specification
Item | Performance | Note | ||
Dielectric breakdown voltage KV AC | Minimum average | ≥1.5 | Before aged | |
Minimum single point | ≥1.0 | |||
Minimum average | ≥1.0 | 6 HRS* 245±5ºC 245±5ºC 6HRS AGING | ||
Minimum single point | ≥0.7 | |||
Thermal endurance | No indication of crack | OK | 6 HRS* 245±5ºC 245±5ºC 6HRS AGING | |
Fire resistance | VW-1 | OK | UL 1441 | |
Dimension
Inside diameter | Wall thickness (mm) | Standard package (m/roll) | |||
Nominal (mm) | Tolerance (mm) | ||||
φ0.5 | +0.2, -0.1 | ≥0.30 | 200 | ||
φ1.0 | +0.2, -0.1 | ≥0.30 | 200 | ||
φ1.5 | +0.2, -0.1 | ≥0.30 | 200 | ||
φ2.0 | +0.2, -0.1 | ≥0.30 | 100 | ||
φ2.5 | +0.3, -0.1 | ≥0.35 | 100 | ||
φ3.0 | +0.3, -0.1 | ≥0.35 | 100 | ||
φ3.5 | +0.3, -0.1 | ≥0.35 | 100 | ||
φ4.0 | +0.3, -0.1 | ≥0.35 | 100 | ||
φ4.5 | +0.3, -0.1 | ≥0.40 | 100 | ||
φ5.0 | +0.3, -0.1 | ≥0.40 | 100 | ||
φ6.0 | +0.3, -0.1 | ≥0.40 | 100 | ||
φ7.0 | +0.3, -0.1 | ≥0.45 | 50 | ||
φ8.0 | +0.3, -0.1 | ≥0.45 | 50 | ||
φ9.0 | +0.3, -0.1 | ≥0.55 | 50 | ||
φ10.0 | +0.3, -0.1 | ≥0.55 | 50 | ||
φ12.0 | +1.0, -1.0 | ≥0.55 | 50 | ||
φ14.0 | +1.0, -1.0 | ≥0.55 | 50 | ||
φ16.0 | +1.0, -1.0 | ≥0.55 | 50 | ||
φ18.0 | +1.0, -1.0 | ≥0.55 | 25 | ||
φ20.0 | +1.0, -1.0 | ≥0.65 | 25 | ||
φ25.0 | +1.0, -1.0 | ≥0.65 | 25 | ||
φ30.0 | +1.0, -1.0 | ≥0.65 | 25 | ||

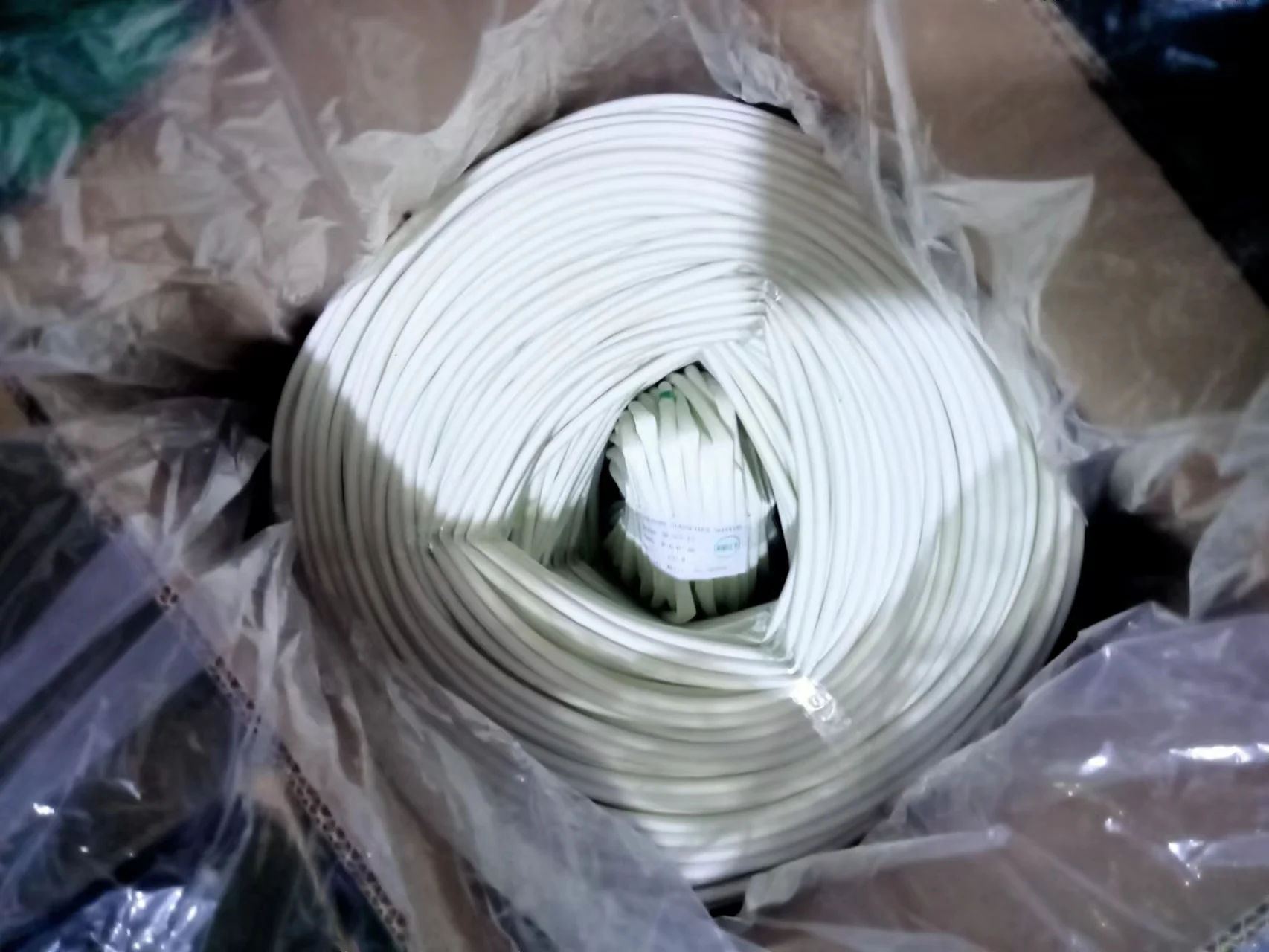

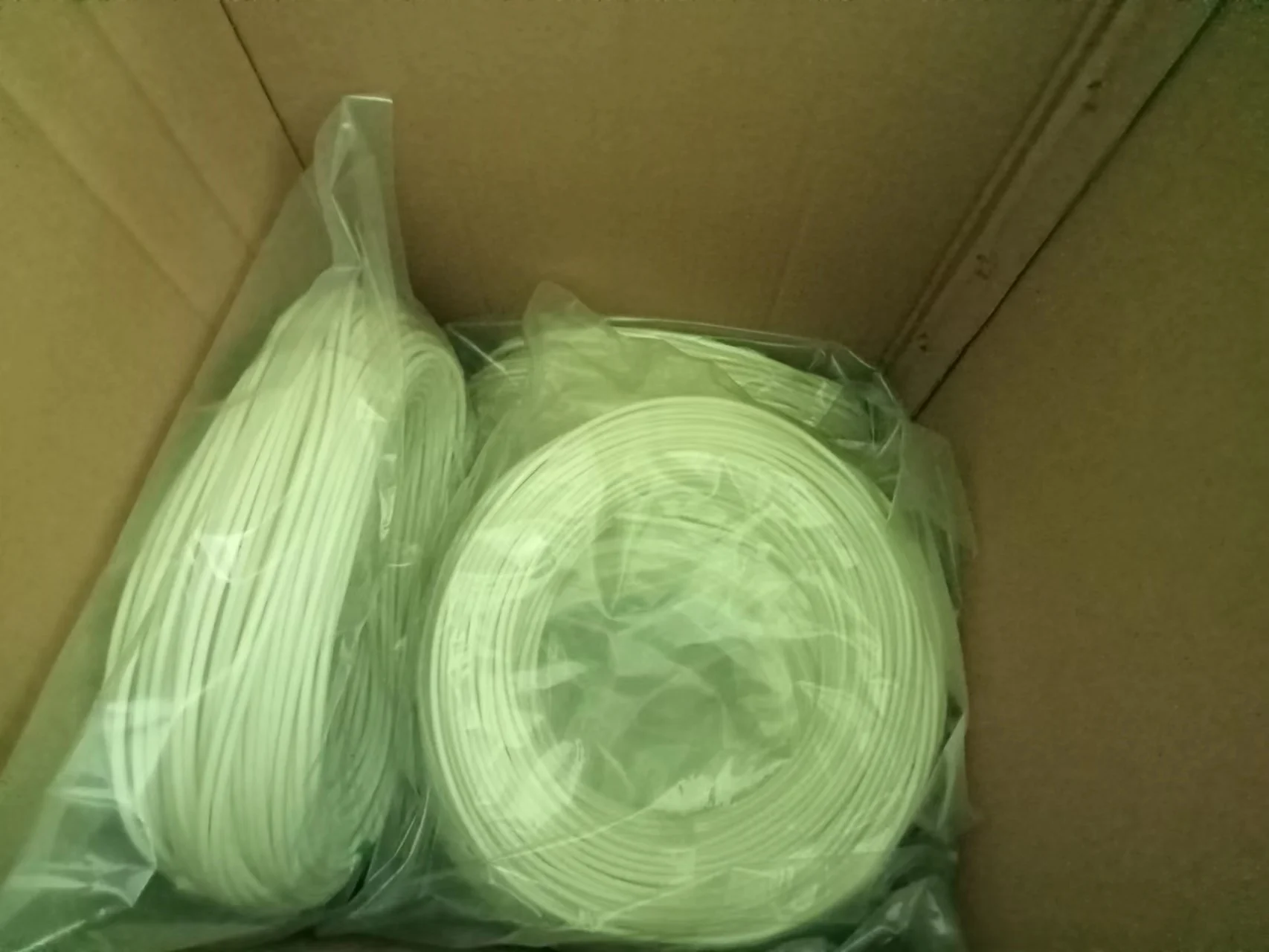

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
