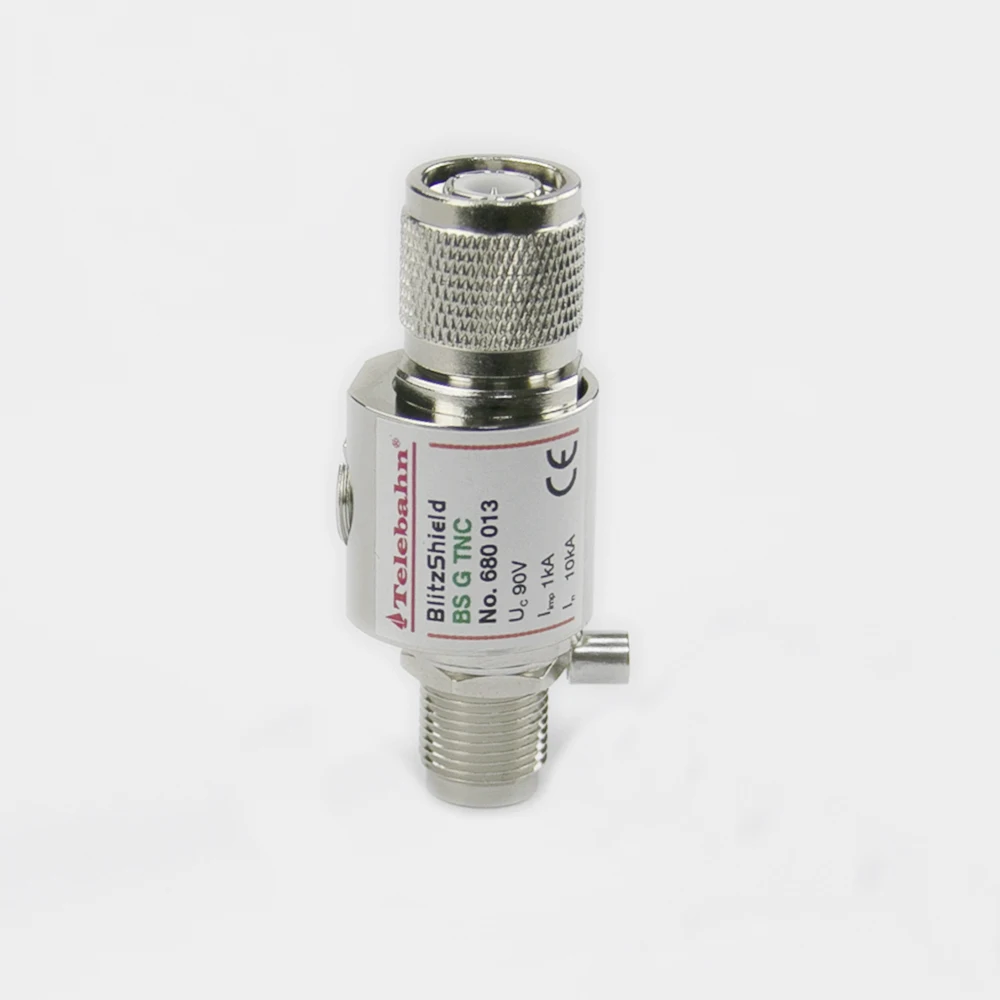

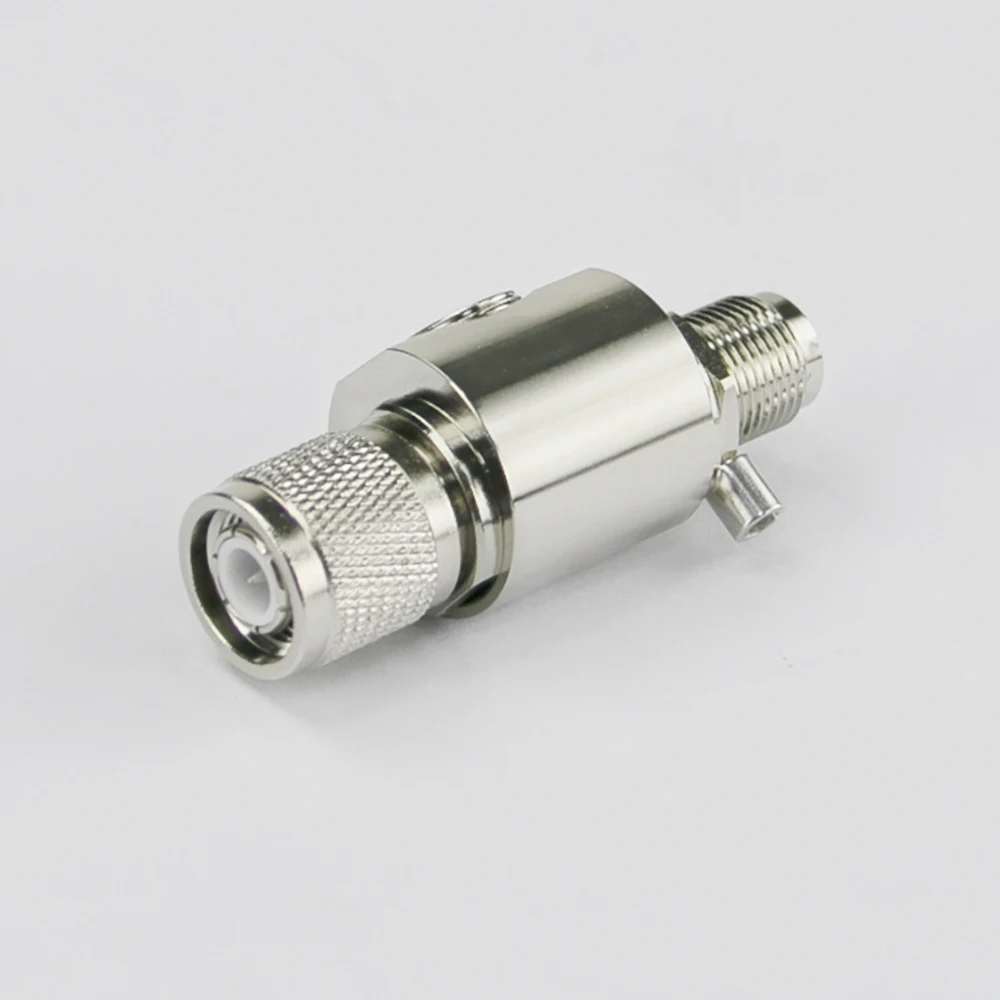

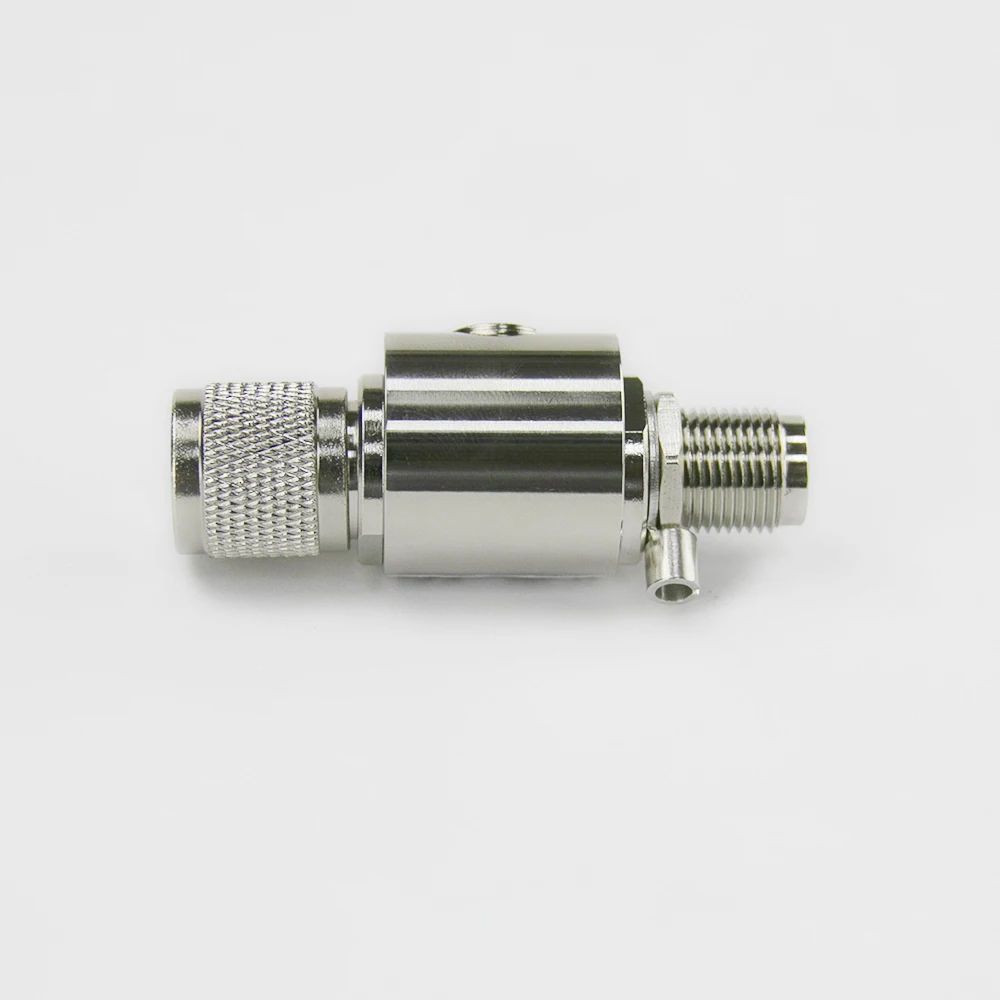

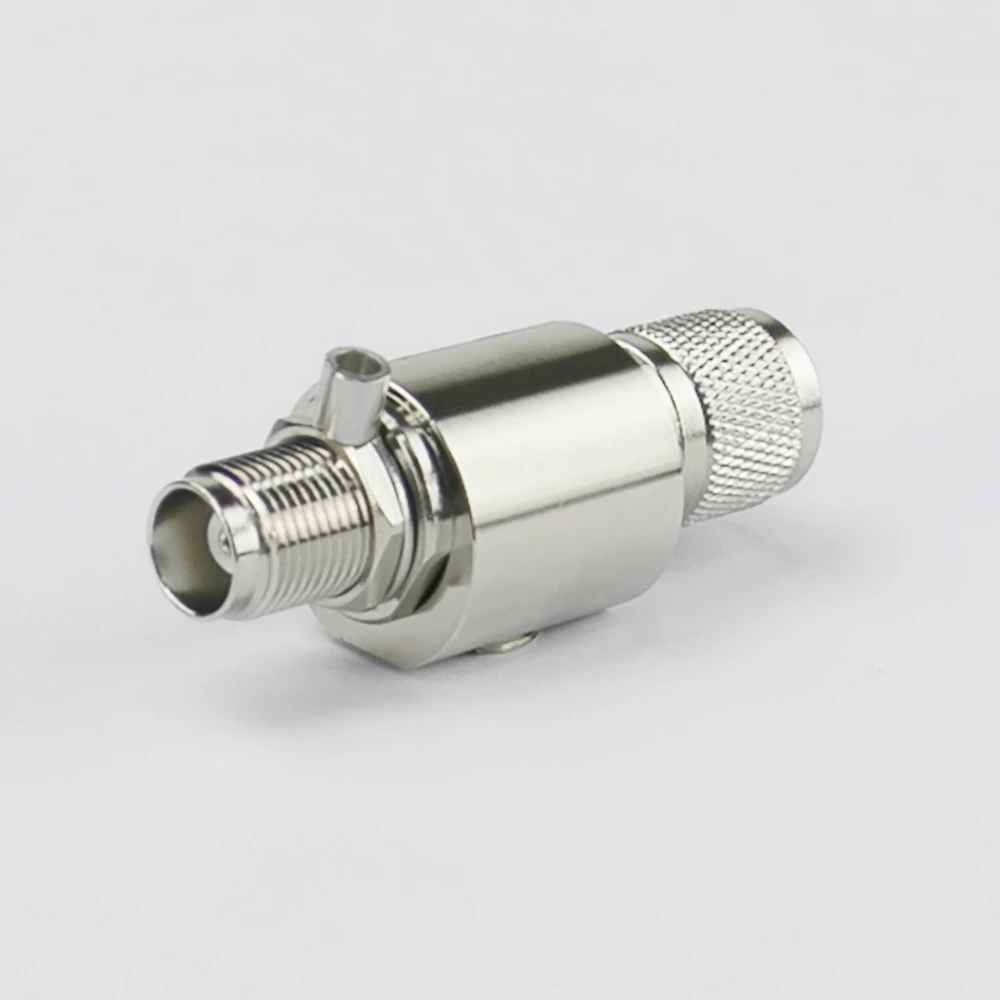

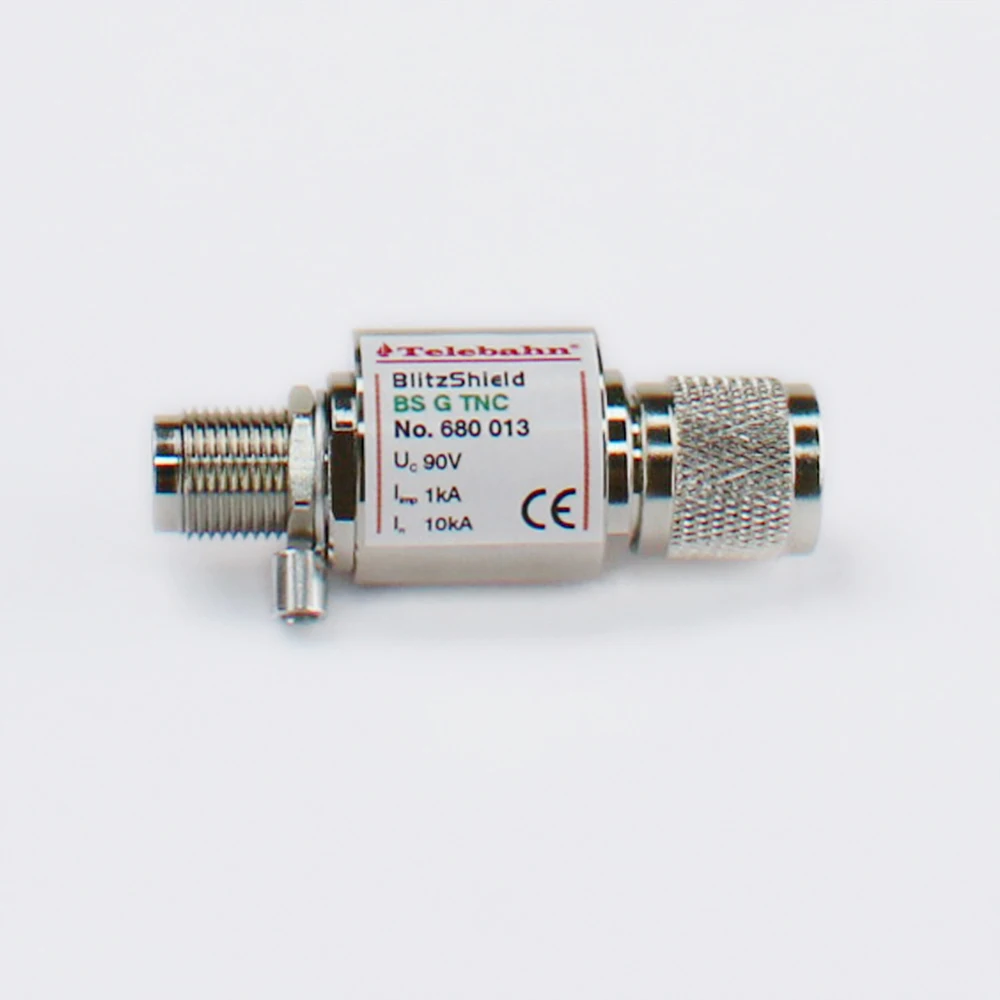

RF Antenna Feeder SPDs Surge Protector TNC Connector 0 3GHz 50Ohm 90V/250V for Coaxial Cable Thunder Lightning
- Category: >>>
- Supplier: Zhuhai Telehof Electrics Company Limited
Share on (1601001685260):
Product Overview
Description
Product Description
Summary
For installation at LPZ 0B-1 or higher, protecting 50Ohm coaxial cable system, applied in coaxial system, cell sites and antenna system. This product is designed in accordance with IEC 61643.21/EN 61643-21/GB 18802.21.
Hightlight Features
• With exchangeable integrated gas discharge tube.
• High discharge capacity, low voltage protection level.
• Wide frequency range, high performance transmission.
• Metallic housing TNC (M-F) connection, easy for installation.
Application
BS G TNC is applied in various feed system, and so on.
Application environment
• Temperature: -40°C ~ +80°C
• Relative humidity: ≤ 95% (25°C)
Technical data
Type | BS G TNC (M-F) (Replacement gas discharge tube) |
Rated voltage (max. continuous d.c. voltage) [Uc] | 90V / 250V |
Nominal current [ IL ] | 3.5A |
Lightning impulse current (10/350) [ Iimp ] | 1kA |
Nominal discharge current (8/20) [ In ] | 10kA |
Max. nominal discharge current (8/20) [ Imax ] | 20kA |
Voltage protection level at In [ Up ] | ≤ 700V |
Transmission frequency [ fG ] | 0-3GHz |
Max. output power [ P ] | 500W |
Insertion loss [ aE ] | ≤ 0.2dB |
Return loss [ aR ] | ≥ 18dB |
Characteristic impedance [ Z ] | 50Ohm |
Connection input/output | TNC (M-F) socket/plug |
Operating temperature range [ Tu ] | |
Earthing via | Outgoing connecting port |

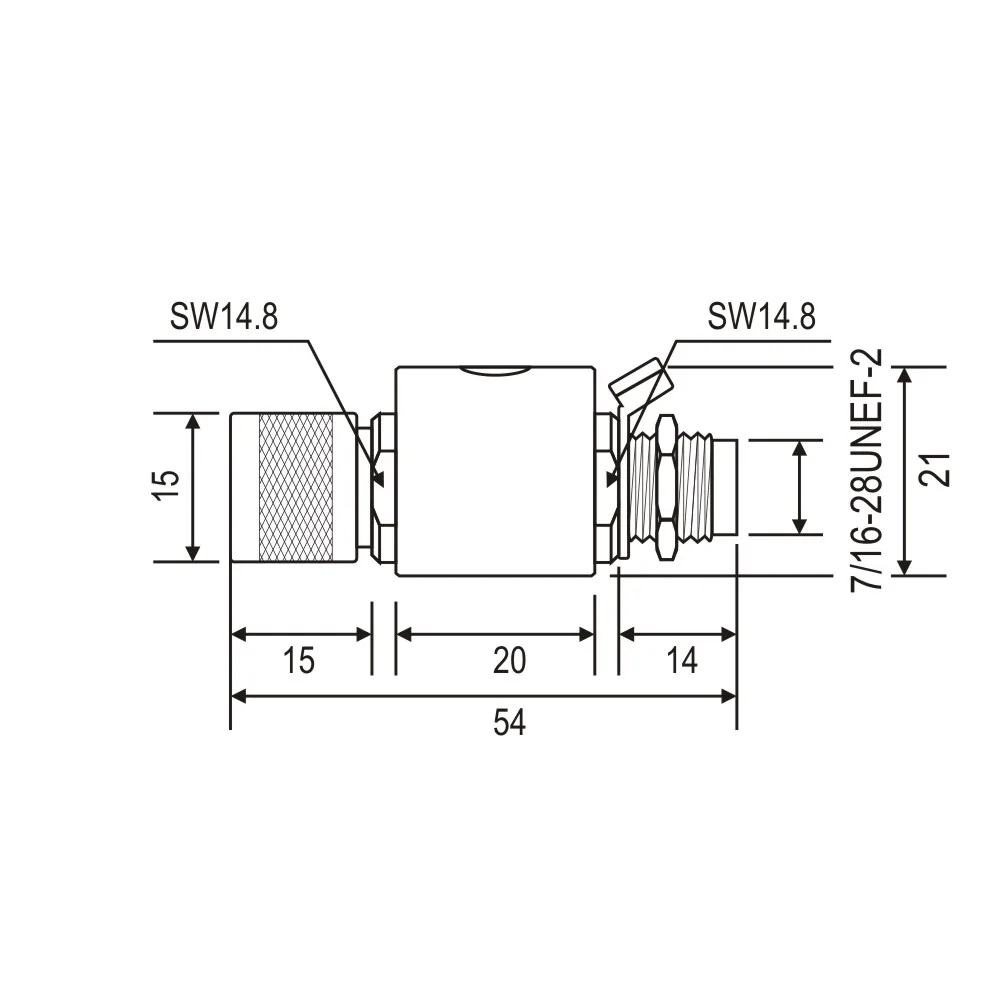

Dimension | Ø20 x 54 (mm) |
Test standards | IEC 61643-21; EN 61643-21; GB 18802.21 |
Certification | CE (LVD/EMC), Rohs |
Ordering information | |
Type | BS G TNC |
Art.-No. | 680 013 |
Packing unit | 1pc(s) |

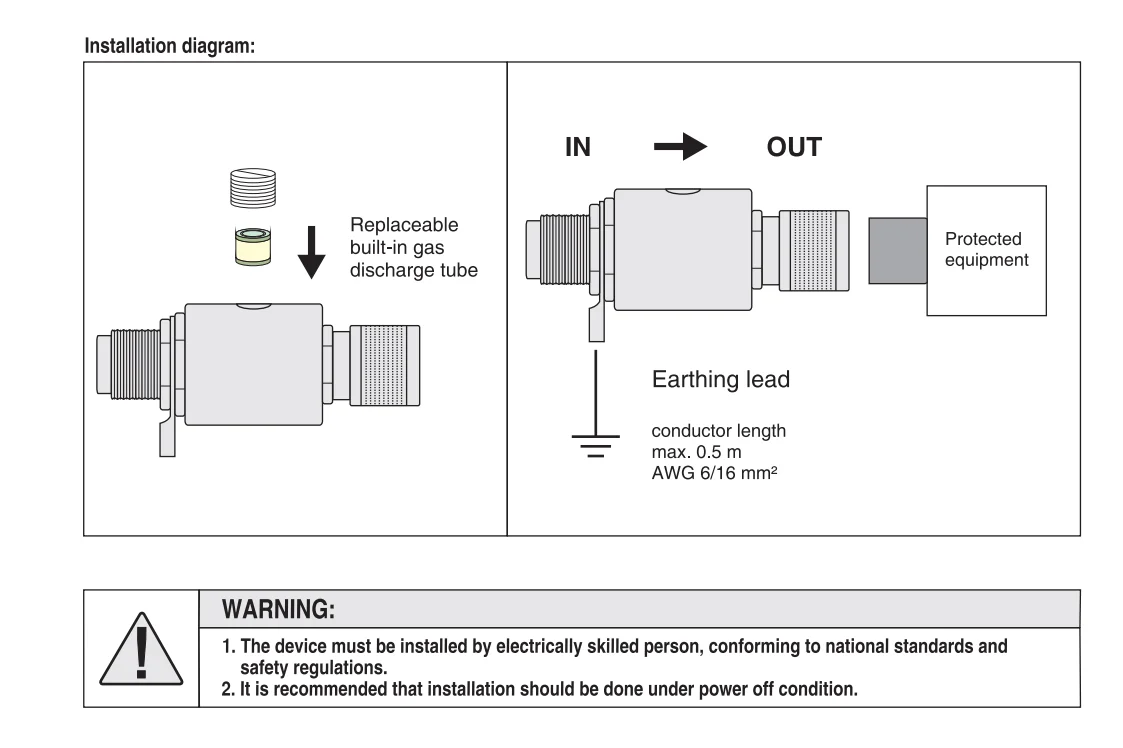

Installation Diagram
