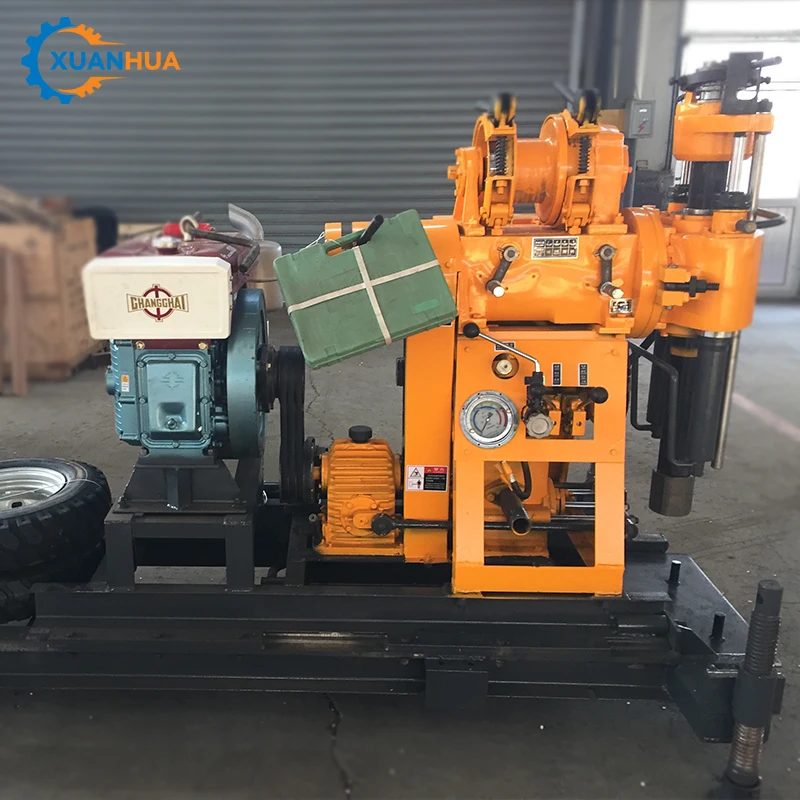

Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine
Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine

Professional 200m Depth Core Drilling Machine Mining Rotary Diesel Drill Well Water Borehole Drilling Machine

Share on (1601001689449):


Price:$8,750.00 - $8,770.00

Quantity:


Product Overview

Description





Product Description

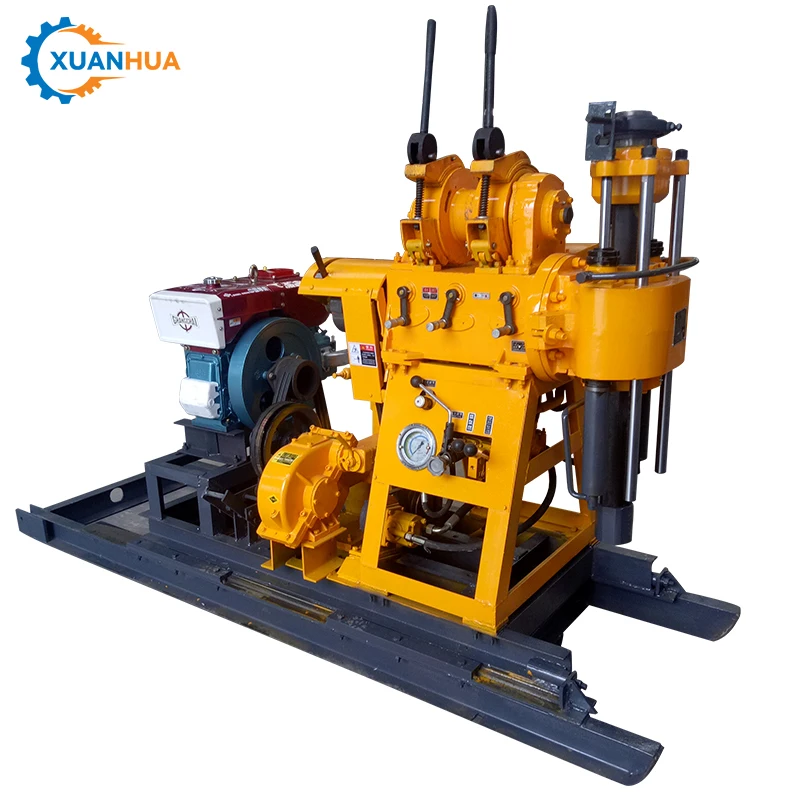

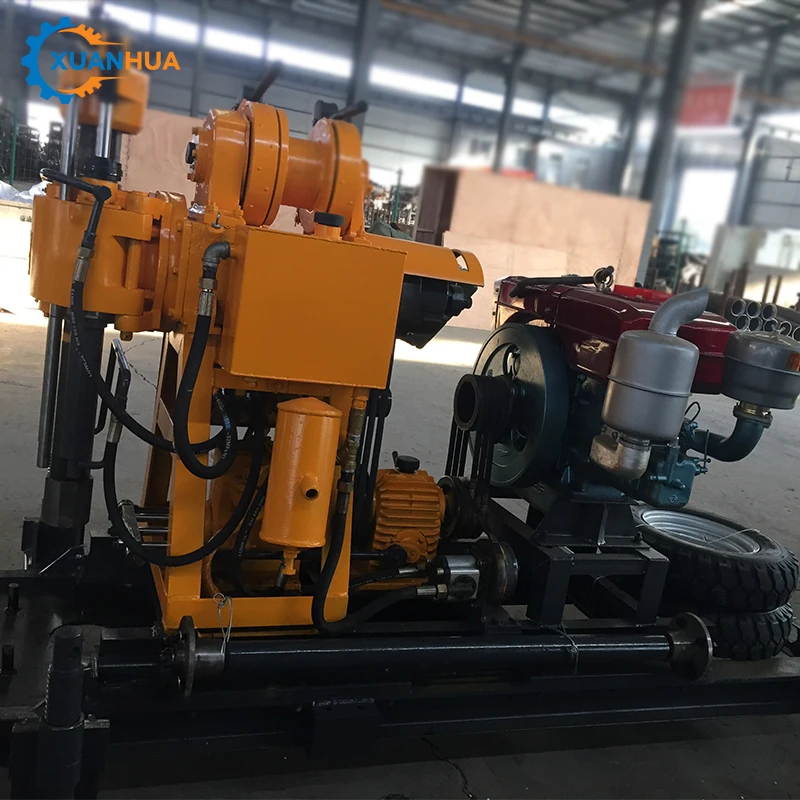

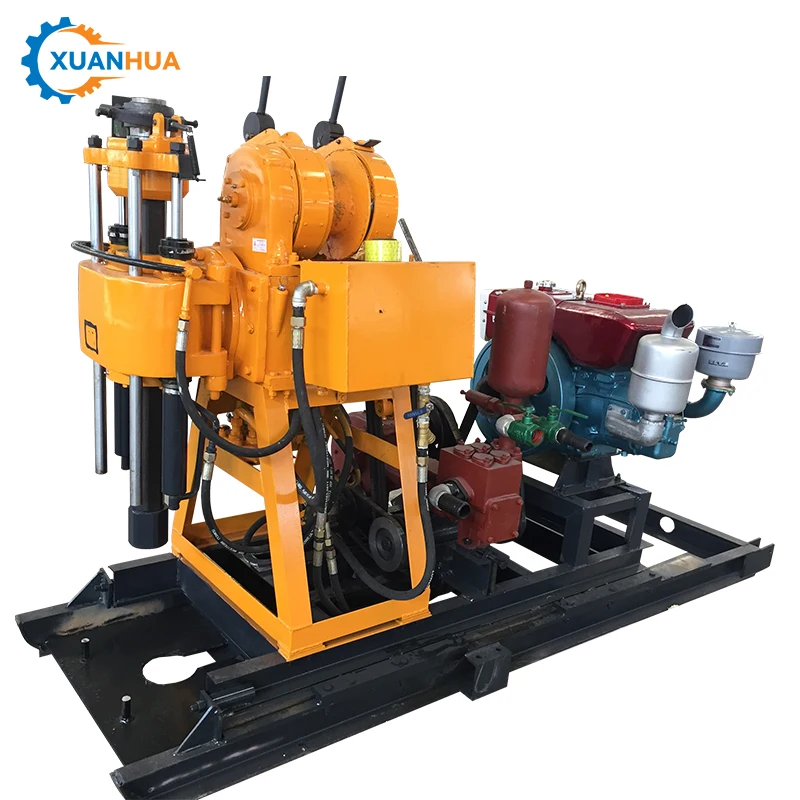

YCS series hydraulic drilling rig is a light weight drilling rig.The product is widely used for general geoligical exploration of railway, road, bridge,dam and tall building base,geological core drilling, small grouting holes, blasting holes,civil wells and earth central air conditioning wells, etc.




Main technical parameters



ITEM
YCS-130
YSC-180
YCS-200
Drilling Depth (m)
130
180
200
Drilling Diameter(mm)
75-220
75-220
75-325
Drill Angle(°)
90-75
90-75
90-75
Matching Power(kw)
13.2
13.2
15
Weight Without Power(kg)
600/740
620/750
880/970
Dimension(m)
2.4*0.8*1.4
2.4*0.8.1.3
2.7*0.9*1.5
Speed(r/min)
142/285/570
130/300/480/730/830/104
60/128/287/557
Stroke(mm)
450
450
450
Max pull force(kg)
2000
2100
2500
Pull Speed(m/s)
0.41-1.64
0.5-2.23
0.12-0.95
Rope Diameter(mm)
9.3
9.3
12.5
Roll Capacity(m)
27
27
35
Drill Mast Rated Load(ton)
18
18
18
Drill Mast Height(m)
6.5
6.5
6.5


CONSTRUCTION CASS

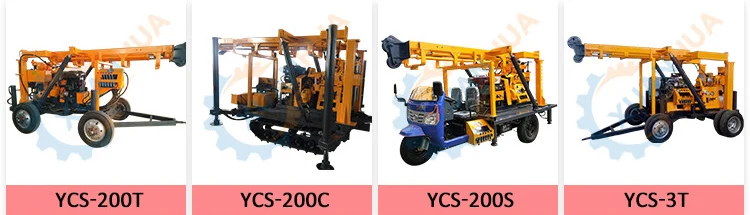

For the rotary drilling rigs, we have the models can drill from 50-600 meters depth, both have the wheel mounted model, trailer mounted model, crawler mounted model etc, low weight and easy to move around, suitable for farm, household, school and small areas drilling.






Product Show

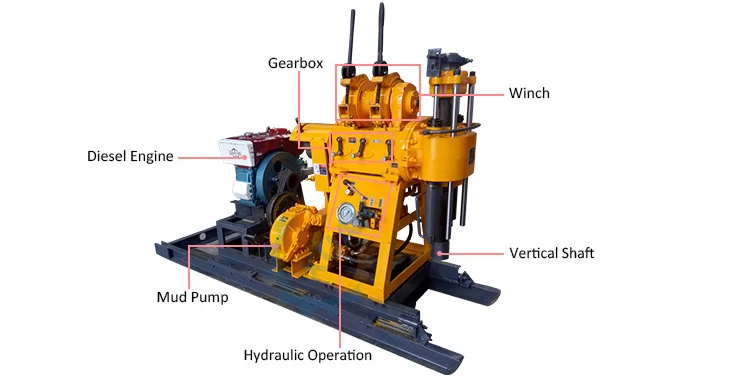

Product Detail


PRODUCT ADVANTAGES
According to your local market needs and budget, we can design the right machine for you.


Easy to use
Easy to operate and easy to carry, with modular operation design and hydraulic system
Hydraulic Chuck
With hydraulic chuck,easy to load and unload the drilling rods,save time for customers.


Fast Cost Recovery
Good choice to the new investment,small cost with big profits.Very suitable to new business,private company,personal investment etc.
Lightweight Design
Light weight,easy to move around,different chassies for your choice:wheels mounted,trailer mounted,crawler mounted,tricycle mounted and truck mounted
