1080P FHD monocular thermal imager night vision infrared thermal camera
- Category: >>>
- Supplier: Jinan Hope-Wish Photoelectronic Technology Co. Ltd.
Share on (1601001707200):
Product Overview
Description
Product Description
Overview：

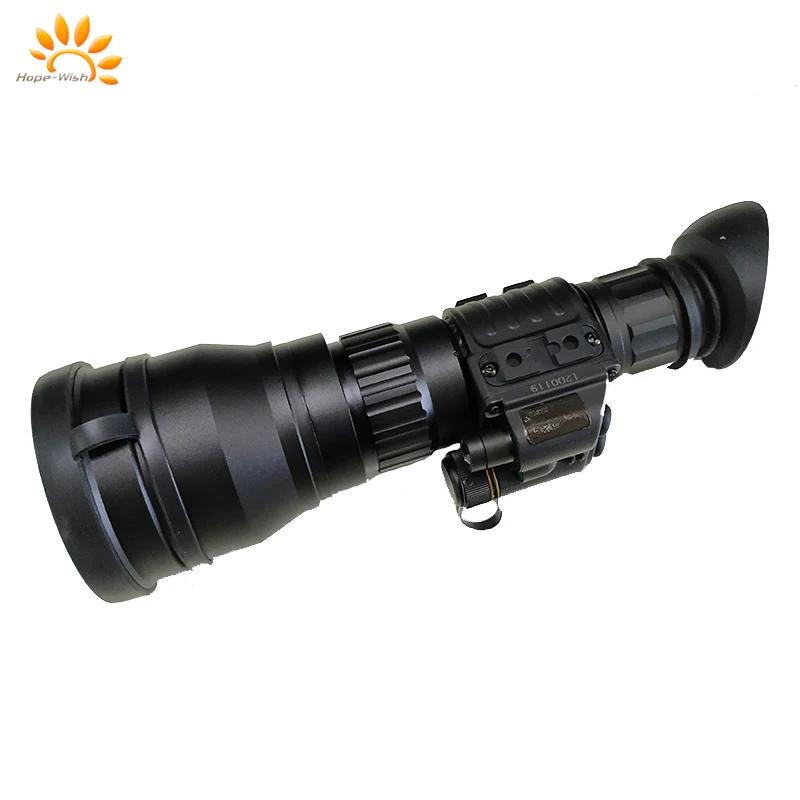

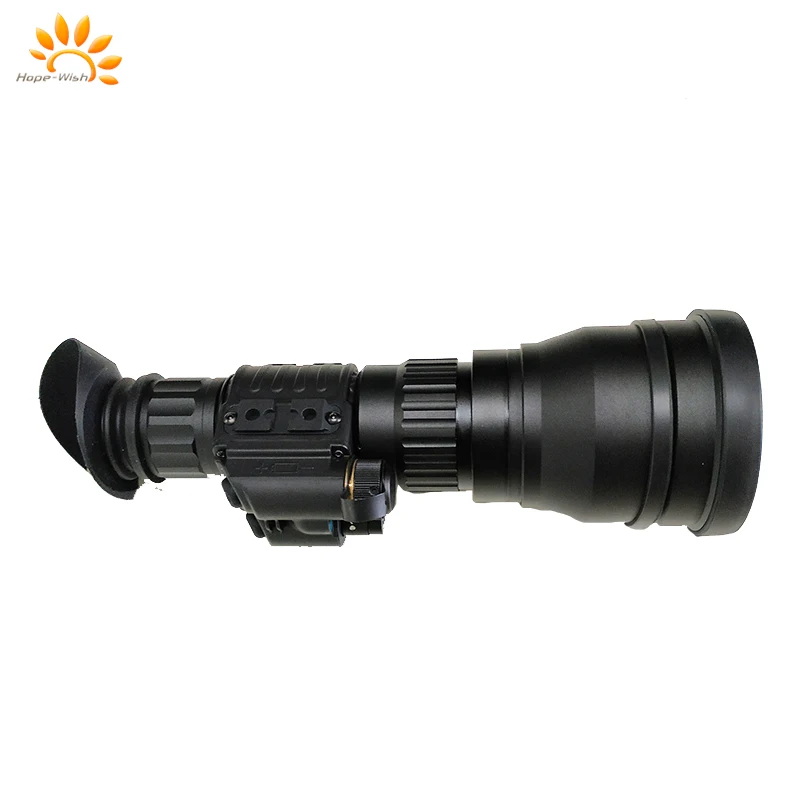

HP-DM3016 is very popular grade multifunctional night vision products in the market. High magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation image intensifier tube according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device.
Key Benefits:
1.The night vision device can be equipped with 2nd generation + or quasi-3rd generation image intensifier
2.The perfect combination of ruggedness and fine workmanship

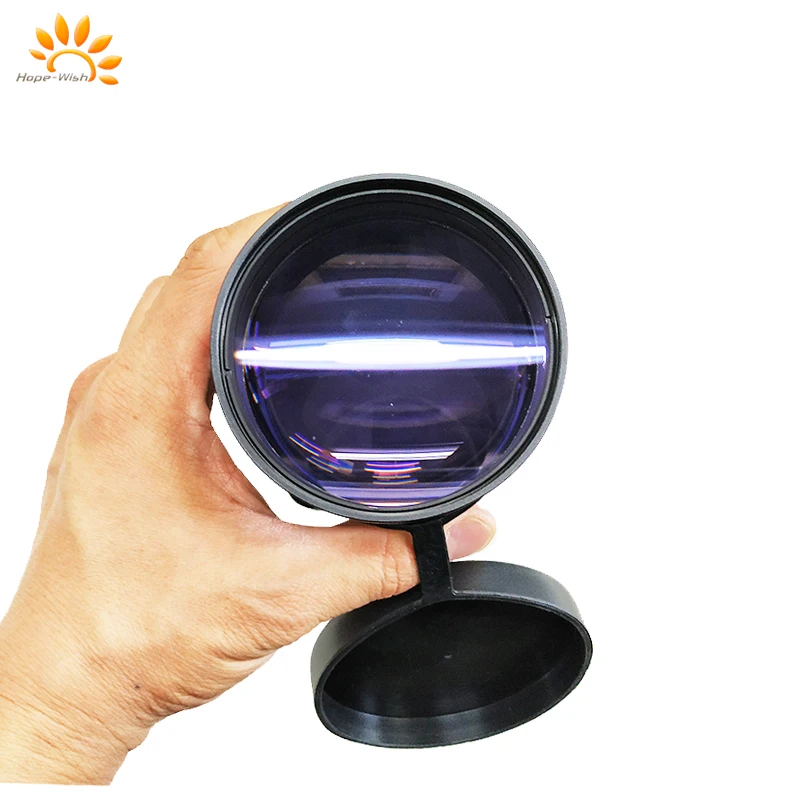

3.Multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain better observation effect
4.A separate infrared enhancer can be selected to enhance the effect of night use and expand the scope of application
5.The battery cover spring is embedded: it can better contact with the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover
Application:
This product has strong practicability and can be used for night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both and civilian use.
HP-DM3016 is very popular grade multifunctional night vision products in the market. High magnification - long viewing distance, large objective lens - strong light transmission, can be equipped with 2nd generation + or quasi-3rd generation image intensifier tube according to customer needs. As a multifunctional monocular night vision device, it can be connected to mobile phones, cameras, etc. for night shooting and functional accessories. The diversity of optional accessories greatly expands the scope of use of this night vision device.
Key Benefits:
1.The night vision device can be equipped with 2nd generation + or quasi-3rd generation image intensifier
2.The perfect combination of ruggedness and fine workmanship
3.Multi-layer coating standard: ultra-broadband multi-layer anti-reflection coating can suppress the broadband reflection of the glass surface of the lens, reduce light loss, and allow more light to pass through the lens to obtain better observation effect
4.A separate infrared enhancer can be selected to enhance the effect of night use and expand the scope of application
5.The battery cover spring is embedded: it can better contact with the battery and the spring is not easy to be damaged, and it is easier to twist the battery cover
Application:
This product has strong practicability and can be used for night fishing, forest fire prevention, power line inspection, home security, public security night patrol, investigation and evidence collection, frontier anti-smuggling, etc. It is an ideal device for both and civilian use.
Product Paramenters
Model | HP-DM3016 |
IIT | Gen3 |
Resolution (lp/mm) | 57-64 |
Photocathode type | GaAs |
S/N (dB) | 21-24 |
Luminous sensitivity (μА/lm) | 1500-1800 |
MTTF (hrs) | 10,000 |
Magnification | 6x |
FOV (deg) | 40 |
Detection distance (m) | 250-280 |
Diopter (deg) | +5/-5 |
Lens system | F1.2, 25.8mm |
Range of focus (m) | 0.25--∞ |
Dimensions (mm) | 275X85X83 |
Weight (g) | 1047 |
Power supply (v) | 2.0-4.2V |
Battery type (v) | 1 3V CR123A lithium battery |
Battery life (hrs) | 80(w/o IR) 40(w IR) |
Operating temperature(℃) | -40/+60 |
Environmental rating | IP67 |
Warranty period | 2year |
Environmental rating | IP67 |
