US double eye swivel anchor the swivel Ring

Product Overview

Description

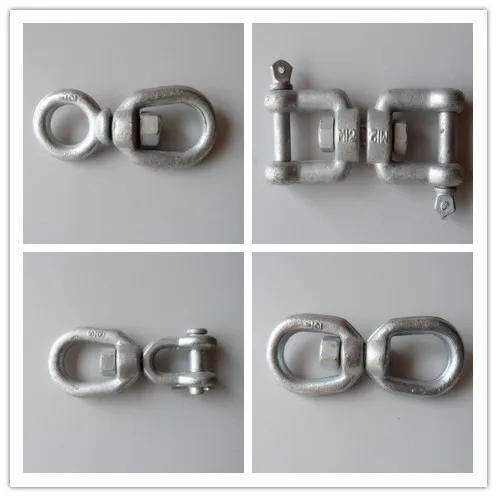

US double eye swivel anchor the swivel ring



2,PRODUCT DESCRIPTION





Heat treated	Drop forged, tempered and quenched.
Material	Carbon Steel, Alloy steel, Stainless steel.
Standard	EUROPEAN TYPE,JIS TYPE,US. TYPE,DIN TYPE.
Size	Various or according to customer's design.
Surface	Heat treatment, Polishing, shot blasting, Painting, Electro plating, Chemical Plating.
Delivery	Samples are sent by express. Large quantity products delivered to customer by sea or according to your request.
Terms of payment	T/T or L/C

Size	DIMENSIONS(in)							W.L.L	Weight
(in)	B	C	K	M	N	P	R	(lbs)	(lbs)
1/4	0.69	0.75	0.47	0.31	0.88	0.25	2.63	850	0.21
5/16	0.81	1	0.5	0.38	0.88	0.31	2.94	1,250	0.34
3/8	0.94	1.25	0.63	0.5	1.06	0.38	3.63	2,250	0.66
1/2	1.31	1.5	0.75	0.63	1.31	0.5	4.5	3,600	1.34
5/8	1.56	1.75	0.94	0.75	1.5	0.63	5.31	5,200	2.48
3/4	1.75	2	1.13	0.88	1.75	0.75	6.06	7,200	3.88
7/8	2.06	2.25	1.19	1	2.06	0.88	7	10,000	5.87
1	2.31	2.5	1.75	1.13	2.81	1.13	8.56	12,500	9.84
1 1/4	2.69	3.13	2.06	1.5	2.81	1.38	9.44	18,000	15.75
1 1/2	4.19	4	2.88	2.25	4.44	2.25	14.74	45,200	54.75







4,PACKING AND TRANSPORATION





All available shipping ways could be applied, by express, air or sea. Your shipping company or our own forwarders all could be used. Full-way tracking the cargos for you before the goods arrive.





 Qingdao YING JUNDA Machinery Co., Ltd



1. Leading hot forging products manufacturer with 35years of export experience.



2. Fast prompt delivery guaranteed.



3. Good quality of steel.



4. Advanced production technology, good staff management.



5. Competitive price.



6. Excellent after-sales service.



7. Having all size.











Factory:



We are excellent hardware product processing enterprise.Focus on Hardware Producing over 35 years,and exporting over 20 years, supplying high quality hardware products to customers.







Our advantages:



1. First-class equipment, good quality control, advanced technology.



2. 35 years of rich experience in production and trade.



3. Our production have gained the ISO9001,CE,BV certificates etc. Our production had been comprehensive around the world and they are being exported and they are being exported to Canada, USA, Korea, Germany, India, Dubai and many other countries.



4,So far, the company built the largest scale manufacturing base for rigging hardware in Qingdao, China.



YING JUNDA factory covers an area of 18000 square meters and occupies the most advanced testing equipments and quality-control system. There are about 300 working people and 3 production lines, which can meet bulk orders requirements and can make sure fast delivery time.







Products:



Forged Eyebolt/Eyenut,Links,Shackle,Thimbles, Wire rope clip,Turnbuckle,Load binder,Snap hook/Quick link/Hitch pin clip/Eyebolt/S hook/U hook/Stainless steel products, Rigging hardware,Forged hooks,Link hooks,Wire rope&Accessories,Anchor/Anchor chain&Accessories,Pulleys&Blocks
