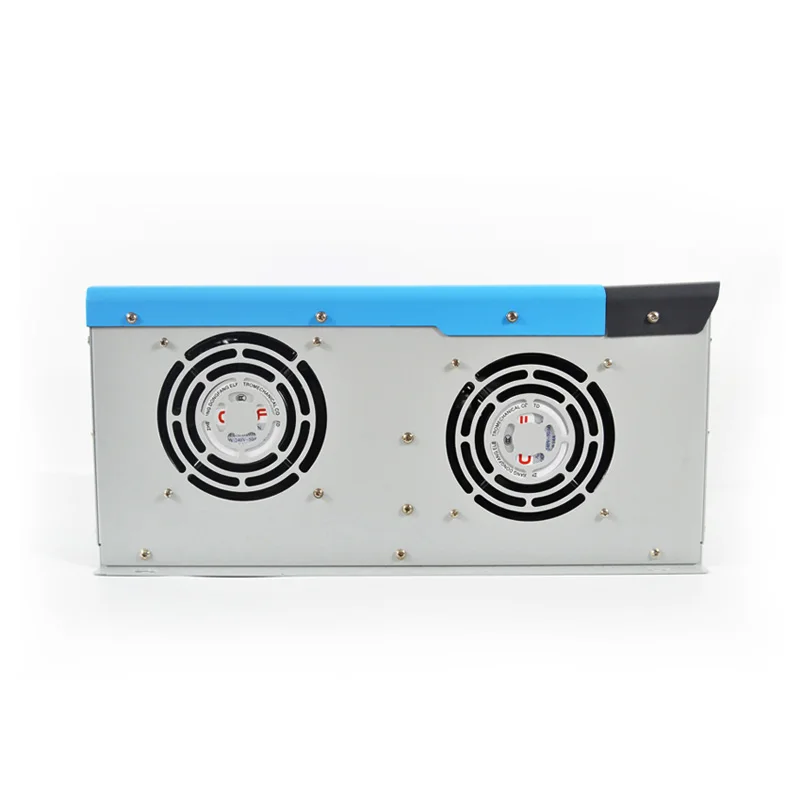

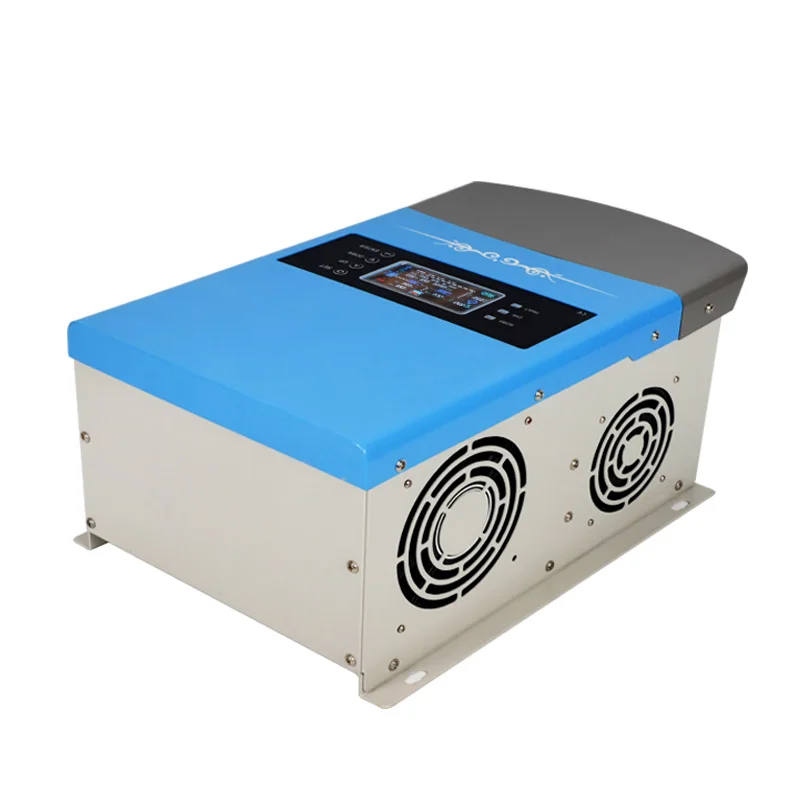

Offgrid 24V 48V 1.5Kw 2Kw 3Kw 4Kw 5Kw 6Kw 1.5 2 3 4 5 6 Kw Low Frequency Mppt Off Grid Hybrid Power Solar Inverter
- Category: >>>
- Supplier: Hefei Jingchi New Energy Co. Ltd.
Share on (1601001746776):
Product Overview
Description
Product Details
1. Support multiple battery types
2. With an ultra wide operating voltage range for photovoltaic arrays.
3. MPPT technology , the tracking efficiency is not less than 99.5%.
4. high quality imported components, the maximum conversion efficiency > 98%, full load efficiency > 97%
5. three-stage charging mode
6. Pure sine wave ac output.
2. With an ultra wide operating voltage range for photovoltaic arrays.
3. MPPT technology , the tracking efficiency is not less than 99.5%.
4. high quality imported components, the maximum conversion efficiency > 98%, full load efficiency > 97%
5. three-stage charging mode
6. Pure sine wave ac output.

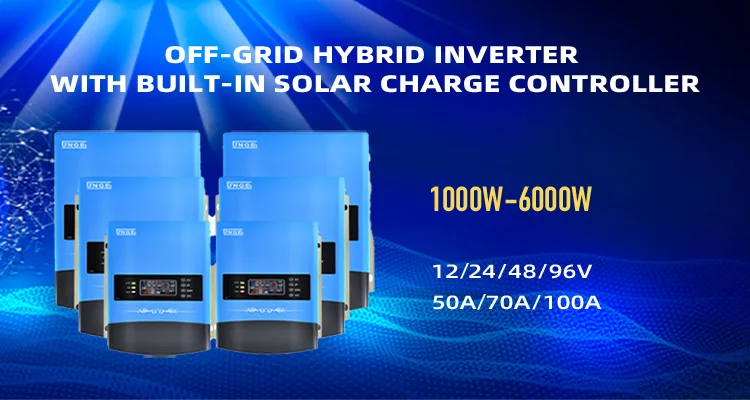

Name | Off-grid hybrid inverter with built-in solar charge controller | |||||||||||||||
Model | JN -FI1000/S50 -* | JN -FI1500/S50 -* | JN -FI2000/S50 -* | JN -FI3000/S70 -* | JN -FI4000/S100 -* | JN -FI5000/S100 -* | JN -FI6000/S100 -* | / | ||||||||
Rated Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | |||||||||
Output peak power | 600W (<1s) | 1000W (<1s) | 2000W (<1s) | 3000W (<1s) | 4000W (<1s) | 6000W (<1s) | 00W (<1s) | |||||||||
Battery voltage | 12/24/48 VDC | 24/48/96 VDC | 24/48/96 VDC | |||||||||||||
Controller Max charging current | 50A | 50A | 50A | 70A | 100A | 100A | 100A | |||||||||
Controller input power of PV | 600W/1200W/2400W | 1680W/3360W | 2400W/4800W/9600W | 840W/1680W/3360W | 1920W/3840W/7680W | |||||||||||
Open-circuit voltage range | 20V~100V (12V System) 40V~145V (24V System) 80V~145V (48V System | |||||||||||||||
MPPT efficiency | ﹥99.5% | |||||||||||||||
Charging mode | Three stages: constant current (fast charge), constant voltage, floating charge | |||||||||||||||
Battery type | Lead acid batteries, gel batteries, lithium iron phosphate, lithium ternary, custom | |||||||||||||||

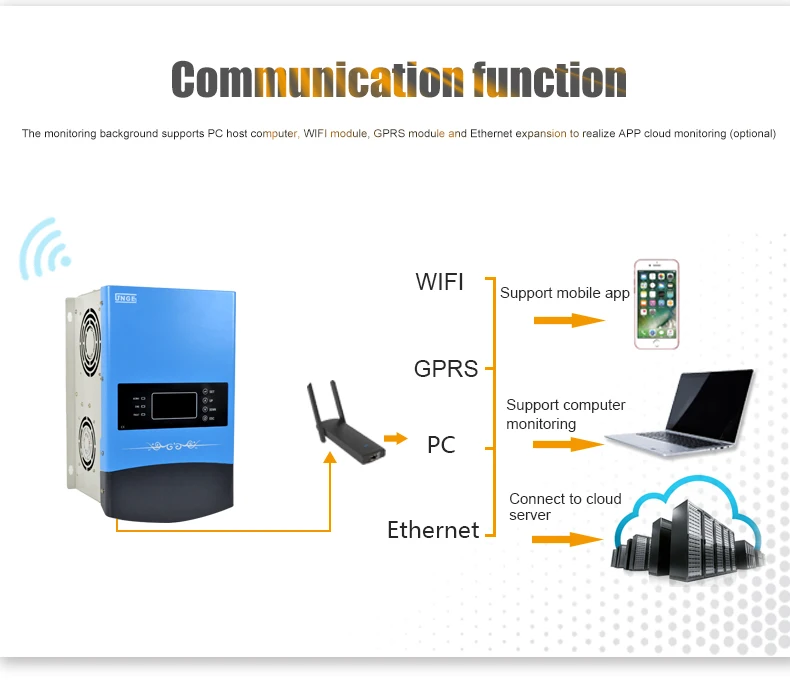

Communication mode | RS485, supports upper computer monitoring and WIFI/GPRS module expansion to realize app cloud monitoring | |||||||||||||||
frequency | 50HZ OR 60HZ （5% up and down） | |||||||||||||||
waveform | pure sine wave | |||||||||||||||
waveform distortion | THD<3% (linear load) | |||||||||||||||
maximum efficiency | >92% | |||||||||||||||
switching time | less than 10ms | |||||||||||||||
LED display | show working status ,error status | |||||||||||||||
working environment Temperature | -20 --+70 centigrade | |||||||||||||||
storage environment Temperature | -30 --+75 centigrade | |||||||||||||||

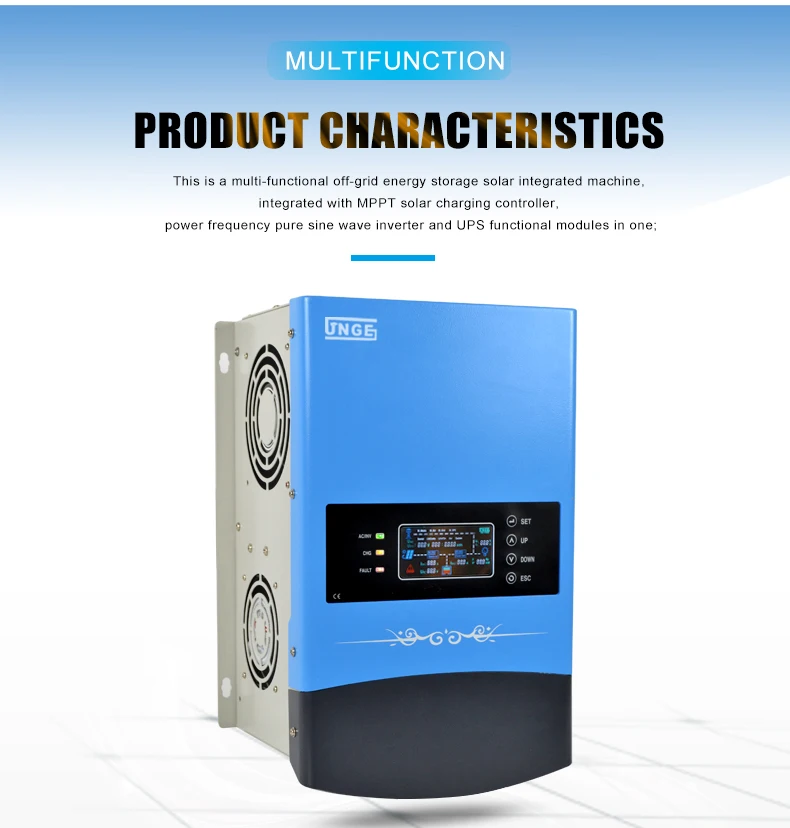

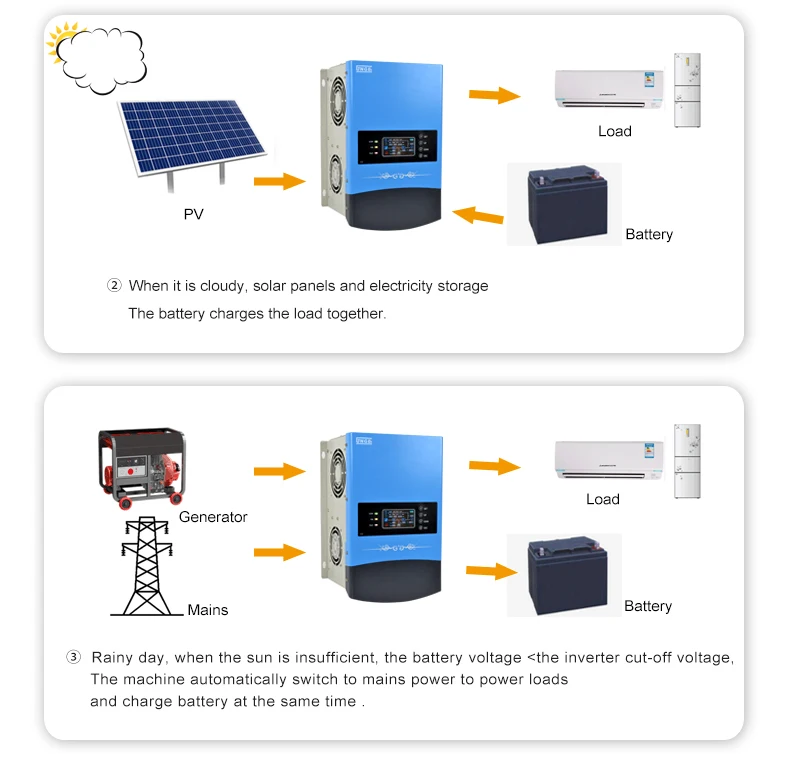

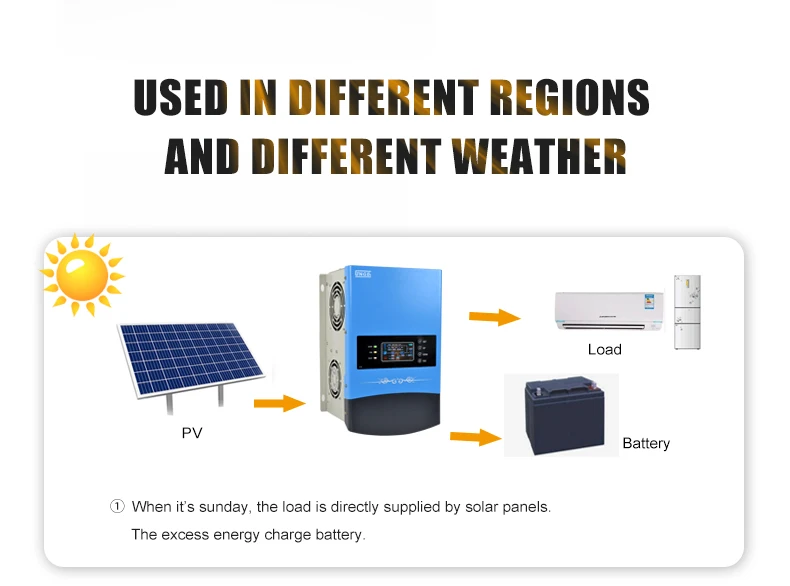

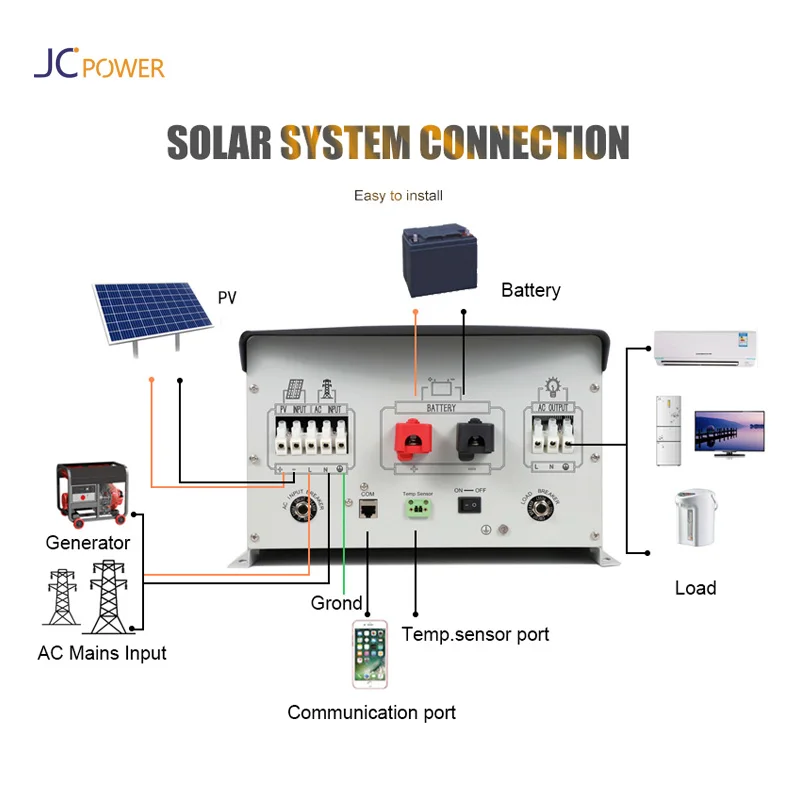

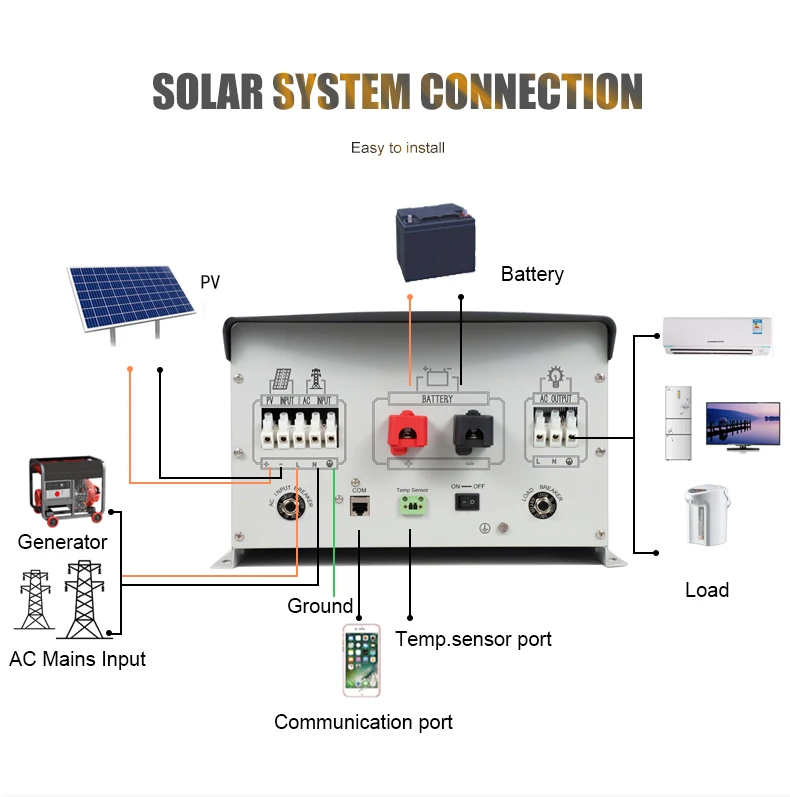

This is a Muliti-functional off-grid energy storage solar integrated machine,integrated with MPPT solar charging controller.

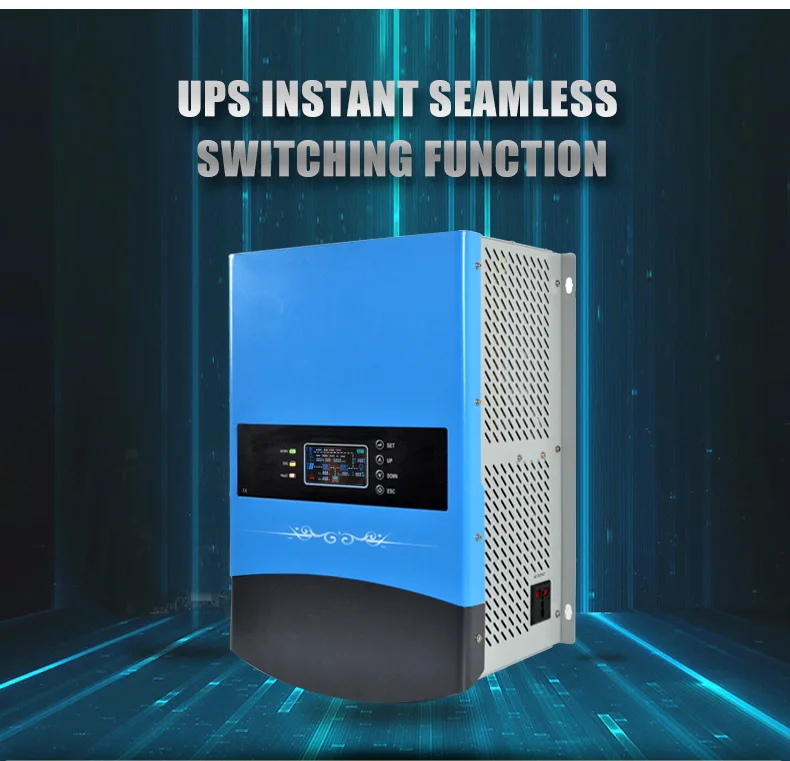

power frequency pure sine wave inverter and UPS functional module in one.

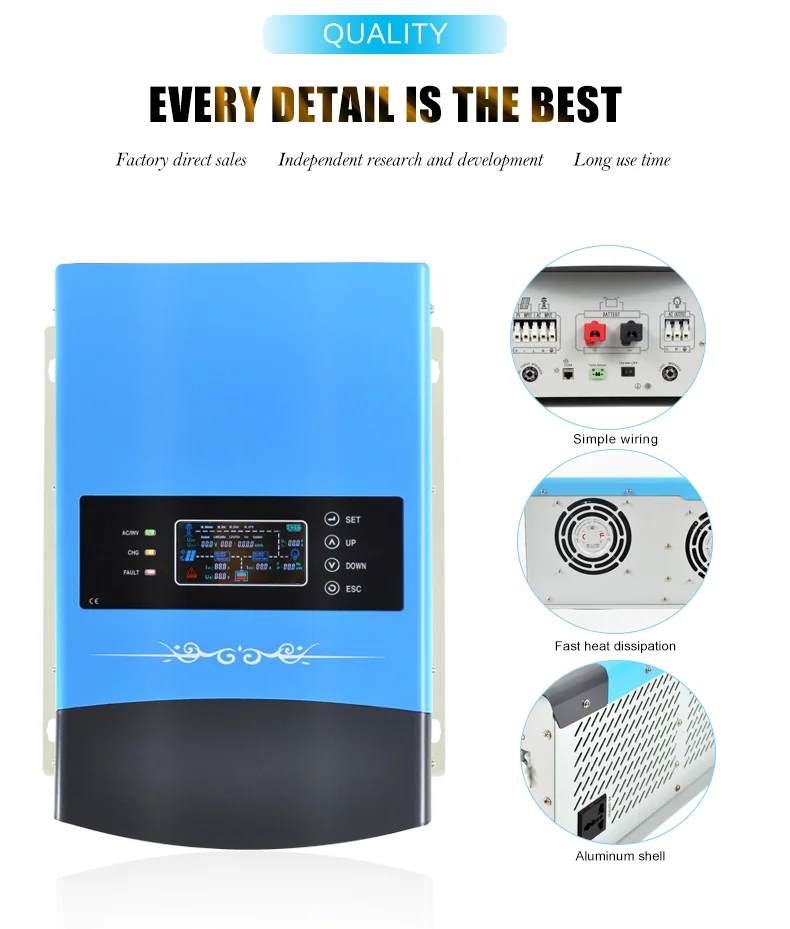

QUALITY
EVERY DETAIL IS THE BEST
1.Factory direct sales
2.Independent research and development
3.Long use time

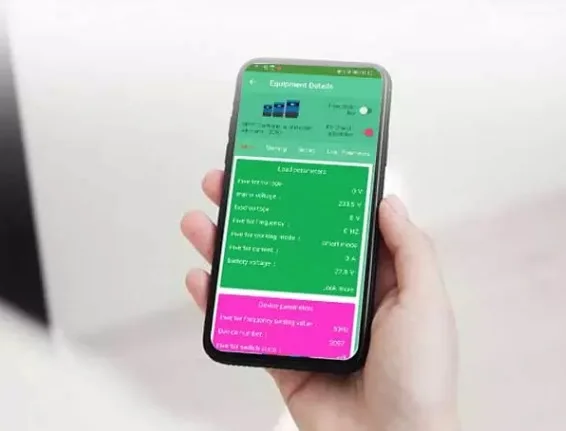

2、Operating parameters such as charging control and inverter can be checked and set through the PC upper computer and mobile phone APP, and specifically refer to the upper computer and APP user manual (optional).
