Product Overview

Description



Product Overview

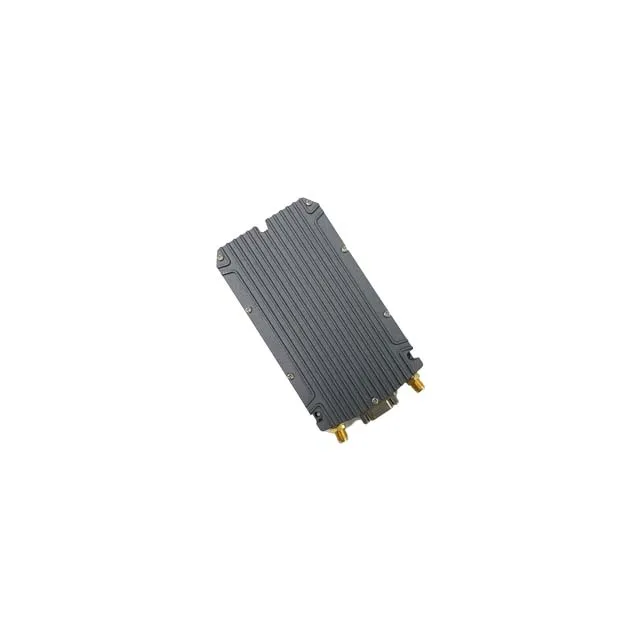

DDL Airborne Radio

The new DDL series wireless digital data link is a low-cost long-distance video&data transmission product with small size, light weight, 2X2 MIMO, complete functions and rich frequency bands. DDL series based on SDR software defined radio platform with 2X2 MIMO, It adopts Beamforming, Maximal Ratio Combining (MRC), Maximal Likelihood(ML) algorithm, low density parity check (LDPC) coding, intelligent frequency selection and autonomous frequency hopping technology to achieve strong radio frequency performance and strong anti-jamming.
DDL series data link radio provides ultra-long distance, low latency, bidirectional multi-channel network video&data&voice integrated wireless transmission. The world's leading code-modulated physical layer waveform technology and flexible anti-jamming and secure encryption design for the unmanned field are applied to reliable remote data links for UAVs, helicopters, robots, unmanned ships, unmanned vehicles and special vehicles.




Product Paramenters


Wireless Specifications
Frequency Range
320-450/450-550/550-700MHz,1000-1300/1300-1500MHz, 1.8-2.2/2.2-2.5GHz,4.4-5.0/5.0-6.0GHz,70M-6GHz Customized
Channel Bandwidth
1.25/2.5/5/10MHz Adjustable
Modulation Mode
COFDM, DSSS-CCK/BPSK/QPSK/16QAM/64QAM (Adaptive)
Throughput
70Mbps@10MHz/25Mbps@5MHz/10Mbps@2.5MHz/4Mbps@1.25MHz
Sensitivity
-102dBm@5MHz
Transmission Distance (line-of-sight)
over 80 km (1Watts x 2), over 100 km (2Watts x 2),over 150 km (10Watts x 2), over 200 km (20Watts x 2)
Transmission Power
1Watts x2 2Watts x2 10Watts x2 20Watts x2
Networking Capabilities
Communication Mode
Point-to-point, point-to-multipoint and multipoint-to-multipoint, Reapter
Network Topology
Centerless of no-master/slave to MPtoMP
Wireless Protocol
HTDMA
Network Protocol
IPv6,QoS,DNS,HTTPS,IP,ICMP,NTP,DHCP,VLAN
Encryption
DES56/AES128/AES256
Anti-jamming
Intelligent frequency selection/Autonomous frequency hopping
Mobility
Support movement speed greater than 200 km/h
Transmission Delay
Less than 10 ms
System Parameters
Interface
Network port (IP/WiFi), Serial port (232/485/422/TTL,Sbus/USB/Bluetooth),Audio port (MIC-SP-PTT/VoIP),4G-5G Public Network Routing/4G LTE/Satellite/Fibe
Video Interface
IP,HDMI/SDI,CVBS
Local/Remote Management
PC terminal Web browsing, Mobile APP: topology, node and link status, distance monitoring, whole network parameter configuration, software upgrade and other functions
System Upgrade
Support one-click upgrade, remote upgrade
Positioning Function
GPS/BDS
Power Supply
12-36VDC,1Watts×2/2Watts×2
14.8-36VDC,10Watts×2
18-36VDC,20Watts×2
Power Consumption
Operation 1-2A/Standby 0.5-0.7A@12V,1Watts×2/2Watts×2
Module/Airborne/Handheld Radio Operation 3-6A/Standby 0.7-0.9A@16.8V,10Watts×2
6-10A/Standby 0.7-0.9A@20V,20Watts×2
Physical Properties
Operating Temperature
-40℃~ 80℃
Protection Level
IP65,IP66/IP67(Customized)
Size/Weight

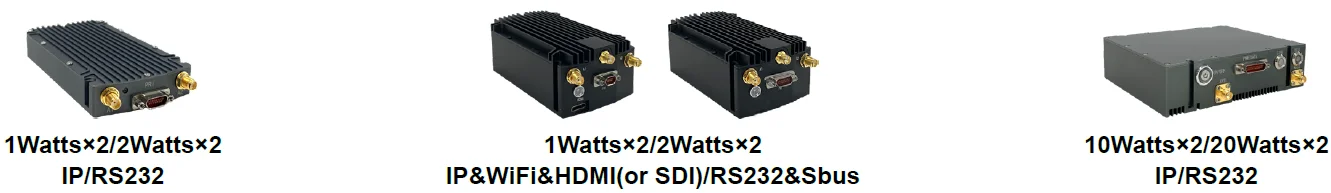

11.7x6.2x1.9cm/149g(1Watts×2/2Watts×2 Airborne Radio-Lron Gray ) 11.7x6.2x4.2cm/364g(1Watts×2/2Watts×2 Airborne Multi-interface Radio-Black) 12.7x11.0x3.3cm/635g(10Watts×2/20Watts×2 Airborne Radio-Lron Gray)
Price(The specifications are different, the price is different)
1Watts×2 Airborne Radio
$950/unit
2Watts×2 Airborne Radio
$1450/unit
10Watts×2 Airborne Radio
$2450/unit


Performance:


400M/600M/800M/900M/1.4G/2.3G/2.4G/5.8GHz, transmitting power can be change, support NLOS high speed mobile transmission, open transmission distance of more than 50 km.
70Mbps data stream, adaptive dynamic bit allocation technique. Support one way 4K, multi way 1080P or 720P HD video.
3 serial port and 2 video interface running at the same time, flight controller, voice, GPS and other data can transmit with video.
Support PtoP, PtoMP, MPtoMP technique,centerless of no-master/slave.Support VLAN.
Local diagnostic interface, telnet, network management. Local and remote wireless firmware update through FTP.
Low power consumption. Tiny volume, lightweight structure, body building for UAV.


Advantages:


70Mbps high-speed, long-distance transmission
Intelligent frequency selection/autonomous frequencyhopping anti-jamming
Point-to-point,Point-to-multipoint,Multipoint-to-multipoint
Multiple network + multiple serial
Compact/harsh environment applications


Hardware Interfaces

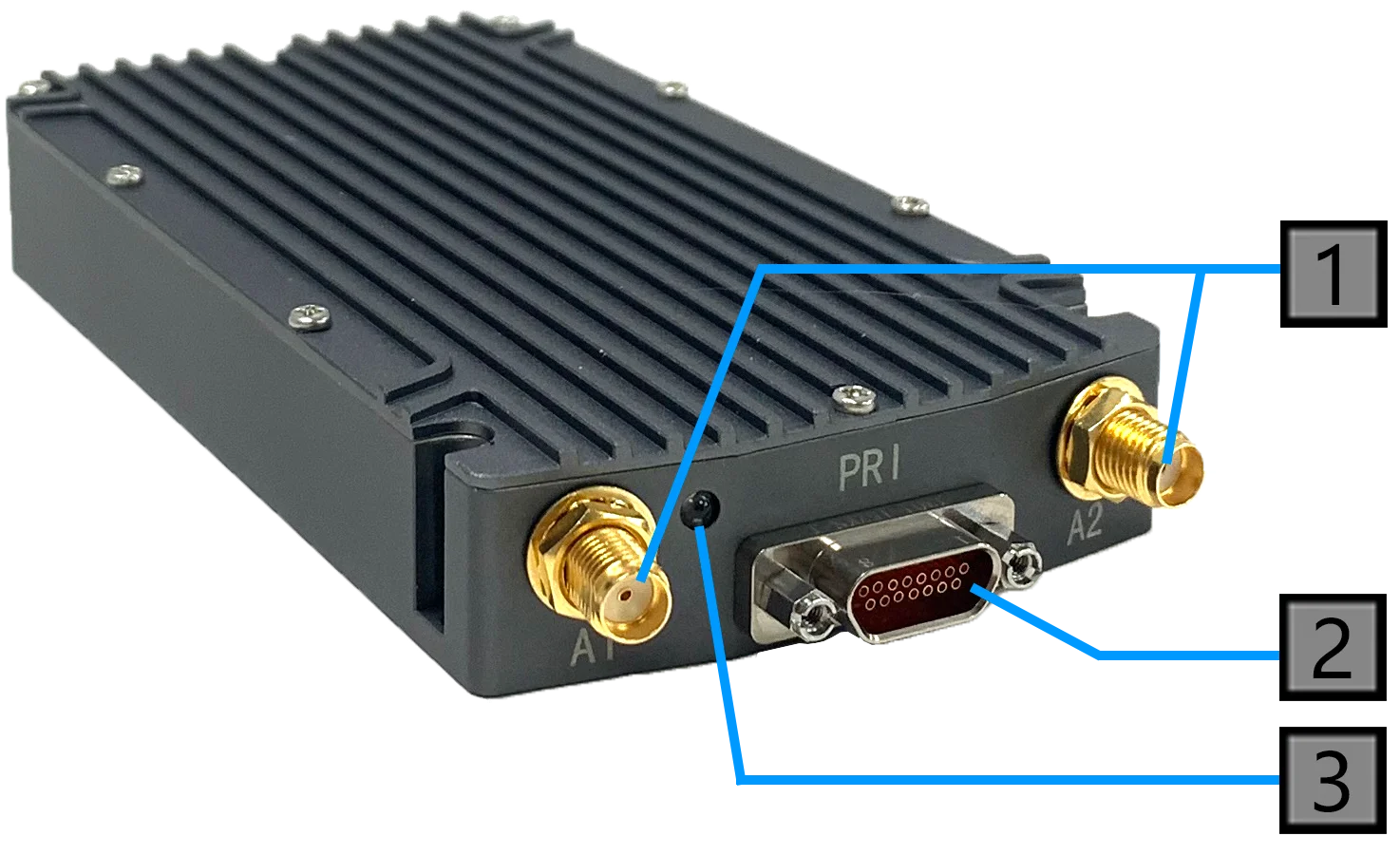

1:RF Channels 1-2 Connectors [SMA Female]
2:Power/Communication Ports
3:Link Status Indicator

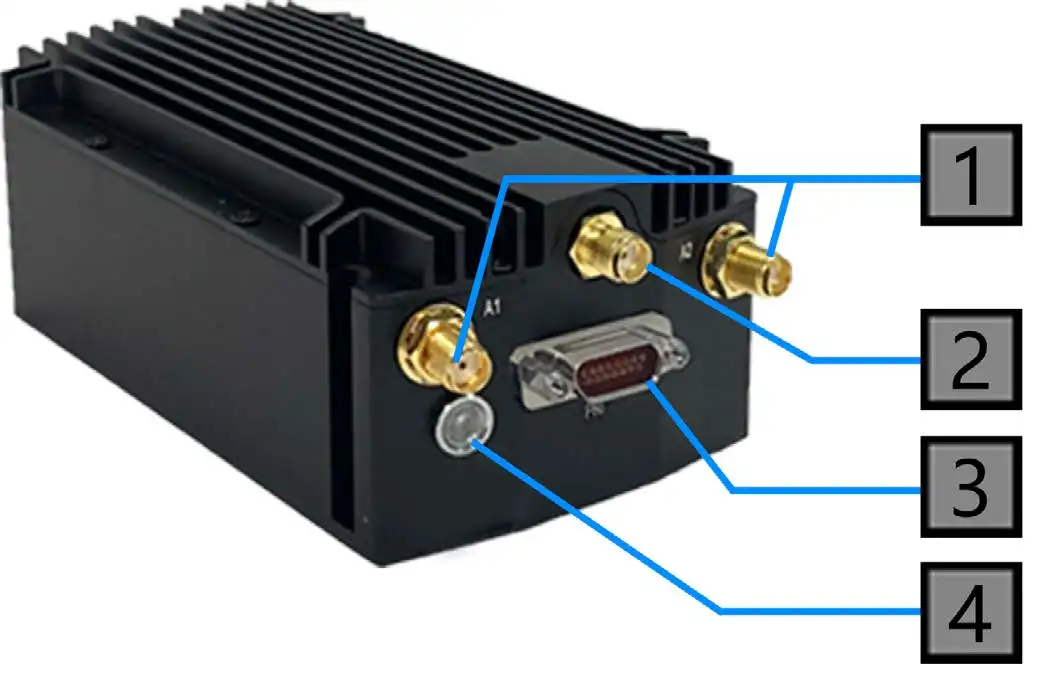

1:RF Channels 1-2 Connectors [SMA Female]
2:WiFi Antenna
3:Power/Communication Ports
4:Link Status Indicator

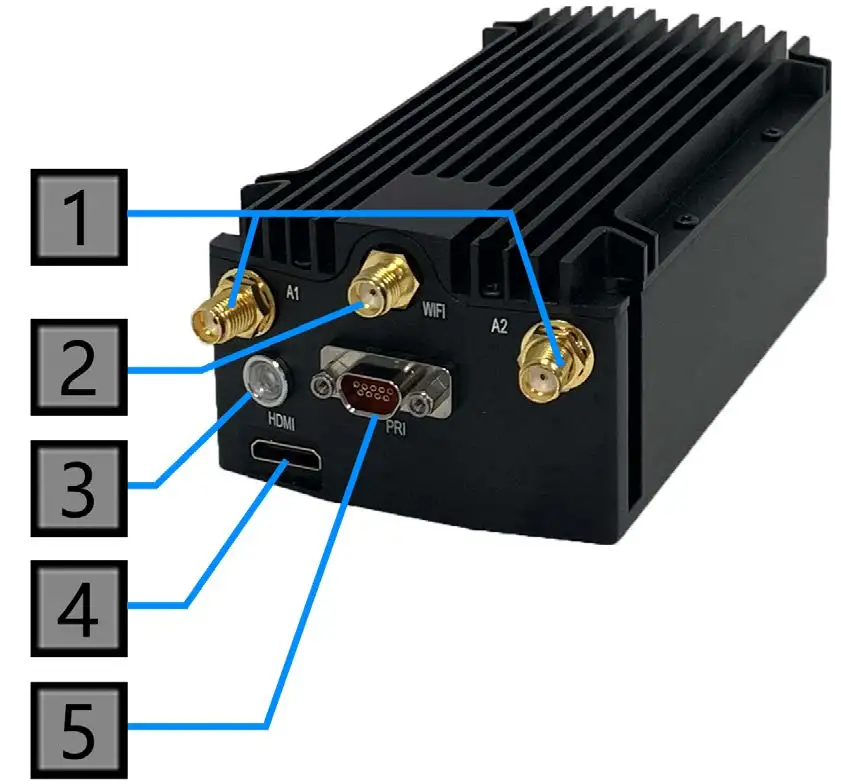

1:RF Channels 1-2 Connectors [SMA Female]
2:WiFi Antenna
3:Link Status Indicator
4:HDMI Port
5:Power/Communication Ports

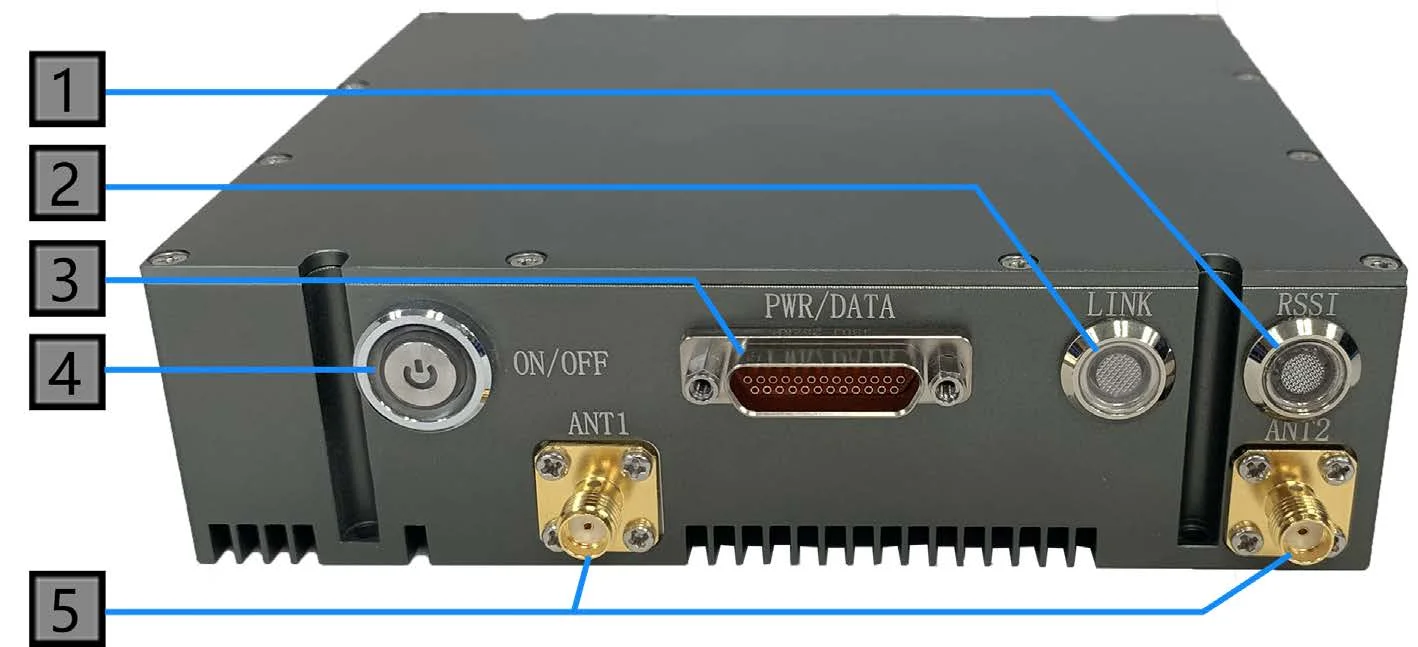

Title goes here.
1:RSSI Link Indicator
2:Link Status Indicator
3:Power (14.8-24V), Ethernet, and Serial Port Connector
4:Radio switch
5:RF Channels 1-2 Connectors [SMA Female]
