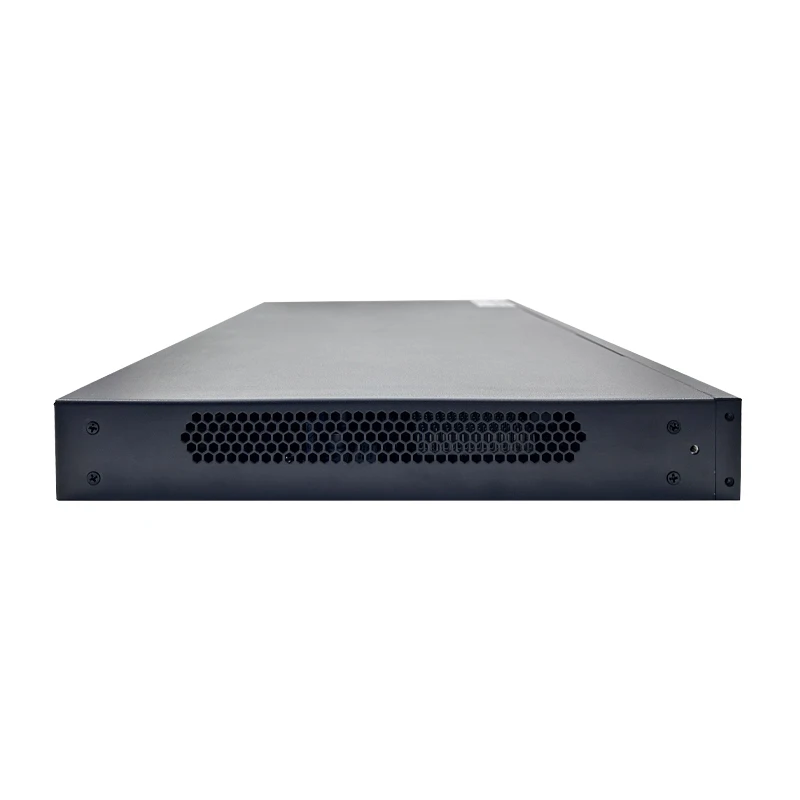

FTTH Fiber Optical Wolck 8 PON Ports EPON OLT
- Category: >>>
- Supplier: SHENZHEN WOLCK NETWORK PRODUCT CO. LIMITED
Share on (1601001773687):
Product Overview
Description
8 PON Ports EPON OLT

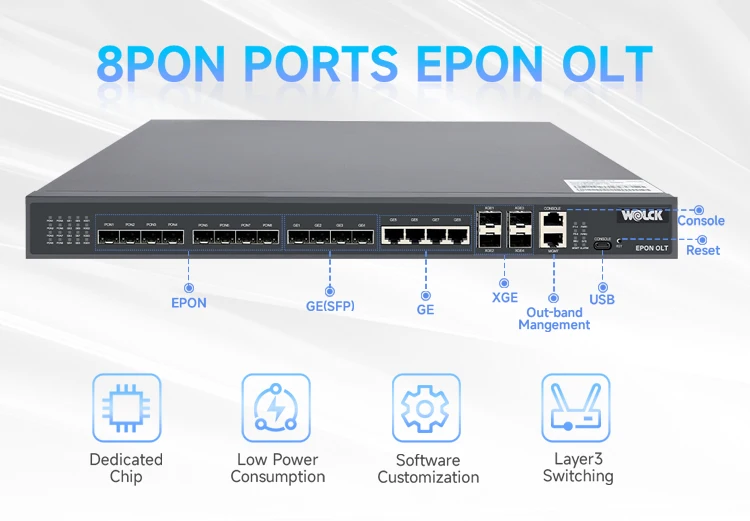

EPON OLT WK-OLT-8P-B completely meet relative standards of IEEE 802.3x and FSAN. The equipment is a 1U rack-mounted device, providing 1 USB interface, 4 uplink GE ports, 4 uplink SFP ports, 4 10-gigabit uplink ports and 8 EPON ports. Single port supports 1:64 splitting ratio. System support 512 EPON terminals accessing in for the most.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
This product meets the requirements in device performance and size of compact server room as the product has high performance and compact size, which convenient and flexible to use, and is easy to deploy as well. Moreover, the product meets the requirements of promoting network performance, improving reliability and reducing power consumption in the perspective of access network and enterprise network and is applicable to three-in-one broadcast television network, FTTP (Fiber to the premise), video monitoring network, enterprise LAN (Local Area Network), internet of things and other network applications with a very high price/performance ratio.
● Support OAM Protocol
● 1U height 8PON OLT product in compact design of Pizza-Box
● Complete PON protection switching function
● Management Function

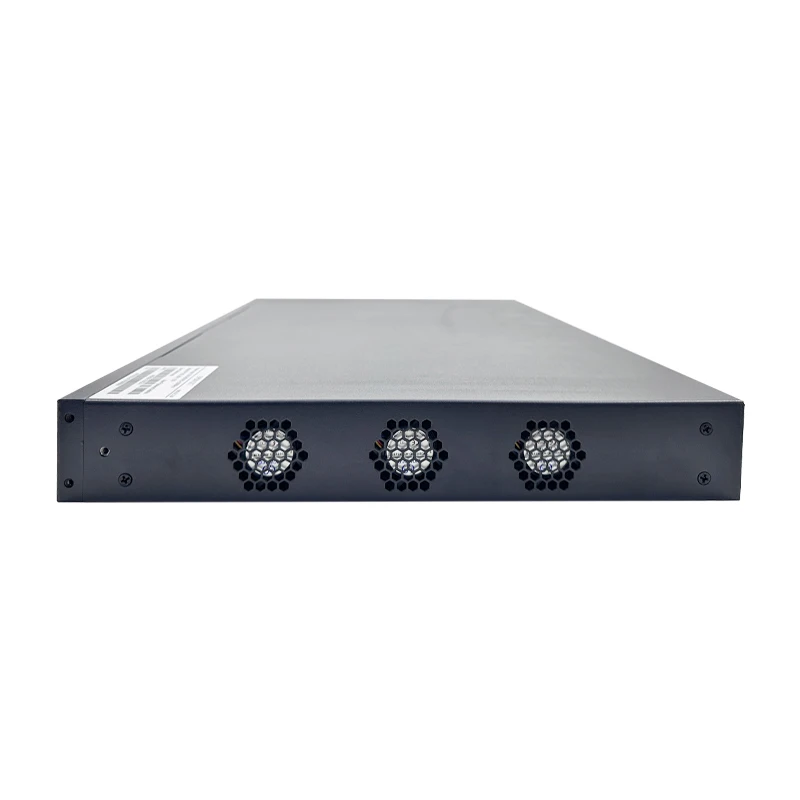

● Fan Group Detecting
● Port Status monitoring and configuration management;
● Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;
● EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;
● Online ONU configuration and management
● User management
● Alarm management
● Layer-two Switching Function
● Support port VLan and protocol Vlan
● Support Vlan tag/Untag ,vlan transparent transmission;
● Support 4096 VLAN
● Support 802.3dd trunk
● RSTP
● QOS based on port ,VID,TOS and MAC address
● IGMP Snooping
● 802.x flow control
● Port stability statistic and monitoring
● EPON Function
● Support port-based rate limitation and bandwidth control;
● In compliant with IEEE802.3ah Standard
● Up to 20KM transmission Distance
● Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
● Support ONU auto-discovery/Link detection/remote upgrade of software;
● Support VLAN division and user separation to avoid broadcast storm;
● Layer-three Route
● Support static routing protocol
● Support dynamic RIP protocol
● Support dhcp-relay function
● Support vlanif interface configuration
● 1U height 8PON OLT product in compact design of Pizza-Box
● Complete PON protection switching function
● Management Function
● Fan Group Detecting
● Port Status monitoring and configuration management;
● Layer-2 switch configuration such as Vlan, Trunk ,RSTP,IGMP ,QOS, etc;
● EPON management function: DBA ,ONU authorization, ACL ,QOS ,etc;
● Online ONU configuration and management
● User management
● Alarm management
● Layer-two Switching Function
● Support port VLan and protocol Vlan
● Support Vlan tag/Untag ,vlan transparent transmission;
● Support 4096 VLAN
● Support 802.3dd trunk
● RSTP
● QOS based on port ,VID,TOS and MAC address
● IGMP Snooping
● 802.x flow control
● Port stability statistic and monitoring
● EPON Function
● Support port-based rate limitation and bandwidth control;
● In compliant with IEEE802.3ah Standard
● Up to 20KM transmission Distance
● Support data encryption, group broadcasting, port Vlan separation, RSTP, etc.
● Support ONU auto-discovery/Link detection/remote upgrade of software;
● Support VLAN division and user separation to avoid broadcast storm;
● Layer-three Route
● Support static routing protocol
● Support dynamic RIP protocol
● Support dhcp-relay function
● Support vlanif interface configuration
ITEM | WK-OLT-8P-B | ||
Specifications | 8*EPON + 4*GE + 4*GE SFP + 2*10GE SFP+ | ||
Rack | Type | 1U 19-inch standard box | |
Uplink Port | COMBO port | 4 10/100/1000M auto-negotiation Ethernet ports | |
4 SFP interfaces | |||
10-Gigabit | 4 SFP+ interfaces | ||
PON Port | Quantity | 8 | |
Physical interface | SFP | ||
Interface type | EOPN: IEEE802.3ah | ||
Max splitting ratio | EPON: 1:64 | ||
Management Port | 1 100/1000BASE-Tx out-band Ethernet port | ||
1 CONSOLE local management port | |||
USB Port | 1 USB interface (It’s used to backup configuration, upgrade program and record log information) | ||
PON Port Attribute | Transmission distance | 20KM | |
Port rate | EPON: Symmetrical 1.25Gbps | ||
Wavelength | Forwarding: 1490nm Receiving: 1310nm | ||
Interface type | SC/UPC | ||
Fiber type | 9/125μm SMF ((Single Mode Fiber) | ||
Receiving sensitivity | -27dBm | ||
Saturation power | -3dBm | ||
Network Management Method | Support CLI、SNMP、TELNET、SSH、WEB | ||
Business Capabilities | Support power-off alarm function ,easy for link problem detection Support broadcasting storm resistance function Support port isolation between different ports Support ACL and SNMP to configure data packet filter flexibly Specialized design for system breakdown prevention to maintain stable system Support dynamic distance calculation on EMS online Support RSTP,IGMP Proxy | ||
Backplane Bandwidth | 108G | ||
Size | 440mm(L)*298mm(W)*44mm(H) | ||
Weight | 4.50Kg | ||

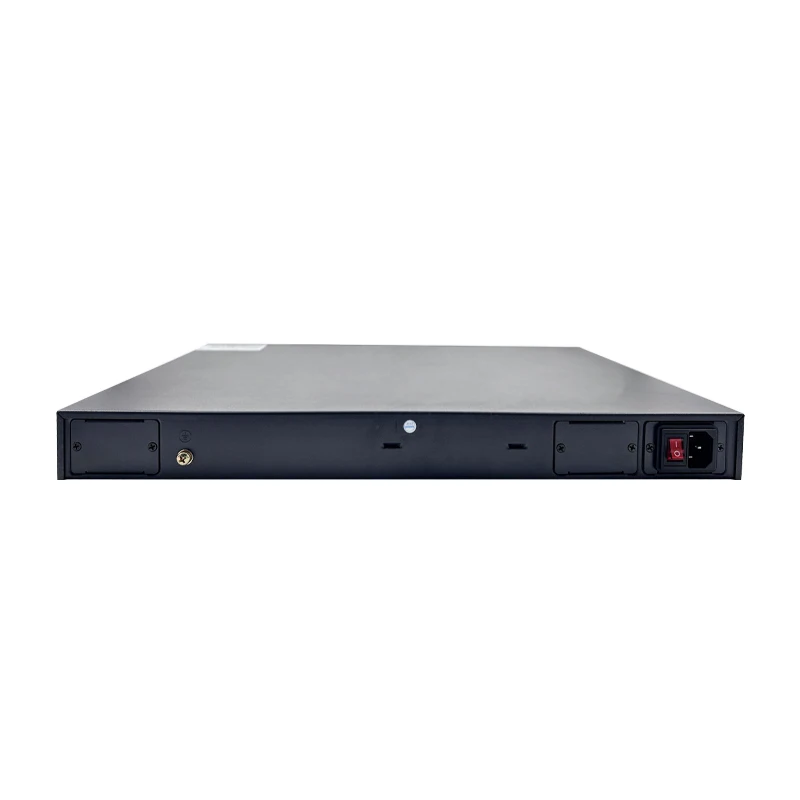

Power Supply | 220VAC | AC: 100V～240V，47/63Hz | |
-48DC | DC:-36V～-72V | ||
Maximum Power | 50W | ||
Working Environment | Working temperature | -15～50℃ | |
Storage temperature | -40～85℃ | ||
Humidity | 5～90% (Non-condensing) | ||
Shenzhen Wolck Network Product Co.,Ltd is located in Shenzhen city which is one of the first-tier cities in China. Wolck company is a high-tech enterprise specializing in the development of technology and equipment for EPON/GPON/CATV equipments.Production and equipments detailed can be shown online, and all products will be passed the test before shipment.
Wolck company not only offer equipments but also offer technical support and best service for after-sales. Wolck company also is Quality Guarantee Enterprise, got the ISO9000 cetificate, and offer cetificates such as CE, CO, FORM-E/F/M etc.
