DB 750 automatic sour cream cpla plastic cup lid vacuum forming pot production machine
- Category: >>>
- Supplier: Wenzhou Daba Machinery Co. Ltd.
Share on (1601001781656):
Product Overview
Description
Product Description
Machine Introduction :
It is mainly using for production, production of disposable tableware, cold drink cup, yogurt cup, jelly cup, ice cream cup, snack box, plastic bowl, milk tea cover etc. At the same time also can processing light industry, textile, tourism, toys and other relevant plastic packaging products.
Main Technical Parameter | ||||
1. | Suitable Material | PP/PS/PET/PVC plastic thermoforming sheet | ||
2. | Driving Method | Servo Linkage control system | ||
3. | Max Forming Area | 750*420 mm | ||
4. | Sheet Thickness Range | 0.20～2.0 mm | ||
5. | Max Forming Depth | ≦220 mm | ||
6. | Max Forming Speed | 35 cycles/min | ||
7. | Air Pressure | 0.6～0.8 Mpa | ||
8. | Air Consumption | 2400 L/min | ||
9. | Total Power | ≤120 kw | ||
10. | Weight | 8T | ||
11. | Overall dimension | 4200*1600*2500mm | ||

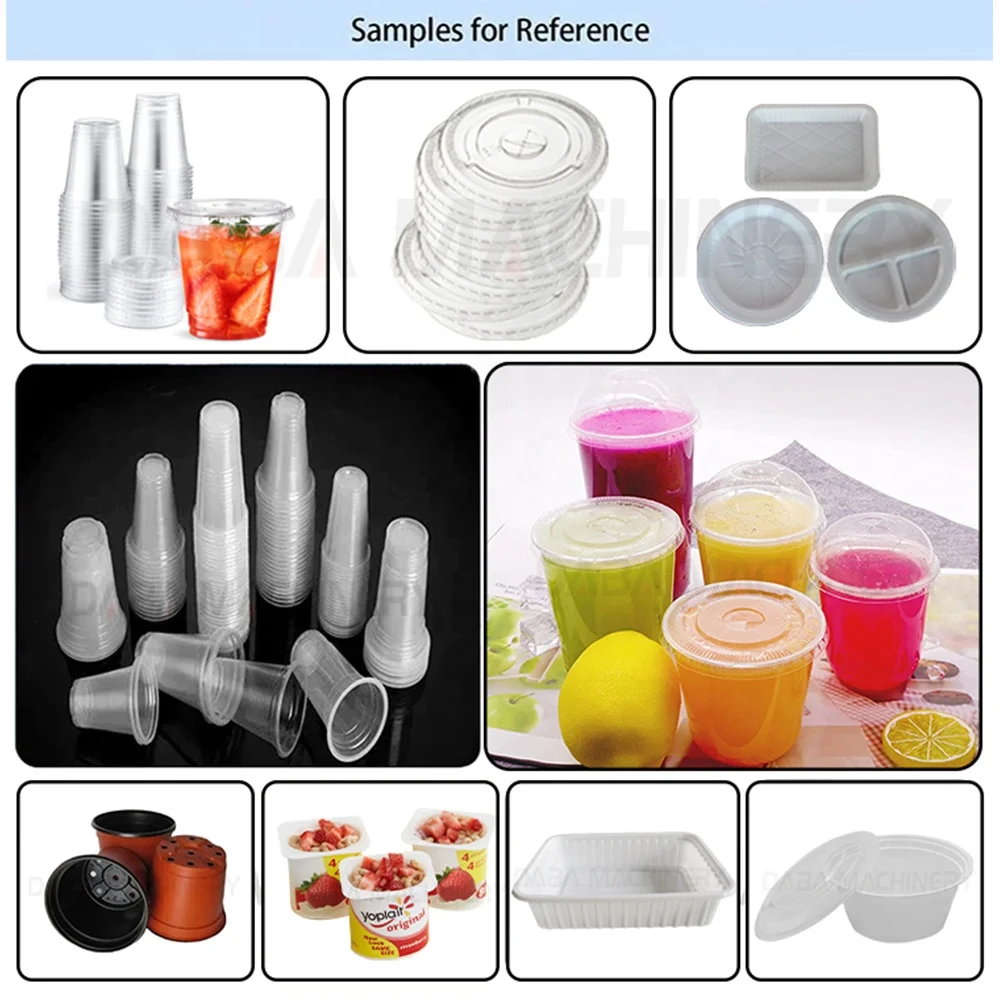

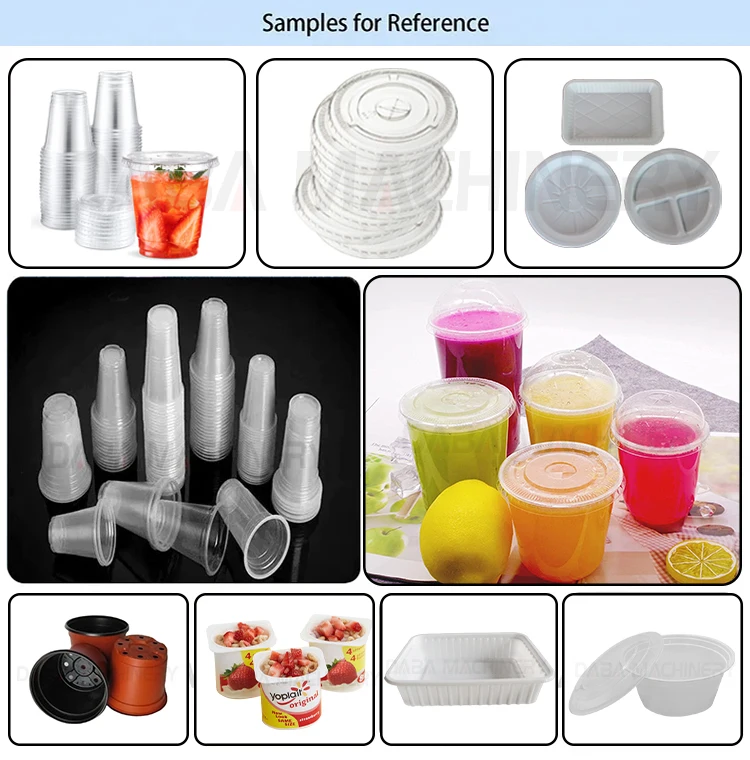

Machine made samples
Detail Images

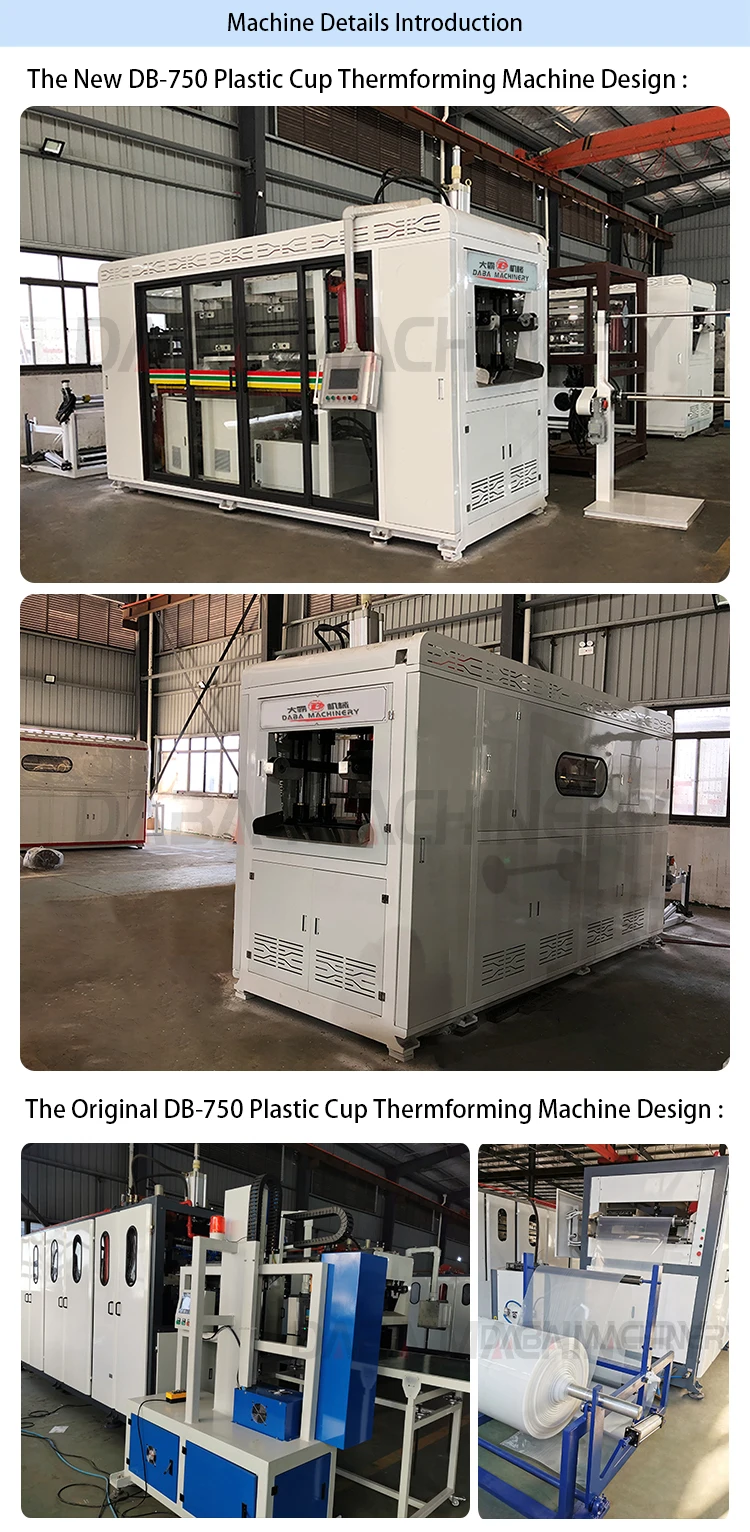

Machine Detail :

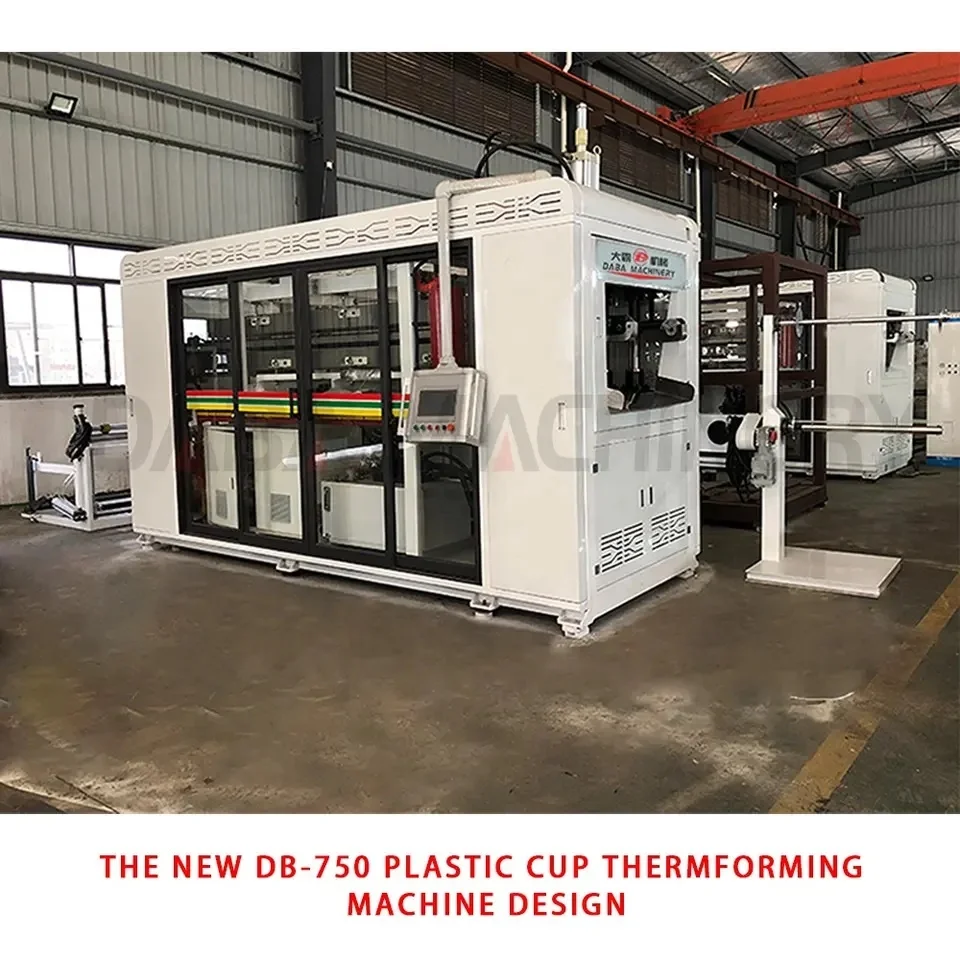

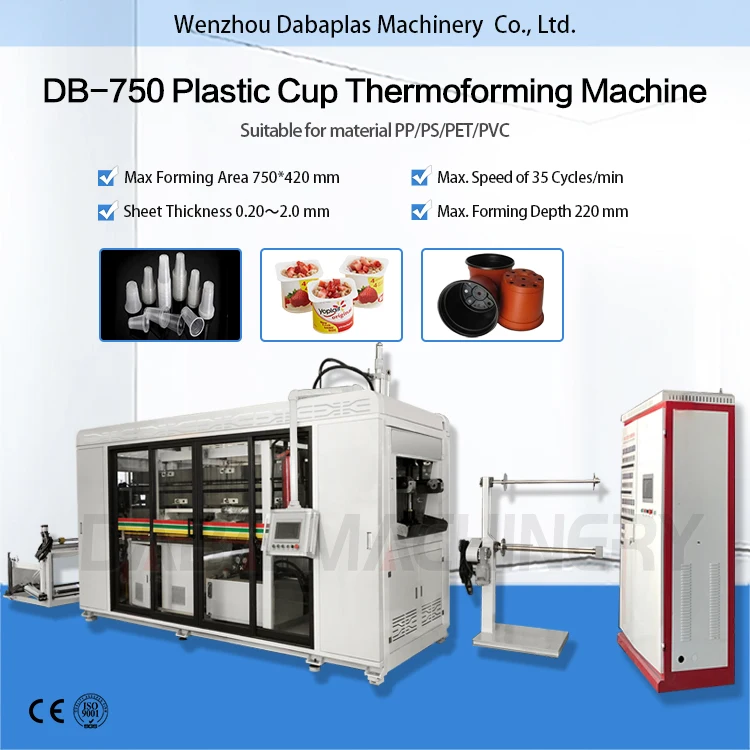

DB-750 Plastic cup thermoforming machine is a combination of mechanical, electrical and pneumaticcomponents, and the whole system was controlled bye micro PLC.It operates with man-interface, whichcan works all by itself. It combines the material feeding, heating, forming, cutting and transporting intoone process.

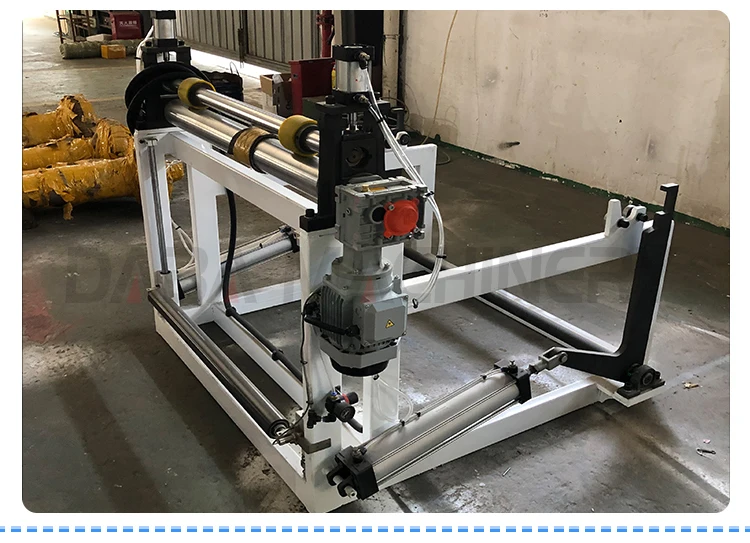

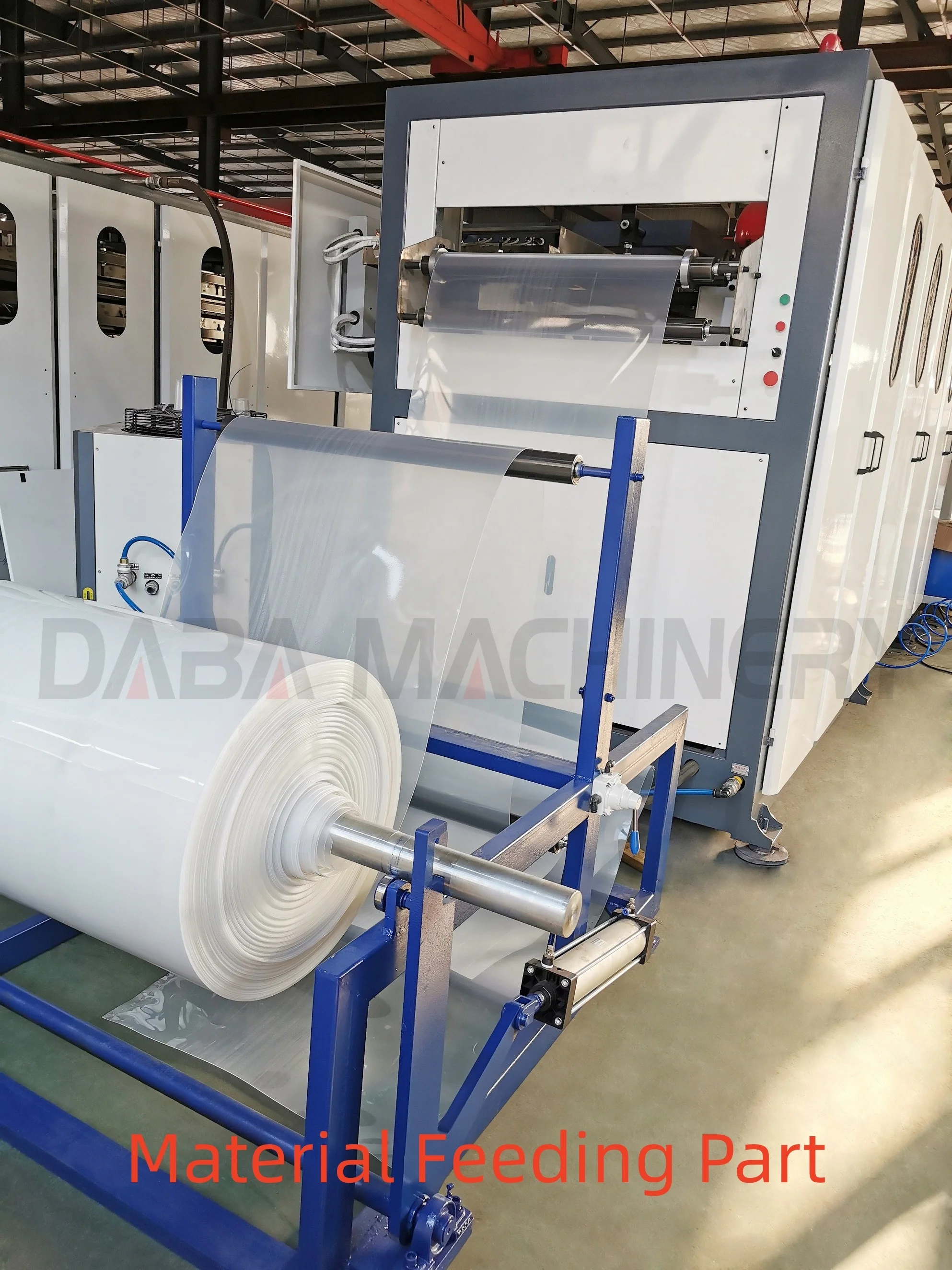

Material Feeding Area
Material sheet is driven by pin chain. The feeding width could be adjusted by parameter setting through touch screen.en
Heating
◆ Pre-heater ◆ Heating Oven

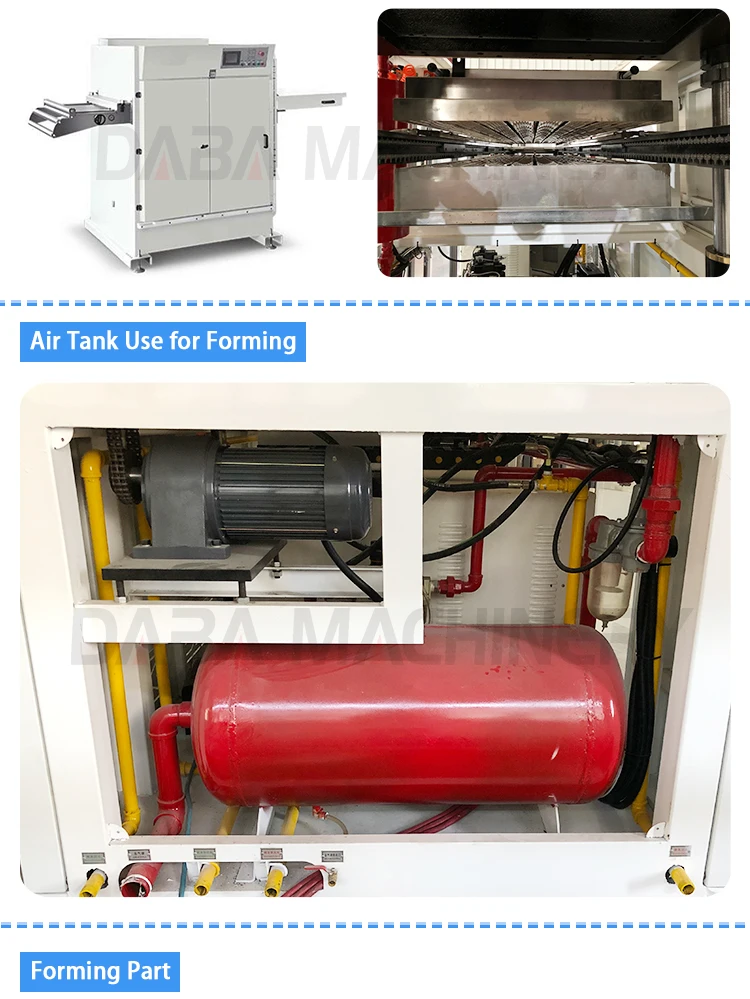

Air Tank Use for Forming

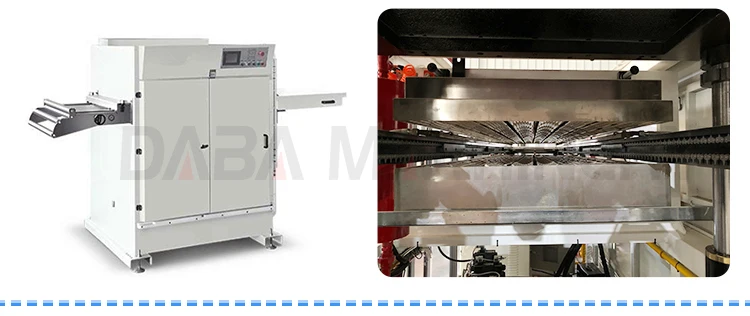

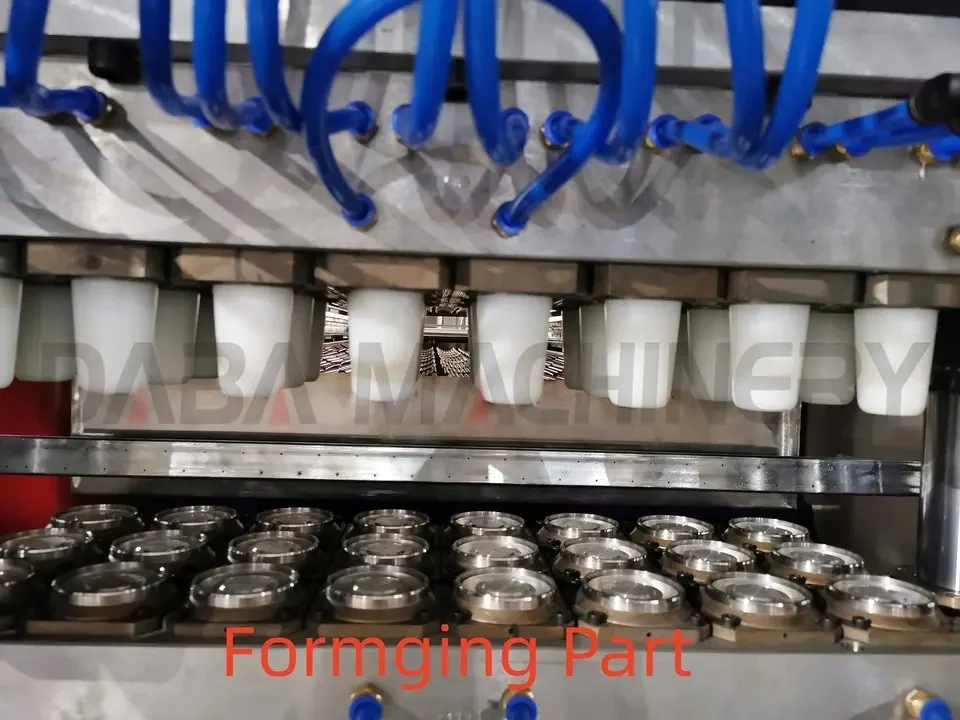

Forming Part
The max forming area is 750*420 mm, max forming depth is 220 mm.

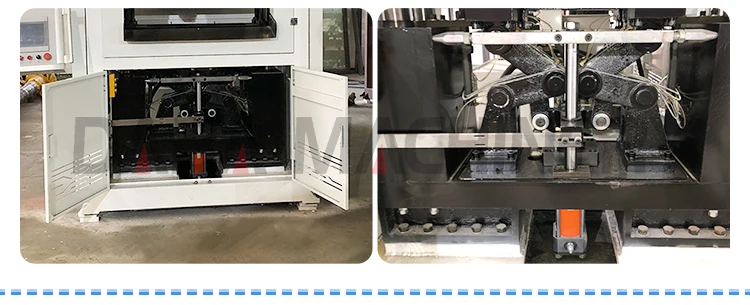

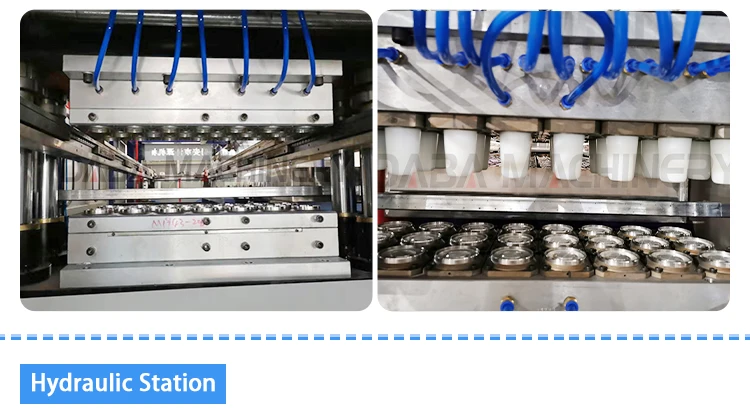

Hydraulic Station
The machine adopts hydraulic system to drive the movement of the mould.

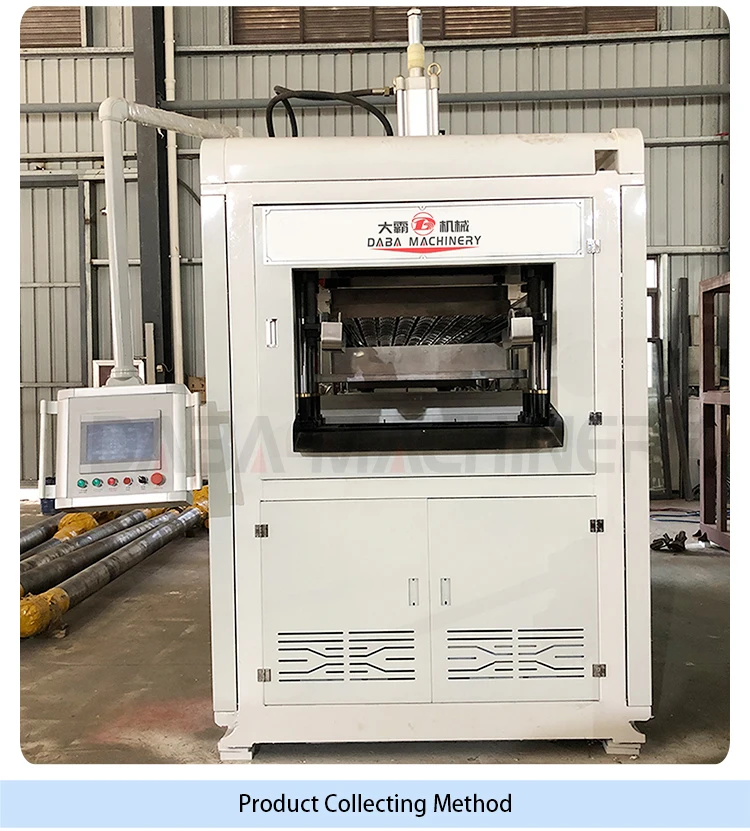

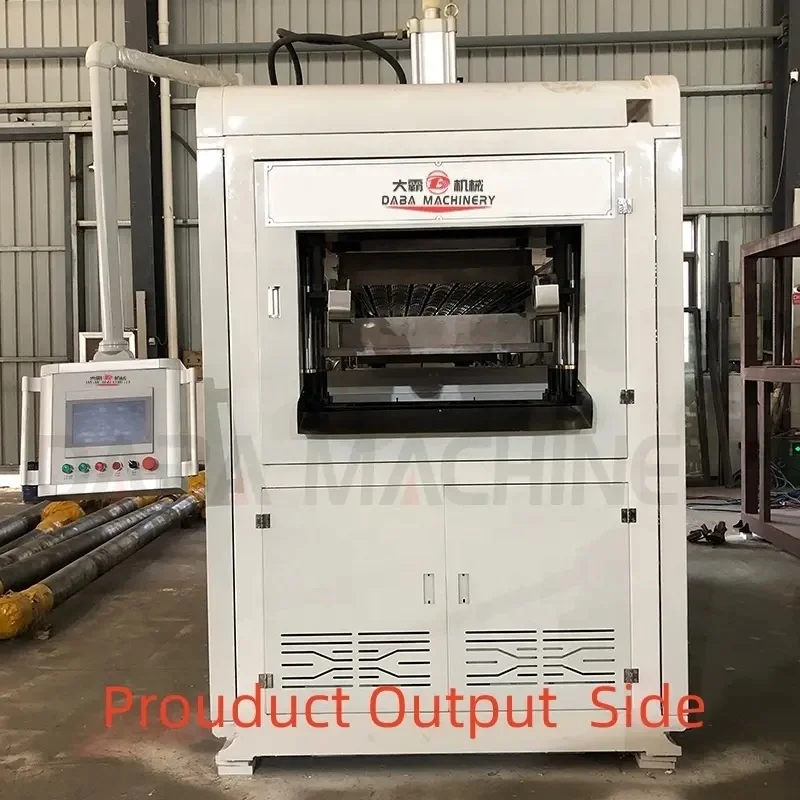

Product Output Side
The product output side can be connected with robot or stacking equipment to receiving the finished products.
Different stacking methods are selected according to the type of the final product.

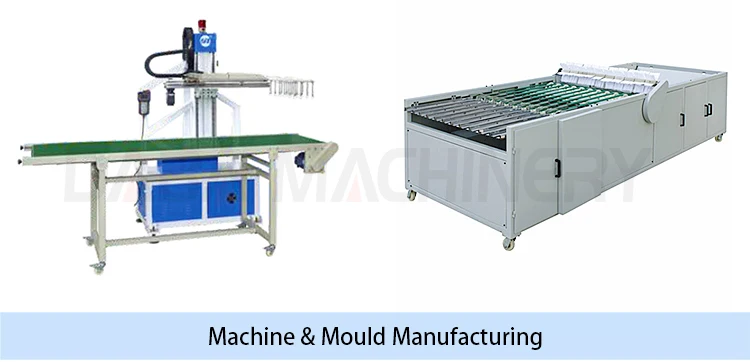

◆ Stacking by Robot ◆ Collecting by stacking equipment
Sultable for cups, bowls, food contalners, trays, etc. Sultable for regular cups.
Sultable for cups, bowls, food contalners, trays, etc. Sultable for regular cups.

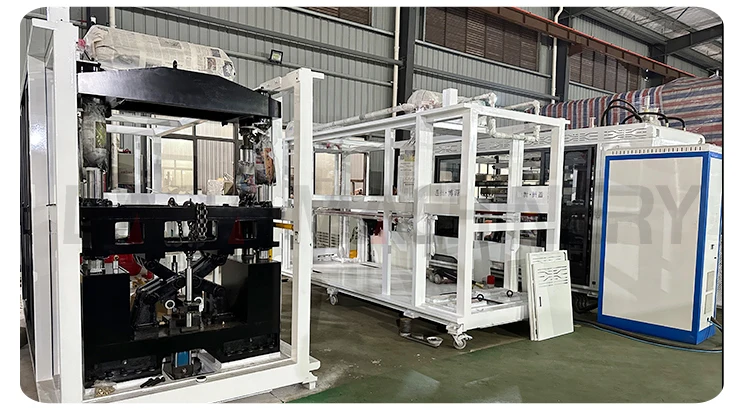

The machine frame is made of square steel.
Its lifespan is longer and the machine could running stable.

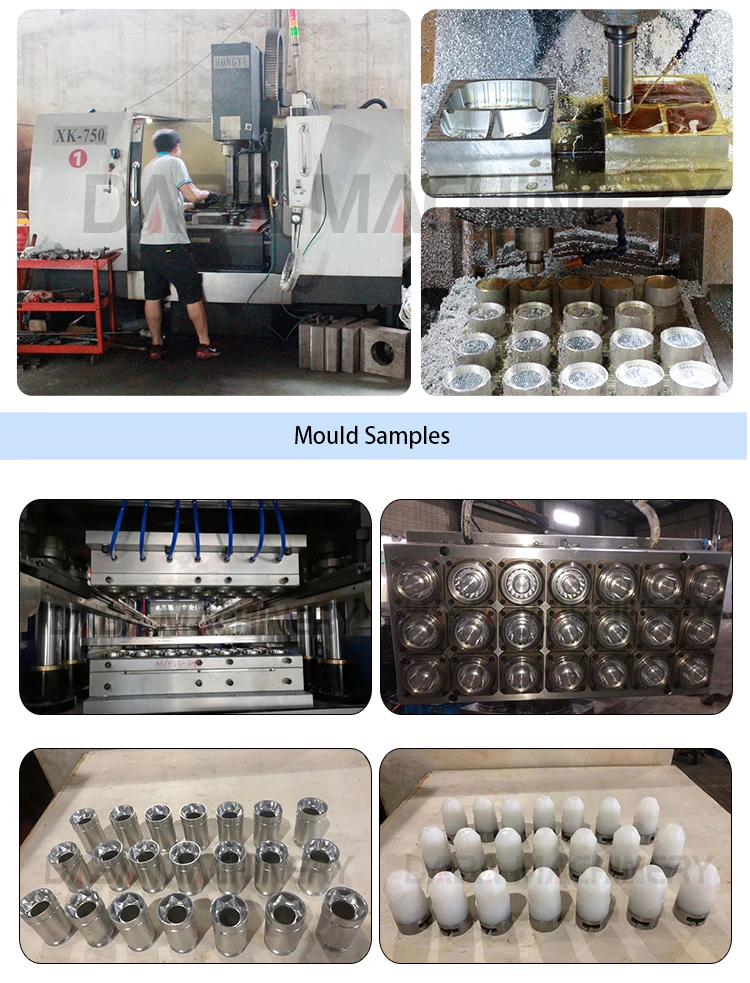

We have three CNC machines for manufacturing machine's mainly part, mould etc.
Mould production capacity of 5-10 sets per month.
Contact us

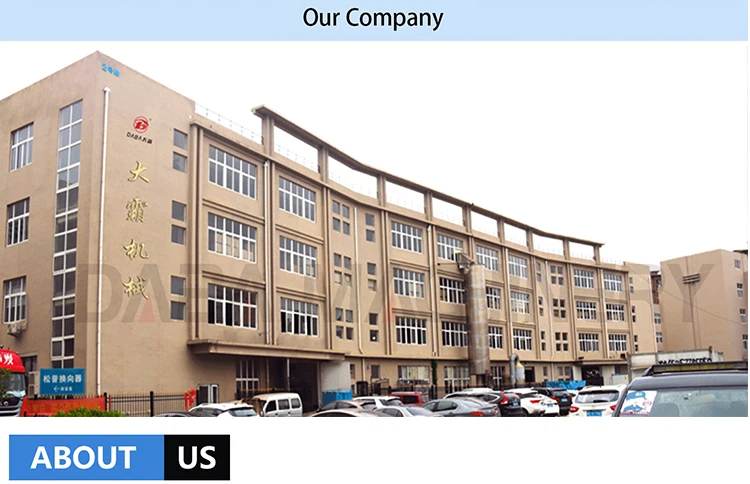

Company Profile
Wenzhou Dabaplas Machinery Co.,Ltd. always adheres to the principle of "survive by quality, relying on science and technology to promote development,adopts a modern technological layout, implements scientific management, and completes the quality system throughout the entire production process.
Our products mainly include: Plastic positive and negative in-mould cutting thermoforming machine, Full automatic BOPS contact-heat plastic thermoforming machine, Multi-station positive and negative thermoforming machine, Automatic plastic cup thermoforming machine, Cup counting and packing machine, Automatic vacuum forming machine,Multistation vacuum forming machine, Automatic PP/PET/PS/PVC extrusion, Online crusher,Plastic bag making machine, etc.
We will make sure that all our clients are completely satisfied in terms of quality of the products delivered to them.
Customer Feedback
Every DaBa machine is quality proven, superior in design and produced as per the highest quality standards. Before leaving our factory, it is tested and retested for performance, productivity and durability. Because of good quality and service, we have won a good reputation among domestic and international customers.Our products sell well in Asia (such as India,Thailand, Vietnam, Indonesia, Malaysia, Sri Lanka), the middle east (Pakistan, Saudi Arabia, Kuwait),Europe(Russia, Rumania,Bulgaria, Italy)Africa (Nigeria, Guinea, Congo), North America and South America.We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
We hope to establish good and long-term business cooperation with customers from all over the world. If you have any inquiry about our machines, please feel free to contact us.
Service
1.Purchase Service
DABAPLAS COMPANY have a specialize and efficiency working team.lf you are new on Plastic Processing Machinery area ,Some samples of your products could be shew to us will beappreicate ,we will give you specialized suggestion of whole work .
DABAPLAS COMPANY have a specialize and efficiency working team.lf you are new on Plastic Processing Machinery area ,Some samples of your products could be shew to us will beappreicate ,we will give you specialized suggestion of whole work .
2.Shipping Service
DABAPLAS COMPANY have a spcialized and independent department which just for shippingthe buyer's goods .The workers are knowing T/T,L/C ltems well. All Exported documentscould be made perfectly .
DABAPLAS COMPNAY cooperate with the most famous shipping company in china also.They could provide the best and economic shipping ways to the buyer's port.
3.lnstallation Services
Installation Services are available with all DABAPLAS Company machines. DABAPLAS Comapny willdispatch technician to The Buyer's factory to installation and preoperation of machines.But the buyer need to surpply the round trip tickets ,food ,hotel cost.
4.Clients Training Services
DABAPLAS Company advise The buyer could send own technican come to DABAPLAS factory to learn how to operate machines.DABAPLAS Company technician will teach and train thelerners hand by hand till he can operate machine by himself.
obviouslly, Traning within Installation period is acceptable.
5.After Sales Service
DABAPLAS Company machines guarantee time is one year.
Many easy broken spare parts will be prepared in the tool box together with machines.Any parts broken ,Just a pictures or a videos.The new free parts will reach within 3-7Express working days .
Packaging & Shipping
Packaging & Shipping Details :
1. Our standard packing method is film wrapping.
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of DB-750 cup thermoforming machine is within 35 days per set.
4. Shipment in Ningbo port or Shanghai port, China
2. Wooden case packing can be provided as required and the cost will be charged.
3. The delivery date of DB-750 cup thermoforming machine is within 35 days per set.
4. Shipment in Ningbo port or Shanghai port, China
FAQ
Q:What's your delivery date? A：Usually finish the production within 45 days after received your 30% advanced payment, actually need to check according our stock & production plan.
Q: Terms of payment?
A: We accept T/T with 30% in advance and 70% before shipment. Also we could accept L/C at sight.
Q: How many days will the finish installing ?
A: We will finish installation and training within 15days.
Q: How long is your machine's warranty period?
A: All our machine have one year guarantee, starting from the day when finished installation.
Q: How could we do after one year warranty period?
A: We provide 1 year warranty. Within the warranty period, we provide free machine parts and repair service but not including shipping cost if it is not caused by human factors. After 1 year, we provide lifetime service with affordable charge.
Q: How many worker do we need to operate those machines?
A: Usually one machine needs 1-2 operators.
Q: Could you supply raw materials?
A: We can help you to order the raw materials and arrange the shipment together with machines.
