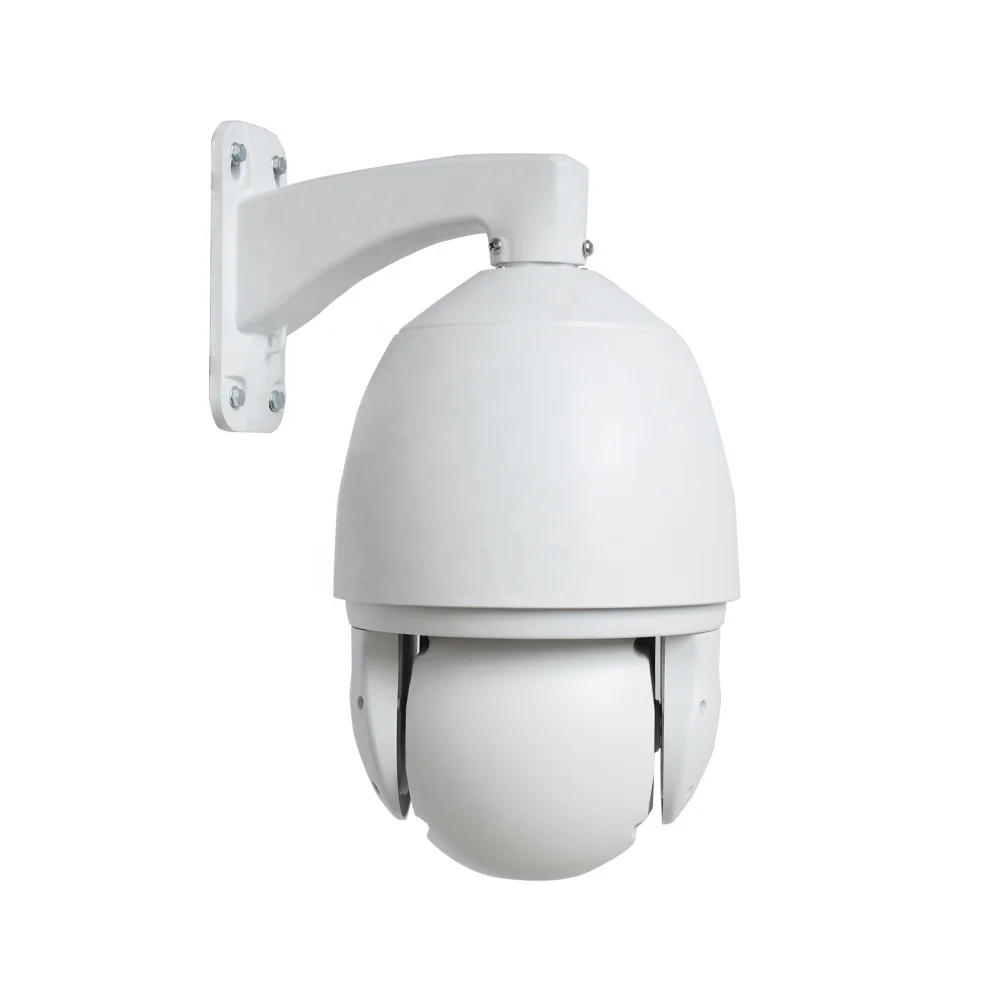

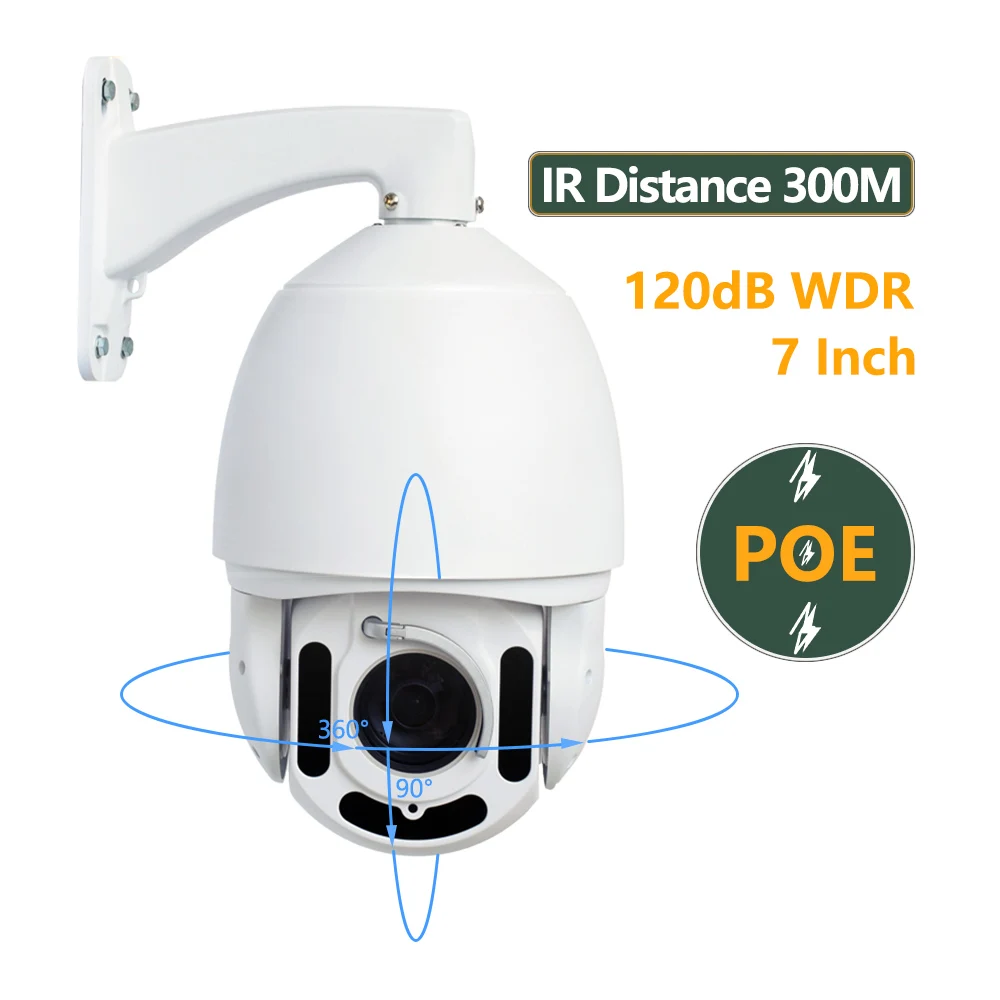

Wholesale Price Smart Surveillance 33X 4G Digital Defog 16 Patrol 9W Camera 5MP 30X PTZ Security Camera
- Category: >>>
- Supplier: Shenzhen Anto Technology Co. Ltd.
Share on (1601001781749):
Product Overview
Description
Products Description
Model | ZP6AV-FA | |
Cam Specification | ||
Sensor | 1/2.8" Progressive Scan CMOS Sensor, 3.0 megapixel | |
Frame Rate | 2304(H)x1296(V), Max.60fps | |

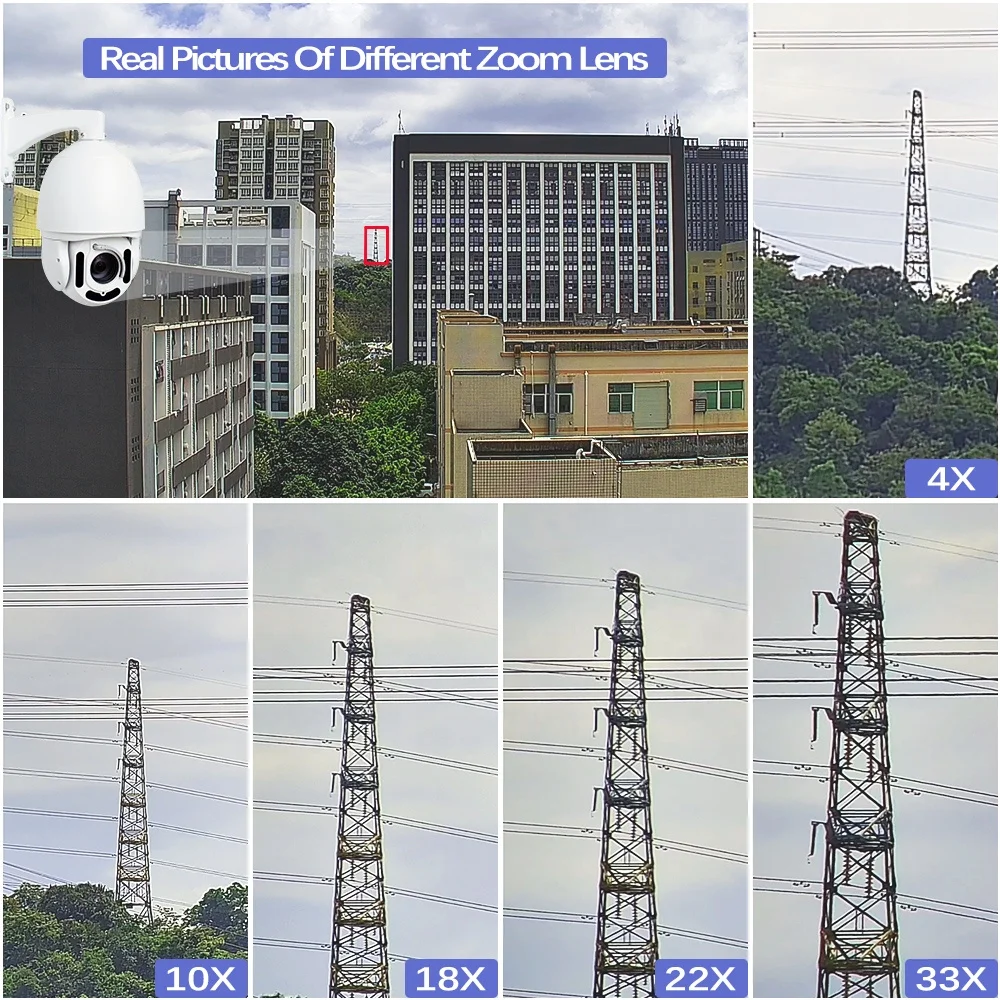

Optics Zoom | 33X 4.5-148.5mm Optical Zoom | |
Digital Zoom | 16X Digital Zoom | |
Angle | Angle of View (H)：58.9°-3.4° (V)：35.2°-1.9° (O)：72.5°-4.1° | |
Iris | Auto/Manual, F1.5-F4.0 | |
Auto Focus | Auto / One Push / Manual | |
Min Illumination | 0.0005lux (F1.5，AGC ON, colour), 0lux with IR | |
Shutter | Auto/Manual, shutter time: 1 - 1/100000 s | |
Defog | Digital Defog | |
Noise reduction | 2D/3D DNR | |
Wide dynamic | 120dB | |
IR Range | UP to 300m | |
Pan & Tilt | ||
Manual speed | Pan（0.1°-200°/s） | |
Tilt（0.1°-180°/s） | ||
Rotation | Pan Continuously 360°, Tilt 0-90° with Auto-Flip | |
Preset | 128 Presets | |
Auto-flip | Tilt down 90°, with Auto-Flip 180° | |
Patrol | up to 16 Patrol | |
HomePosition | Preset/Patrol can be set | |
Proportional Zoom | Rotation Speed can be adjusted automatically according to zoom multiples | |
Video | ||
Video Compression | Ultra 265,H.265, H.264, MJPEG | |
H.264 code profile | Baseline Profile, Main Profile, High Profile | |
HLC | Supported | |
BLC | Supported | |
EIS | Supported | |
Privacy Mask | Up to 24 Areas | |
ROI | Up to 8 Areas | |
Motion Detection | Up to 4 Areas | |
Smart | ||

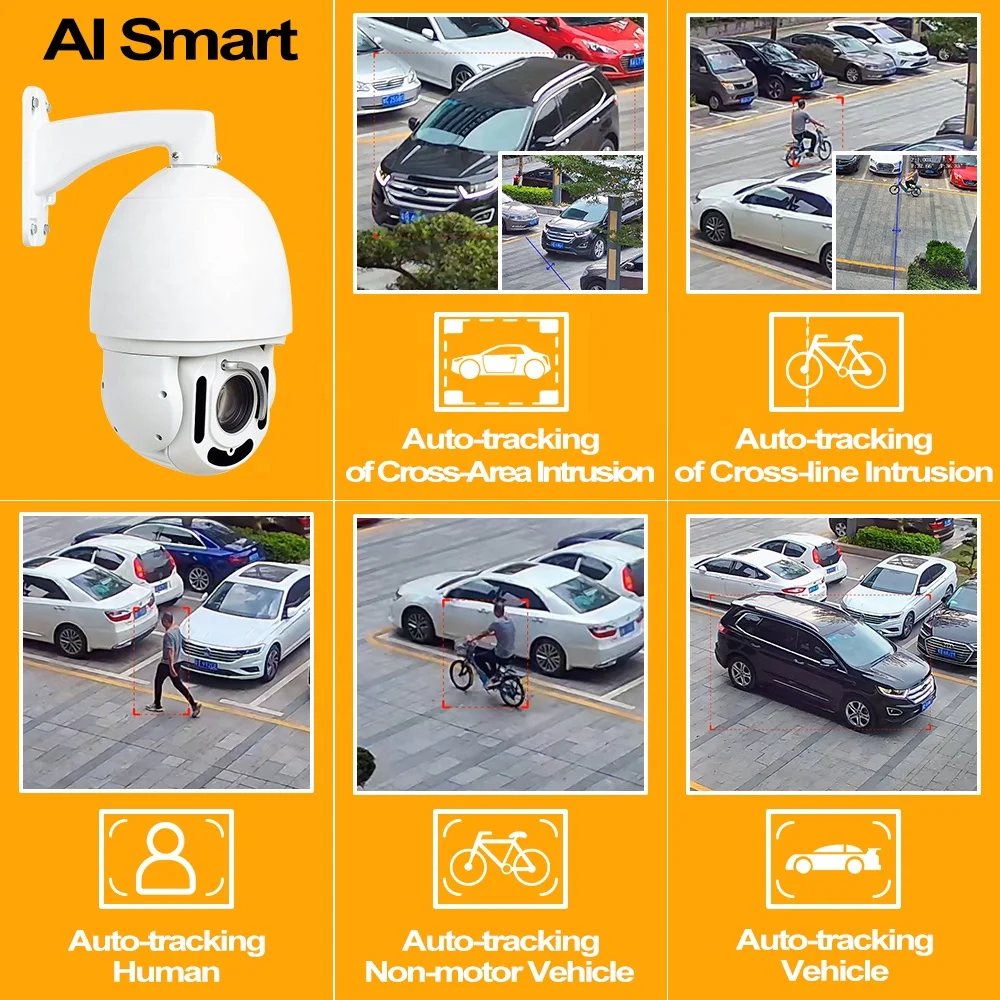

Behavior Detection | Intrusion, Cross line, Motion Detection, Auto Tracking | |
Intrusion | Enter and loiter in a Pre-defined virtual Region | |
cross line | Cross a Pre-defined Virtual Line | |
motion detection | Moving within a Pre-defined Virtual Region | |
Recognition | Face detection, Audio detection | |
Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | |
Statistical Analysis | People Counting | |
General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | |
Audio | ||
Audio Compression | G.711 | |
Two-way Audio | Supported | |
Suppression | Supported | |
Sampling Rate | 8 KHZ | |
Storage | ||
Edge Storage | Micro SD, up to 256 GB | |
Network Storage | ANR | |
Network | ||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,TLS,SSL | |
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |
Interface | ||
Audio I/O | Audio Cable | |
Input: Impedance 35 kΩ, Amplitude 2 V [p-p] | ||
Output: Impedance 600 Ω, Amplitude 2 V [p-p] | ||
Alarm I/O | 1 IN 1 OUT | |
Network | 1 RJ45 10M/100M Base-TX Ethernet | |
General | ||
Power consumption | 9W/40W(IR_LED ON) | |
Power supply | DC 24V/2A | |
PoE | Support PoE power supply (optional) | |
Temperature | -40℃-+60℃ | |
Installation | Wall /Corner/Pole/Pendant installation (optional) | |
Net weight | 6.5KG | |

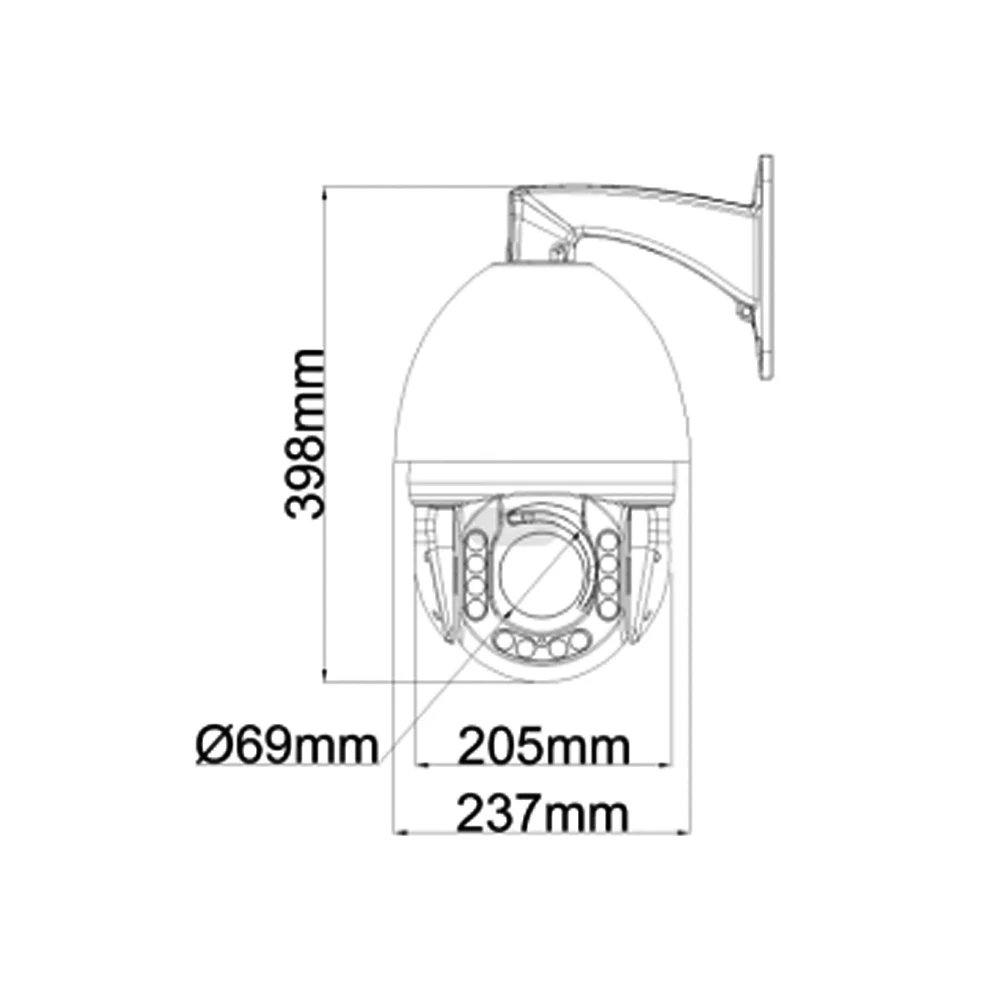

Size | Product Size (336.5×230mm), Packing Size (300*300*460mm) | |
Protection Level | IP66 Standard (Outdoor Dome) | |
TVS Lightning Protection, Surge Protection and Voltage Transient Protection | ||
Recommend Products
Company Information
QUALITY CONTROL

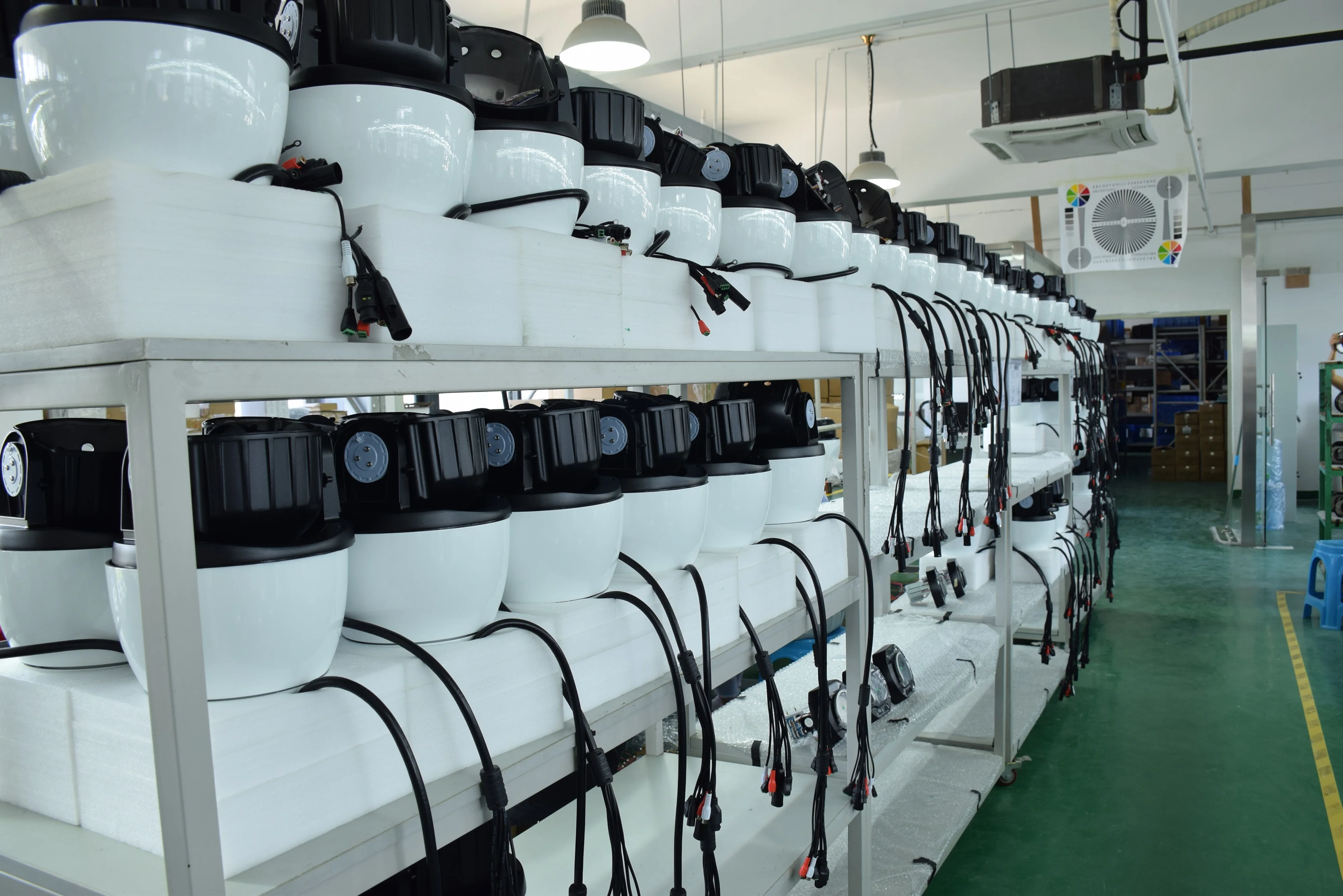

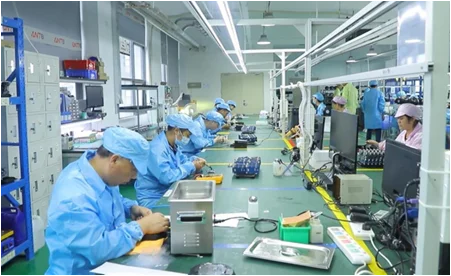

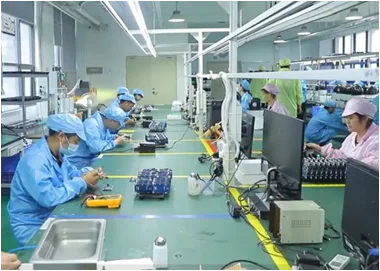

Quality Management

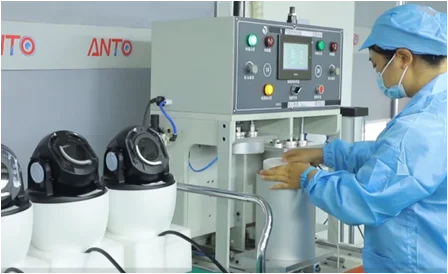

Waterproof Test
Vibration Test

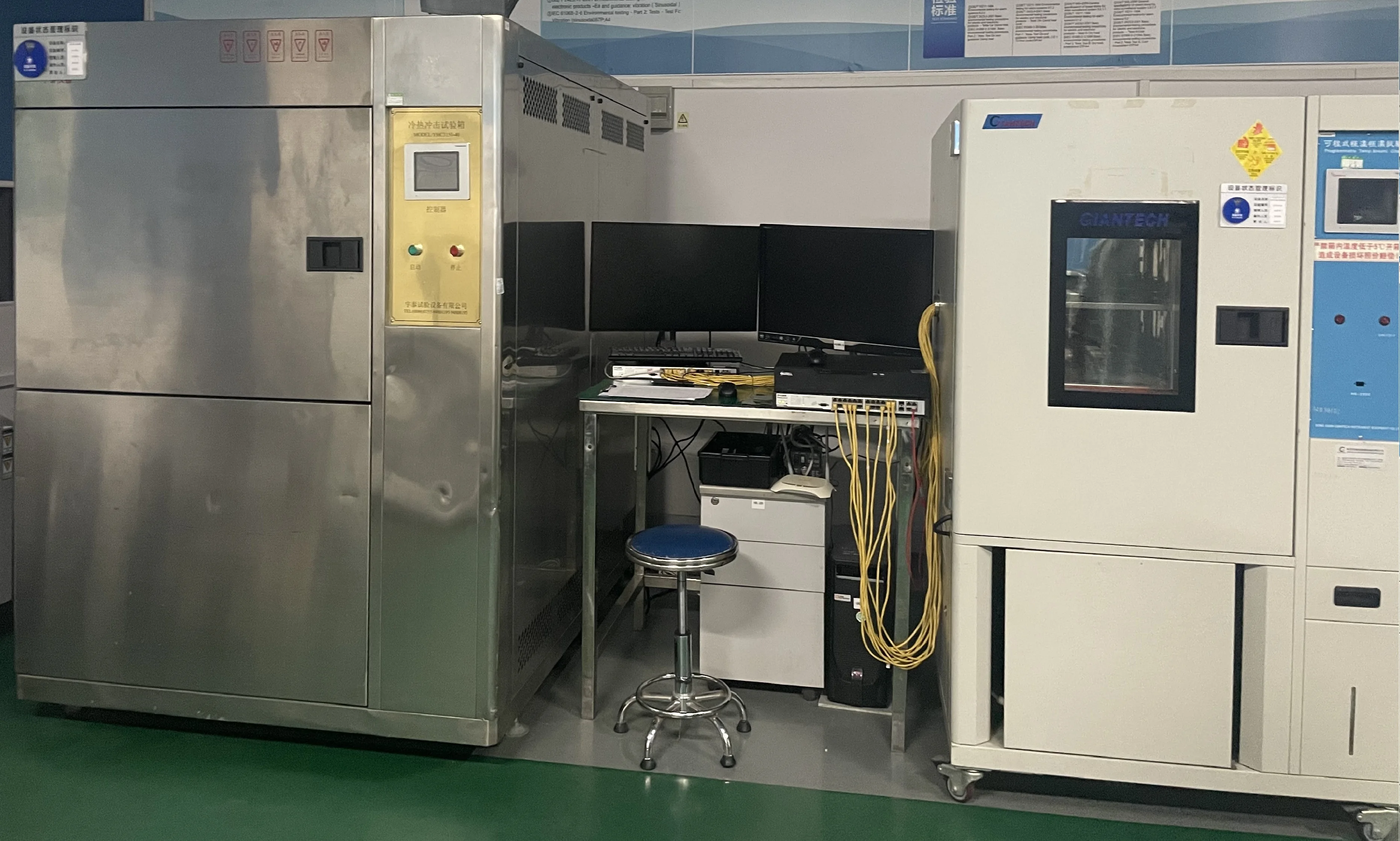

High and Low Temperature Test

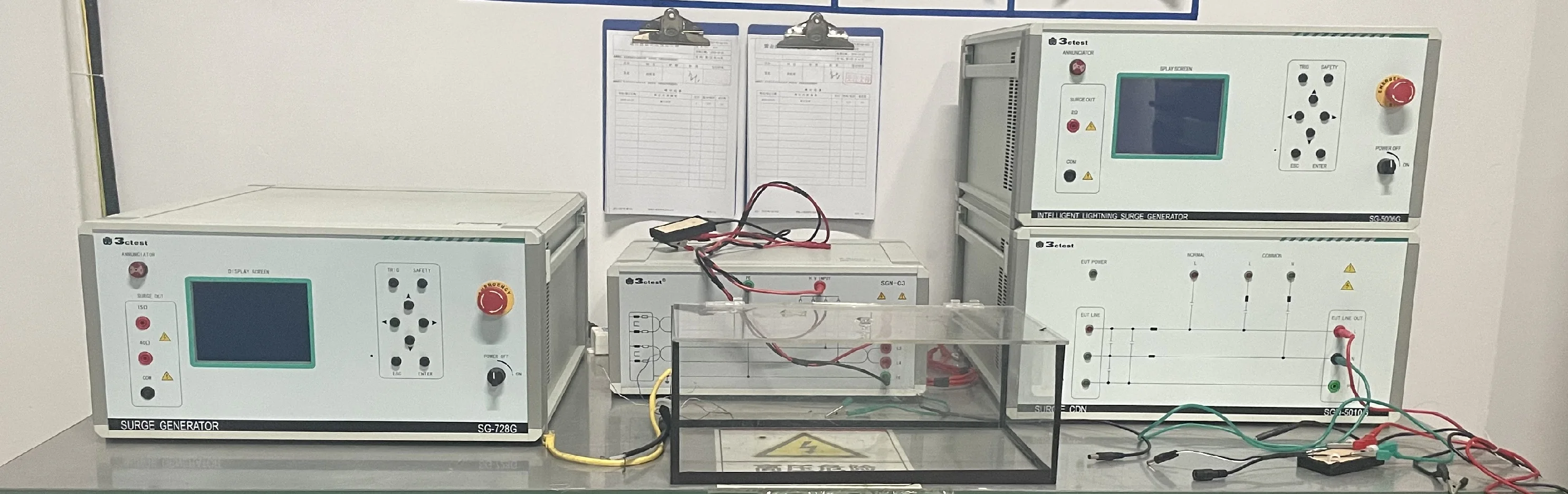

Electrostatic Test
