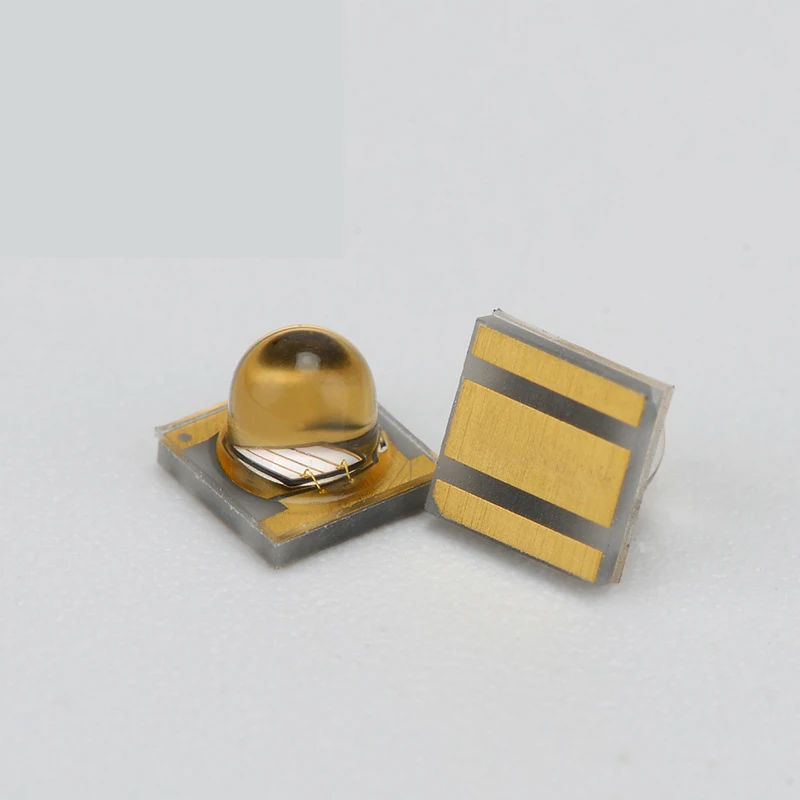

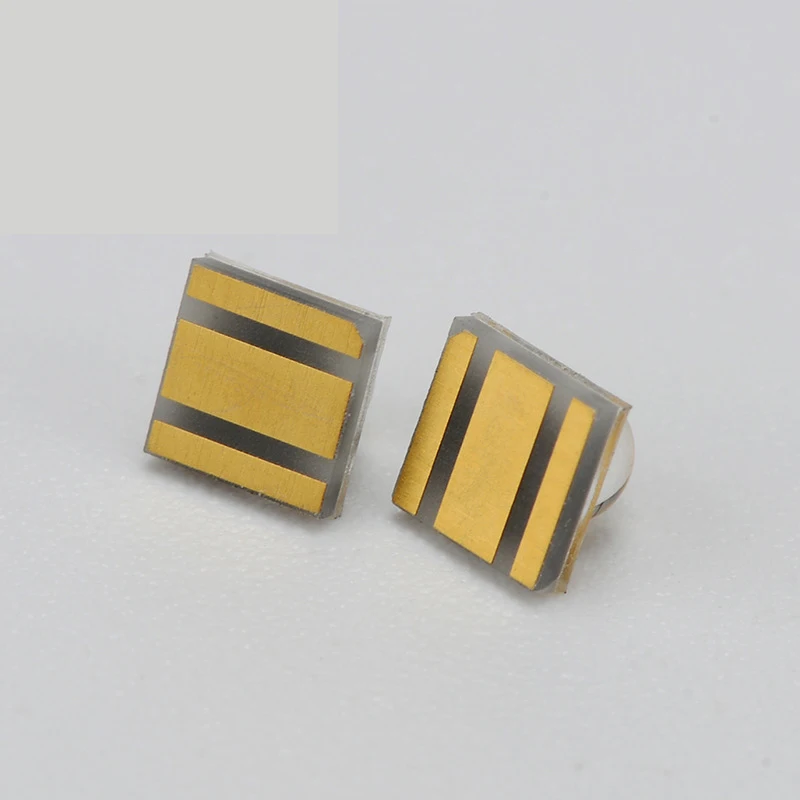

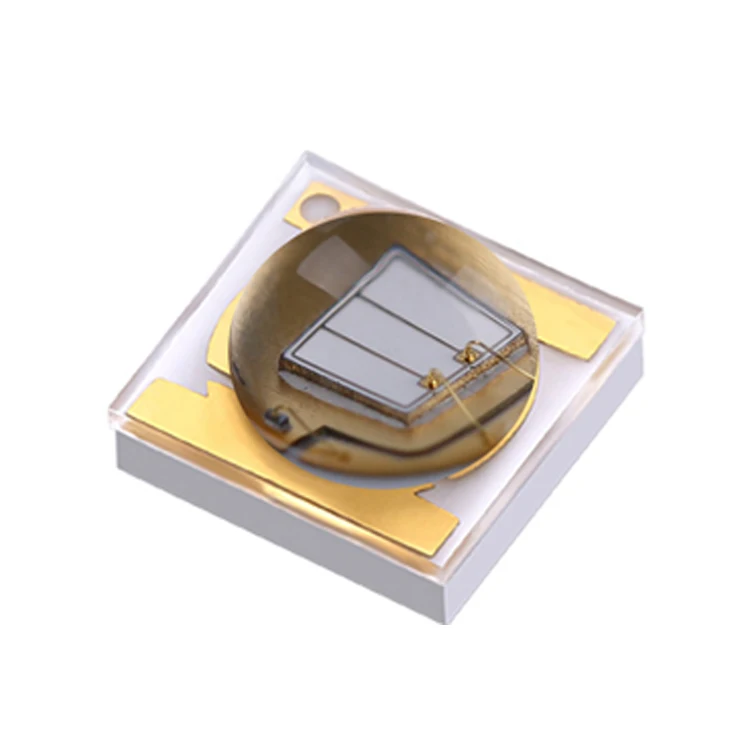

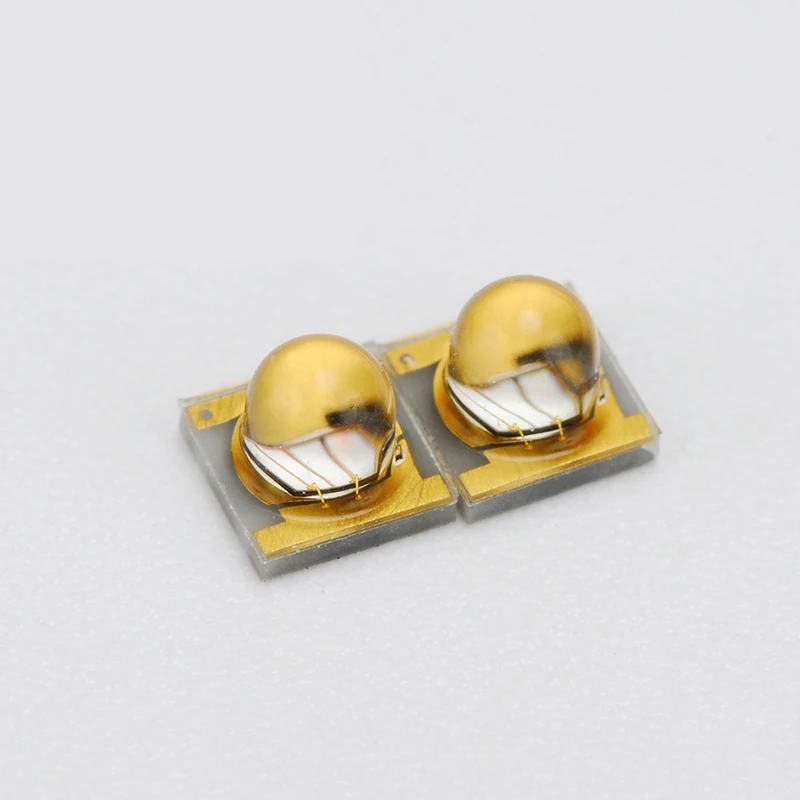

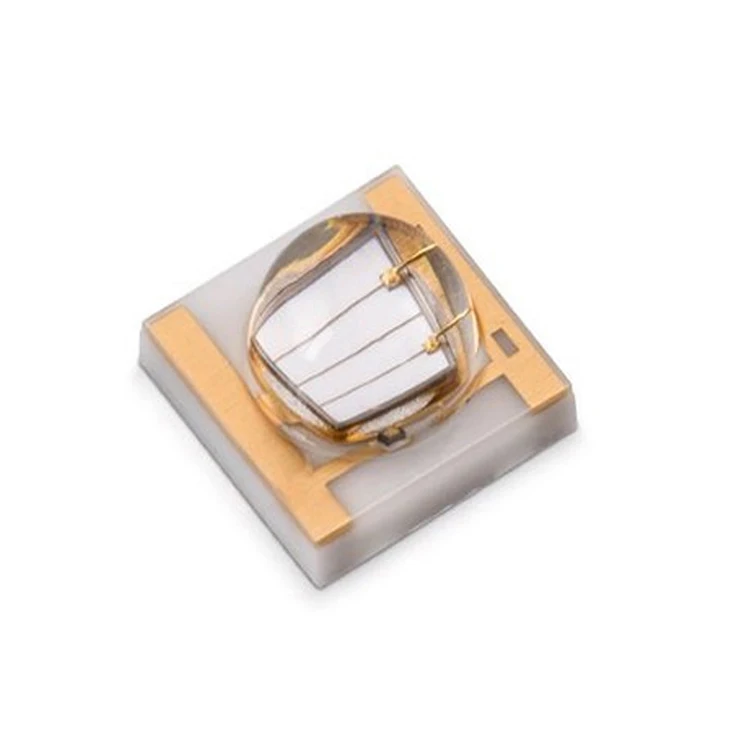

120 angle 1 3w 365 nm 385nm 415nm smd 3535 epistar uv led diode for uv curing system
- Category: >>>
- Supplier: Shenzhen Yingfeng Opto-Electronic Co. Ltd.
Share on (1601001790333):
Product Overview
Description
| Order Code | Voltage (V) | Peak Wavelength (nm) | Radiant Power (mW) | Radiant Intensity (mW/sr) | Current (mA) | Half Width (nm) | Angle (0) | Electric power (W) |
| HYR35X43B365KN-D1 | 3.5-4.0 | 365-370 | 1500-2000 | 375 | 700 | 9 | 120 | 3 |
| HYR35X43B380KN-D1 | 3.2-3.6 | 380-390 | 1800-2300 | 455 | 700 | 10 | 120 | 3 |
| HYR35X43B395KN-D1 | 3.0-3.4 | 395-400 | 1700-1900 | 438 | 700 | 15 | 120 | 3 |
| HYQ35G45N400KN-D1 | 3.0-3.4 | 400-410 | 1300-1500 | 355 | 700 | 17 | 120 | 3 |
| HYQ35G45N410KN-D1 | 3.0-3.4 | 410-420 | 900-1100 | 346 | 700 | 17 | 120 | 3 |
| HYQ35G45N420KN-D1 | 3.0-3.4 | 420-430 | 900-1100 | 324 | 700 | 16 | 120 | 3 |
| HYQ35G45N430KN-D1 | 3.0-3.4 | 430-440 | 700-800 | 335 | 700 | 19 | 120 | 3 |
| HYR35G30N365KN-D1 | 3.5-4.0 | 365-370 | 1000-1200 | 238 | 500 | 11 | 120 | 2 |
| HYR35G45N365KN-M1 | 3.5-4.0 | 365-370 | 2000-2300 | 375 | 700 | 9 | 60 | 3 |
| HYQ35G45N380KN-M1 | 3.2-3.6 | 380-390 | 1800-2100 | 455 | 700 | 10 | 60 | 3 |
| HYQ35G45N400KN-M1 | 3.0-3.4 | 395-400 | 1700-2000 | 438 | 700 | 15 | 60 | 3 |
| HYQ35G45N410KN-M1 | 3.0-3.4 | 410-420 | 900-1100 | 346 | 700 | 17 | 60 | 3 |
| HYQ35G45N420KN-M1 | 3.0-3.4 | 420-430 | 900-1100 | 324 | 700 | 16 | 60 | 3 |
| HYQ35G45N430KN-M1 | 3.0-3.4 | 430-440 | 700-800 | 335 | 700 | 19 | 60 | 3 |
| HYR35X43B365KN-H1 | 3.5-4.0 | 365-370 | 1800-2300 | 1270 | 700 | 9 | 30 | 3 |
| HYR35X43B380KN-H1 | 3.0-3.4 | 380-385 | 1800-2300 | 1230 | 700 | 10 | 30 | 3 |
| HYR35X43B400KN-H1 | 3.0-3.6 | 400-405 | 1700-2000 | 1150 | 700 | 13 | 30 | 3 |
Warm Tip:The above parameters are for reference. Wavelength Angle, PCB can be customized according to requirements
