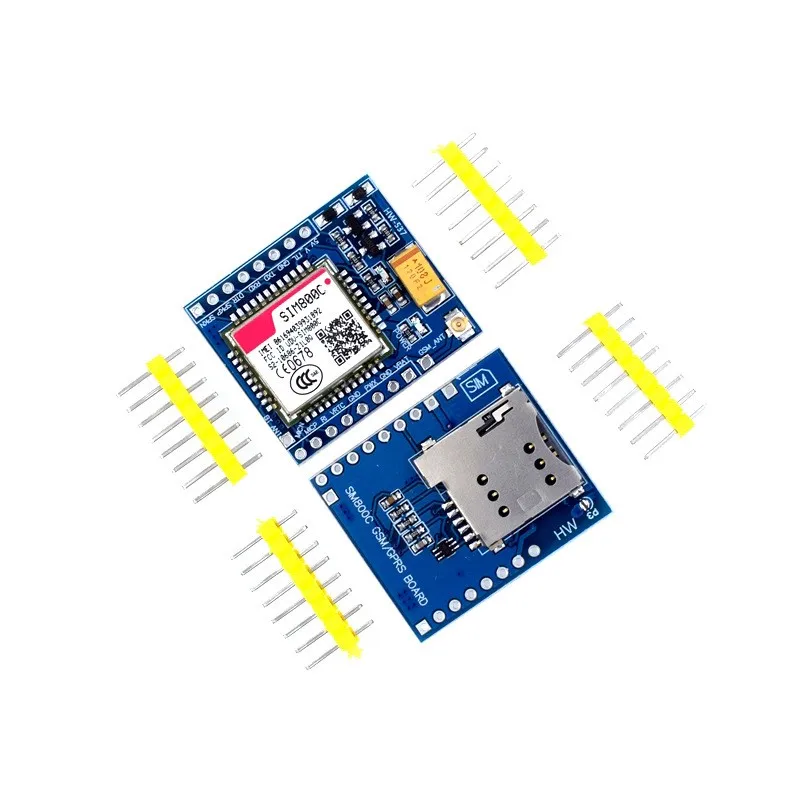

SIM800C 850/900/1800/1900MHz Development Board GSM GPRS Module PCBA manufacturer
- Category: >>>
- Supplier: Shenzhen Mondo Technology Co. Ltd.
Share on (1601001795605):
Product Overview
Description
Product Description:
GPS PCB assembly module Shenzhen manufacturer
SIM800C 850/900/1800/1900MHz Development Board GSM GPRS Module PCBA manufacturer

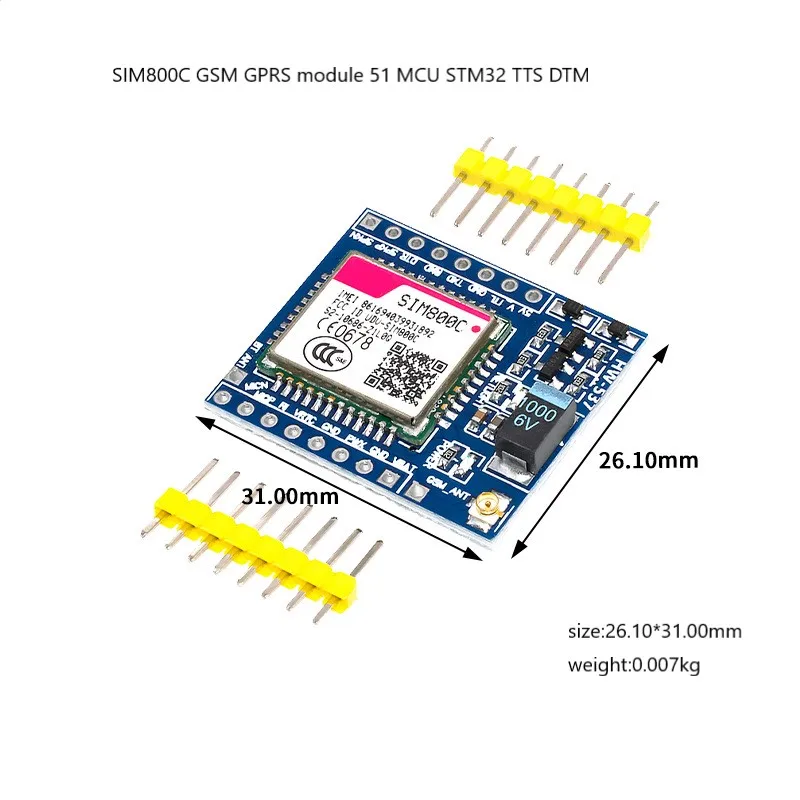

Product parameters:
1. Chip: SIM800C
2. The working frequency band: GSM850 / EGSM900 / DCS1800 / PCS1900MHz.
3. Supply voltage:
5V pin: Input DC 5V is used to supply power to the board;
VBAT pin: Lithium battery power supply interface input DC 3.3-4.4V.
4.SIM interface: Support mobile or Unicom 4G phone card or 2G Internet of Things card.
5. Maximum transmitting power:
Class 4(2W):GSM850, EGSM900 MHz
Class 1(1W):DCS1800, PCS1900MHz

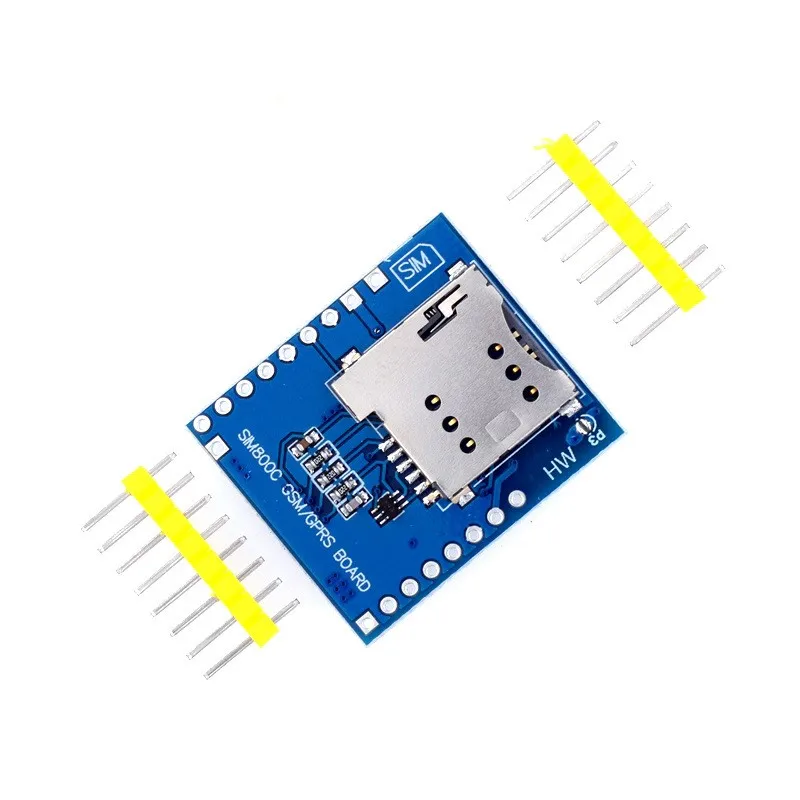

6. With a self-ejecting SIM card port.
7. Support GSM and GPRS communication.
8. Antenna: Reserve IPEX antenna ports.
10. Working temperature: -40℃ ~ +85℃.
11.GPRS:
The maximum downstream transmission is 85.6kbps.
The maximum uplink transmission is 85.6kbps.
Encoding format: CS-1, CS-2, CS-3, CS-4.
Support for PAP(Password Authentication Protocol), commonly used for PPP connections Embedded TCP/IP protocol Support for Packet Broadcast Control Channel (PBCCH).
Support for unstructured Supplementary Data Services (USSD).
12. Serial port:
By default, one standard full-featured serial port is supported. AT commands and data can be sent through the serial port.
Support RTS/CTS hardware flow control, and can be turned on or off through software flow control function.
Supports serial port multiplexing that complies with the GSM07.10 protocol
Automatic baud rate detection from 1200bps to 115200bps Software upgrade is supported.
*The power supply voltage cannot exceed 4.4V, otherwise the module is easily damaged.
*Reserve an IPEX antenna port, which can be configured with an antenna.

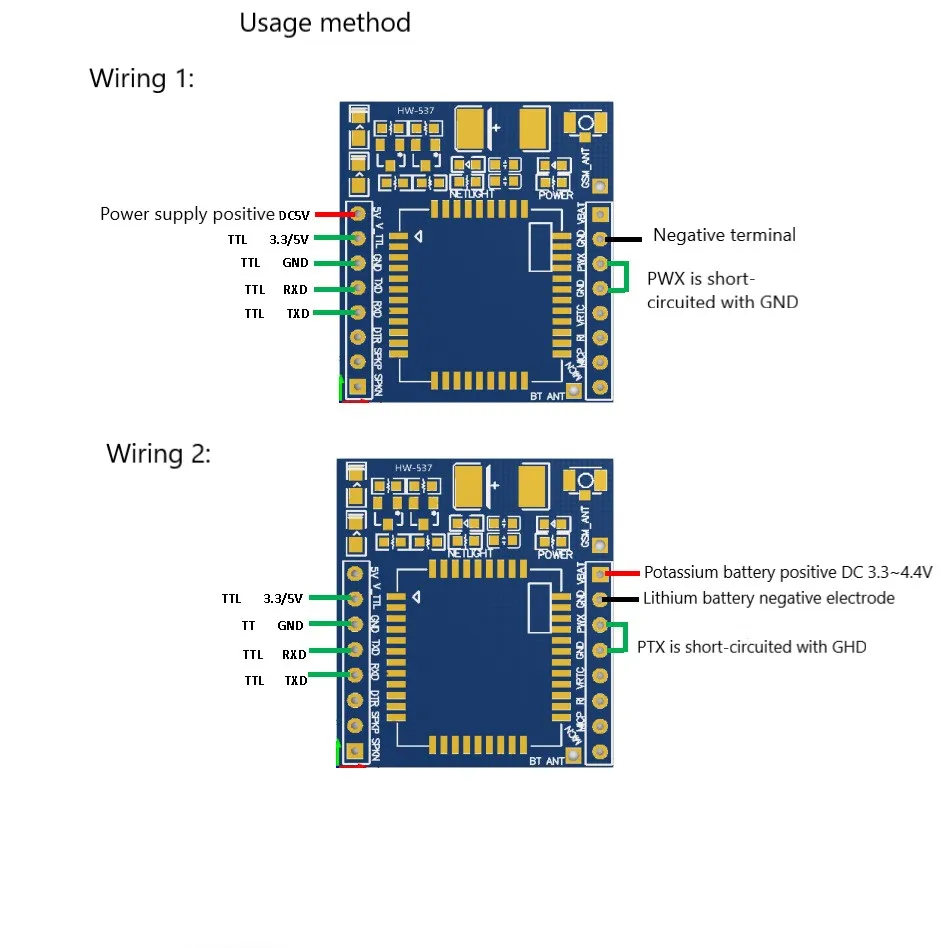

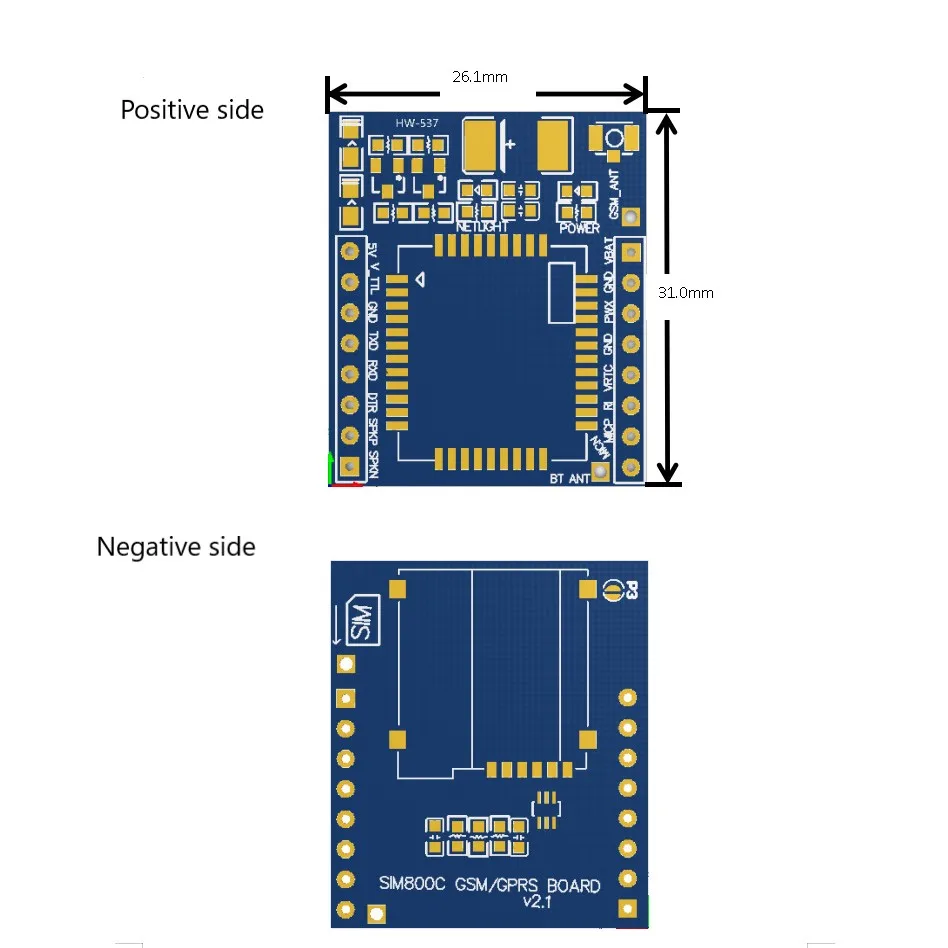

*When PWX is grounded, the module is powered on and starts automatically. Before use, PWX and GND should be short-connected -- it starts automatically after power is turned on.
*Do not reverse the positive and negative terminals of the power supply; otherwise, the module may be damaged.
