Hot Sale High Quality Quick Couplers Excavator Quick Coupler Mini Excavator Quick Hitch For Excavator
- Category: >>>
- Supplier: Yantai SC Equipment Co. Ltd.
Share on (1601001804141):
Product Overview
Description

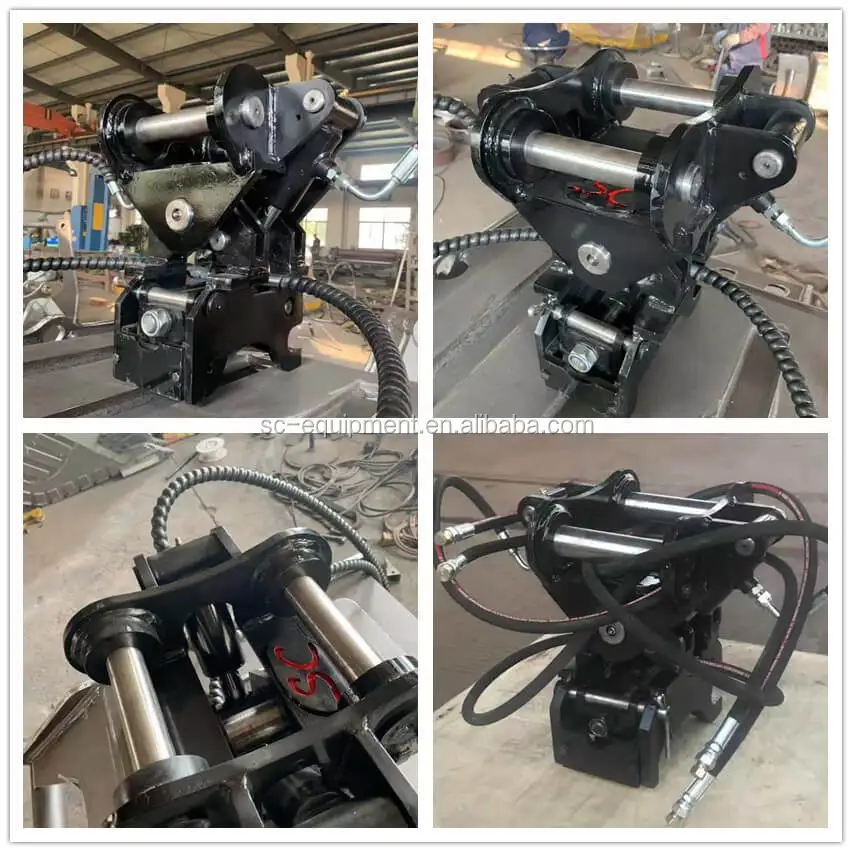

Excavator Tiltrotator

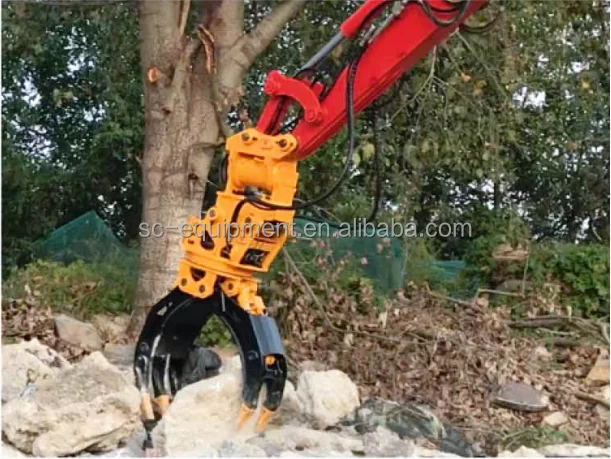

Excavator tiltrotator also called quick hitch quick coupler, - it easy connect with your excavator arm and significantly expand the versability of excavators, which are transformed into multifunctional equipment carriers for all buckets, grapples or demolition tools. Designed to fit excavators from 1.5 to 90T. You can switch buckets and attachments automatically without leaving cab, which save time and improve working efficiency. The tilt quick coupler with 90 degree each direction enhance the precision of your working.

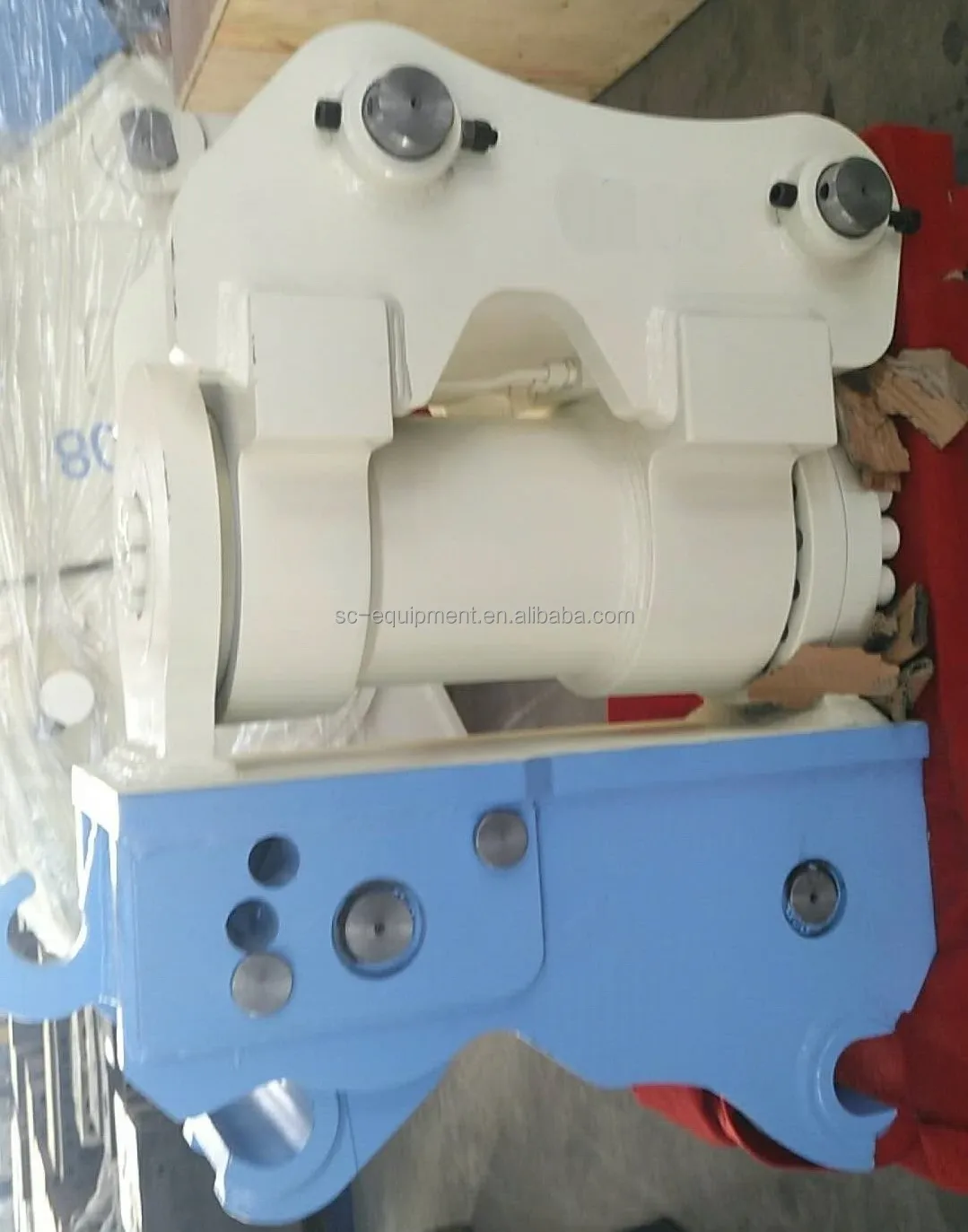

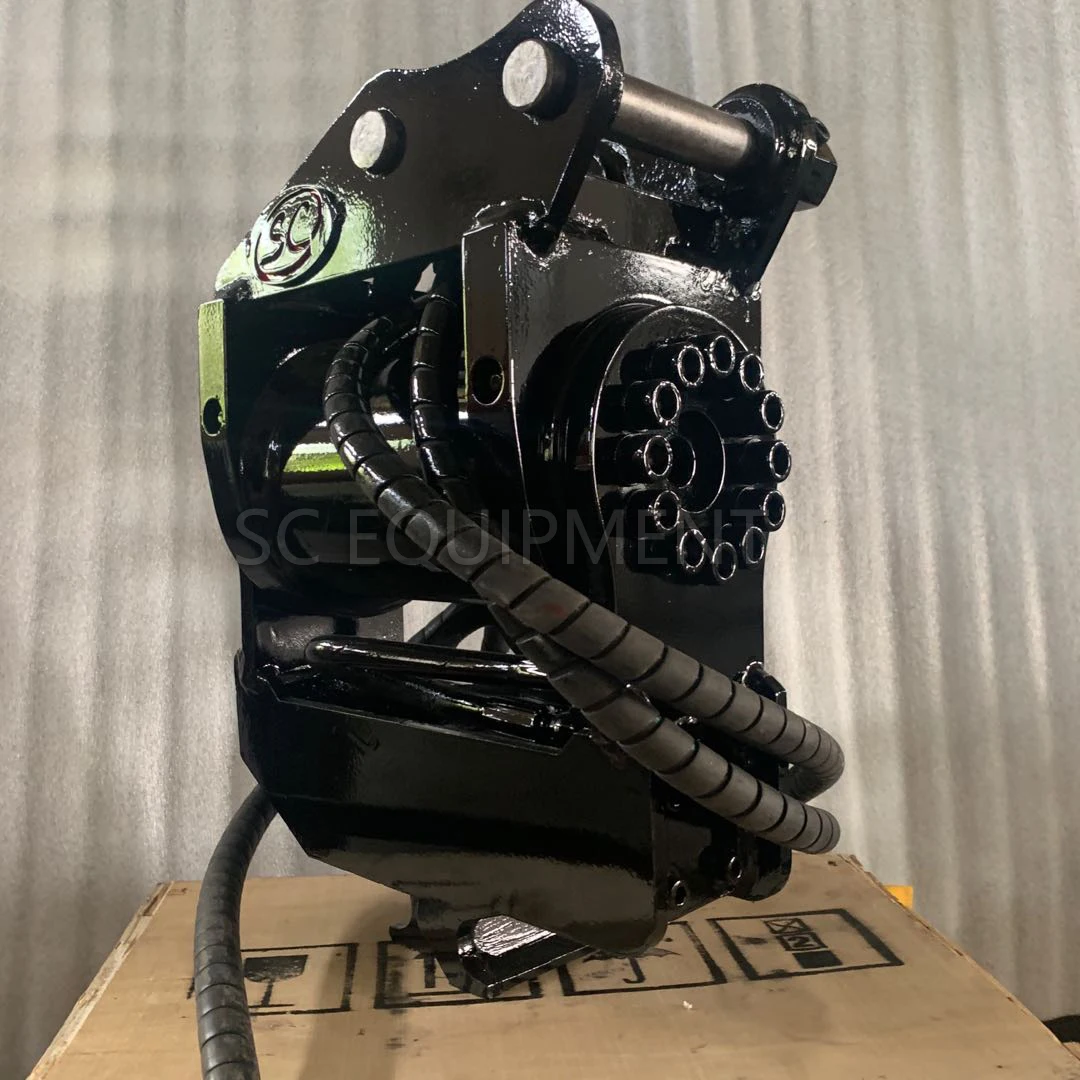

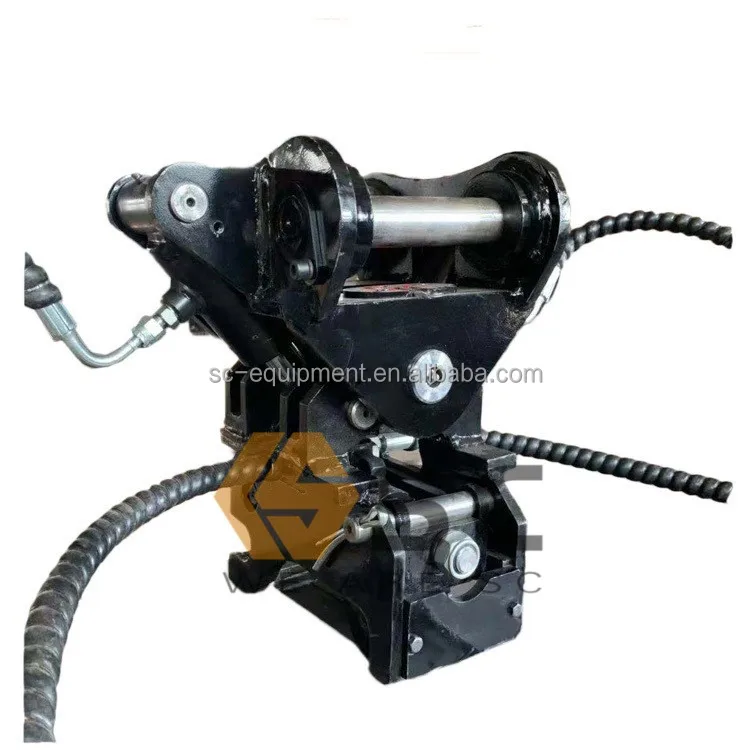

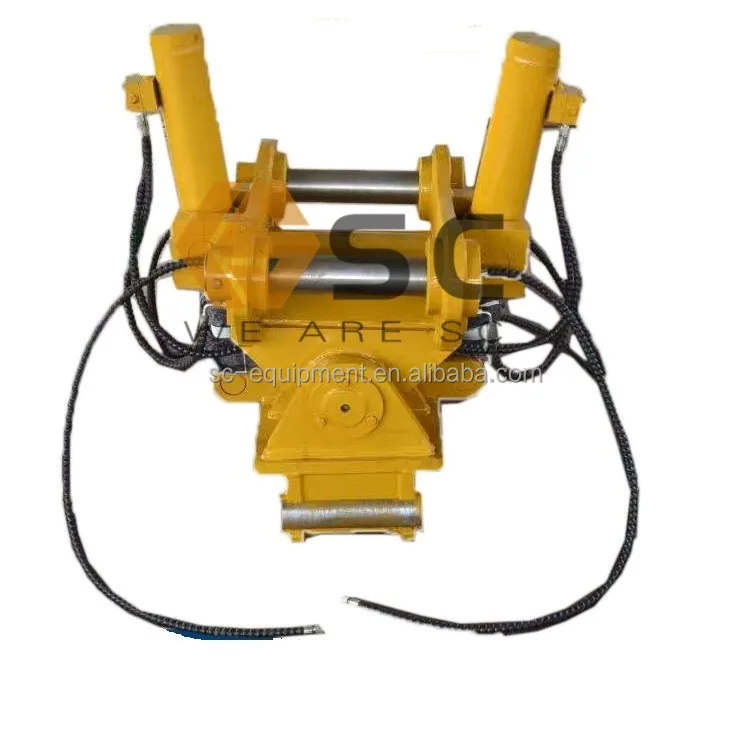

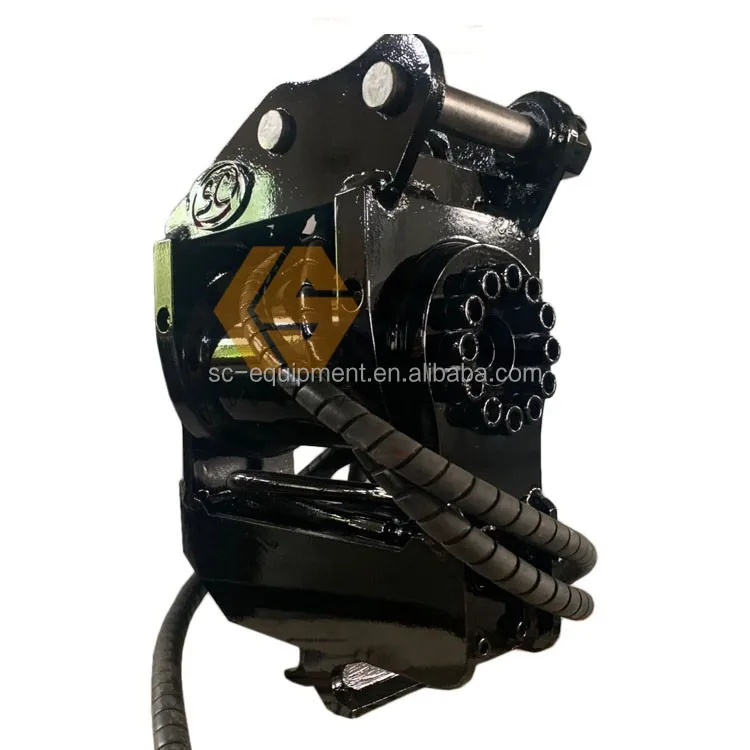

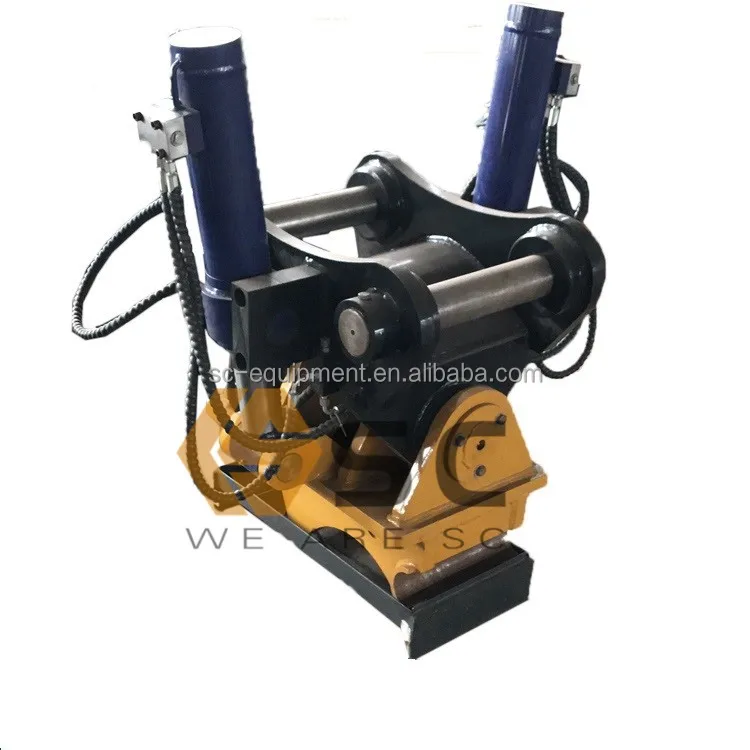

SC TILT COUPLERS

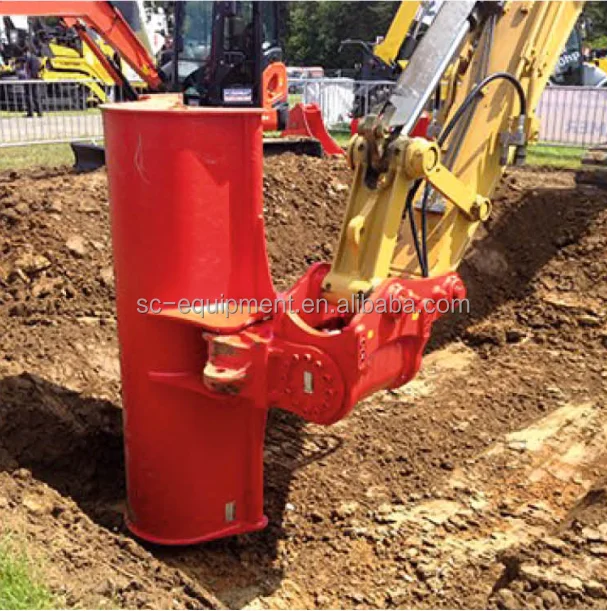

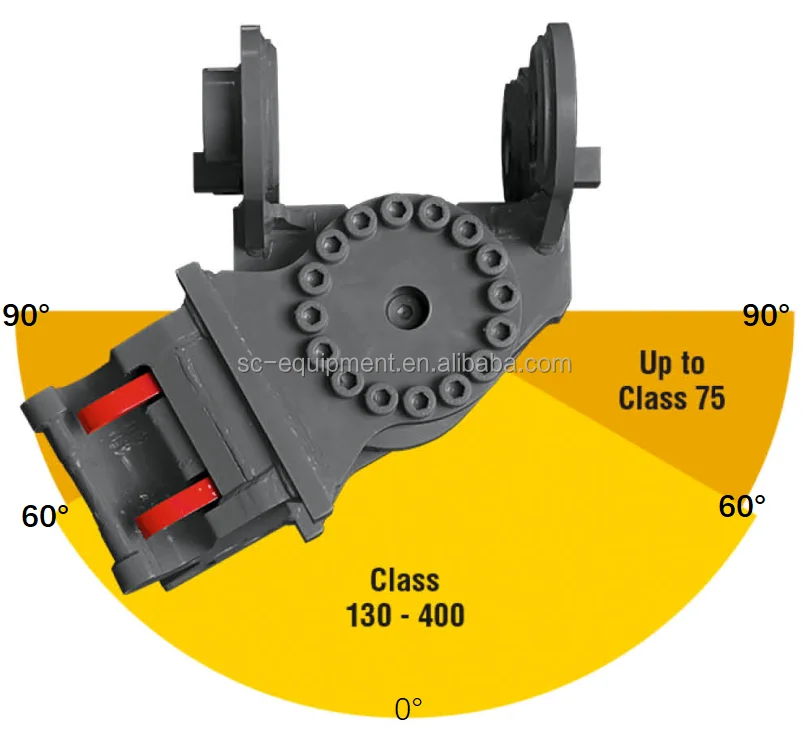

SC TILT SERIAL COUPLER combines the versatility of the SC multi-pin grabber coupler with the ability to tilt the attachment a full 90° and 180° in each direction allowing you to reach more places in less time and with less repositioning. The move from a standard fixed quick coupler to a tilt coupler is nothing short of a complete revolution in machine productivity and performance.
Product Overview

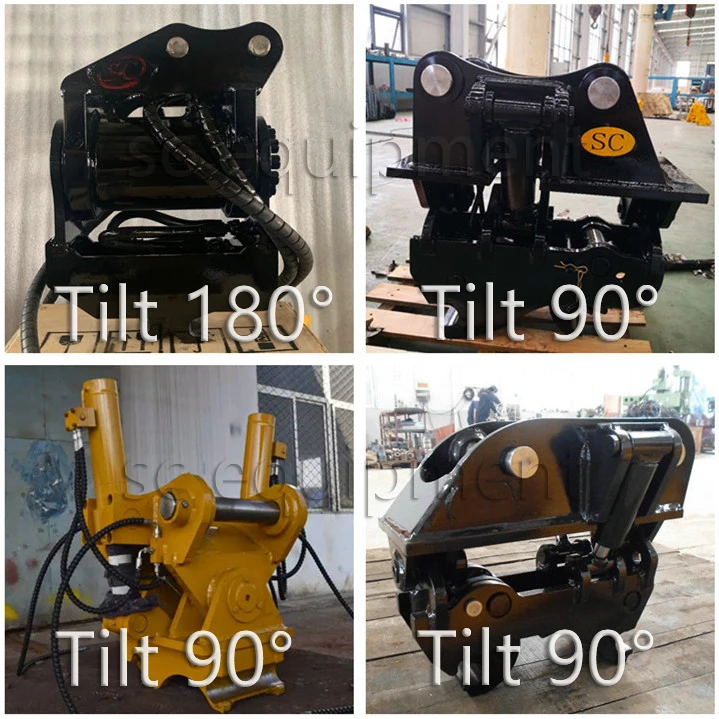

* Max tilt up to 180 degree.
* No cylinder rod or external moving parts
* Greatly reduces time for attachment changes and adds to your excavator’s versatility
* Integrated pressure relief valve prevent overload of the tilt motor
* Wider pin spread to fit a greater range of buckets

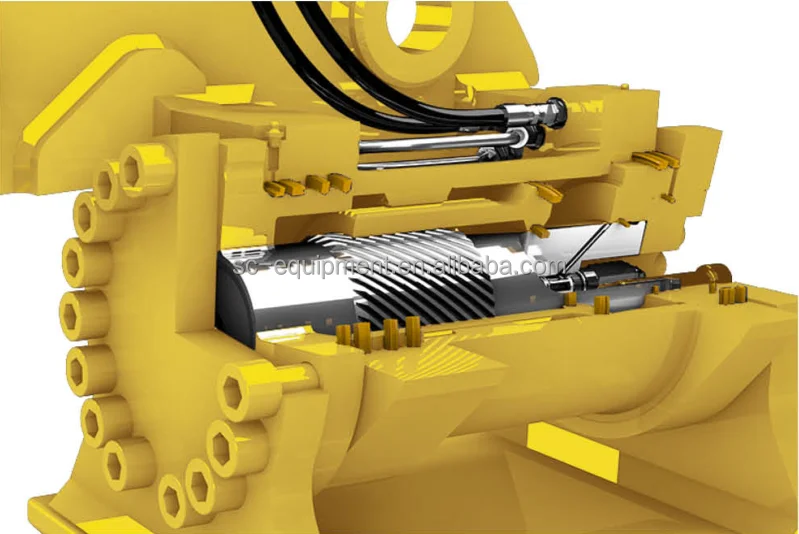

* Low maintenance as result of lubrication over the hydraulic oil of the slewing gear
PRODUCT SPECIFICATIONS
Item | Unit | SC30 | SC45 | SC50 | SC60 | SC70 | SC90 | SC100 |
Overall Length | mm | 388 | 534-545 | 600 | 765 | 924-944 | 983-1050 | 1006-1173 |
Overall Height | mm | 246 | 307 | 310 | 388 | 492 | 574 | 558-610 |
Overall Width | mm | 175 | 258-263 | 270-280 | 353-436 | 449-483 | 543-568 | 606-663 |
Pin to Pin Center Distance | mm | 80-150 | 230-270 | 290-360 | 380-420 | 460-480 | 473-540 | 550-620 |
Forearm Open Width | mm | 80-140 | 155-170 | 180-200 | 232-315 | 306-340 | 375-411 | 416-469 |
Retractable Distance of Oil Cyllinder | mm | 170-206 | 205-275 | 340-450 | 340-486 | 256-390 | 413-590 | 520-590 |
Top to Bottom Pin Distance | mm | 159 | 195 | 195 | 220 | 275 | 300 | 360 |
Pin Diameter | mm | 25-40 | 45-50 | 50-55 | 60-70 | 70-80 | 80-90 | 90-120 |
Weight | kg | 25 | 50-60 | 80 | 120-130 | 280-290 | 420-430 | 450-480 |
Working Pressure | kg/cm² | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 | 40-380 |
Required Oil Flow | L/min | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
Suitable Excavator | Ton | 1.5-4 | 4-7 | 5-8 | 9-19 | 17-23 | 23-30 | 33-45 |
Photo galary
Details Images
Welding robot

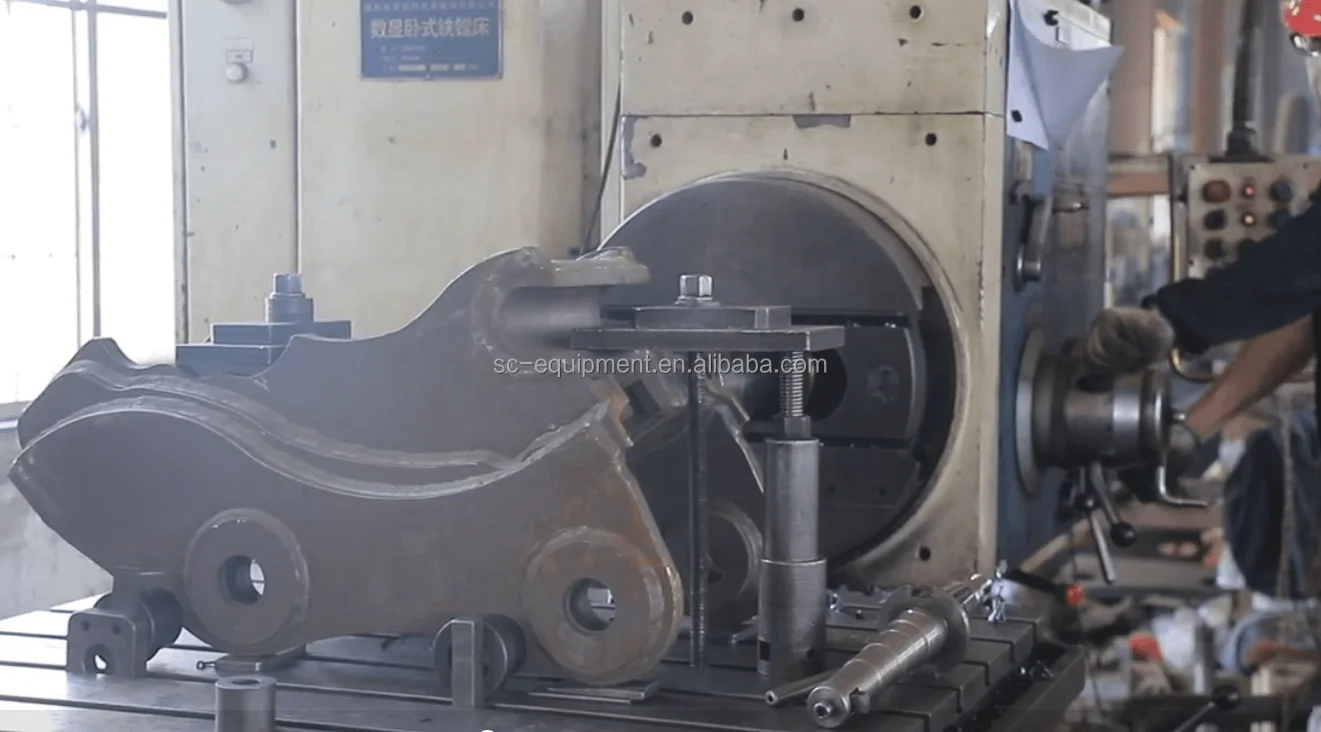

CNC plasma cutting machine
Strict test
Packing
Recommend Products

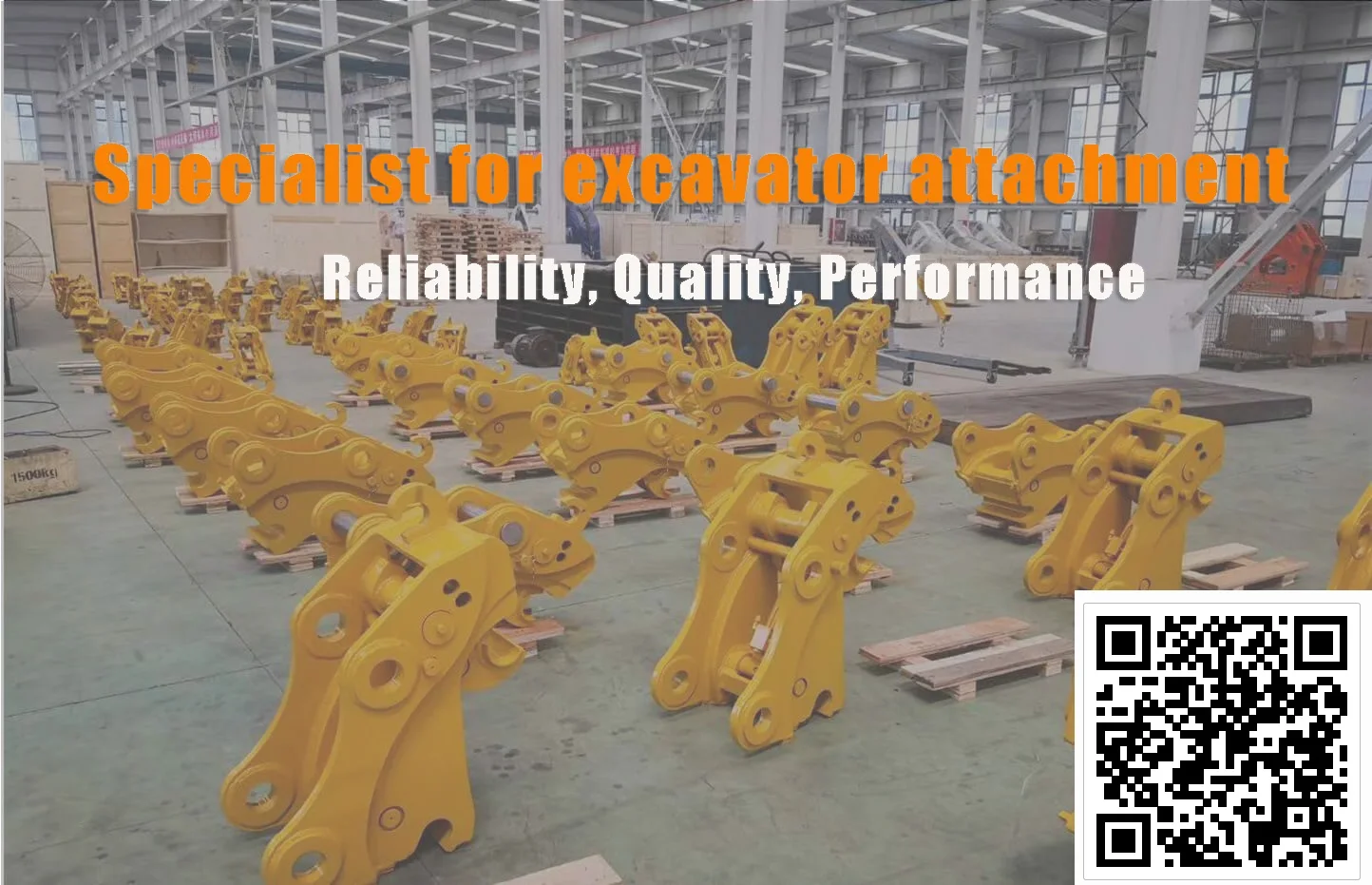

Company Profile
(Scan the above QR Code to see more of our products videos)
YANTAI SC EQUIPMENT CO., LTD. is a professional excavator attachment supplier. We are specialized in R&D, production and sale a wide range of excavator attachments such as hydraulic breaker, earth driller, log grapple, rock saw, screen bucket, hydraulic compactor, vibro ripper, pile driver, hydraulic shear/concrete crusher, crushing bucket, etc. Our products are widely used for earth-moving, building demolition, mining, paving road, landscape planting, scrap, dispose waste, sub grade compaction, etc.
We always insist our basic principle as offer high quality products with attractive price and careful service!
We are looking forward to establish closed business relation with you on the multiple benefits basic.
We always insist our basic principle as offer high quality products with attractive price and careful service!
We are looking forward to establish closed business relation with you on the multiple benefits basic.
