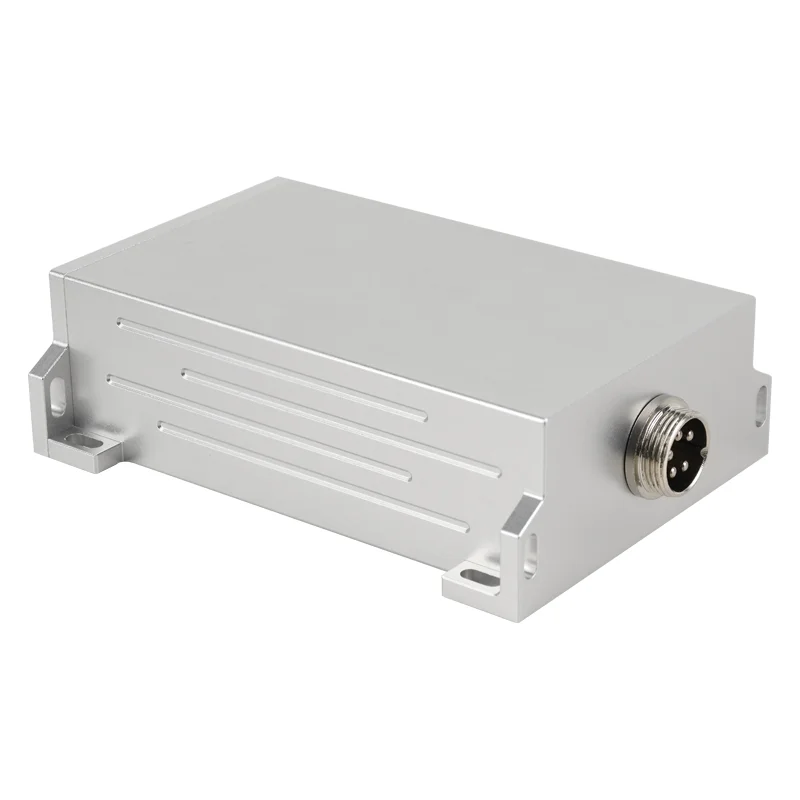

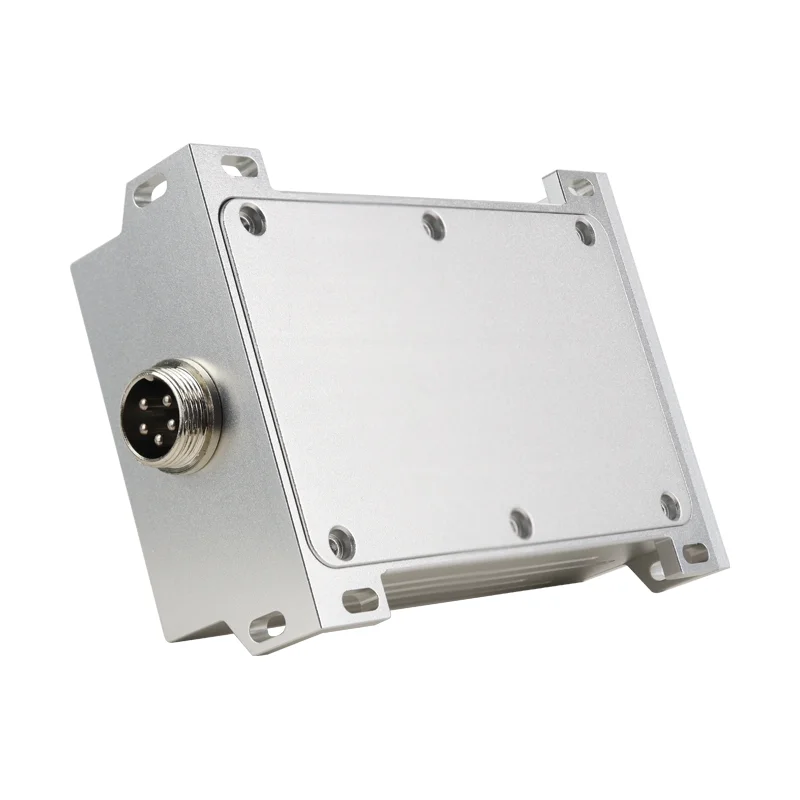

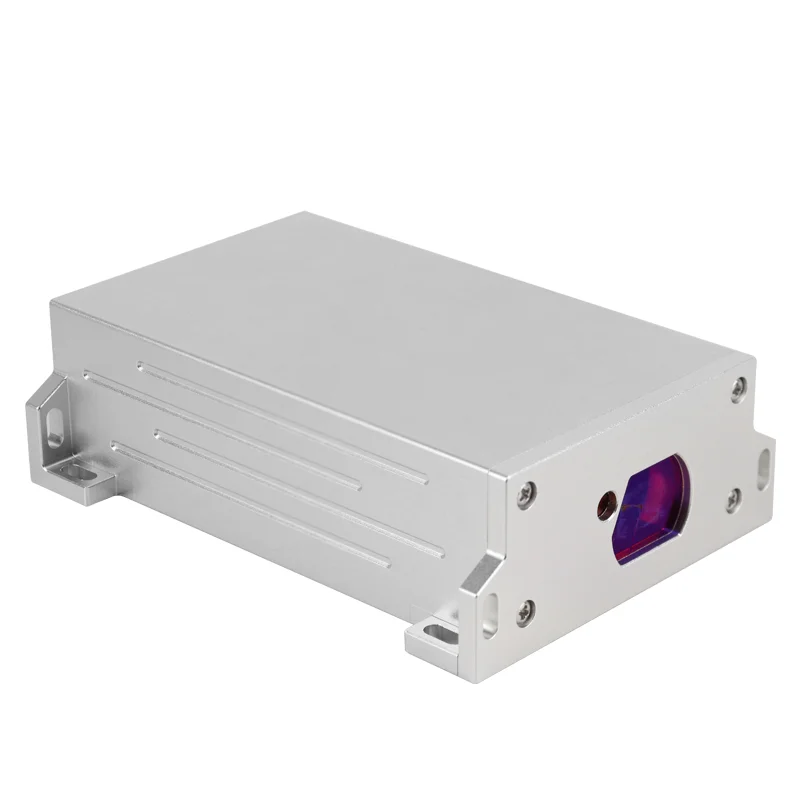

Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor

Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor

Share on (1601001884705):


Price:$240.30 - $265.30

Quantity:


Product Overview

Description

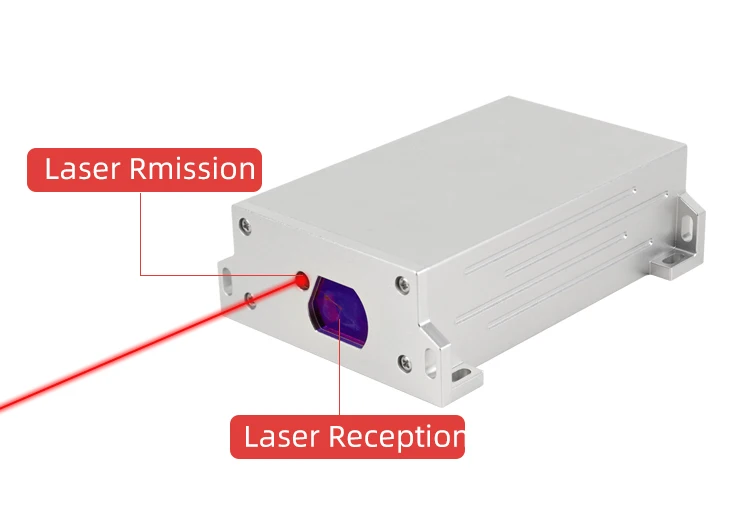

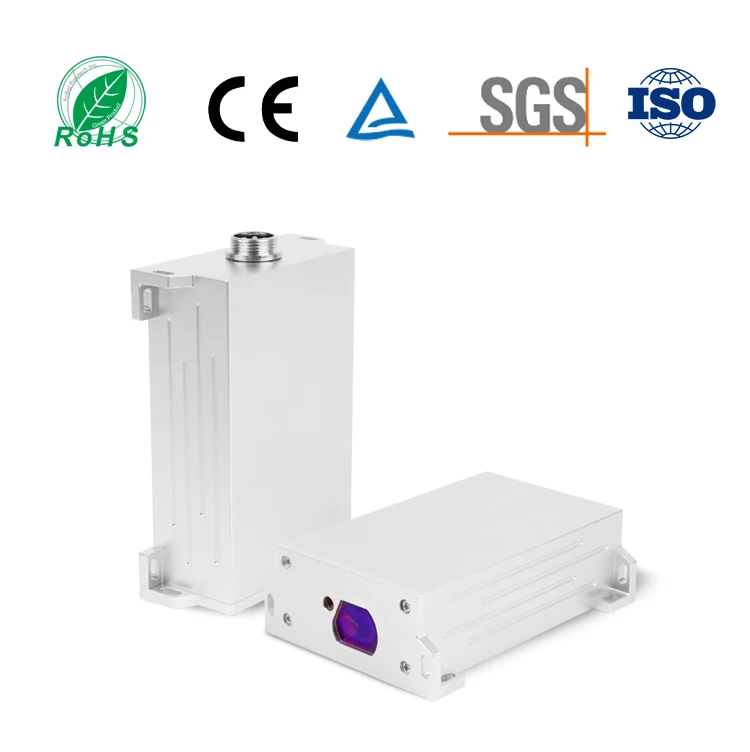

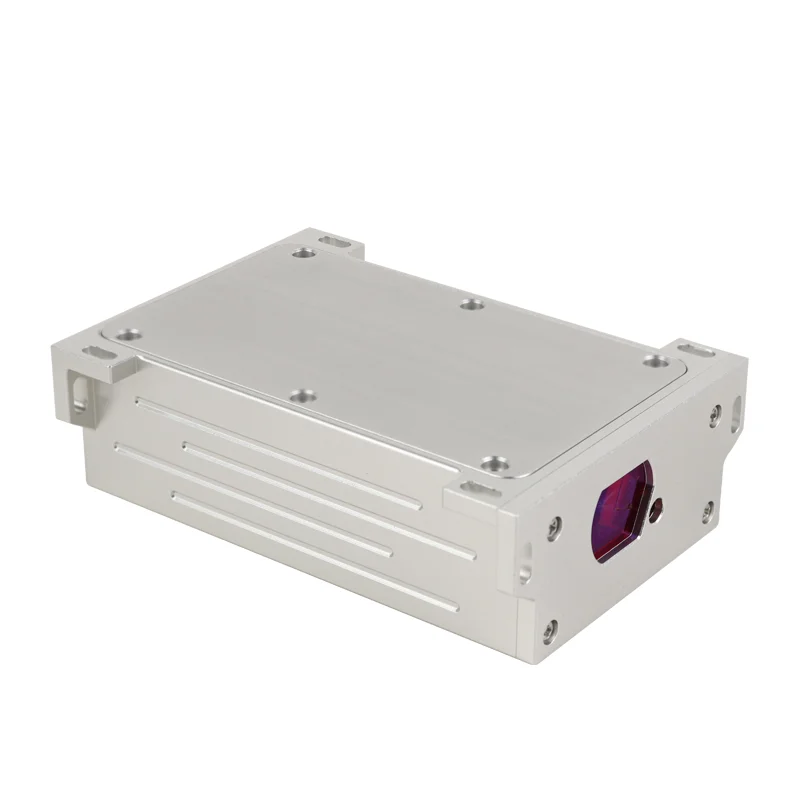

IP67 Protection Phase Distance Sensor

Industrial Long Range IP67 Protection Phase Distance Sensor, high accuracy, high frequency, high stability laser distance measuring sensor.Communication Port Supports TTL, UART, USB, RS232, and RS485.



Product Name
IP Protection Phase Distance Sensor
Protection Grade
IP67
Resolution
±2mm
Range of Measurement
0.03-80m（100-150m can be customized）
Measuring Time
≥0.3s
Laser Class
Class II
Laser Type
635nm, <1mW，Red visible laser

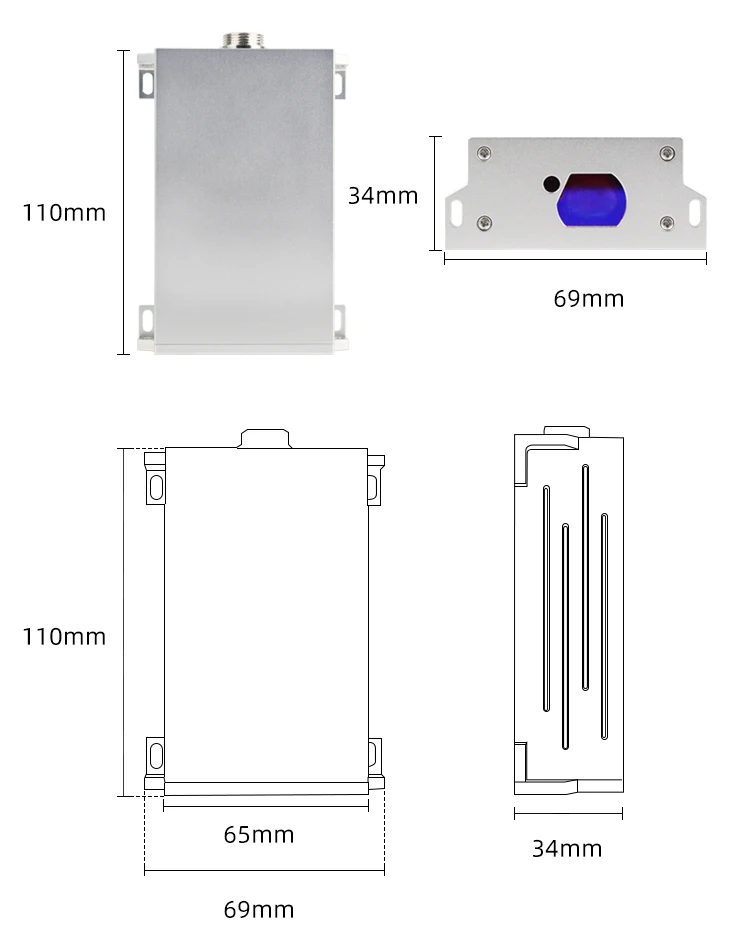

Size
110*69*34mm
Data Interface
TTL/RS232/RS485/4-20mA
Weight
405g
Voltage
DC6~336V
Operating Temperature
-20~+60℃ (Can be customized)

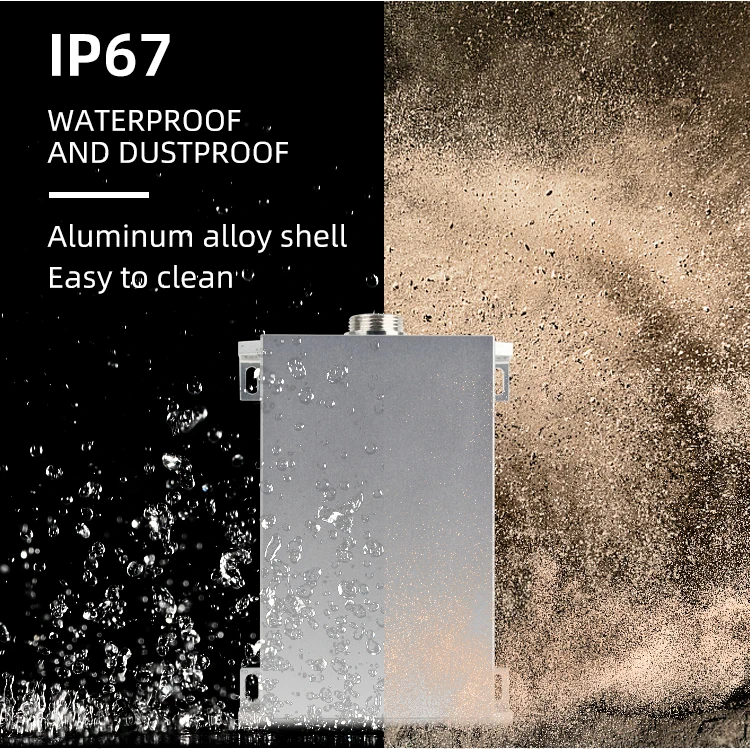

IP67 Protection Grade

The IP67 standard refers to the protection safety level. IP stands for Ingress Protection Rating (or International Protection code). IP67 in the 6 refers to the dust can not enter the object of the whole diameter can not exceed the clearance of the shell; 7 refers to normal temperature and pressure, when the shell is temporarily immersed in 1M deep water will not cause harmful effects.

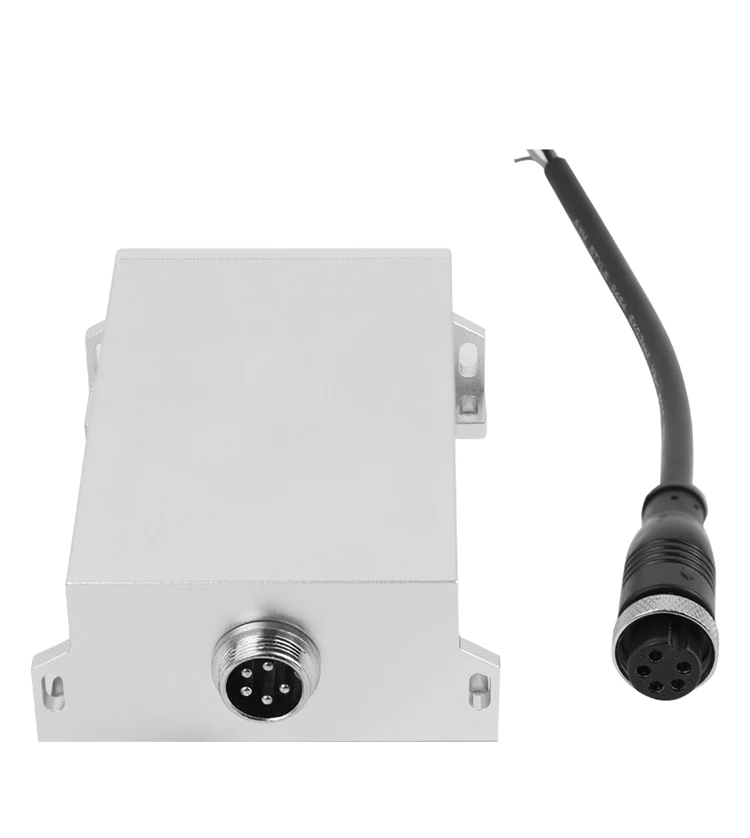

Communication Port

Industrial laser distance sensors support long-distance and stable transmission, and support many types of transmission interfaces, such as RS485, RS232, USB, Bluetooth, etc., and can also be customized according to different application scenarios and customer needs.

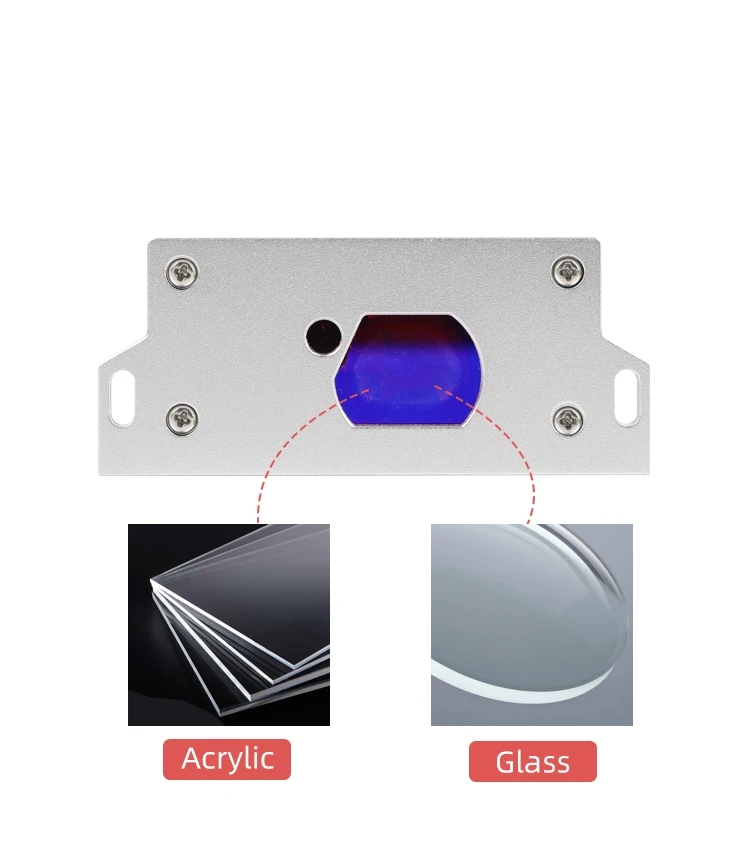

Receiving Lens

Acrylic lenses are used by default, and glass lenses can be customized for different application scenarios.

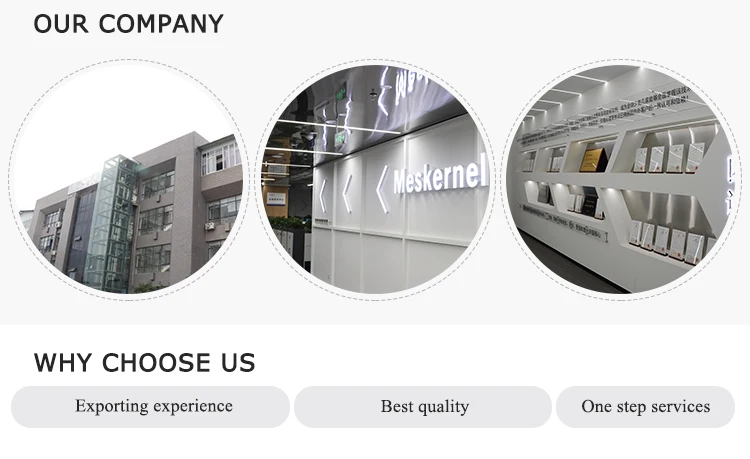

COMPANY INFORMATION

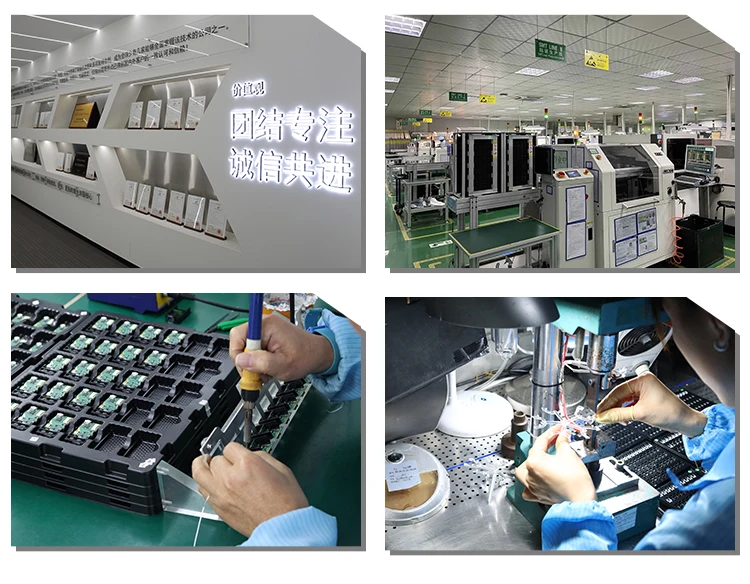

Chengdu Meskernel Integrated Technology Co.,Ltd. is a high-tech enterprise specializing in the research, development, design and production of laser measurement (sensing) core chips and systems. It has now formed Laser Measurement Chips, Laser Measurement Modules (1D, 2D and 3D LiDAR)led series of products have been unanimously recognized and trusted by customers at domestic and abroad for their advantages such as high precision, small size, low power consumption, stable performance, and reasonable price.The company is headquartered in Chengdu, Sichuan Province, and currently has more than 70 employees, including more than 30 R&D engineers, accounting for more than 40%.

At present, it is a Gazelle Enterprise in Chengdu as a Specialized, Refined, and Innovative Enterprises in Sichuan Province, and has established the National Ultra-HD Video Innovation Center Joint Laboratory, obtained and qualified of Chengdu Enterprise Technology Center,ISO Management System Certification and more than 60 various intellectual property rights

We believe only by keeping your feet on the ground, you can look up at the stars.In the future, we will always uphold the values of "unity, focus, integrity, and common progress", focus on developing higher, faster, and stronger laser measurement cores, persist in R&D innovation, strengthen the market, and make every effort to create the most competitive world-renowned brand in the segmented fields.


















Q1. Are you trading company or manufacture?
A1：We are original manufacturer locates in Shuangliu District Chengdu. Our company was established in 2004 with more than 37 national patents and own brands, Welcome to visit us.
Laser Pointer IP67 80m Red Laser Distance Module Laser Distance Measurement Sensor
Q2. What is your main product?

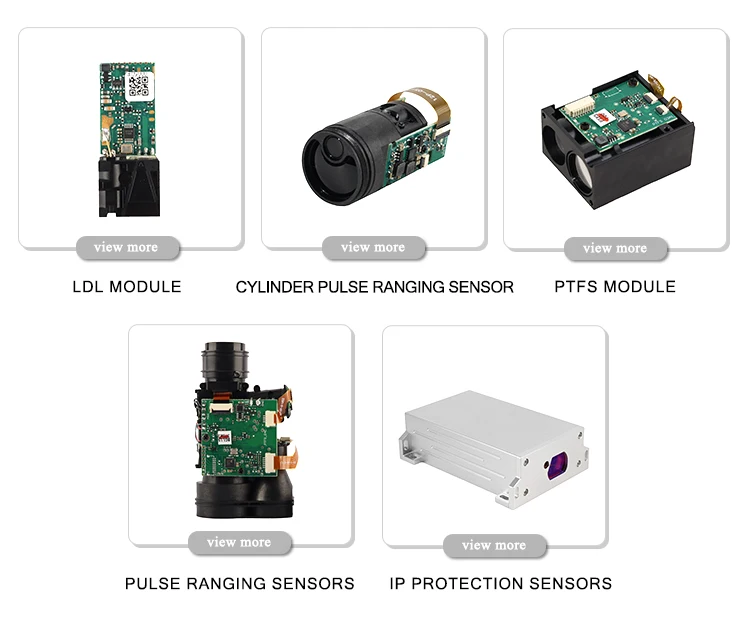

A2: Our company has mainly focused on the field of laser measurement and control, Laser Ranging Module, Laser Distance Sensor, Laser Rangefinder Module as long as Laser Distance Meter, Laser Rang Finder and 2D 3D LiDAR.
