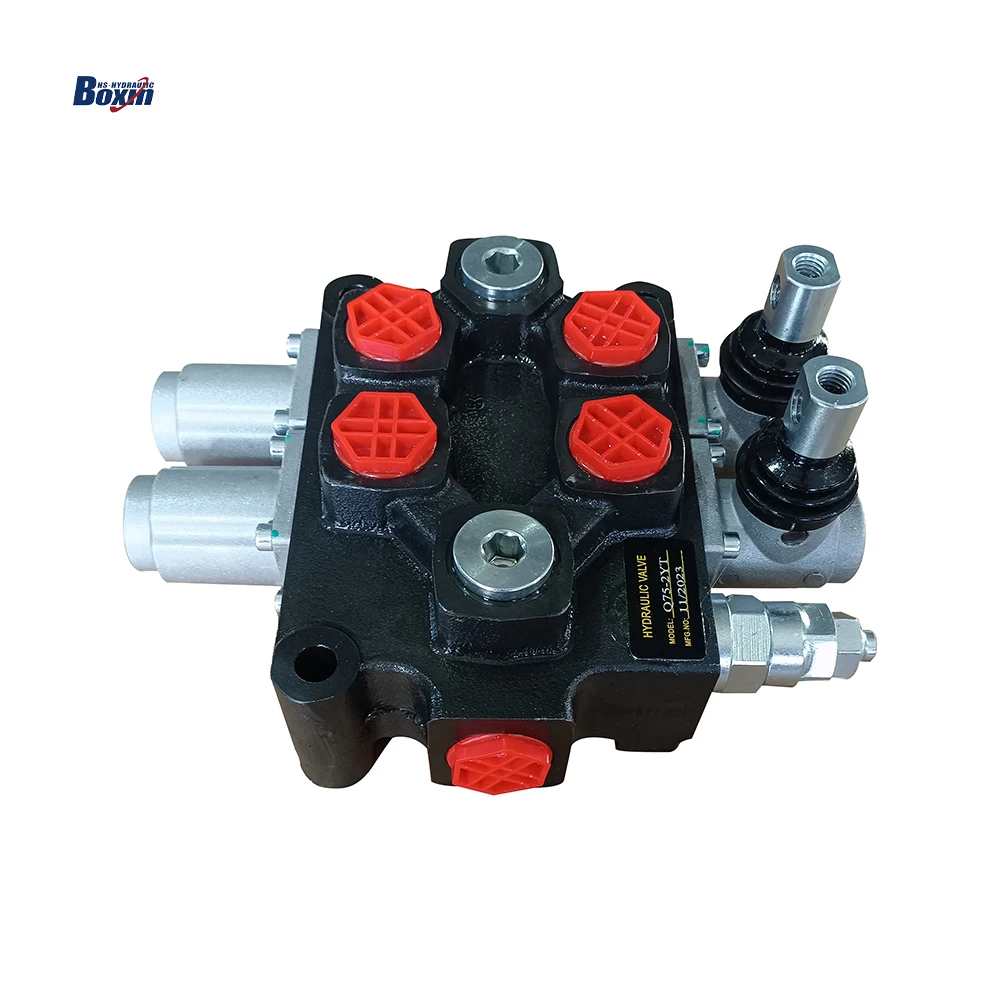

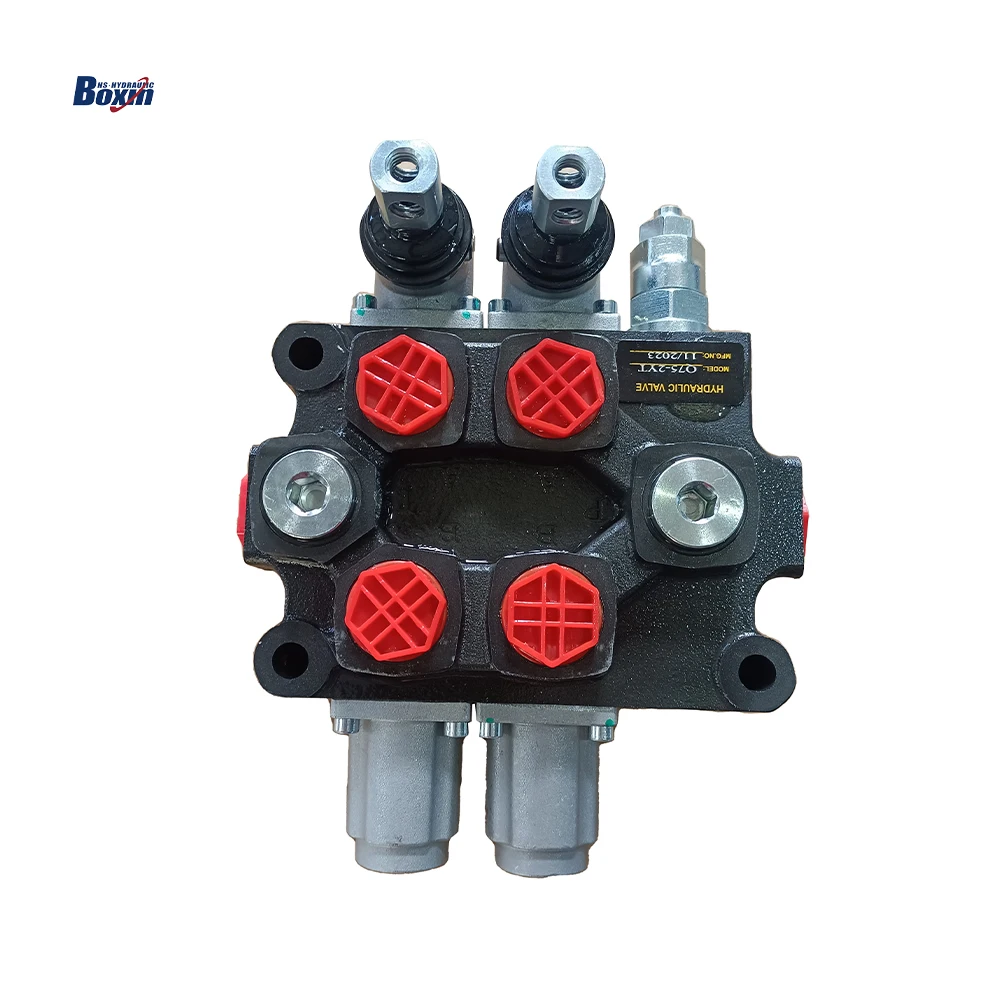

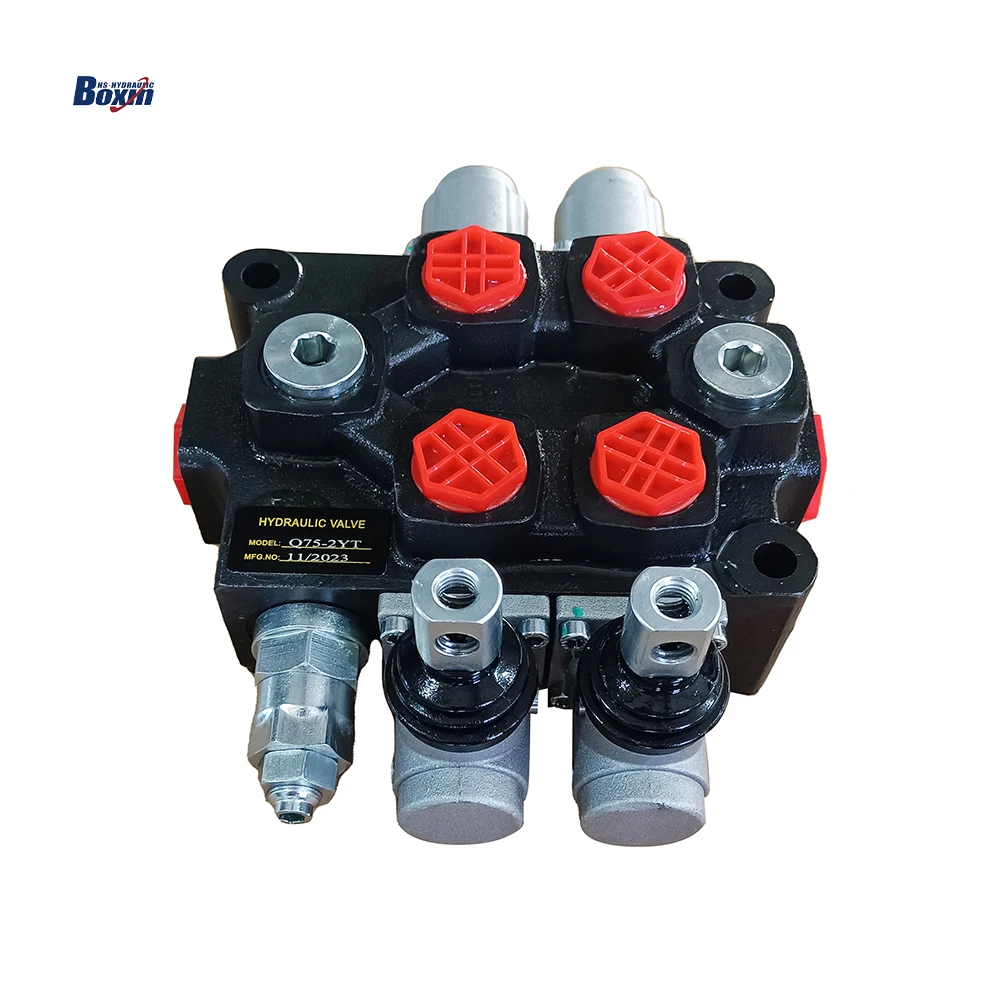

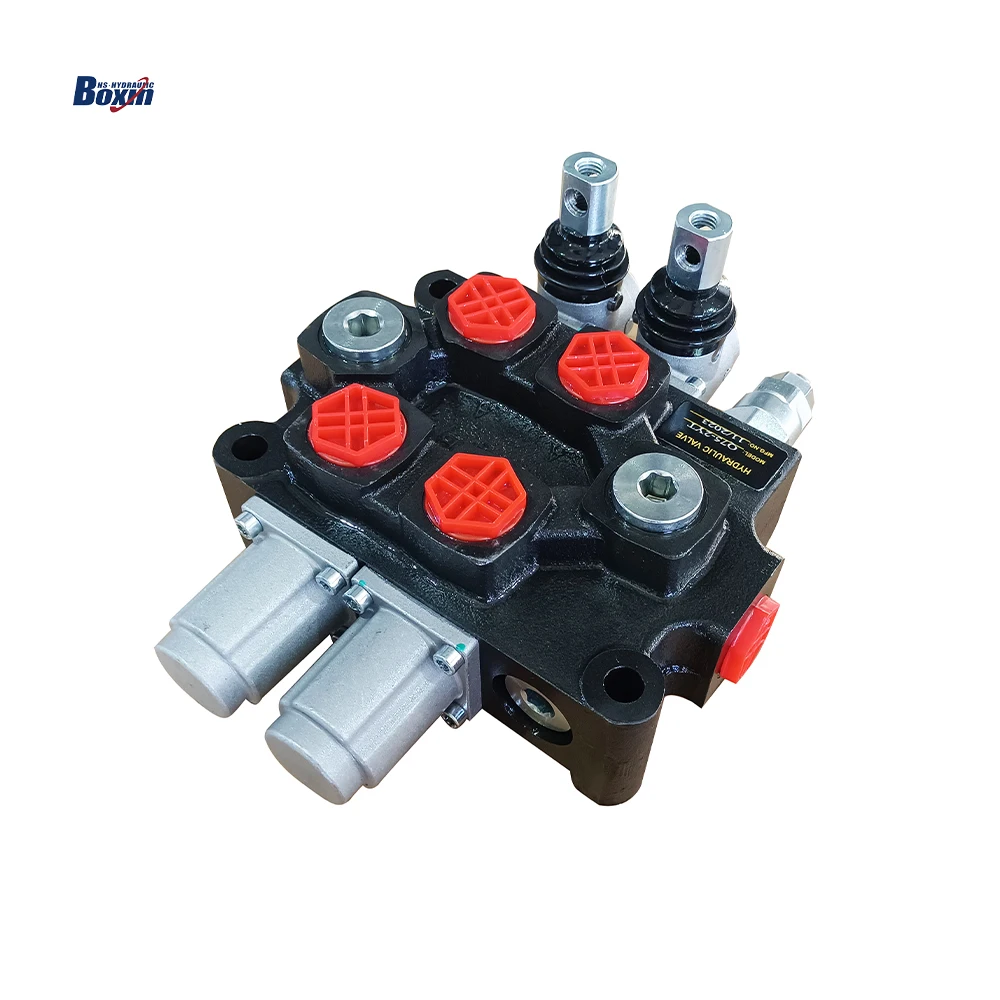

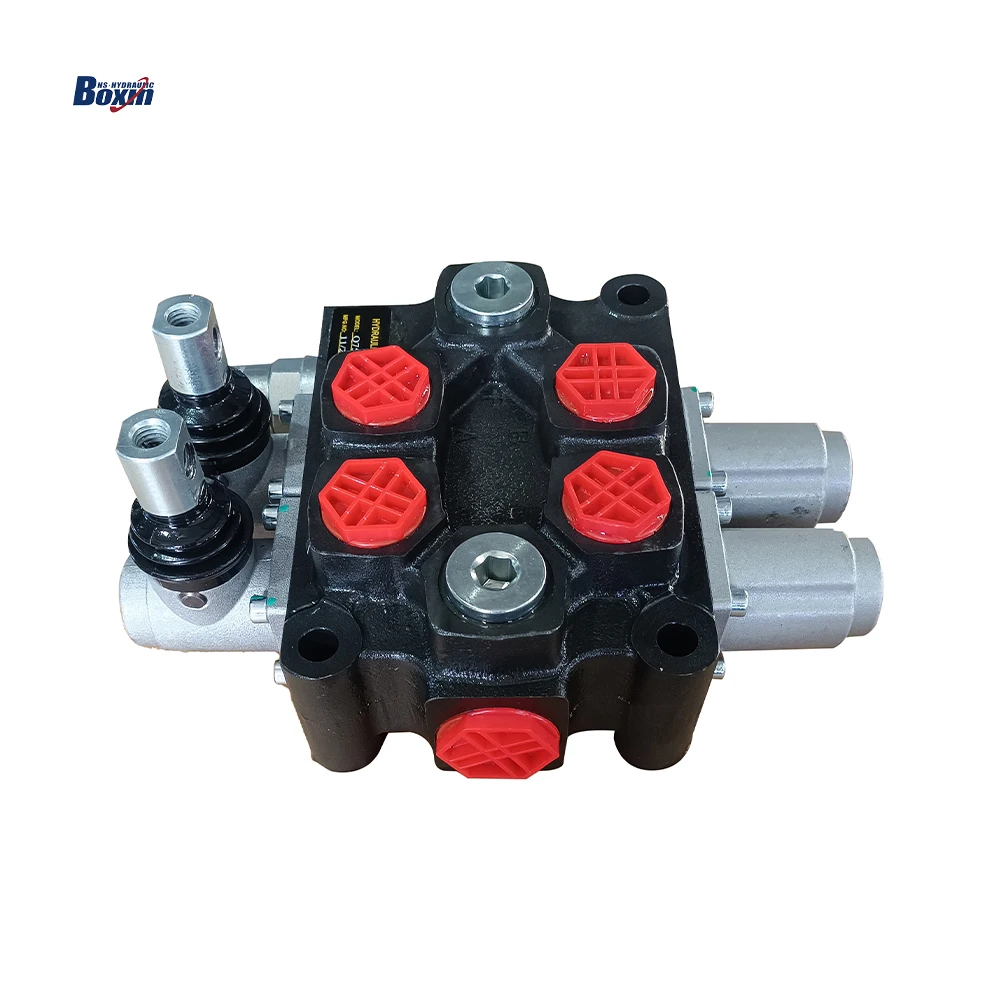

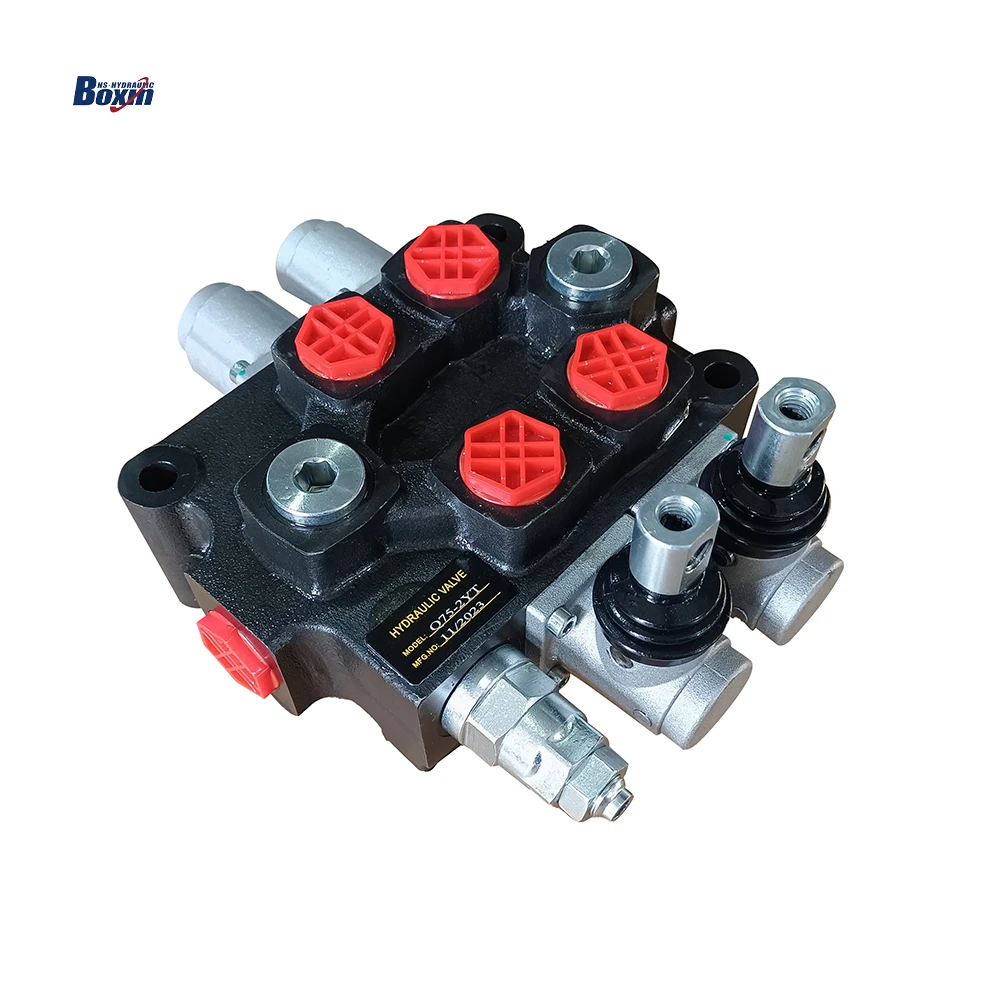

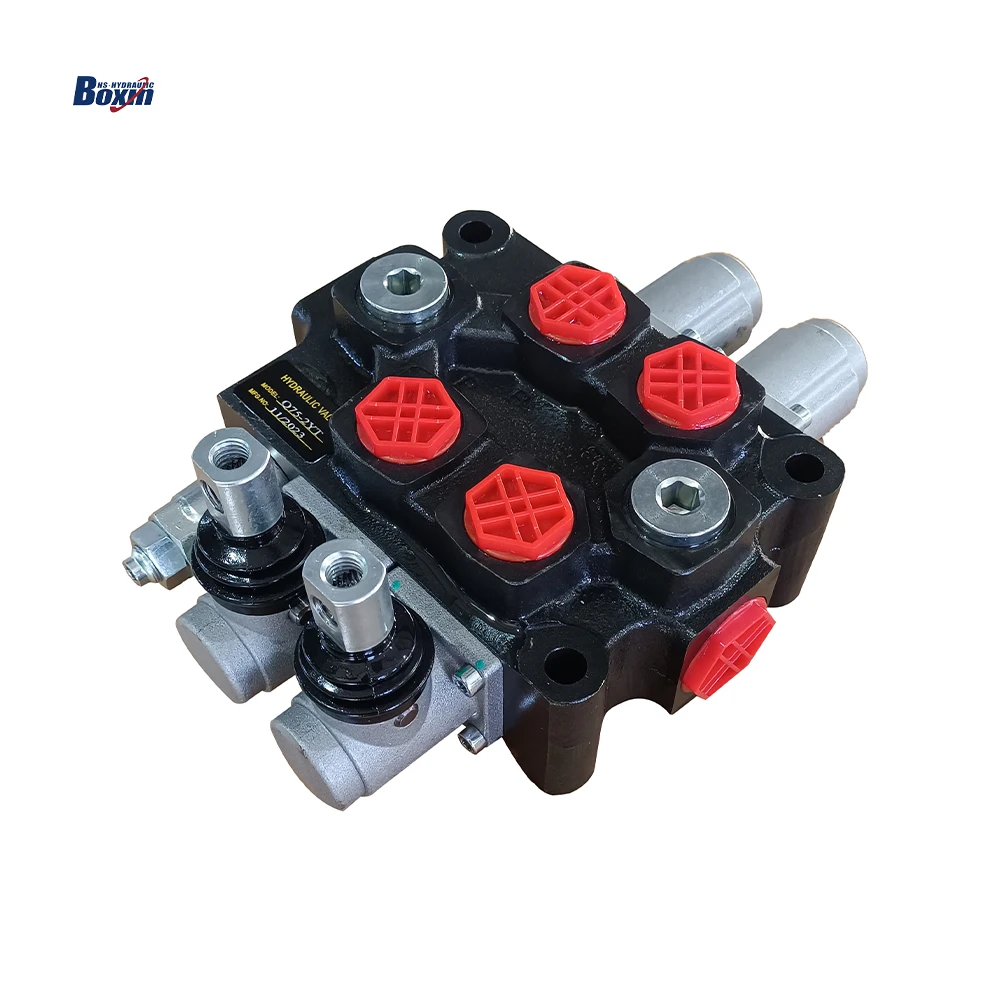

Hydraulic System Directional Control Valve 2 Spool 75 L/Min Hydraulic Valve
- Category: >>>
- Supplier: Qingzhou Boxin Huasheng Hydraulic Technology Co. Ltd.
Share on (1601001892639):
Product Overview
Description
Product Paramenters
Item | Parameter |
Model | Q75 Directional Control Valve |
Rated flow | 75 L/min (19.8 gpm) |
Operating Pressure | 315 bar (31.5 MPa) |
Operating Range | 15-75 mm²/s (15-75 CST) |
Ambient Temp | -40°C to +80°C (-40°F to +176°F) |
Valve Sections | Monoblock Valve 1-7 sections |
Valve Structure | Monoblock Valve |
Controlling Method | Manual, Pneumatic,Electro-pneumatic,Electro-hydraulic,Solenoid.Joystick and Cable |

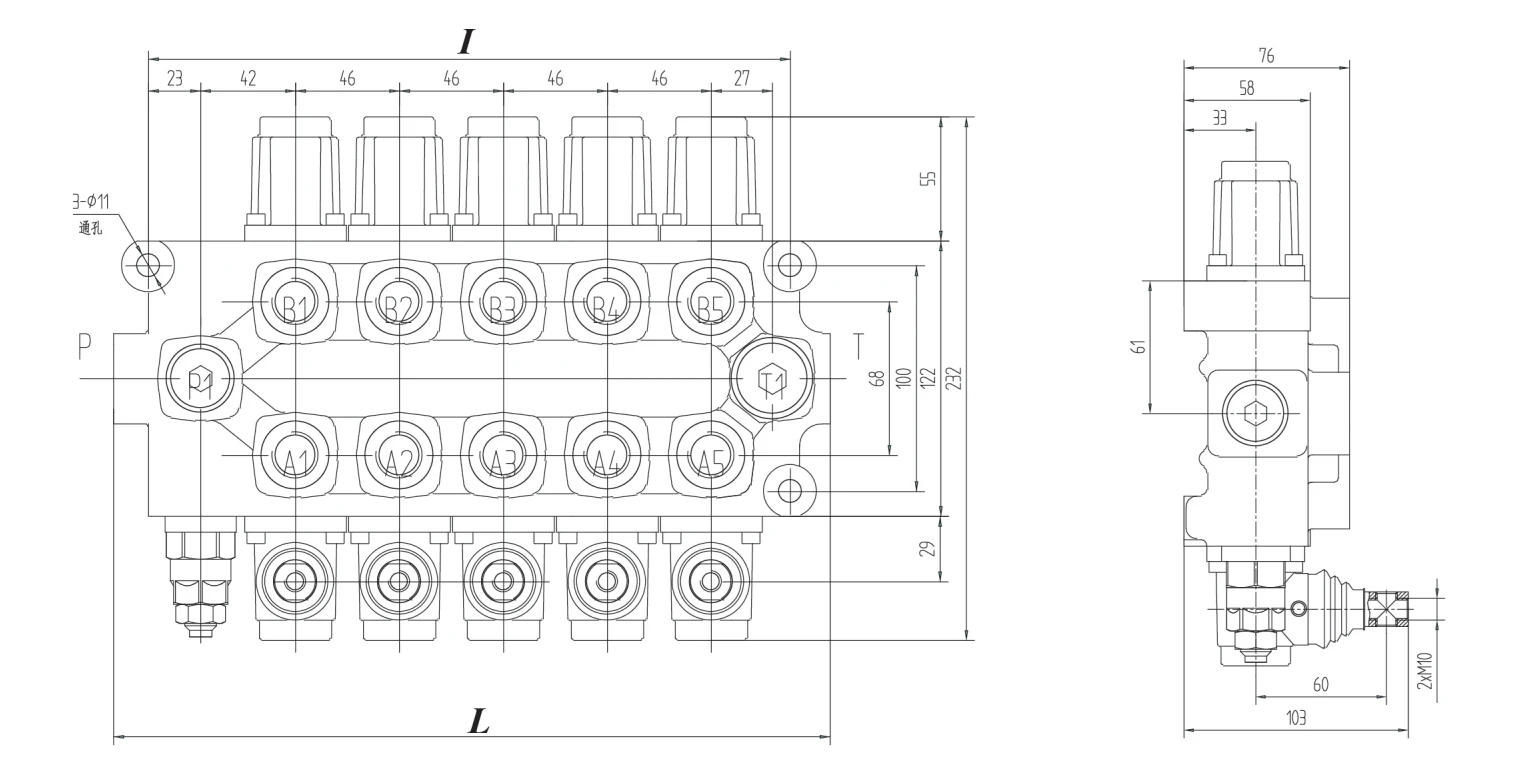

Drawing & Dimensions
Sections | 1 | 2 | 3 | 4 | 5 | 6 | 7 |
I(mm) | 100 | 146 | 192 | 238 | 284 | 330 | 376 |
L(mm) | 133 | 179 | 225 | 271 | 317 | 363 | 409 |

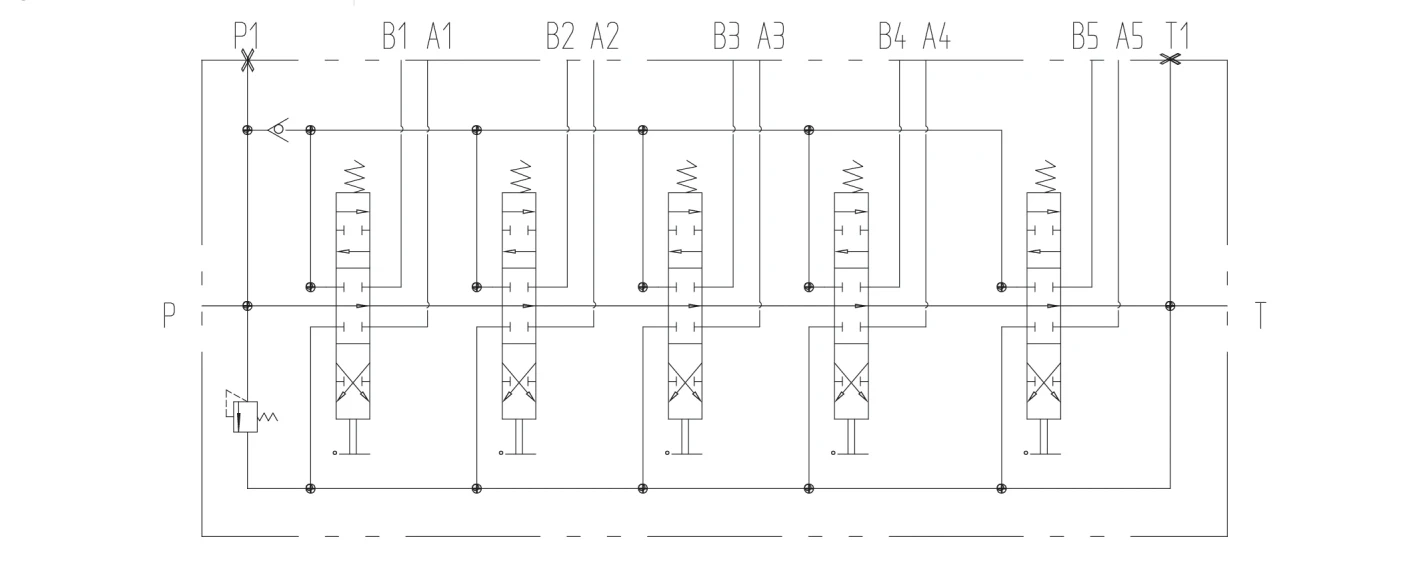

Hydraulic Schematic
Specification
R series directional valves are a high-performance product with a widerange of applications in construction machinery, sanitation machinery and drillingmachinery. They are characterized by high working pressure, compact structure, goodopening and closing characteristics of safety and overload valves, and good versatility
1.Outstanding working pressure capability
2 Easy to install maintain and repair.
3. The excellent opening and closing characteristics of the safety and overload valves
4. Excellent versatility and are suitable for a wide range of machinery and equipmentn terms of control methods, we offer a wide range of options, including Manual,Pneumatic, Electro-pneumatic, Solenoid, Hydraulic, Electro-hydraulic, etc. No matter which control method you prefer, we can provide the corresponding products to meetyour requirements.
2 Easy to install maintain and repair.
3. The excellent opening and closing characteristics of the safety and overload valves
4. Excellent versatility and are suitable for a wide range of machinery and equipmentn terms of control methods, we offer a wide range of options, including Manual,Pneumatic, Electro-pneumatic, Solenoid, Hydraulic, Electro-hydraulic, etc. No matter which control method you prefer, we can provide the corresponding products to meetyour requirements.
In addition. the R seriesdirectional valves have an over-bridge functionthat provides a hydraulic power source for other hydraulic components. This facilitatesthe operation of the entire hydraulic svstem and ensures an efficient and coordinated system.
Packing & Delivery
1. Finished product
2. Bag packing
3. Carton
4. Put in tray and neatly ordered.
5. Packaging
6. Loading by car
7. Shipping
2. Bag packing
3. Carton
4. Put in tray and neatly ordered.
5. Packaging
6. Loading by car
7. Shipping
Company Profile
Established in 2001, Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd. now has become one of the biggest manufacturers specializing in hydraulic parts. With 350 employees, 20 engineers and advanced high-technology equipment, our annual output capacity has exceeded 1,300,000 pieces. Main Product contains Directional Control Valves, Gear Pumps, Steering Units and Power Pack. With more than 500 models, they are widely used in the industries of construction, sanitation, drilling and mining, etc.
Our factory covers an area of 63,800 square meters and has two factories.The two factories respec tively correspond to the research and development,production,and sales of products for domestic andinternational markets . There are 10 engineers with more than 10 years of working experience.Now our average annual output valves is about 250 million Yuan.
Application
Our products are widely used in agricultural machinery, engineering machinery sanitation vehicles,special vehicles, drilling machinery and other industries.
FAQ
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.And have our own factory,Look forward to your visit.
Q2: What is our main application?
A2: 1.Hydraulic system
2. Agriculture machine
3.Constraction machine
4. Automobile
5.Local distributors etc.
Q3: Can I Mark My Own Brand On The product?
A3: Yes. Full order shold mark your brand and code.
Q4: Do you provide samples ? is it free or extra ?
A4: We can provide paid samples.But the buyer paid freight.
A1: We are manufacturer.And have our own factory,Look forward to your visit.
Q2: What is our main application?
A2: 1.Hydraulic system
2. Agriculture machine
3.Constraction machine
4. Automobile
5.Local distributors etc.
Q3: Can I Mark My Own Brand On The product?
A3: Yes. Full order shold mark your brand and code.
Q4: Do you provide samples ? is it free or extra ?
A4: We can provide paid samples.But the buyer paid freight.
