Product Overview
Description
Machine Introduction
The mechanical principle of the carding machine is actually very simple. The general step is to tear and comb the raw materials and then do the process of reorganization. The mechanical principle of the carding machine, the pre-carding part, the main carding part, and the striping part.
Machine Working Principle
*The pre-combing part of the mechanical principle of the carding machine has an axial-straight groove on the surface of the feeding roller, and a pressure device is provided at both ends, plus a dust removal knife and a leaking bottom for removing impurities and short fibers.
*The raw materials are pre-combed and then enter the main combing part, which includes the cylinder and Doff are hollow rollers with needle cloth wrapped on the surface. The diameter of cylinder is relatively large. It is the main body of the whole machine.
*The cover plate and cylinder are also the main components of the main carding part. They are driven by various chains and take turns to play the role of combing. Finally, pass through the striped part of the carding machine to form a quilt core.
*The raw materials are pre-combed and then enter the main combing part, which includes the cylinder and Doff are hollow rollers with needle cloth wrapped on the surface. The diameter of cylinder is relatively large. It is the main body of the whole machine.
*The cover plate and cylinder are also the main components of the main carding part. They are driven by various chains and take turns to play the role of combing. Finally, pass through the striped part of the carding machine to form a quilt core.
Technical Specifications
Model | ASL-SMJ60 | ASL-SMJ80 | ASL-SMJ100 | ASL-SMJ100*2 | ASL-SMJ200 |
Power | 3kw | 4kw | 4kw | 5.5kw | 5.5kw |
Voltage | 380v 50hz 3p | 380v 50hz 3p | 380v 50hz 3p | 380v 50hz 3p | 380v 50hz 3p |
Work width | 60cm | 80cm | 100cm | 100cm | 200cm |
Dimension | 185*90*100cm | 180*106*100cm | 180*140*112cm | 260*150*110cm | 210*250*110cm |
weight | 220kg | 270kg | 300kg | 450kg | 600kg |
Machine Features
*This machine wide field application, which can be used to process the cotton , wool and various fibers and chemical fiber cotton, old and new wool.
*The machine can add dust removal device, to reduce the dusty short velvet in the air during the machine working , promise the worker health.
*UV sterilization function can be added to do sterilization and mites killing.
*Also machine can add protection cover to promise the transport and work safety.
*This machine working capacity is very small, the machine mainly choose according to your quilt width.
*The machine can add dust removal device, to reduce the dusty short velvet in the air during the machine working , promise the worker health.
*UV sterilization function can be added to do sterilization and mites killing.
*Also machine can add protection cover to promise the transport and work safety.
*This machine working capacity is very small, the machine mainly choose according to your quilt width.
Product Dispaly
Customized Type

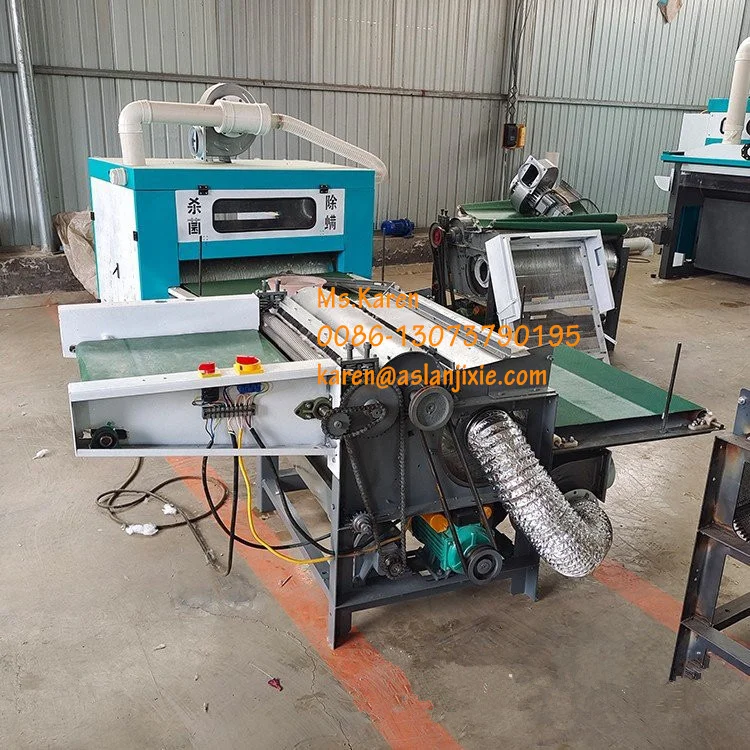

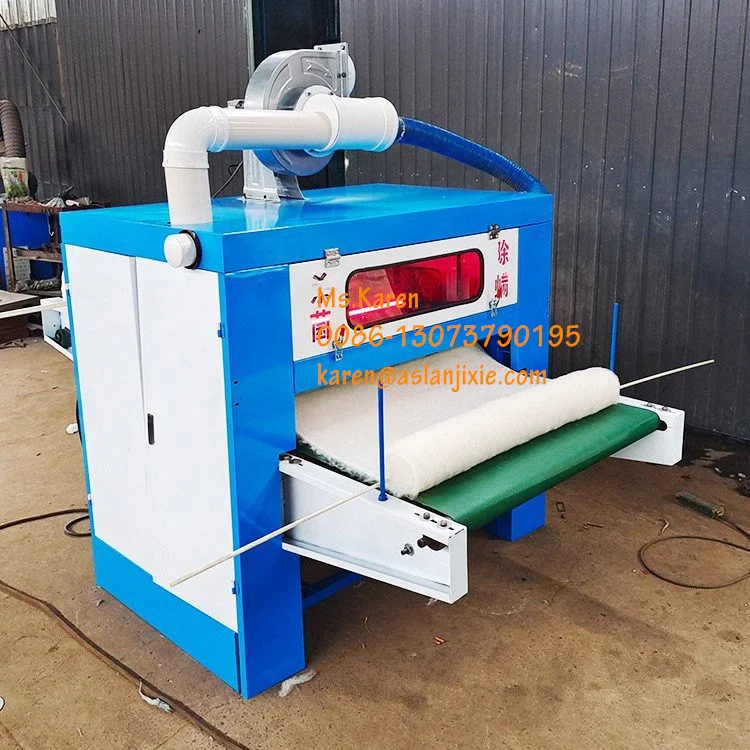

This is the machine with dust removal function + machine ptection shell + UV sterilization
