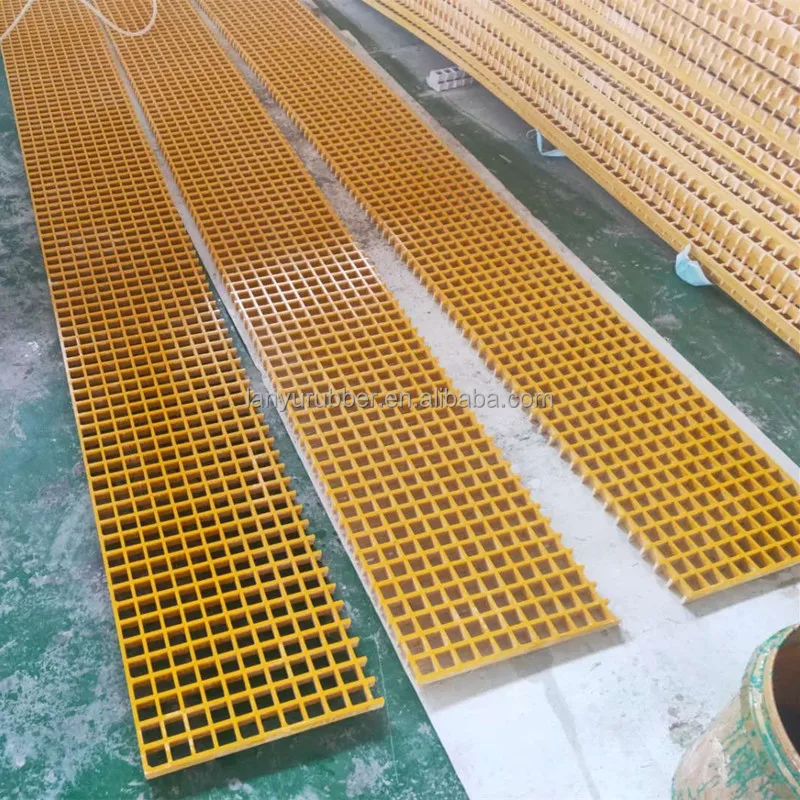

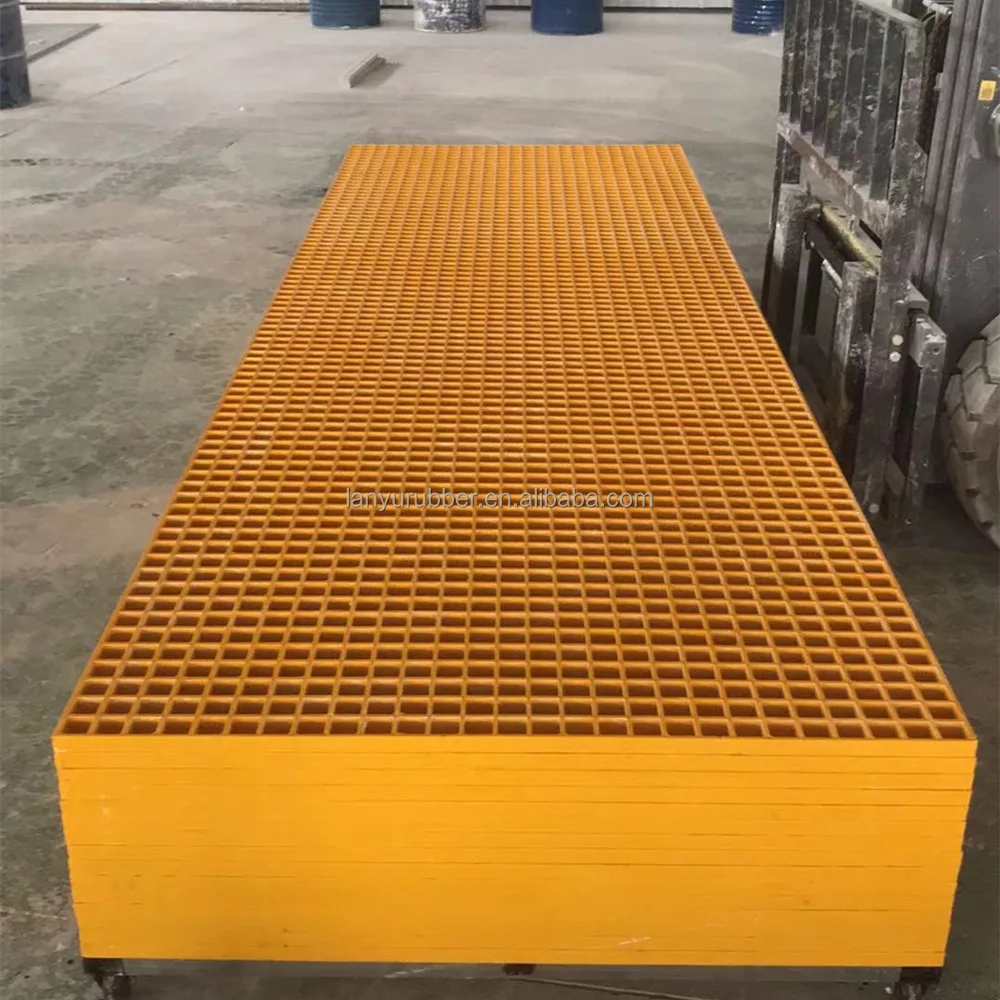

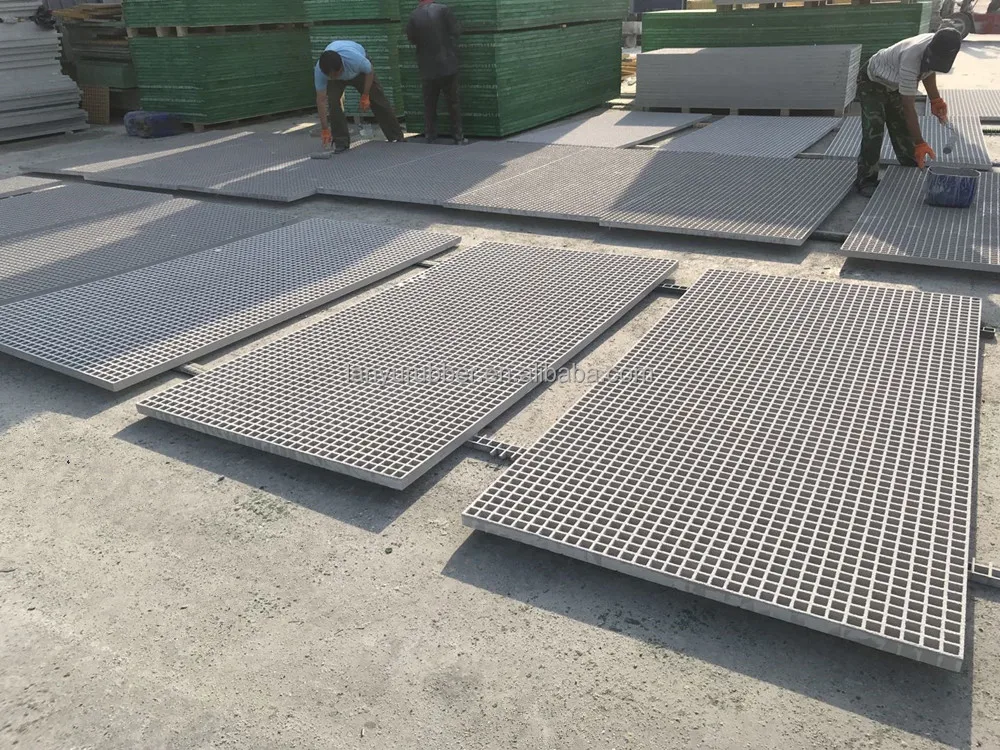

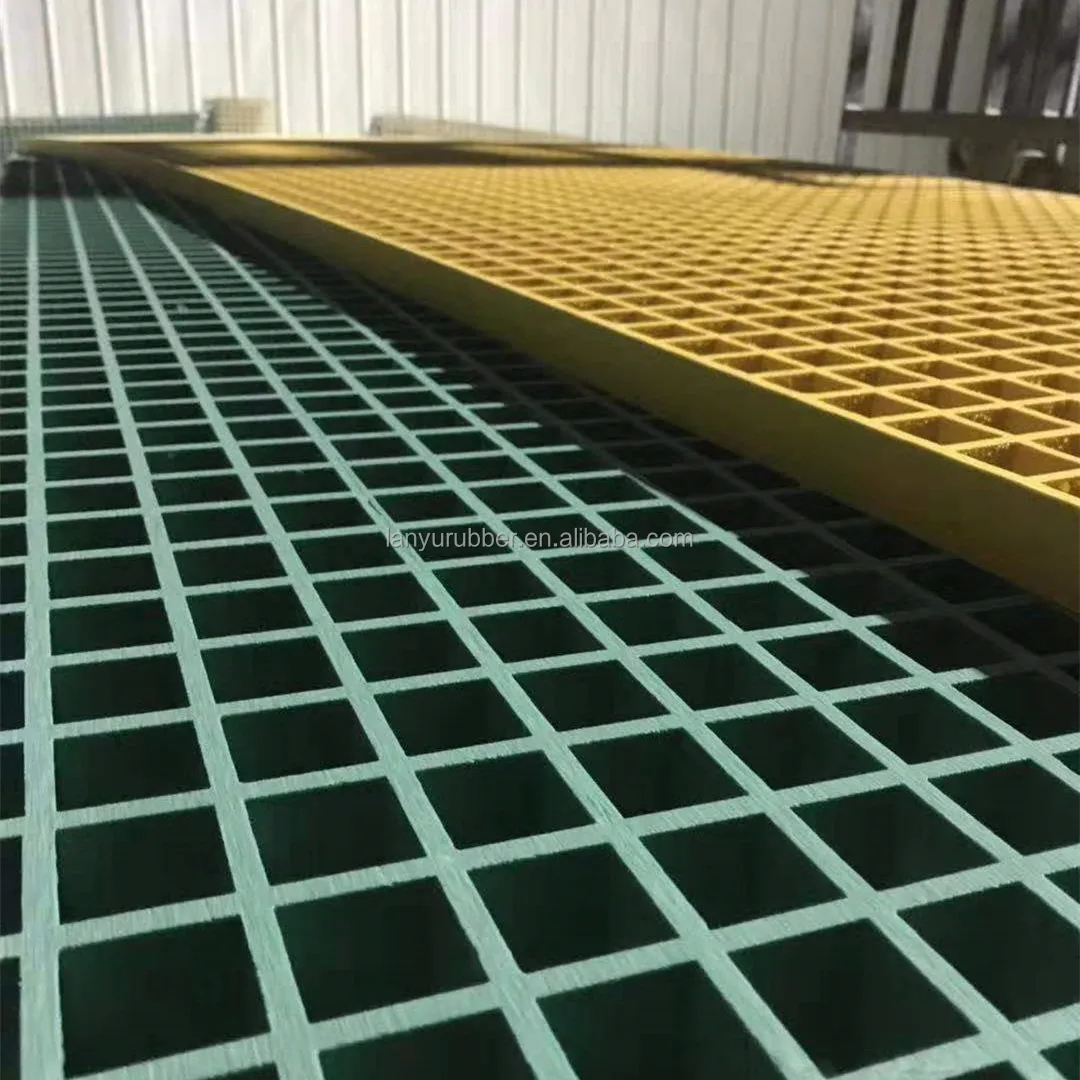

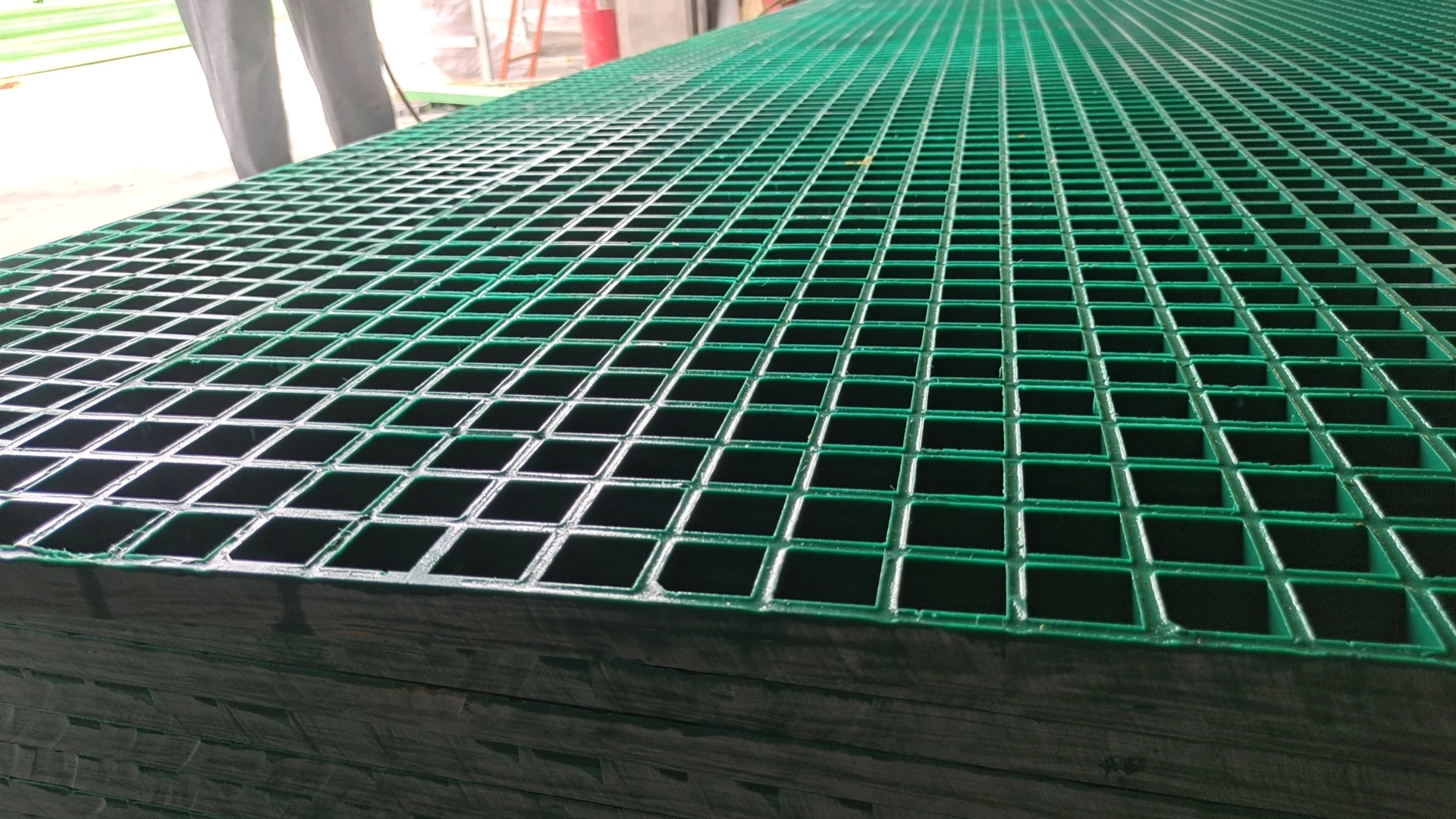

Car Washing Trench Drainage FRP Grating Floor Panel, High Strength Anti Corrosion Fiberglass FRP GRP Molded Gratings
- Category: >>>
- Supplier: Hebei Lanyu Rubber & Plastic Products Co. Ltd.
Share on (1601001927459):

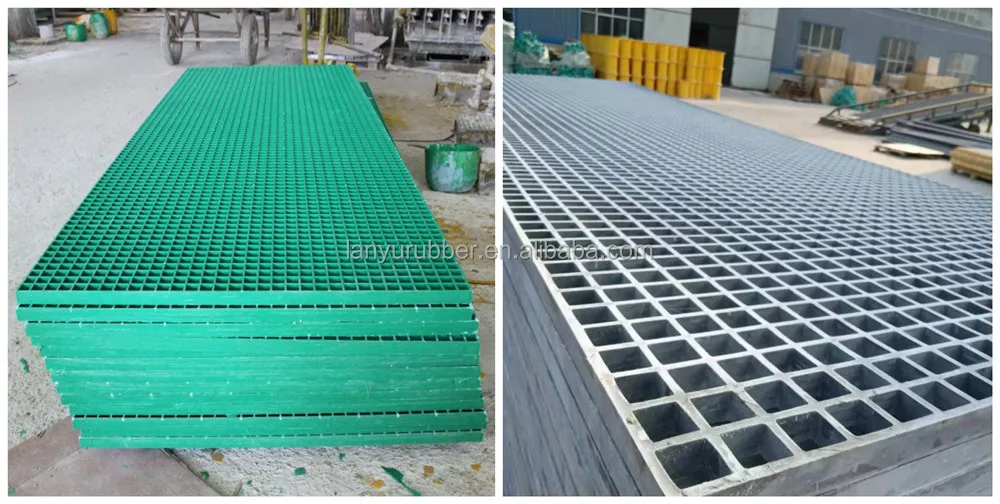

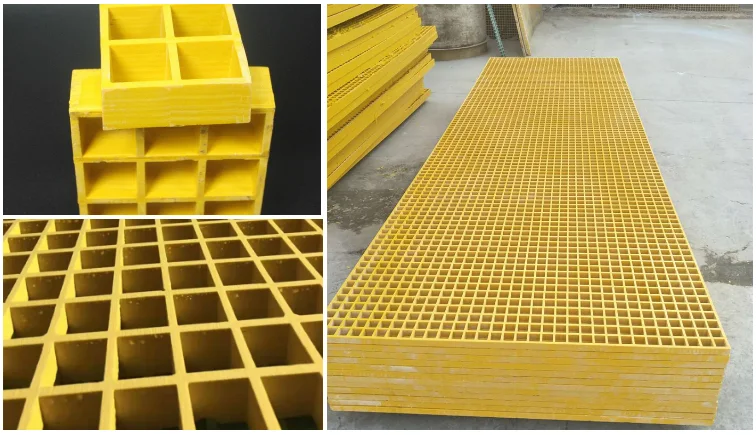

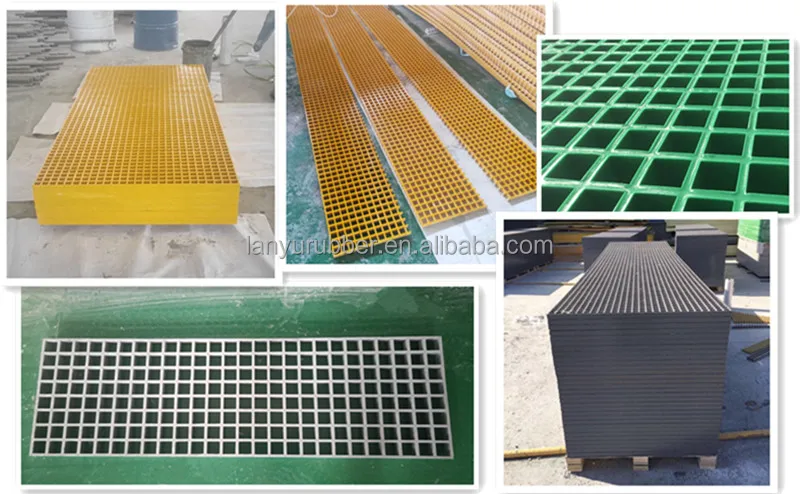

Product Overview
Description
Car Washing Trench Drainage FRP Grating Floor Panel, High Strength Anti Corrosion Fiberglass FRP GRP Molded Gratings
FRP grating is a kind of plate-shaped material with many spaces after special process, with fiber glass as reinforced material and unsaturated polyester resin as matrix.
Specification (mm) | Panel size (mm) | Weight (kg) |
38*38*25 | 1220*3660 | 54 |
38*38*30 | 1220*3660 | 70 |
38*38*38 | 1220*3660 | 88 |
1000*4007 | 81 | |
50*50*50 | 1220*3660 | 98 |
19*19*38*38*30 | 1075*3626 | 72 |
38*38*65 | 1030*4040 | 141 |
40*40*40 | 1010*4040 | 81 |
19*19*38*38*38 | 1220*3660 | 92 |
25*25*50*50*30 | 1220*3660 | 62 |
Product Features
Fiberglass grating can be defined as a lattice consisting of a set of parallel bearing bars, connected perpendicularly by another set of parallel cross bars. It has the following features:
It is corrosion resistant, offering exceptional structural performance in highly corrosive environment.
It is resilient and impact resistant.
It has a high strength-weight ratio. It is less than half the weight of steel grating making it easier to handle and less expensive to transport.
It is easier to fabricate than metal grating. It can be cut using standard circular saws fitted with abrasive blades.
It is cheap to install. It can be installed with hand tools. No welding and no end banding is required.
It offers better utilization because molded fiberglass grating bars run in both directions and it can be cut into any different dimension, thus minimizing the waste.
It needs low maintenance.
The slip resistant surface of fiberglass grating can greatly reduce slips and falls, thus ensuring workers' safety.
It is fire retardant and electrically non-conductive. It has low thermal conductivity.
It is UV resistant.

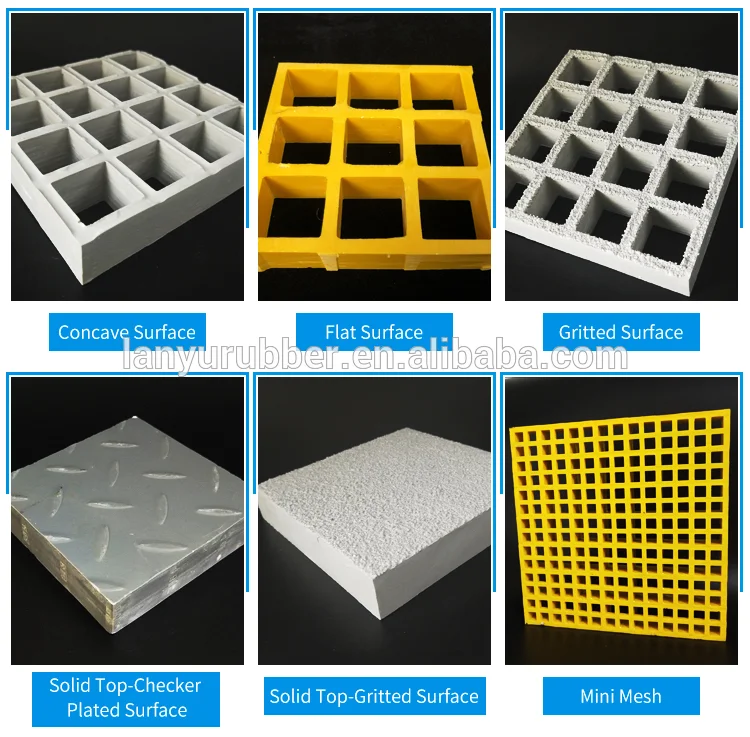

Cutting Types

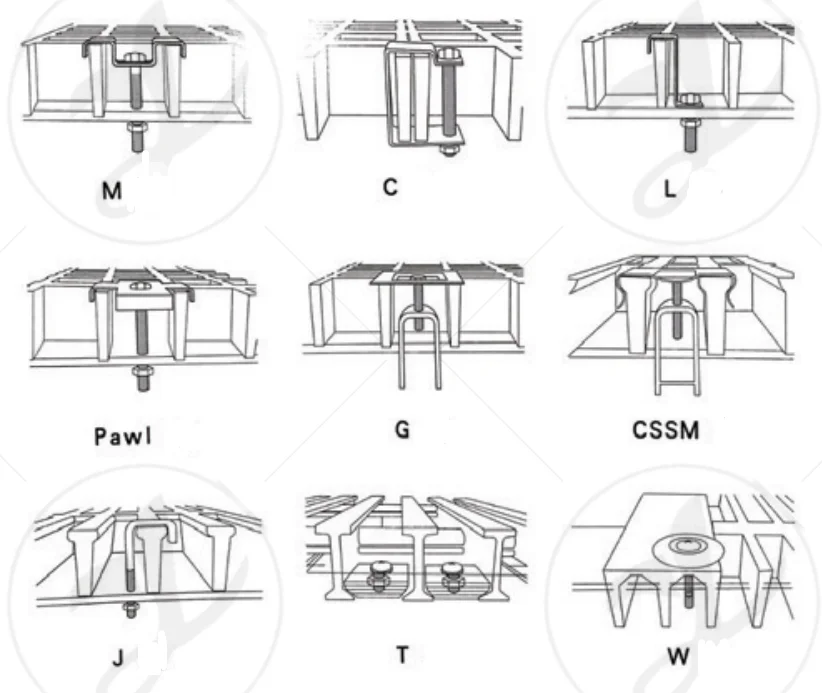

Clip Types
Common Used Resin Type
General Purpose Ortho Polyester (Type O): Cost-effective alternative to vinyl ester and isophthalic polyester products.
Isophthalic Polyester (Type 1): A good choice for environments where chemical splashes and spills are a common occurrence.
Vinyl Ester (Type V): Developed to withstand the harsh chemical environments found in chemical, waste treatment, and metal plating plants.
General Purpose Ortho Polyester (Type O): Cost-effective alternative to vinyl ester and isophthalic polyester products.
Isophthalic Polyester (Type 1): A good choice for environments where chemical splashes and spills are a common occurrence.
Vinyl Ester (Type V): Developed to withstand the harsh chemical environments found in chemical, waste treatment, and metal plating plants.

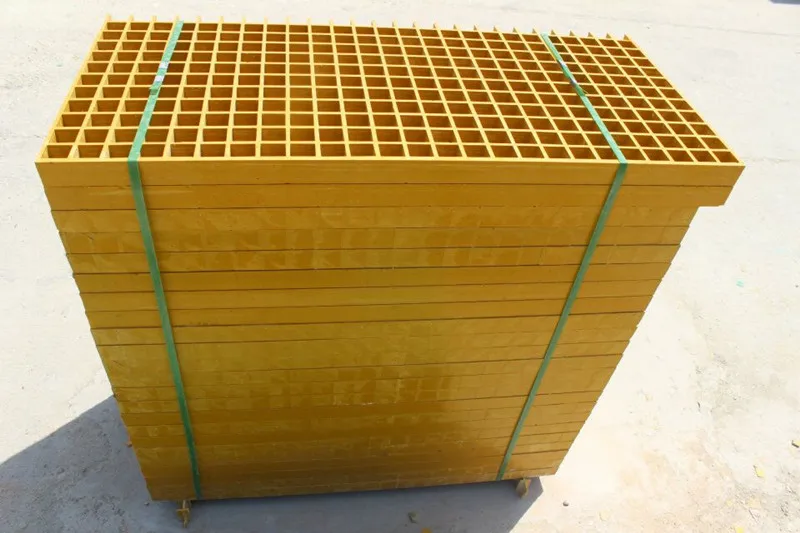

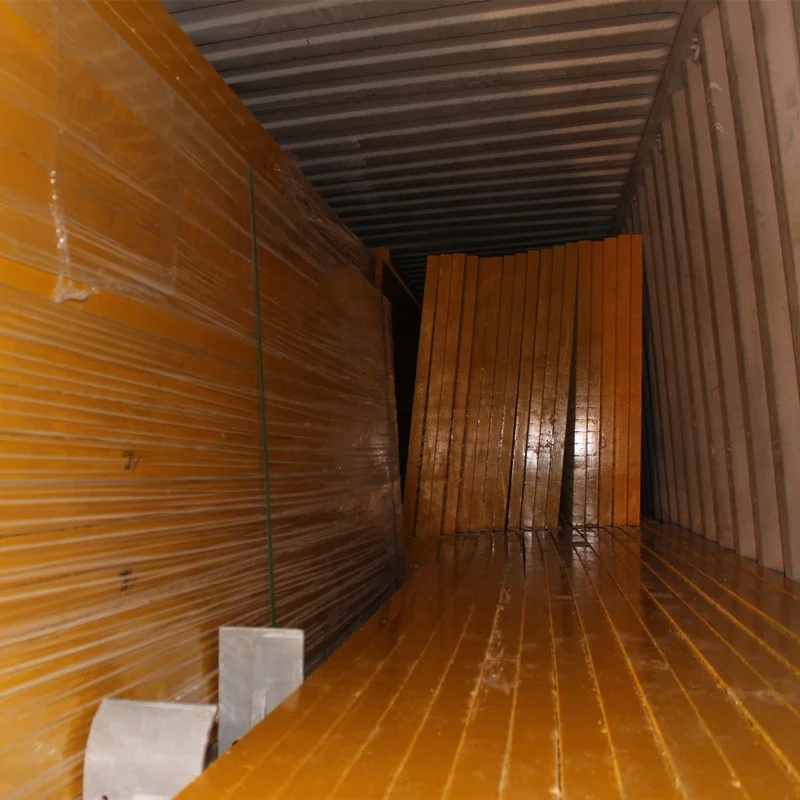

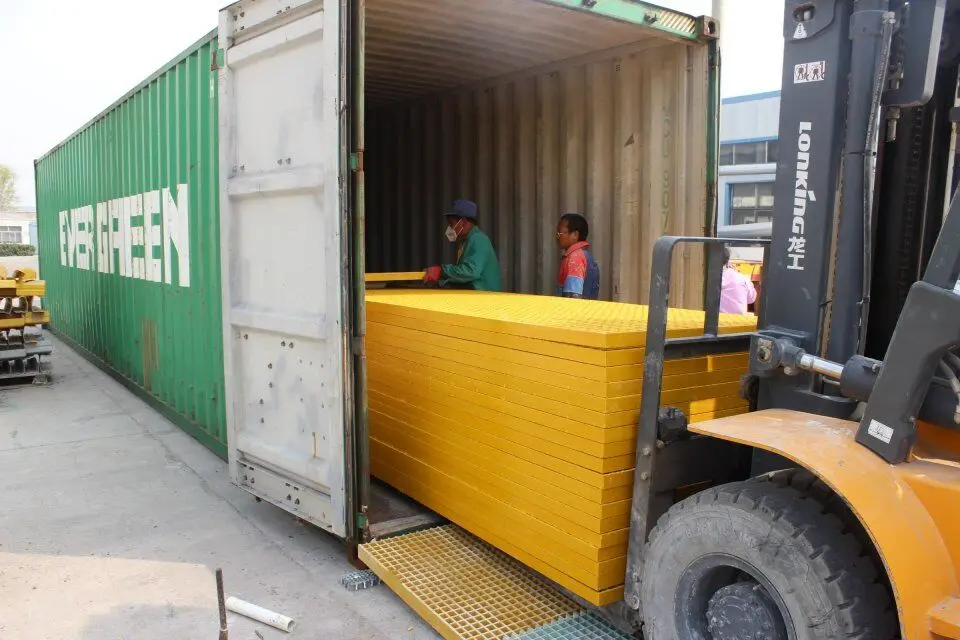

Package and shipping
Usually the fiberglass molded grating is packed by pallet, we can also pack it according to customer's requirement.
Delivery time: within about 20 days after payment. It depends on the order quantity.

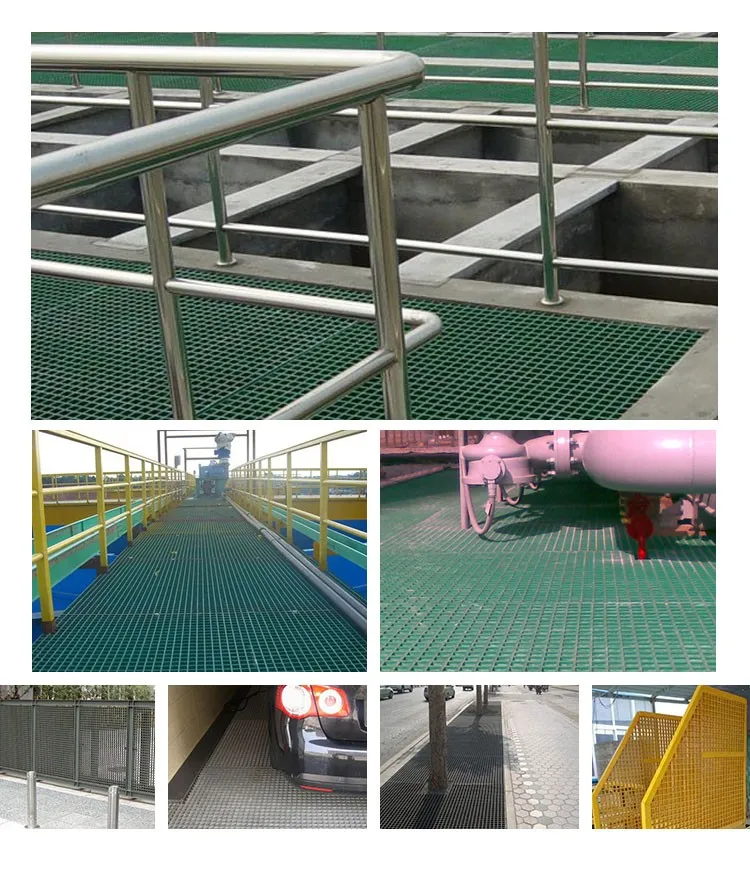

Product application
>> Industrial areas: such as chemical plants / plating plant operating platform, maintenance platform, photovoltaic power
generation platform walkway.
>> Sewage treatment areas: sewage treatment plant aisle and sealing cover.
>> Municipal Engineering areas: Pedestrian Walkway, Trench / Cable Trench Cover, Tree Grating.
>> Marine applications area: Boat decks or bridge materials, Offshore oil platform.
>> Other civilian areas: such as car washing, cattle and sheep farms and so on.
generation platform walkway.
>> Sewage treatment areas: sewage treatment plant aisle and sealing cover.
>> Municipal Engineering areas: Pedestrian Walkway, Trench / Cable Trench Cover, Tree Grating.
>> Marine applications area: Boat decks or bridge materials, Offshore oil platform.
>> Other civilian areas: such as car washing, cattle and sheep farms and so on.
Why Choose Us?
1. Highest quality
We are the manufacturer who adopts imported raw materials to guarantee the high quality.
2. Most competitive price
We can adjust the price according to your market demand changes, and also can launch a series of promotional activities in a bad economic environment.
3. Professional
We have a complete team, including development, procurement, production, inspection, sales and after-sale service.
4. Best service
Trust, High quality and Best service build long term win-win business.
FAQ
Q: What’s FRP?
A: Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibers are usually glass, carbon, aramid, or basalt. Rarely, other fibers such as paper or wood or asbestos have been used. The polymer is usually an epoxy, vinylester or polyester thermosetting plastic, and phenol formaldehyde resins are still in use. FRPs are commonly used in the aerospace, automotive, marine, construction industries and ballistic armor.
Q: How do you guarantee your product quality?
A: 100% of our products would be tested before delivery. To control quality, we are using high quality materials from high quality supplier.
Q: Are you a trading company or a manufacturing factory?
A:We are a manufacturing factory with export qualifications. Our factory is one of the best FRP products manufacturer in China. We have FRP products of high quality and various design.
Q: I am interested in your products, could I get a sample for free?
A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is to kindly offer your shipping account.
Q: Can you do the design for us?
A: Yes. With experienced teams in fiberglass product design and manufacturing, we could provide customized shape, dimension, colors service, etc.
A: Fiber Reinforced Polymer (FRP) is a composite material made of a polymer matrix reinforced with fibers. The fibers are usually glass, carbon, aramid, or basalt. Rarely, other fibers such as paper or wood or asbestos have been used. The polymer is usually an epoxy, vinylester or polyester thermosetting plastic, and phenol formaldehyde resins are still in use. FRPs are commonly used in the aerospace, automotive, marine, construction industries and ballistic armor.
Q: How do you guarantee your product quality?
A: 100% of our products would be tested before delivery. To control quality, we are using high quality materials from high quality supplier.
Q: Are you a trading company or a manufacturing factory?
A:We are a manufacturing factory with export qualifications. Our factory is one of the best FRP products manufacturer in China. We have FRP products of high quality and various design.
Q: I am interested in your products, could I get a sample for free?
A: We could supply a few pieces of FREE samples if we have some in stock. All you need to do is to kindly offer your shipping account.
Q: Can you do the design for us?
A: Yes. With experienced teams in fiberglass product design and manufacturing, we could provide customized shape, dimension, colors service, etc.
