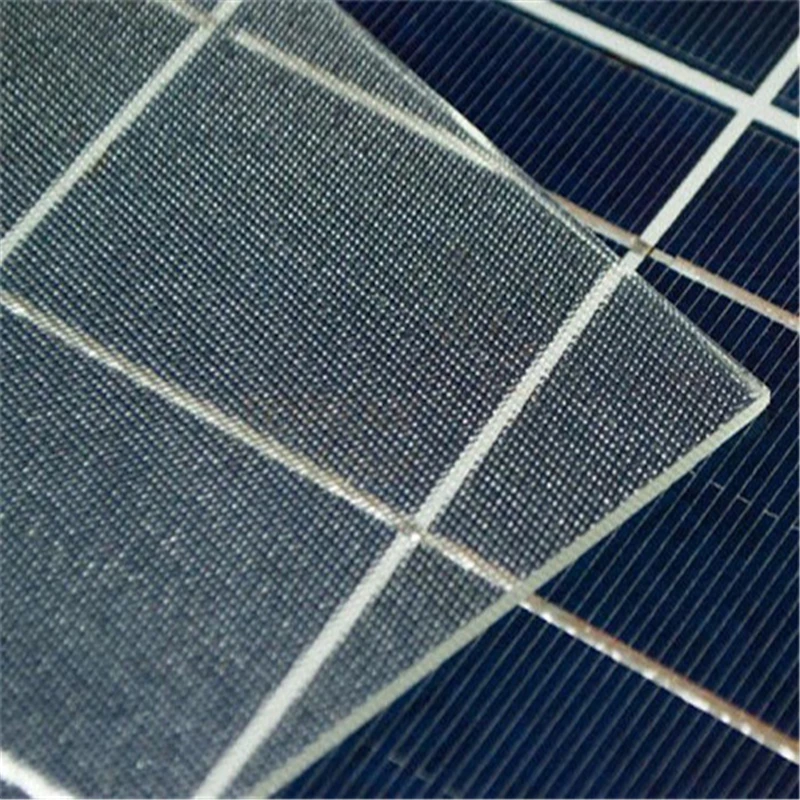

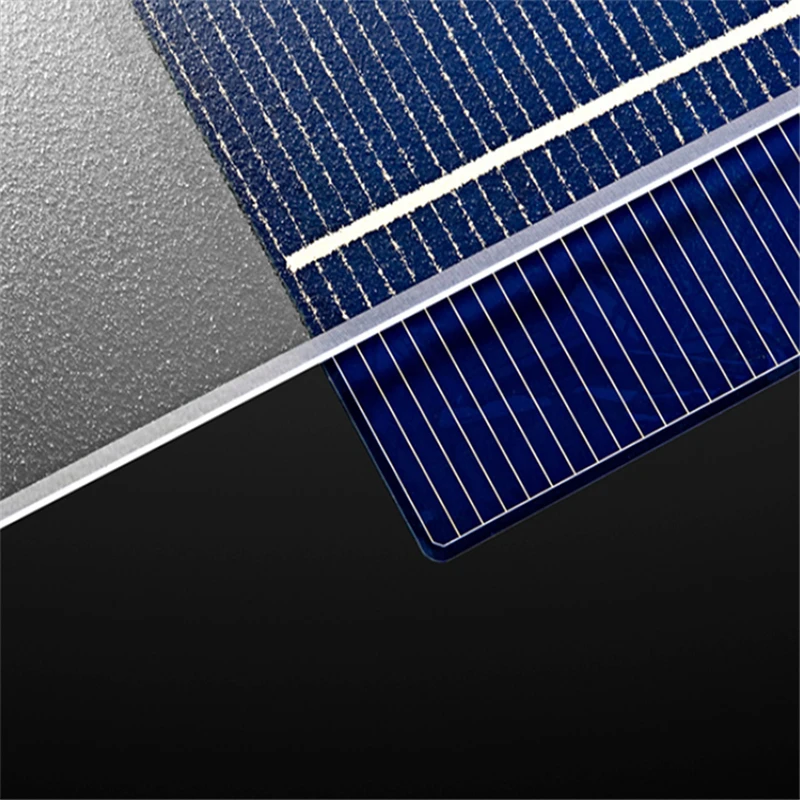

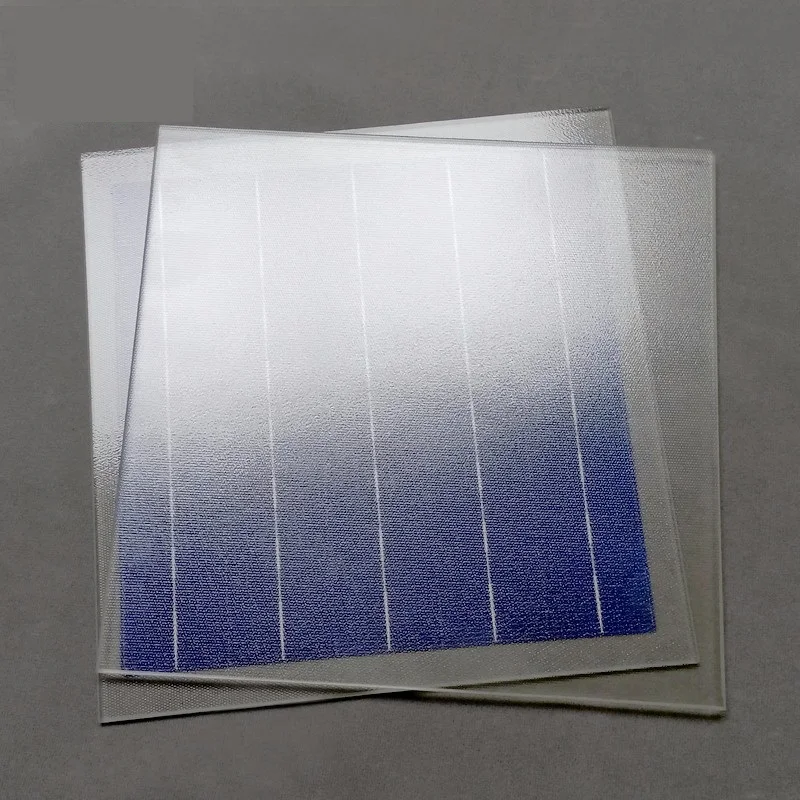

Top quality 98% High Light Transmittance Ultra Clear Pyramid Patterned Double sided AR Coating Anti reflective Glass
- Category: >>>
- Supplier: Qingdao Vatti Glass Co. Ltd.
Share on (1601001934173):
Product Overview
Description
Products Description
Solar Glass is a high performance low iron glass with high solar energy transmittance.When toughened, its strength and durability make it the ideal choice for crystalline silicon photovoltaic application as well as for solar thermal collectors.In the hurricane, heavy rain, hail and other harsh environment, can still maintain excellent performance. It is mainly used on solar panel because of its super light transmittance rate.It is made of unique formulation and high quality material. By adopting international first-rate production technology and equipment.
Product | solar glass |
Color | Ultra Clear |
Thickness | 3.2mm(widely used), 4mm etc. |
Further process | cutting, rough grinding, hole, etc. |

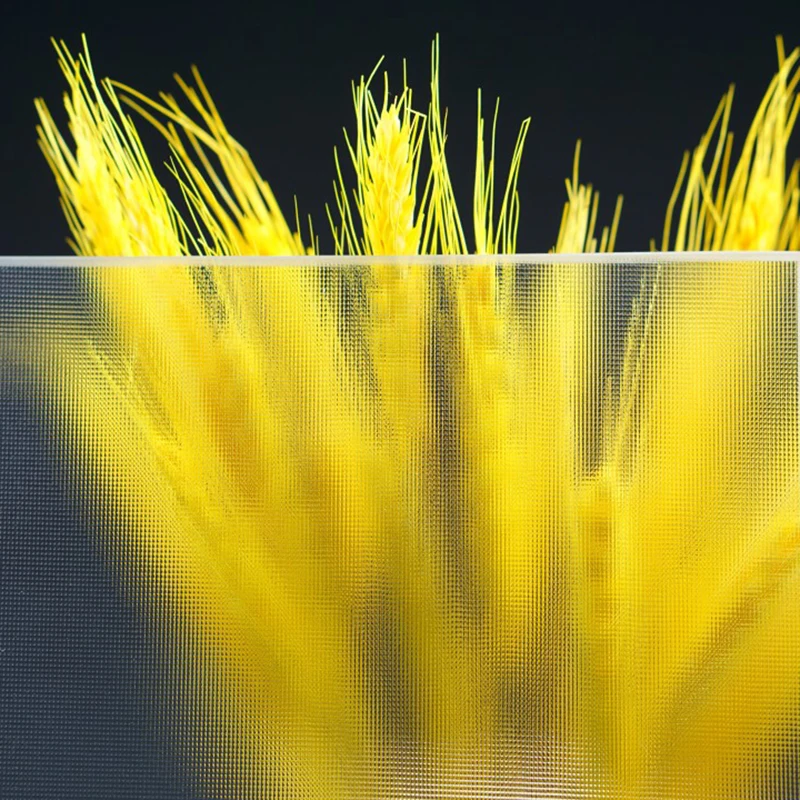

Surface | mistlite single pattern, the pattern shape can be made by customer request. |
Visible light transmittance | 91.60% |
Visible light reflectance | 7.3% |
Solar transmittance | 92% |
Solar reflectance | 7.4% |
Total solar heat gain coefficient | 92.2% |
UV transmittance | 86.8% |
Shading coefficient | 1.04% |

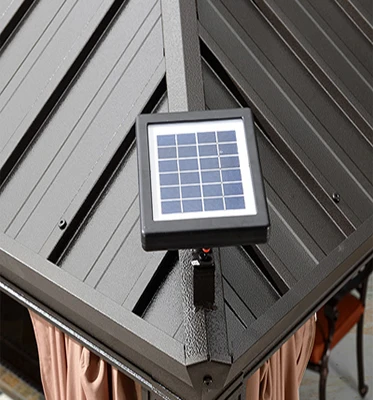

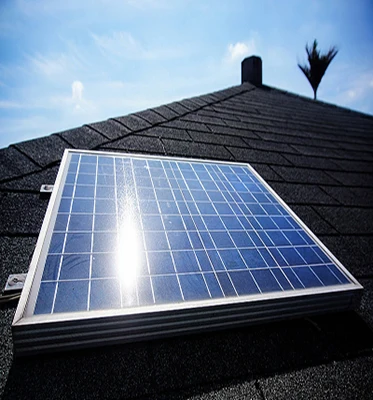

Application Scenario

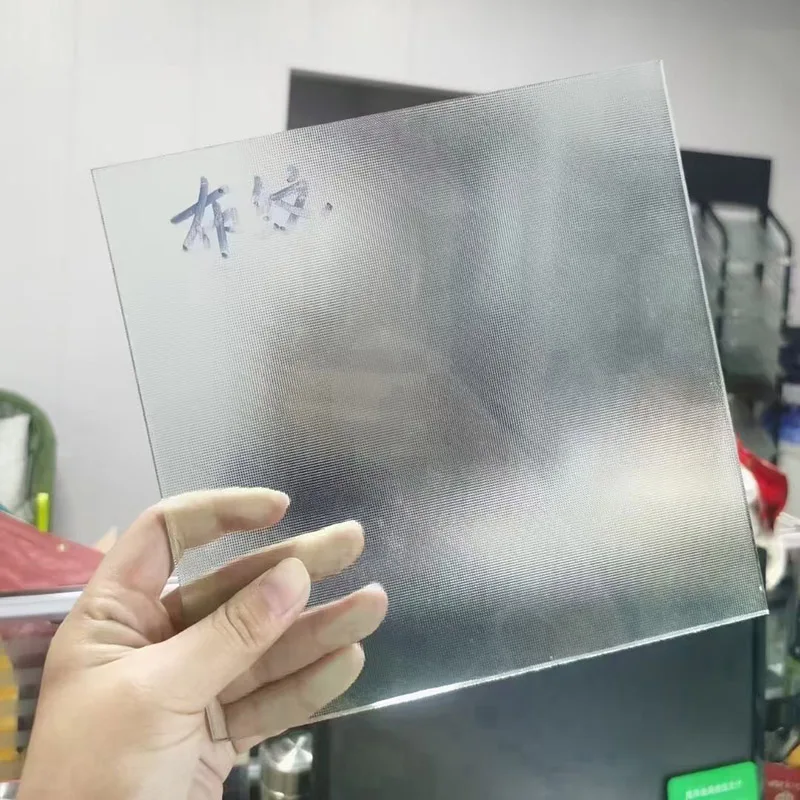

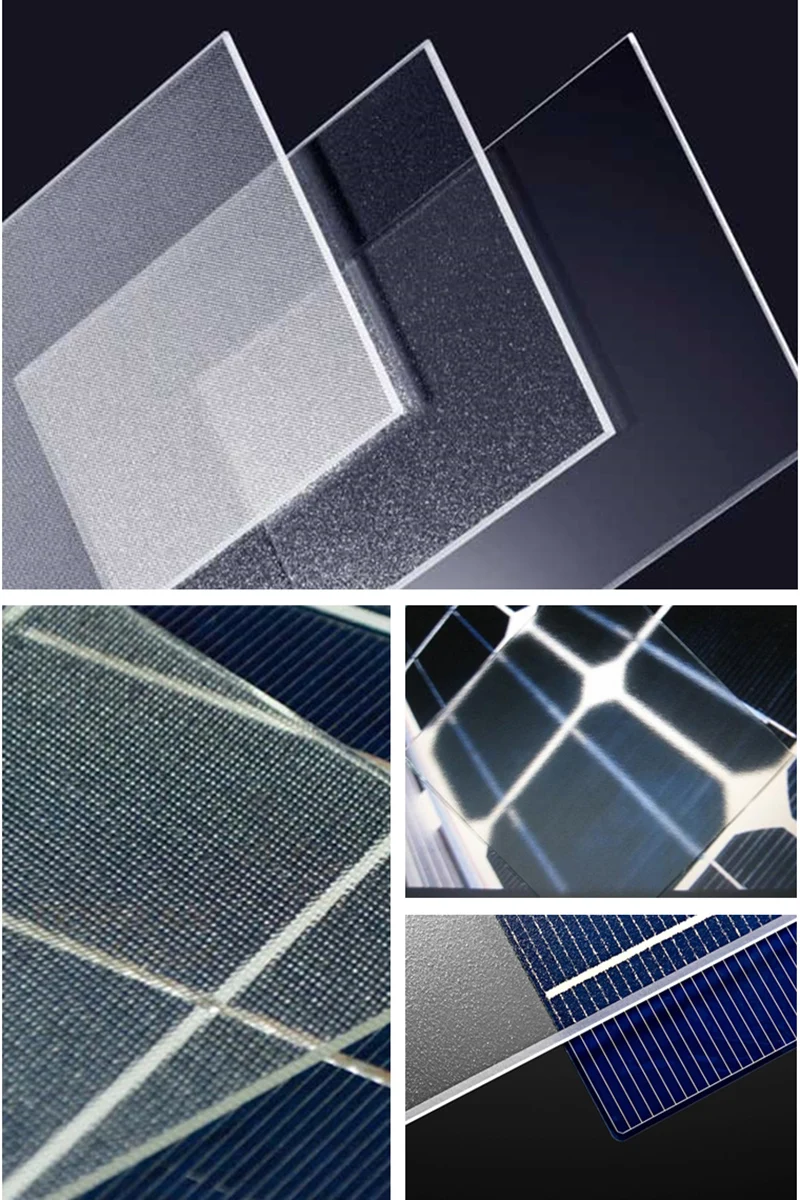

Picture Show
Why Solar Panel Glass Is Very Important？
Solar panel glass is one of the important barriers which protects solar photovoltaic cells against damaging external factors, such as water, vapor, and dirt.The solar panel glass also offers low reflection, high transmissivity, and high strength. In crystalline solar panels, a 3 to 4mm thick solar glass is often used.

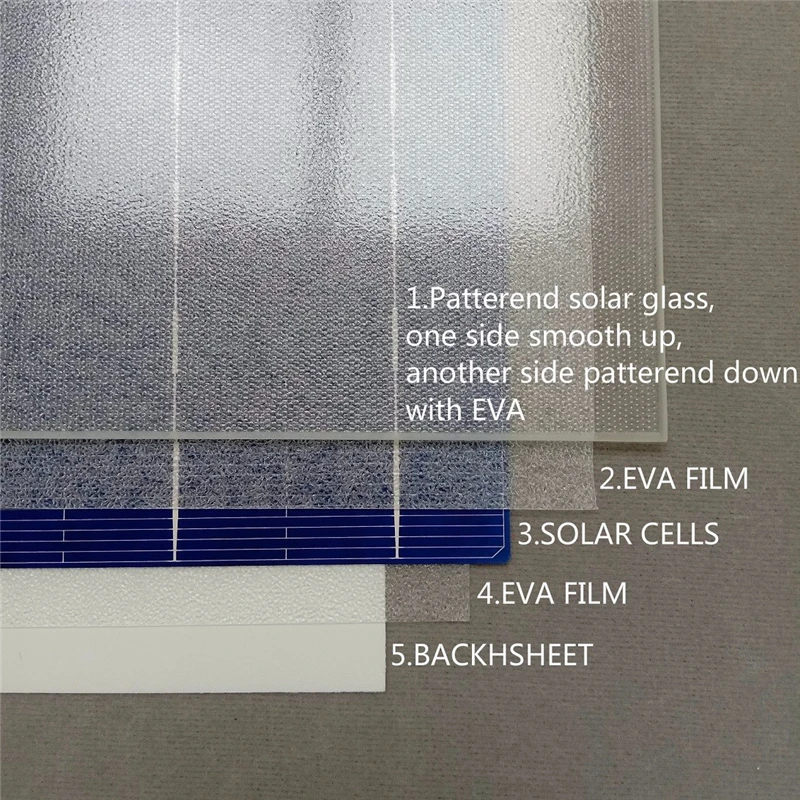

The thicker the glass in the crystalline solar panels, the more stable are they. Solar panel glass on cheaper modules may be as thin as 2.5mm. The solar panel glass has a rough surface. This is necessary to make the EVA film bond well to the solar panel glass during the lamination process.
What properties are expected from solar panel glass?
1. Solar panel glass should ensure a high solar radiance transmittance.

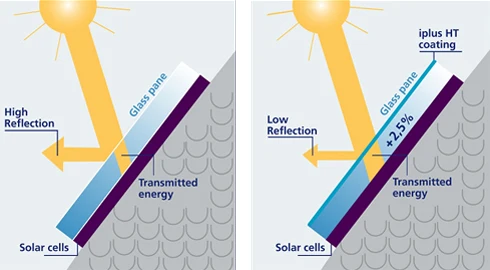

An anti-reflective (AR) coating can be added to solar panel glass by plating one layer of anti-reflection film before the glass is tempered. The additional anti-reflective (AR) coating on the solar panel glass reduces the amount of reflected light and increases the percentage of absorbed sunlight from solar photovoltaic cells by 2.5%.
2.Solar panel glass should guarantee strength and safety.Firstly, tempered glass is up to four times stronger than standard plate glass. Secondly, tempered glass is considered safe. When it breaks, it will shatter into small pieces reducing the probability of serious injury.Both the strength and safety are necessary for the installation of solar PV panels.
VATTI GLASS
High Transmittance Solar Panel Tempered Glass For You to Choose
VATTI GLASS

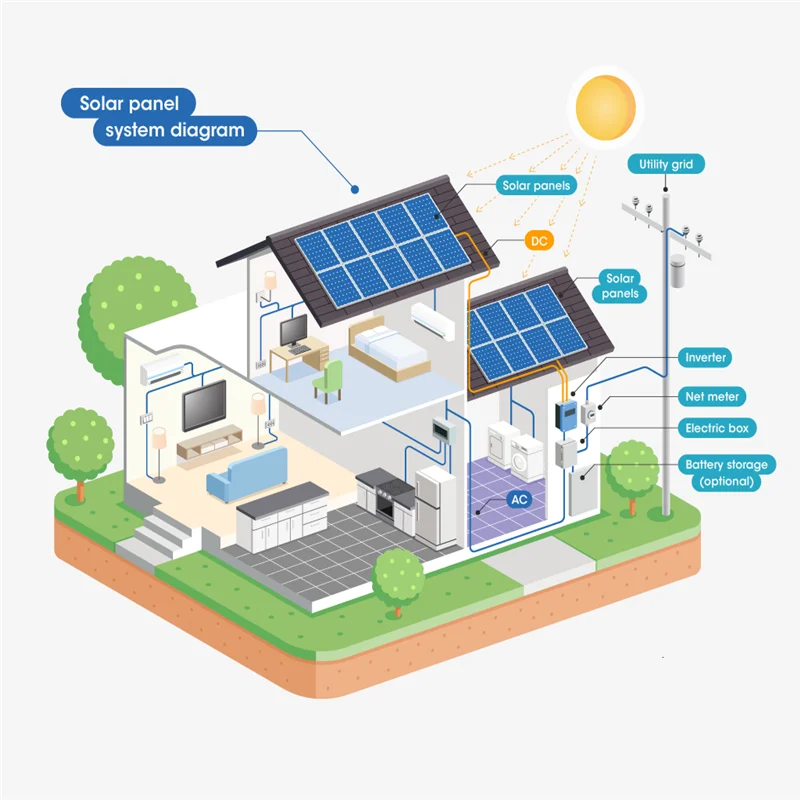

Professional Technical Support for your Solar Panel System
Similar Items

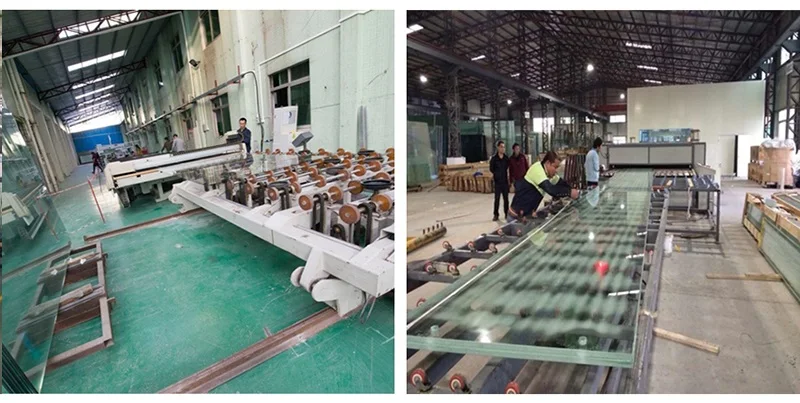

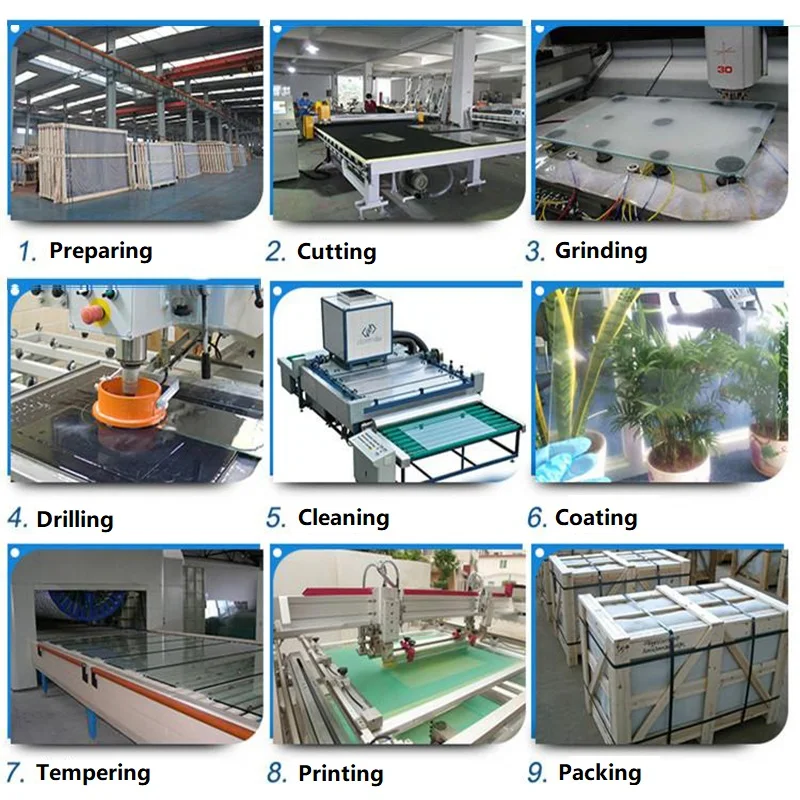

Working Process
Packing Details

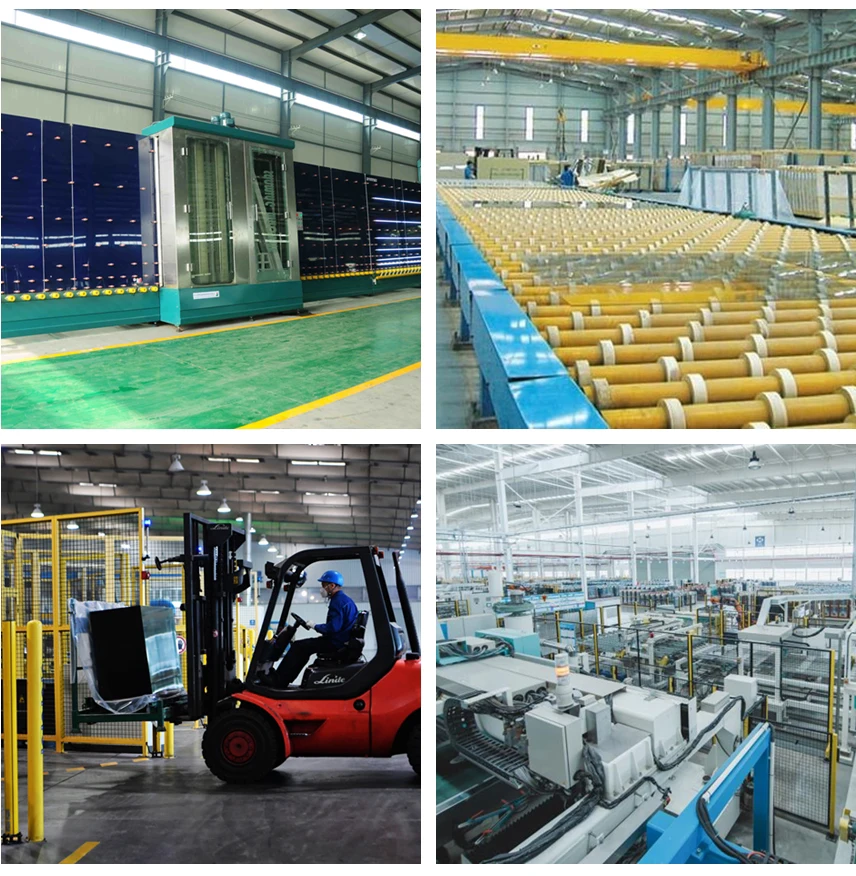

Company Information
Qingdao Vatti Glass Co.,ltd established in 1998, is a professional glass manufacturer and international market supplier, dealing with Tempered Glass, Solar Glass,Ultra Clear Float Glass,Beveled glass,Anti-glare Glass, Anti-reflective glass,Crystal Glass, Solar PV Glass,Organic Glass, Art Glass , and so on.
Satisfying Clients' Requirements with Best Abilities:We have our own factory and warehouse with advanced imported equipment, most valuable professional talents and strict quality control system. With such resources, we promise to satisfy customer's request with our best capabilities.
Enjoying Convenient Transportation:We are located in Qingdao City, near Qingdao port and airport. Thus, we enjoy convenient transportation access and our office is easy to visit.
Business Presence Worldwide:We export to clients in more than 80 countries in North and South America, Europe, Oceania,the Middle East, Africa, and Southeast Asia. We are looking forward to establishing a long-term business relationship with you in the near future.
Satisfying Clients' Requirements with Best Abilities:We have our own factory and warehouse with advanced imported equipment, most valuable professional talents and strict quality control system. With such resources, we promise to satisfy customer's request with our best capabilities.
Enjoying Convenient Transportation:We are located in Qingdao City, near Qingdao port and airport. Thus, we enjoy convenient transportation access and our office is easy to visit.
Business Presence Worldwide:We export to clients in more than 80 countries in North and South America, Europe, Oceania,the Middle East, Africa, and Southeast Asia. We are looking forward to establishing a long-term business relationship with you in the near future.
FAQ
1- How can I get the best price?
In order to offer you our best price, please send us all the details as below:
a. what kind and dimension of glass are you looking for?
b. How about the approximate quantity?
c. Do you have any special requirement like drill holes, cut notches, cutouts, acid etched, silkscreen?
d. When do you need the glass?
2- Where are you located?
Our factory is located in Qingdao City, Shandong Province, China. Warmly welcome you to visit us at any time.
3- What's the shortest lead time you can do?
Generally, one container is 7-15 days. But if your order very urgent, we will do our best to finish it for you within 7 days.
4- How can you make sure the glass won't break during transportation?
For all the glass, we will pack them by strong export plywood crates and load the crates into container with metal belt as stable as possible. If unfortunately by accident, the glass broken, we will have insurance to cover the risk, because for all the glass from our company, we will purchase the insurance to cover all the risk for customers freely.
5- Can you accept small quantity?
Yes, but the price will be a little higher, because it needs to share more cost like depreciation of machinery and local charges.
6- Can you send me some samples to check your quality?
Sure, we can send the free samples (except special deep processing glass) to you at any time. But for fair business, courier charge need to be paid by you. If you have courier account like DHL, TNT, FEDEX, please send the account information to us, and then, we will send the samples ASAP. If you don't have courier account, transfer the courier charge to us, we will pay for it, and we will refund the courier charge to you once we start business.
7- Can you mix different glass in one container?
Yes, we can mix different glass in one container.
8- How can I reach you faster?
Contact me with Wechat ask291314. We are here for you for 24 hours/day, 7 days/week. Send your inquiry now to get what you want!
