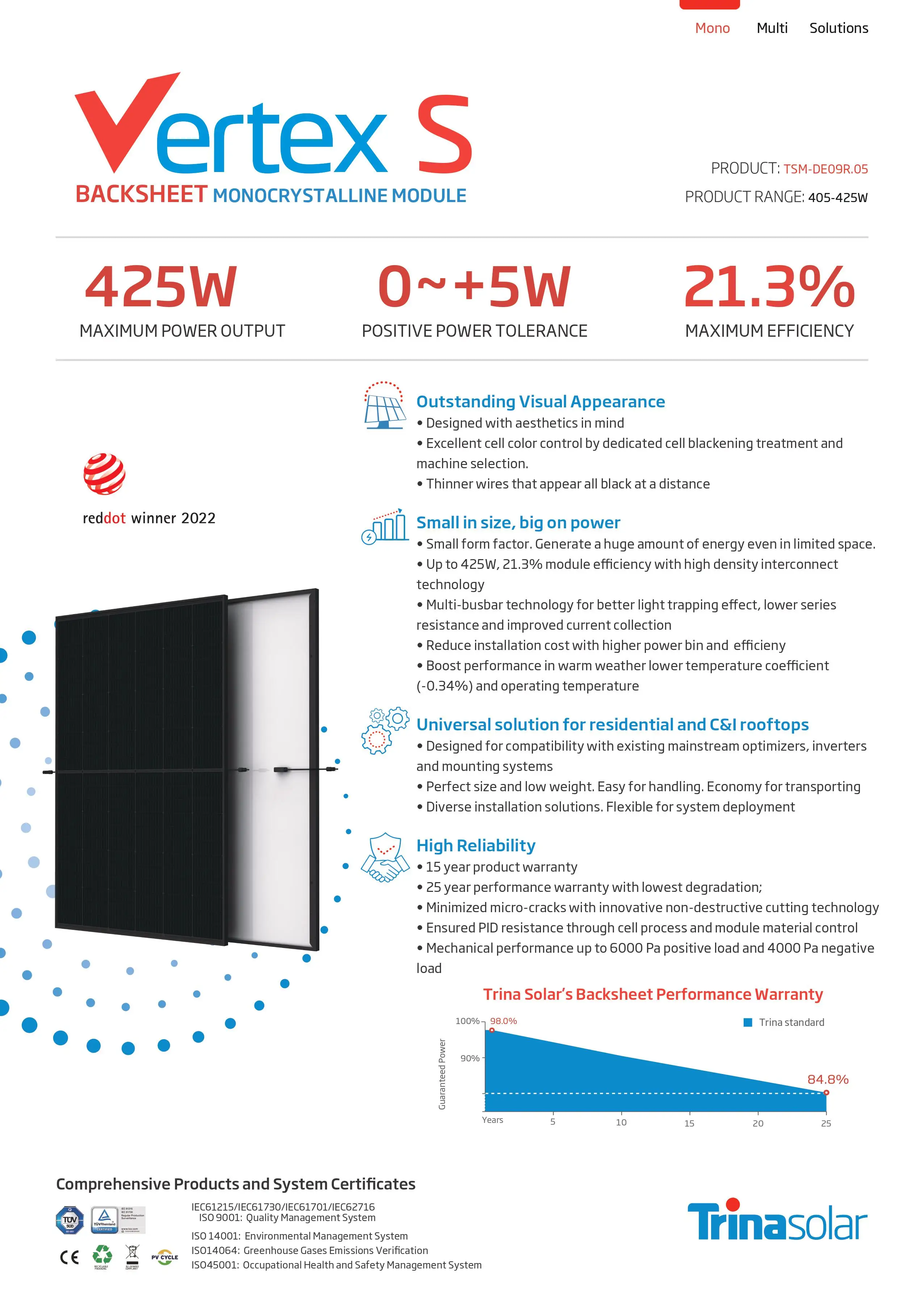

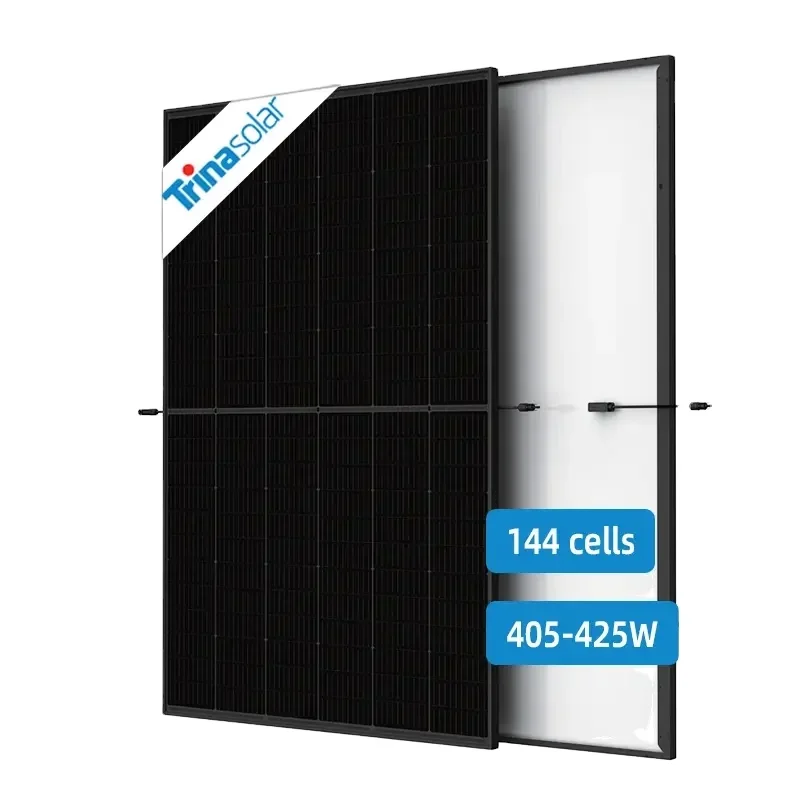

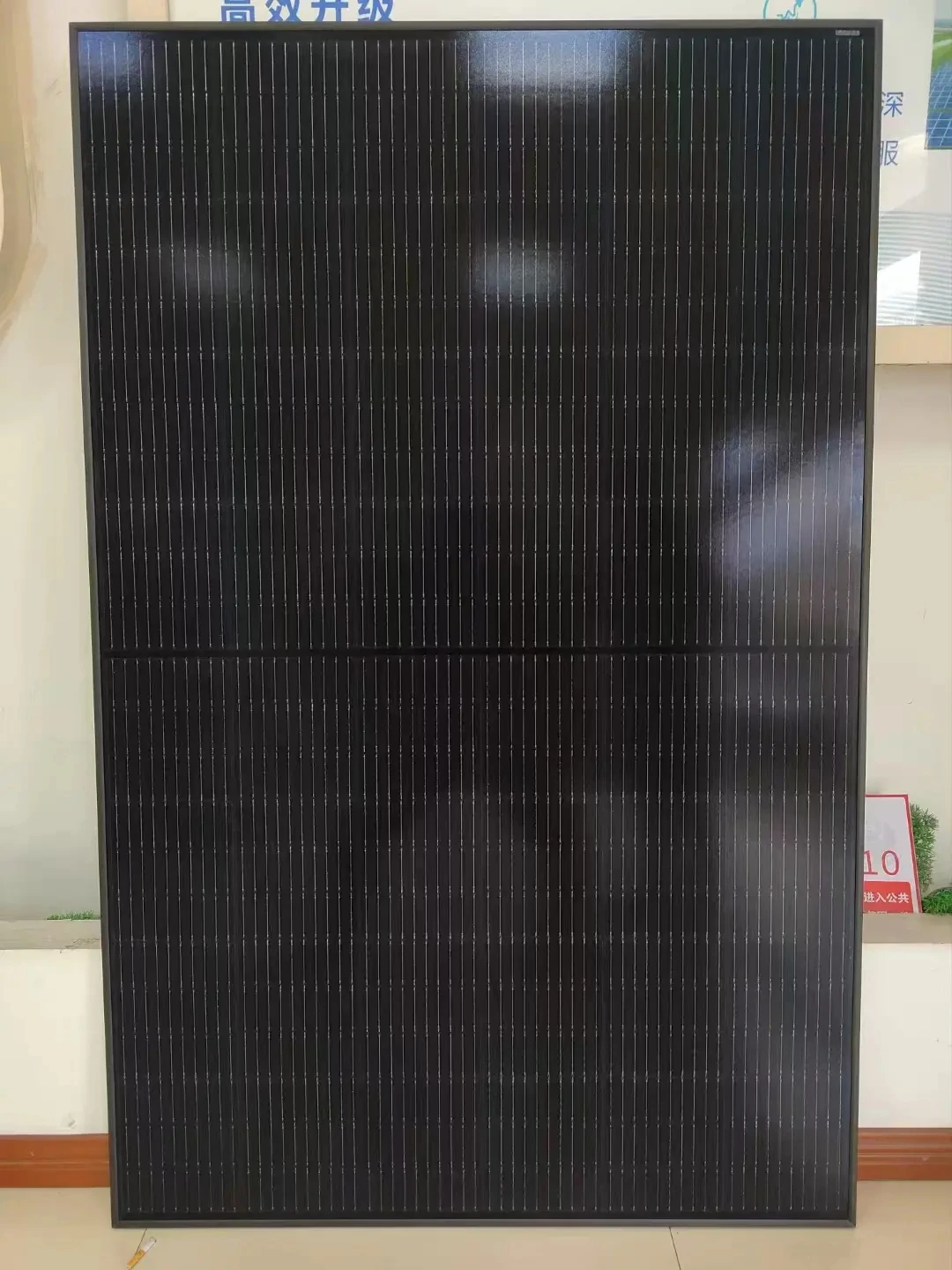

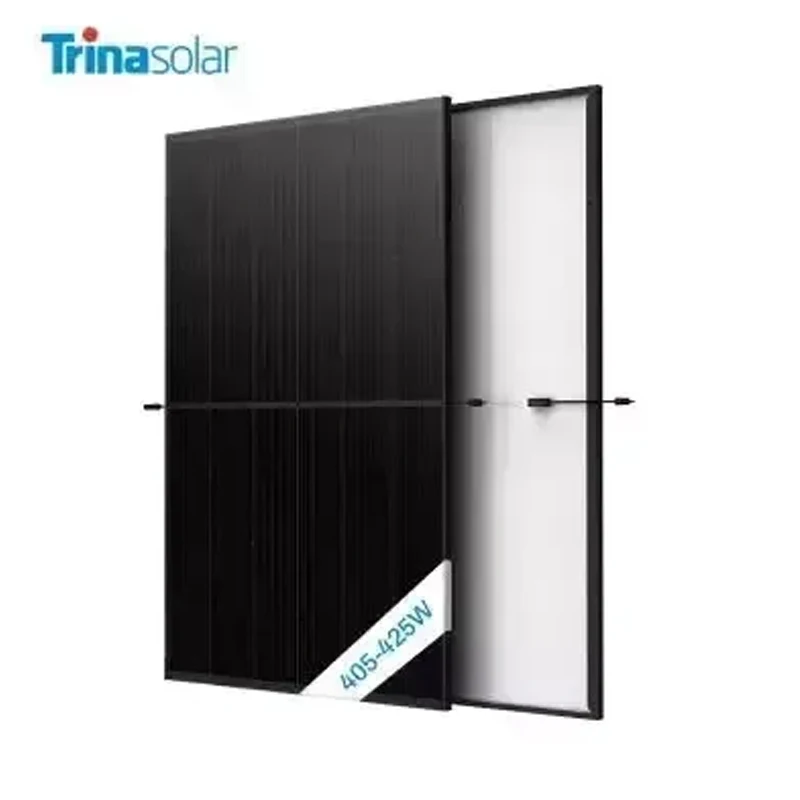

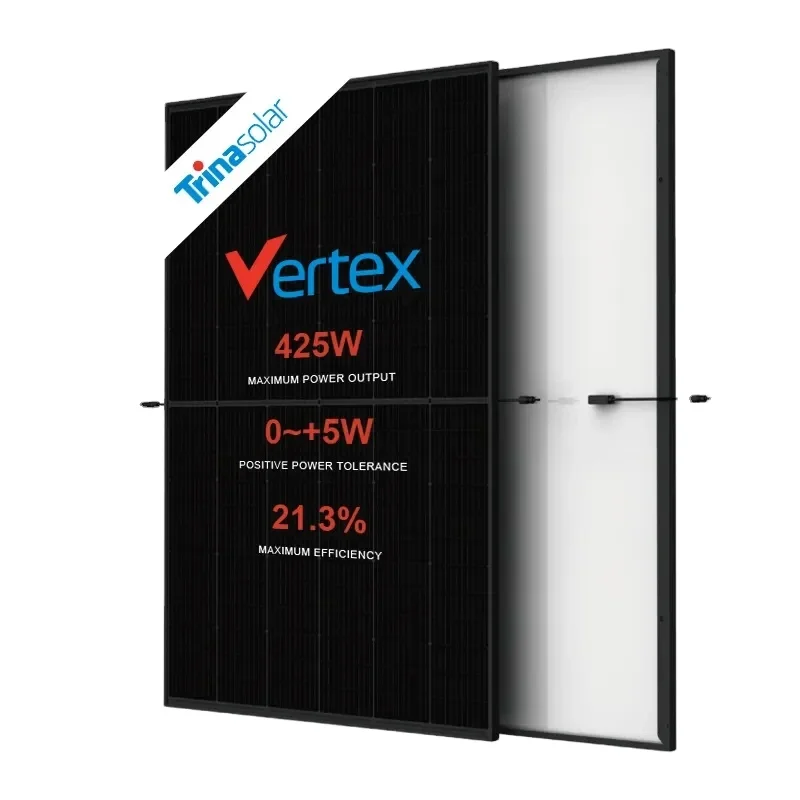

  • Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel
Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel

Trina DE09R.05 Trina Solar Panel 410W Half Cell Panel Mono 415W 425W 420Watt Full Black Solar Panel

Share on (1601001937721):


Price:$0.11 - $0.13

Quantity:


Product Overview

Description

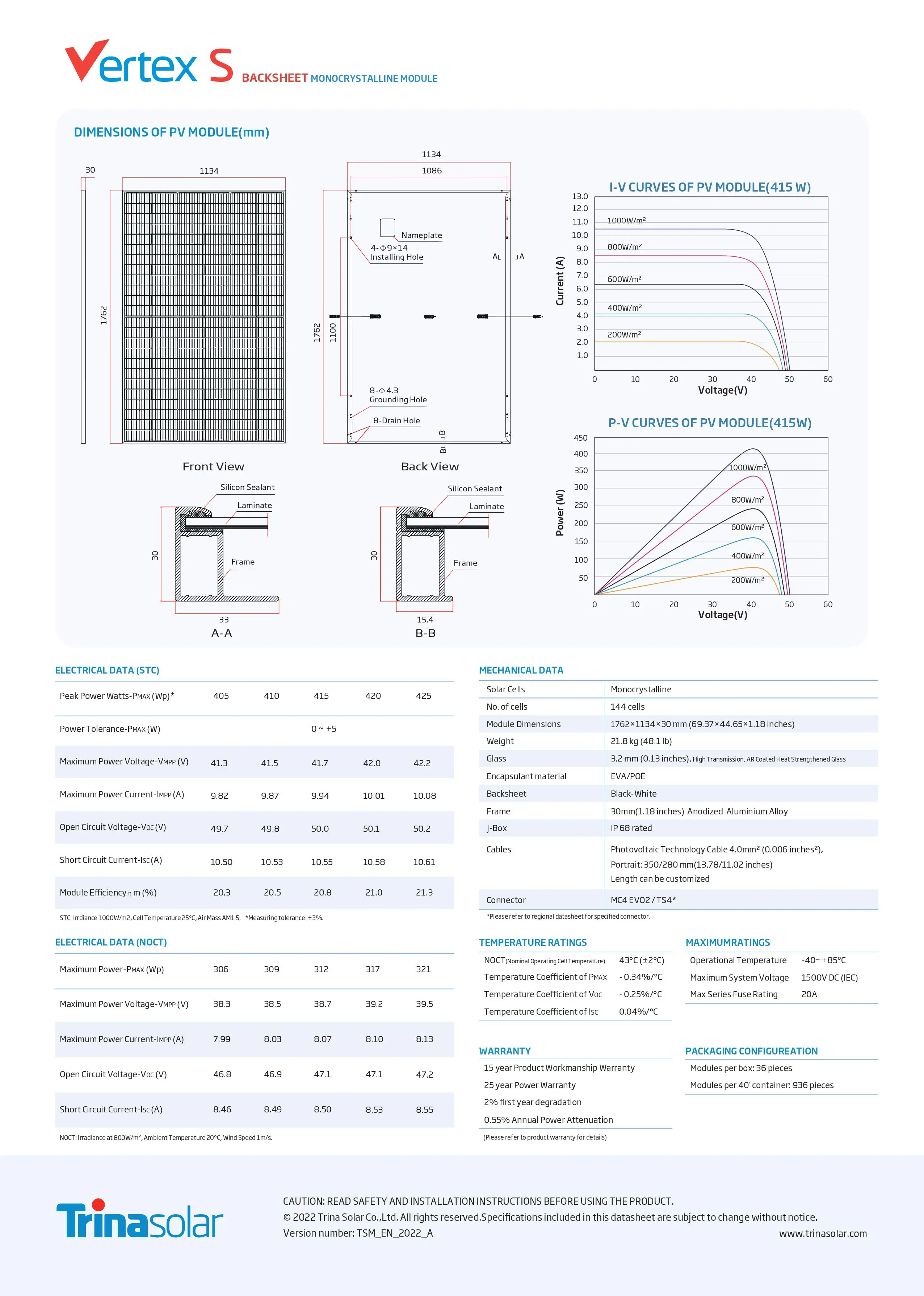

Specification


Maximum Power (Pmax)
405Wp
410Wp
415Wp
420Wp
425Wp
Maximum Power Voltage (Vmp)
41.3V
41.5V
41.7V
42.0V
42.2V
Maximum Power Current (Imp)
9.82A
9.87A
9.94A
10.01V
10.08A
Open-circuit Voltage (Voc)
49.7V
49.8V
50.0V
50.1V
50.2V
Short-circuit Current (Isc)
10.5A
10.53A
10.55A
10.58A
10.61A
Module Efficiency STC (%)
20.3%
20.5%
20.8%
21.0%
21.3%
Operating Temperature(℃)
-40℃~+85℃
Maximum system voltage
1500VDC (IEC)
Maximum series fuse rating
20A
Power tolerance
0~+3%
Temperature coefficients of Pmax
-0.34%/℃
Temperature coefficients of Voc
-0.25%/℃
Temperature coefficients of Isc
0.04%/℃
Nominal operating cell temperature (NOCT)
43±2℃
Packaging Configuration
36pcs/pallet, 936pcs/ 40'HQ Container


Product Details



Glass
*Anti Reflective Glass
*Self-cleaning function
*Module efficiency is increased by 2%
*Service life is as long as 25years(30years optional)
*Translucency of normal luminance is increased by 2%

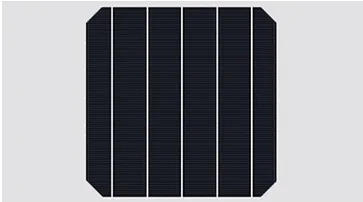

Solar Cell
* Anti-PID
* Appearance Consistency
* High Efficiency PV Cells
*Color sorting ensure consistent appearance on each module

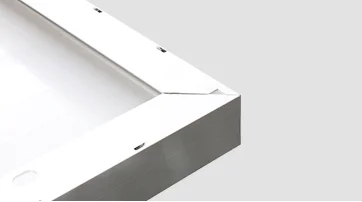

Frame
* Conventional frame
* Seal-lip designglue injection
* Silver or black frames are optional
* Serrated-clip design tensile strength
*Boost bearing capability and prolong service life

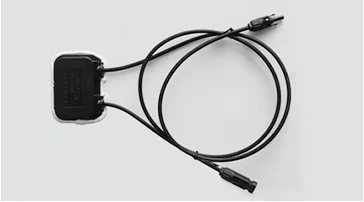

Junction box
*Heat dissipation
*Long service life
*IP68 protection level
*Quality diode ensures module running safety
*Conventional standalone edition and engineering custom edition

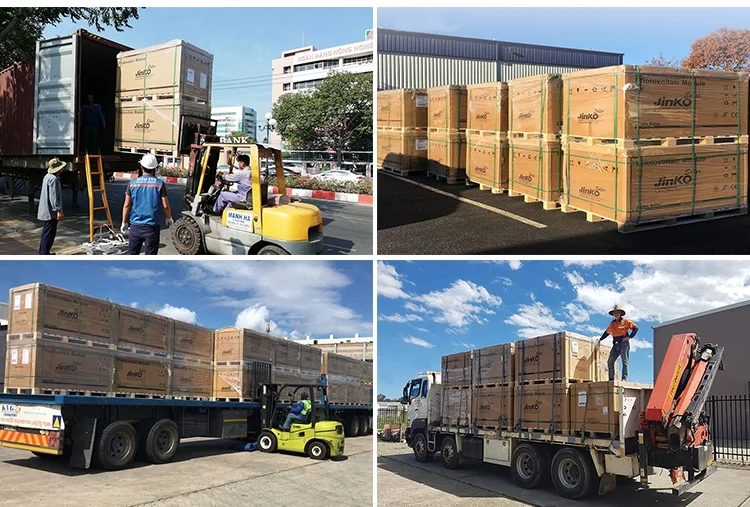

Product Packaging

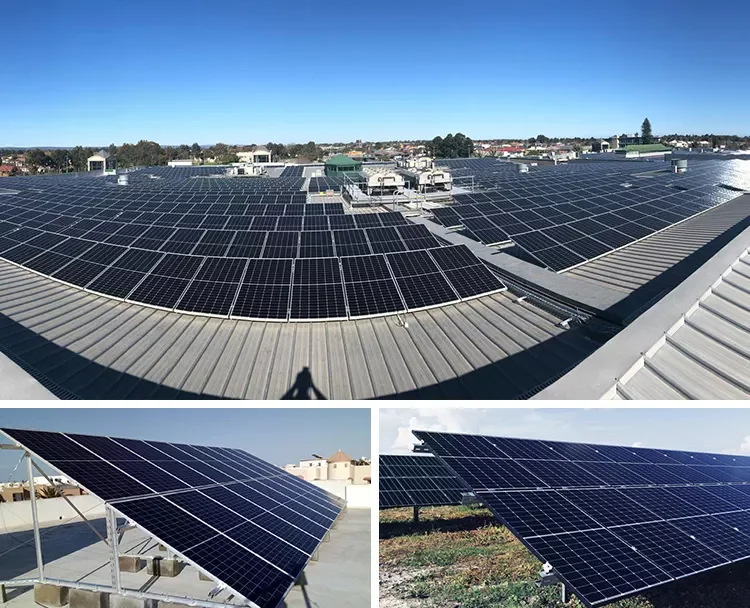

Project Cases
