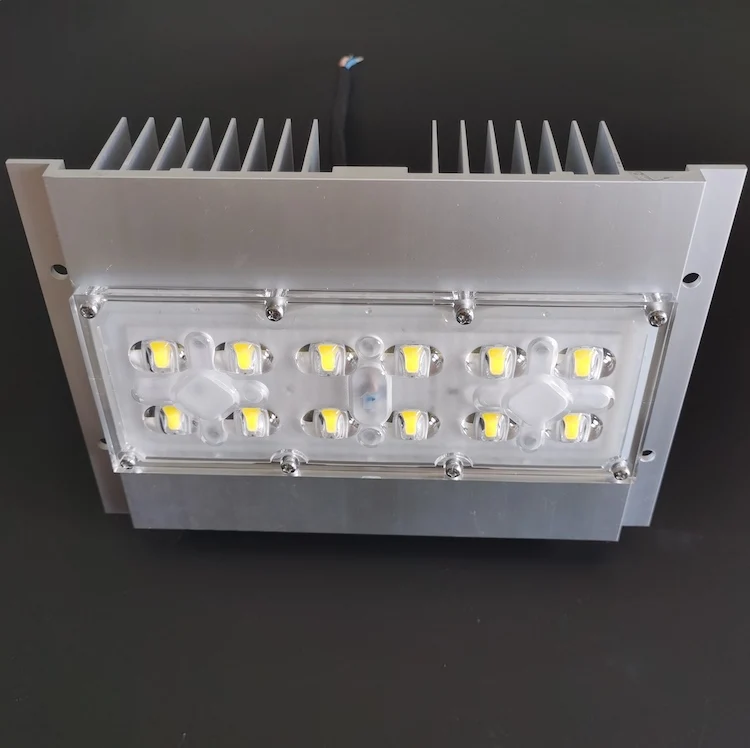

60W PH7070 SMD LED Light PCB Module Optical Lens IP65 Rated Road Lighting AC Power Supply Ce Certified 6500K Color Temperature
- Category: >>>
- Supplier: Shenzhen Sunshine Opto-Electronics Technology Ltd.
Share on (1601001961231):
Product Overview
Description
60W PH7070 SMD LED Light PCB Module Optical Lens IP65 Rated Road Lighting AC Power Supply Ce Certified 6500K Color Temperature
Product Description

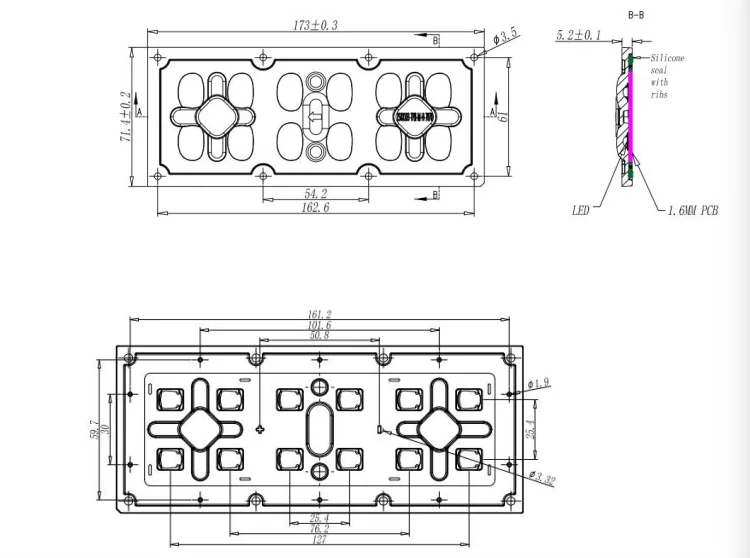

| Model | SUN-173-158X103-TPII-M-H-12H1-7070 |
| Beam angle | 158x103degree |
| Lens size | 173x71.4mm |
| LED CHIP | 7070 SMD |

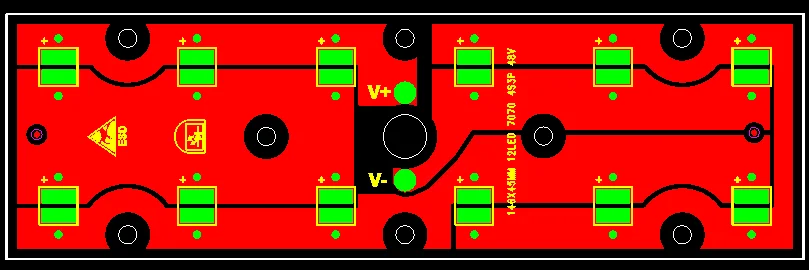

| PCB Size | 146x45mm |
| PCB circuit | 4 series 3 parallel |

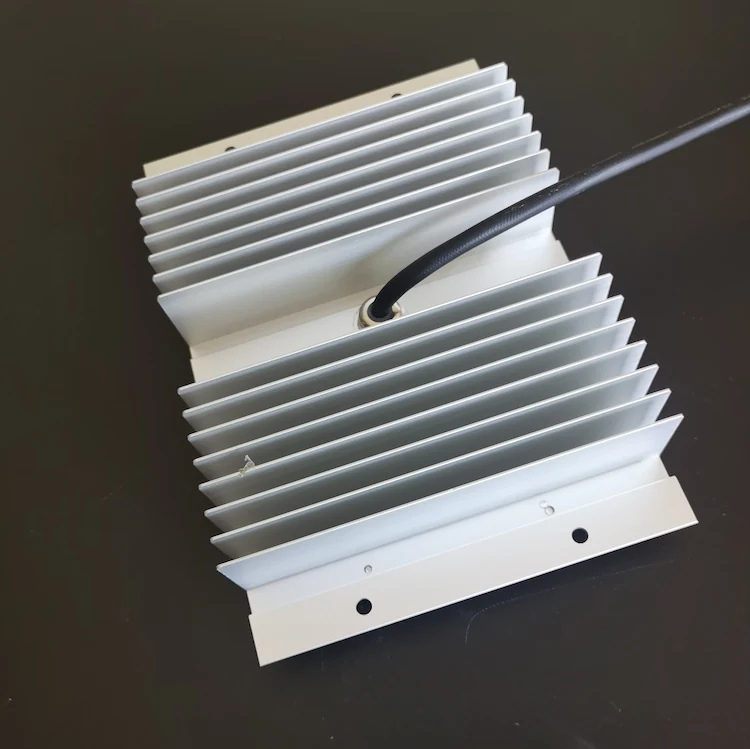

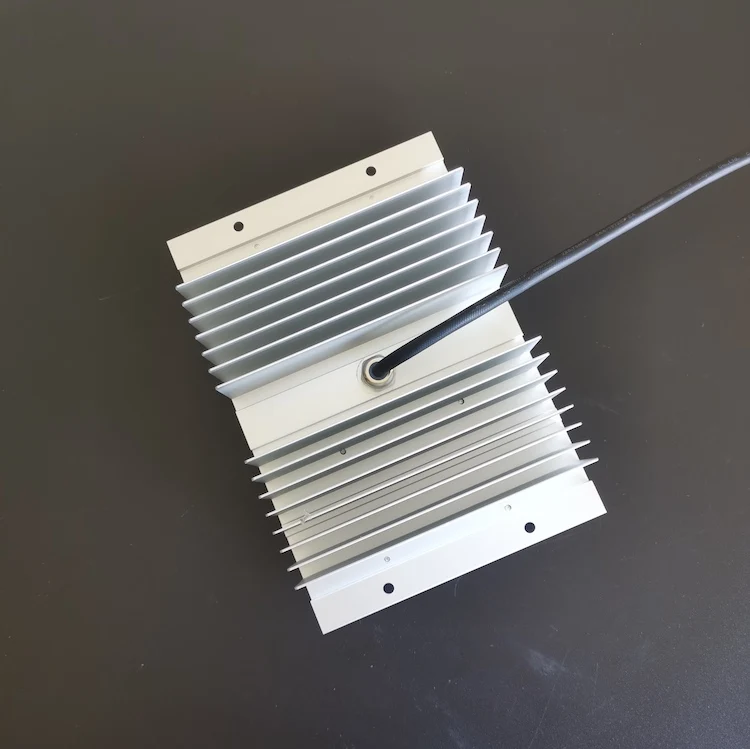

| Heat Sink Size | 200x140x40mm |
| Dense array of 12 LED | led street light, garden light, tunnel light |
| Materical for lens | Optical grade PC |
| Lens transmittance | 93% |
| Work temperature | -40-80 degree |
| Samples | Available |
| Delivery time | 5-7 work days for 1-1000 pcs |

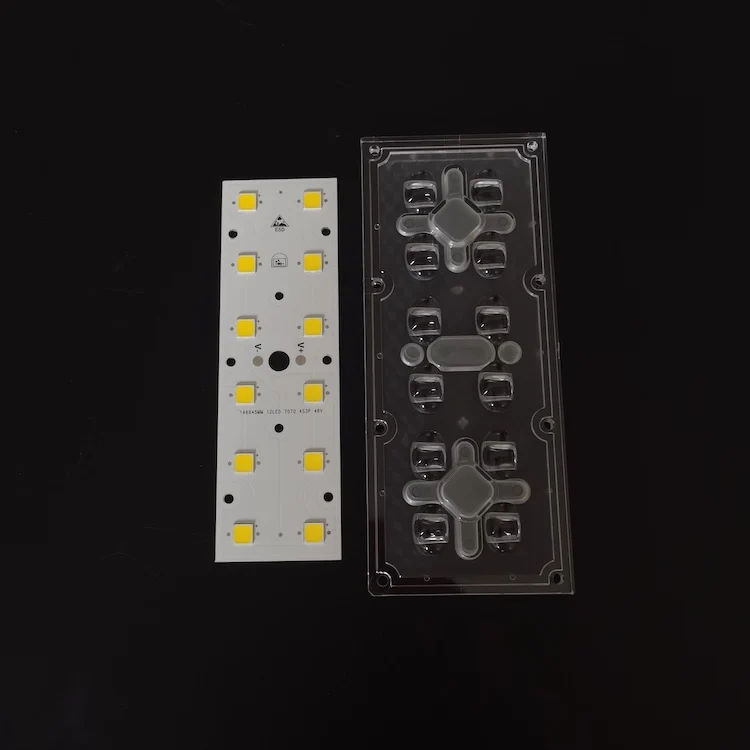

60W PH7070 SMD Led Light PCB Module Optical Len For Road Lighting

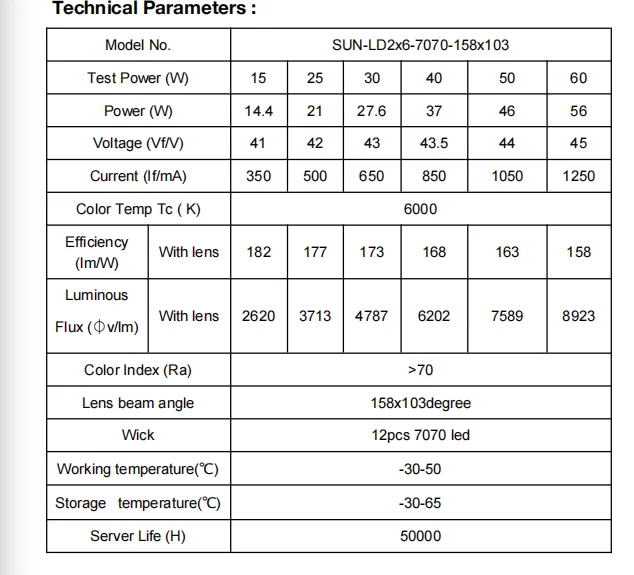

Test Report :

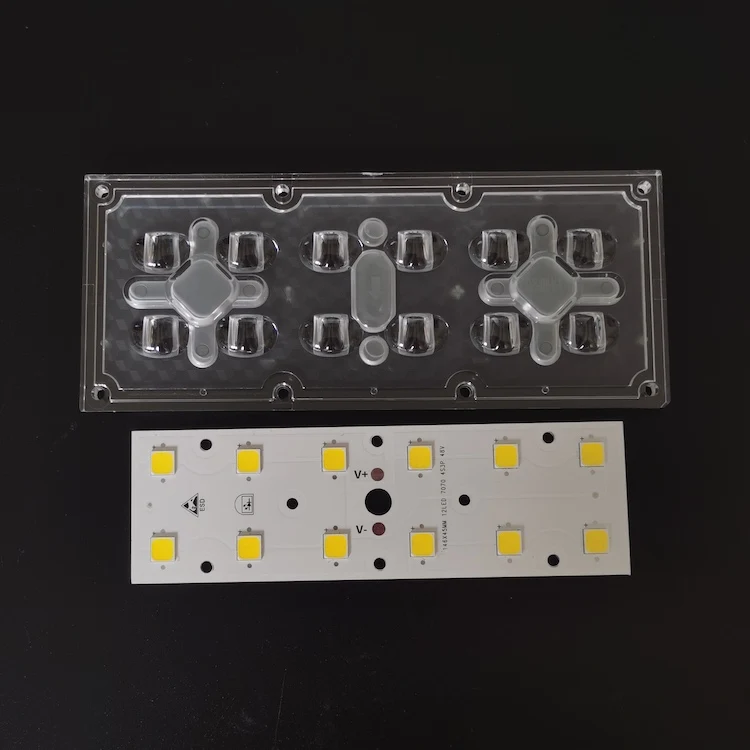

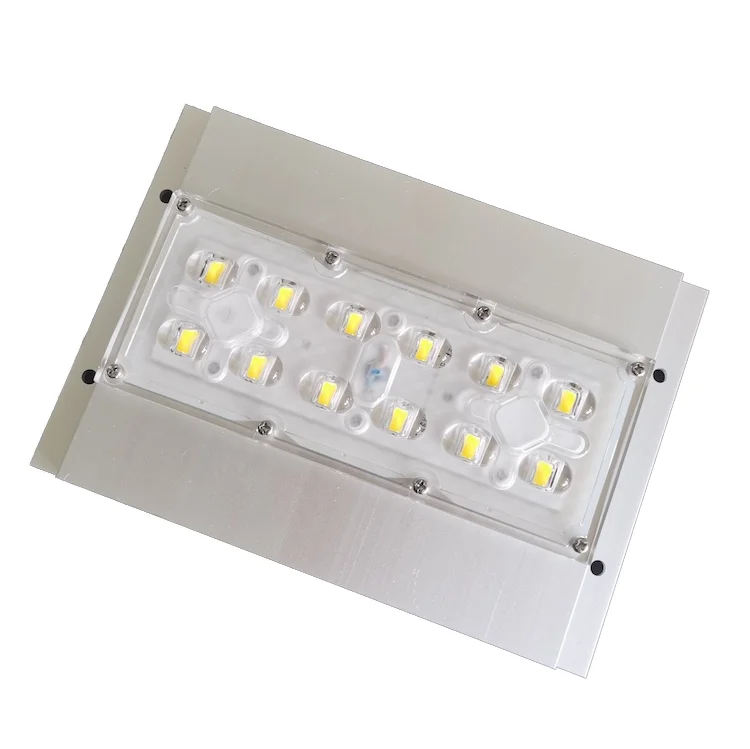

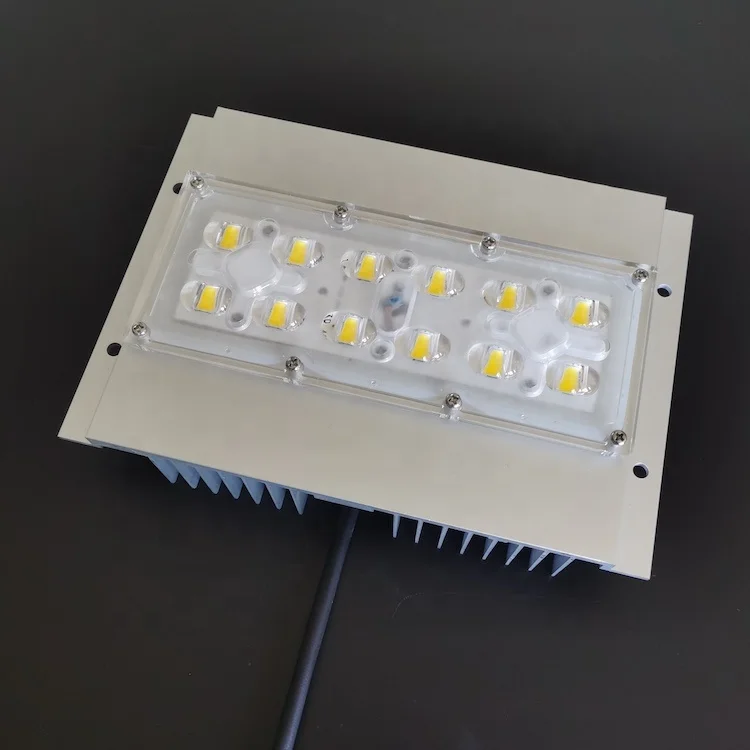

Customized the Led Lens and PCB Module
Features :
- This SKD LED Array lens with PCB Module is best choice to retrofit the old lamps or design power lamps
- It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.
- Industry-leading thermal management utilizing technology
- Operating temperature range: from 35 Celsius degree to 70 Celsius degree.
- The LED retrofit kits contain no any mercury or lead.
- Does not produce UV rays that harm people’s eyes.
- Directional light means no light pollution, dark sky compliance.
- Optic lenses are available for projects that need narrower beam angles
| Payment Terms | T/T,Western Union, Paypal, MoneyGram |
| Minimum Order | 1pc |
| Lead Time Delivery Time | 5-7 days,it based on your quantity |
| Sample Available | Yes |
| Delivery ways | DHL/Fedex/UPS express, Sea or air shipping for your choice |
| Packing Info | carton package |

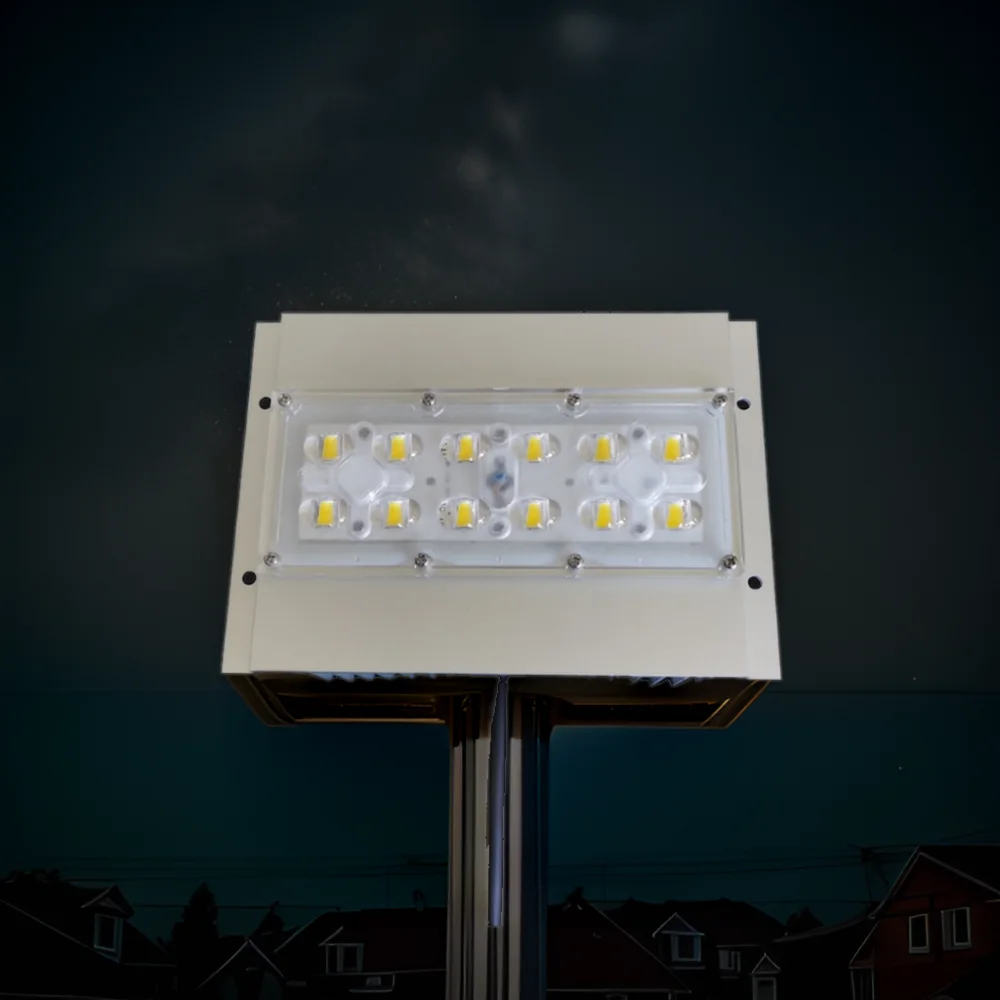

Application: It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
Production Line :
Export Markets : North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East
Eastern Asia, Western Europe
FAQ
Why choosing us - SUNSHINEOPTO ?
1. About 13 years specializing in Led modules
2. Complete supplying system with full range of Products,from high power leds ,led optical lens ,led constant drivers ,MCPCB modules and many led light components
3. Strict process and quality control
4. Good raw materials used in production
5. Strong design and production capability
6. Packaging: strong enough package to protect goods
7. Shipping: any shipping can be arranged as your request.
8. We have a R&D department with a professional team and we have a factory with rich experience, So OEM and ODM can be accepted.
9. Our after-sale service is complete. The warranty is 12 months.
How To Order Our Product ?
1,Customers offer general drawing of the product.
2,Our designer will make a professional drawing according to your product layout.
3,After your confirmation of the drawings,inform us the material and types you need.
4,We will do quote once get the confirmation of you.
5,Note Customers can order all product samples we put or you can also have your own idea as we are custom-made product supplier,so different colors and types are available.
