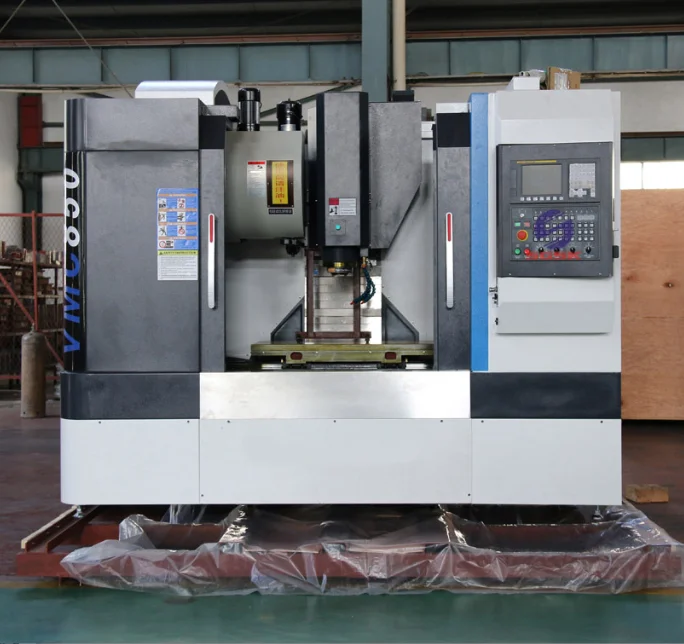

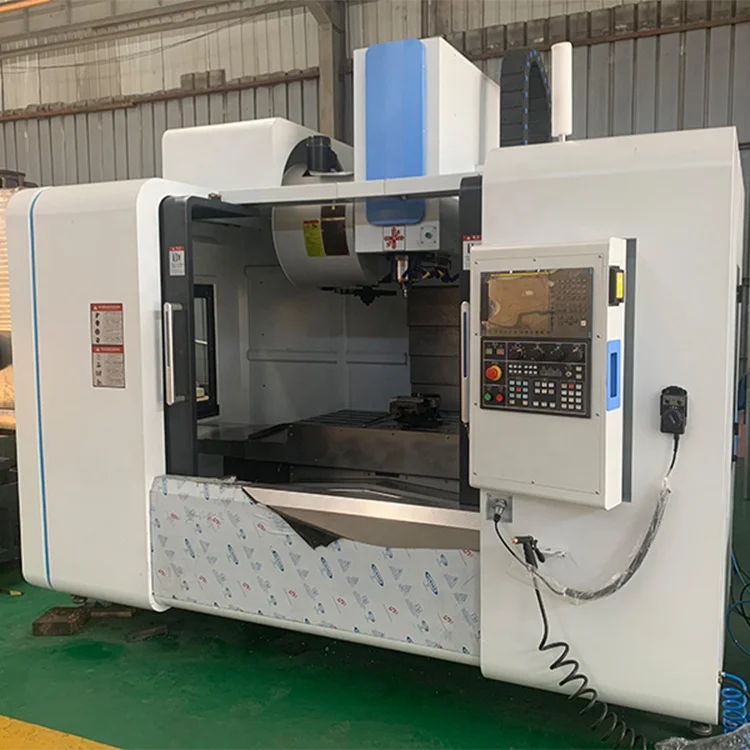

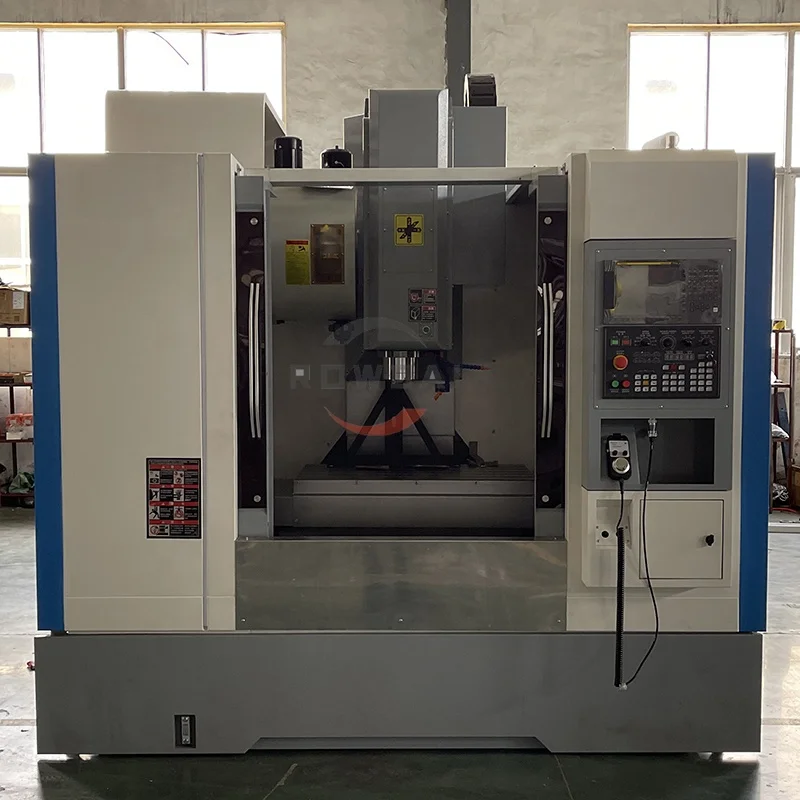

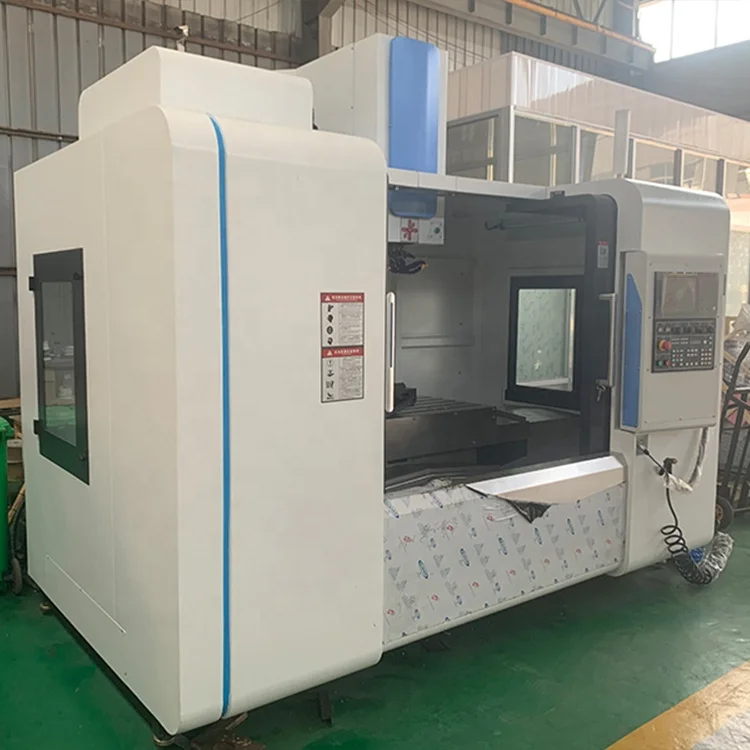

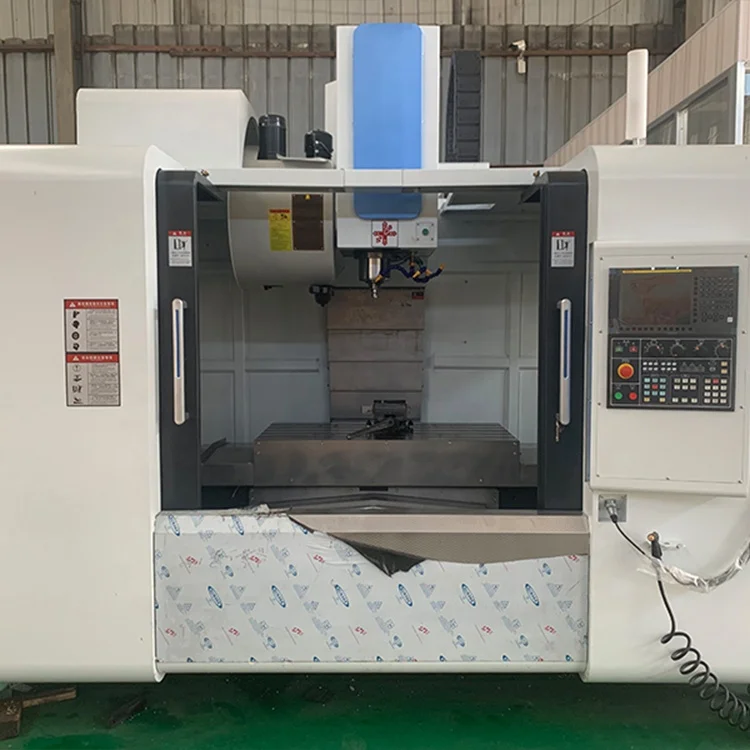

Vertical Machining Center with CNC Controller VMC1160 CNC Milling Machine for Metal Processing
- Category: >>>
- Supplier: Henan rowdai Machinery Equipment Co. LTD
Share on (1601001961533):
Product Overview
Description
Product Description
CNC Vertical Machining Center
CNC vertical machining center belongs to one of our most economic cnc machining center for heavy duty field. The motor power is 11/15 kw even more, Spindle taper is BT40 or customized. It can load 800kgs work piece. It is quite new condition not used cnc machine center. It can realize the complex combination of turning, milling, drilling, tapping and grinding of metal materials. Three control systems are available: New Generation, Siemens and FANUC.
Product Advantages
Product advantages
1. The struction of the precision being connected with automatic lubrication device.
2. Use the ball screw with special bearing for ensuring that location accuracy control precision and mobile season outline of the shaft rigidity.
3. The bed and column etc main structure use reasonable cloth reinforced enhance shockproof sexual structure.
4. Precision high speed spindle unit and AC servo motor through a timing belt linked, low noise, small vibration, low in calories and could do milling, drilling, reaming, boring, reaming and tapping.
5. All three axis use servo drive shaft. The spindle is servo spindle and with a rigid tapping function.
Enhance machining accuracy.
Enhance machining accuracy.
6.Taiwan spindle/ball screw/ bearing is available.
7.X/Y/Z linear guide way is available.
8.Ultimate 10000rpm spindle speed is available.
9.Portable hand wheel.
10.OEM or ODM is available.
11.Customized color and voltage or LOGO.
12.China top one quality and good after sale service.
12.China top one quality and good after sale service.
Product Paramenters
Specifications | Units | VMC650 | VMC850 |
Table size | mm | 800x400 | 1000x500 |
X axis travel | mm | 650 | 800 |
Y axis travel | mm | 400 | 500 |
Z axis travel | mm | 500 | 500 |
Max. worktable load | kg | 400 | 500 |
T slot(number-width-pitch) | 3-18x125 | 5-18x125 | |
Max. spindle speed | rpm | 8000(Optional:10000 ) | 8000(Optional:10000 ) |
Spindle taper | mm | BT40 | BT40 |
Main motor power | kw | 5.5 | 7.5 |
X/Y/Z rapid traverse speed | m/min | 24/24/20 (Optional:48/48/36 ) | 24/24/20(Optional:48/48/36 ) |
Cutting feed speed | mm/min | 1-10000 | 1-8000 |
Guide rail type | Linear rail | Linear rail | |
Distance from spindle axis to column surface | mm | 469 | 526 |
Distance between spindle nose and worktable surface | mm | 100-600 | 90-640 |
Positioning accuracy | mm | ±0.0075 | ±0.0075 |
Repeat positioning accuracy | mm | ±0.005 | ±0.005 |
Tool magazine | 16 Armless(Optional: Arm 24 ) | Arm 24 | |
Max. tool diameter | mm | φ90 | φ78 (Adjacent)/ φ120(Apart) |
Max.tool weight | kg | 8 | 8 |
Machine weight | kg | 4000 | 4000 |
Overall dimension | mm | 2400x2000x2550 | 2600×2000×2200 |

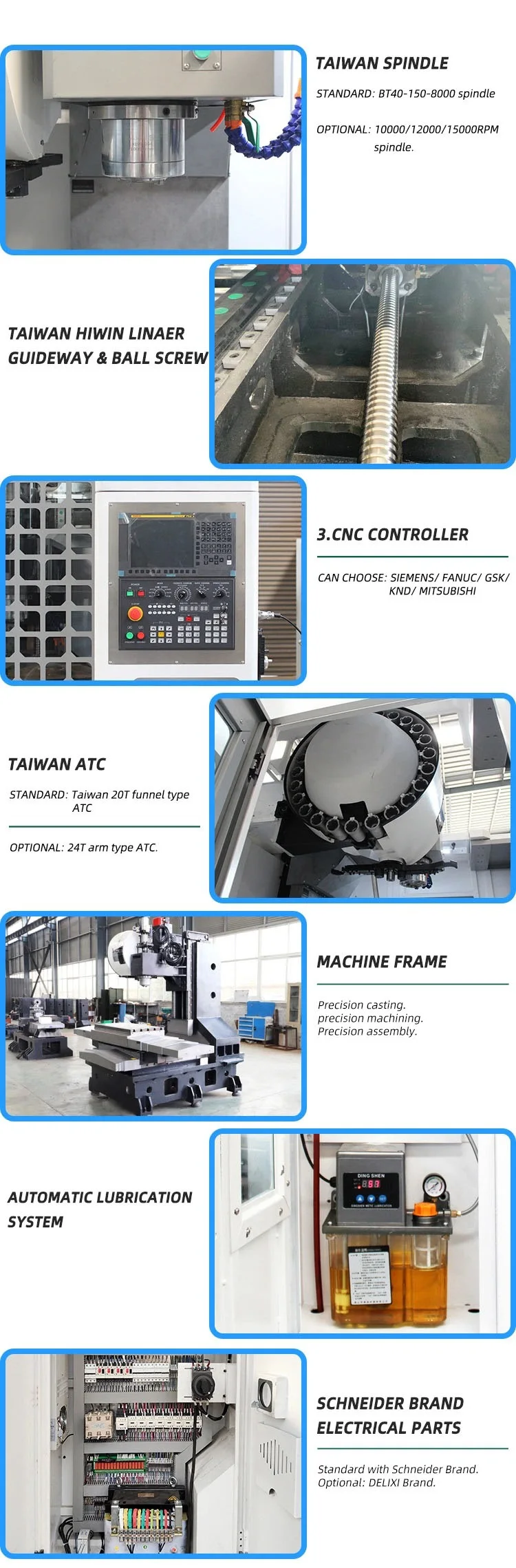

Product Details
Accessories
Anchor bolts and spacers Work condition warning light
Portable blowing crumbs air gun Movable hand-wheel
Mechanical instruction Certificate of Conformity
Electrical instructions System operation manual
System parameter specification System maintenance manual
Portable blowing crumbs air gun Movable hand-wheel
Mechanical instruction Certificate of Conformity
Electrical instructions System operation manual
System parameter specification System maintenance manual

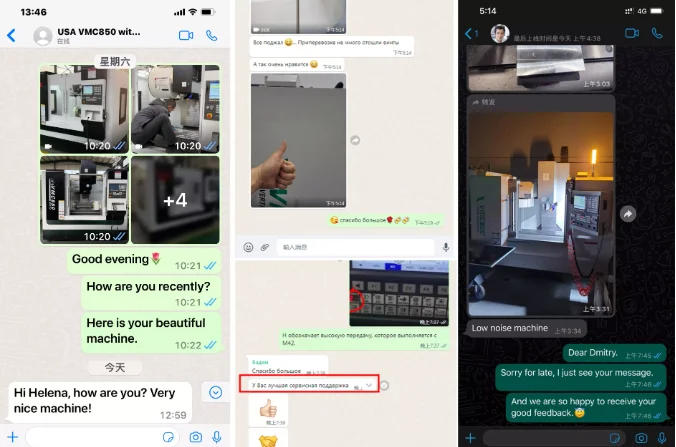

Successful Project
Packing & Delivery

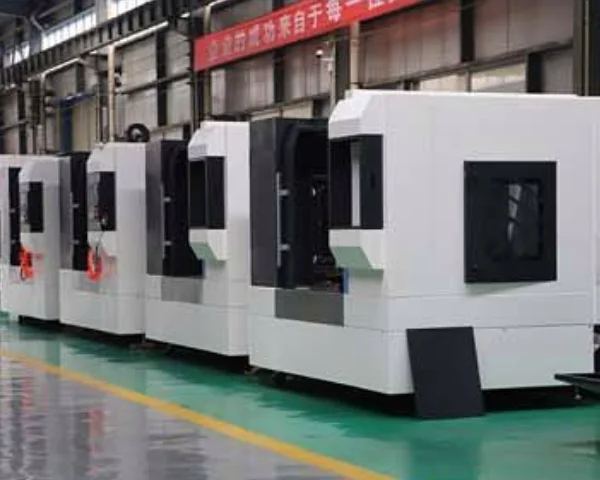

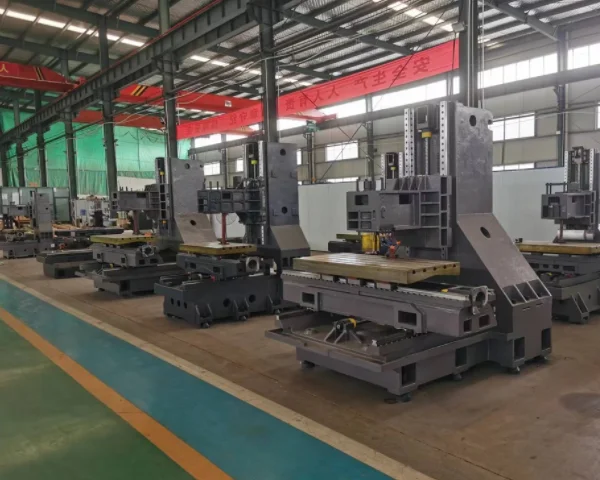

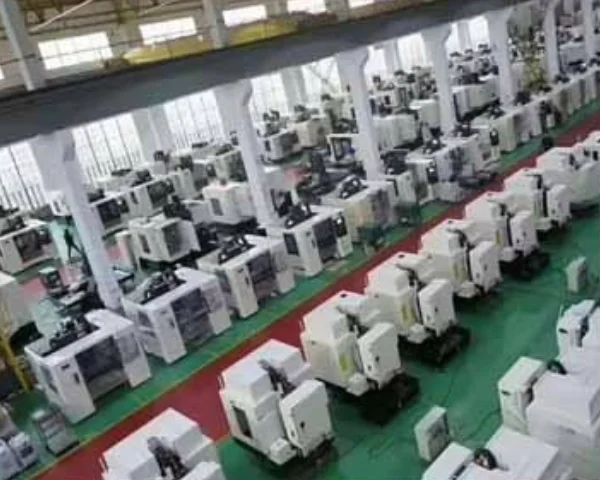

Company Profile
Henan Rowdai Machinery Equipment Co., LTD, is a supplier of machinery.We have exported more than 100 countries like USA, Mexico, Canada, Spain, Russia, Singapore, Thailand, India etc .
Our products provide customer more convenient in their business and expect to have more cooperate in future.
What we offer :
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
1) Good quality control
2) Highly competitive prices
3) state-of-art technology products
4) Best professional team of lifestyle consumer electronics.
5) Smooth communication
6) Effective OEM&ODM service
FAQ
1. What is your advance?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
(1)We have ourselves factory. We accept the order if you want to customize products or design the product.
(2)Professional website platform and one-to-one online service.
(3)Various products in low MOQ and competitive prices.
(4)We have a strong R&D team and now we have more than 50 patents products.
(5)80% exporting products have been sold to Europe, America and Japan, high quality.
2. What's the minimum order quantity?
One set is acceptable.
3. How about the payment Term?
We accept T/T,Western Union,LC.
4. What's your port?
Shanghai, Ningbo, Qingdao, Shenzhen.
5. Can we use our own shipping agent?
Yes, you can. We had cooperated with many forwarders.If you need,we can recommend some forwarders to you and you can compare the price and the service.
6. Can we use our own LOGO or design for sticker?
Yes, you just need to sent us more details about the LOGO or sticker.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
7. How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. Or it is 15-30 days if the goods are not in stock,it is according to quantity.
8. Do you provide samples? Is it free or extra ?
A: Yes, we could offer the sample for cheaper price！
A: Yes, we could offer the sample for cheaper price！
If interested,pls contact me directly!
