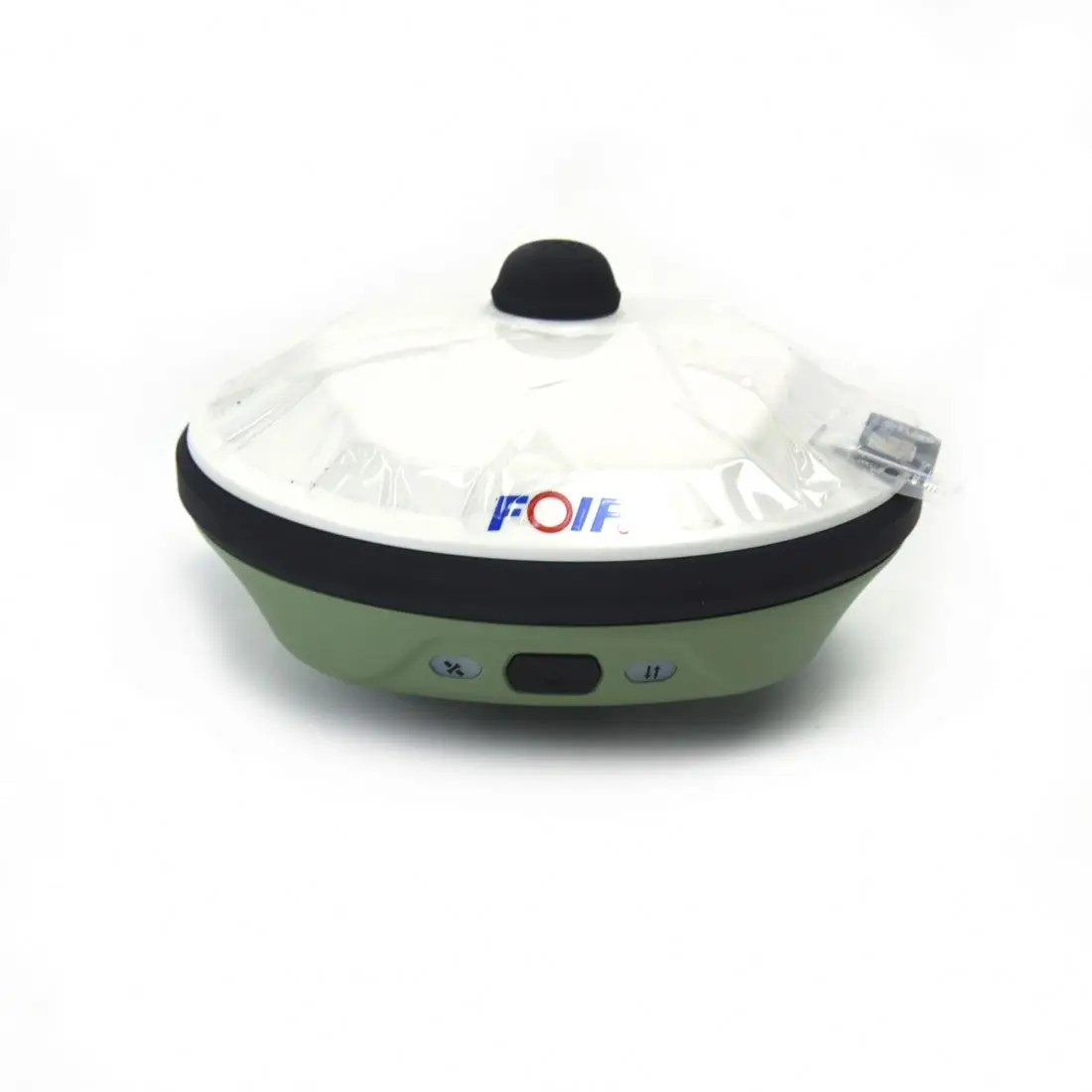

Foif A70 Tracking System High Performance Gps Receiver Dual Frequency RTK 1pcs for sale
- Category: >>>
- Supplier: Huipu Opto-Electronic Instrument (zhenjiang) Co. Ltd.
Share on (1601001995430):
Product Overview
Description
Products Description
A70 PRO GNSS RTK | ||
Smart Design With the increasing demand for smart-design GNSS, to develop the receiver featured with miniaturization turns into our new goal until today it comes true. It is completely no doubt that small size and light weight design can greatly alleviate general field work and improve productivity a lot. | ||
1.Linux
In linux, WebUI Settings are supported
2. All signs
Channel 336/432/555/800/1408, support seven star frequency 31, support Beidou 3
3.Strong
Lightweight and miniaturized, all magnesium alloy body design
4. 4-in-1 combination antenna
Set GNSS, Bluetooth, WIFI, 4G antenna in one
5. Omnidirectional UHF radio station
Built-in receiving radio, all - direction, wide frequency, multi - protocol compatible market mainstream RTK products
6. Fourth generation inertial incline measurement system
IMU inertial navigation module, 6-axis 400Hz dynamic output, tilt measurement technology without calibration
7.Built-in large capacity lithium battery
7.2V 6900mAH large capacity lithium battery, support USB PD fast charging, support charging bank

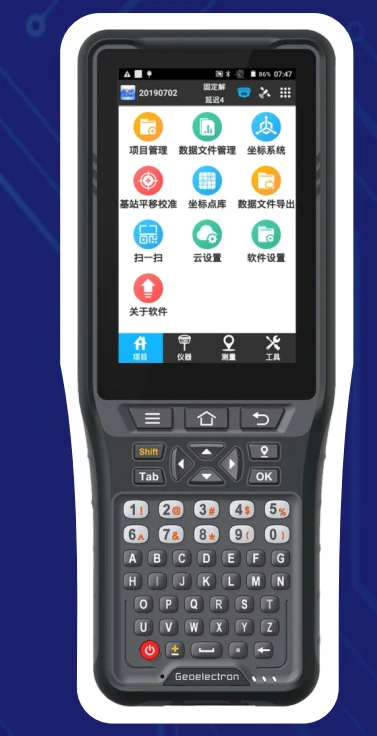

P9III Industrial grade handbook | ||
Operating system | Android 9 | |
CPU | Qualcomm 506GPU, Qualcomm octa-core 64-bit | |
Memory and storage | Running memory 2G LPDDR3, 16G storage, expandable to 256G | |
Keys | The whole keyboard has 54 keys, including alphanumeric keys and function keys | |
Communication module | 4G full network, support voice call, support mobile, Unicom. Telecommunications 2G, 3G, 4G network communication | |
Power characteristics | 3.8V, 6000mAh, 22.8Wh, Type-c fast charge, single battery life > 12 hours | |
Display screen | 4.3-inch, 69mm x 111mm, clearly visible under strong light | |
Data communication | 802.11a /b/g/n/ac wireless WLAN; Bluetooth 2.1+EDR/3.0/4.1LE/ 4.2BLE | |
Industrial performance | dustproof and waterproof IP67; Resist natural drop of 12 meters | |
Environmental characteristics | Operating temperature :-30C-60C; Storage temperature :-40C-80C | |
Specification
Model | A70mini | ||
GNSS | Channels | 800 | |
Signals | BDS: B1, B2, B3 | ||
GPS: L1CA/L1P/L1C/L2P/L2C | |||
GLOASS: G1,G2, P1, P2 | |||
GALILEO: E1BC, E5a, E5b | |||
QZSS: L1CA, L2C, L5, L1C | |||
Accuracy | Static | H: 2.5 mm±1ppm , V: 5 mm±1ppm | |
RTK | H: 8 mm±1ppm, V:15 mm±1ppm | ||
DGNSS | <0.5m | ||
ATLAS | 8cm | ||
System | Initialization Time | 8s | |
Initialization Reliable | 99.90% | ||
Operating System | Linux | ||
Merrory | 8GB, support expanable MisroSD | ||
Wifi | 802.11 b/g/n | ||
blue tooth | V2.1+EDR/V4.1Dual,Class2 | ||
Tilt Survey | don't support | ||
Datalink | Audio | support TTS audio broadcast | |
Protocol | support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark, | ||
Network | LTE FDD: B1/B3/B5/B8 LTE TDD: B38/B39/B40/B41 TD-SCDMA: B34/B39 CDMA: BC0 WCDMA: B1/B8 GSM: 900/1800MHz | ||
output format | RTCM2.3, RTCM3.2, CMR, CMR+, ROX TCM3.2, CMR, CMR+, ROX | ||

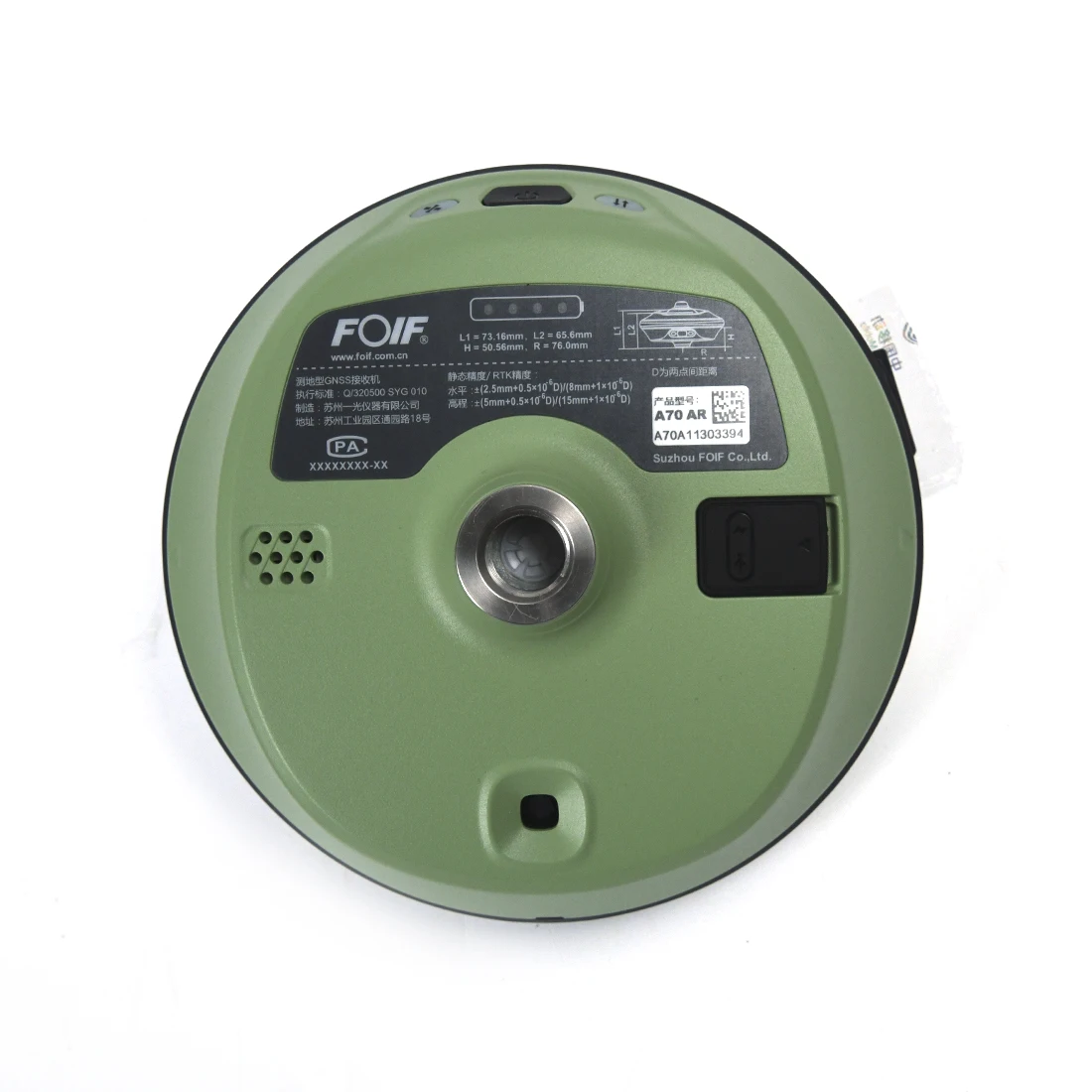

Physical | Interface | 1*5Pin(Power & RS232); Type-C: For direct charging, data transmission; Sim card slot: Install SIM card | |
Button | 1 Power Button | ||
Indication Light | 4 Indication Lights | ||
Size | 148mm*62mm | ||
Weight | 800g | ||
Power supply | Battery capacity | Built-in Lithium-ion battery 7.2V/6700mAh. | |
Life Timer | Up to 9 hours | ||
External power source | DC 9-18V, with overvoltage protection | ||
Environment | Work Temporature | -35℃ ~ +65℃ | |
Storage Temporature | -55℃ ~ +80℃ | ||
waterproof&dustproof | IP68 | ||
Humidity | 100% anti-condensation | ||

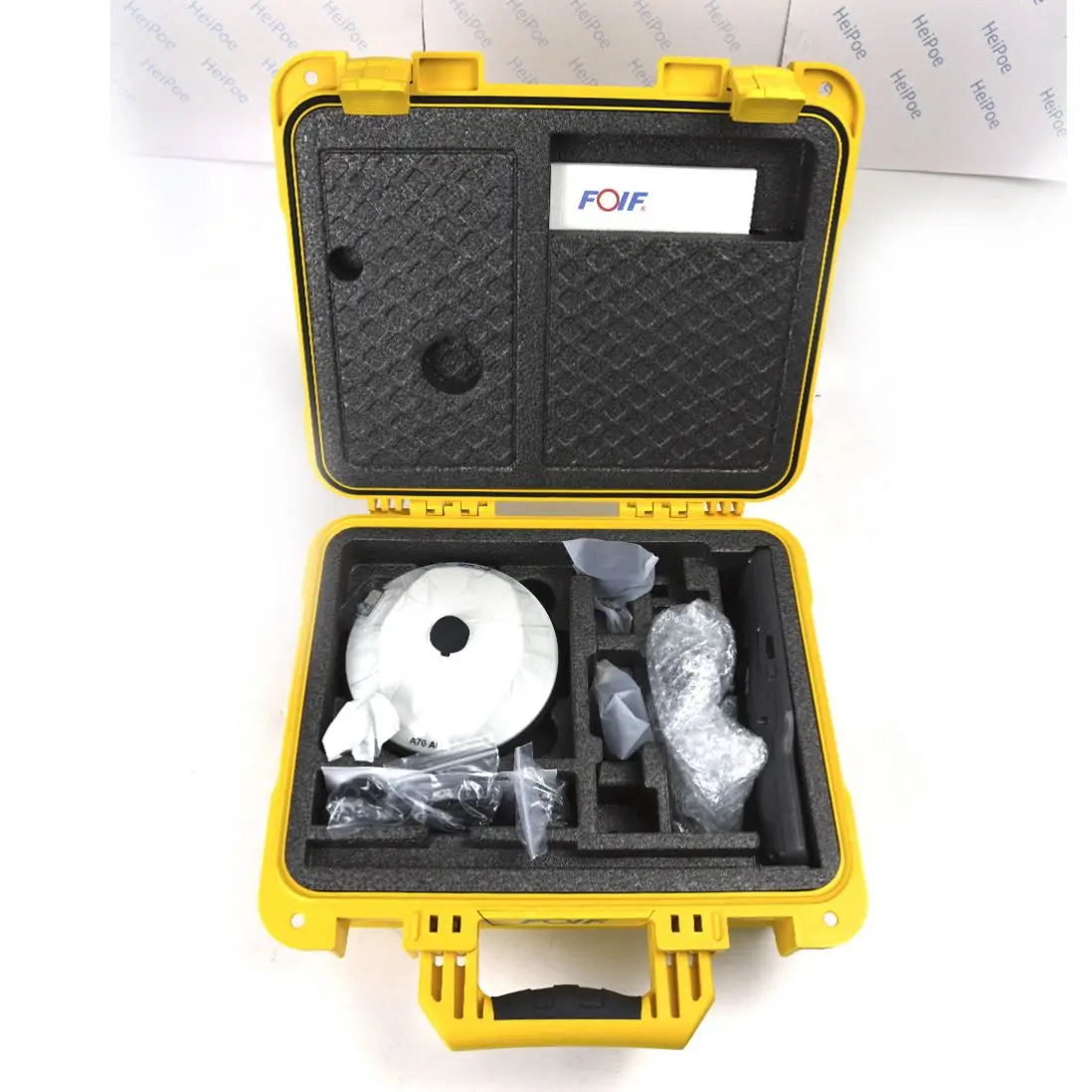

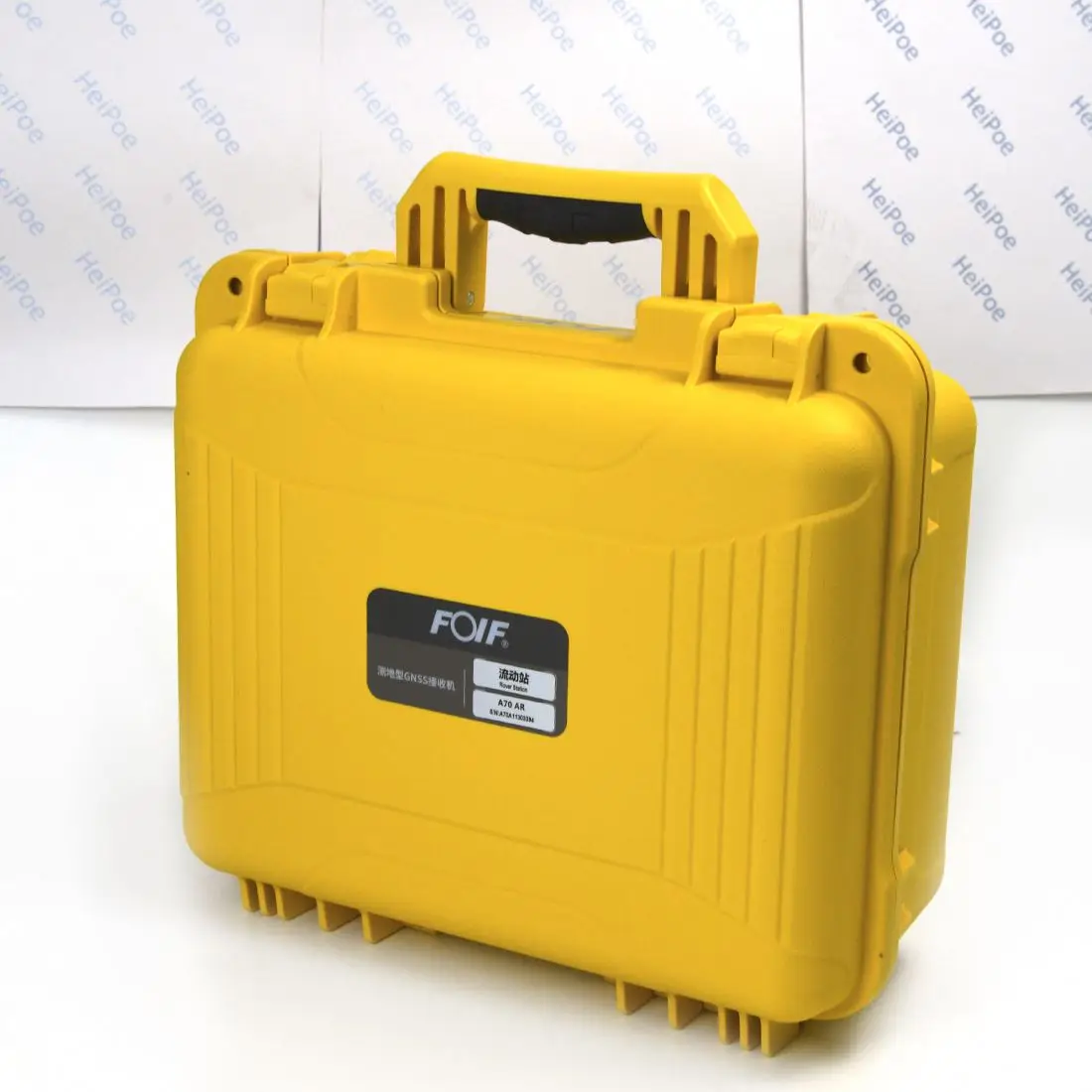

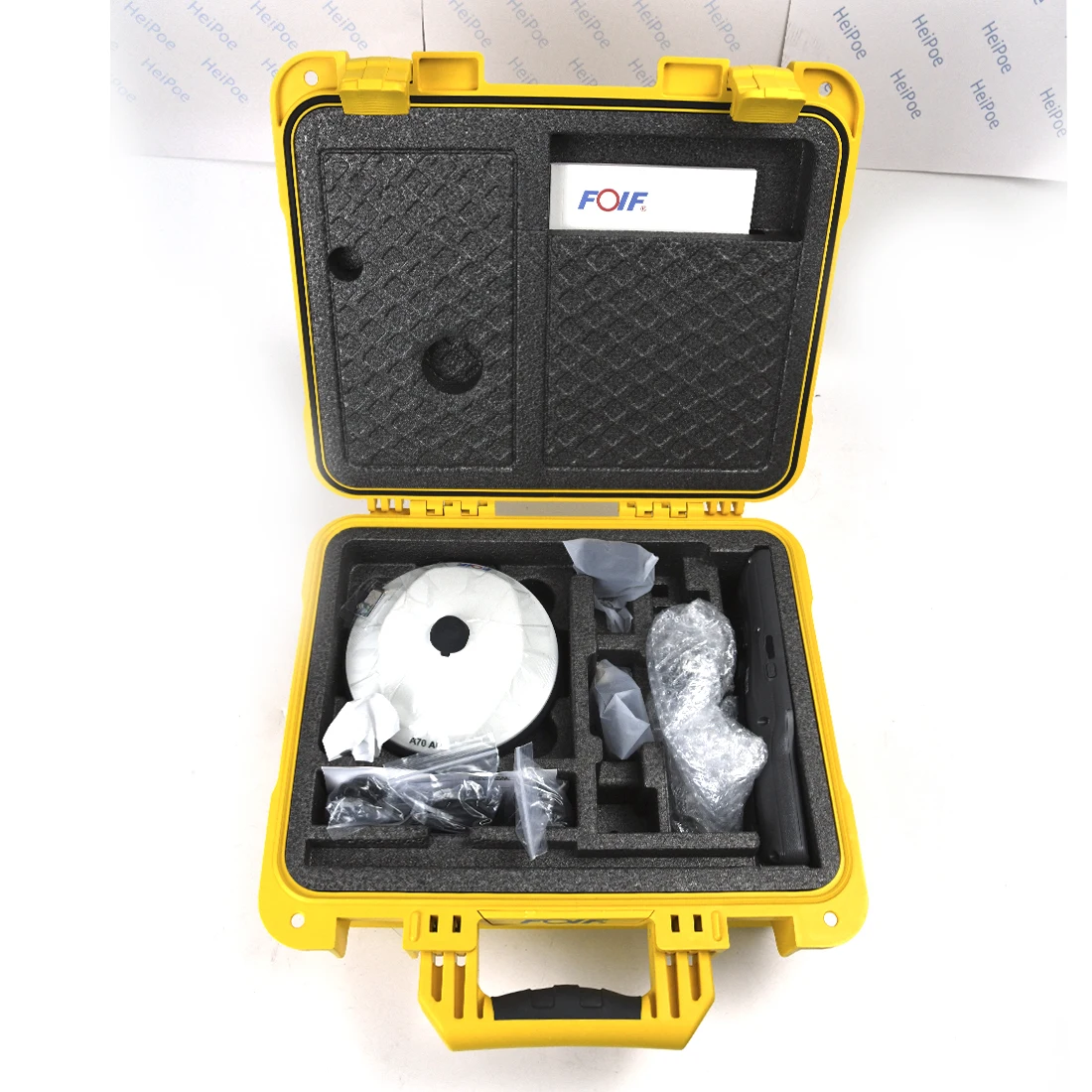

Packaging & Delivery
