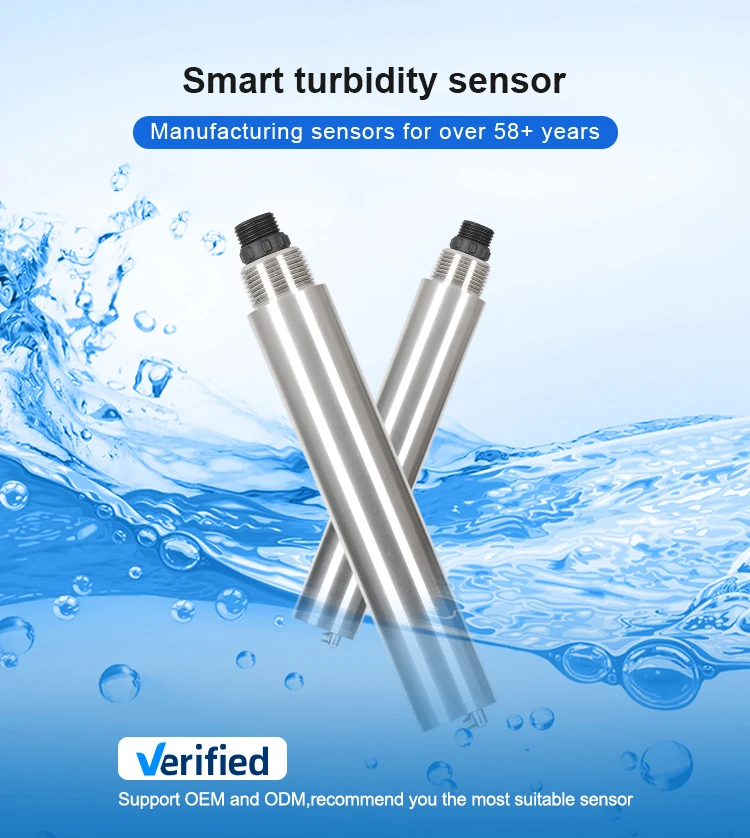

New Arrival FST100 ZD102A 0~4000NTU Infrared Online Digital Turbidity Sensor for Surface Water and Wastewater
- Category: >>>
- Supplier: Hunan Firstrate Sensor Co. Ltd.
Share on (1601002015779):
Product Overview
Description

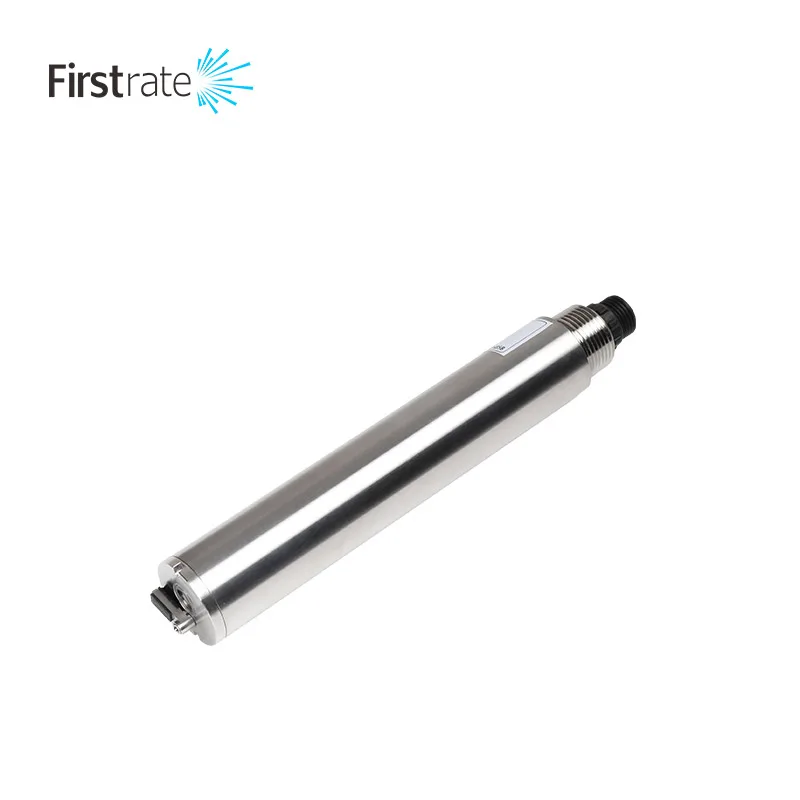

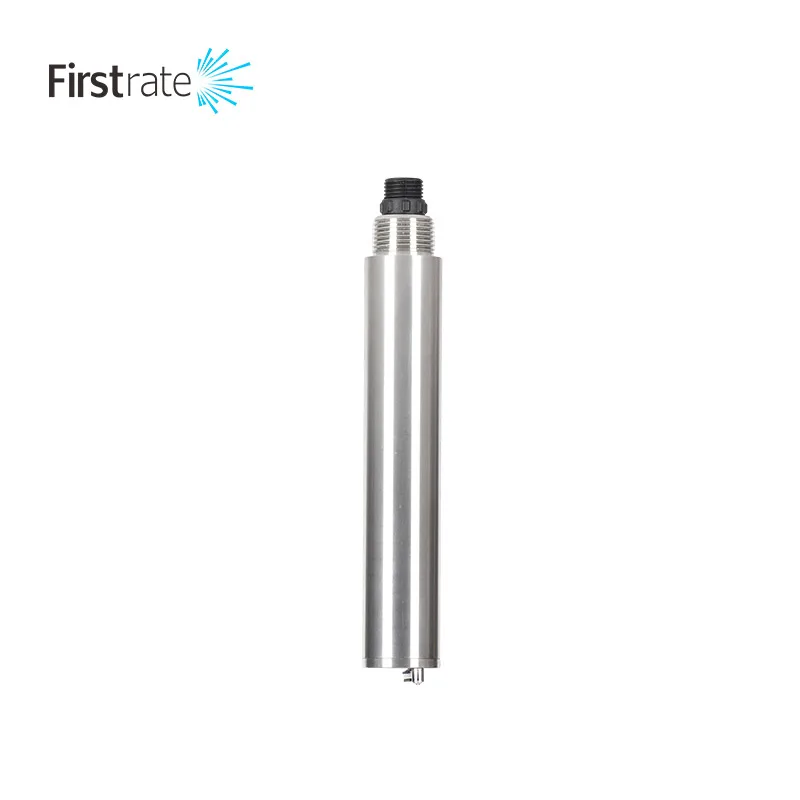

New Arrival FST100-ZD102A 0~4000NTU Infrared Online Digital Turbidity Sensor for Surface Water and Wastewater
Product Description

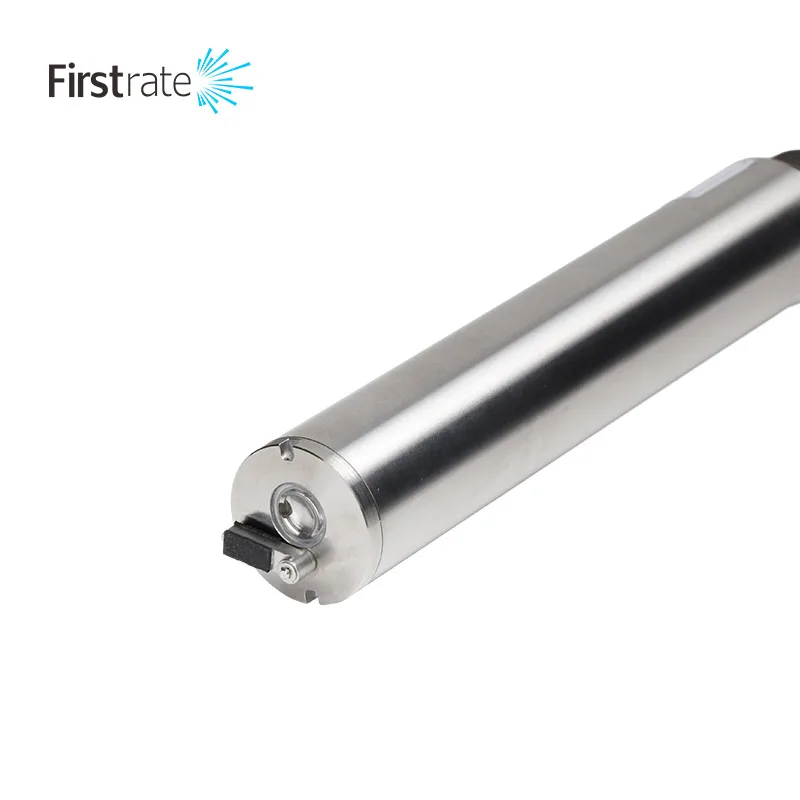

The FST100-ZD102A sensor is an integrated online turbidity sensor designed and manufactured using the principle of scattered light turbidity measurement. When a beam of light is emitted into a water sample, the turbidity substances in the water sample scatter the light. By measuring the scattered light intensity perpendicular to the incident light and comparing it with the internal calibration value, the turbidity in the water sample is calculated. degree, and output the final value after linearization.
Features

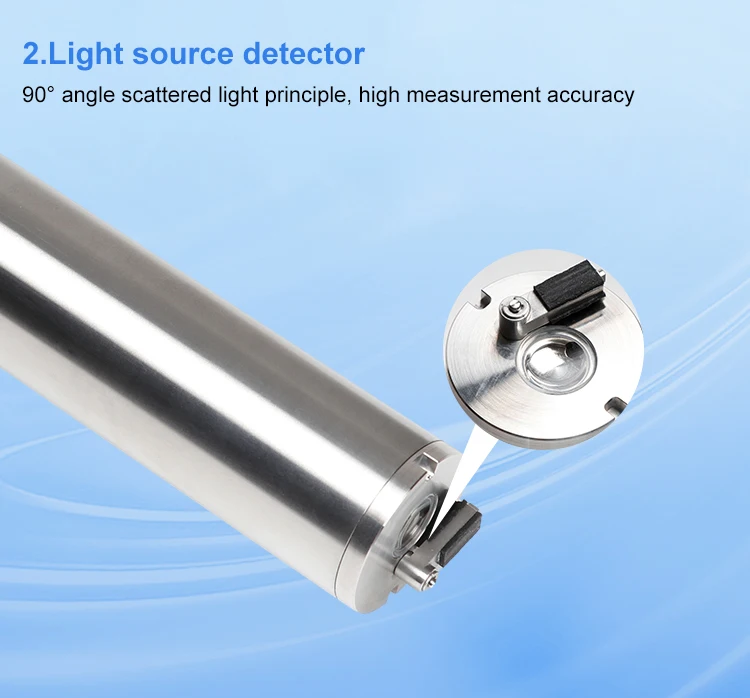

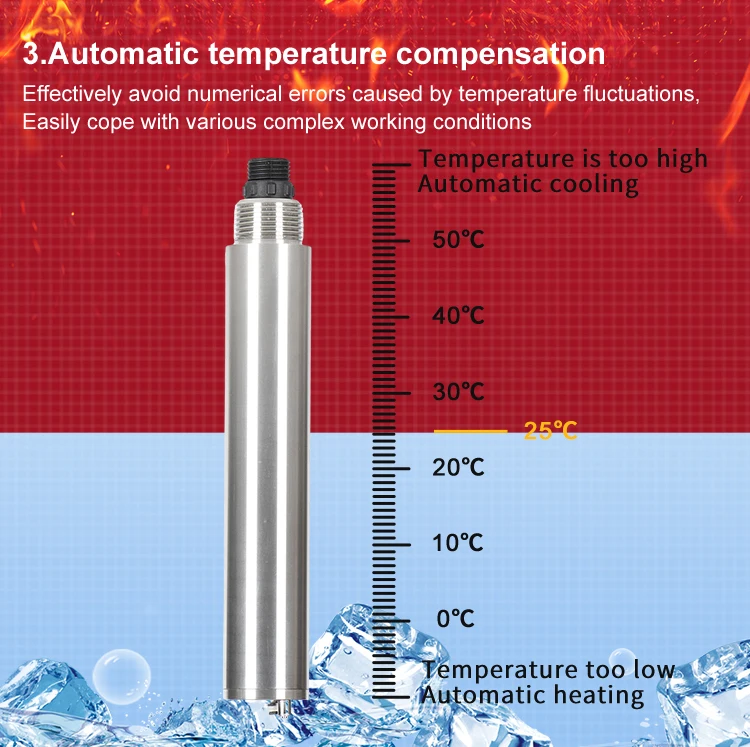

1,90° angle scattered light principle, built-in temperature sensor

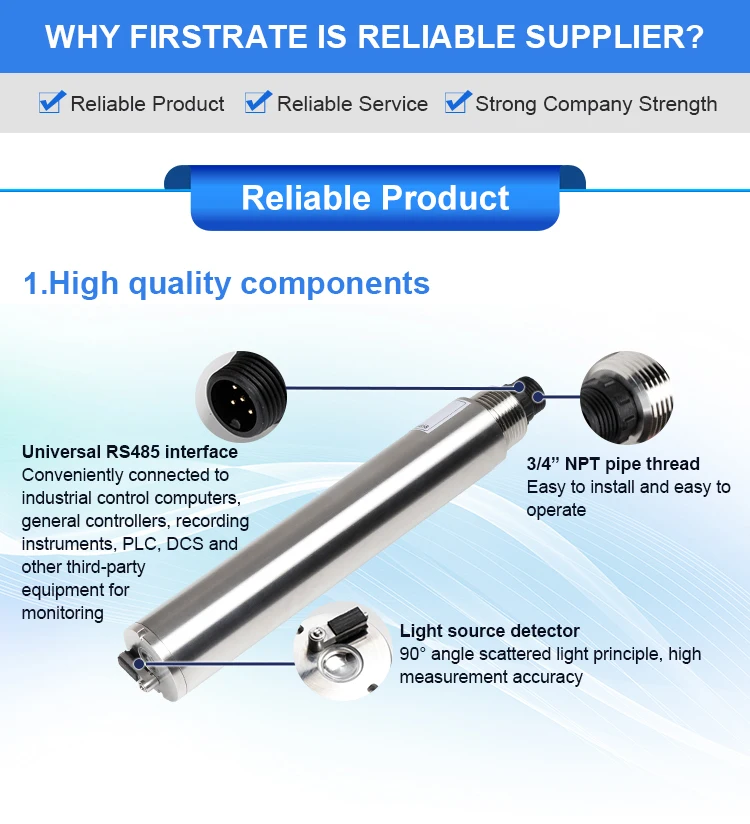

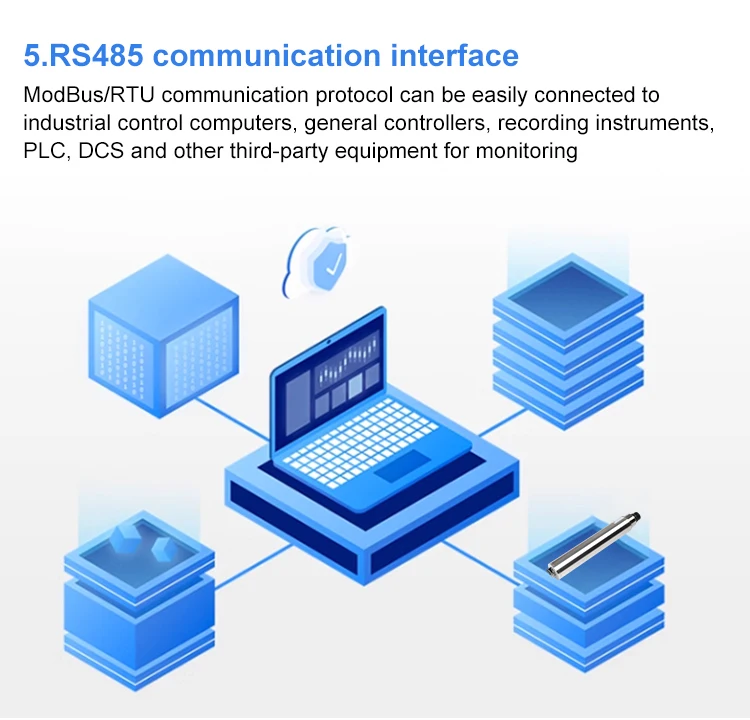

2,Universal RS485 interface, Modbus/RTU protocol
3,Conveniently connected to third-party equipment such as industrial control computers, general
4,controllers, recording instruments, PLC, DCS, etc.
5,Dual high-impedance differential amplifiers, strong anti-interference and fast response speed
6,3/4" NPT pipe thread is easy to install, convenient for submersible installation or installation in pipes and tanks

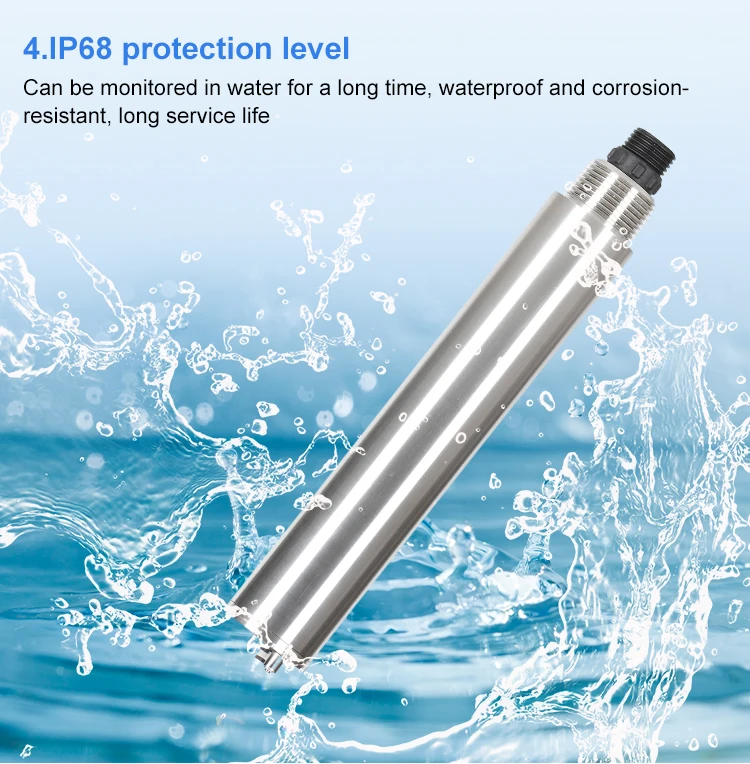

7,Protection grade IP68
| Turbidity measurement range | 0-20NTU,0-100NTU,0-1000NTU,0-4000NTU |
| Resolution | 0.01NTU,0.1NTU,0.1NTU,0.1NTU |
| Measurement accuracy | ±3%FS |
| Temperature measurementrange | 0...50℃ |
| Temperature measurement accuracy | ±0.3 ℃ |
| work pressure | <0.2MPa |
| Signal output | RS-485(Modbus/RTU) |
| Installation method | Submersible installation, 3/4" NPT pipe thread |
| Cable length | 5 meters, other lengths can be customized |
| Protection class | IP68 |
Company Information
FAQ
Q: Are you manufacturer?
A: Yes, We are professional sensor manufacturer over 50 years! Our technical team has more than 20 engineers.
Q: Can you accept OEM service ?
A: Yes, we can put your company information and logo on our sensors.
Q: Can I be your distributor?
A: Yes, we are looking for distributors in oversea market.
Q: What is your lead time?
A: Normally 7-10days. For quantity above100pcs, need extra 3-5 working days.
Purchase guide
To recommend you the most suitable sensor, please tell us below information.
1. Working temperature: -40~+125 °C ?
2. Test range?
3. Output: 4-20mA , RS485 or others?
4. Screw: G1/4, 1/4NPT, R1/4, M20*1.5?
5. Electrical connection: DIN43650, Packard, Direct lead?
6. Order quantity: ?
