Feasycom OEM IoT Solution RTL8720 Chip BT5.0 Wi Fi 4 2.4GHz/5GHz Wireless Low Power SOC Bluetooth Wifi Chip Module
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601002018822):
Product Overview
Description
Products Description
Specification
Item | Description | |
Wi-Fi | ||
Version | 802.11 a/b/g/n | |
Transmit Power | 2.4GHz: 17.5 dBm (11b), 15.5 dBm (11g), 13.5 dBm (11n) | |
Transmit Power | 5GHz: 8 dBm (11a) | |
Bluetooth | ||
Version | BLE 5.0 | |
Transmit Power | +8 dBm | |
Other Parameters | ||
Interfaces | UART, SPI, I2C | |
Certification | SRRC, CE, FCC, IC, KC, and TELEC | |
Power Supply | 3.0-3.6V | |

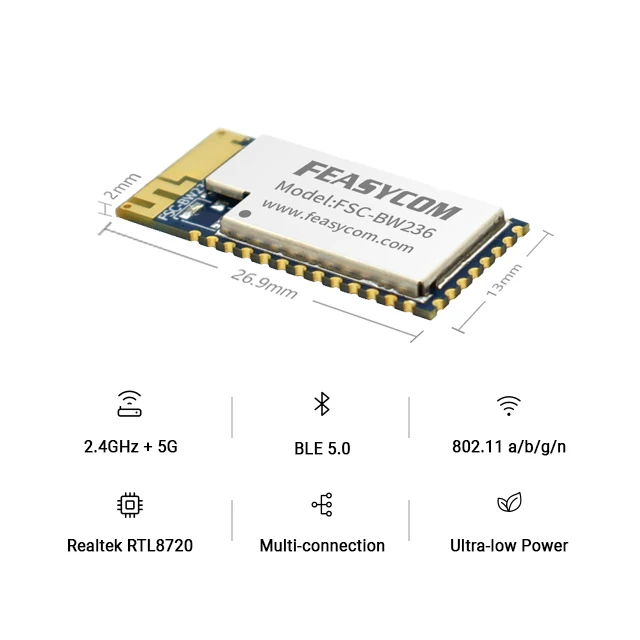

Dimension | 13mm x 26.9mm x 2.2mm | |
Operation Temperature | -20 ℃ to +85 ℃ | |
Storage Temperature | -40 ℃ to +105 ℃ | |
MSL Grade | MSL 3 | |
Highlights | Dual band, roaming, enterprise encryption, supporting 802.11 k/v/r, EAP-TLS Authenticated encryption | |
* Please contact us for more information | ||
Feasycom's FSC-BW236 is a highly integrated single-chip low power dual-band (2.4GHz and 5GHz) Wireless LAN (WLAN) and Bluetooth Low Energy (v5.0) communication controller. lt consists of a high-performance MCU (ARM v8m, Cortex- M4F instruction compatible)named KM4, a low power MCU (v8m, Cortex-MO instruction compatible) named KMO, WLAN (802.11 a/b/g/n) MAC, an 1T1R capable WLAN baseband, RF, Bluetooth and peripherals.
FSC-BW236 is an appropriate product for designers who want to add wireless capability to their products. It supports external antennas and can increase wireless coverage.

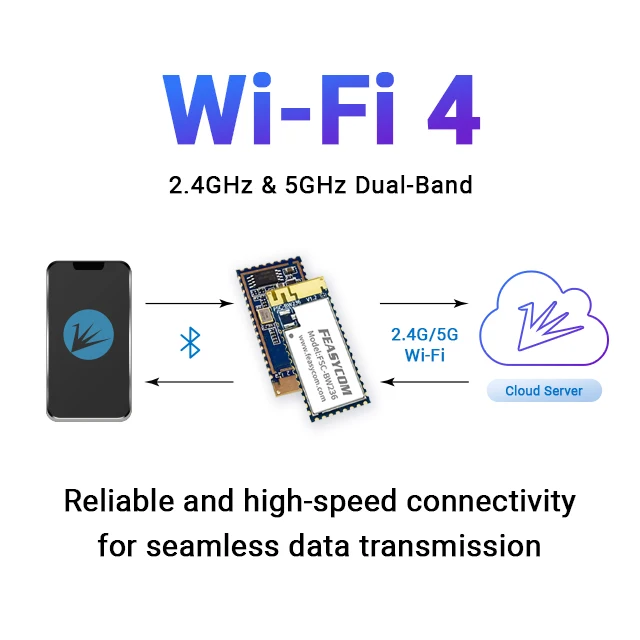

The Feasycom FSC-BW236 is a versatile combo module designed specifically for inverters, car DVRs, and wireless printers. With Bluetooth 5.0 and Wi-Fi 4 (2.4GHz & 5GHz dual-band) capabilities, this module offers reliable and high-speed connectivity for seamless data transmission. Its compact size and optimized design make it an ideal choice for integrating into various industrial applications, providing efficient and reliable wireless communication.
FSC-BW236 Features
* Specially optimized for inverters, car DVR (dashcams), and wireless printers
* Certified with SRRC, CE, FCC, IC, KC, and TELEC
* COMS MAC, Baseband PHY and RF in a single-Chip for 802.11 a/b/g/n compatible WLAN
* Support BLE 5.0
* UART programming and data interface (baudrate up to 6000000 bps)
* 12C/AlO/PIO/PWM control interfaces
* Postage stamp sized form factor
* Wi-Fi: Maximum data rate 54Mbps in 802.11g, 150Mbps in 802.11n, 54Mbps in 802.11a
* Wi-Fi: Light Weight TCP/IP protocol
* Support External Antenna-Postage stamp or ipex
* RoHS compliant
* Support external flash chip with larger capacity (built-in Flash needs to be removed)
* Certified with SRRC, CE, FCC, IC, KC, and TELEC
* COMS MAC, Baseband PHY and RF in a single-Chip for 802.11 a/b/g/n compatible WLAN
* Support BLE 5.0
* UART programming and data interface (baudrate up to 6000000 bps)
* 12C/AlO/PIO/PWM control interfaces
* Postage stamp sized form factor
* Wi-Fi: Maximum data rate 54Mbps in 802.11g, 150Mbps in 802.11n, 54Mbps in 802.11a
* Wi-Fi: Light Weight TCP/IP protocol
* Support External Antenna-Postage stamp or ipex
* RoHS compliant
* Support external flash chip with larger capacity (built-in Flash needs to be removed)
Company Profile
Exhibition
Certifications
Customer Evaluation
Packing & Delivery
FAQ
Q1.Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
A1: We are a manufacturer.
Q2.Can you do ODM or OEM for us?
A2: We are glad to offer custom service for you, we have an experienced engineers team who will provide you with a complete
solution according to your requirements.
Q3.What is Bluetooth 5.0?
A4:Two times transmission speed compare with Bluetooth V4.2,Max Trans Speed can reach to 24Mbps.
Effective work distance can be 300m, 4 times of Bluetooth V4.2.
Q4.What is Bluetooth Dual Mode Module?
A5:Bluetooth Dual Mode Module is a Single-Module Bluetooth Solution with Built-in Bluetooth Basic Rate (BR)/Enhanced Data Rate
(EDR)/Low Energy (LE) Functions.
Q5.What payment mothods do you accept?
A6:Paypal,T/T,W/U,Bank Transfering,Credit Card,Trade Assurance Payment,etc.
Q6.Lead time for sample orders/mass production orders?
A7:Samples,within 3 working days; Mass production,within 15 working days usually.
Q7.What shipping methods do you use?
A8:For samples,DHL/UPS/FEDEX/TNT,etc; For bulk orders,Air shipping and others.
