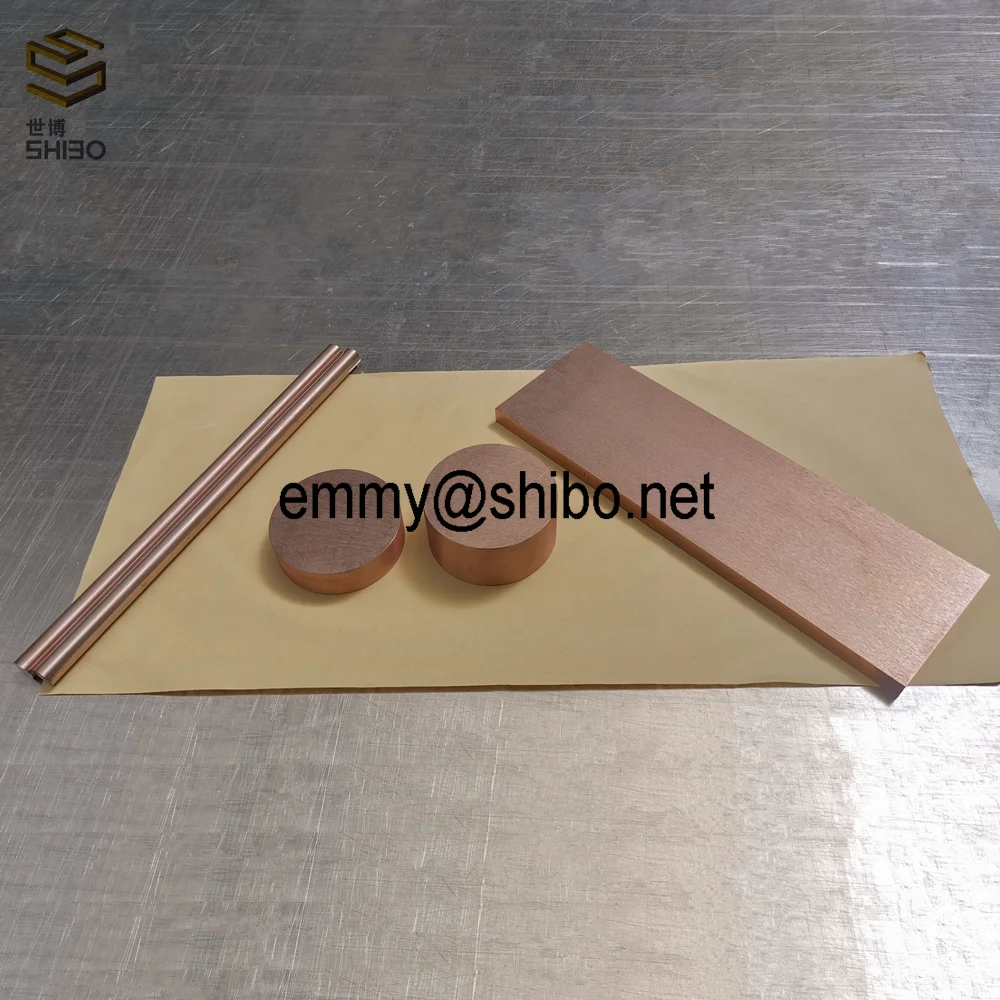

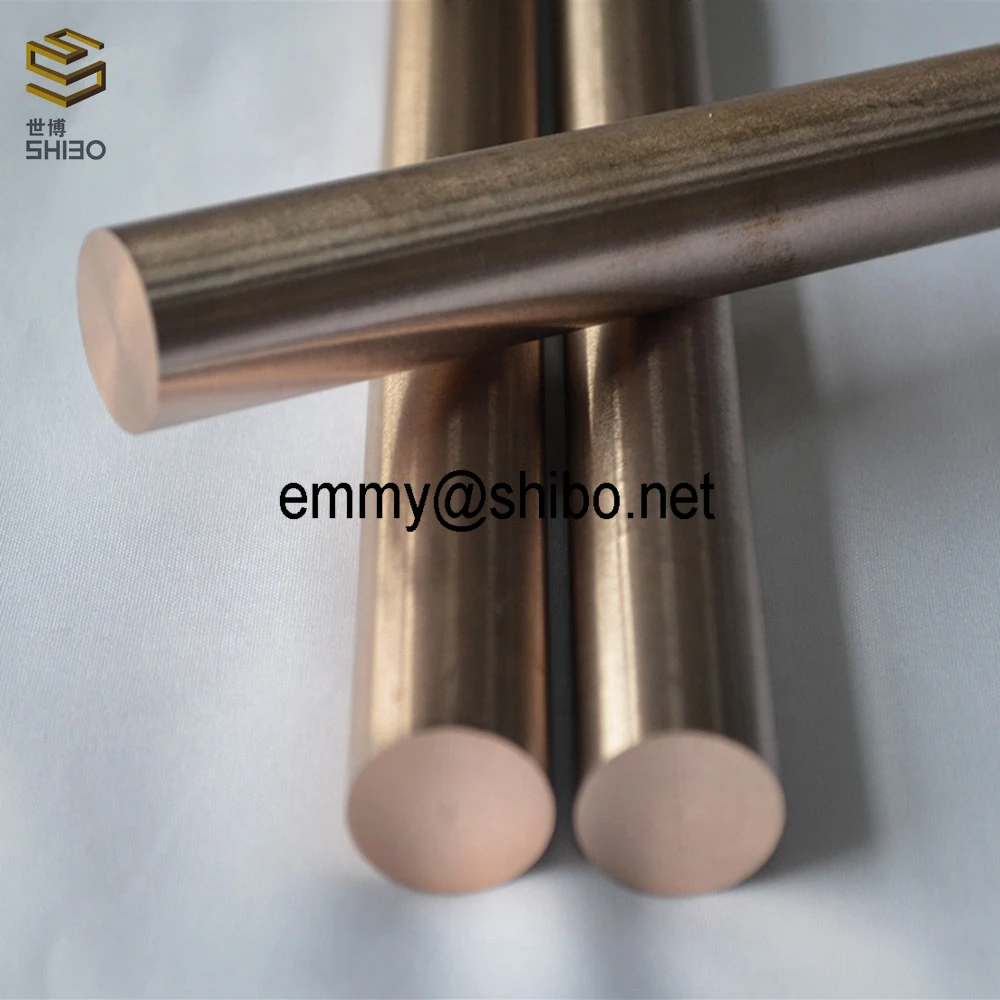

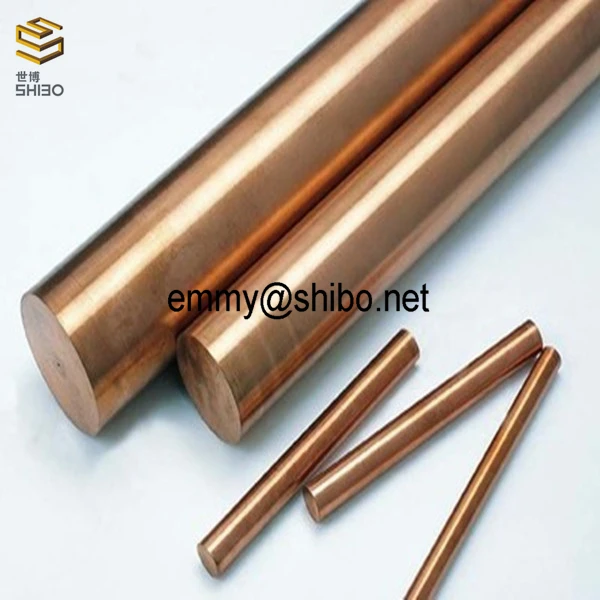

original manufacturer W70Cu30 tungsten copper alloy rod for spark electrode

Product Overview

Description





original manufacturer W70Cu30 tungsten copper alloy rod for spark electrode





Specification

Name	Tungsten Copper Alloy Rod
Material	Tungsten copper alloy
Content	W75Cu25, W80Cu20, W85Cu15, W90Cu10, W95Cu5

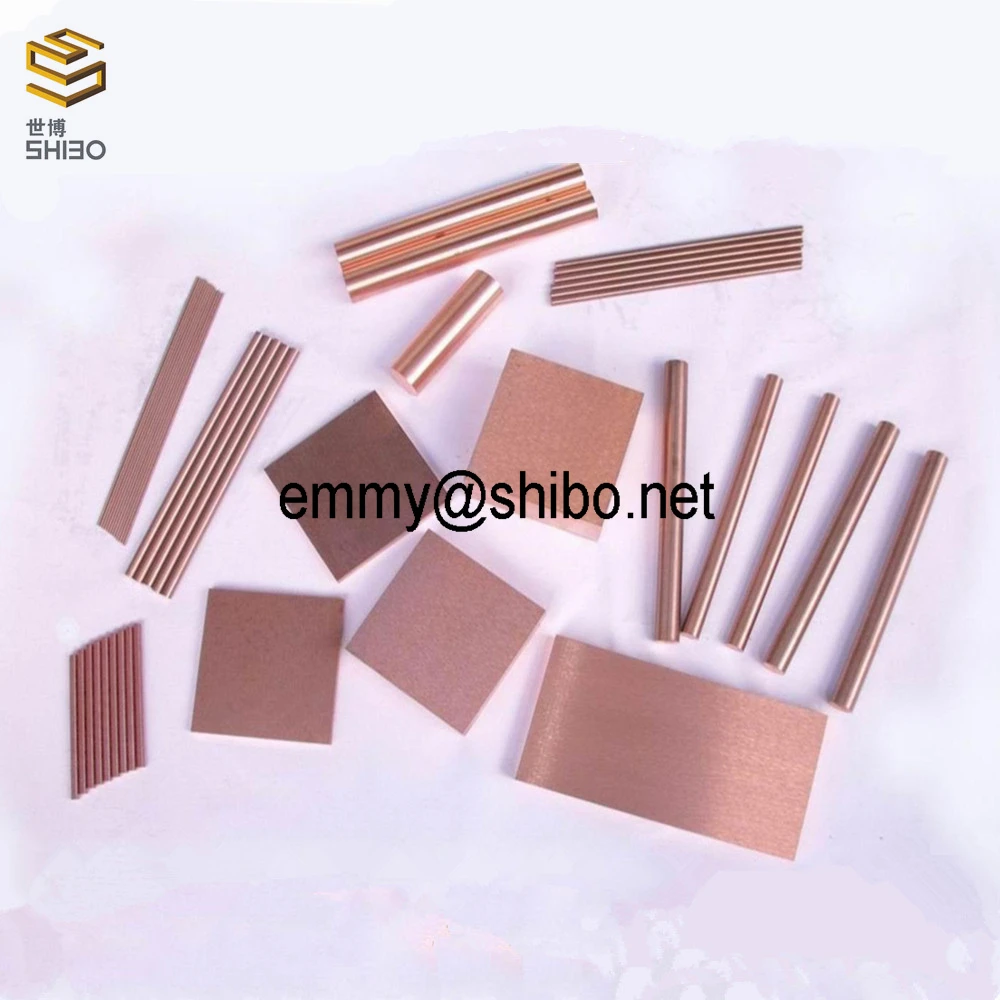

Shape	Plate, bars, tubes, round and processing according to drawings.
Specifications	Dia. (4-400) * L (customized)
Feature	has excellent properties of tungsten and copper
Application	1) Widely used in such industries as engine, electric power, electron, metallurgy, spaceflight and aviation. 2) W75Cu25 is used for electrospark electrodes.
Dimensions	Brand	Chemical content (%)			Density (g/cm3)	Resistance (uΩ/cm)	IACS (%)	Hardness HB
		Cu	Impurity	W
	Cu-W70	30±2	0.5	balance	14.1	4.1	42	115
	Cu-W75	25±2	0.5	balance	14.7	4.5	38	195
	Cu-W80	20±2	0.5	balance	15.4	5	34	220
	Cu-W85	15±2	0.5	balance	16.2	5.7	30	210
	Cu-W90	10±2	0.5	balance	17	6.5	27	260
	Cu-W95	5±2	0.5	balance	17.8	7.5	24	-
	We can produce various specifications according to your requirement.

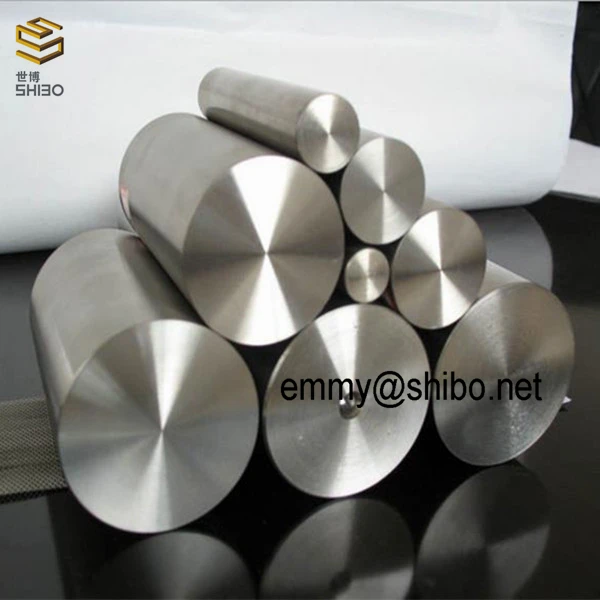

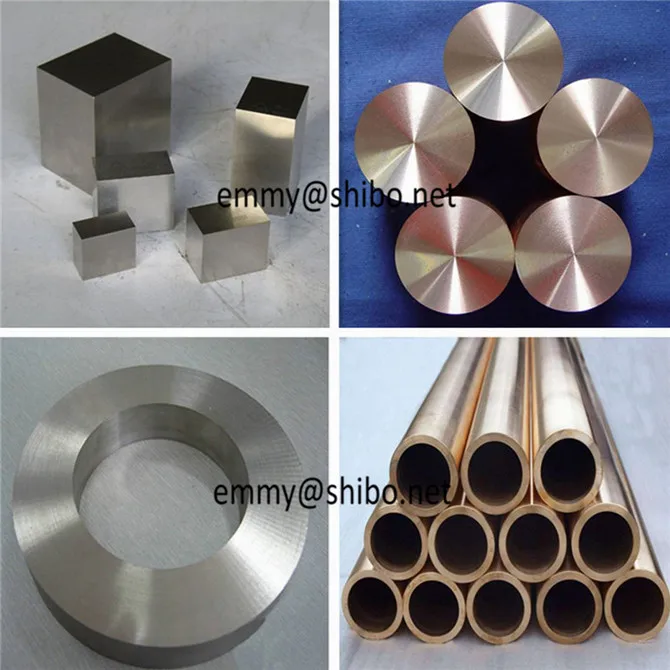

Other Tungtsen Productes





Application





Our Main Products
1) Molybdenum products: plates, rods/electrode, crucible, tube, boat,wire, fasteners, various molybdenum workpieces, etc.
2) Lab furnace: Box type muffle furnaces, tube vacuum furnace, atmosphere furnace, vacuum furnace and relevant accessories.
3) MoSi2 heating elements and SiC heating elements.
4) Tungsten products: plate, rod, crucible, tube, wire, fasteners, etc.
5) Titanium products: plate, bars, tube
6) Basalt fiber products: roving, chopped yarn, reinforced coposite (BFRP).
7) Alumina tubes, alumina crucible and ceramic fibre board
8) Other related products.
