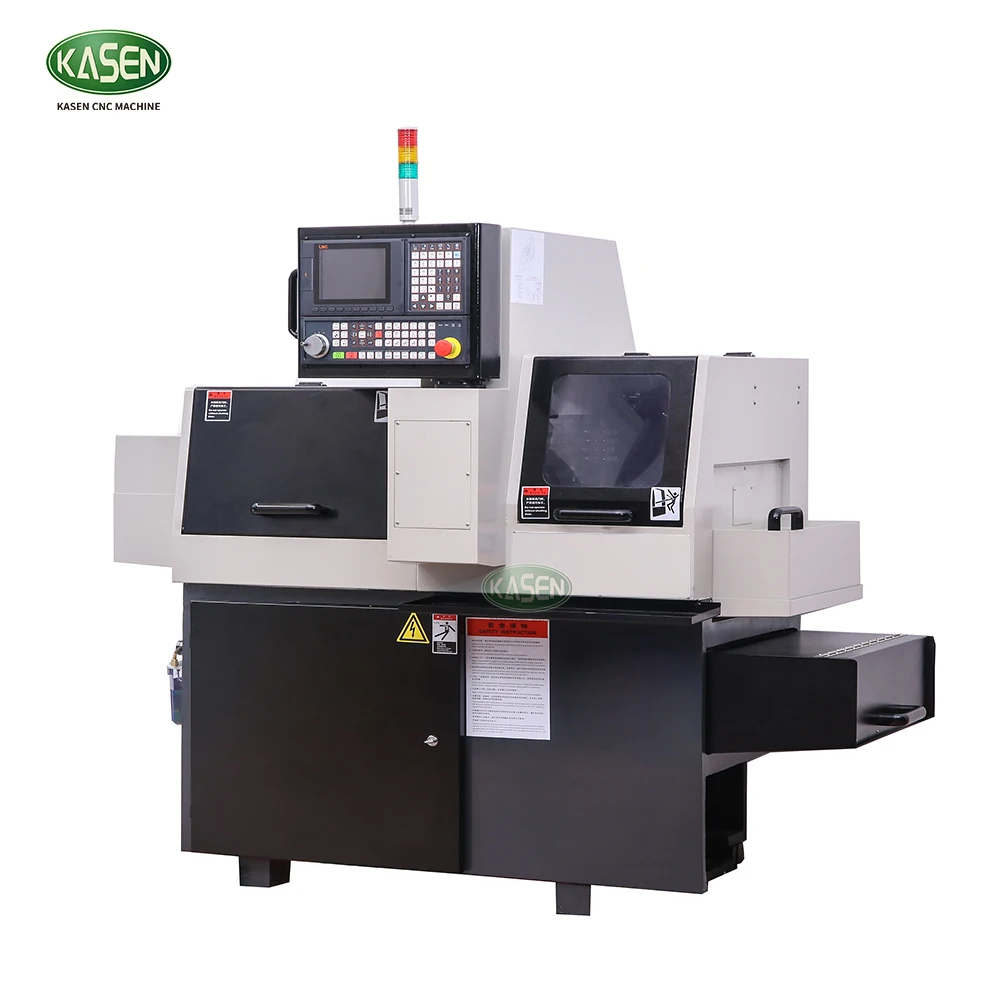

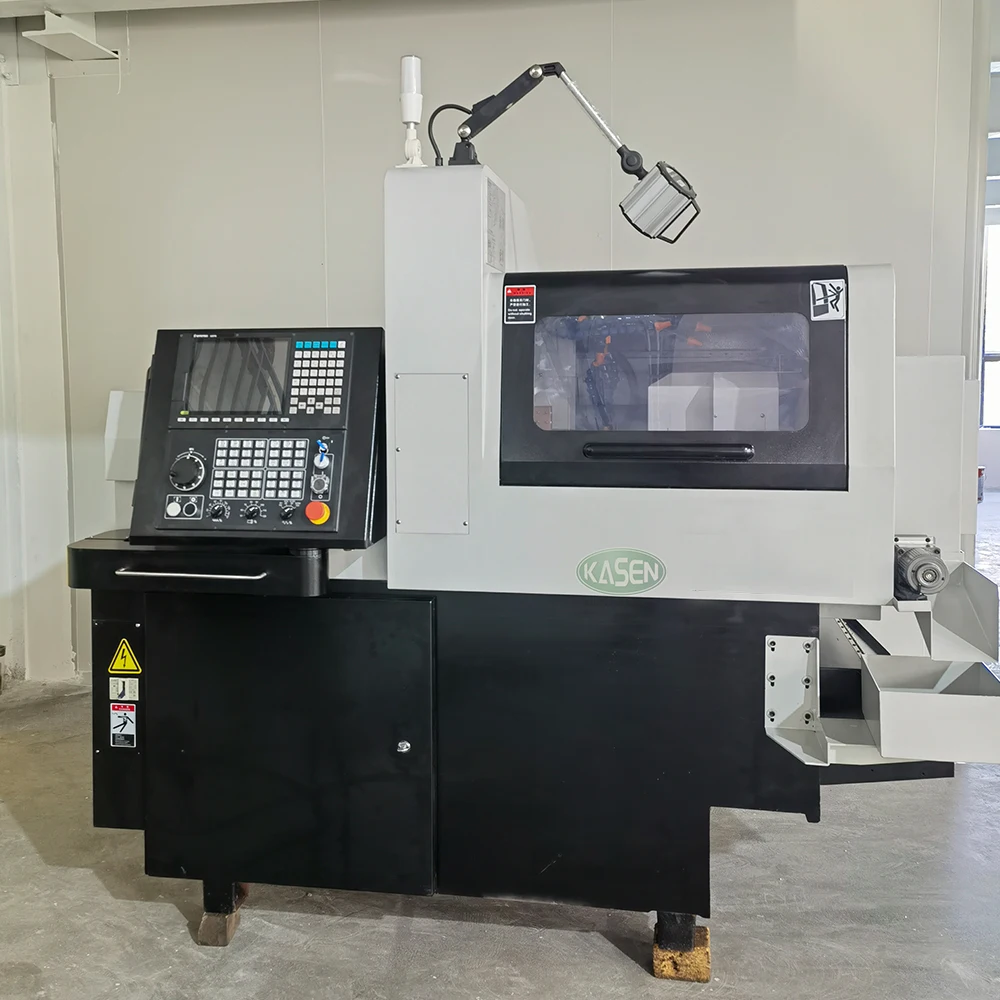

High Quality Factory 3 axis CNC Turning Center swiss cnc Lathe
- Category: >>>
- Supplier: Jinan Kasen Cnc Equipment Co. Ltd.
Share on (1601002073426):
Product Overview
Description
Application:
G205 Swiss type longitudinal cutting automatic lathe is a 5-axis control and 3-axis linkage integrated product of machinery, electricity, and gas. It adopts a user-friendly design and can complete precision and efficient processing of small and slender rotating parts such as shaft sleeves, outer circles, end faces, threading, cutting grooves, front/back drilling, front/back boring, front/back tapping, etc. When equipped with an automatic feeding machine, Continuous automatic cycle processing can be performed on cold drawn round bars and polished bars.
This machine tool is widely used in the processing of parts in industries such as clocks, instruments and meters, cameras, household appliances, medical equipment, locks, hardware, communication electronics, automobiles, aviation, military, hydraulic, handicrafts, etc.
G205 Swiss type longitudinal cutting automatic lathe is a 5-axis control and 3-axis linkage integrated product of machinery, electricity, and gas. It adopts a user-friendly design and can complete precision and efficient processing of small and slender rotating parts such as shaft sleeves, outer circles, end faces, threading, cutting grooves, front/back drilling, front/back boring, front/back tapping, etc. When equipped with an automatic feeding machine, Continuous automatic cycle processing can be performed on cold drawn round bars and polished bars.
This machine tool is widely used in the processing of parts in industries such as clocks, instruments and meters, cameras, household appliances, medical equipment, locks, hardware, communication electronics, automobiles, aviation, military, hydraulic, handicrafts, etc.
Main technical parameters：
description | unit | specifications | ||||
Spindle | Single feeding stroke (spindle) | mm | 120 (full trip synchronous guide set, standard equipped) | |||
Maximum working speed (spindle / secondary spindle) | rpm | 8000 | ||||
Maximum swing diameter (spindle / secondary spindle) | mm | ￠20 | ||||
Minimum score degree (spindle / secondary spindle) | ° | 无极 | ||||
Spindle aperture (spindle / secondary spindle) | mm | ￠22 | ||||
Tools | Number of spindle row blades: | ea | 5(T01/T02/T03/T04/T05) | |||
Row knife handle parameters | mm | 12×12 | ||||
Number of spindle-fixed axial tools (front side) | ER | 4*ER11(T10/T14)(T11/T15)(T12/T16)(T13/T17) | ||||
Maximum borehole diameter (front face) | mm | ￠8 | ||||
Max. tapping diameter (front face) | mm | M6 | ||||
Number of spindle radial power tools (front side) | ER | 2×ER11+2×ER16(T07/T09+T06/T08) | ||||
Maximum speed of spindle radial power tool (front) | rpm | 5000 | ||||
Spindle radial maximum bore diameter (front) | mm | ￠8 | ||||
Spindle radial maximum tapping diameter (front side) | mm | M6 | ||||
Spindle radial maximum saw blade cutter diameter (front) | mm | 30 | ||||
Number of back shaft (back) | ER | 5×ER11(T21/T22/T23/T24/T25) | ||||
Maximum bore diameter (back) | mm | ￠8 | ||||
Max shaft shaft diameter (back) | mm | M6 | ||||
Power | Spindle / secondary shaft motor | KW | 3.7/2.2 | |||
Spindle radial power tool motor (front side) | KW | 1 | ||||
Servo shaft motor | KW | (X1 、Z1 、Y1 、X2 、 Z2)： 1； | ||||
Lubrication pump motor | KW | 0.1 | ||||
Cooling pump motor | KW | 0.35 | ||||
Fast feed speed | m/min | 25 | ||||
else | Cooling box capacity | L | 130 | |||
Lubrication unit capacity | L | 3 | ||||
center height | mm | 1050 | ||||
Overall dimensions (length, width and height) | mm | 2100×1100×1800 | ||||
Machine tool weight | KG | 2680 | ||||
Machine tool power | KW | 12.5 | ||||

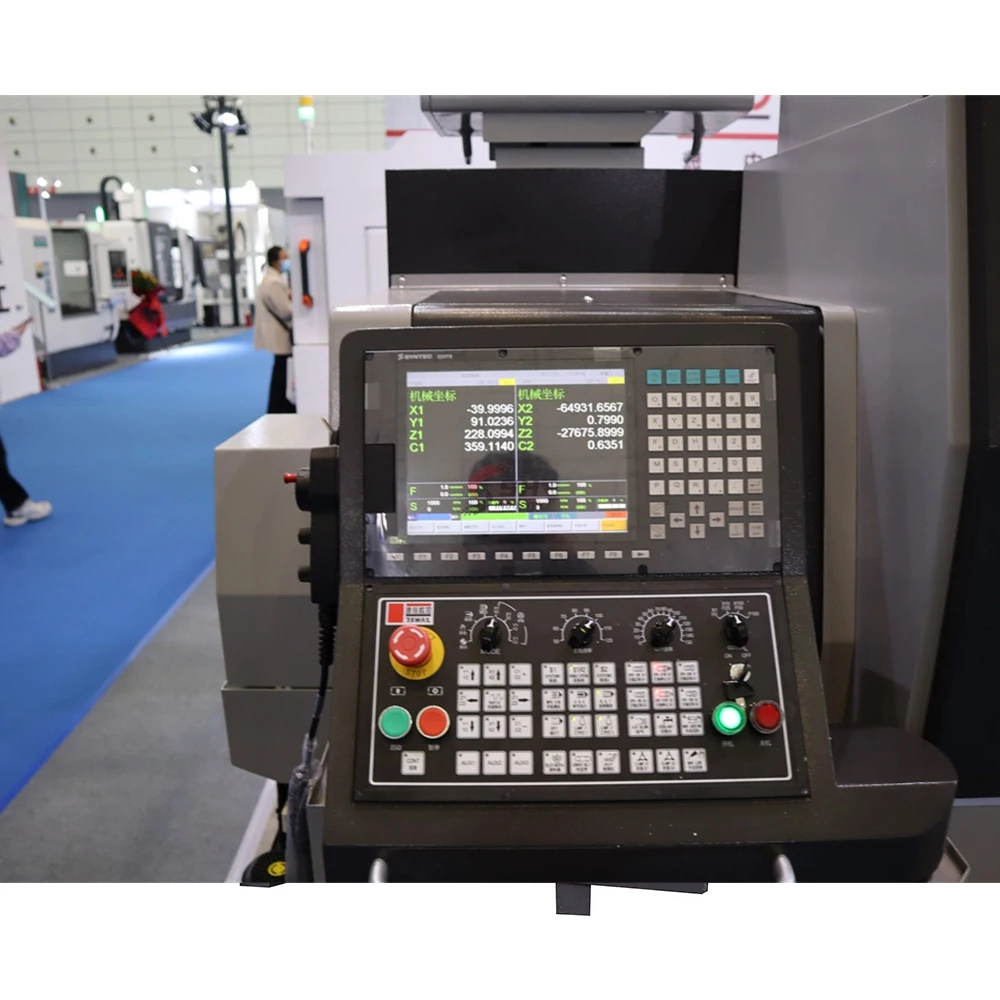

CNC control system | Standard | SYNTEC 220TB | ||||
Product Description

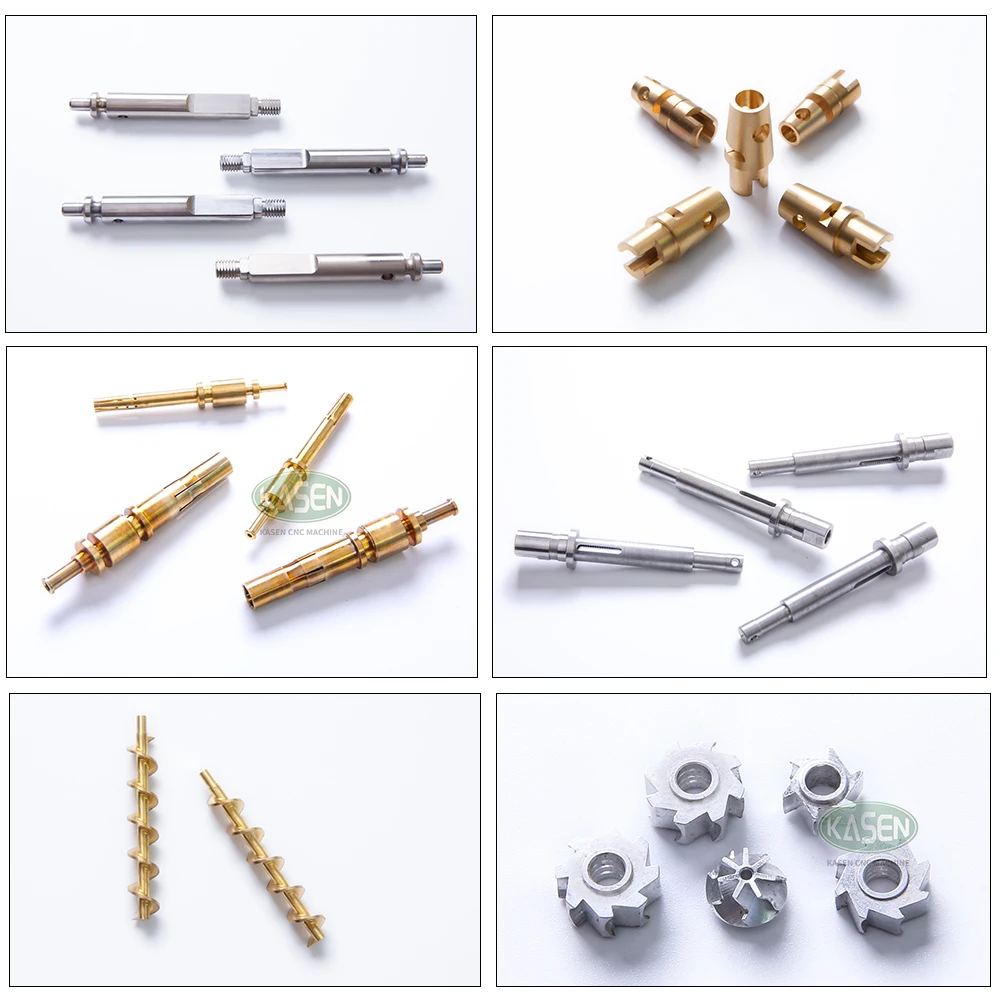

Finished product display
Company Profile
Certifications
Exhibition
Customer visiting
Packing & Delivery
FAQ
1: Where is your company
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
A: Our company is located in JInan City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.se
