Feasycom FSC BW236 Realtek RTL8720 High speed Wireless Data Transmission Smart Bluetooth 5.0 Combo Wifi Module For IoT
- Category: >>>
- Supplier: Shenzhen Feasycom Co. Ltd.
Share on (1601002127183):
Product Overview
Description
Products Description
Specification
Item | Description | |
Wi-Fi | ||
Version | 802.11 a/b/g/n | |
Transmit Power | 2.4GHz: 17.5 dBm (11b), 15.5 dBm (11g), 13.5 dBm (11n) | |
Transmit Power | 5GHz: 8 dBm (11a) | |
Bluetooth | ||
Version | BLE 5.0 | |
Transmit Power | +8 dBm | |
Other Parameters | ||
Interfaces | UART, SPI, I2C | |
Certification | SRRC, CE, FCC, IC, KC, and TELEC | |
Power Supply | 3.0-3.6V | |

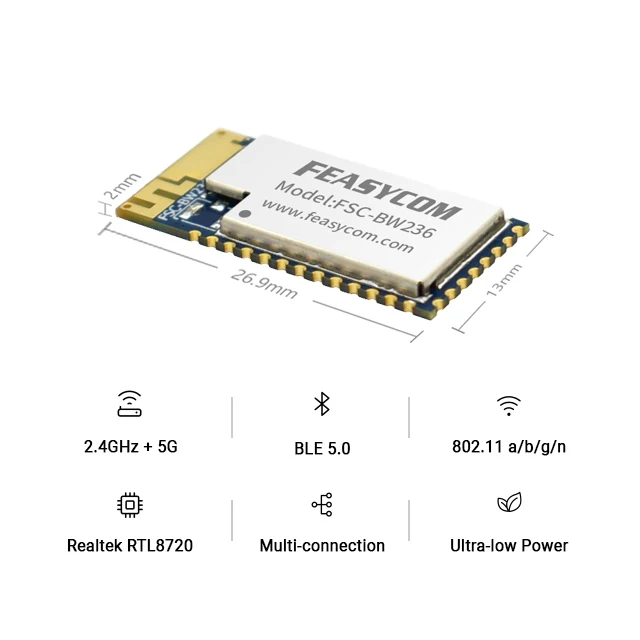

Dimension | 13mm x 26.9mm x 2.2mm | |
Operation Temperature | -20 ℃ to +85 ℃ | |
Storage Temperature | -40 ℃ to +105 ℃ | |
MSL Grade | MSL 3 | |
Highlights | Dual band, roaming, enterprise encryption, supporting 802.11 k/v/r, EAP-TLS Authenticated encryption | |
* Please contact us for more information | ||

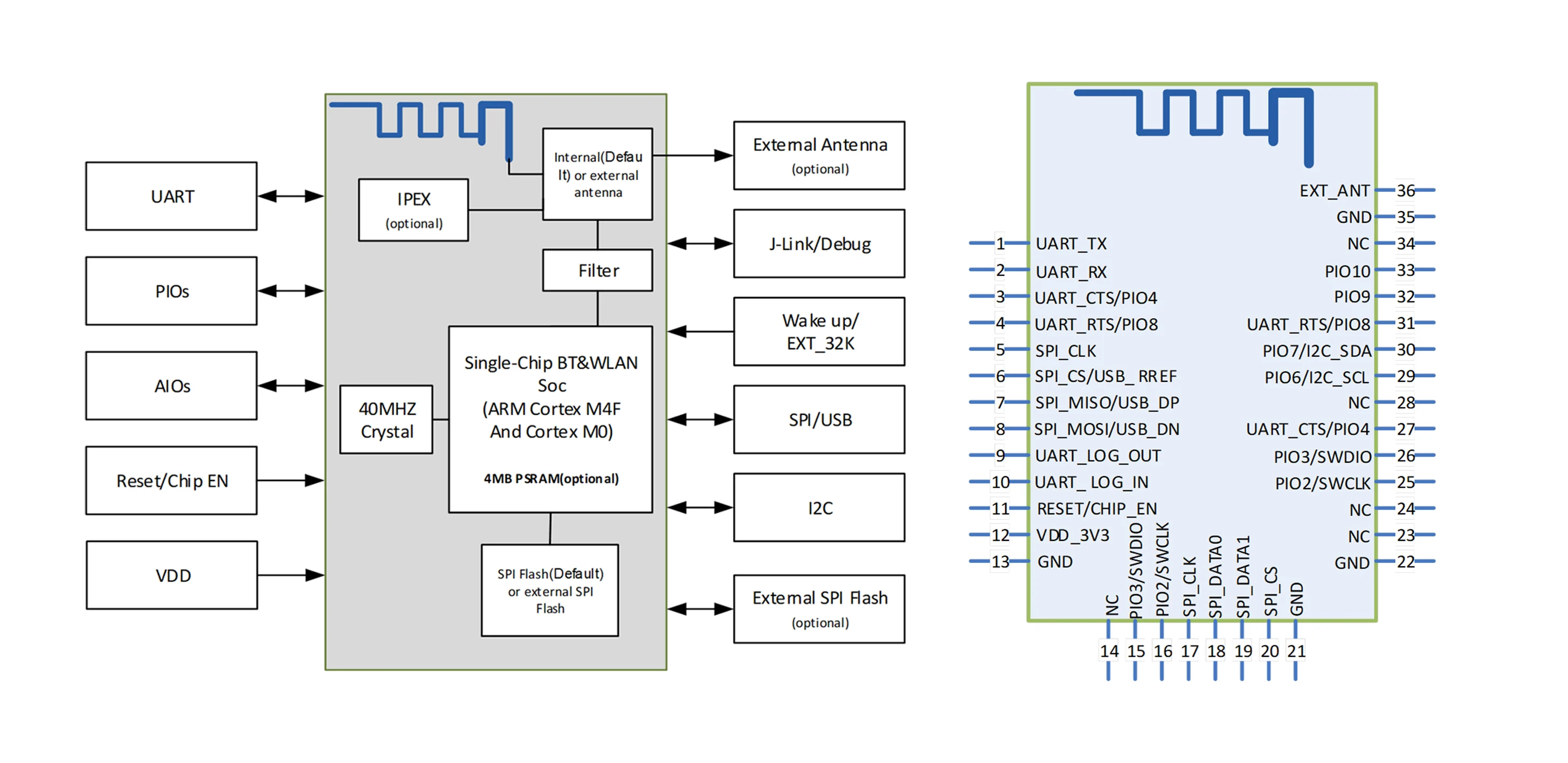

Feasycom's FSC-BW236 is a highly integrated single-chip low power dual-band (2.4GHz and 5GHz) Wireless LAN (WLAN) and Bluetooth Low Energy (v5.0) communication controller. lt consists of a high-performance MCU (ARM v8m, Cortex- M4F instruction compatible)named KM4, a low power MCU (v8m, Cortex-MO instruction compatible) named KMO, WLAN (802.11 a/b/g/n) MAC, an 1T1R capable WLAN baseband, RF, Bluetooth and peripherals.
FSC-BW236 is an appropriate product for designers who want to add wireless capability to their products. It supports external antennas and can increase wireless coverage.

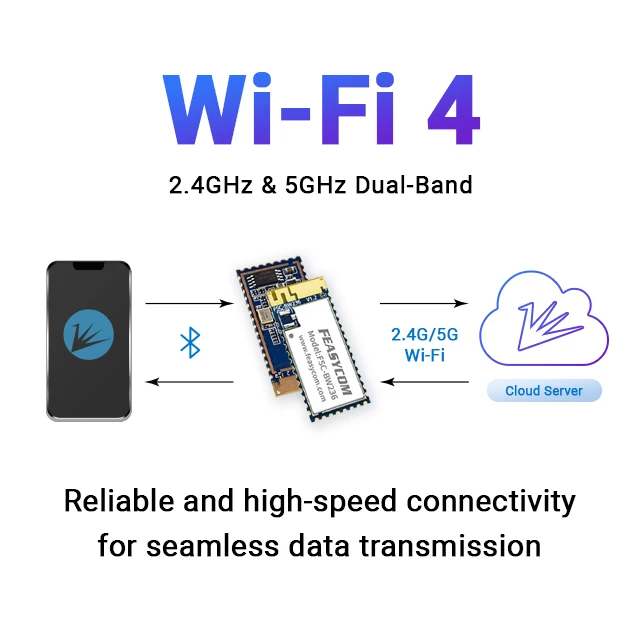

The Feasycom FSC-BW236 is a versatile combo module designed specifically for inverters, car DVRs, and wireless printers. With Bluetooth 5.0 and Wi-Fi 4 (2.4GHz & 5GHz dual-band) capabilities, this module offers reliable and high-speed connectivity for seamless data transmission. Its compact size and optimized design make it an ideal choice for integrating into various industrial applications, providing efficient and reliable wireless communication.
FSC-BW236 Features
* Specially optimized for inverters, car DVR (dashcams), and wireless printers
* Certified with SRRC, CE, FCC, IC, KC, and TELEC
* COMS MAC, Baseband PHY and RF in a single-Chip for 802.11 a/b/g/n compatible WLAN
* Support BLE 5.0
* UART programming and data interface (baudrate up to 6000000 bps)
* 12C/AlO/PIO/PWM control interfaces
* Postage stamp sized form factor
* Wi-Fi: Maximum data rate 54Mbps in 802.11g, 150Mbps in 802.11n, 54Mbps in 802.11a
* Wi-Fi: Light Weight TCP/IP protocol
* Support External Antenna-Postage stamp or ipex
* RoHS compliant
* Support external flash chip with larger capacity (built-in Flash needs to be removed)
* Certified with SRRC, CE, FCC, IC, KC, and TELEC
* COMS MAC, Baseband PHY and RF in a single-Chip for 802.11 a/b/g/n compatible WLAN
* Support BLE 5.0
* UART programming and data interface (baudrate up to 6000000 bps)
* 12C/AlO/PIO/PWM control interfaces
* Postage stamp sized form factor
* Wi-Fi: Maximum data rate 54Mbps in 802.11g, 150Mbps in 802.11n, 54Mbps in 802.11a
* Wi-Fi: Light Weight TCP/IP protocol
* Support External Antenna-Postage stamp or ipex
* RoHS compliant
* Support external flash chip with larger capacity (built-in Flash needs to be removed)
