5G NR: N1/20/28/41/77/78/79

4G FDD: B1/2/3/4/5/7/8/20/26/28

4G TDD: B34/38/39/40/41

3G WCDMA: B1/B8

Spec

Description

Chipset

5G/LTE:

UNISOC IVY510, dual-core ARM Cortex-A55 processor, up to 1.35GHz

Wi-Fi: MT7621A

RF standard

5G NR (3GPP Release 15),FDD-LTE

Memory

5G Module: Nand flash  2Gbits + RAM 4Gbits LPDDR4x

Router: ROM 128Mbits + RAM 1Gbits

Indictors

1. Power

2. Wi-Fi Switch Status

3. 4G Internet

4. 5G Internet

5. Signal Bar Indicator

Buttons

1. Power ON/OFF Button

2. WPS Button

3. Reset Key

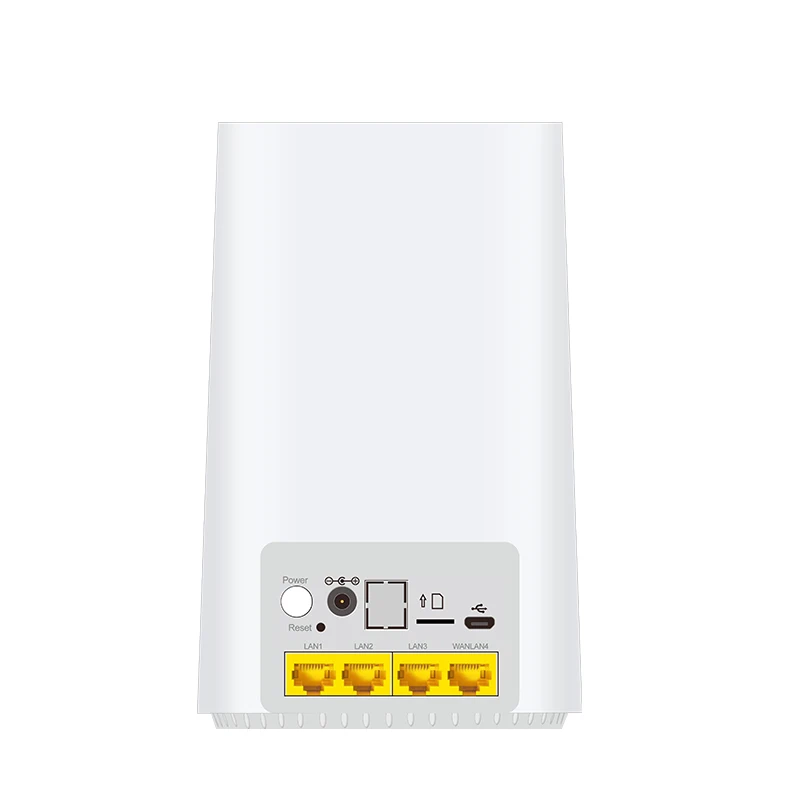

Interfaces

1. GE LAN Port * 4

2. SIM Slot * 1 (3FF)

3. DC Socket

4. TYPE_C USB3.1 for Manufacture

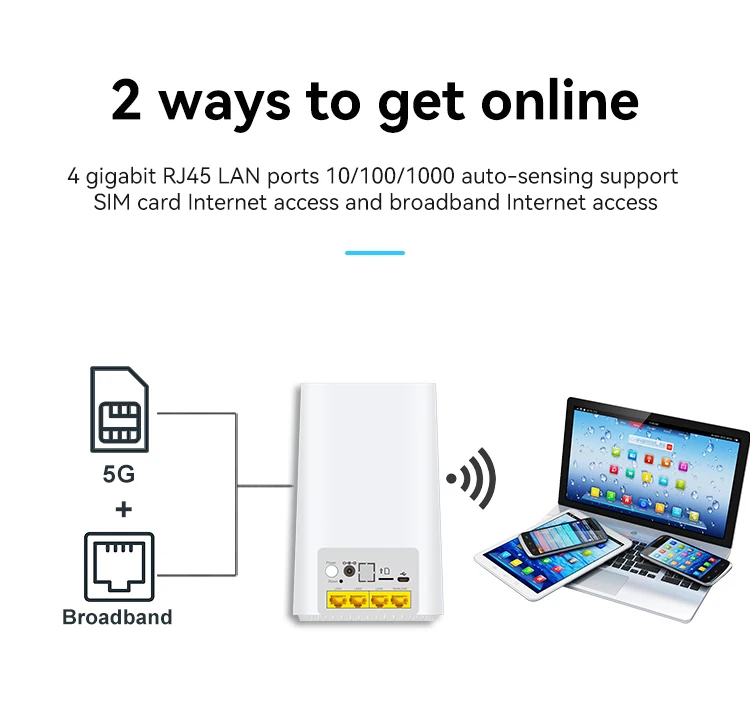

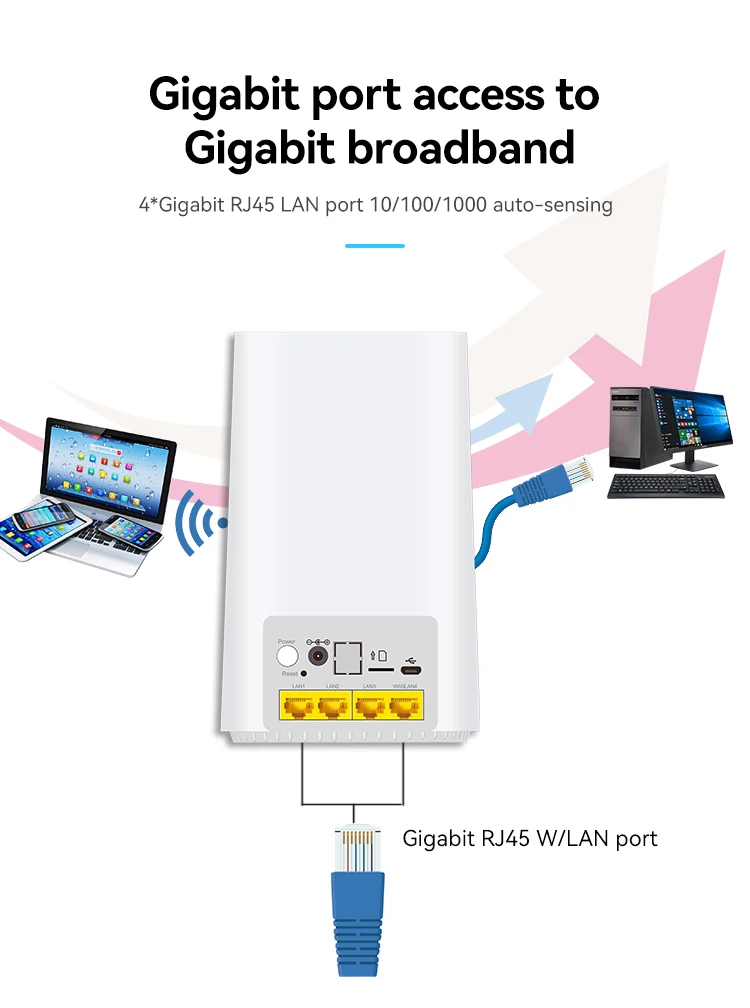

LAN/WAN

GE Port * 4,

(Currently DHCP/STATIC mode).

Power Supply

AC100V~240V,50Hz~60Hz

DC 12V DC±10% 2A

Power Consumption

< 24W

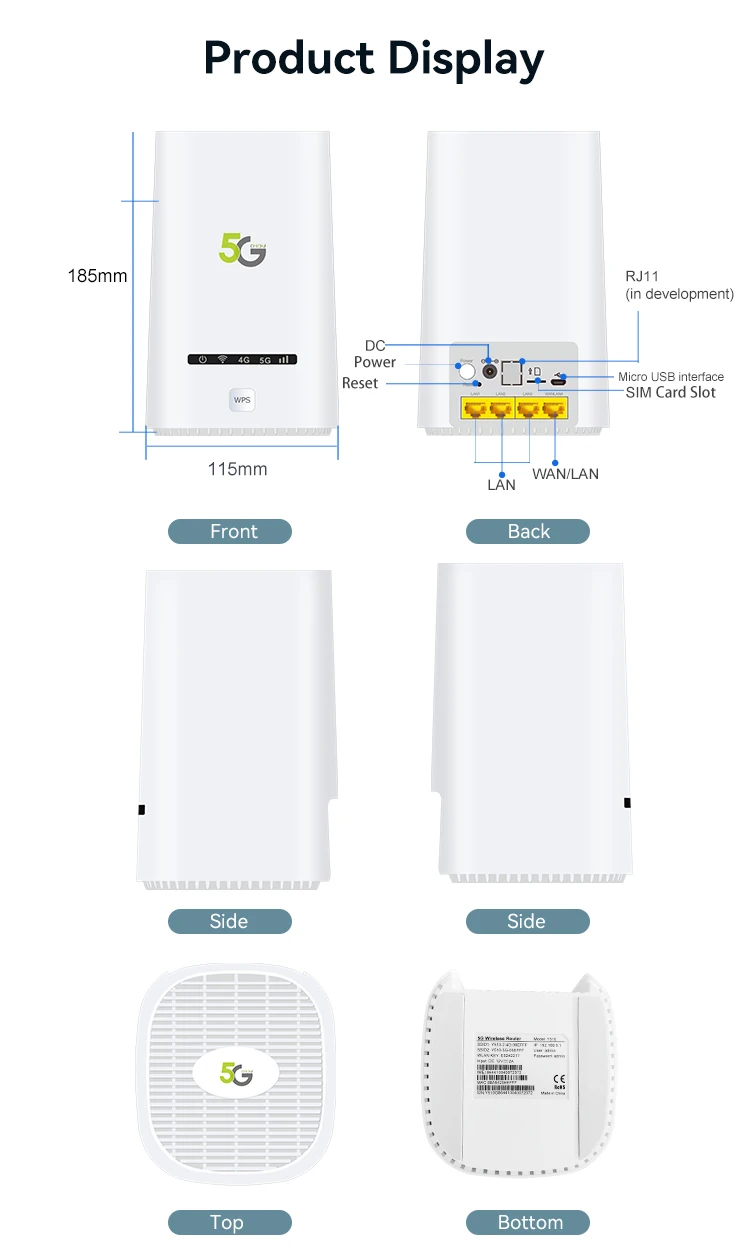

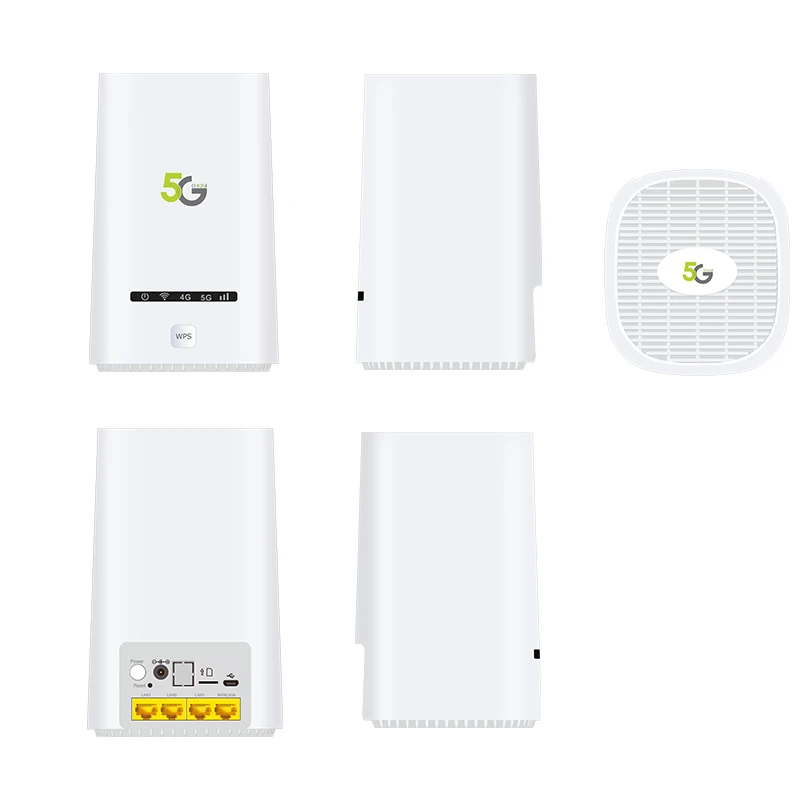

Dimensions

117mm*117mm*180mm

Weight

580g
