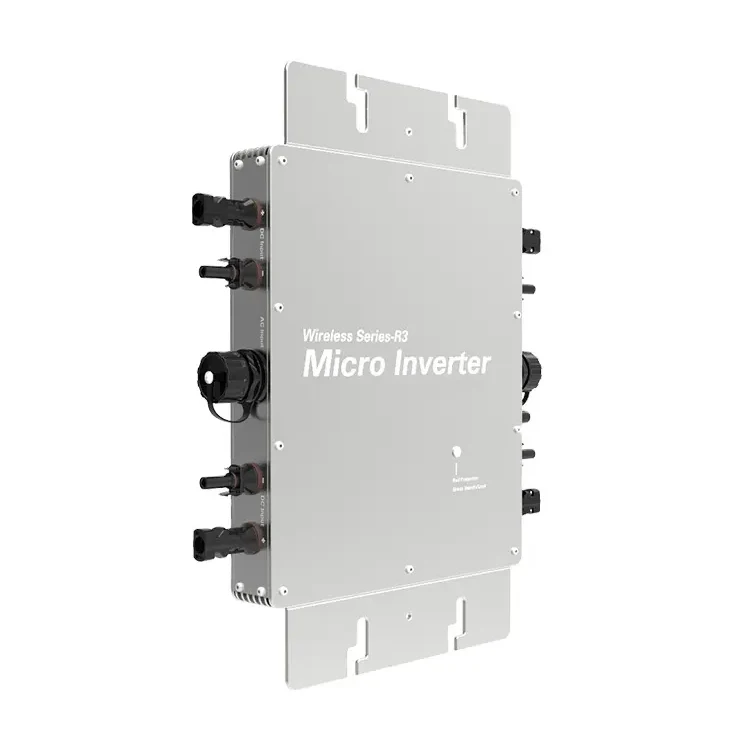

High Quality SUNWAY Microinverter 2000W 2400W 2800W Waterproof Solar inverter 2kw 2kva IP68 Micro inverter power
- Category: >>>
- Supplier: S K Tech Co. Ltd.S Ltd.
Share on (1601002205944):
Product Overview
Description
Microinverters are small electronic devices that are installed at the individual solar panel level, rather than at a centralized location for the entire solar system. As the name implies, microinverters convert direct current (DC) electricity produced by a solar panel into alternating current (AC) electricity that can be used in households or businesses. By installing microinverters at each panel, the power produced by each panel is maximized, and any potential shade, dirt, or malfunction of one panel does not affect the output of the entire solar system.
Product Details

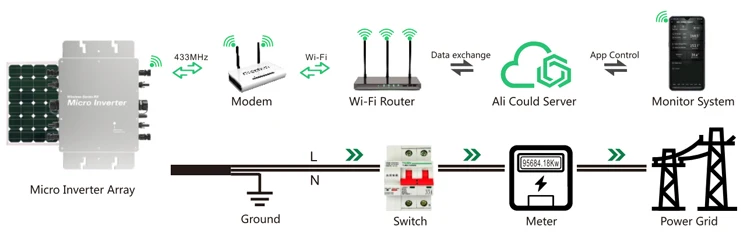

Working Principle
Product Parameter
model | SW-2000 | |||
Recommend use panels | 4-625Watt | |||
Output voltage mode | 120/230V Auto switch | |||
PV Open circuit voltage | 30-54VOC | |||
Operating voltage range | 22-60V | |||
Starting voltage range | 22-60V | |||
short-circuit current | 4*23A | |||
Maximum working current | 4*20A | |||
Output parameters | @120V | @230V | ||
Output peak power | 2200Watt | 2200Watt | ||
Rated output power | 2000Watt | 2000Watt | ||
Output current | 16.6A | 8.7A | ||
AC voltage range | 80-160VAC | 180-280VA | ||
AC frequency range | 48-51Hz/58-61Hz | 48-51Hz/58-61Hz | ||
Power factor | >95% | >95% | ||
Number of branch connections | 3PCS ( Single) | 6PCS ( Single ) | ||
Output efficiency | @120V | @230V | ||
Static MPPT efficiency | 99.5% | 99.5% | ||
Max output efficiency | 95% | 95% | ||
Loss of power at night | <0.5W | <0.5W | ||
Total current harmonics | <5% | <5% | ||
Appearance and technical features | ||||
Temperature range | -40℃ to +65℃ | |||

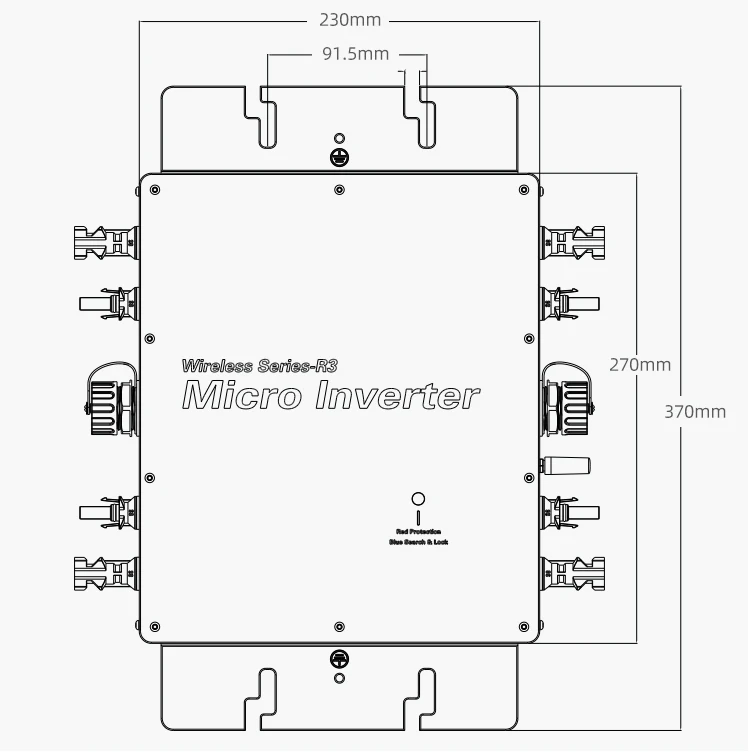

Size(LxWxH) | 370mmx300mmx41.6mm | |||
Net amount | 3.0kg | |||
Waterproof grade | Ip65 NEMA3R | |||
Heat dissipation mode | Self-cooling | |||

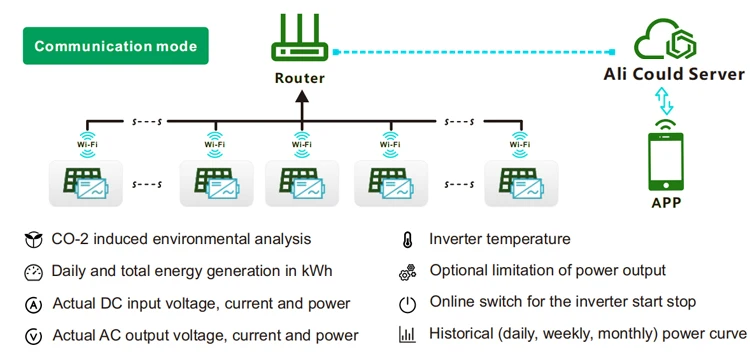

Communication mode | 433MHz | |||
Power transmission mode | Reverse transmission,Load priority | |||
monitoring system | APP | |||
Electromagnetic Detection | EN61000-6-1:2007 EN6100-6-3:2007+A1:2011+AC:2012 | |||
Power Grid standard | EN50549-1、EN 50549-2NBR 16149:2013、UL1741 | |||
Power grid detection | IEC/EN 62109-1IEC/EN 62109-2 IEC 62116IEEE 1547 | |||
Certificate | CE ， ETL ，INMETRO , Patented technology | |||
Packing weight | ||||
Specifications | Each ( Packing ) | Box(4PCS) | ||
weight | 4.36KG | 18.38KG | ||
Size | 430x375x140mm | 430x405x380mm | ||

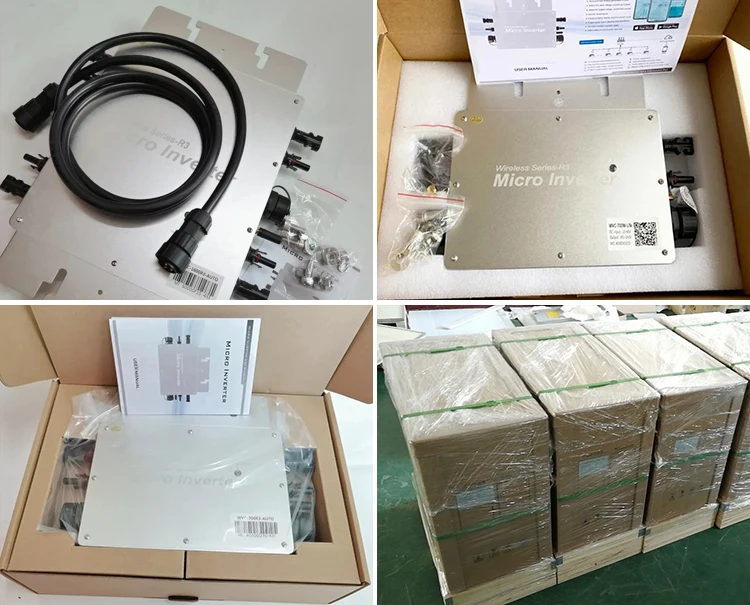

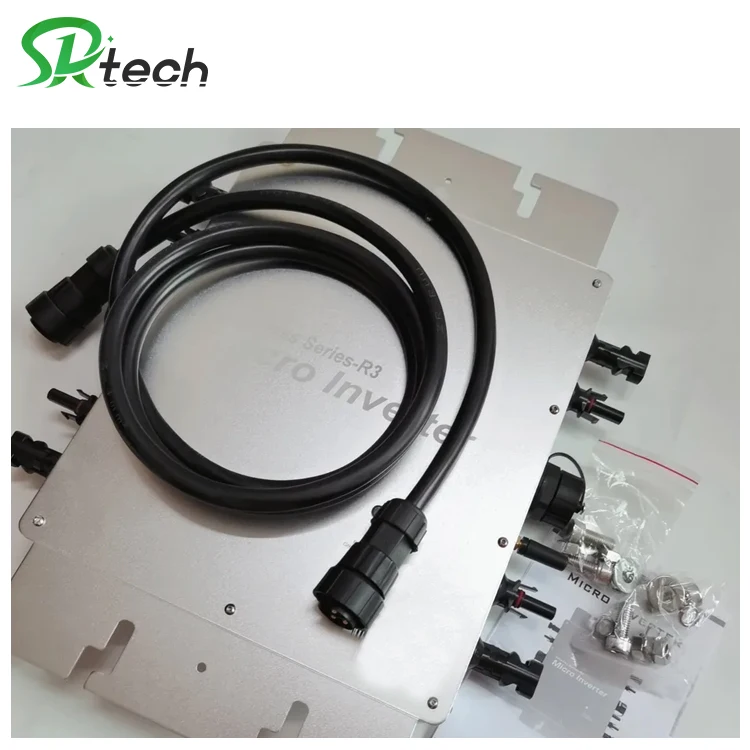

Product Packaging

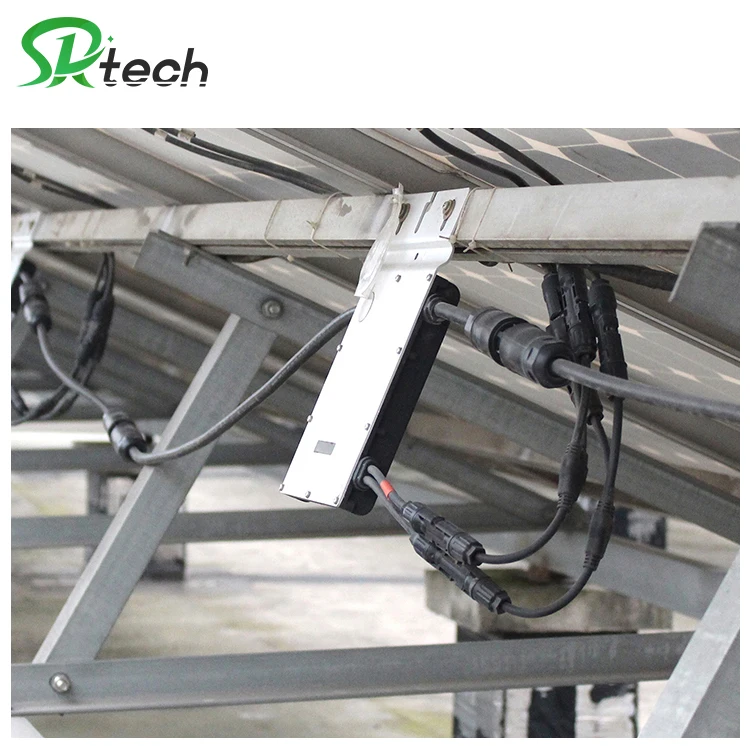

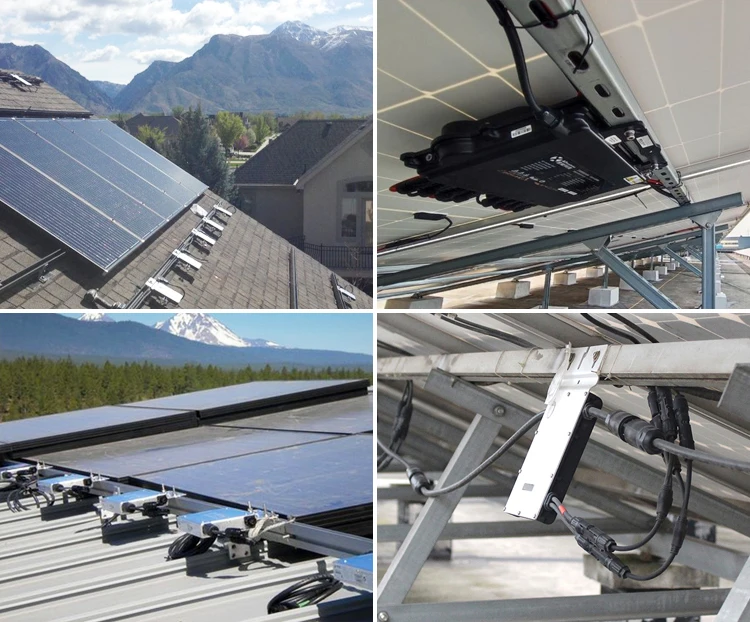

Application
