JIHPUMP Manufacturer 24V Stepper Liquid Filling Machine Peristaltic Pumps for Chemicals Detergent Food Dispensing
- Category: >>>
- Supplier: Chongqing Jieheng Peristaltic Pumps Co. Ltd.
Share on (1601002226834):
Product Overview
Description
Chongqing Jieheng Peristaltic Pumps Co., Ltd.
1.Peristaltic Pumps Professional Manufacturer and Supplier.
2.Focus on Peristaltic Pumps and OEM Pumps Customer Solutions for more than 17 years!
3.Million sets of peristaltic pumps been sold.
3.Million sets of peristaltic pumps been sold.
4. Certificated vy CE, RoHS,ISO and so on.
Product Discription

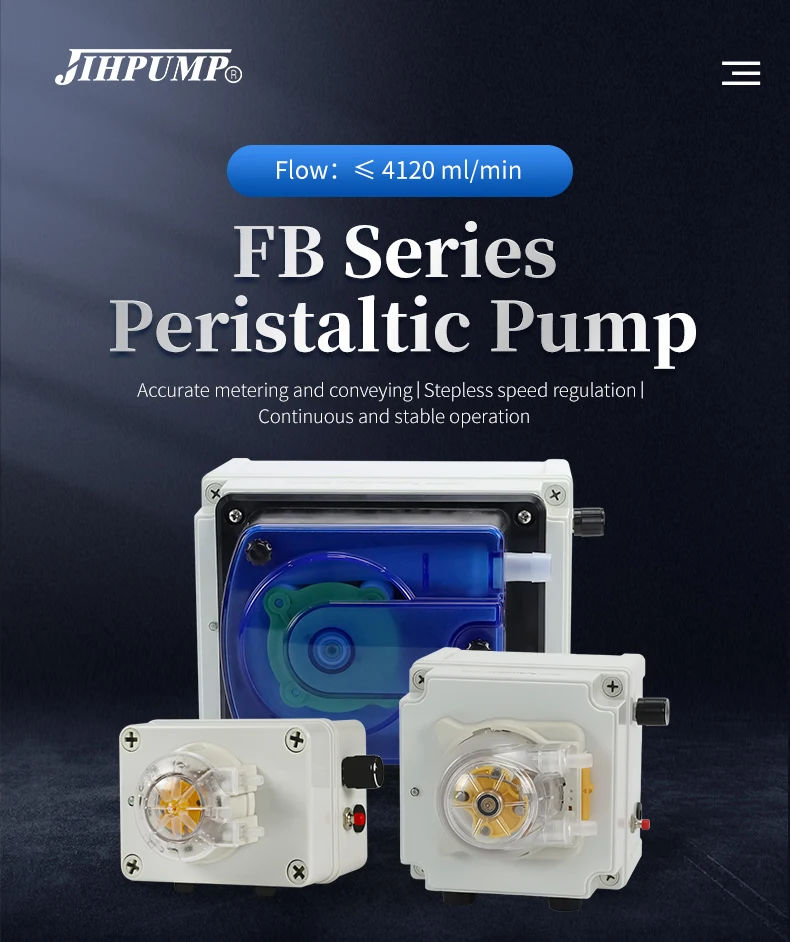

FB series Peristaltic Pump Features | ||||||
Stepper motor drive | Knob stepless speed regulation | Continuous and stable operation | Simple operation and maintenance | |||
Multiple pump heads available | Multiple hose options | Larger flow range | Meet a wide range of applications | |||
Hot Sale Products
Product parameters | ||
Product title : jihpump 24V 12V Knob speed control stepper motor easy loading dosing liquid transfer small filling machine pumps high flow peristaltic pump | ||
Product number | Industrial distributor | |
Model | FB Series | |
Motor type | Stepper motor | |
Outlet pressure | ≤0.17MPa | |
Noise | ≤65dB | |
(The test ambient noise is ≤ 40dB, and the horizontal distance between the test product and the noise meter is 1m) | ||
Features | Start stop, speed up and down, operation indicator light, switch button | |
Rotation direction | CW clockwise | |
Reference flow (unit: ml/min) | ||||||||

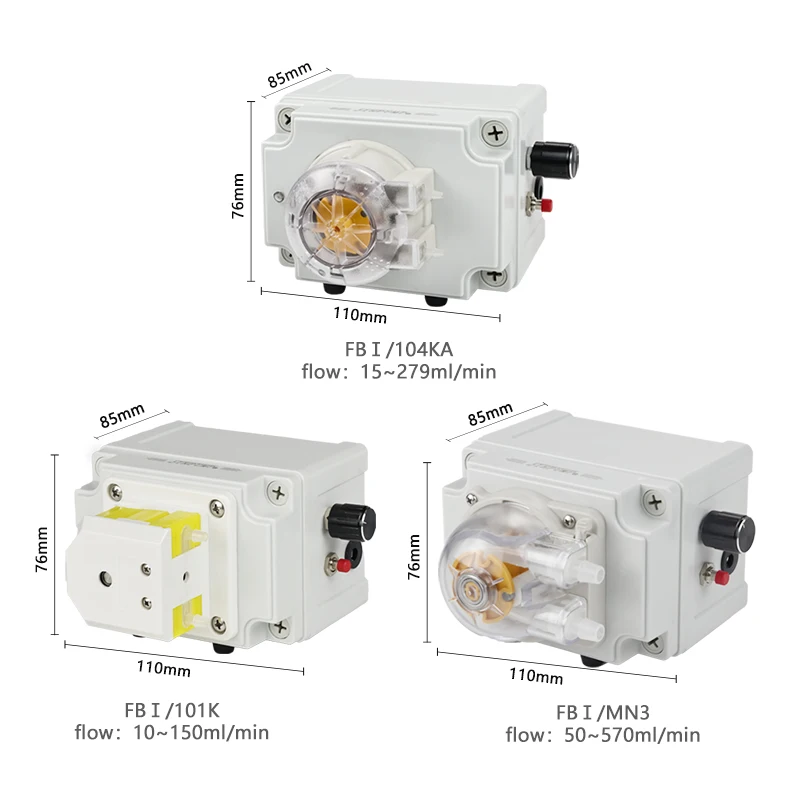

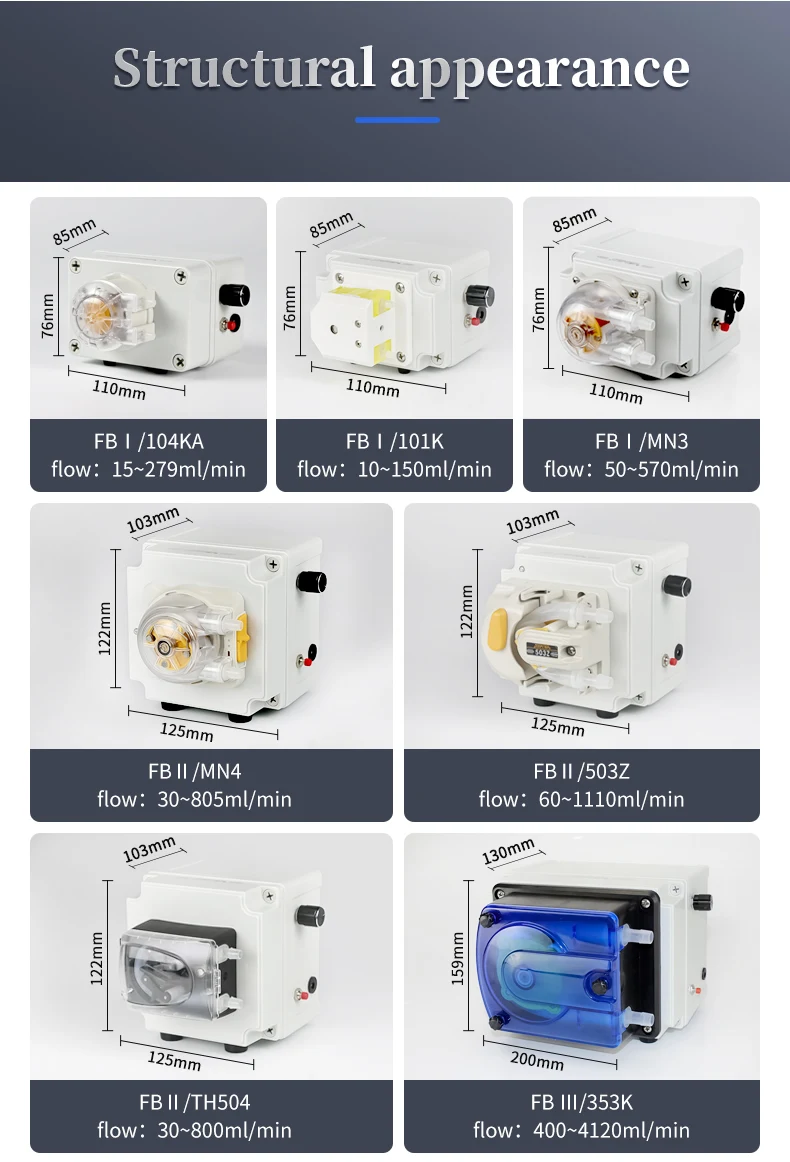

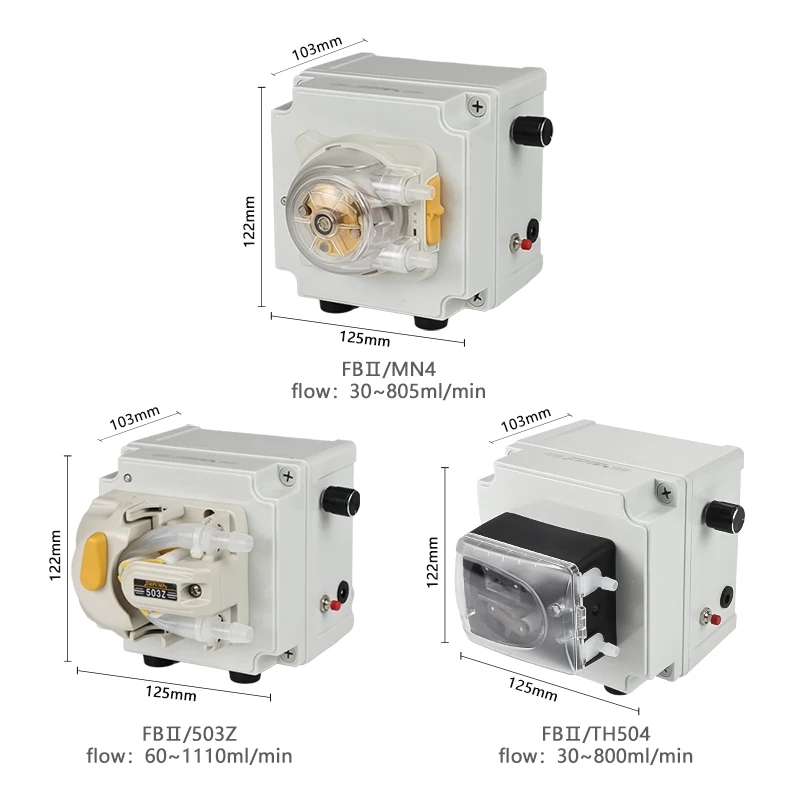

Product number | FBⅠ/101K | FBⅠ/104KA | FBⅠ/MN3 | FB Ⅱ/MN4 | ||||
Power suggestion | DC 24V，2A ≤30W | DC 24V，2A ≤15W | DC 24V，2A ≤48W | |||||
Weight | 700g | 560g | 770g | 1190g | ||||
Tube number | 4*1 | 25# | 17# | 17# | ||||
Flow range(ml/min) | 10~150 | 15~279 | 50~570 | 30~805 | ||||
Flow rate description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, and when conveying clean water. | |||||||

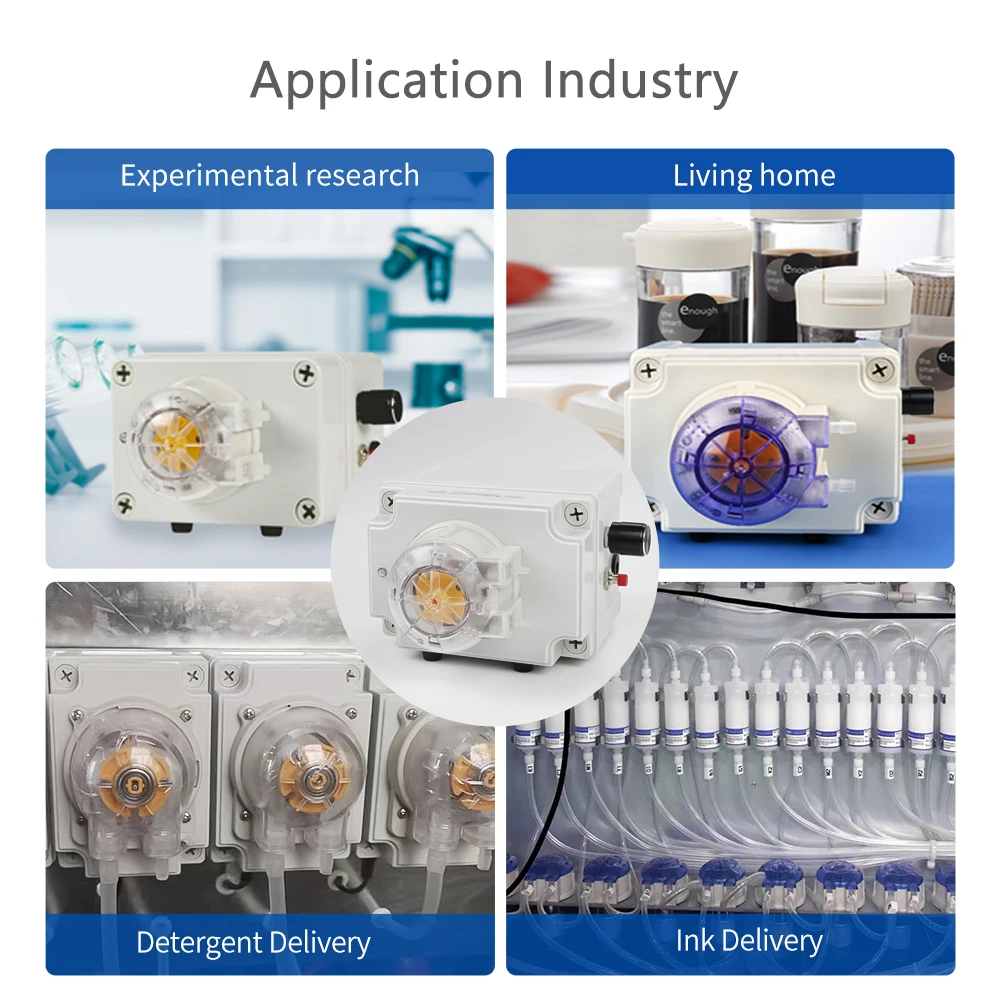

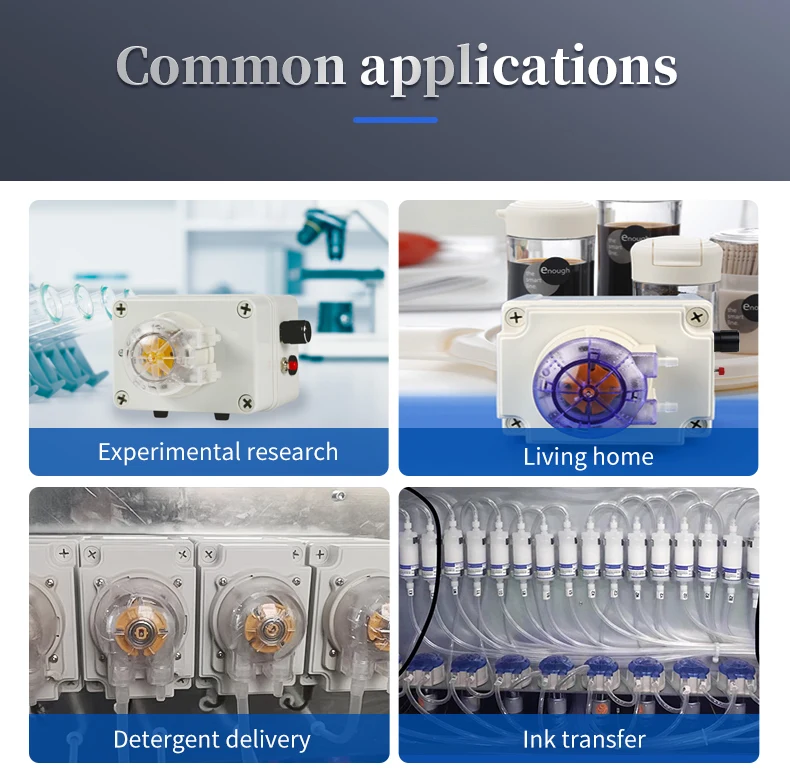

Common Applications: Experimental research ，Living home , Detergent delivery , Ink transfer, analytical instruments ect .
Applications Industry: medical diagnosis ，Environmental protection instrument , Analytical Instruments , inkjet ink , washing cleaning , food and drink ，Experimental research，Pharmaceutical machinery，Smart Appliances ，industrial machinery etc JIHPUMP peristaltic pump , peristaltic pump 24v.
JIHPUMP has sold more than 1 million peristaltic pumps and has always provided users with products of high quality,high precision and high reliability,Meet the metering,transportation and sub packaging distribution needs of various industry applications.

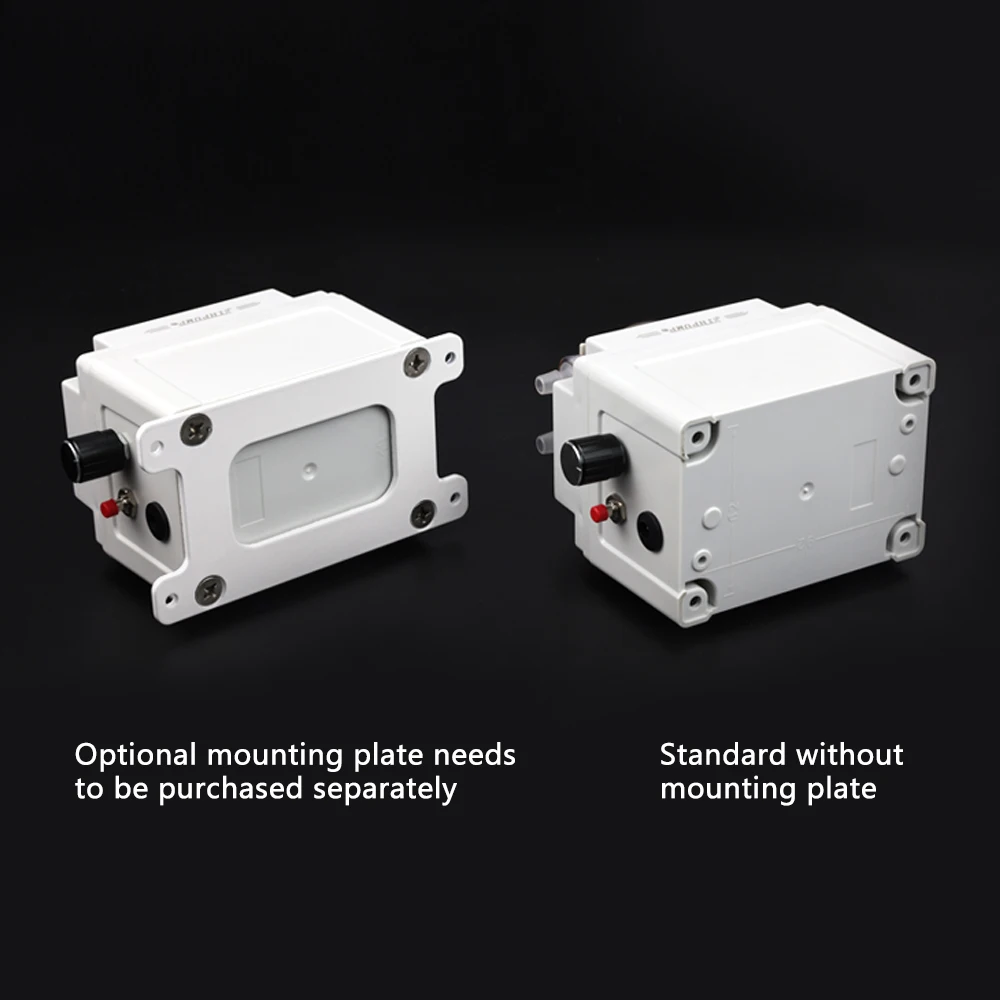

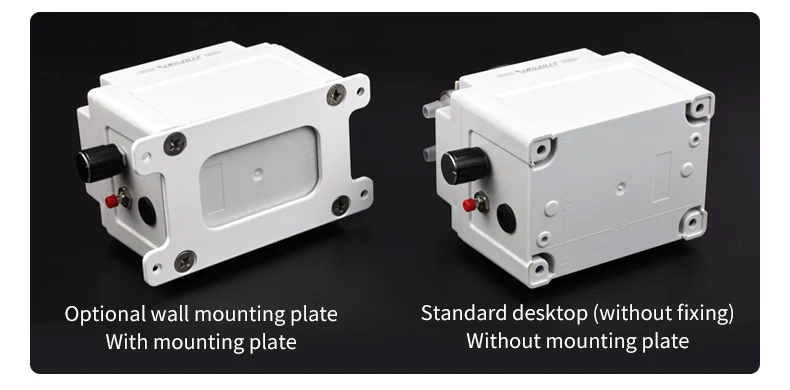

Mounting plate can be fixed | ||
Optional wall mounting plate With mounting plate | Standard desktop (without fixing) Without mounting plate | |

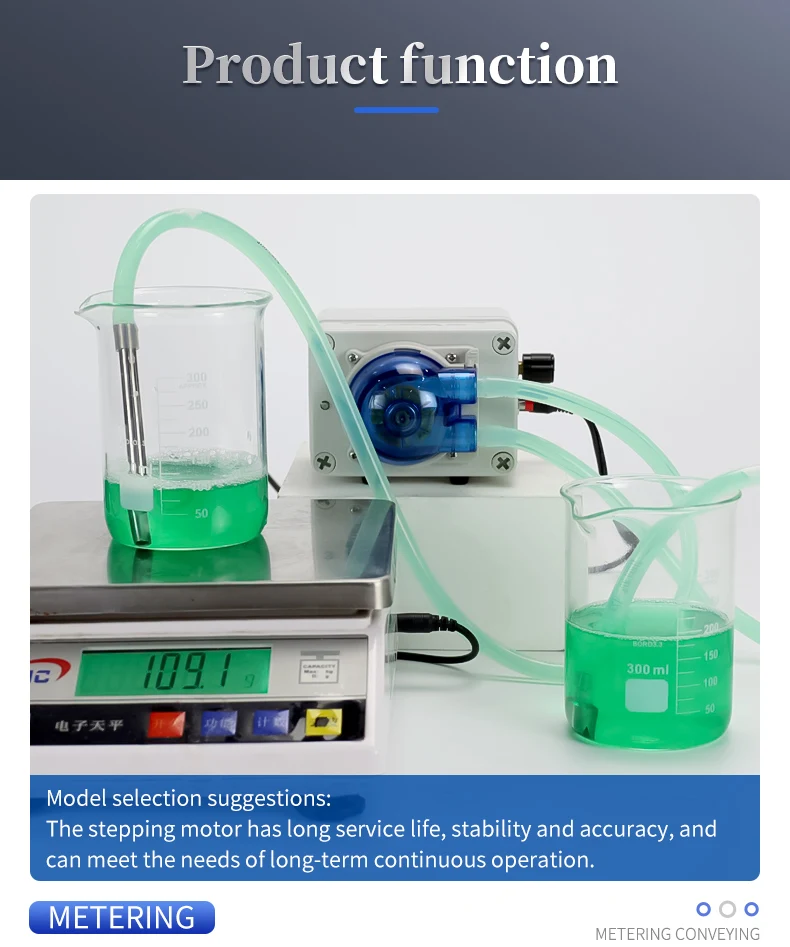

Metering and conveying function
To realize the accurate measurement and transmission of fluid, it can be equipped with a timing switch to realize the remote timing start and stop of mobile phones.
Model selection suggestions: The stepping motor has long service life, stability and accuracy, and can meet the needs of long-term continuous operation.

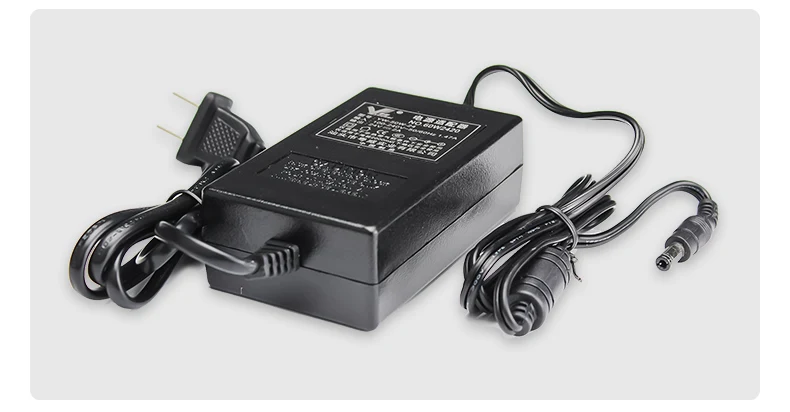

It is driven by DC 24V external power adapter, Compact, flexible and portable ，peristaltic pump 24V ，high flow peristaltic pump.
Precision stepping motor and microprocessor control module
Built in intelligent algorithm software to achieve accurate and fine operation control of 0.1rpm.

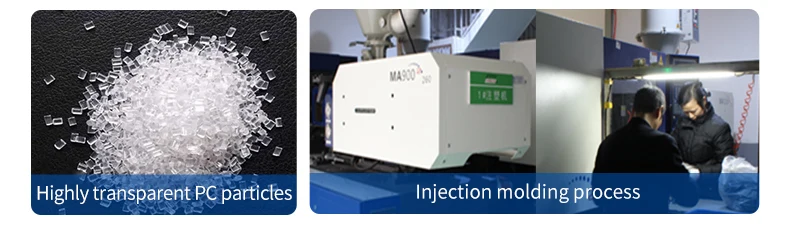

Precision injection molding process
Ensure that the pump body meets the requirements of high precision and fine appearance peristaltic pump 24V ，high flow peristaltic pump..

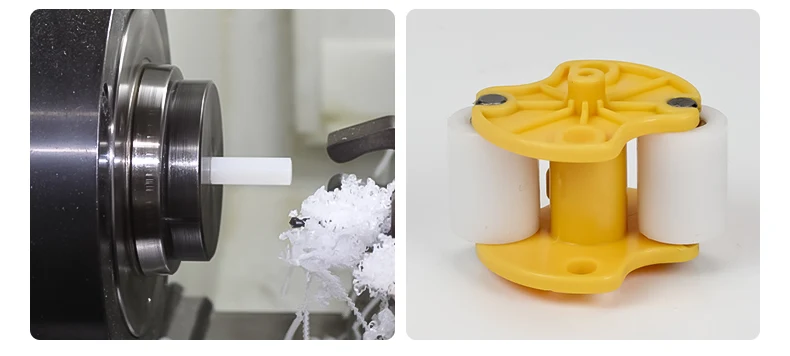

Imported high-quality rollers
Roller adopts imported wear-resistant self-lubricating material Precision machining to ensure high precision and wear resistance
Certifications
CE,ISO,SGS Other various patterns and certifications
Certificate Details View, Click On "Company profile "in the company profile of shop home page or let me know, we'll send details to you.
Company Profile
JIHPUMP Chongqing Jieheng Peristaltic Pumps Co., Ltd. is founded in 2006. We are a high-tech enterprise providing professional product application solutions, manufacturer and service provider of peristaltic and constant flow pumps. The company produces more than 50 series and over 200 models of peristaltic pump products. We have shipped more than one million cost-effective,high-reliability peristaltic pumps to users around the world in the food, beverage, chemical reagents, printing inks, detergents,laboratories, analytical instruments, fine chemicals, smart homes, medical care, biopharmaceuticals, environmental and industrial fields.
Packaging&Shipping
Standard export packing for JIHPUMP peristaltic pump
A: Small quantities of goods shall be packed in cartons.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
B: For mass delivery, the cartons are stacked into stacks and then wrapped with pvc plastic for loading.
FAQ
1.What's your required liquid flow rate(ml/min) for the peristaltic pump?
After we know your liquid flow rate , we recommend the right peristaltic pump according to the flow rate.
-------------------------------------------------------------------------------------------------------------------------------------------
2.What liquid may be moved by the peristaltic pump?
Different liquids have different viscosities. Some pumps can deliver low viscosity and some pumps can deliver high viscosity . Especially viscous liquids cannot be delivered by peristaltic pumps.
-------------------------------------------------------------------------------------------------------------------------------------------
3.Do you prefer to adjust the flow rate ? or fixed flow rate?
Peristaltic pump flow is adjustable or fixed according to your actual situation to choose, please tell our sales manager.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
4.Can you please let us know the 3V, 6V, 12V, 24V or 220V peristaltic pump that you need?
Peristaltic pumps run on electricity, so tell us what voltage you need to run on and we can help you choose the right pump.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
5.Do you mount the peristaltic pump on any equipment or not?
We need to know whether the peristaltic pump you use is installed on the equipment or can be used directly by plugging in the
power supply. The types of pumps used in the two cases are different.
power supply. The types of pumps used in the two cases are different.
---------------------------------------------------------------------------------------------------------------------------------------------------------------
