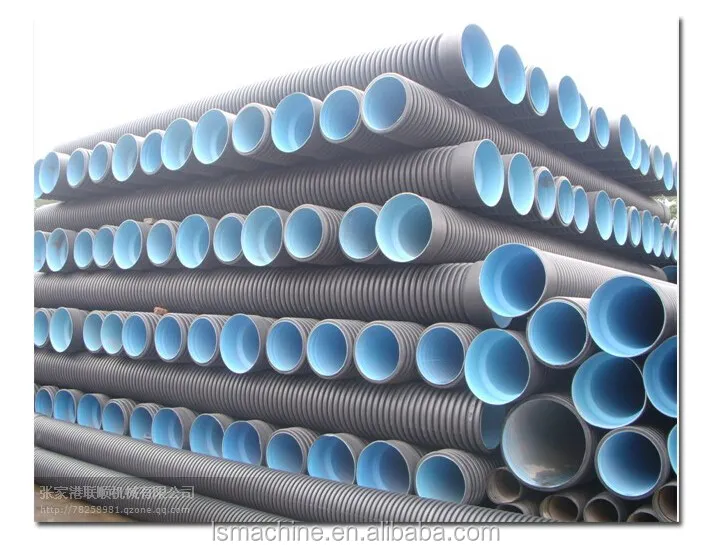

SN8 HDPE flexible corrugated pipe making machine producing 500mm DWC pipes
- Category: >>>
- Supplier: Jiangsu Lianshun Machinery Co. Ltd.
Share on (1601002247679):
Product Overview
Description
Product Description

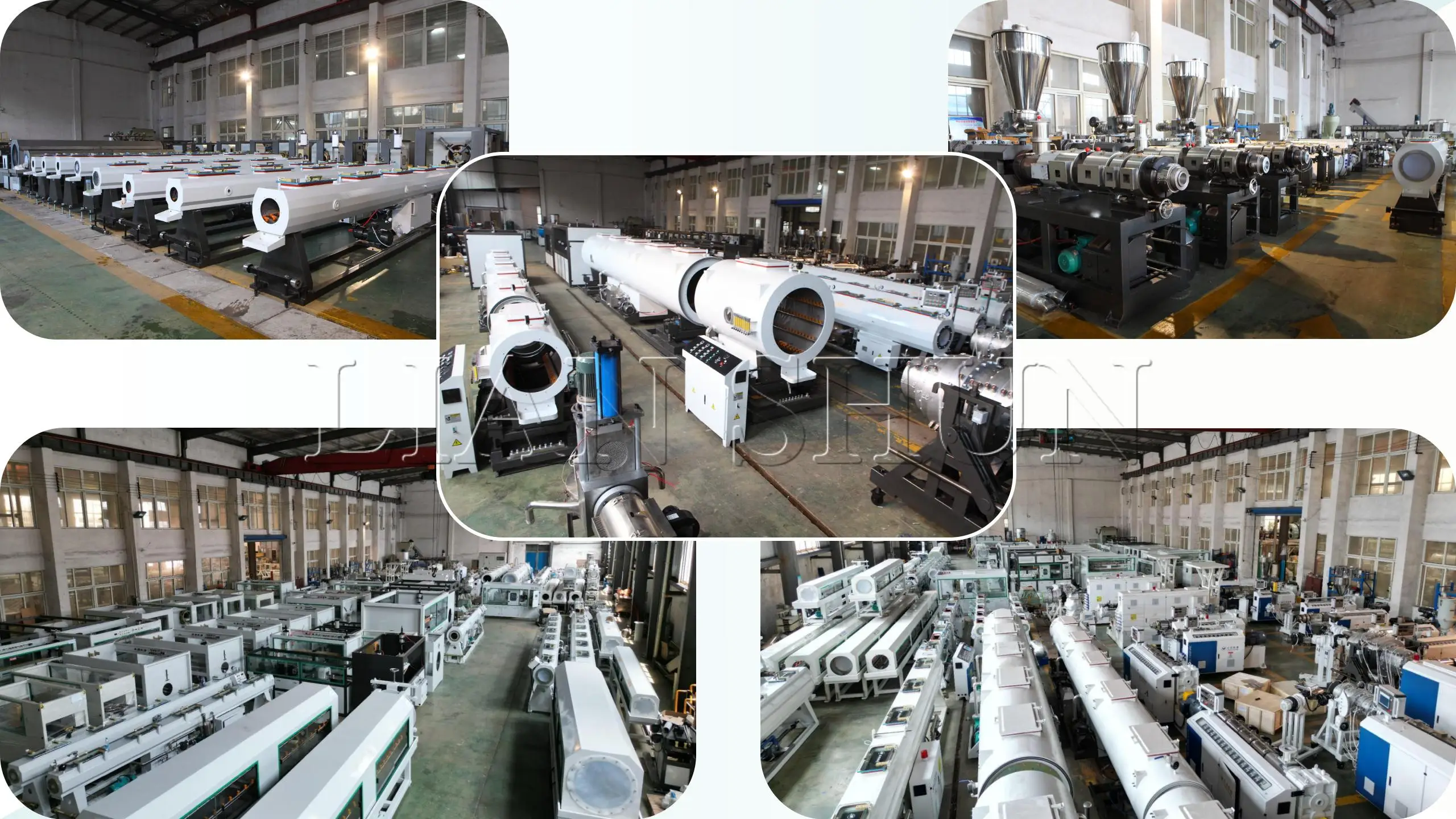

400MM 500MM HDPE double wall corrugated pipe making machine with plastic extruder
1. LIANSHUN's independent research and development of PE double wall corrugated pipe molding machine, production pipe diameter range of 200-500mm, stable operation, high output, it is the core part of the production line.

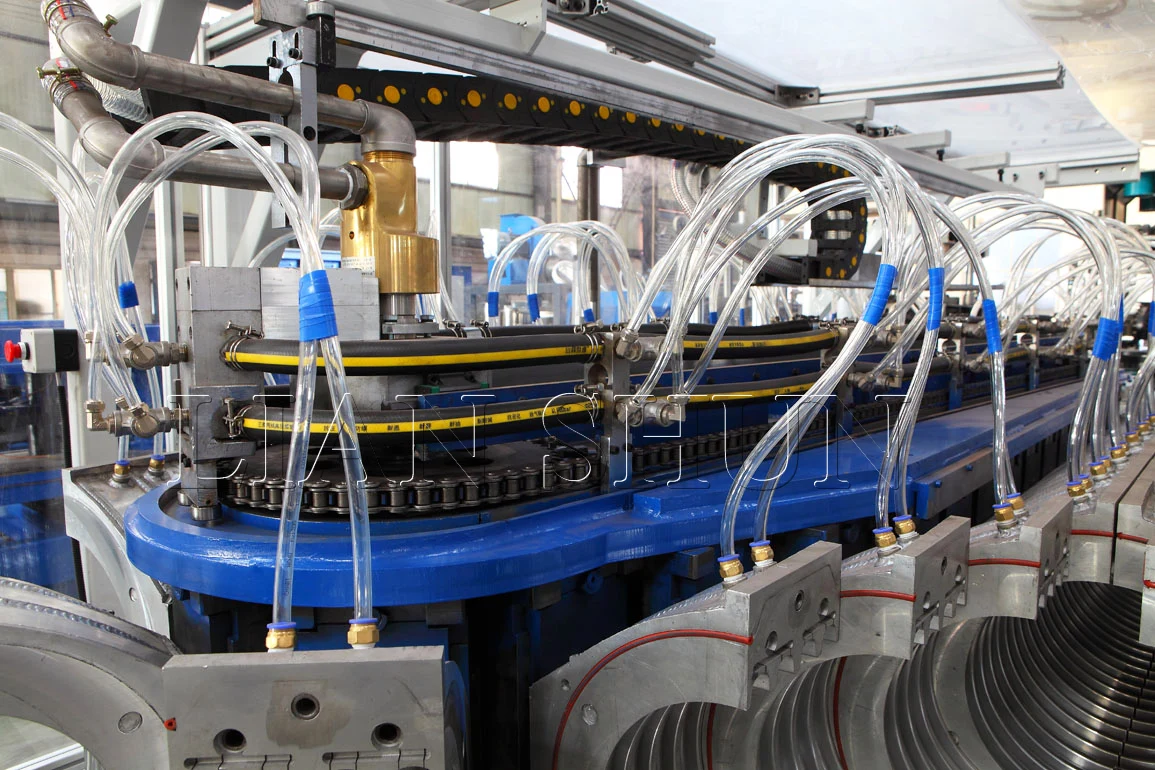

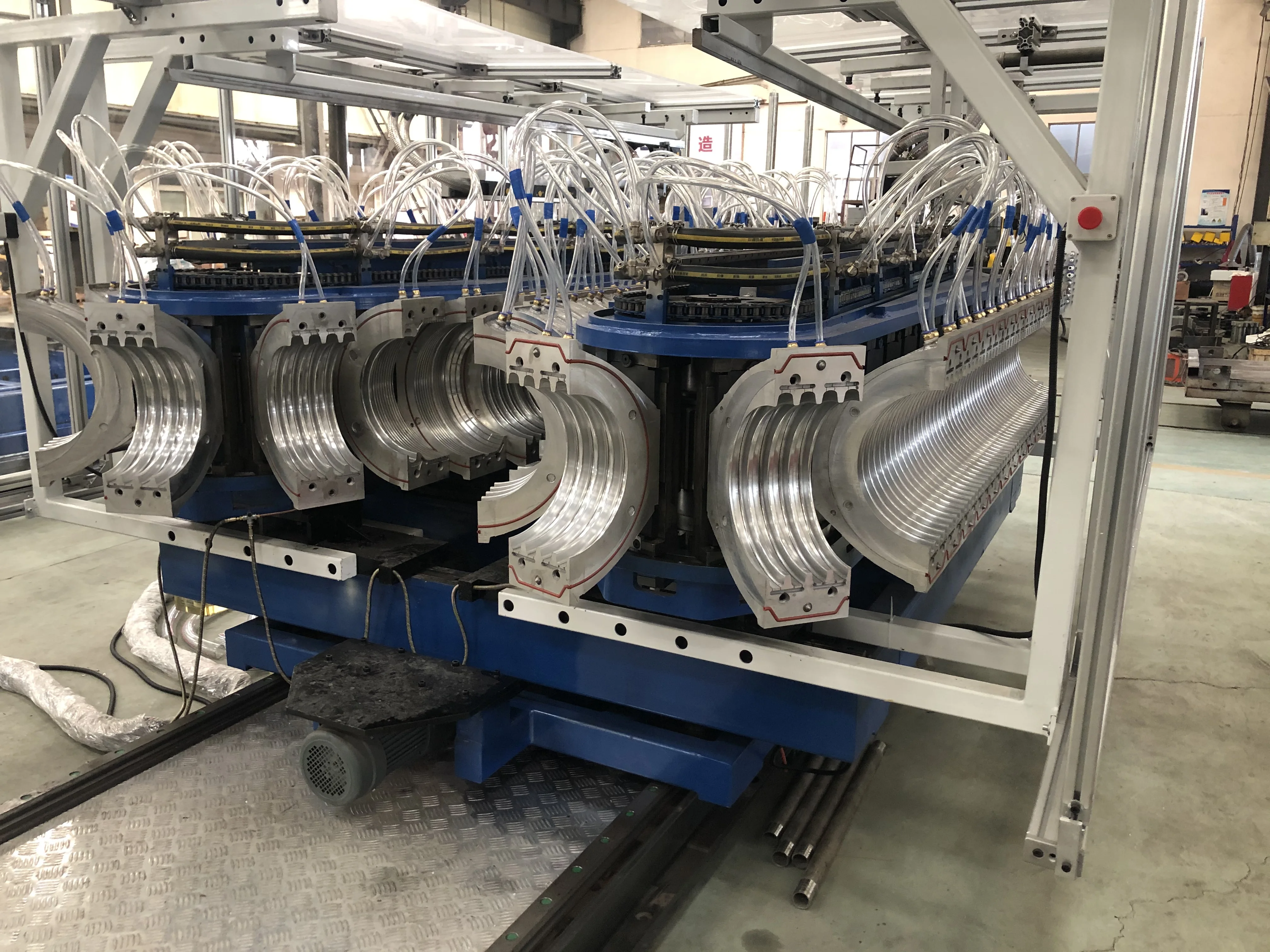

2. The molding machine adopts horizontal structure, shuttle transmission, water cooling, vacuum molding, original online double-layer flaring, unique vacuum system structure, emergency retreat function.
3. The electrical system of molding machine adopts touch screen system, which is intuitive, advanced and highly operational.
4. The forming machine has the function of automatic reset, which can recover the original position and separate from the head and aluminum module in case of sudden power failure, so it has the function of safety protection.
2. The molding machine adopts horizontal structure, shuttle transmission, water cooling, vacuum molding, original online double-layer flaring, unique vacuum system structure, emergency retreat function.
3. The electrical system of molding machine adopts touch screen system, which is intuitive, advanced and highly operational.
4. The forming machine has the function of automatic reset, which can recover the original position and separate from the head and aluminum module in case of sudden power failure, so it has the function of safety protection.
Equipment component | |||||
Item | Name | Quantity | Model | ||
1 | Automatic feeding machine | 2 set | ZJ400 | ||
2 | Hopper dryer | 2 set | STG-U300 | ||
3 | Single screw extruder | 2 set | SJ75/36,SJ90/36 | ||
4 | Forming machine | 1 set | 500 MODE | ||
5 | Cutter | 1 set | 500 MODE | ||
6 | Stacker | 1 set | 500 MODE | ||

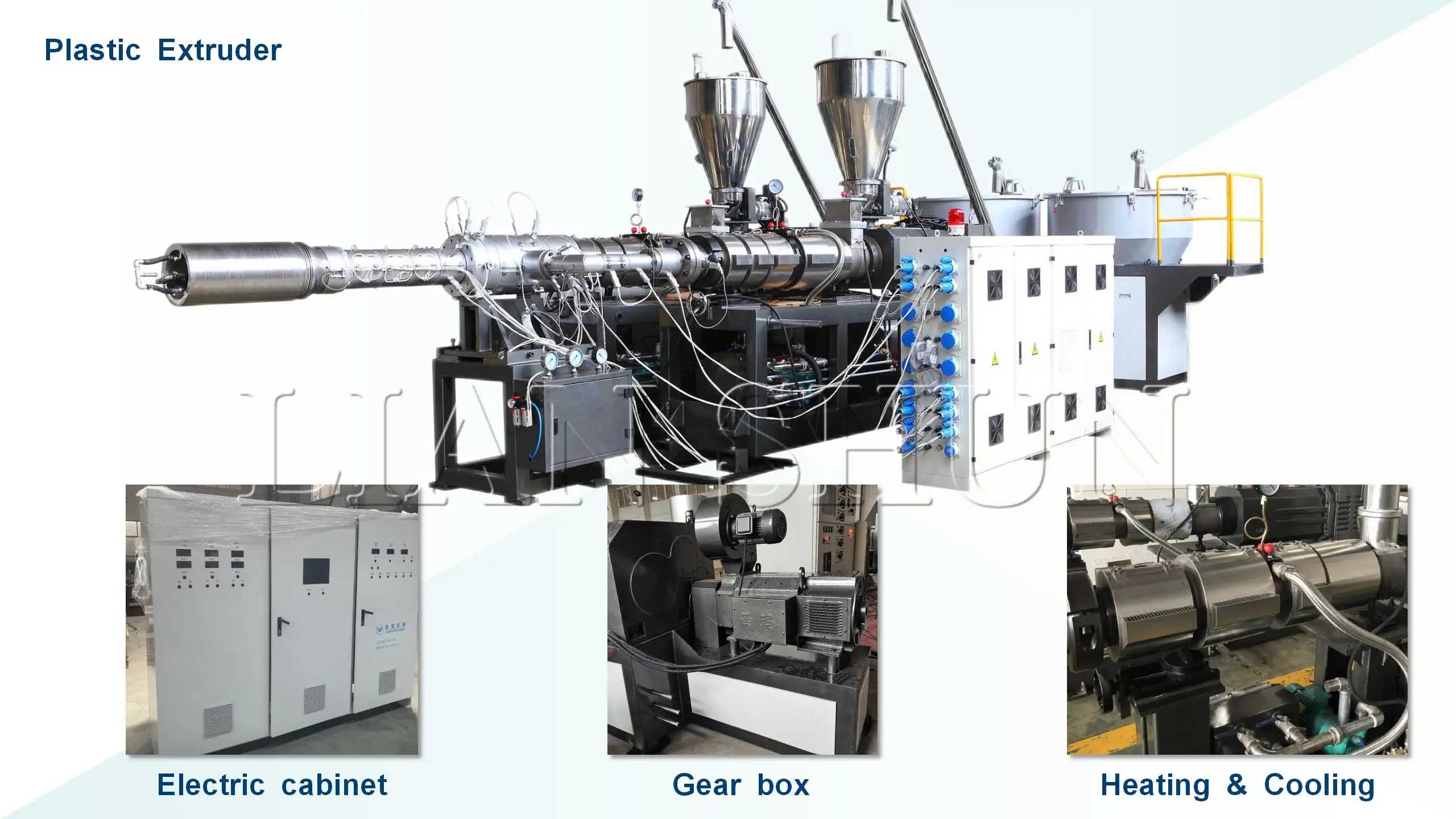

Plastic extruder
1.The extruder use buffer forced feeding,the main drive motor power consumption reduces 30%.
2.The extrusion system uses a 33:1 large L/D ratio for higher efficiency and more stable product extrusion.
3.Wall thickness adjustment of die head can be adjusted while machine is running. Therefore production volume is increased and material loss is reduced.

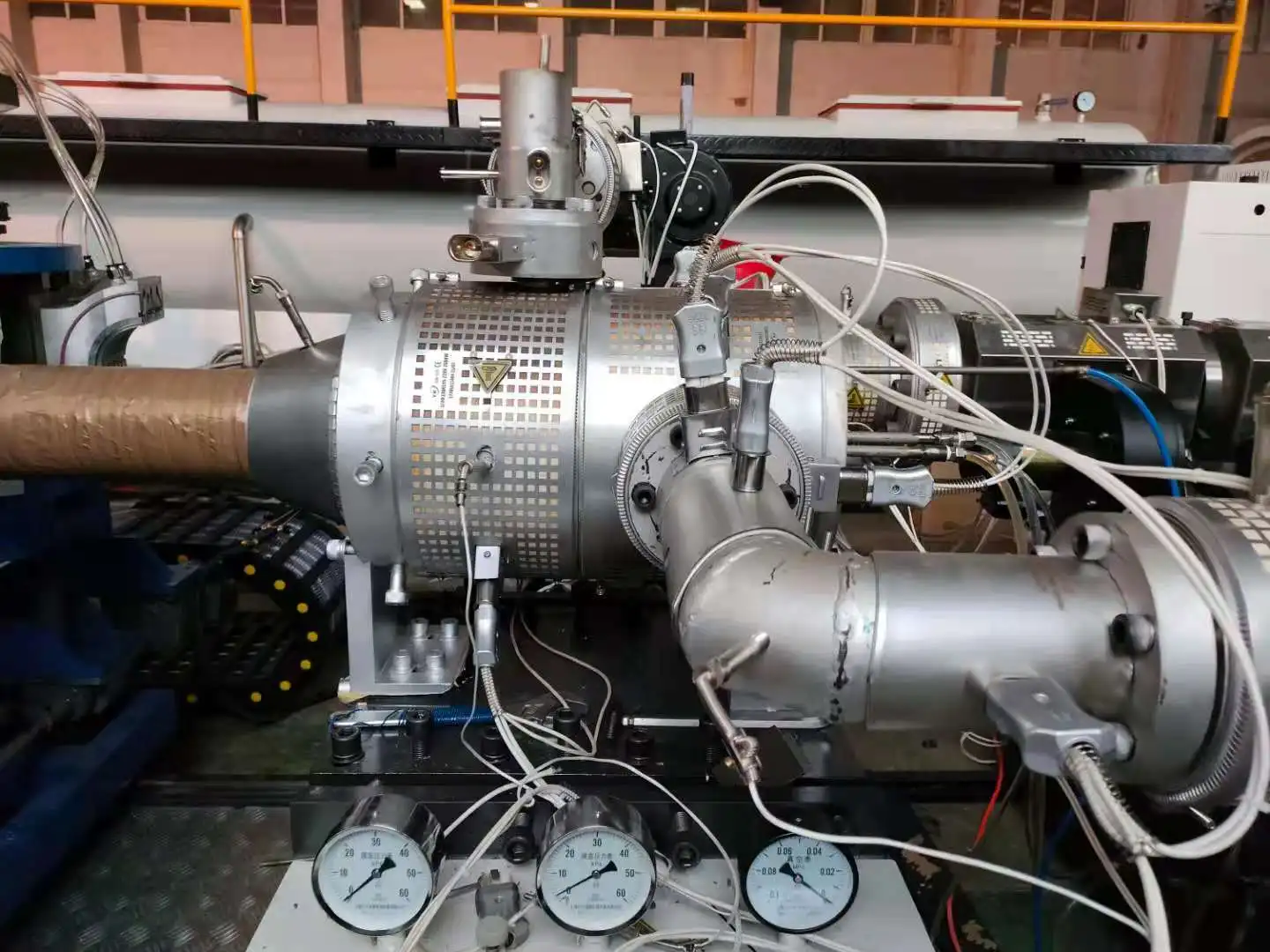

Extruder die

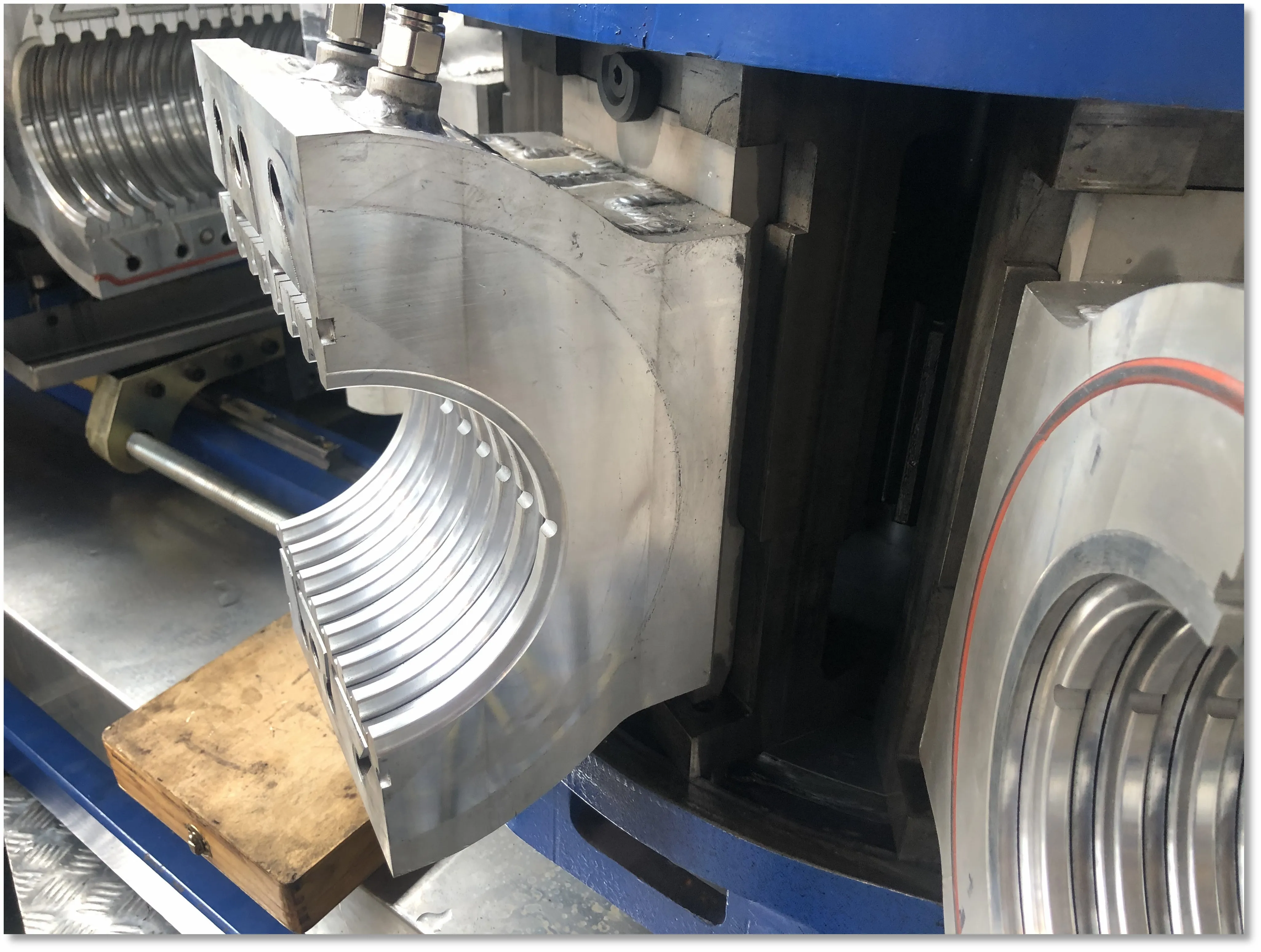

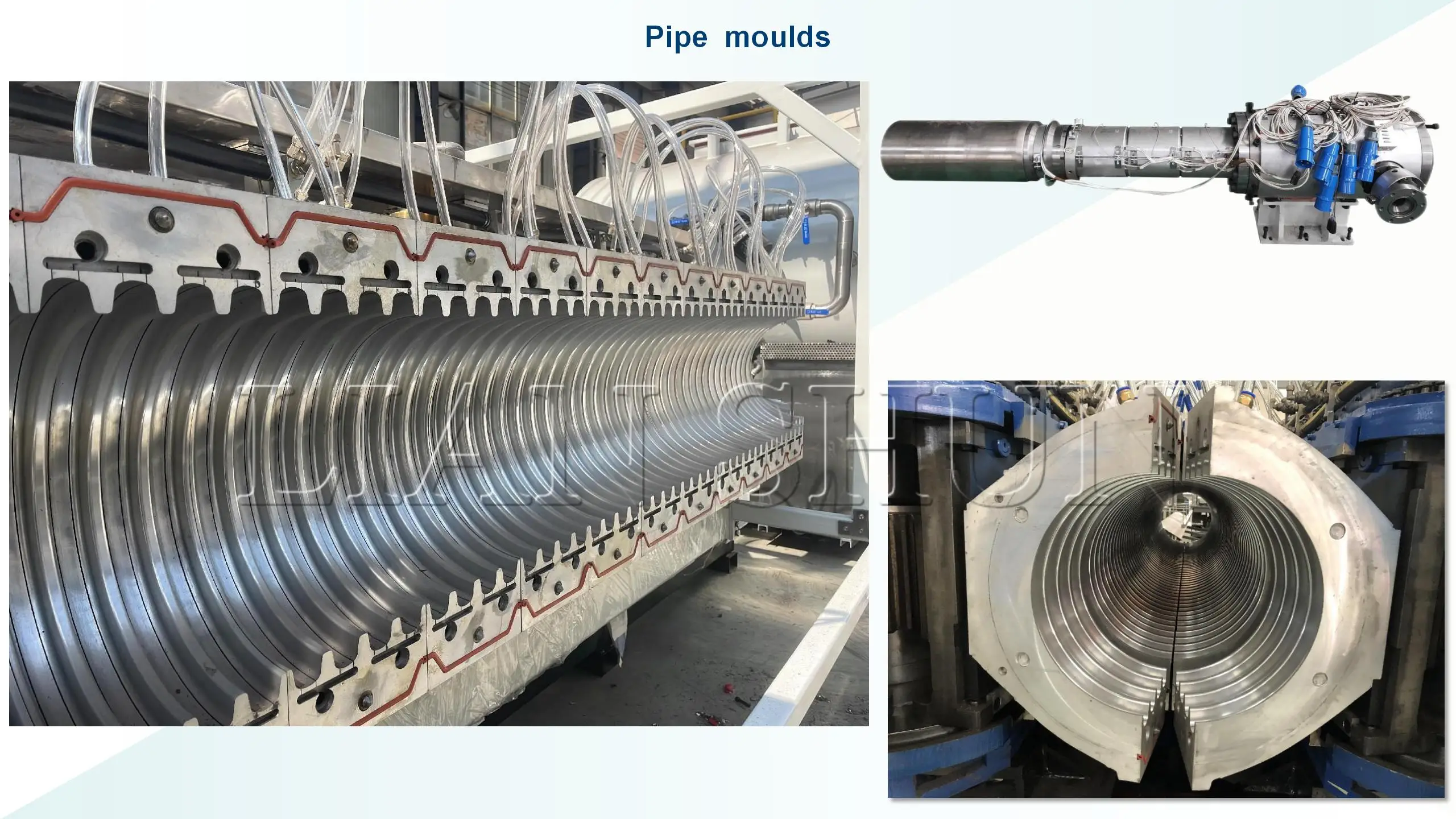

Mould adopts 40Cr, it has the advantages of high precision,high strength,good wear-resisting and better heat .Advanced module fast replacement system can greatly reduce the replacement time. According to the different needs of users, different waveform forming modules can be designed.
Extruder die | ||
Model | 200-500，it adopts Water cooling module | |
Mould structure pattern | spiral split structure design, disassembling convenient | |
Mouth mould | 38CrMoA1A | |
Mould heating | Electric heating | |

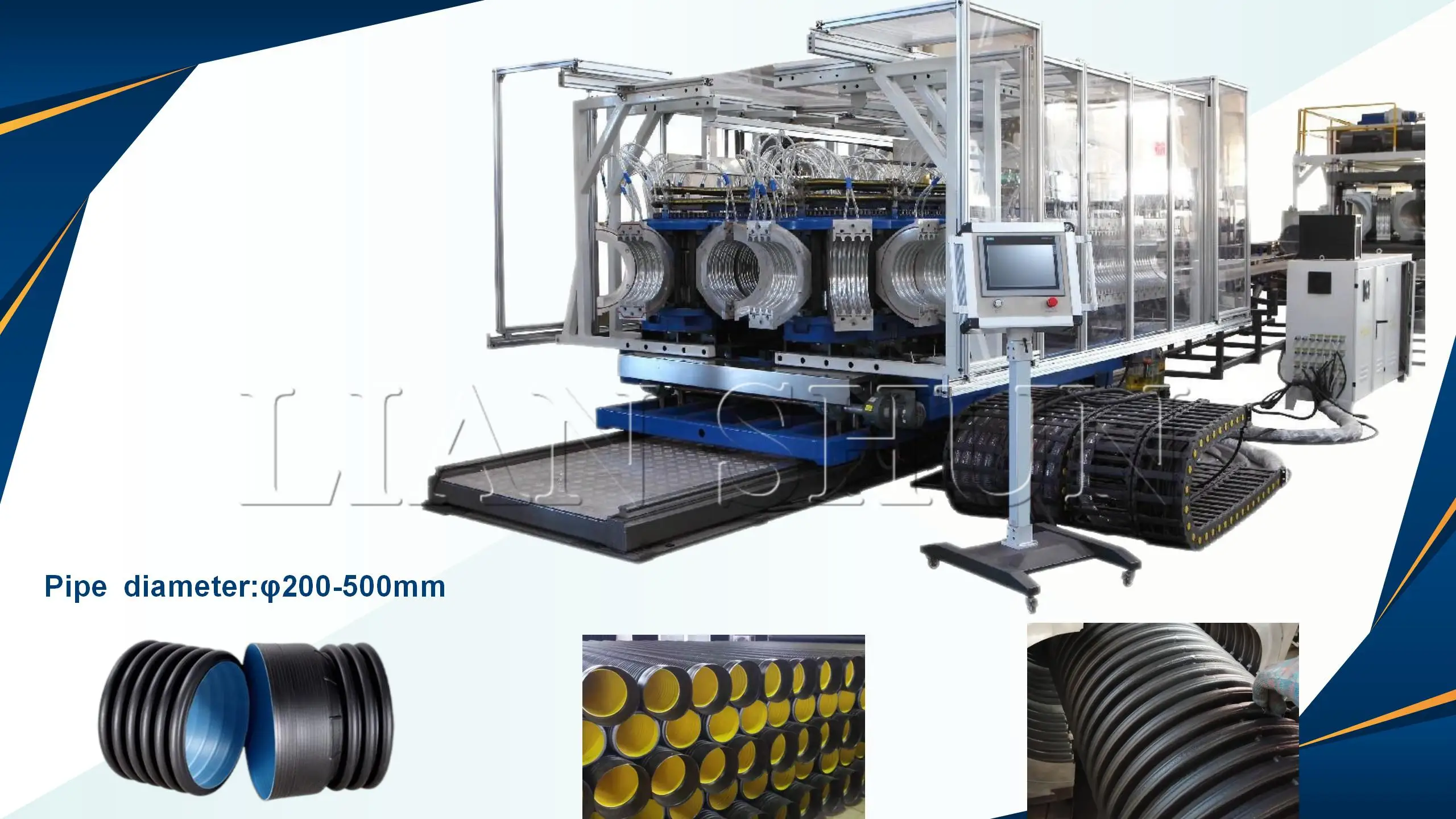

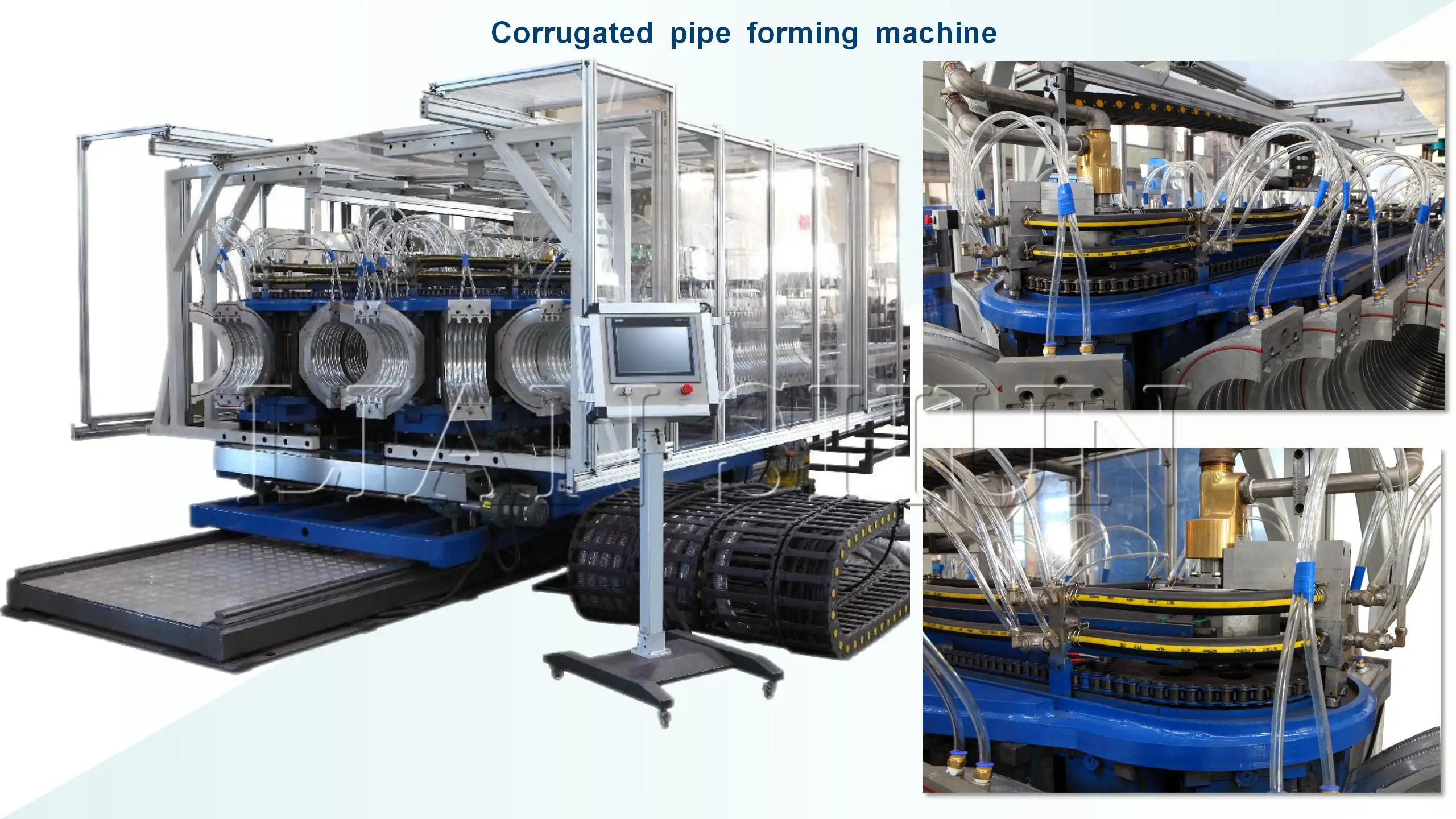

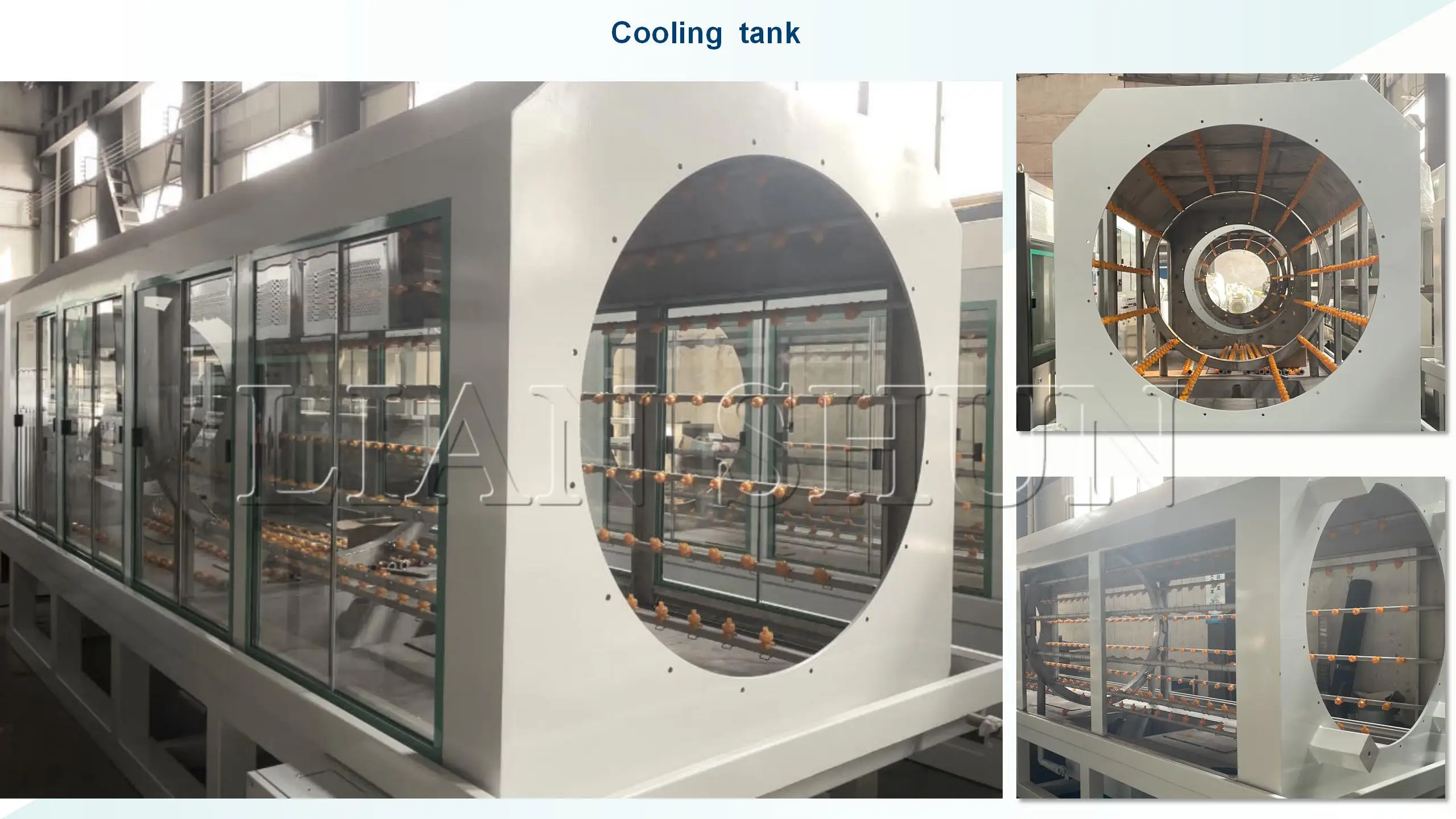

High speed Forming machine | ||
Model | Model 500 corrugated pipe molding machine | |
Center height of guide pillar | 1200mm | |
Stoke length of Female Drawer Guide | Stoke>=1500mm | |
Pipe application scope | 500mm, Online extender mouth | |
Main motor | 1.5*2KW, 2.2*2KW | |
Production speed | 200: 3.2-4m/min | |
Vacuum pump | 45KW | |
Module quantity | 36 set each specification | |
Cooling system | Water cooling | |

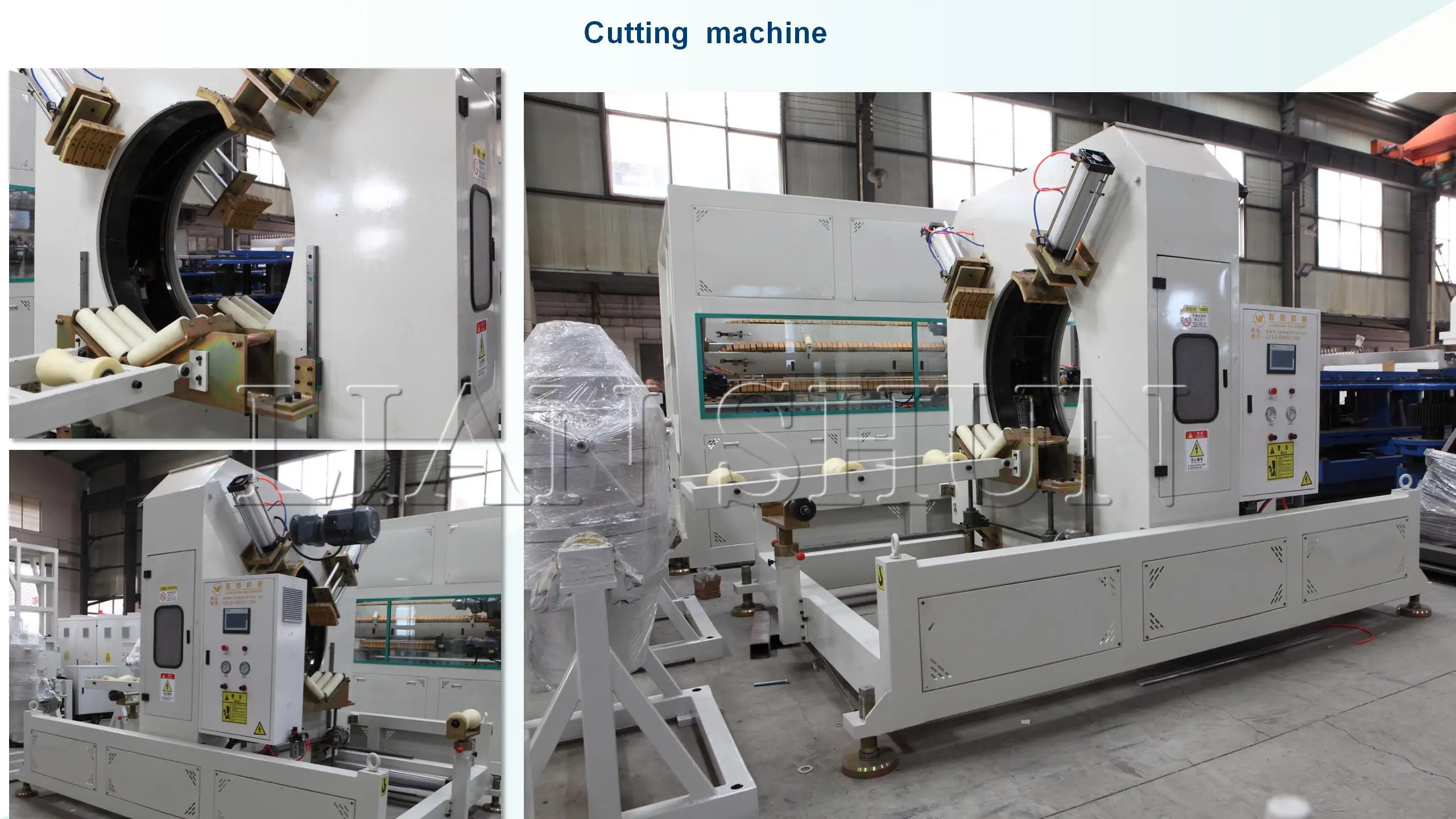

Corrugated pipe cutting machine
1) No chip cutting, hydraulic feeding mechanism, high precision, ensure accurate cutting
2) Clamping mode: pneumatic clamping;
3) The PLC control system is controlled and equipped with standard communication interface to facilitate the connection with compatible devices
2) Clamping mode: pneumatic clamping;
3) The PLC control system is controlled and equipped with standard communication interface to facilitate the connection with compatible devices
