double shaft coal mixer
US $7999-$8699

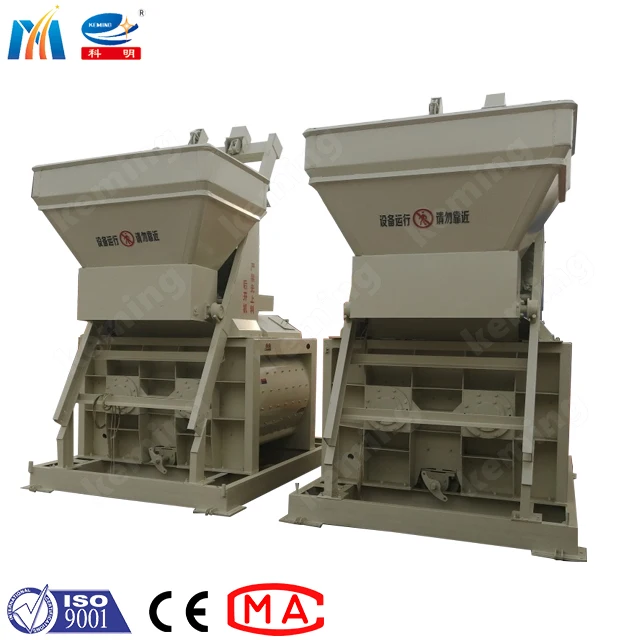

aggregate mixer planetary JS 1000 concrete mixer with two shaft mixing blade double motor mixer
- Category: >>>
- Supplier: Henan Coal Scientific Research Institute Co. Ltd.
Share on (1601002254842):
Product Overview
Description
Product Overview

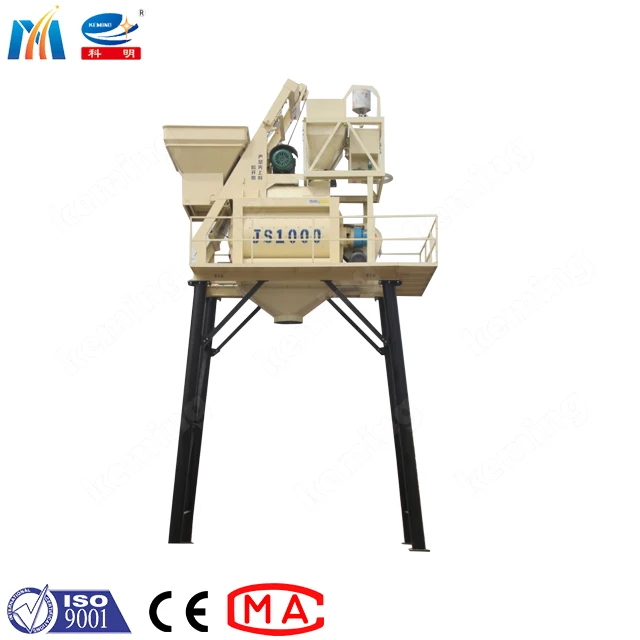

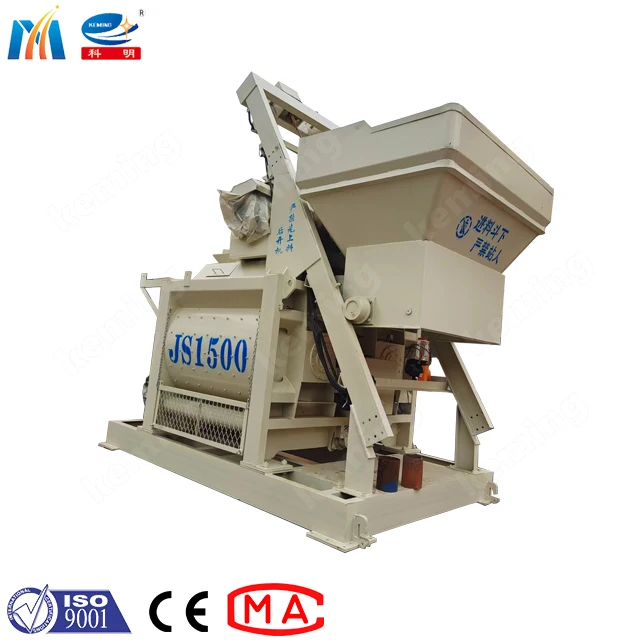

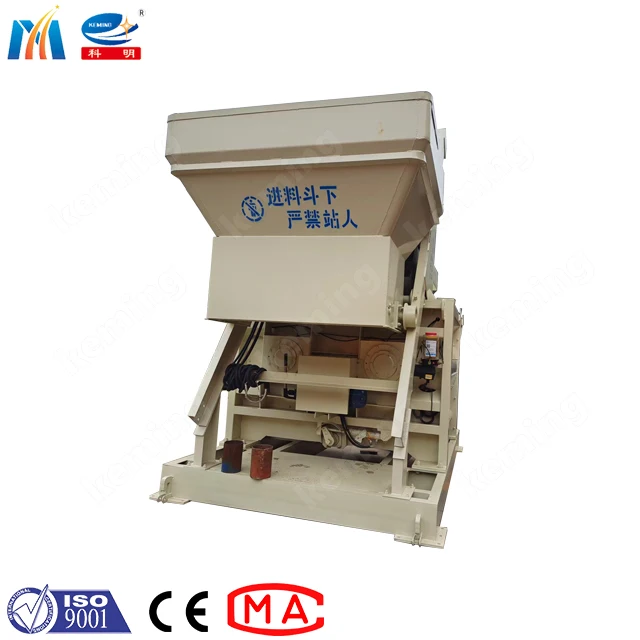

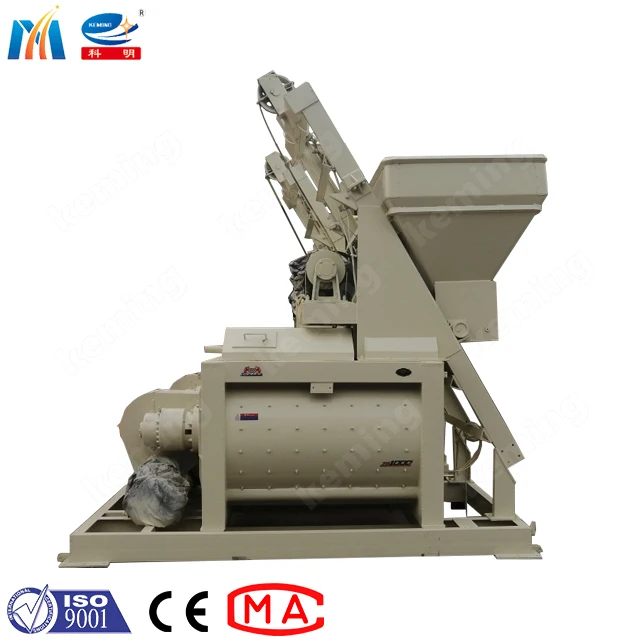

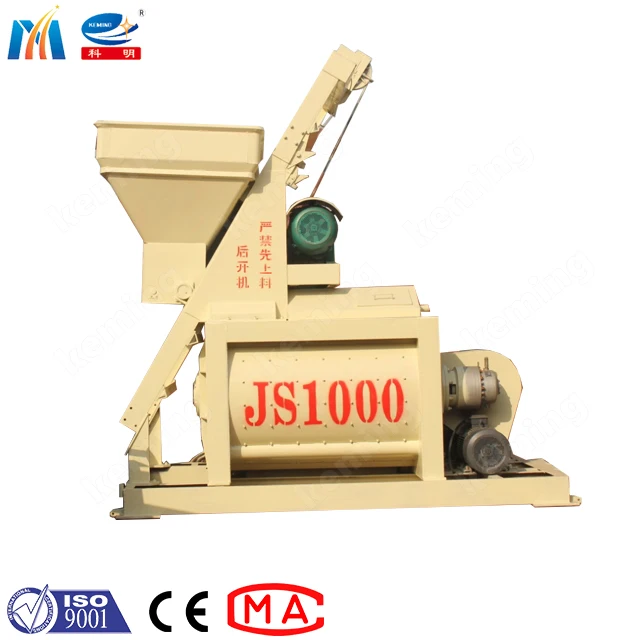

The JS series concrete mixer is a twin-shaft forced mixer, which has the dual advantages of stand-alone operation and a simple concrete mixing plant formed with the PLD series batching machine. It is suitable for all kinds of large, medium and small prefabricated component factories and industrial and civil construction projects such as roads, bridges, waterways, docks, etc. It can mix dry hard concrete, plastic concrete, fluid concrete, light aggregate concrete and various mortars. It is a high-efficiency model and is widely used.
PRODUCT SPECIFICATIONS
Model | JS500 | JS750 |
Discharging capacity (L) | 500 | 750 |
Charging capacity (L) | 800 | 1200 |
Productivity(m3/h) | <25 | <35 |
Max size of aggregate(mm) | <40/50 | <40/50 |
Mixing blade | 2x7 | 2x7姫 |
Rev of drum(r/min) | 31 | 31 |
Stirring motor(kW) | 18.5 | 30 |
Lifting motor(kW) | 5.5 | 7.5 |
Water pump motor(kW) | 1.1 | 1.5 |
Dimension LxBxH (mm) | 4461x3050x4180 | 4951x3650x6225 |
Model | JS1000 | JS1500 | JS2000 | ||
Discharging capacity (L) | 1000 | 1500 | 2000 | ||
Charging capacity (L) | 1600L | 2400L | 3200 | ||
Productivity(m3/h) | >50 | >75 | > 100 | ||
Max size of aggregate(mm) | 80/60 | 80/60 | 80/60 | ||
Mixing blade | 25.5r/min | 25.5r/min | 23r/min | ||
2x7 | 2x8 | |x9 | |||
Stirring motor(kW) | Y225S-4 | Y200L-4 | Y225S-4 | ||
37 or 18.5x2 | 30x2 | 37x2 | |||
Lifting motor(kW) | YEZ160S-4 | YEZ180L-4 | YEJ180S-4 | ||
15 | 18.5 | 22 | |||
Water pump motor(kW) | KQW65-100 1 | KQW65-100 1 | CK65-20L | ||
2.2(Up) 3(Down) | 3(Up) 4(Down) | 4(Up)5.5((Down) | |||
Hopper lifting speed(m/min) | 21.9 | 23 | 26.8 | ||
Dimension LxBxH (mm) | Transportation | 4640x2250x2250 | 5058x2250x2440 | 5860x2250x2735 | |
Working | 8765x3436x9540 | 9645x3436x9700 | 10720x3870x10726 | ||
Weight (kg) | 8700 | 11130 | 15000 | ||
Discharge height(mm) | 4000 | 4000 | 4000 | ||
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Certifications
In July 2009, the company passed the ISO9001:2008 Quality Management System Certification.
In October 2010, the company was entitled as the “Henan Provincial High-tech Enterprise”.
In 2013, the new wet shotcrete technology was reward the second prize of Henan Provincial S&T Progress Award.
In December 2014, the brand “KEMING” was awarded the “Henan Provincial Famous Trademark”.

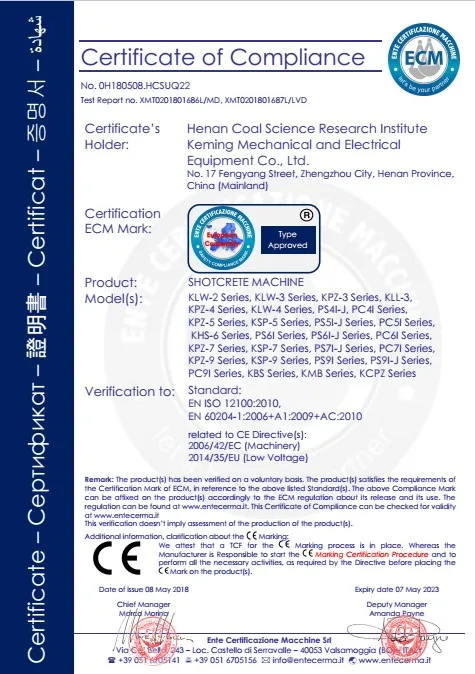

In October 2016, “KEMING” series products have been certified by CE Certification.
Why Choose Us
Henan Coal Science Research Institute Keming Mechanical and Electrical Equipment Co. , Ltd. (the former Keming Mechanical and Electrical Department of Henan Coal Scientific Research Institute) is a holding subsidiary of Henan Coal Scientific Research Institute Co., Ltd.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Our company is dedicated to the research and development, production and sales of shotcrete machine, grouting pump, and complementary products. Up to now, we have developed more than 50 kinds of products, covering spraying machines, pumps and other series of products.
Achievements: Our company has obtained more than 20 national invention patents and utility model patents, more than 10 scientific and technological achievements appraisal awards, 8 awards from China National Coal Association and Department of science and technology of Henan province, and the second prize of Henan Provincial S&T Progress Award.
Business Scope: As a comprehensive high-tech enterprise, our company is engaged in the research and production of mining machinery, engineering machinery and supporting equipment for underground engineering, as well as environment protection, chemical industry, inspection and testing of mining equipment, research and production of mechanical and electrical products, technology and finance, management and technology consulting service, and other industries.
Cooperate Culture:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Enterprise Spirit: Devotion, responsibility, innovation, excellence
Service Concept: Serve consumers and satisfy consumers
Business Philosophy: Cultivate excellent talent, invent superior product, offer perfect service
Enterprise Vision: Lead the machinery manufacturing industry, be an outstanding listed company
Corporate responsibility:
Be responsible for the society, operate lawfully, contribute to the society
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Be responsible for the shareholder, increase the assets value, stabilize the returns
Be responsible for the customer, service-oriented, integrity-based
Be responsible for the staff, make career plan, live and work in peace
Exhibition
Bauma Shanghai 2018
FAQ
1. Q:How to pay for this order?
A:Generally, TT, 30% deposit 70% before shipment； L/C at sight (high bank charge, not suggest, but acceptable);100% TT in advance (especially for small amount and spare parts etc.)
2. Q:How to place an order?
A:Both online order and offline order are acceptable.It is suggested to place online order with a Trade Assurance (Alibaba) to get full protection for this order.
3. Q:How about the package?
A:We have fumigation-free wooden case to protect the machine from damage during the long-distance delivery.
4. Q:What is the lead time?
A:1 week for sample model, 2~3 weeks for customized model. It depends for mass
production.
production.
5. Q:What should we do if there are some problems with the machine?
A:You can refer to the Operate Instruction or callour 24-hour service hotline. Also, our engineers are available to service overseas.
6. Q:Do i need technical skills to operate this machine?
A:Yes. Please read the Operation Instruction for some basic technical skills. And, we provide online and onsite technical training if necessary.
