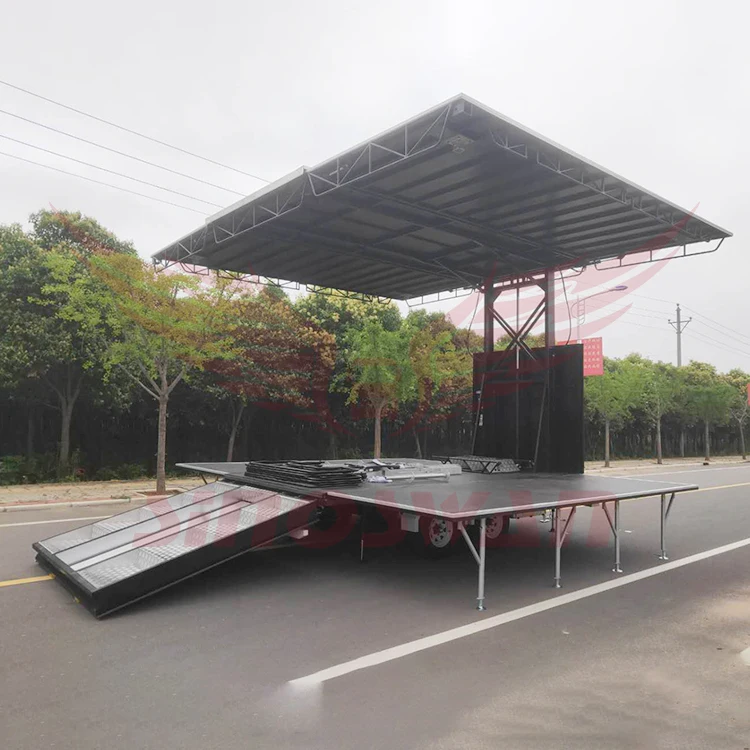

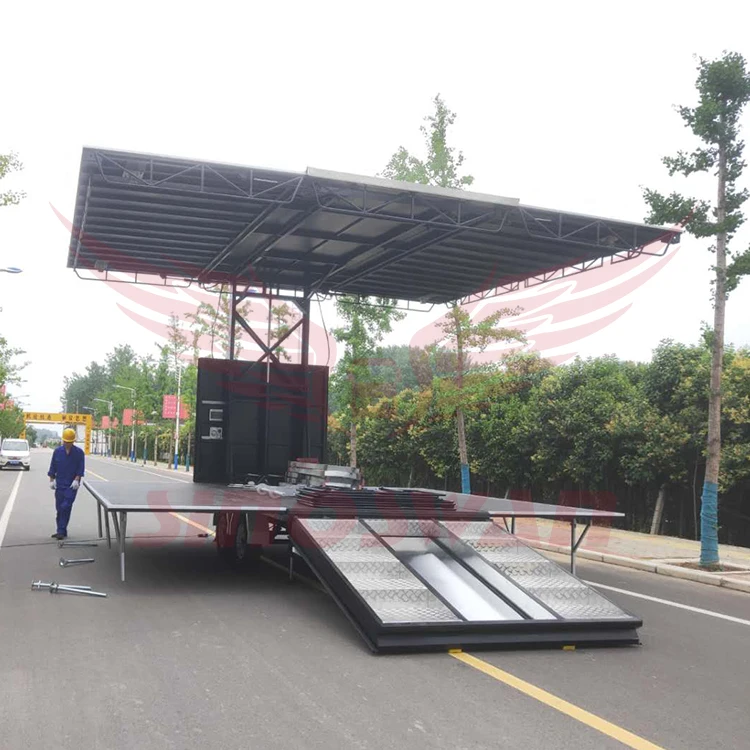

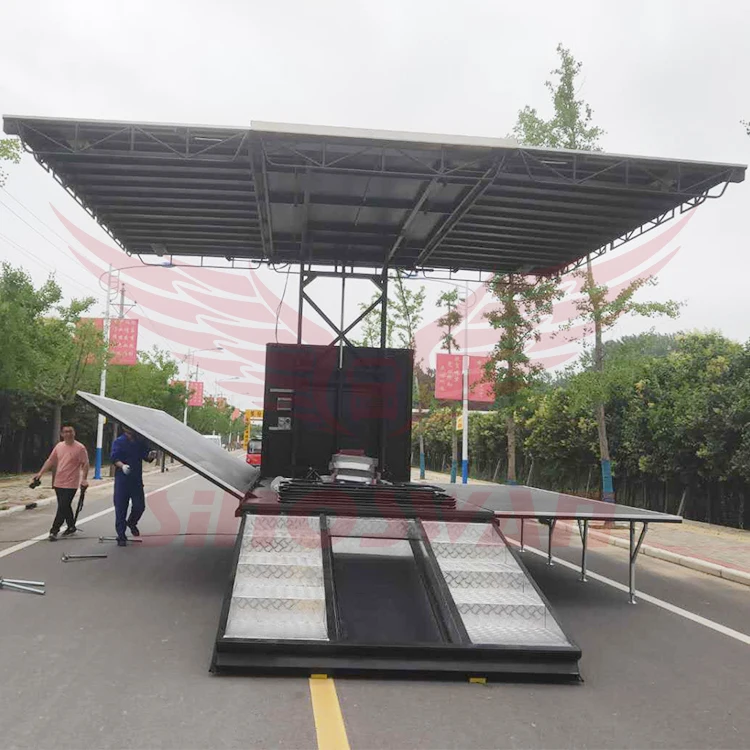

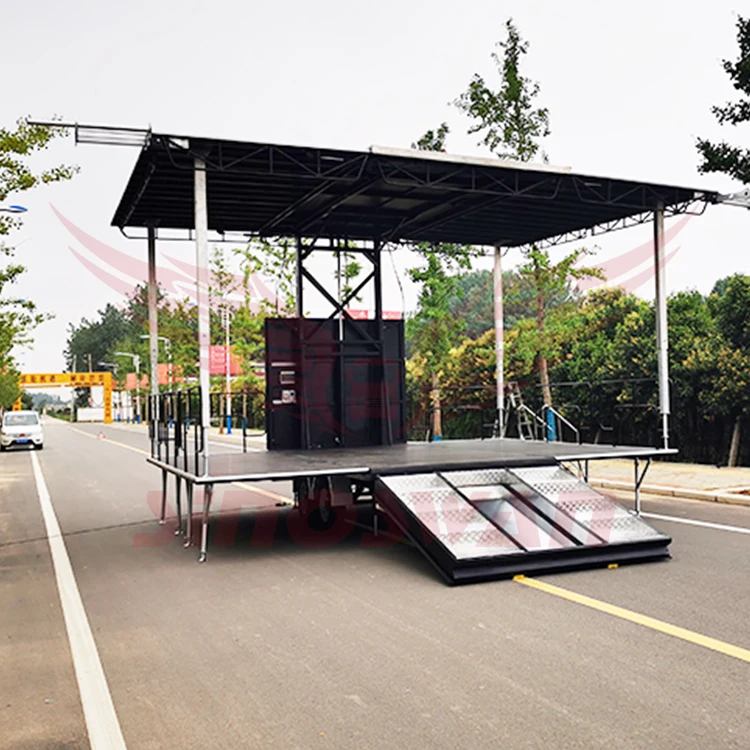

Mobile stage Trailer mobile stage trailer with roof lifting
- Category: >>>
- Supplier: Zhengzhou Sinoswan Tech Co. Ltd.
Share on (1601002295916):
Product Overview
Description
Products Description

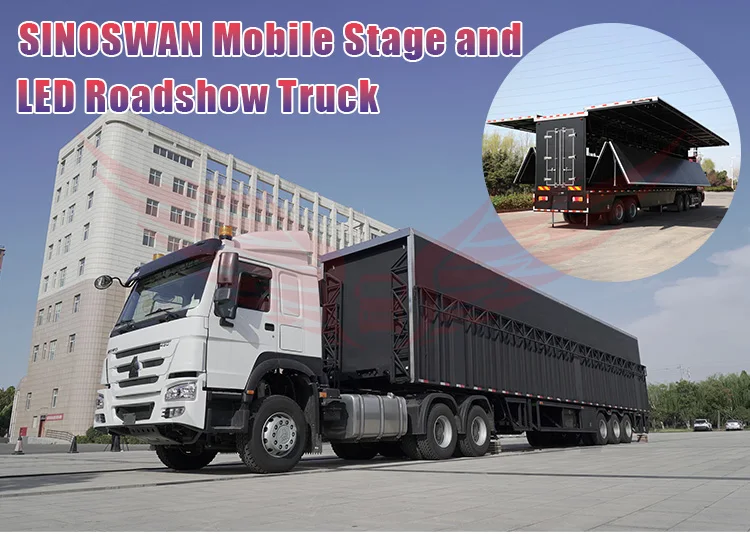

SINOSWAN Mobile stages and LED Roadshows Trucks Can be used diversity events such as Concerts events,Festivals Events,Chuch Crusade,Evangelism,Gospel events,Campigns Election activities,Political Activities,Marketing Promotion,Exhibitions,Sports Events,Mobile House etc.
ST150 | ST150PRO | ST150PRO MAX | ST150PRO LUXURY | |
Min.Set-up Time | 0:30 | 0:40 | 0:50 | 1:00 |
Manpower | 3 | 3 | 4 | 4 |
Stage Floor Bearing | 400kg/m² | 400kg/m² | 400kg/m² | 400kg/m² |
Roof Load Bearing | 2000KG | 3000KG | 3000KG | 3000KG |
Floor Area | 14m×8.73m 45'93"×28'64" | 14m×8.7m | 14m×12.16m 45'93"×39'89" | 14m×12.16m 45'93"×39'89" |
45'93"×28'6" | ||||
Lifting Height | 4.6m | 6m | 6m | 9m |
15'1" | 19'8" | 19'8" | 29'6" | |
Total Height | 6.2m | 7.6m | 7.6m | 11m |
20'34" | 24'93" | 24'93" | 36'09" | |
Audience Covered | 15000-20000P | 20000-30000P | 30000-50000P | 50000-60000P |
SEMI TRAILER (STAGE BUILD ON TRAILER NEED TO BE TOWED BY TRACTOR TRUCK HEAD) | ||||
Length | 15000mm | 49 ' 21'' | ||
Width | 2500mm | 8 ' 2'' | ||
Height | 4100mm | 13 ' 45'' | ||
Storage Space | 40m³ | 1,412ft³ | ||
Weight | 17500kg | 7790lb | ||
STAGE FLOOR | ||||
Length and Depth | 14000 x 8730mm | 45 ' 93'' x 28 ' 64'' | ||
Length and Depth with Extension Platforms | 18000 x 12000mm | 59 ' 05'' x 39' 37'' | ||
Height from Ground | 1500mm | 4 ' 92 '' | ||
Design Live Load | 400kg/m² | 882lb/ft² | ||
Type of Surface | Pro Stage Plywood | |||
ROOF | ||||
Length and Depth | 15000 x 7485mm | 49' 21'' x 24 ' 55'' | ||
Height from Roof to Stage Floor/ Ground | 4700mm/6200mm | 15 ' 41 ''/20'34'' | ||
Maximum Height with Banner | 7700mm | 25 ' 26'' | ||
Type of Surface | Fiberglass bonded on steel | |||
Lifting Capacity | 3T | 6610lb | ||
Load Bearing Capacity | ||||
Rigging Points | 500Kg | 1102lb | ||
Rigging Bars | 700Kg | 1543lb | ||
Trusses-Central Roof(2), Downstage & Upstage Front Overhang Extensions-4'9"(1.4 m) | 2000Kg | 4409lb | ||
Front Overhang Extensions-8'(2.4 m) | 350Kg | 772lb | ||
Line Array Rigging Beams | 350Kg | 772lb | ||
805Kg | 1777lb | |||

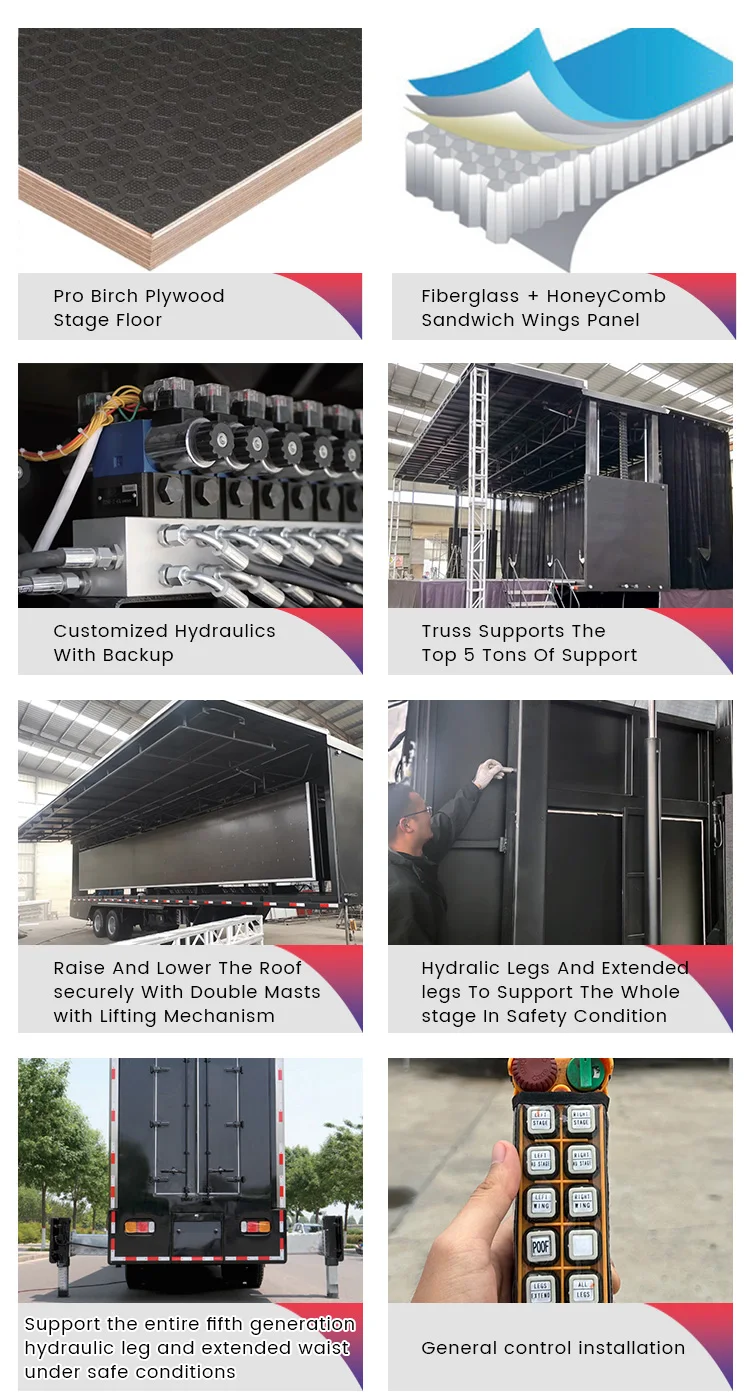

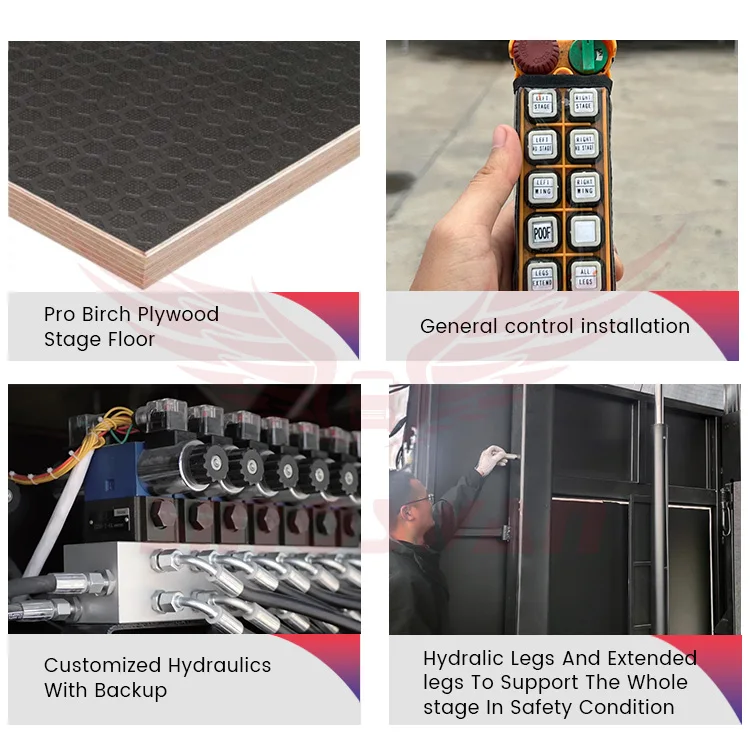

Product advantages

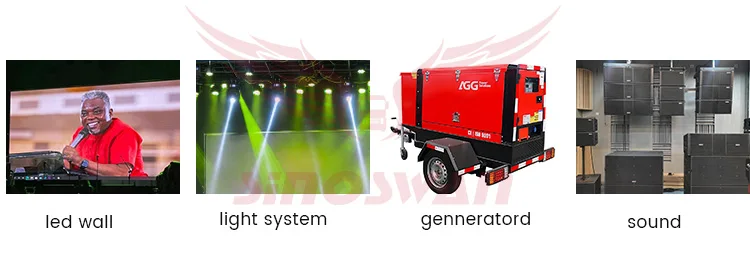

We provide a one-stop shopping platform that supports various accessories, including lighting, sound systems, engine packs, LED walls, and more.

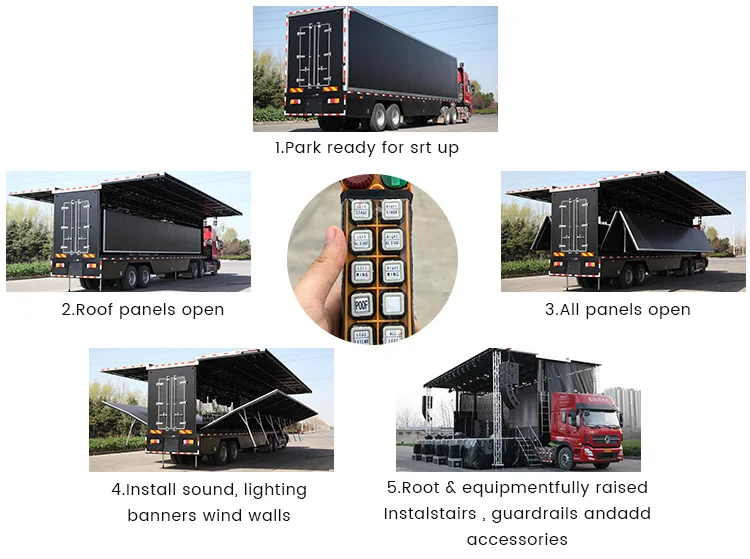

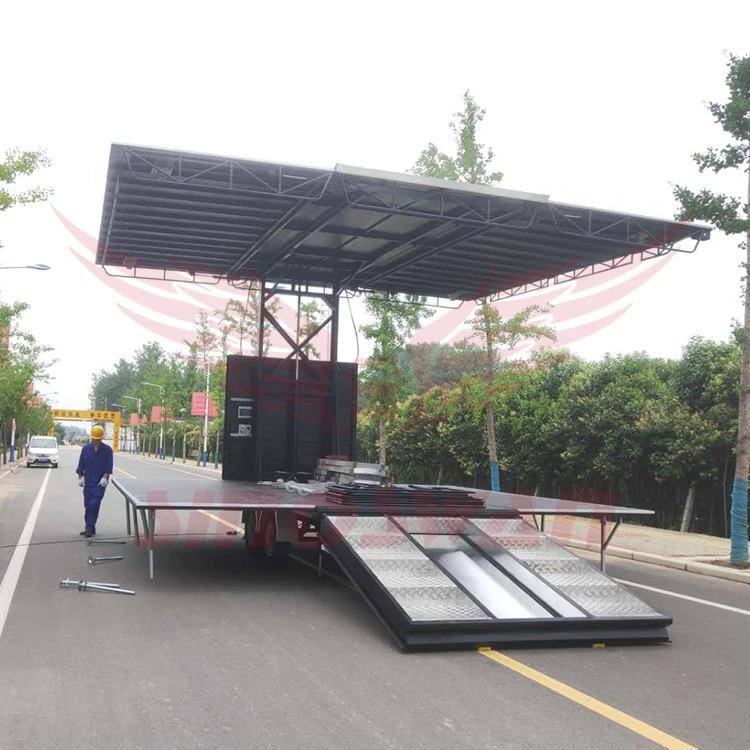

Operating Steps

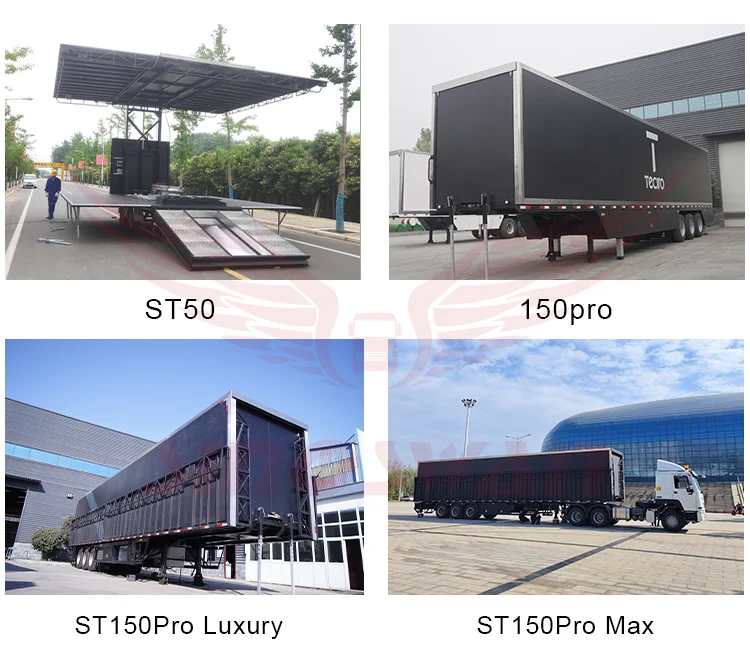

More model choices
We have multiple models for you to choose from, and you can choose the product that suits your needs.
Why Choose Us
Our products are exported to various parts of the world and have received unanimous praise.

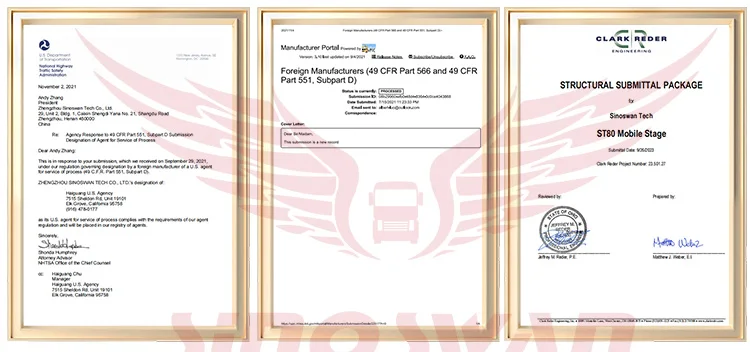

Certificate
Company Profile
FAQ
1. Can you customize?
Yes, we have a professional design team and technical support.
2. Can you tell me how to transport the moving stage to me?
Option 1: bulk carrier
Option 2: Frame boat
Option 3: roll-on-roll-off
3.What is the freight to our country?
Please contact us and inform your port, then we will inspect for you.
4.What is your lead time?
Our production cycle is about 30-45 days.
5. Terms of payment50% via T/T as deposit: balance needs to be paid before delivery from the factory. Local and medium bankcharges are for buver'saccount
Yes, we have a professional design team and technical support.
2. Can you tell me how to transport the moving stage to me?
Option 1: bulk carrier
Option 2: Frame boat
Option 3: roll-on-roll-off
3.What is the freight to our country?
Please contact us and inform your port, then we will inspect for you.
4.What is your lead time?
Our production cycle is about 30-45 days.
5. Terms of payment50% via T/T as deposit: balance needs to be paid before delivery from the factory. Local and medium bankcharges are for buver'saccount
