Waterproof carport solar mounting system pv panell installation brackets solar waterproof carport mounting system
- Category: >>>
- Supplier: Sunforson Power (Xiamen) Co. Ltd.
Share on (1601002330706):
Product Overview
Description
SFS-CP-05 SunRack Carport
Mounting System

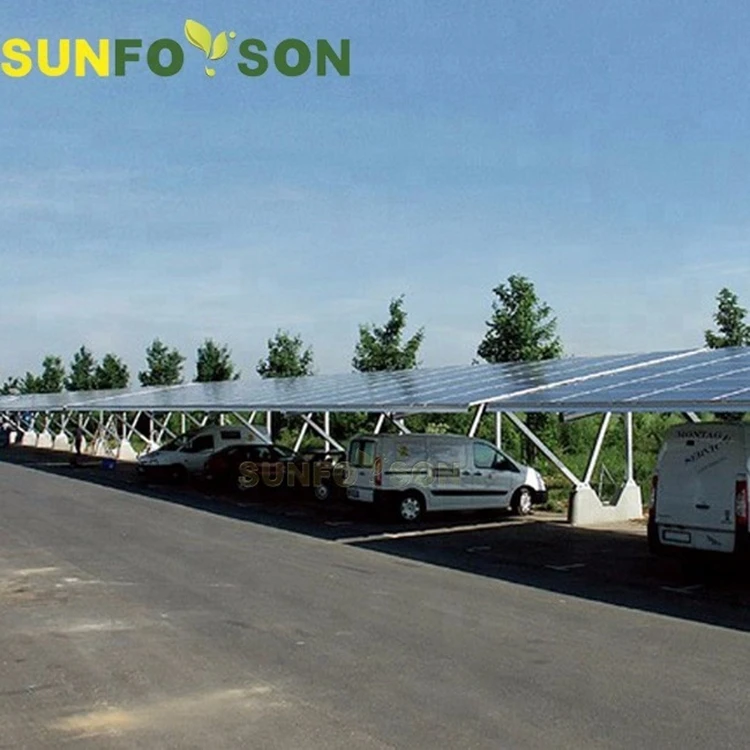

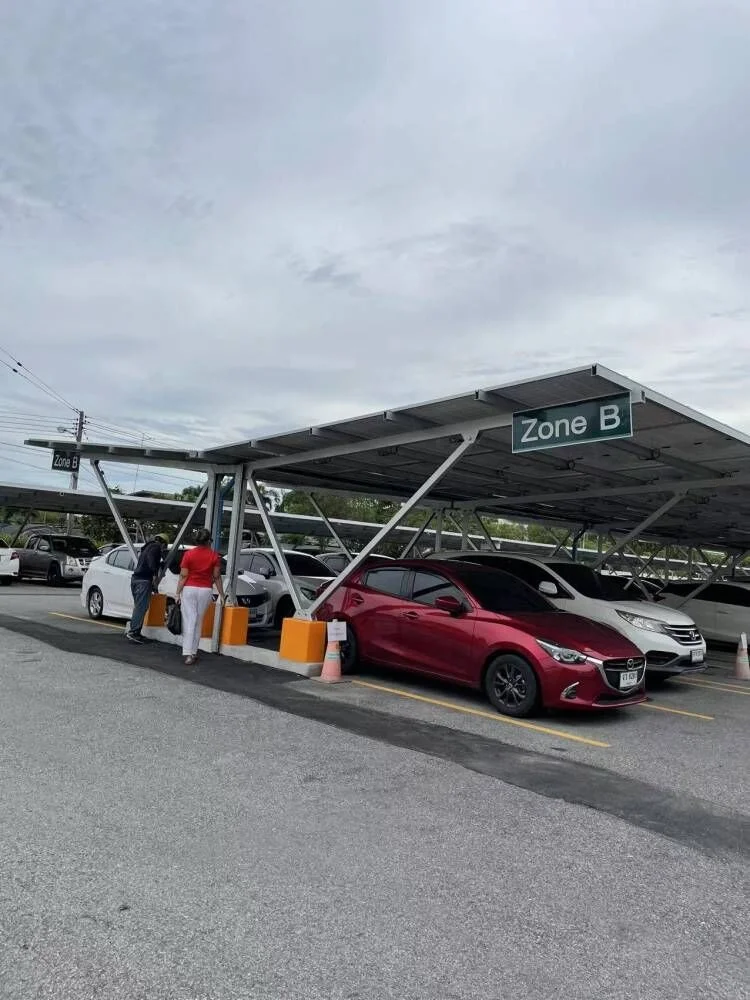

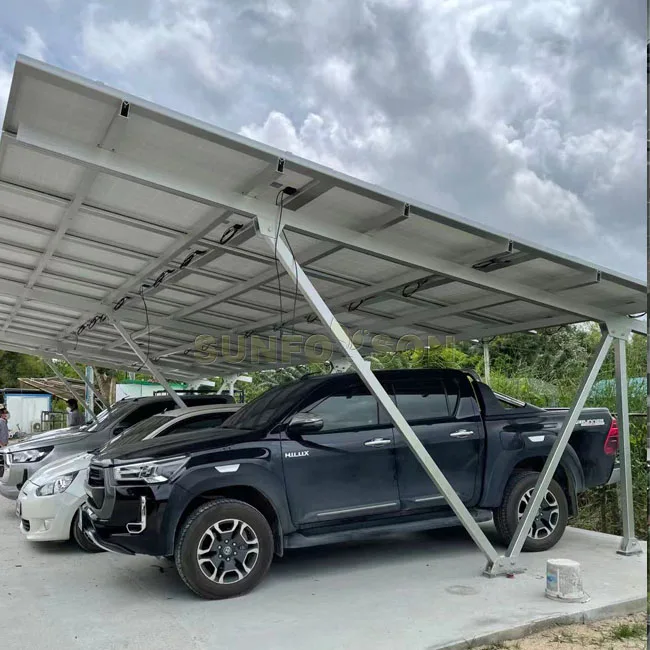

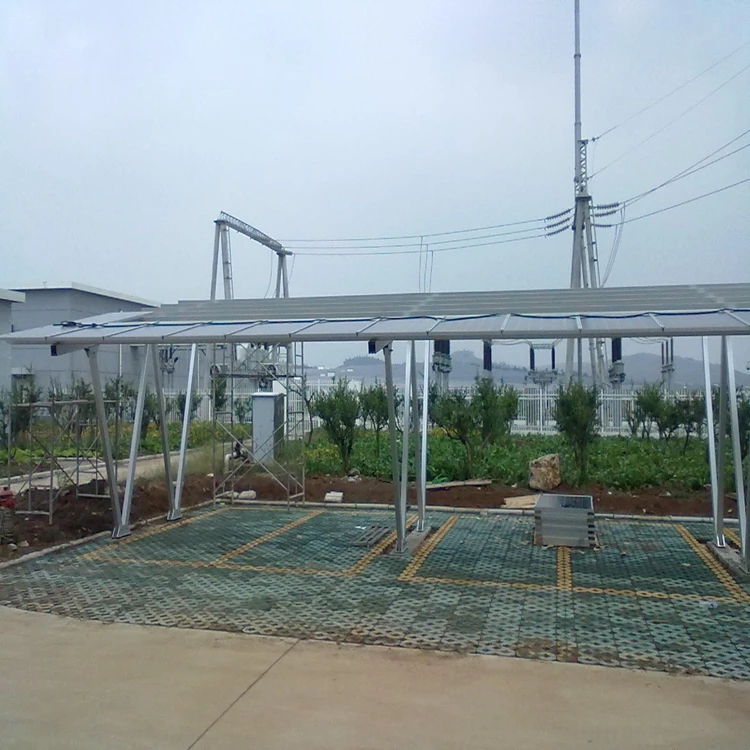

Sunforson's SFS-CP-05 single row carport mounting adopts triangle supporting structure technology, which is very strong and secure. With full aluminum alloy and SS 304 bolts&nuts material,it is with concise and beautiful appearance.It is quite easy and fast installation without any welding in the site.
Mount Type | Solar Single Row Carport Mounting System |
Installation Site | Open ground |
Applicable Module | framed or frameless panel |
Module Orientation | Horizontal or vertical |
Wind load | 130mph(60m/s) |
Snow load | 30psf(1.4KN/m2) |
Material | aluminum alloy and stainless steel 304 |
Warranty | 10 years |
Products Strengths of Sunforson technology
1. Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard tool kit. The Solar Roof system is aided by a very high level of preassembly. The G-Screw module and unique rail extension method allow greatly reduce installation time.
2. Great Flexibility: With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for application on almost every roof cladding available with its unique rail and excellent compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.
3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
1. Easy Installation: The innovative Sunforson solar rail and G-Screw modules have greatly simplified the installation of PV modules. The System can be installed with a single Hexagon Key and standard tool kit. The Solar Roof system is aided by a very high level of preassembly. The G-Screw module and unique rail extension method allow greatly reduce installation time.
2. Great Flexibility: With the Sunforson Solar Roof, framed photovoltaic modules can be easily mounted on pitched roofs. The Solar Roof system has mounting accessories designed for application on almost every roof cladding available with its unique rail and excellent compatibility. Designed as a universal racking system, framed modules from all the popular manufacturers can be used.
3. High Accuracy: Without the need for onsite cutting, the use of our unique rail extending allows the system to be installed with millimeter accuracy.
4. Excellent Adaptability: The height adjustment of the rails from Sunforson allows a level PV array to be established, no matter how uneven the roof is. Engineered to High Standard Sunforson Solar Roof is made to the highest standard, safe and strong structure designed to Comply with BS 6399-2-1997
5. Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.
5. Maximum Lifespan: All components are made of good quality extruded aluminum and stainless steel. The high corrosion resistance guarantees the maximum possible lifespan and is also completely recyclable.
6. Guaranteed Durability: Sunforson provides a guarantee of 10 years on the durability of all components used.

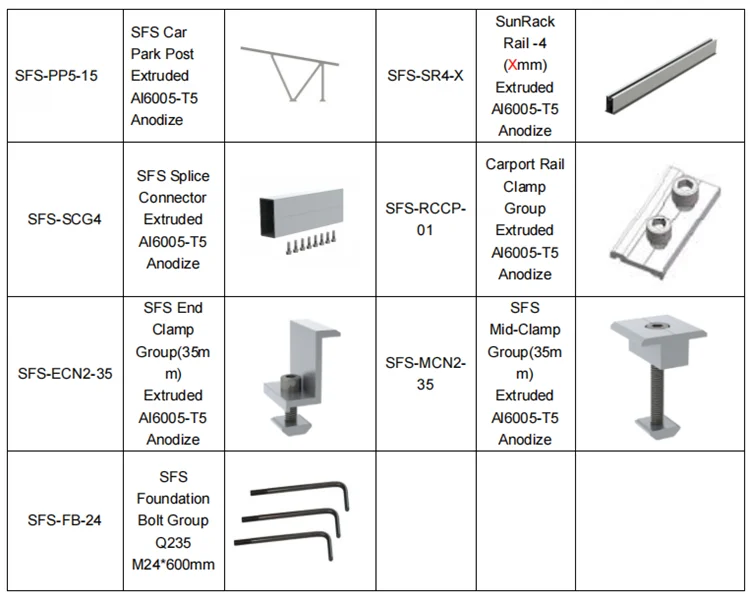

Overview of system components
