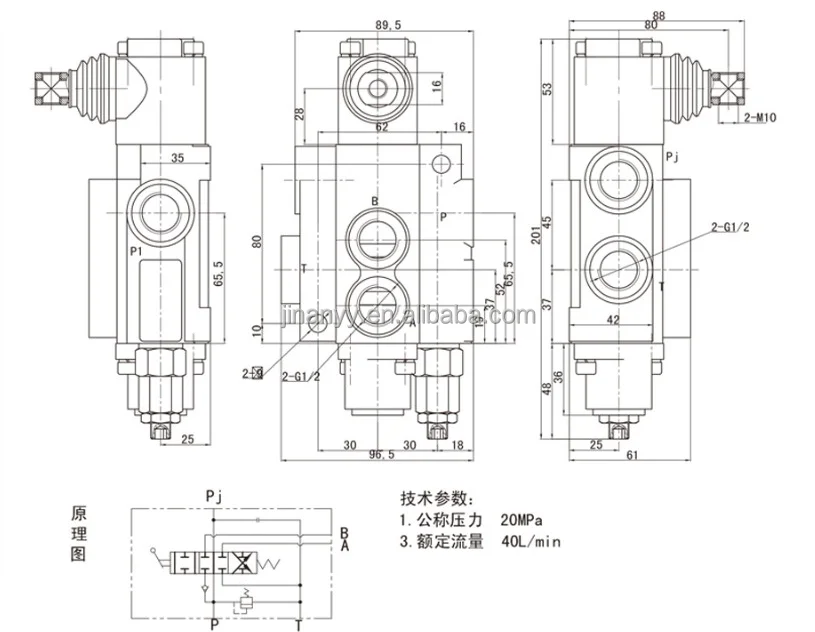

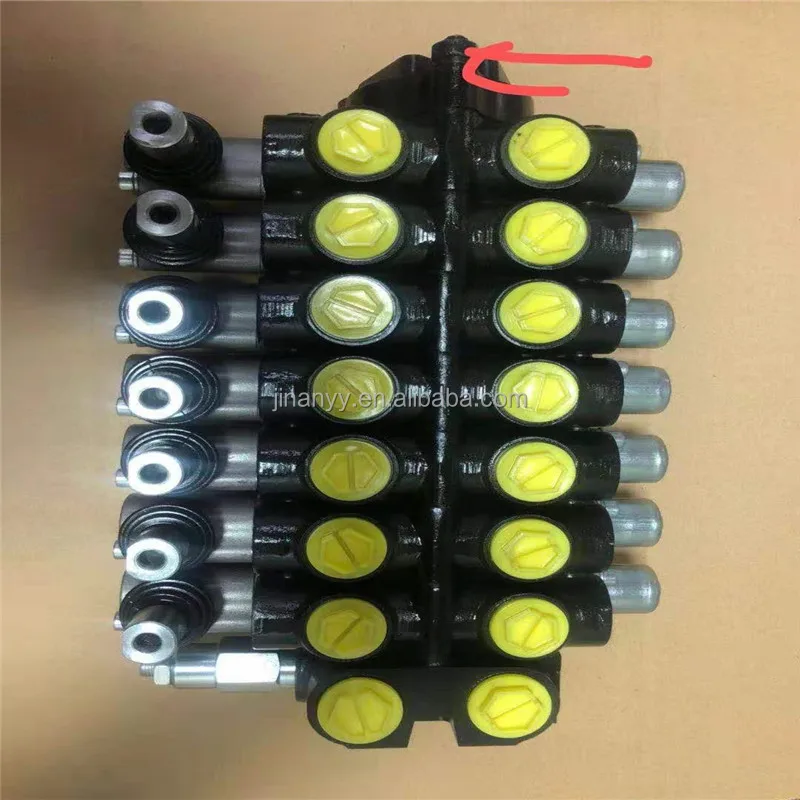

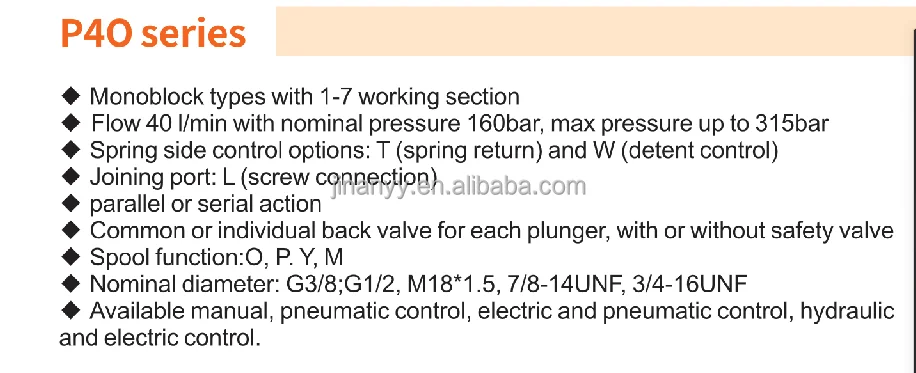

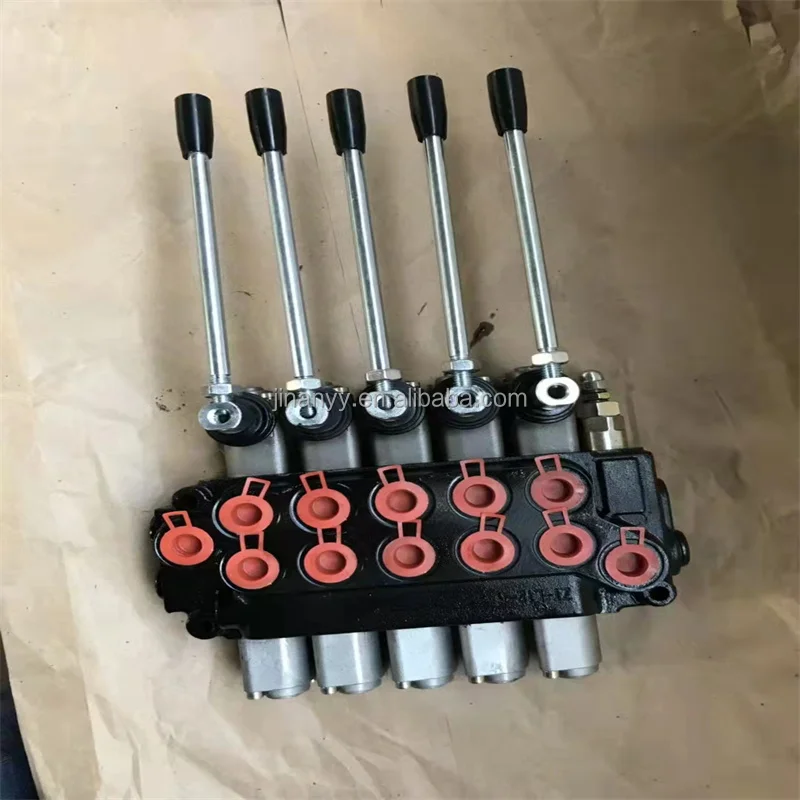

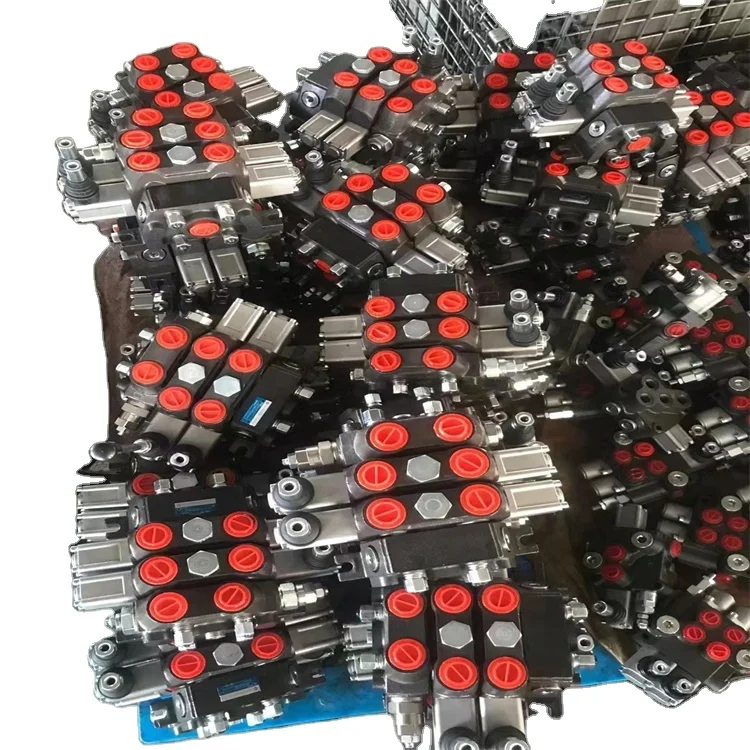

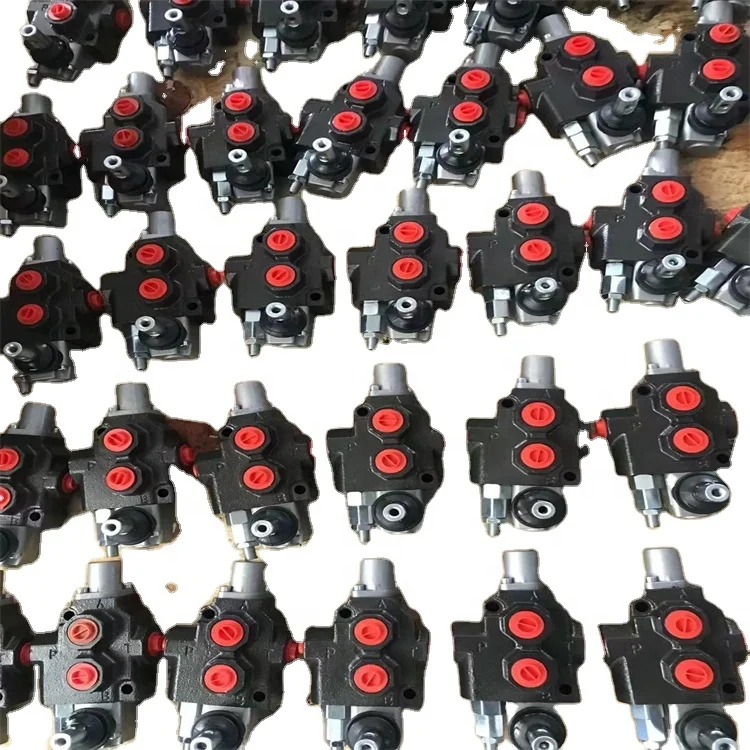

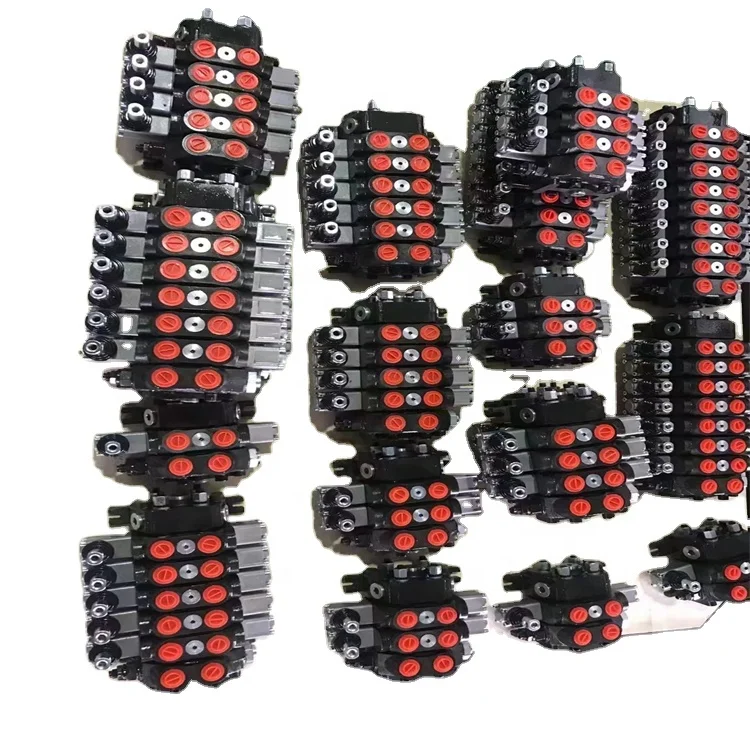

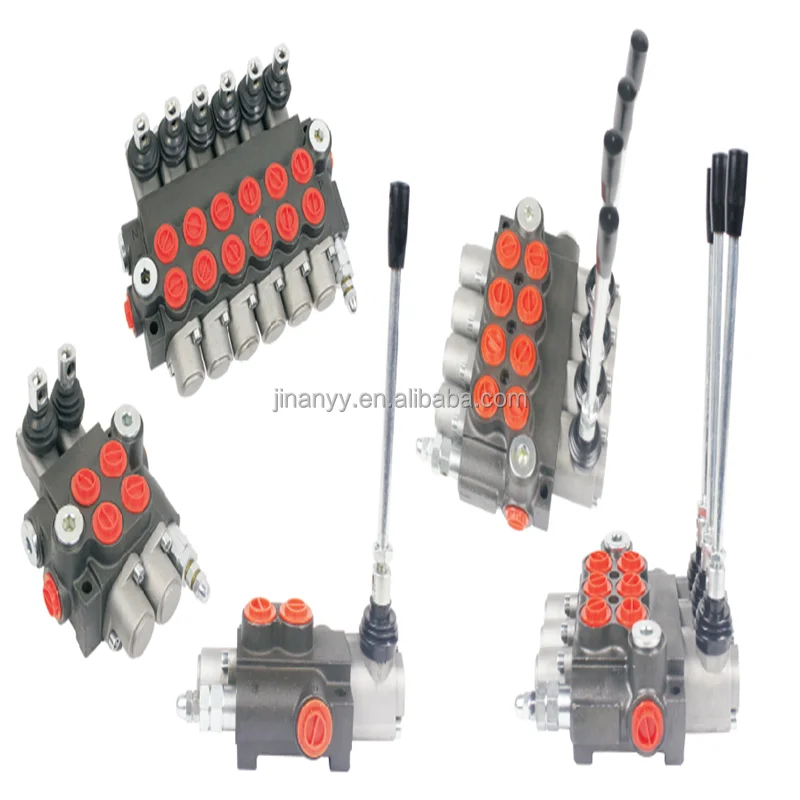

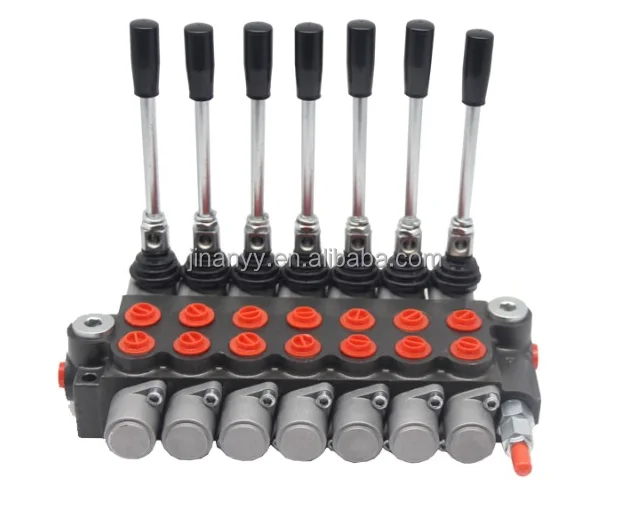

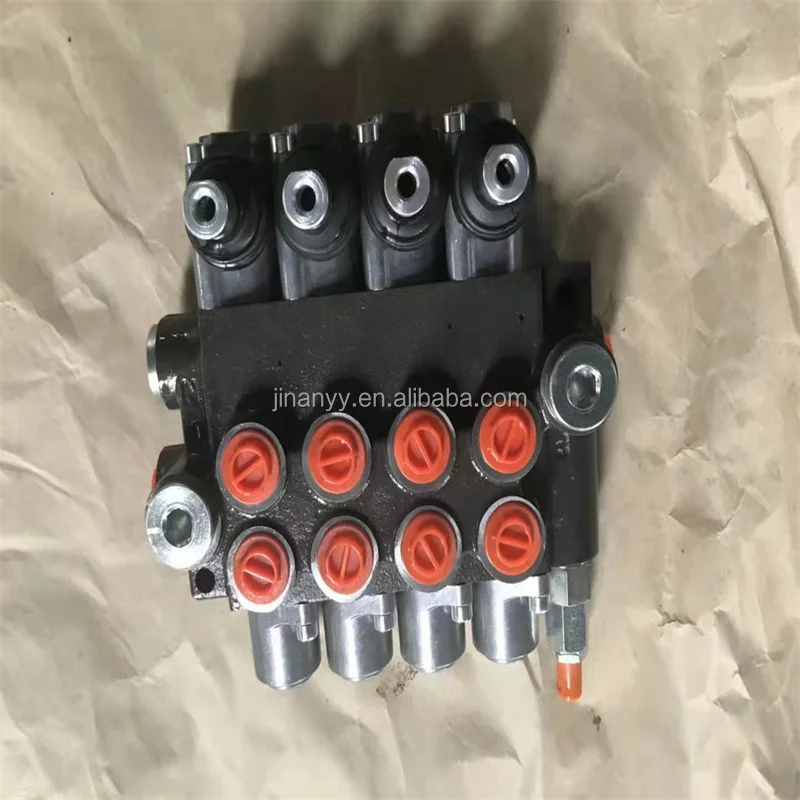

P40 Series 1 7 Spool Control Valve Hydraulic Directional Valve, 2P40 3P40 Multi Hydraulic Valve

1. The p40 series multiple directional valves are mainly composed of oil inlet valves, multiple reversing valves and return valves

2. The oil inlet and return port of the valve are arranged on the oil inlet valve body

3. On the inlet valve, safety valve is installed between the oil inlet and return oil

4. The DCV series valve features high working pressure, compact structure, good dynamic and static characteristics for good safety and overload valve and good versatility

5. It is widely used in hydraulic system of construction machinery, lifting and transportation machinery, environmental sanitation machinery and other machinery

6. To prevent pressure oil from flowing back from the working chamber to the P cavity, one-way valves are installed on each commutating valve body

7. When the hydraulic system needs to draw the pressure oil from the multi-channel valve, the one-way valve can be detachable to install the outer lead joint

8. According to the user's request,an overload valve and an oil filling valve can be installed between each working oil inlet and the oil return port of each reversing valve body

9. The DCV series valve has spool function O, Y, A, Q, M, K, including series, parallel slide valve and valve body

10. It can form parallel, series or series parallel compound oil circuit

11. There are two kinds of slide valve control: manual control and hydraulic control

12. The location of the spool valve includes spring alignment, steel ball positioning and steel ball positioning and pneumatic reset.

13. The DCV multi way valve also has a bridge oil passage, which can be supplied by a hydraulic pump to a plurality of multiway valves. The inlet valve is generally located on the right side of the operation direction, but it can also be set to the left side of the valve according to the user requirements

14. Very competitive price

15. 1 year of warranty

16. Short delivery time

Widely used in the hydraulic system of engineering machinery, forklift trucks, transport machinery, sanitation machinery, small loaders ...

Electromagnet operated reversing slide valve

ZL15 series pneumatic control multi-way directional valve is improved on the base of ZL15 series multi-way directional valve. Mainly change the operation mechanism of manual directional valve, add pneumatic control to realize remote control. Control mechanism of directional valve blocks can be assembled with common manual valve. Wildly used in the hydraulic system of engineering machinery, such as agricultural side dump self-discharge vehicle and environmental trucks.

1. ISO standard, totally interchangeable with original
2. Wet electromagnetic design for moving smoothly without impact,noise levels low.
3. Has an extensive wide range of solenoid operated directional valves and solenoid controlled pilot operated directional valves to comply with the diversification of the user's requirements.
4. Highlight in this valve series is the newly developed DC solenoid valve
5. Since surge voltage can be controlled to a very low figure, electronic device such as a computer
can be used, without any interference regardless of the surge voltage from the solenoid
6. Have no spark between contacts, the life of relay becomes longer
7. Time lag on de-energization of solenoid valve is reduced considerably, which enables the cycle of machines to the faster.
8.The instructions for moving the light direction and clearer.


Wet DC or AC solenoid

The coil can be rotated 90°

Can replace the coil without draining oil

Centralized or single electrical connection selection

Optional manual operation

The YF type relief valve is a pilot type relief valve and is a pressure control valve. Its role is mainly to prevent system overload, protect the safety of the pump and oil system and keep the pressure of the oil system constant. In the direct working oil circuit system, the oil pressure overload can be protected by the oil spill of the overflow valve. In the inlet throttle control system, the relief valve mainly acts as an oil pressure regulator, and maintains the oil pressure constant through frequent overflow.
The YF type remote pressure regulating valve is a small direct-acting relief valve that can be connected to the remote control port of the relief valve to achieve remote pressure regulation within the pressure relief range of the main relief valve.
When the remote control port of the relief valve is connected to the fuel tank by the reversing valve, the oil passage can be unloaded and used as an unloading valve. The relief valve remote control port is connected with a directional valve and several remote pressure regulating valves to achieve multi-level control of high and low pressure. The pressure adjustment range of the relief valve can be changed by replacing the adjustment spring of the remote pressure regulator.

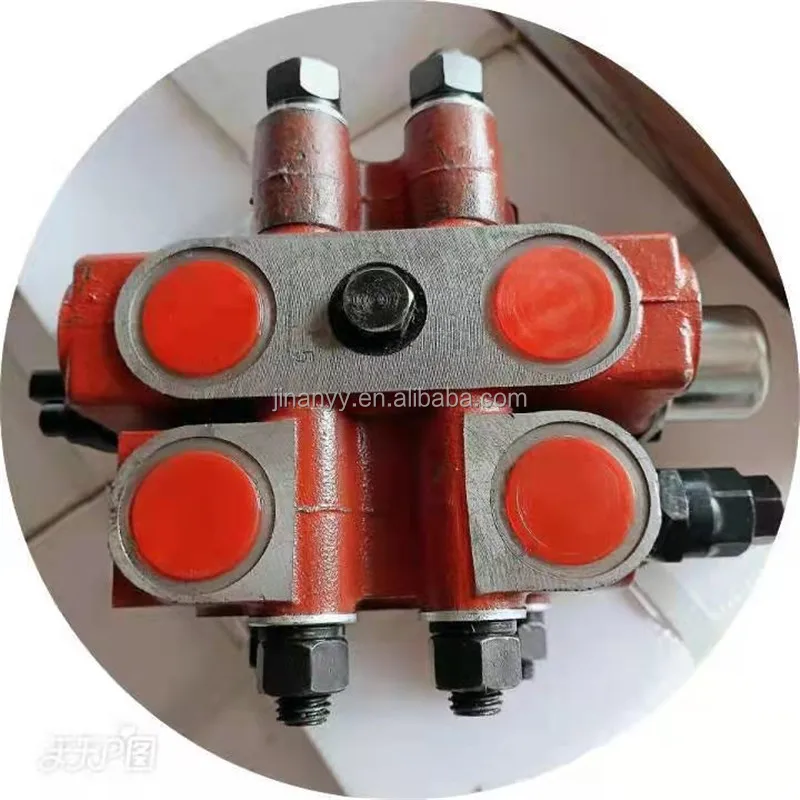

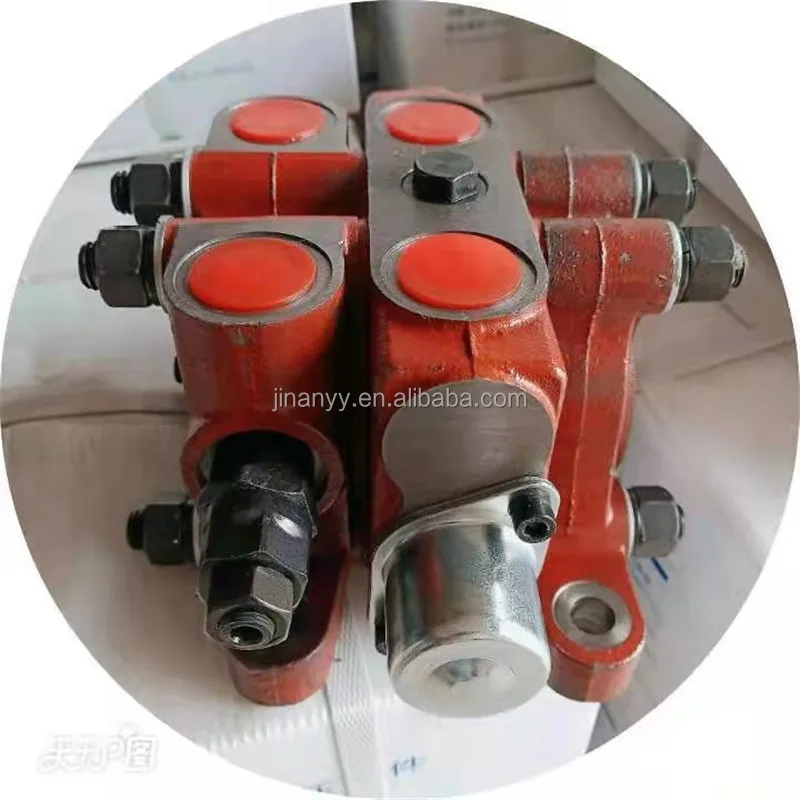

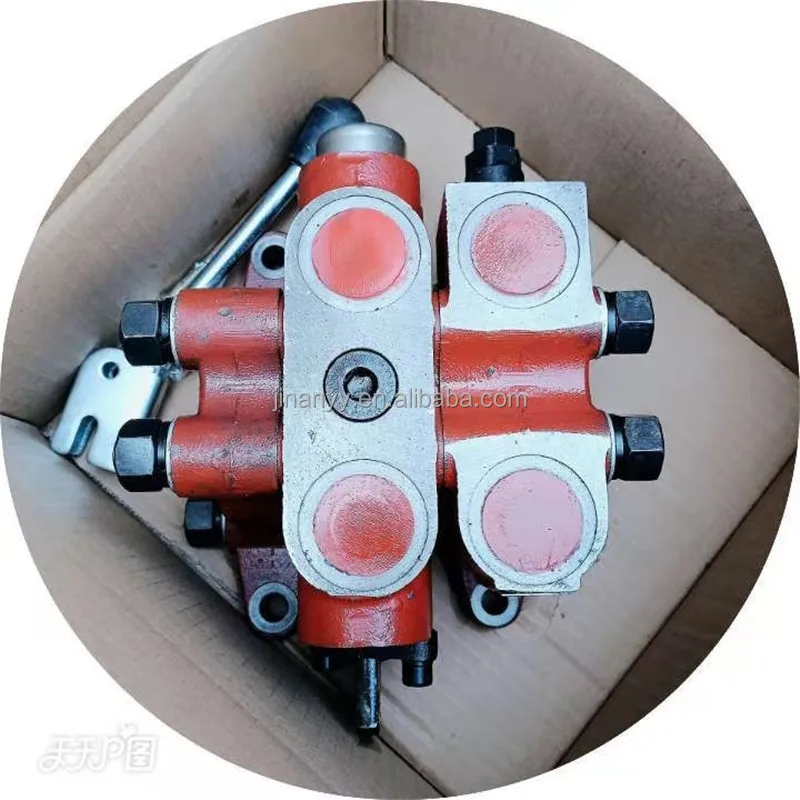

DF-50 multi-way directional valve is a parallel type manual directional valve with characters of highly integrated structure, reliable running, less energy loss and easy to maintain. Can realize centralized control of multiple actuators and assemble functional valve blocks according to different operation demand. Every piece of this valve is with a check valve. Can install overload valve, make up valve and single-double function adjusting valve between any work chamber and return chamber according to customer’s demand. This valve adopts parallel oil circuit, designed with high pressure output port connecting with other hydraulic elements to supply power. DF-50 series multi-way directional valve is widely used in tractors and other mobile machines.

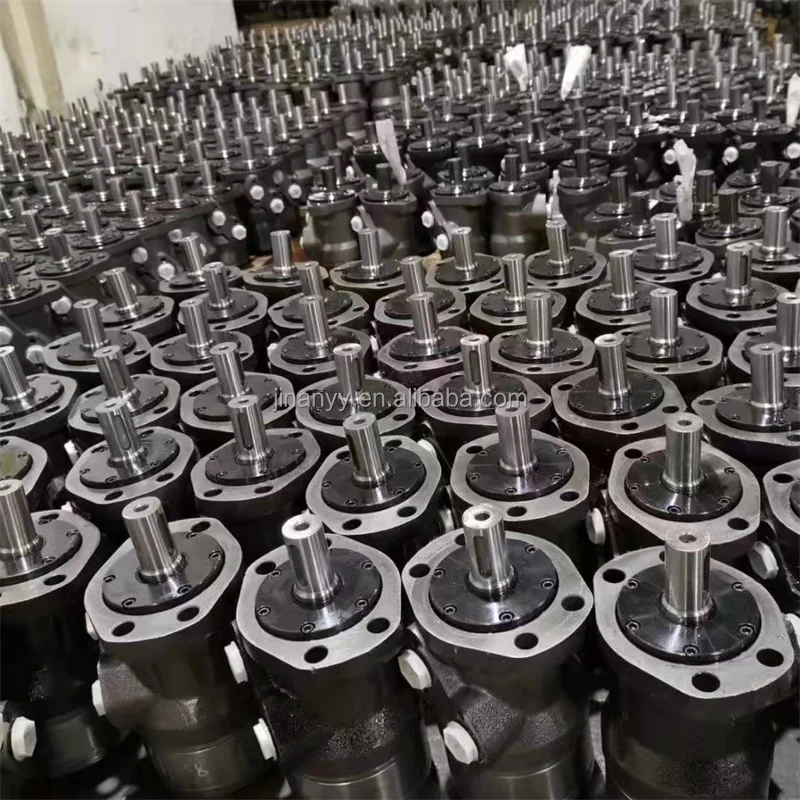

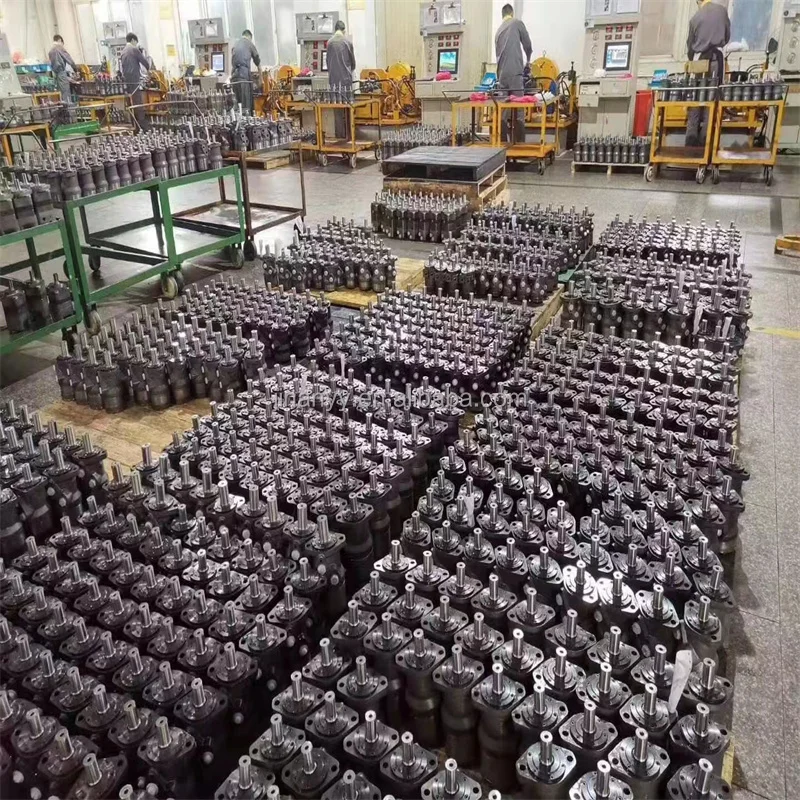

The company mainly engaged in: gear pump, multi-way valve, hydraulic steering gear, hydraulic cycloid motor, various models of power take off, hydraulic cylinders, high pressure tubing, seals, hydraulic parts.
Major supporting: large, medium and small dump trucks, loaders, cranes, excavators, forklifts, corn harvesters, transplanters, combine harvesters and other construction machinery in the field of hydraulic systems.
Specifically for the export business development supporting the front after the dig, wood splitter, lawn mower, rotary tiller, broken wood machine, mini hydraulic loader, cranes and a full set of hydraulic system.

Product Name YF type relief valve
model YF-L10H1/2/3/4
Path (mm) 10
Connection method  Threaded connection
control method  Hydraulic control
Flow direction  Two way
Nominal pressure (MPa)  31.5
Rated flow rate (L/min  40
Warranty   One year
Weight (Kg)    2.4
Material    cast iron
Customized   Accept customization
Place of origin   Shandong
standard   ISO9001

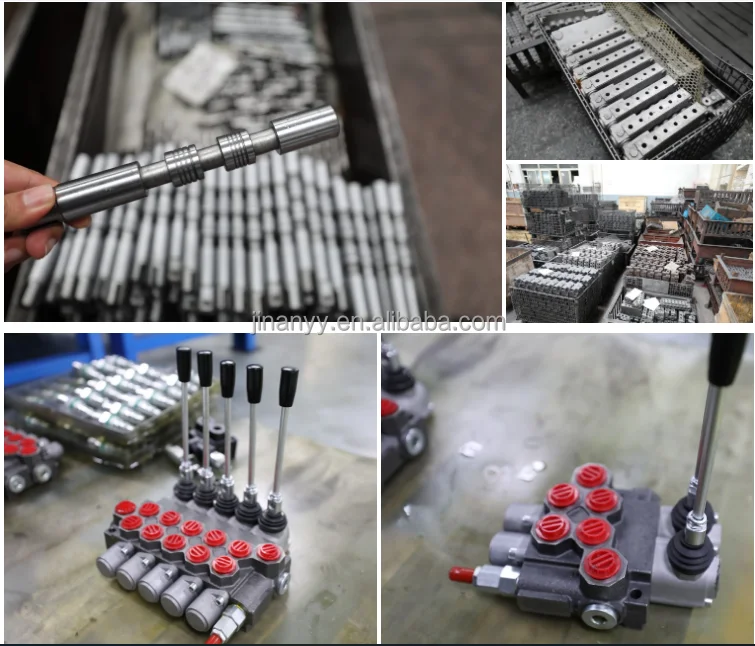

About direction control valve material:
1,The materials hydraulic valve body is cast iron.

2,The material of the valve core is carbon-seeable steel with a hard chrome coating 30.

3,Leverage base is Aluminum
