Brushless 3000w electric dc big motor iron core linear motor foc esc 50 kg thusth 4 axis 6 axis large drone motor with propeller
- Category: >>>
- Supplier: Shenzhen Hobbywing Technology Co. Ltd.
Share on (1601002355959):
Product Overview
Description
Pls contact us for any requirement~
Note:
We are the headoffice & manufacturer of Hobbywing
We also can provide OEM and ODM bussiness according to your detail requirements.
18 Years+ Focus on the R&D of brushless power system for drones.
100+ Patents Certificates
36600㎡ Floor Area, Strong mass production capacity
a. Source manufacturer
b. Lower price, Long-term service protection
c. Worldwide brand influence, Free market ads promotion
d. Reliable reputation and profound technical strength
We also can provide OEM and ODM bussiness according to your detail requirements.
Shenzhen Hobbywing Technology Co., Ltd.
100+ Patents Certificates
36600㎡ Floor Area, Strong mass production capacity
Why Choose US ?
The reasons are as follows:a. Source manufacturer
b. Lower price, Long-term service protection
c. Worldwide brand influence, Free market ads promotion
d. Reliable reputation and profound technical strength
Products Description
Specification
Product Name | X11PLUS |
Brand | Hobbywing |
Maximum Thrust | 37kg/Axis (44V, Sea Level) |
Recommended Takeoff Weight | 15-18kg/Axis (44V, Sea Level) |
Combo Weight | 2490g |
Waterproof Rating | IPX6 |
Operating Temperature | 0~50℃ |
Motor | ||
KV Rating | 85rpm/V | |
Stator Size | 111*18mm | |
Powertrain Arm Tube Outer Diameter | 30mm | |
Bearing | Bearings imported from Japan | |
ESC | ||
Recommended LiPo Battery | 12-14S(LiPo) | |
PWM Input Signal Level | 3.3V/5V | |
Throttle Signal Frequency | 50-500Hz | |
Operating Pulse Width | 1050-1950-us(Fixed or cannot be Programmed) | |
Max. Input Voltage | 61V | |
Max. Input Current (Short duration) | 150A(w/ Good Heat Dissipation) | |
BEC | No | |
Propeller | ||
Diameter×Pitch | 43*14 | |
Company Profile
R&D Center in Shenzhen
Hobbywing has 18 years+ of R&D experience and more than 100 R&D personnel.
At present, we have approved 150+ certificates (including 7 Invention Patents, 52 Utility Models, 28 Appearance Patents and 33 Software Works.)
Manufacturing Base in Huizhou
Hobbywing has more than 1,000 employees and 160+ production equipment.
Production Strength
Raw Material Processing

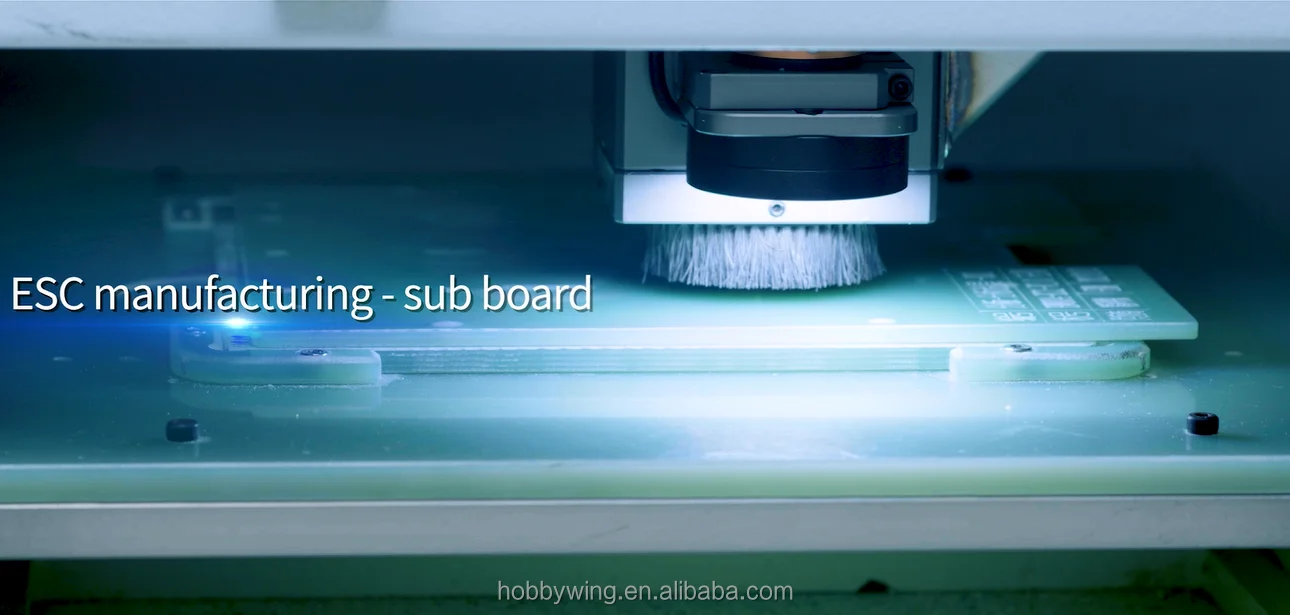

Production Line

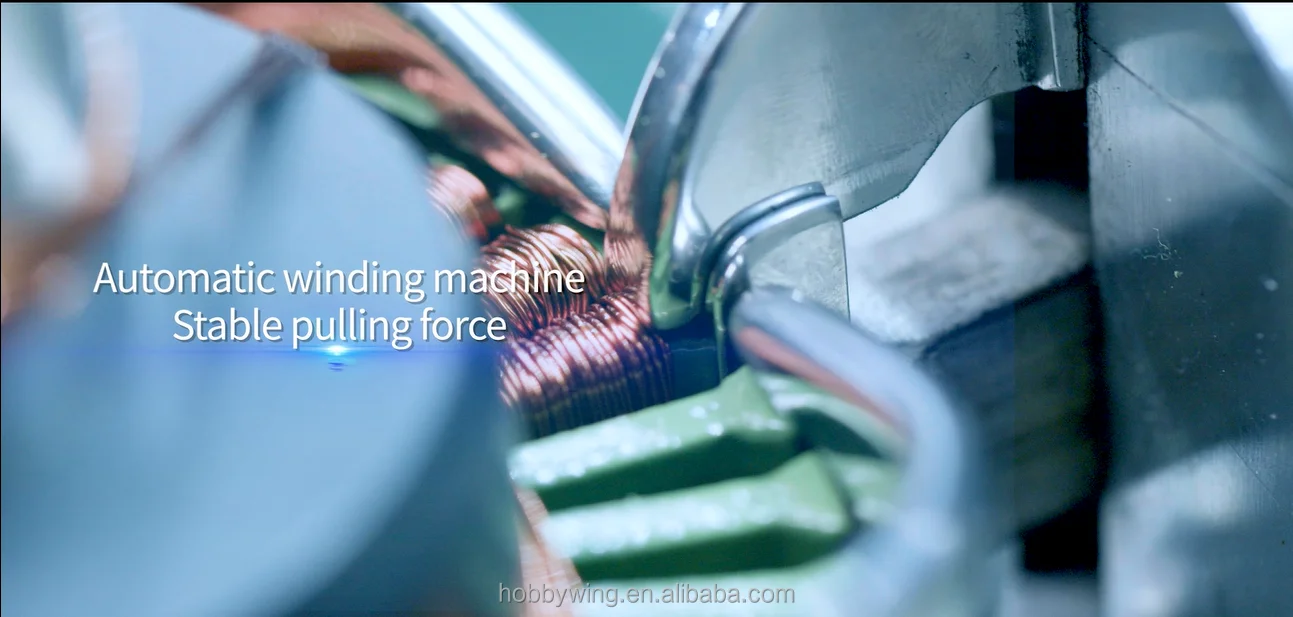

Automated Production Equipment

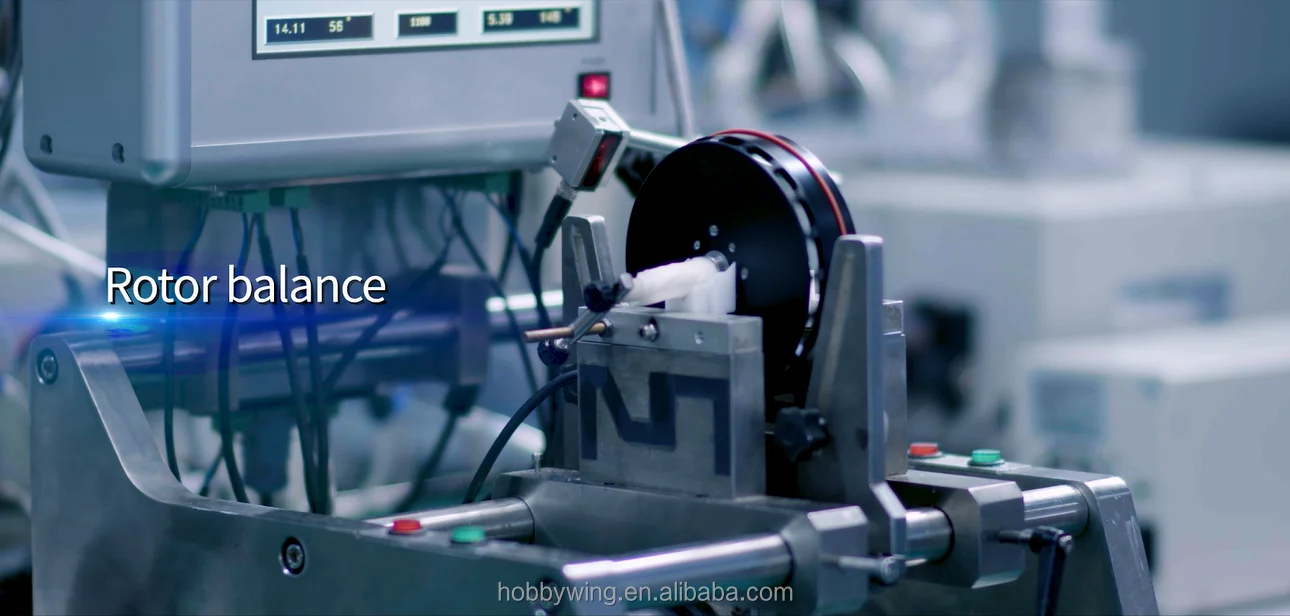

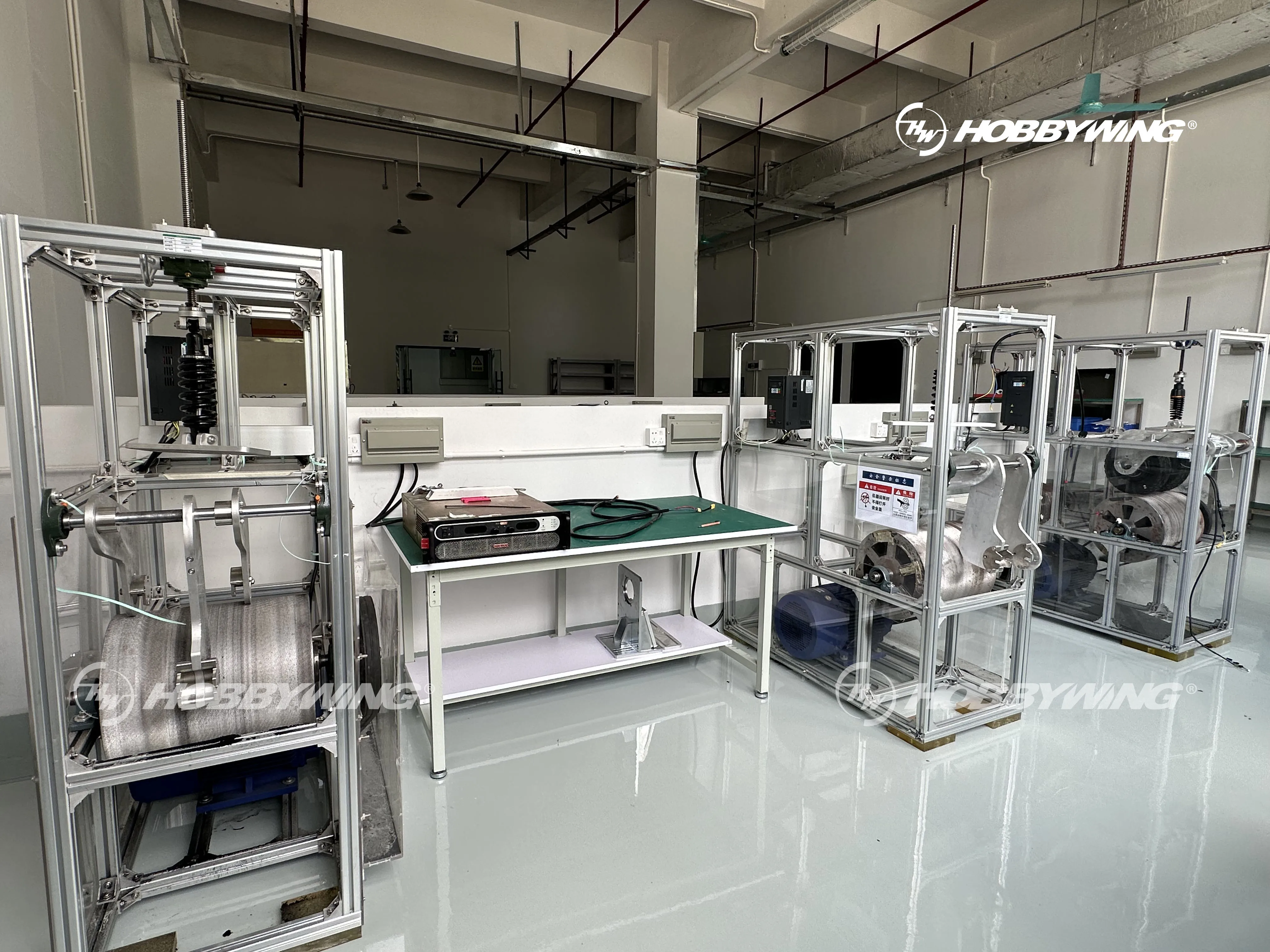

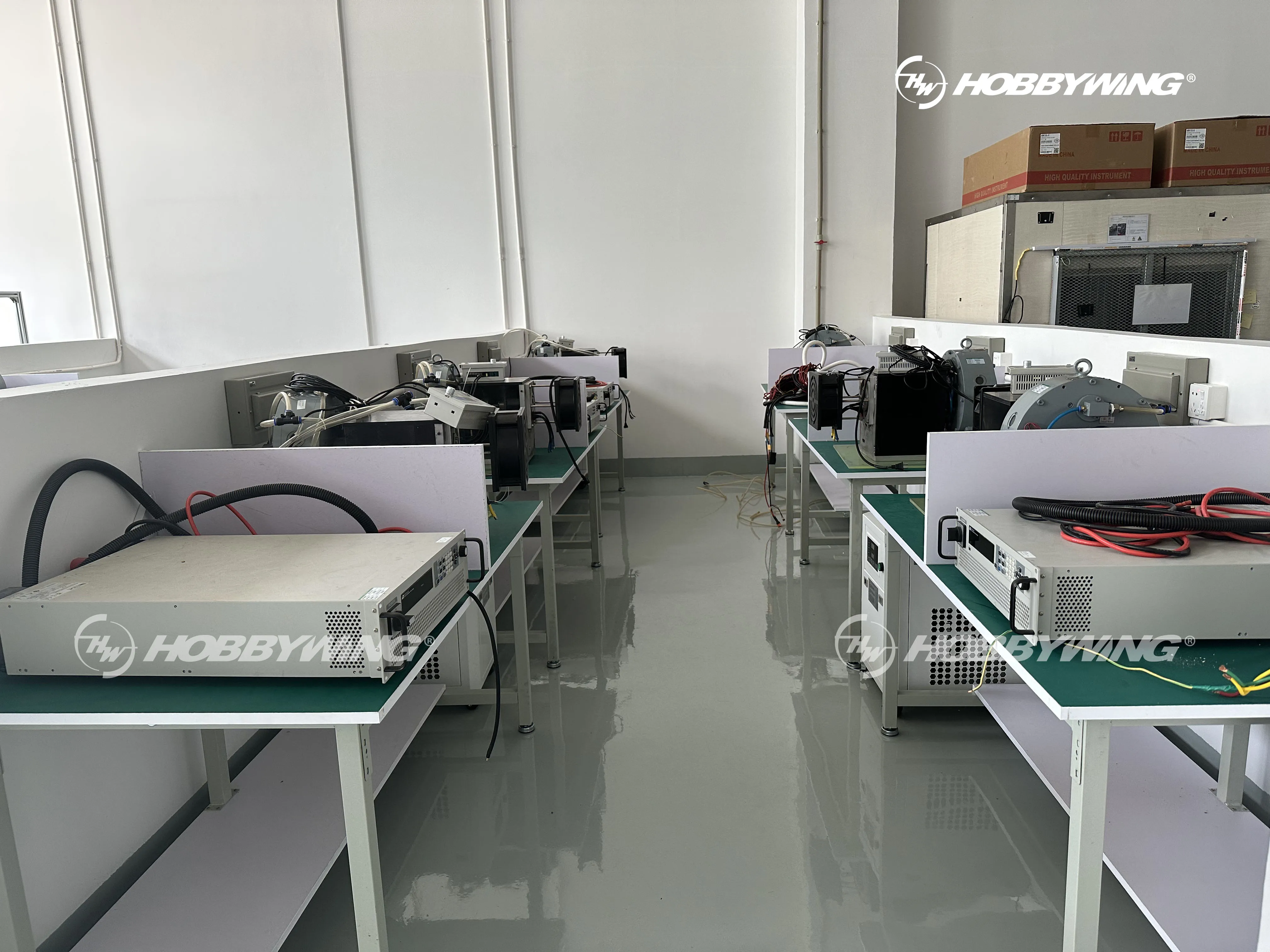

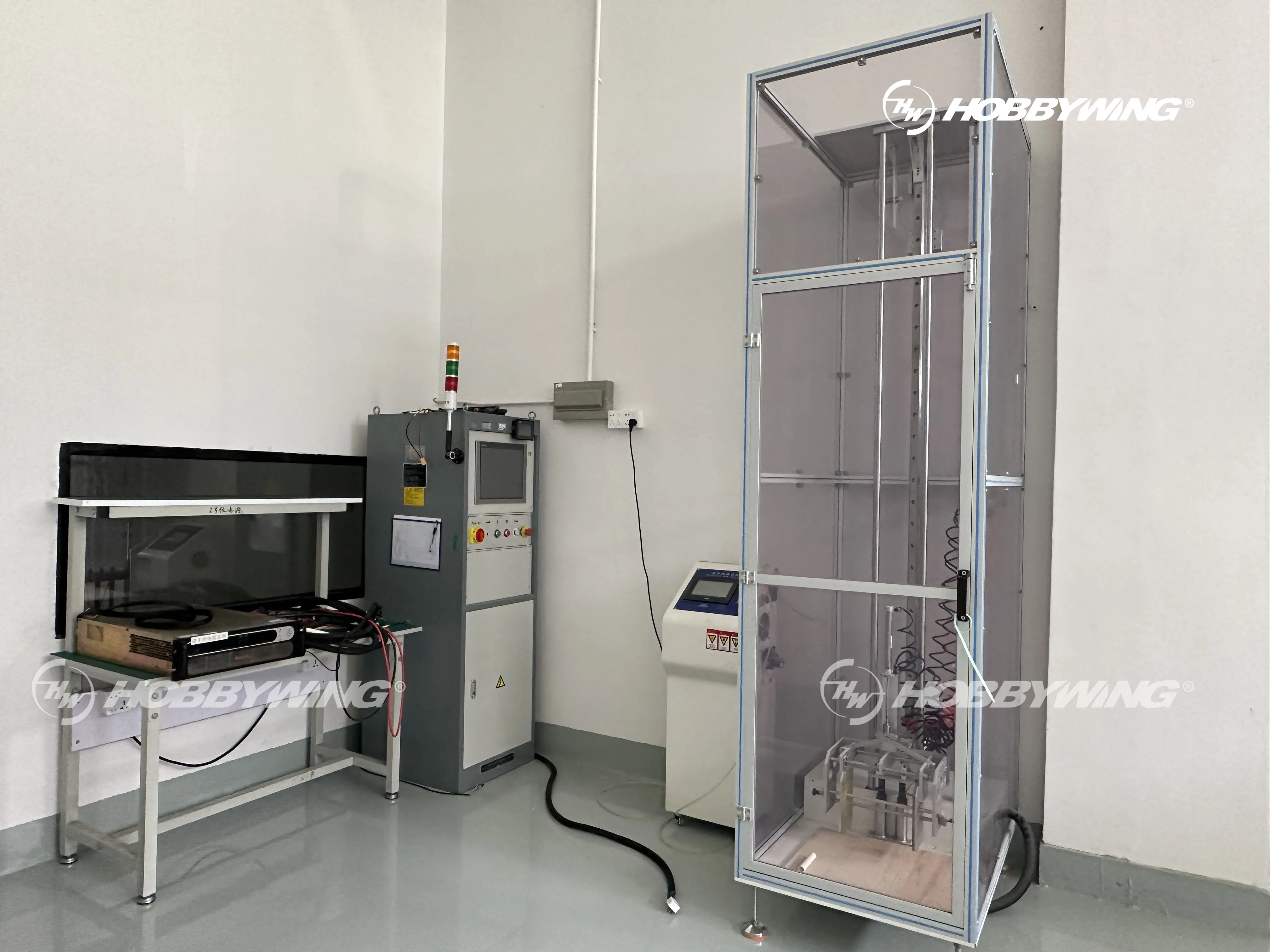

Test Equipment
Warehouse
Certifications
FACTORY CERTIFICATES
HOBBYWING Trade Mark
X-Rotor Trade Mark
ISO9001
Intellectual Property Management System
Invention Patent
Utility Models
PRODUCT CERTIFICATES
ICES
Telec
CE
RoHS
FCC
FAQ
Why choose you?
This is Hobbywing direct store. Must offer you Best Price and Reliable Service.
We have 18+years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
Can you offer Customized service?
Yes, we do both OEM and ODM.
How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
What’s your payment terms?
We have 18+years experience of Permanent magnet brushless DC motor and ESC in manufacturing and R&D.
Can I have a sample order?
Yes, we accept sample order to test and check quality.
Yes, we accept sample order to test and check quality.
Can you offer Customized service?
Yes, we do both OEM and ODM.
How to get the price?
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
ODM: Pls tell us your interested model and demand quantity, we will offer good price.
OEM: Pls tell us the details: size, quantity, printing/package etc request, we will calculate good price for you.
How can we guarantee quality?
Always a pre-production sample before mass production.
Always final Inspection before shipment.
What about the lead time for mass production?
It depends on the order quantity. If 2000pcs, it takes about 10-15days.
What’s your payment terms?
We accept T/T, Western Union, Paypal and MoneyGram, those depend on specific cases.
