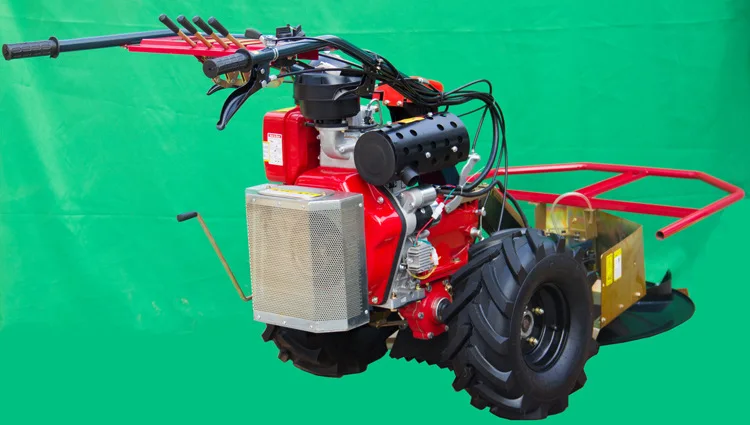

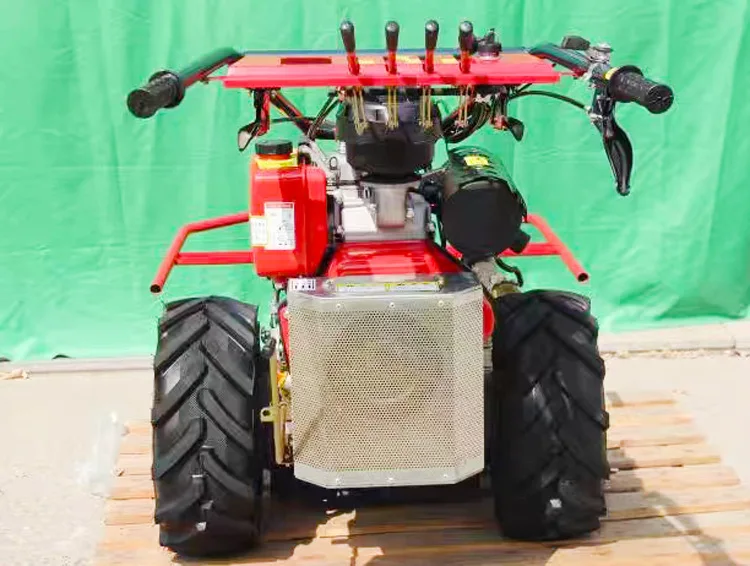

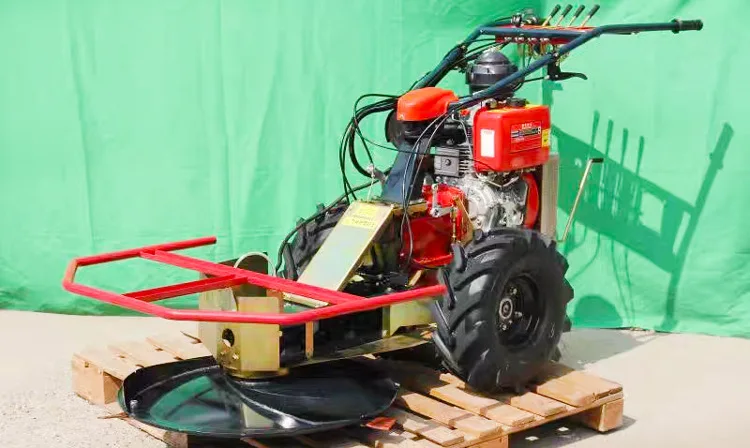

Weiwei Self propelled disc mower hand supported grass mower

This is a disk-type forage harvester, drawing on the design concept of agricultural machinery in Japan, Italy and other countries, the performance exceeds similar imported products, high-speed air-cooled engine, direct transmission, multi-clutch design, mowing and walking are independent clutches, mowing and walking do not affect each other.

The blade adopts a German brand of alloy blade, twisted design, to cut the grass, the high-speed rotating cutter head has the dual function of flywheel and fan impeller, and blows the grass to one side after cutting. The blade rotates with the cutter head at high speed, and has the function of collapse. When it encounters stones and hard wooden piles, the blade can collapse into the cutter head, which not only protects the blade, but also protects the entire transmission system, with small kinetic energy loss.

The deceleration hub designed by the factory has the differential function, which can actively turn to facilitate turning in the ground, and has the differential lock, the working parts will not swing left and right when working straight. Two working gears, one reverse, herringbone high pattern tires, more grip. It is suitable for harvesting soft stem crops such as grass, herbs and weeds that can not be harvested by other agricultural machines, and it can also harvest lying crops.

Name: hand-supported grass mower

Inch: 1850×880×860mm

Wheel Tire: 650-8/700-8

Cut Width :950mm

Cut Height: 1000-1200mm

The knife Plate: disc type with three blades

Starting mode: hand pull + electric

Starting turn Direction: Active friction steering

Differential lock: Friction differential lock

Oil capacity: according to engine instructions

Transmission box: 0.6L
