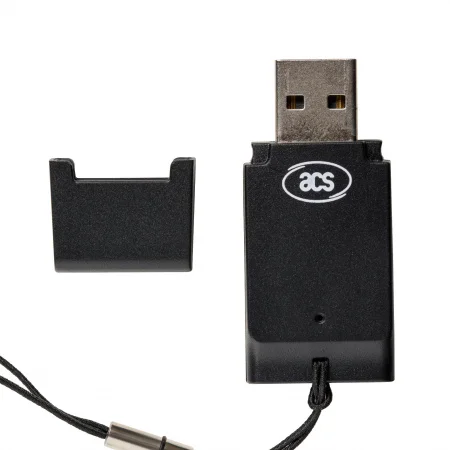

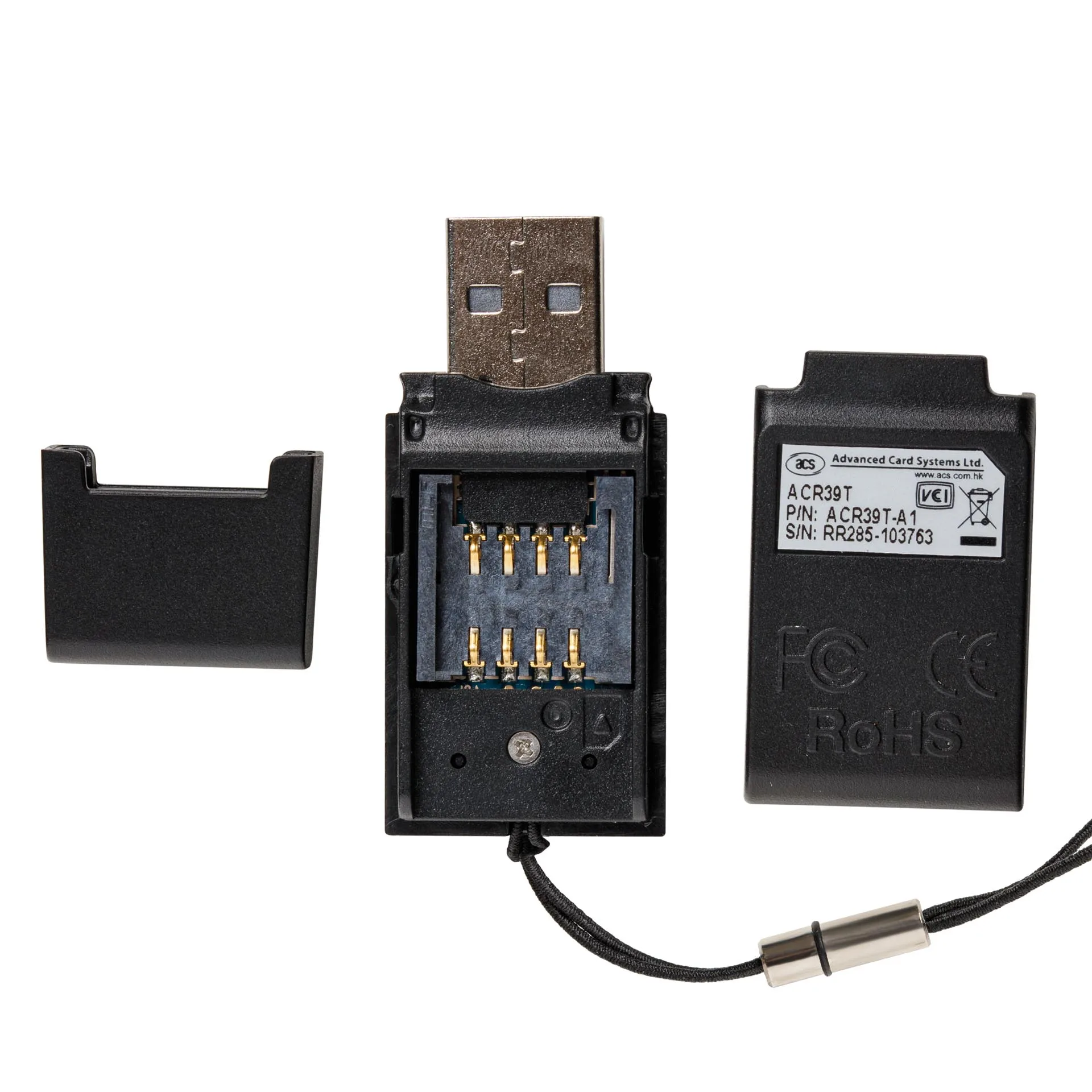

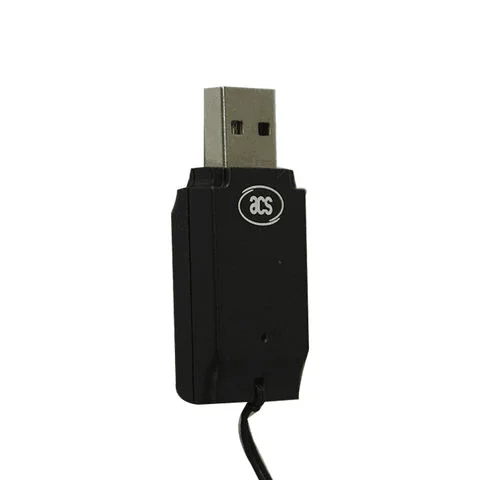

PC SC Compliant USB EMV ISO 7816 Smart Card Reader ACR39T-A1
Overview
ACR39T-A1 brings new and modern technology to the world of smart card readers. This SIM-sized smart card reader is small but packs in a lot of features. Being a compact and powerful smart card reader, the ACR39T-A1 brings together sophisticated technology and modern design to meet rigorous requirements of various smart card-based applications.

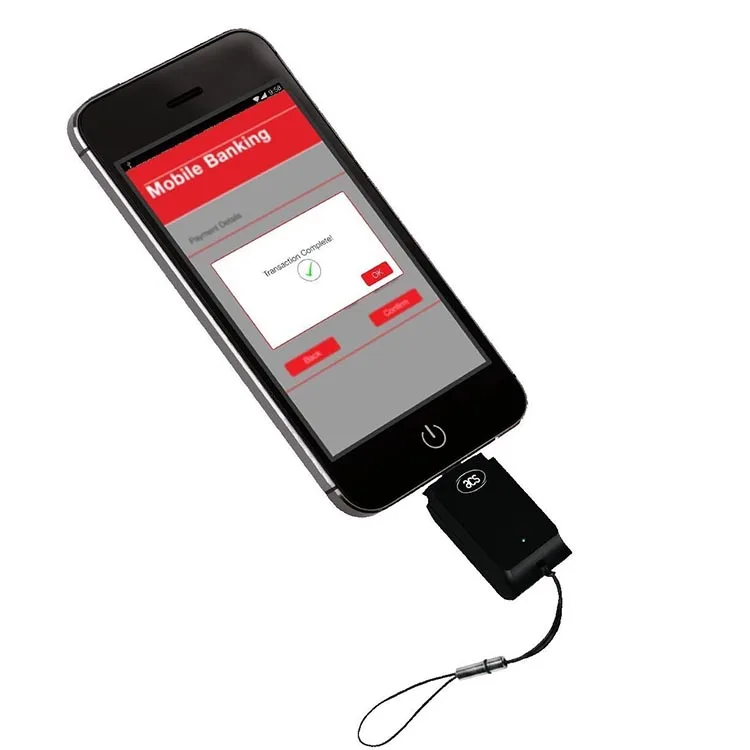

ACR39T-A1 supports ISO 7816 smart cards, various memory cards, and microprocessor cards with T=0 and T=1 protocol. It is fully compliant with PC/SC and CCID specifications, and supports various operating systems such as Windows®, Linux, and Mac OS®.Additionally, ACR39T-A1 may also be used on mobile devices running on Android™ platform versions 3.1 and above. Weighing nothing more than your standard USB stick, ACR39T-A1 is a device that you can bring anywhere to keep smart card technology right at your fingertips.
Specification
Speed | USB Full Speed (12 Mbps) | |||
Supply Voltage | 5 V | |||

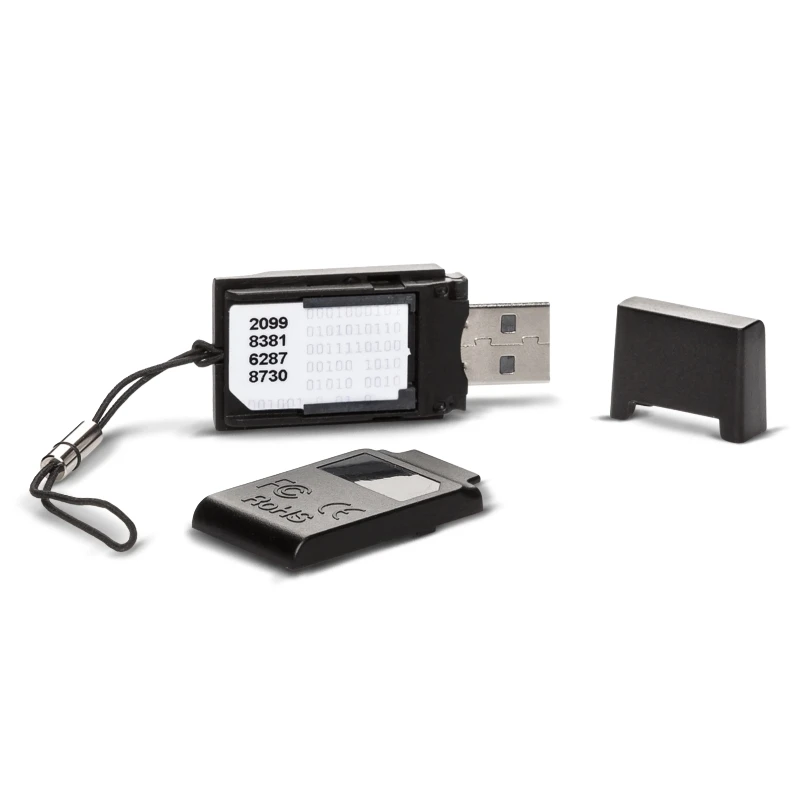

Number of Slot | 1 SIM-sized Card Slot (optional with MicroSIM-sized) | |||
Supply Current | Max. 50mA | |||

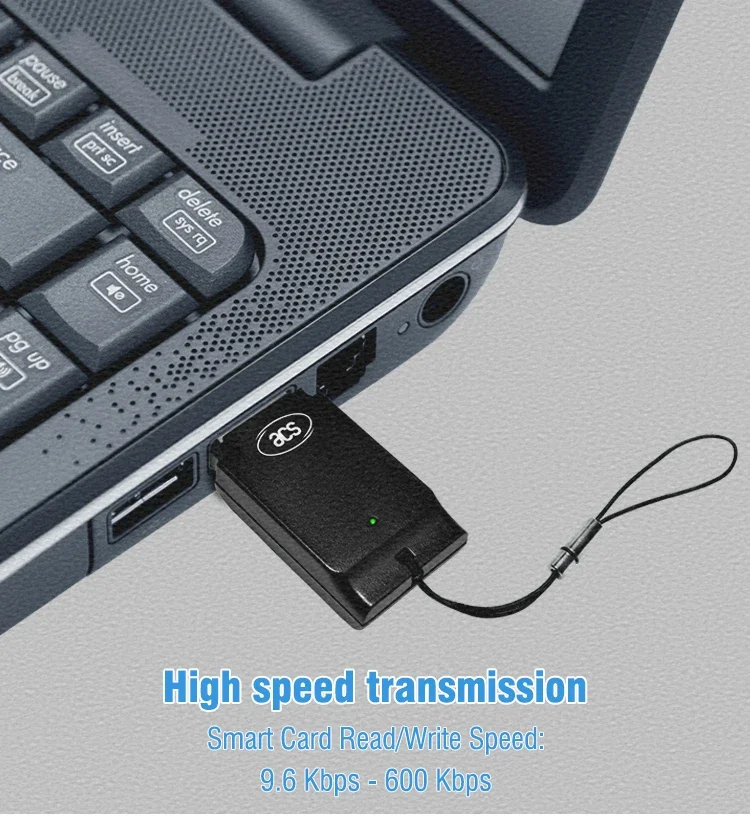

Smart Card Read/Write Speed | 9.6 Kbps – 600 Kbps | |||
Short Circuit Protection | (+5) V/GND on all pins | |||
Clock Frequency | 4.8 MHz | |||
Card Connector Type | Contact | |||
Card Insertion Cycles | Min. 100,000 | |||
LED | Green | |||
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) | |||
Temperature | 0 °C – 60 °C | |||
Humidity | Max. 90% (non-condensing) | |||
MTBF | 500,000 hrs | |||
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL | |||
Device Driver Operating System Support | Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016, Linux®, Mac OS®, Solaris, Android™ 3.1 and later | |||
Card Connector Type | Contact Landing (optional) | |||
Card Insertion Cycles | Min. 100,000 Min 200,000 (for landing connector) | |||
LED | 2 single-color: Green and Red | |||
PC-linked Mode | PC/SC CT-API (through wrapper on top of PC/SC) | |||
Temperature | 0 °C – 60 °C | |||
Humidity | Max. 90% (non-condensing) | |||
MTBF | 500,000 hrs | |||
Certifications/Compliance | EN 60950/IEC 60950, ISO 7816, USB Full Speed, EMV™ Level 1 (Contact), PC/SC, CCID, CE, FCC, WEEE, RoHS 2, REACH TAA (USA), J-LIS (Japan), VCCI (Japan), PBOC (China), Microsoft® WHQL | |||
Device Driver Operating System Support | Windows® XP, Windows Vista®, Windows® 7, Windows® 8, Windows® 8.1, Windows® 10 Windows® Server 2003, Windows® Server 2008, Windows® Server 2008 R2, Windows® Server 2012, Windows® Server 2012 R2, Windows® Server 2016 Linux®, Mac OS®, Android™ 3.1 and above |
