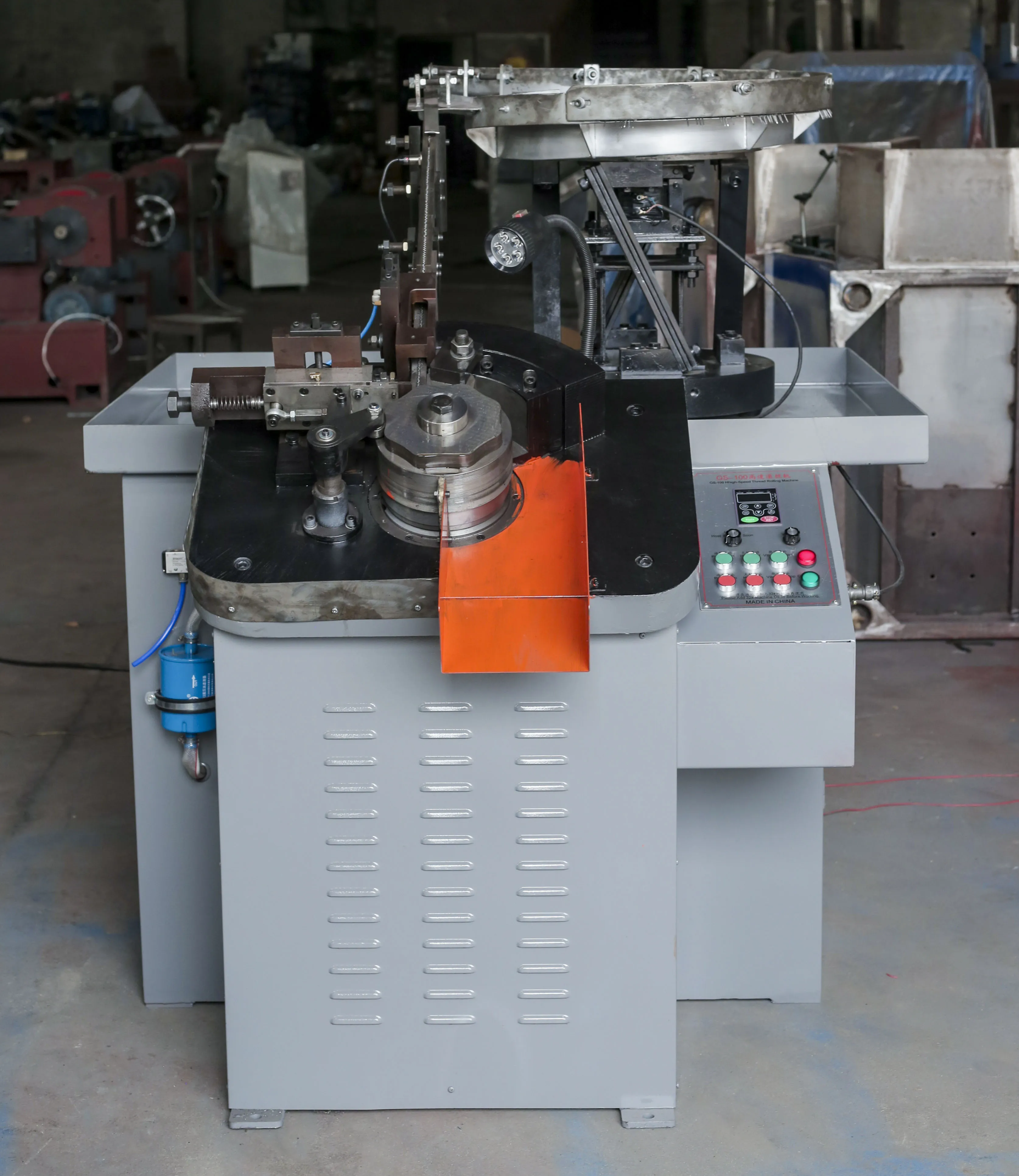

Automatic Screw / Ring Nail Making Machine Nail Shank Thread Rolling Machine
SSS-GS-100 high-speed nail thread rolling machine consists of a single vibratory feeding system, a roll forming system, a timing feeder system and an electrical control system.
The electromagnetic vibrating hopper is a new type of high speed feeding system where the blanks are arranged in the hopper and fed into the chute and then fed by the feeder into the roll forming system for processing. The feeder receives the filler from the chute and continuously feeds the mould at a certain rate of rotation of the octagonal wheel.
The main shaft drives the octagonal wheel of the moving die to make a large rotation movement, which has the advantages of high transmission rate, low noise, smooth transmission and compact structure.
The main shaft drives the octagonal wheel of the moving die to make a large rotation movement, which has the advantages of high transmission rate, low noise, smooth transmission and compact structure.
Advantages:
Reasonable structure;
Easy operation ;
High Degree of Automation
Easy operation ;
High Degree of Automation
Main Technique Parameter | Data | |
Model | GS-100 | |
Speed | 1000-1500pcs/min | |
Max.Nail Dia | 4.5mm | |
Max.Nail Length | 100mm | |
Motor Power | 5.5KW | |
Weight | 1500KGS | |
Product Details

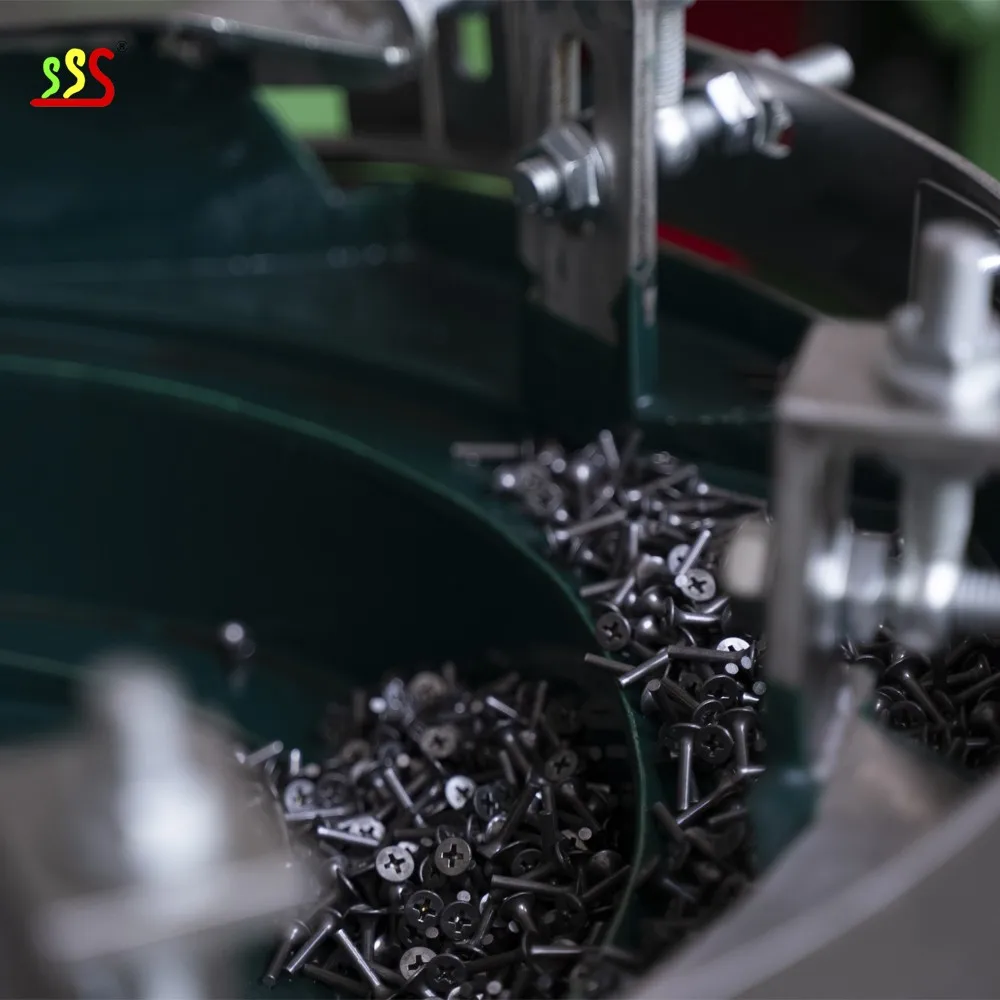

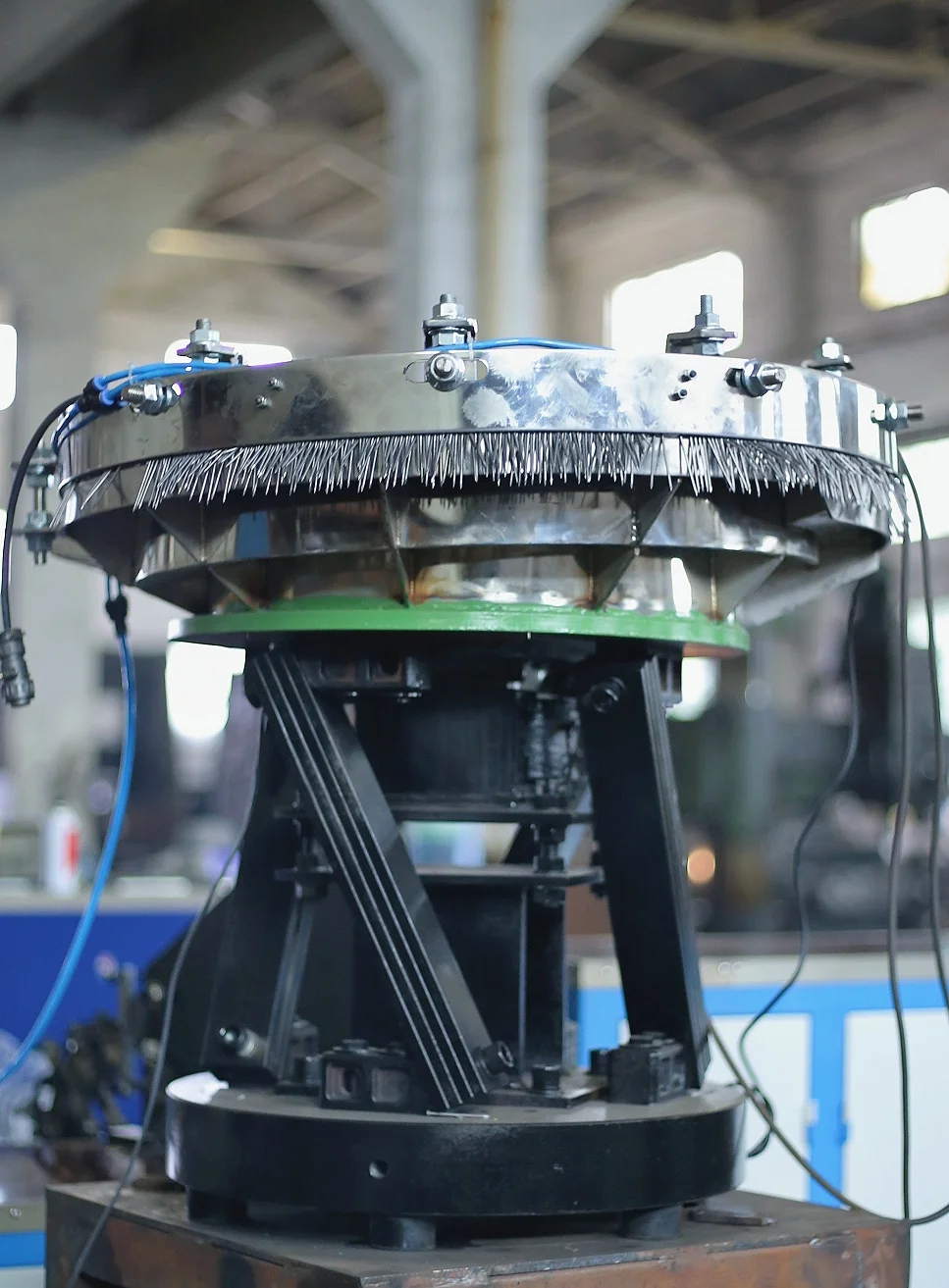

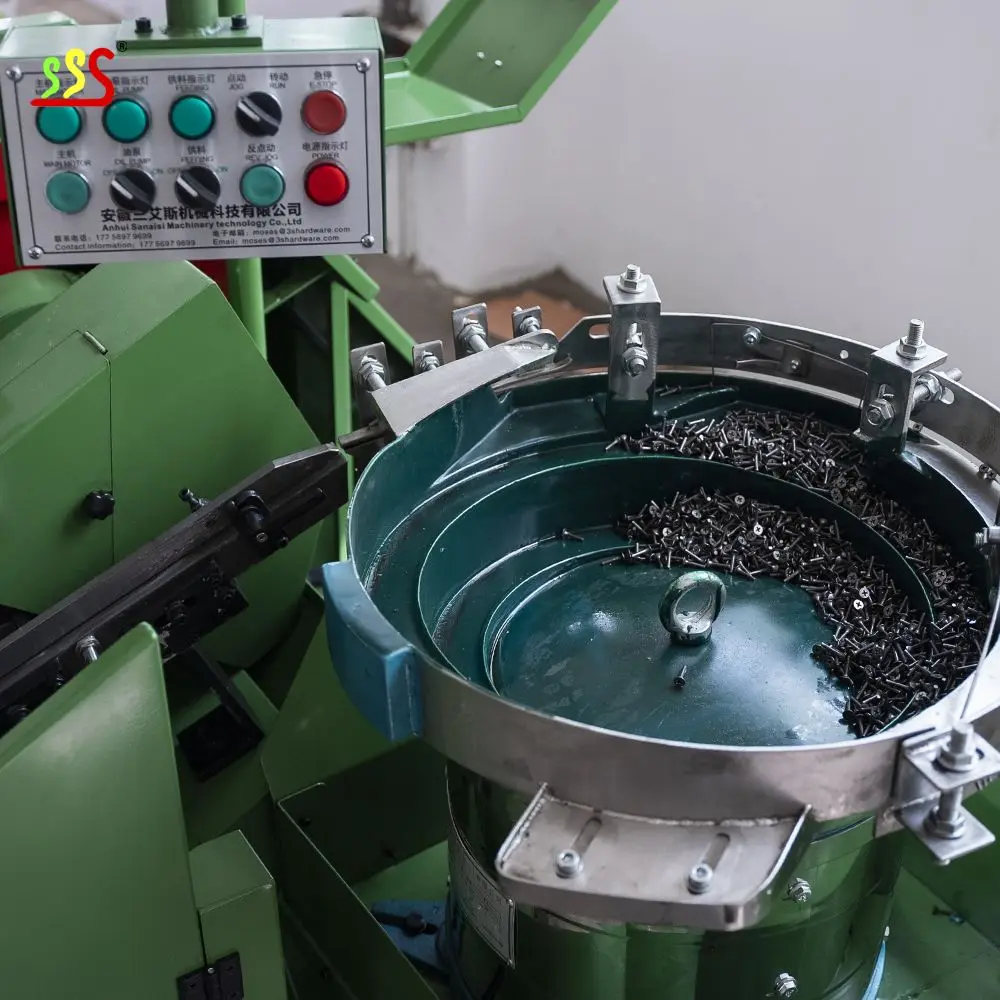

vibrating plate
This part sorts the nails and allows them to enter the thread rolling process in an orderly manner.
thread die
Replace form a complete set of mold, mold can produce different nails.

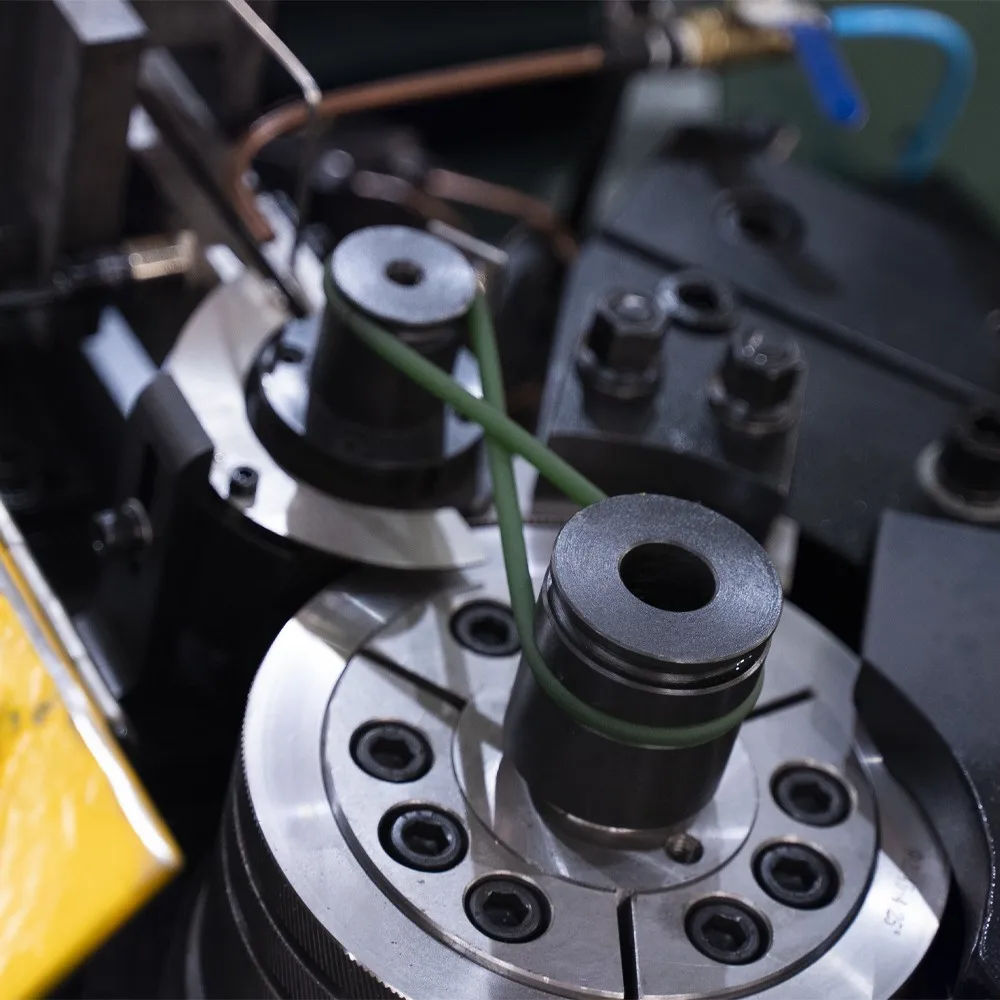

thread rolling die
This part gives the nails a screw pattern.

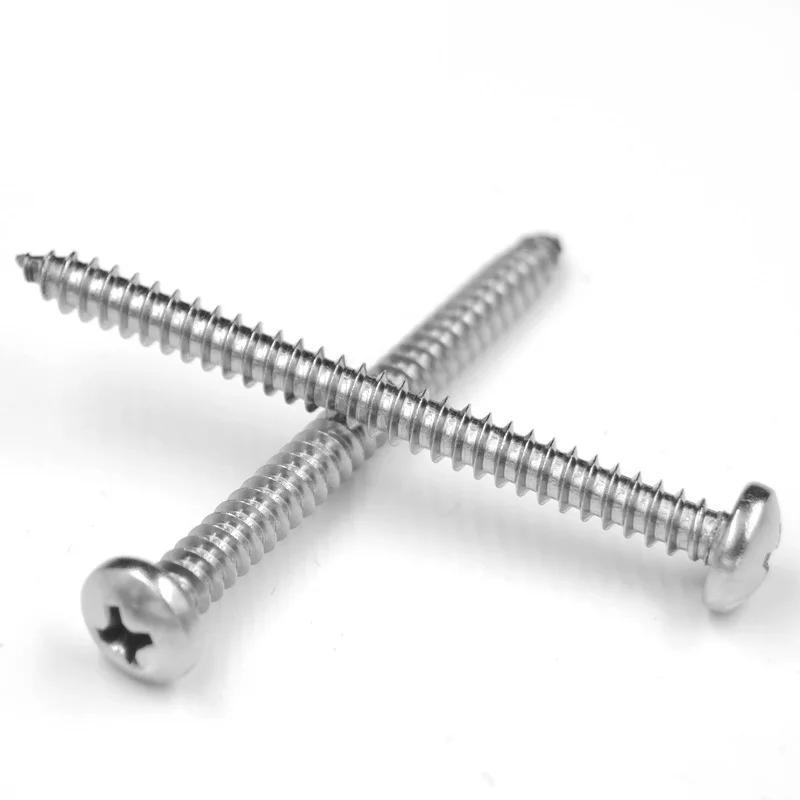

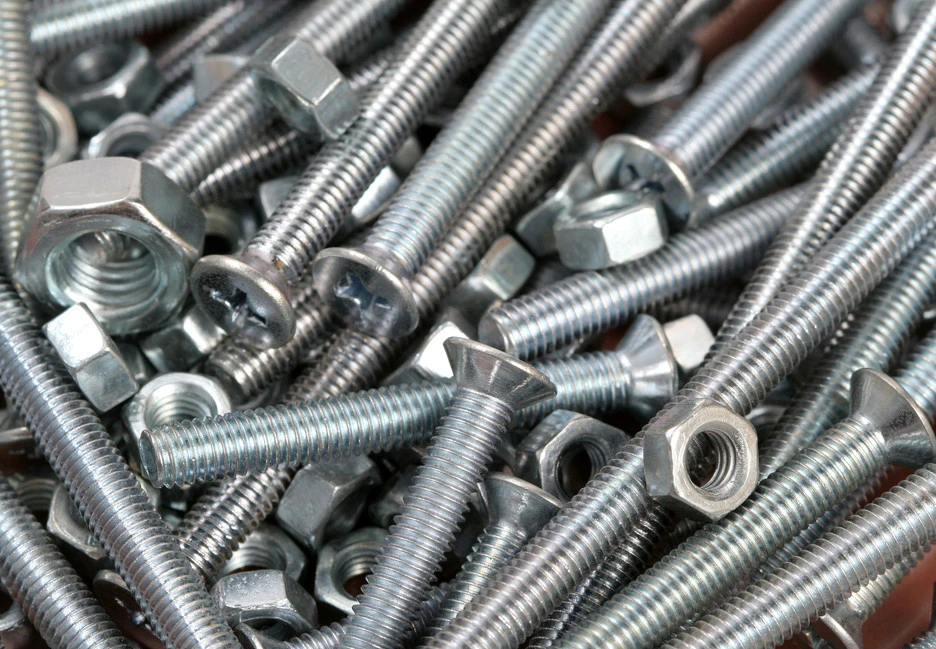

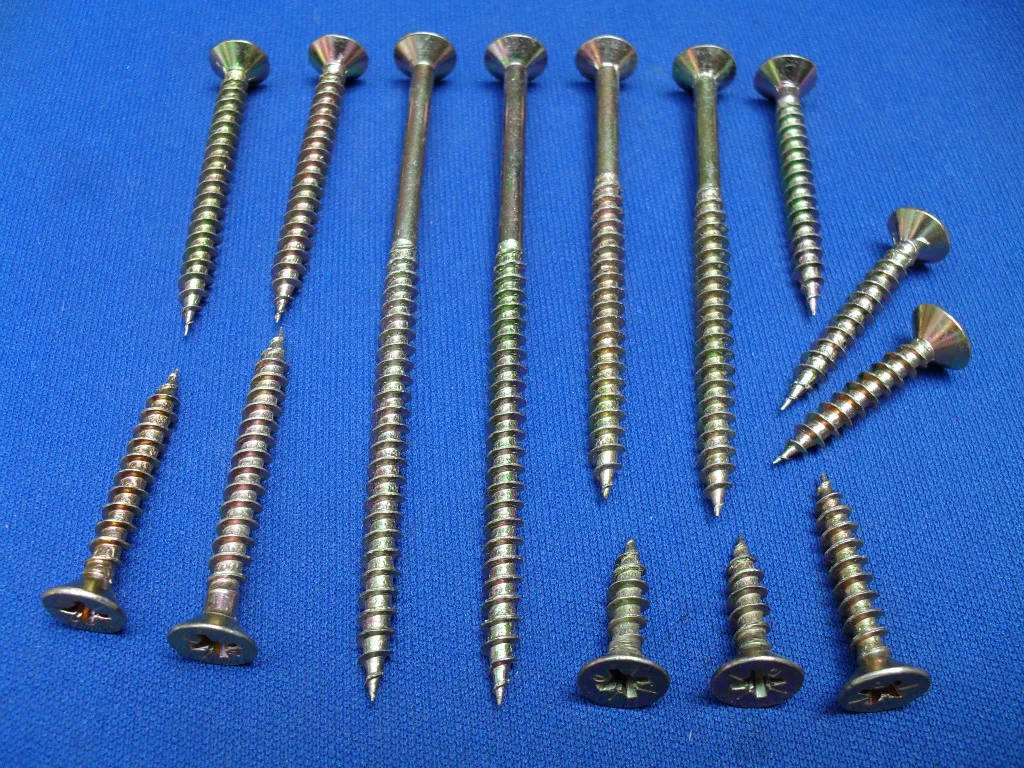

Final product
paking & delivery
