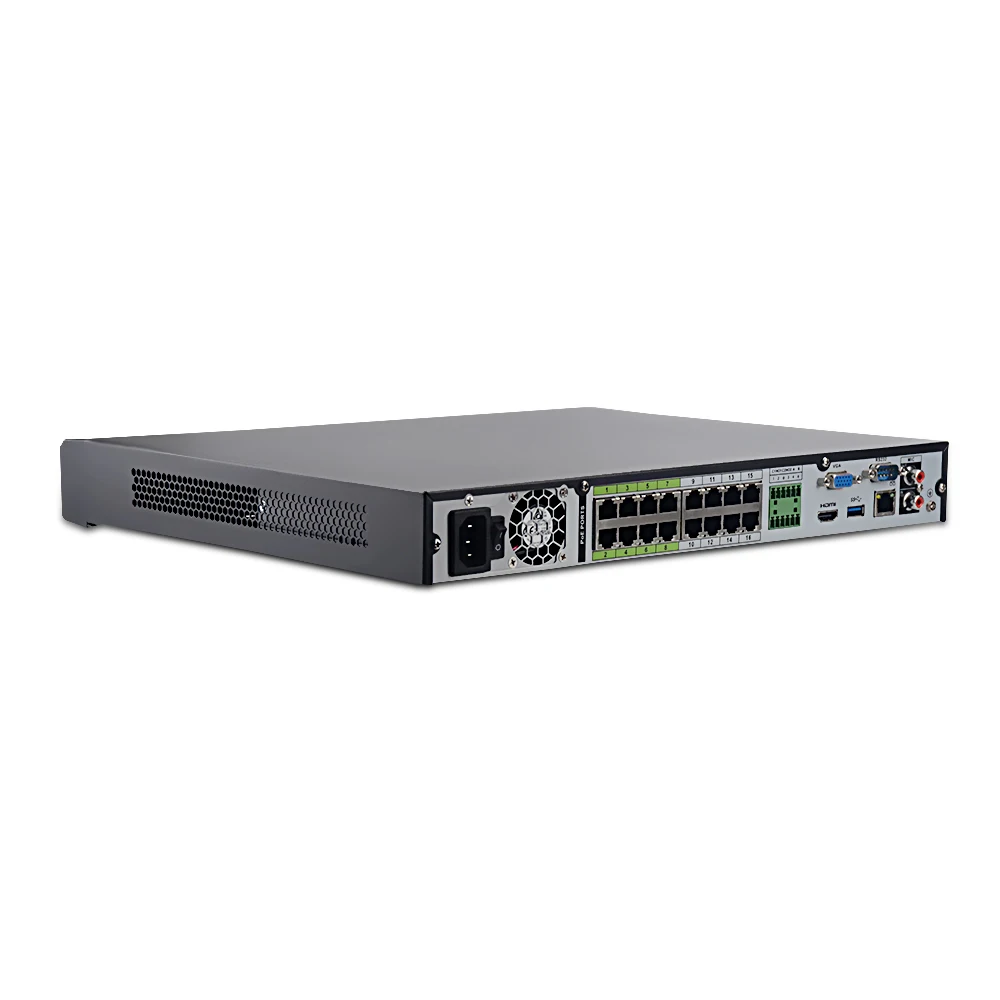

32 Channels 1U 16PoE 2HDDs WizSense Network Video Recorder NVR5232 16P EI CCTV 4K Security 32 channels nvr with 16poe ports

Main Processor

Industrial-grade processor

Operating System

Embedded Linux

Operating Interface

Web, Local GUI

AI by Recorder

Face detection; face recognition; perimeter protection;
SMD Plus

AI by Camera

Face detection; face recognition; video metadata
(human, motor vehicles, and non-motor vehicles);
perimeter protection; SMD Plus; stereo analysis; crowd
distribution; people counting; ANPR; vehicle density;
heat map

AcuPick AI by Camera +
Recorder

Max. 16-channel, 1 combined event per channel/s

Perimeter Performance AI by Recorder (Number of Channels)

4 channels, 10 IVS rules for each channel

Perimeter Performance of AI by Camera (Number of Channels)

16 channels

Face Attributes

Gender; age group; glasses; expressions; face mask;
beard

Face Detection Performance of AI by Recorder (Number of Channels)

2 channels (up to 12 face images/s each channel)

Face Detection Performance of AI by Camera (Number of Channels)

16 channels

Face Database Capacity

Up to 20 face databases with 20,000 images, with a
total capacity of 2.5 G. Name, gender, birthday, address,
credential type, credential No., countries & regions and
state can be added to each face image.

Face Recognition Performance of AI by
Recorder (Number of Channels)

1. 16-channel FD (by camera) + FR (by recorder), image
stream: 16 face images/s
2. 2-channe FD (by recorder) + FR (by recorder), video
stream: 12 face images/s

Face Recognition Performance of AI by
Camera (Number of Channels)

16 channels

SMD Plus by Recorder

8 channels: Secondary filtering for human and motor
vehicle , reducing false alarms caused by leaves, rain and
lighting condition change

SMD Plus by Camera

16 channels

Metadata Performance of AI by Camera (Number of Channels)

8 channels

Top color, top type, bottom color, bottom type, hat, bag,
age, gender and umbrella

License plate, plate color, vehicle body, vehicle model,
vehicle logo, calling, seatbelt, vehicle interior, vehicle
registration location.

Non-motor Vehicle Attributes

Vehicle model, vehicle color, number of persons, helmet.

Vehicle License Plate Comparison

ANPR by Camera (Number
of Channels)

8 channels

License Plate Database Capacity

1. Create up to 20,000 plate numbers.
2. Blocklist and allowlist

Audio and Video

Access Channel

32

Network Bandwidth

AI disabled: 384 Mbps incoming, 384 Mbps recording
and 384 Mbps outgoing
AI enabled: 200 Mbps incoming, 200 Mbps recording and
200 Mbps outgoing

Resolution

32 MP; 24 MP; 16 MP; 12 MP; 8 MP; 5 MP; 4 MP; 1080p;
720p; D1; CIF; QCIF

Decoding Capability

AI disabled: 2-channel 32 MP@20 fps; 2-channel 24
MP@20 fps; 4-channel 16 MP@30 fps; 6-channel 12
MP@30 fps;8-channel 8 MP@30 fps; 12-channel 5
MP@30 fps;16-channel 4 MP@30 fps; 32-channel
1080p@30 fps;
AI enabled: 1-channel 32 MP@20 fps; 1-channel 24
MP@20 fps; 2-channel 16 MP@30 fps; 4-channel 12
MP@30 fps;4-channel 8 MP@30 fps; 8-channel 5
MP@30 fps; 12-channel 4 MP@30 fps; 24-channel
1080p@30 fps;

Video Output

1 VGA, 1 HDMI
VGA:1920 × 1080, 1280 × 1024, 1280 × 720
HDMI:3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 ×
720
Heterogeneous video source output for HDMI and VGA

Multi-screen Display

Main screen: 1/4/8/9/16/25/36
Sub screen: 1/4/8/9/16

Third-party Camera
Access

ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon;
Samsung

Video Compression

Smart H.265+; H.265; Smart H.264+; H.264; MJPEG

Audio Compression

G.711a; G.711u; PCM; G726

Network Protocol

HTTP; HTTPS; TCP/IP; IPv4/IPv6; UDP; SNMP; NTP; DHCP;
DNS; SMTP; UPnP; IP Filter; PPPoE; FTP; DDNS; Alarm
Server; IP Search (Supports Dahua IP camera, DVR, NVS,
etc.); Multicast; P2P; Auto Registration; iSCSI

Mobile Phone Access

iOS; Android

Interoperability

ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK

Browser

Chrome;IE;Safari;Edge;Firefox

Multi-channel Playback

Up to 16 channels

Record Mode

General, motion detection; intelligent; alarm; POS

Backup Method

USB device and network

Playback Mode

Instant playback, general playback, event playback, tag
playback, smart playback (face and motion detection)

Disk Group

Yes

General Alarm

Motion detection; privacy masking; local alarm

Intelligent Alarm

Face detection; perimeter protection; face recognition;
video metadata (human, motor vehicles, and non-motor
vehicles); SMD Plus; stereo analysis; crowd distribution;
people counting; ANPR; vehicle density; heat map

Audio Input

1-channel RCA

Audio Output

1-channel RCA

Alarm Input

4 channels

Alarm Output

2 channels

HDD Interface

2 SATA ports, each disk can contain up to 16 TB. This limit
varies depending on the environment temperature.

RS-232

1

RS-485

1

USB

2 (1 front USB 2.0 port, 1 rear USB 3.0 port)

HDMI

1

VGA

1

Network Port

1(10/100/1000 Mbps Ethernet port, RJ-45)

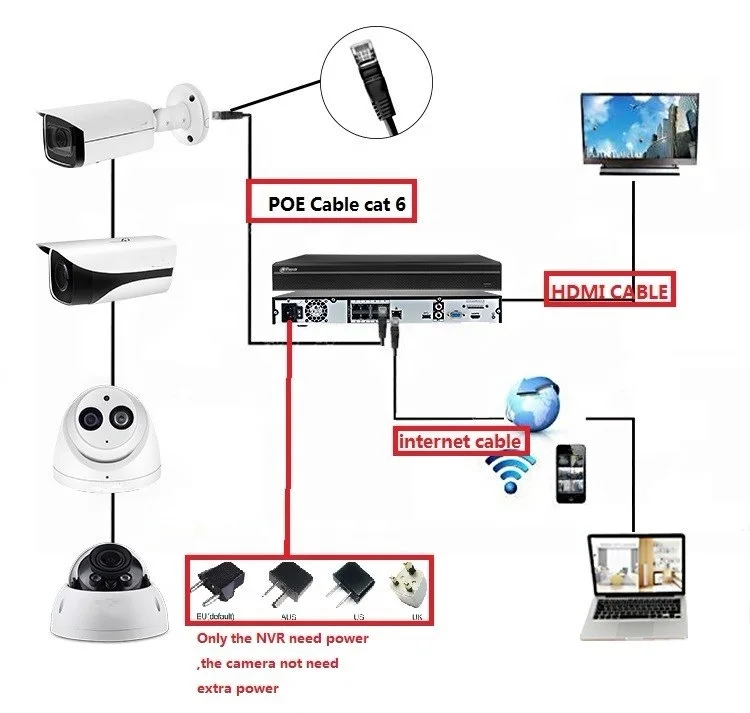

PoE Port

16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports
support ePoE

Power Supply

100–240 VAC, 47-63 Hz

Power Consumption

Total output of NVR is ≤ 10 W (without HDD)
Total output power of PoE is 130 W, the maximum
output power of a single port is 25.5 W

Net Weight

2.66 kg (5.86 lb)

Gross Weight

3.82 kg (8.42 lb)

Product Dimensions

375.0 mm × 329.3 mm x 53.0mm (14.76" × 12.96" ×
2.09") (W × D × H)

Packaging Dimensions

449.0 mm × 170.0 mm × 421.0 mm (17.68" × 6.69" ×
16.57") (W × D × H)

Operating Temperature

–10 °C to +55 °C (14 °F to +131 °F)

Storage Temperature

–20 °C to +60 °C (–4 °F to +140 °F)

Operating Humidity

10%–93% (RH)

Installation

Rack or desktop

Certifications

FCC: 47 CFR FCC Part15, SubpartB, Class A
CE-EMC: EN 55032: 2015+A1:2020; EN IEC 61000-3-2:
2019+A1: 2021; EN 61000-3-3: 2013+A1: 2019+A2:2021;
EN 55035: 2017+A11: 2020; EN 50130-4: 2011+A1: 2014
CE-LVD: EN 62368-1: 2014
