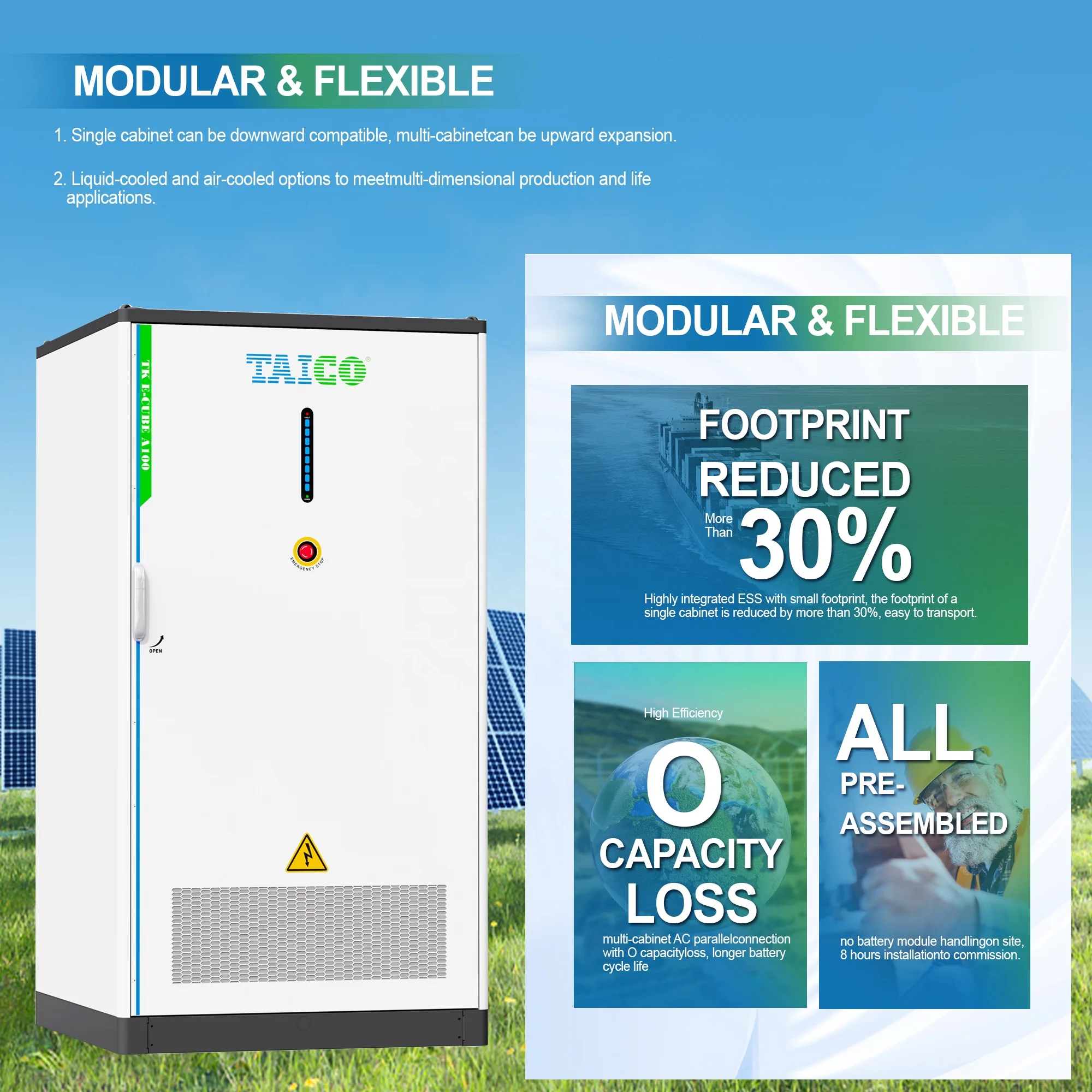

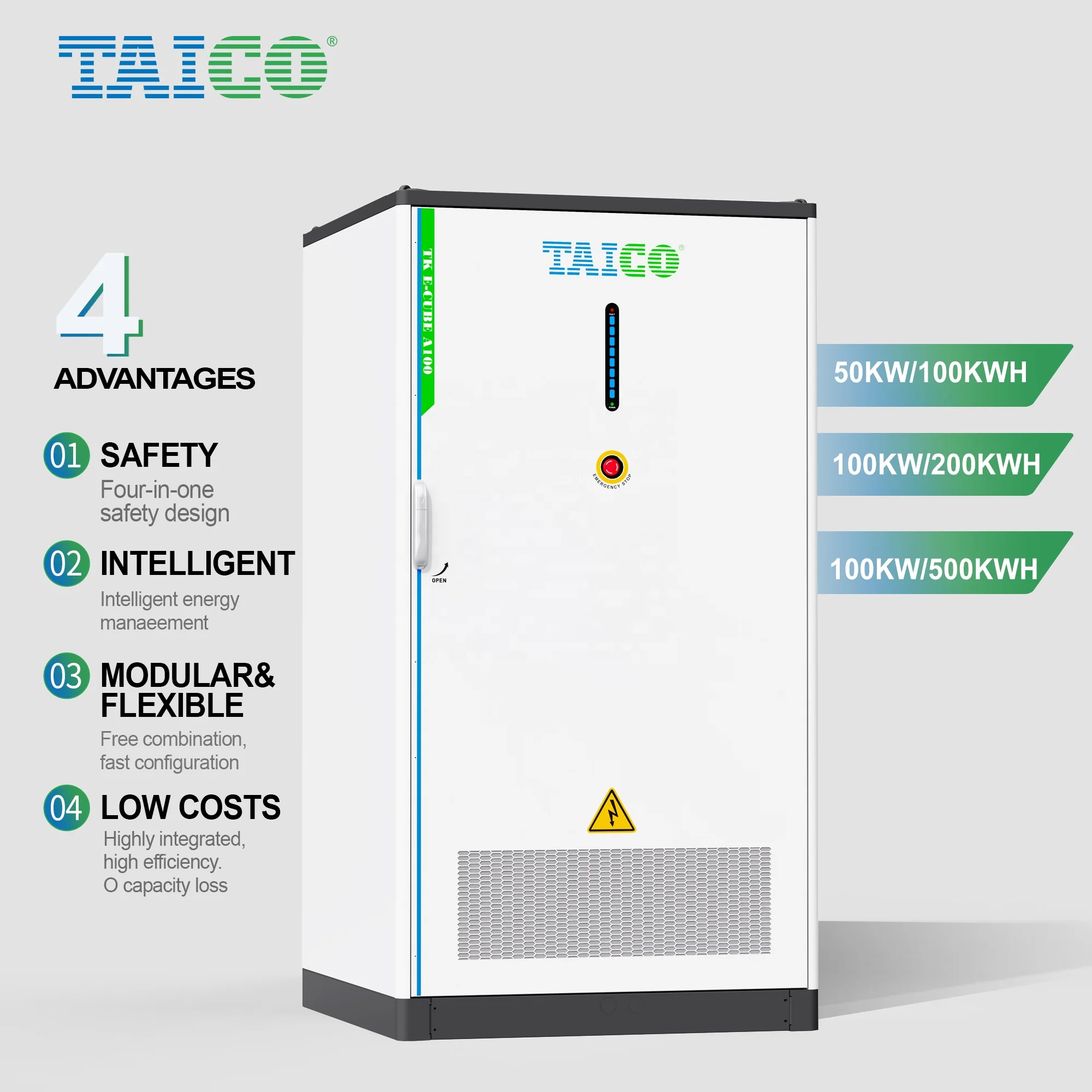

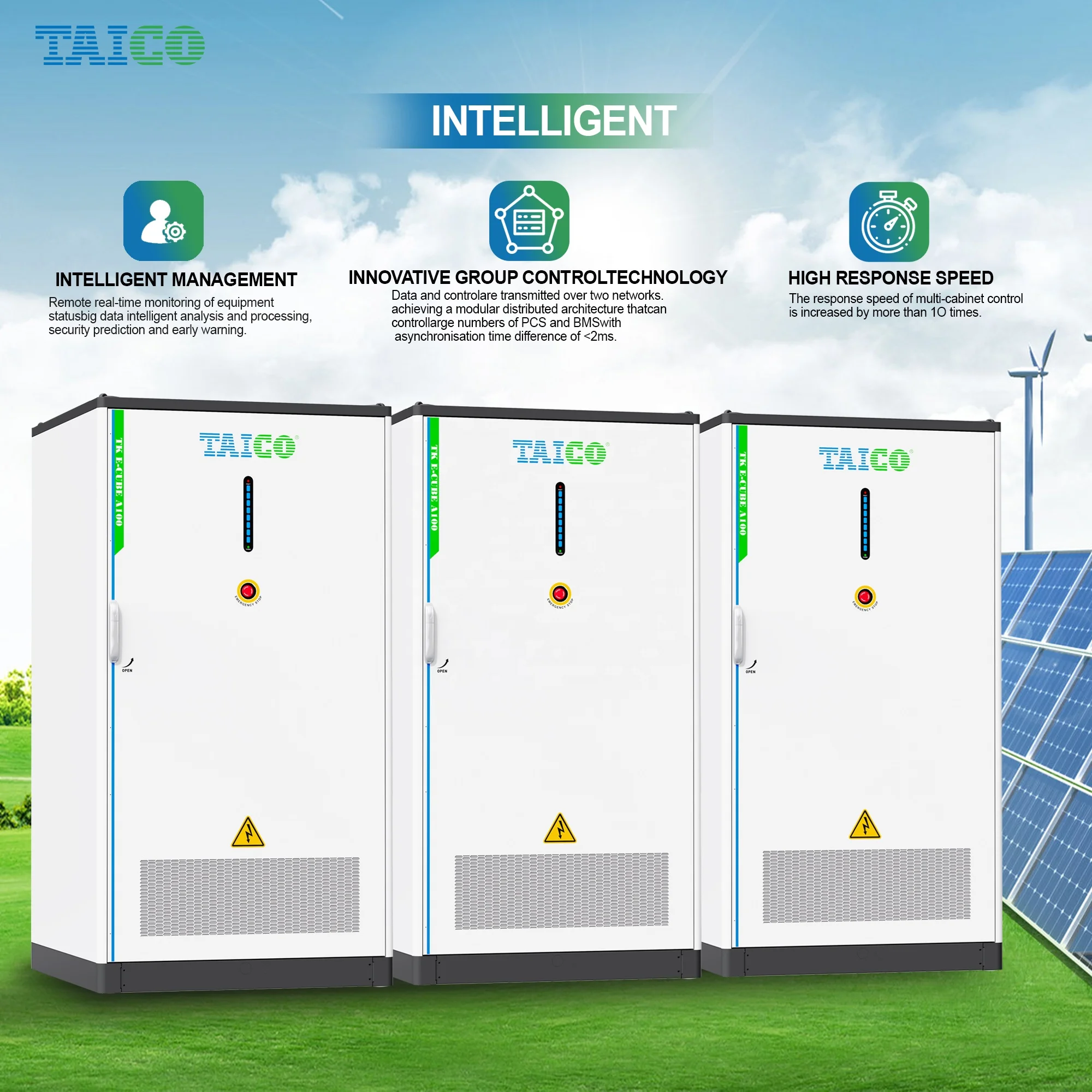

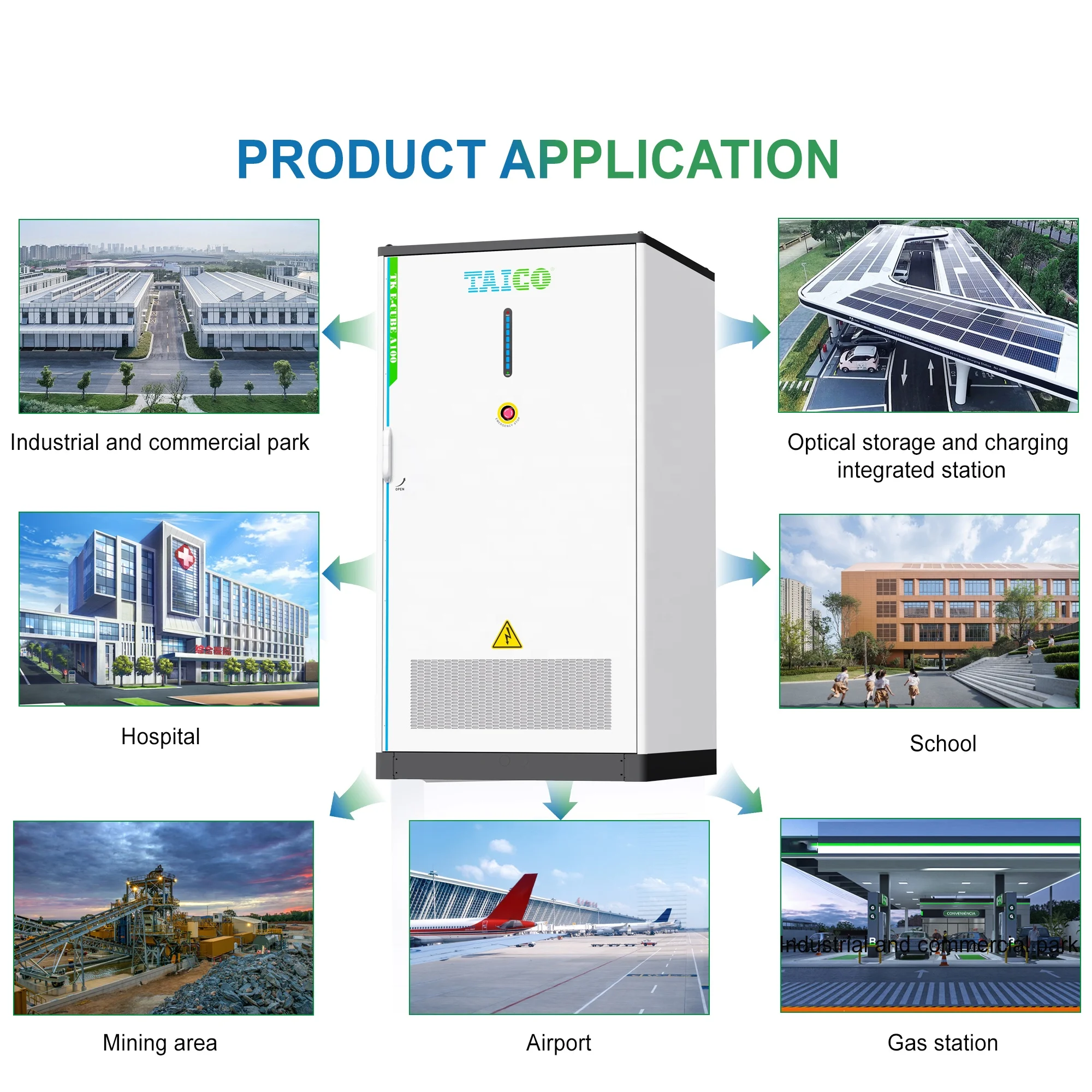

Solar battery 50kw 100kw 500kw energy storage system commercial industrial 50kwh 60kwh 100KWh 200kwh lifepo4 batteries
- Category: >>>
- Supplier: Shenzhen Taico Technology Co. Ltd.
Share on (1601002477673):
Product Overview
Description
Product Description
Specification
Model | 50KW/100KWH | 30KW/215KWH | 100KW/215KWH | 100KW/215KWH | 100KW/500KWH | |||||
PV parameters | Max.Input power | 50KW | 30KW | 100KW | 100KW | 100KW | ||||
Start-up voltage | 135V | 250V | ||||||||
PV Max voltage | 1000Vdc | 950Vdc | ||||||||
PV rated voltage | 620Vdc | 600Vdc | ||||||||
MPPT operating voltage range | 200 ~ 850 Vdc | |||||||||
MPPT Qty. | 4 | |||||||||
Single MPPT input channels | 2 | |||||||||
Max.input current | 30A | |||||||||
Max.short circuit current | 40A | |||||||||
ESS parameters | Rated power | 100KWh | 215KWh | 430KWh | ||||||
Battery cell capacity | 160Ah | 280Ah/314Ah | ||||||||
Rated voltage Battery voltage range | 614.4Vdc 537.6 ~ 691.2 Vdc | 768Vdc 672～864Vdc | ||||||||
Rated charge/discharge current | 80A | 130A | 150A | |||||||
Max.charge/discharge current | 160A | 280A | 165A | |||||||
Working Condition | Rated output power | 50KW | 30KW | 100KW | ||||||
Max.input apparent power | 60 KVA | 110KVA | ||||||||
Grid-connected Max output apparent power | 55 KVA | 110KVA | ||||||||
Off-grid Max. output apparent power | 55 KVA | 110KVA | ||||||||
Max.output current | 83A | 152A | 166A | 152A | ||||||
Rated voltage(input&output) | 3L/N/PE; 220/380V; 230/400V;240/415V | 380VAC～ | ||||||||
Grid frequency | 50Hz/60Hz | |||||||||
THDu | <3%@ rated power& linear load | |||||||||
Efficiency parameters | Max.PV conversion efficiency | 98.80% | ||||||||
EU efficiency | 98.80% | |||||||||
Ambient parameters | Operating temperature | —25°C~55°C(45°Cderating) | ||||||||
Storage temperature Humidity Altitude | —20°C~45°C 5~95%,no condensing 2000m(2000m derating) | |||||||||
Cooling mode | Smart air conditioner, smart fan | Liquid Cooling | Smart air conditioner, smart fan | |||||||
Other parameters | Dimension(W*H*D mm) | 1100*1100*2000 | 1300*1235*2466 | 1300*1235*2466 | 2700*1400*2300 | |||||
Weight | 1300 kg | 2500 kg | 2500 kg | 4000 kg | ||||||
Ingress protection | IP65 | |||||||||
Communication mode | CAN, RS485 | |||||||||
