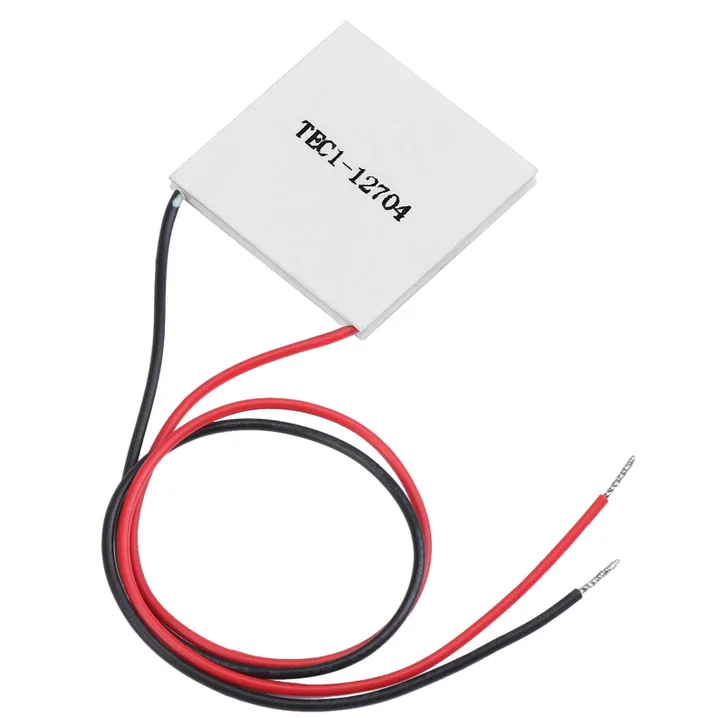

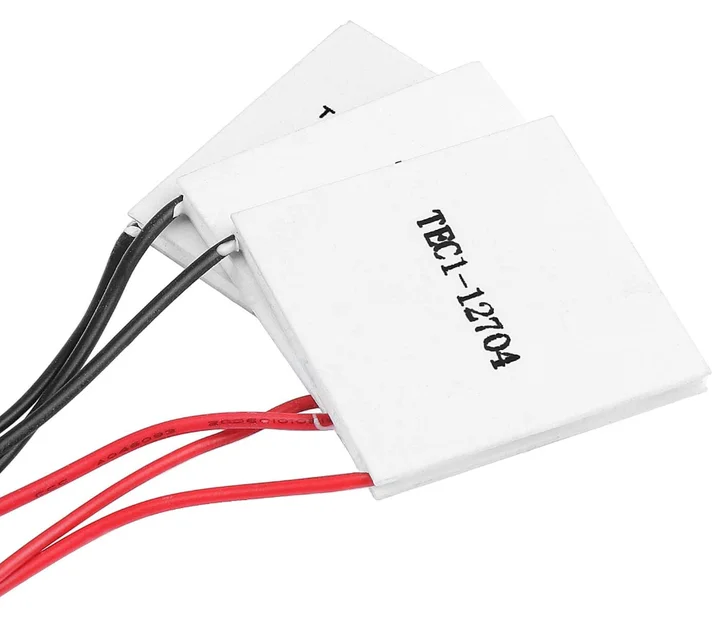

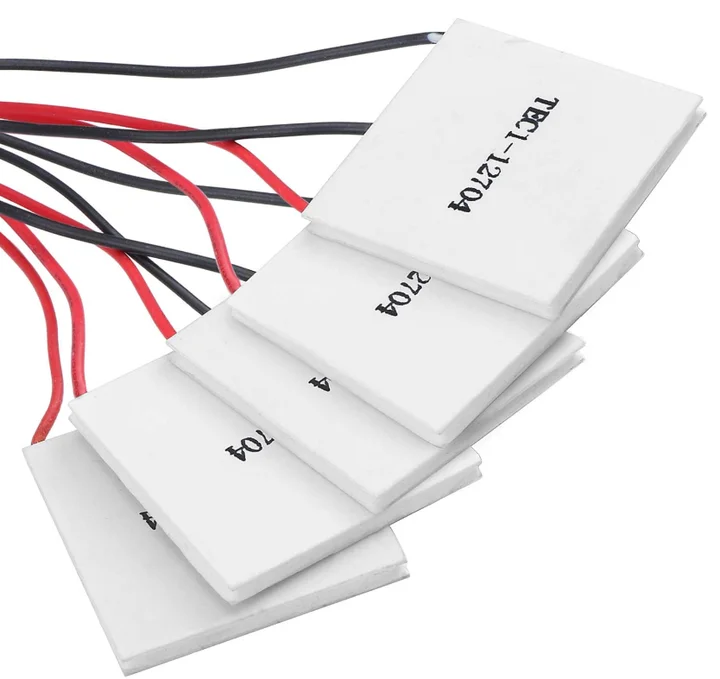

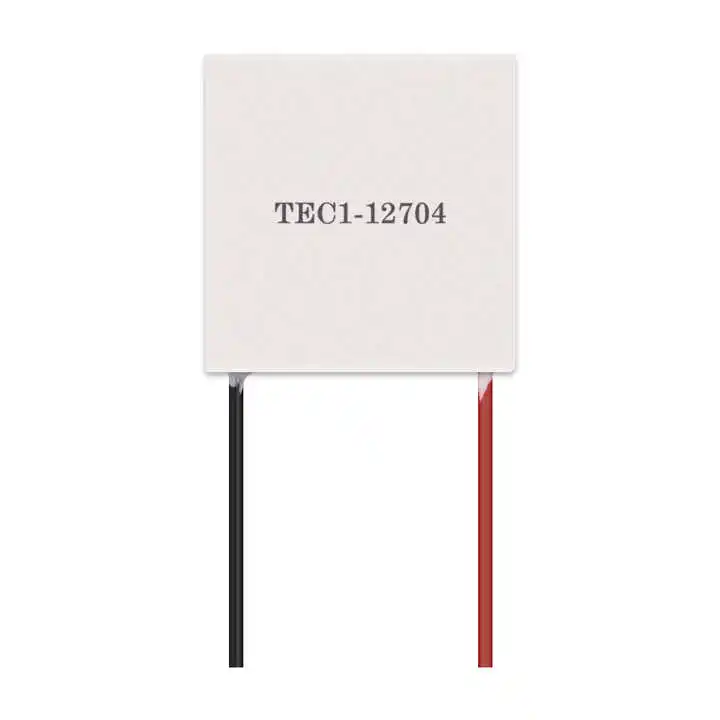

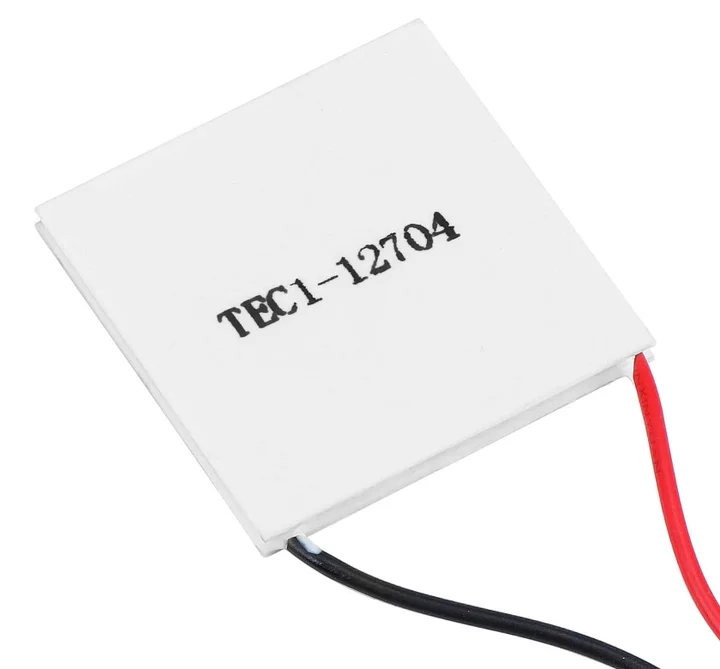

TEC1 12704 Thermoelectric Cooler Peltier 40*40 12V 4A Peltier Module
- Category: >>>
- Supplier: Shenzhen Zhenrui Electronics Technology Co. Ltd.
Share on (1601002481082):
Product Overview
Description
Product Description
Product Name | TEC1-12704 Peltier Module |
Condition | 100%new |
Quality | High-quality |
Keyword | Thermoelectric Module Cooler |
Operating Voltage | 12V |
Size | 30x30mm |
Weight(gm) | 15 |
Package | box |
Product performance description
TEC1-12704 Thermoelectric Cooler Peltier 40*40 12V 4A Peltier Module
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Description:
Type number :TEC1-12704

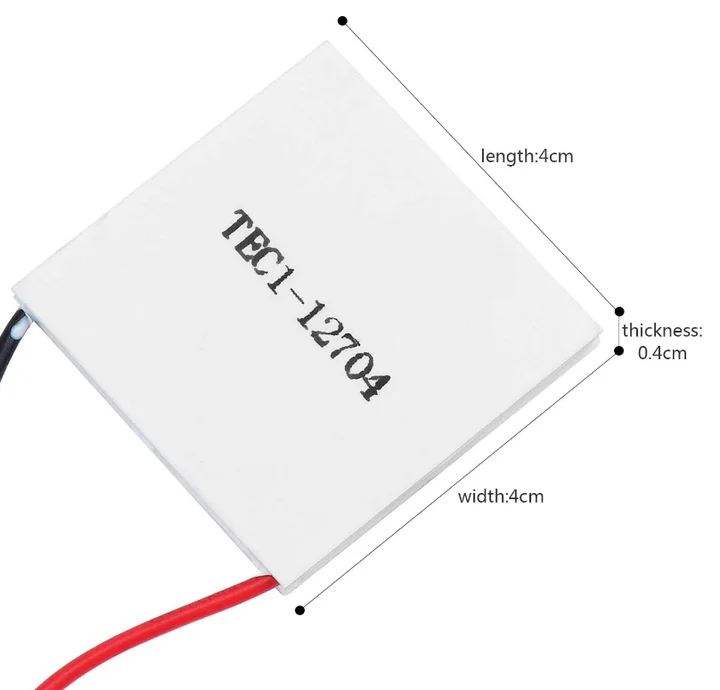

Dimensions : 40x40x4.2 mm
Conductor L(MM) :100 mm (±5mm)
Resistance : 3.0-3.3Ω
particles :127
△TmaxQC=0(C) : 60°C
DC12V(Vmax:15.5V)
Cooling power :Qcmax 36W
U=standard(V) :12V
Pressure=kg/cm2 :85N/cm2
Operates Temperature:-55~83°C
The above information is for reference only ,it will make a difference when in actual use .
The Plate cannot be electrified more than two seconds when no radiator.
Chip Model: tec1-12704
Overall dimensions: 40*40*4.2mm component logarithm 127
Wire specification: lead long 100±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 3.0~3.3ω (ambient temperature 23±1℃, 1kHZ AC test)
Maximum temperature difference: Tmax (qc=0) 60 ℃ above.
Working current: imax=12 (rated voltage start)
Rated Voltage: $literal (Vmax: 5V)
Cooling power: Qcmax 36W
Assembling pressure: 85n/cm2
Working environment: Temperature range -55℃~83℃ (high ambient temperature will directly affect refrigeration efficiency)
Packaging process: Ambient standard 704 Silicone rubber seal
Packaging standards: Foam box packaging, storage conditions ambient temperature -10℃~40℃
Storage conditions:-40~60℃
Package Includes:
1 x TEC1-12704 Thermoelectric Cooler 4A Peltier Module – 40*40mm .
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
Type number :TEC1-12704
Dimensions : 40x40x4.2 mm
Conductor L(MM) :100 mm (±5mm)
Resistance : 3.0-3.3Ω
particles :127
△TmaxQC=0(C) : 60°C
DC12V(Vmax:15.5V)
Cooling power :Qcmax 36W
U=standard(V) :12V
Pressure=kg/cm2 :85N/cm2
Operates Temperature:-55~83°C
The above information is for reference only ,it will make a difference when in actual use .
The Plate cannot be electrified more than two seconds when no radiator.
Chip Model: tec1-12704
Overall dimensions: 40*40*4.2mm component logarithm 127
Wire specification: lead long 100±5mm RV standard conductor single head 5mm tin plating
Internal resistance: 3.0~3.3ω (ambient temperature 23±1℃, 1kHZ AC test)
Maximum temperature difference: Tmax (qc=0) 60 ℃ above.
Working current: imax=12 (rated voltage start)
Rated Voltage: $literal (Vmax: 5V)
Cooling power: Qcmax 36W
Assembling pressure: 85n/cm2
Working environment: Temperature range -55℃~83℃ (high ambient temperature will directly affect refrigeration efficiency)
Packaging process: Ambient standard 704 Silicone rubber seal
Packaging standards: Foam box packaging, storage conditions ambient temperature -10℃~40℃
Storage conditions:-40~60℃
Package Includes:
1 x TEC1-12704 Thermoelectric Cooler 4A Peltier Module – 40*40mm .
1. Industry market conditions and original factory price fluctuation dynamic videos are numerous, the specific price and business
confirmation shall prevail 2. The original factory packs the package, the specific price involves unpacking and repacking
according to the required quantity,the specific price and business confirmation shall prevail
