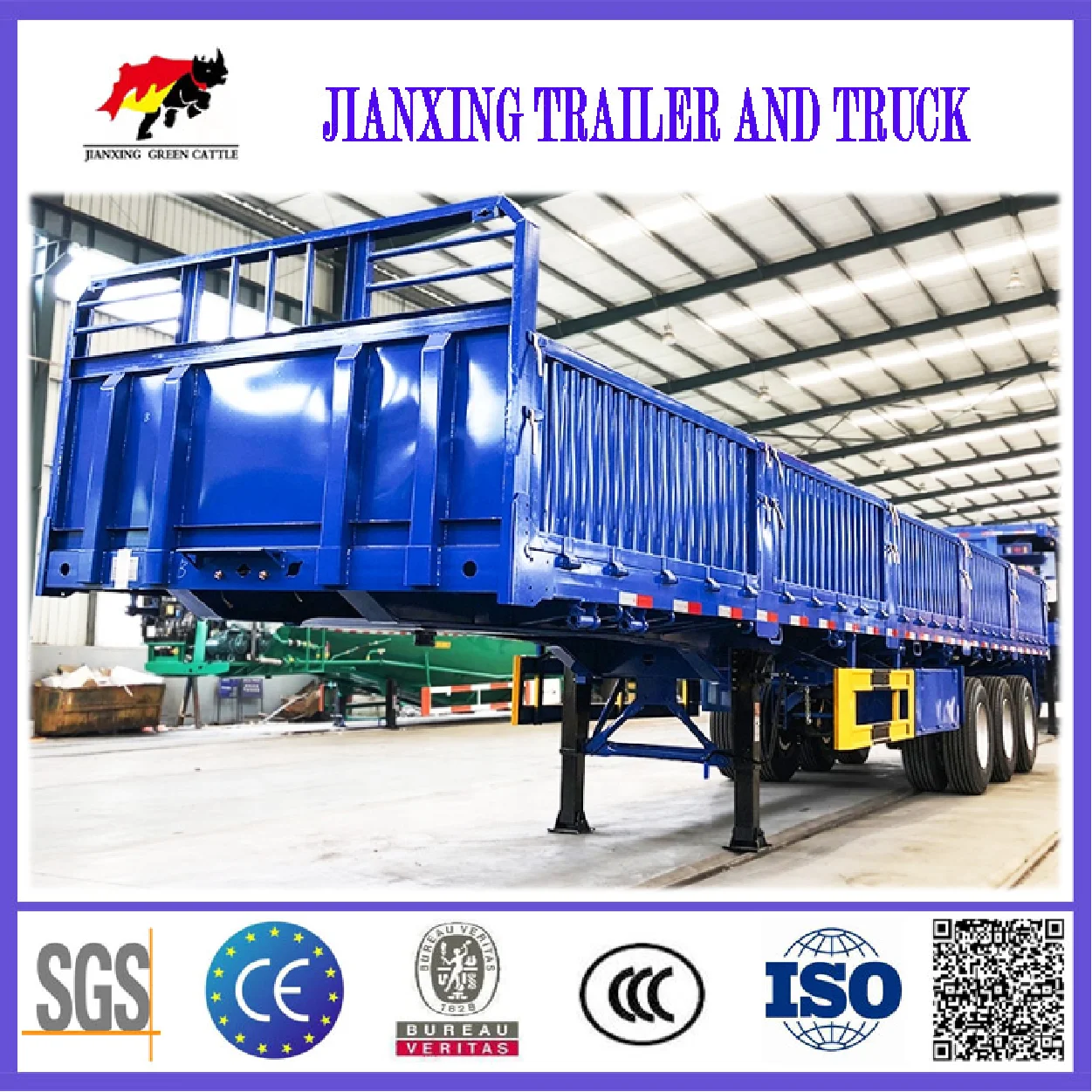

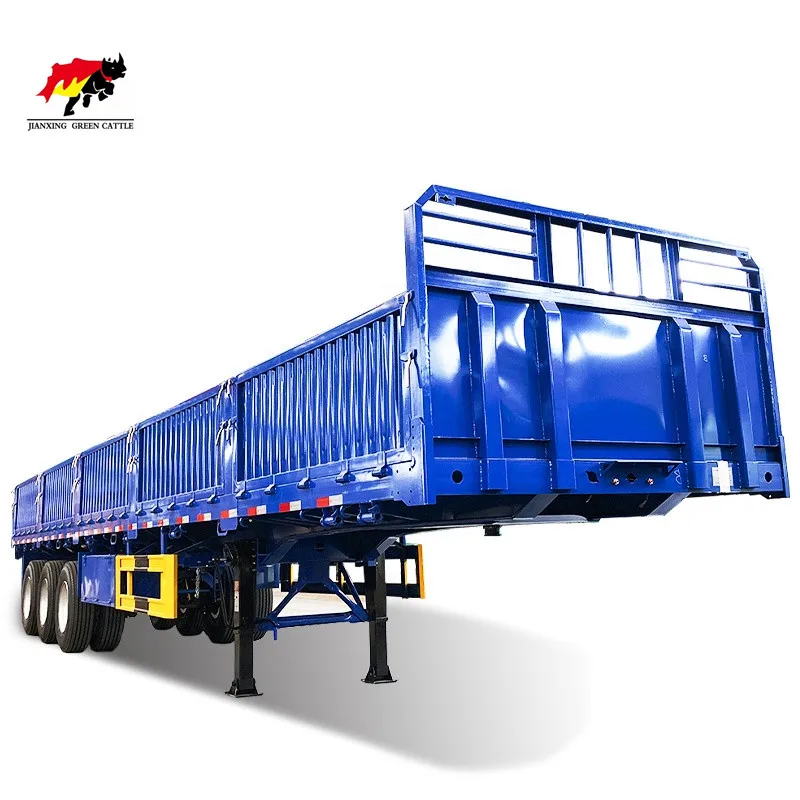

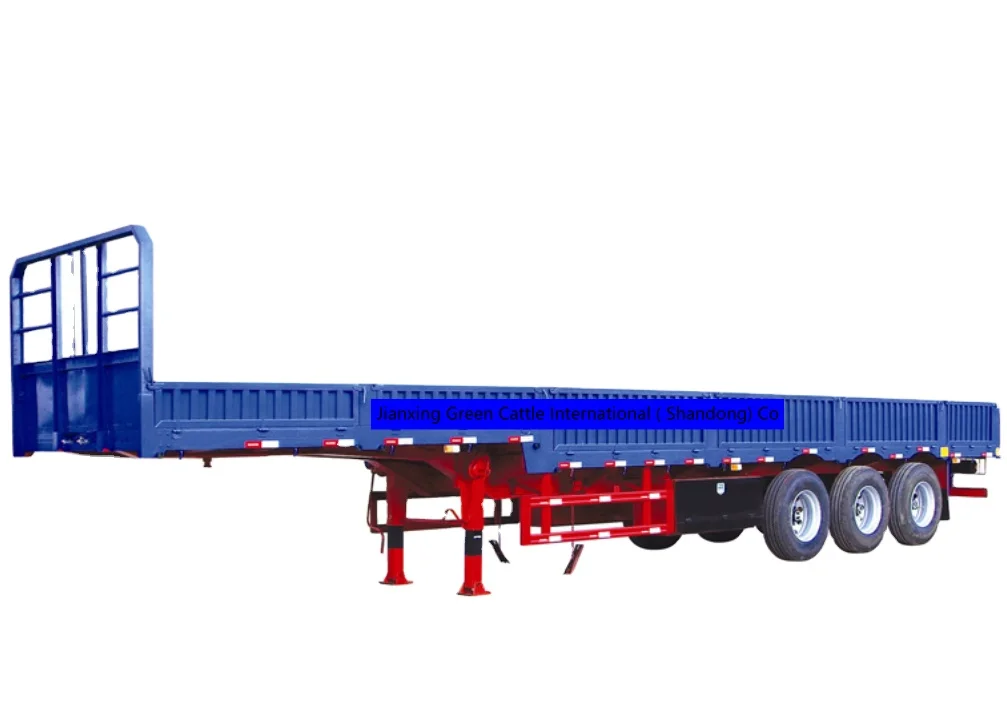

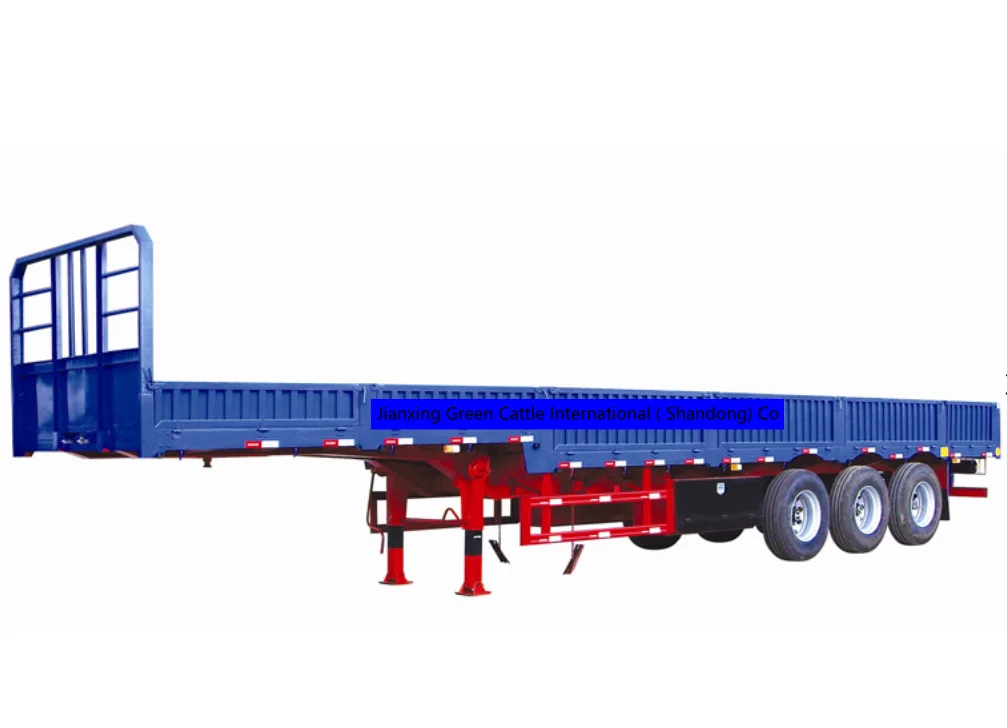

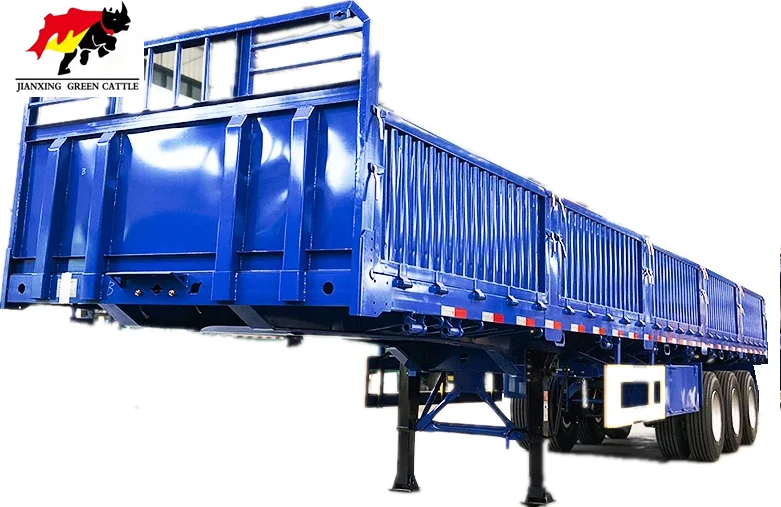

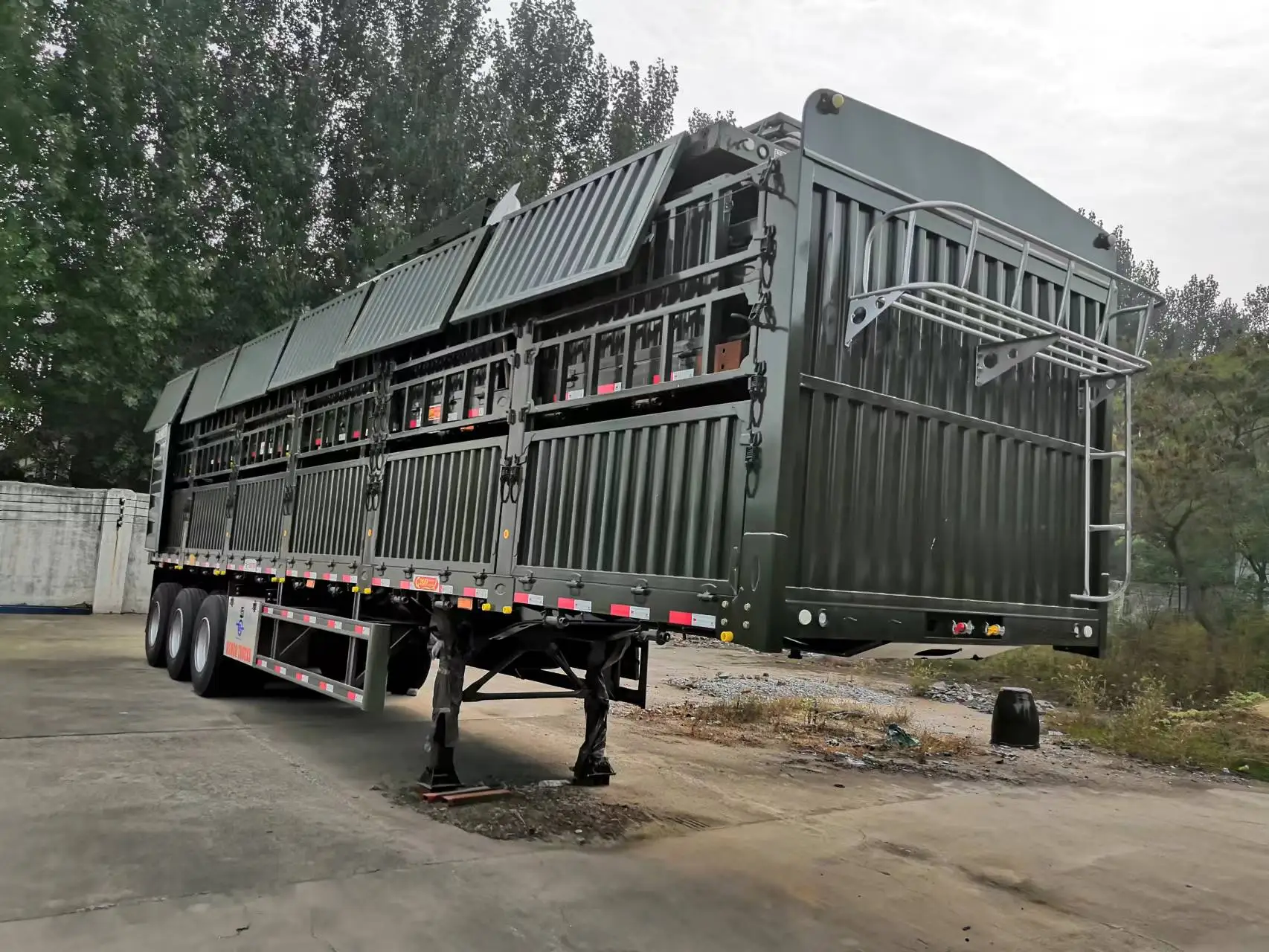

Cheap good quality 3 Axles 40ft 12m 12.5m 40ton 50ton Van Box semi trailer cargo semi trailer with enclosed Pickup
- Category: >>>
- Supplier: Jianxing Green Cattle International(Shandong) Co. Ltd.
Share on (1601002510064):
Product Overview
Description
Main Description | ||||||||
Overall Dimension | 12400mm*2495mm*2920mm | |||||||
Box Body Dimension | 12280mm*2300mm*600mm | |||||||
Tare Weight | 8000kg | Pay Load | 40ton | |||||
King Pin Setting | 1460mm | Rear Overhang | 1930mm, 2130mm | |||||
Track | 1840mm | Loading surface height | 1600mm | |||||
Wheel base | 7000mm+1305mm+1305mm, 6800mm+1305mm+1305mm | |||||||
Box Body | Floor steel sheet 2.5mm, side wall steel sheet 1.2mm | |||||||
Running Gear | ||||||||
Suspension | Tri-axle mechanical suspension with 11-pcs leaf spring | |||||||
Wheel Hubs | Cast steel, 10 studs | |||||||
Tires | 11.00-20, 11.00R20,12.00-20,12.00R20, 12units | |||||||
Axles | 3AQ，FUWA，JSAF， BPW or STEYR axle, load capacity 13T | |||||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||||
Under Frame | ||||||||
Main Beam | I shape, Mild Alloy （16Mn） by Automatic submerged arc welding. | |||||||
Cross Beam | Mild Alloy Q235 | |||||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||||
Landing Gear | Single side operation or double side operation, Static capacity 30Ton | |||||||
Electrical & Paint | ||||||||
Lights & Reflectors | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||||
Wiring | 24V, 6 lines | |||||||
Air/Elec. Connector | ISO standard air connector, 24V 7 pin plug socket | |||||||
Paint | Sand blasting before painting, 2 coat of anticorrosive primer, 2 coats of finish urethane paint, Color upon request | |||||||
Details Images

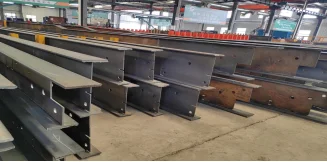

1. Chassis:
China Best Q345B support Stronger Trailer Skeleton,Gooseneck strengthened for heavy load.Trailer Durable and High Truck Attendance Rate
Famous Brand Axle Support BPW/FUWA brand 12/13/14/15/16 ton axles available
3. Suspension
Heavy duty air/spring suspension optional. High strength, strong impact resistance

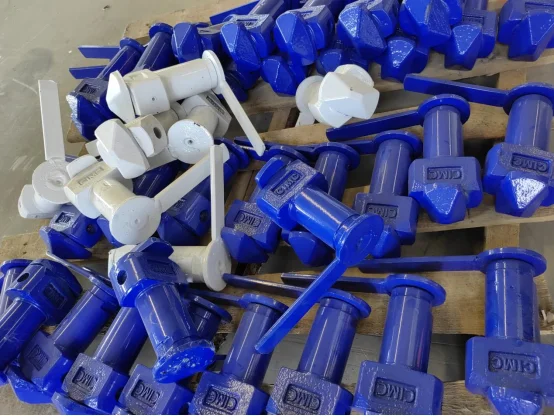

4, Twist locks
With twist locks for container transport
Good Quality Tire support Trailer Running Safety&Smoothly
JOST Detachable Type support Durable and Fast&Easy Replace
Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. At present ,the company mainly sells container skeleton semi trailer, container flat semi trailer, cargo trailer, fence semi trailer, various series semi trailer,full trailer, van, car transport vehicle manufactured by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons. In addition, Jianxing Green Cattle International (Shandong) Co., Ltd. to undertake special vehicle modification design business. The company' s products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
Our company is led by a professional manager who have been in the same industry for more than 15 years. So we have a perfect training mechanism, perfect foreign trade process, reasonable risk aversion rules, rich foreign trade business experience. The company' s philosophy is concentric share with win-win, grateful for you and the service attitude is every trust must not be disappointed. Welcome partners from all over the world to visit and negotiate business with us.
Laser cutting, plasma cutting : The material to be cut is irradiated with a high power density laser beam, so that the material is quickly heated to the vaporization temperature, and evaporates to form a hole. As the beam moves to the material, the hole continuously forms a narrow slit to complete the cutting of the material.
Fixed height spot welding - manual welding
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Warmly Welcome to china and visit our factory !
By Bulk ship / By RORO ship --semi trailer, truck / By container or flat rack---spare parts, semi trailer, truck
Certifications
1.What's your MOQ?
2. How I believe you?
A: One unit trailer or truck.
2. How I believe you?
A : We have a factory ourselves,we are on this business for few years in China. Our factory is very famous in the Shandong China. We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time? How do you transport the semi trailers ?
A: Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time? How do you transport the semi trailers ?
A: Within 15-35 days after we confirm you requirement. We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
