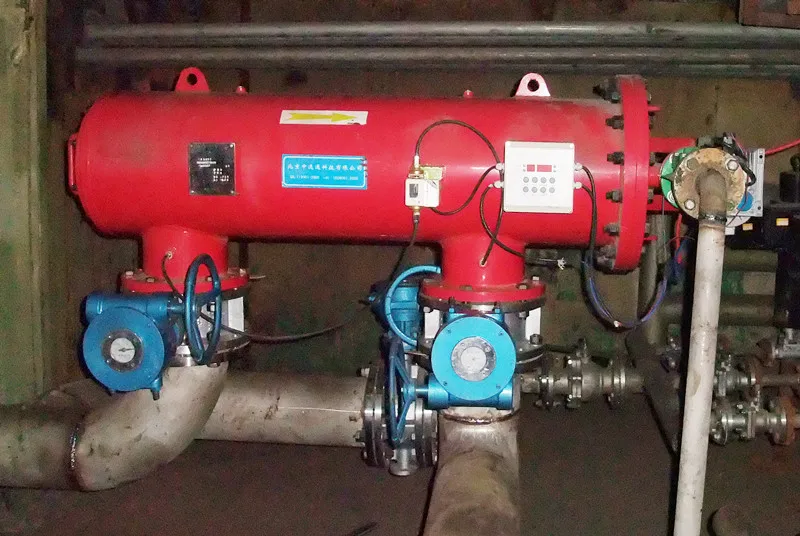

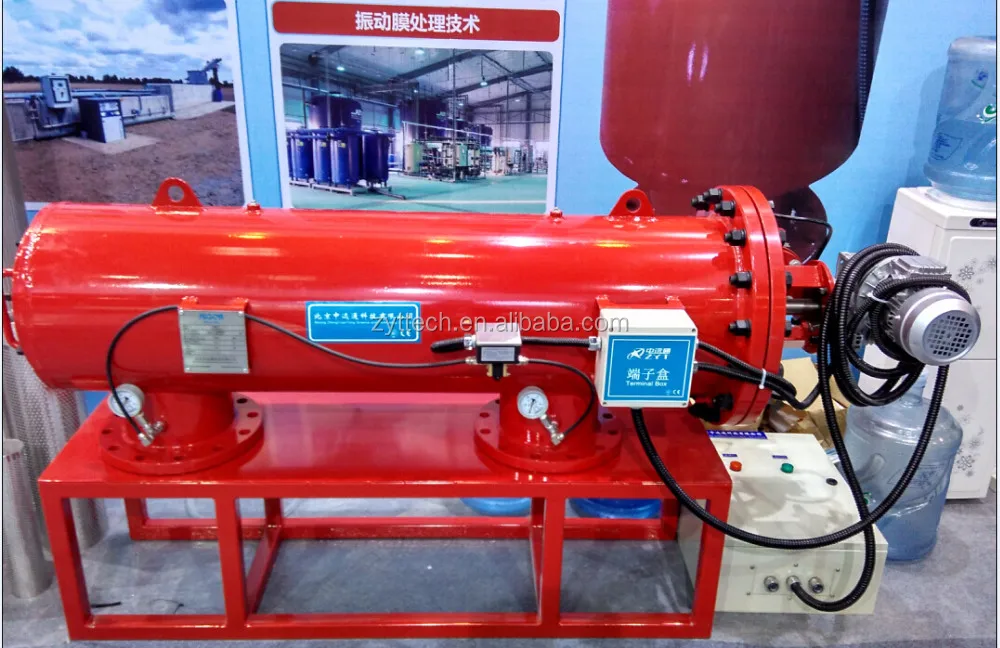

ZYT filter A500 Series industrial stainless steel screen automatic self cleaning irrigation water filter
- Category: >>>
- Supplier: Beijing ZhongYuanTong Science & Technology Co. Ltd.Beijing Ltd.
Share on (1601002556768):
Product Overview
Description
Products Show
A500 series of self cleaning filter using the brush cleaning mode with good cleaning effect. This type filter have two-stage filtration, horizontal instal-lation and maintenance is convenient.
Filter flow | 80~2000 m²/h | |
System working pressure | 0.25-2.5Mpa | |
Pressure rating | 1.0Mpa/1.6Mpa/2.5Mpa | |
Working temperature range | 0~65℃ | |
Filtering precision | 50 -3000micron | |
Pressure loss | < 0.01 Mpa | |
Inlet and outlet Connection | flange | |
Backwash time | 12~18 sec | |
Water usage during backwash cycle | 1%~3% of filtered water | |
Control mode | brush | |
Rated operating voltage | 3-ph, 380v, 220v, 50Hz | |
Installation method | horizontal |
The Filtering Process：
Raw water enters the filter inlet through the coarse screen which protects the cleaning mechanism from large particles. Then water
passes through the fine screen, trapping dirt particles which accumulate inside the filter. Clean water flows through the outlet.
The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corres ponding increase in the pressure
differential across the fine screen. A pressure differential switch senses the pressure
passes through the fine screen, trapping dirt particles which accumulate inside the filter. Clean water flows through the outlet.
The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corres ponding increase in the pressure
differential across the fine screen. A pressure differential switch senses the pressure
differential and when it reaches the pre-set value, the cleaning process begins.
The Self Cleaning Process：

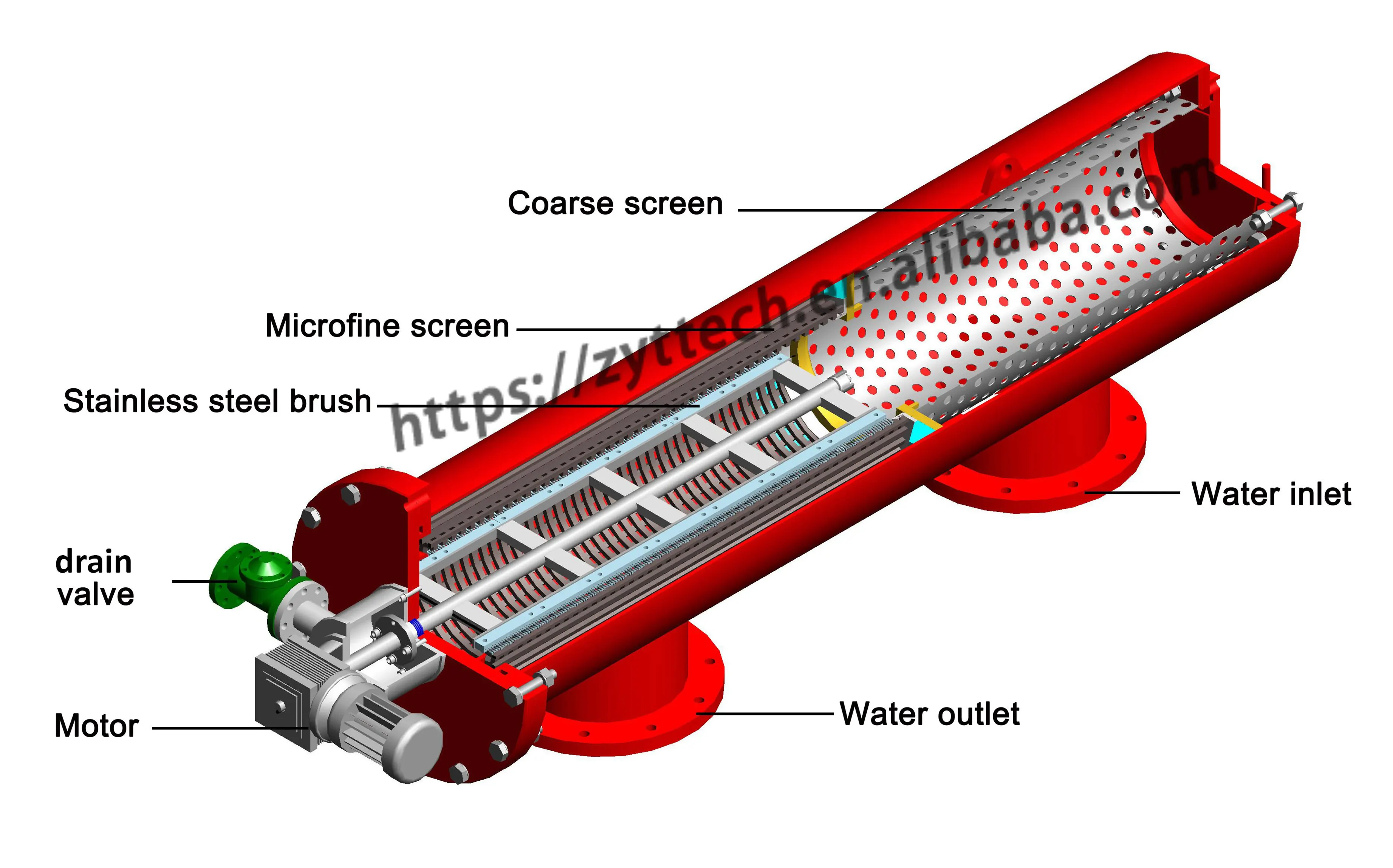

Cleaning of the filter is carried out by the brush which spirals across the screen; The Drain Valve opens and the Motor rotates the stainless steel brushes which sweep the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve. During the self cleaning process, which takes between 30 seconds,filtered water continues to flow downstream.
The Control System：
Two types of control boards are available for AIGER A50 0 Series Automatic Backwash Filter:PLC/ TIMER/MANUAL.
The self cleaning cycle begins under any one of the following conditions:
1.Receiving a signal from the Pressure Differential Switch.
2.Time interval parameter set at the control board.
3.Manual Start.
1.Receiving a signal from the Pressure Differential Switch.
2.Time interval parameter set at the control board.
3.Manual Start.

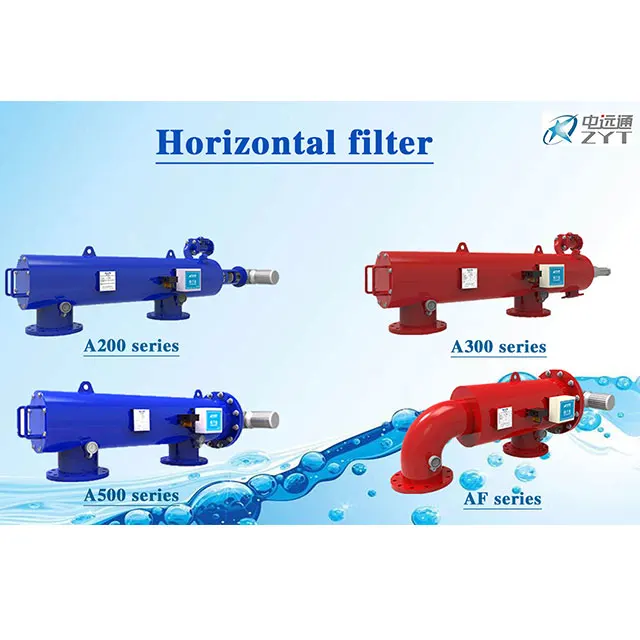

Model Choice

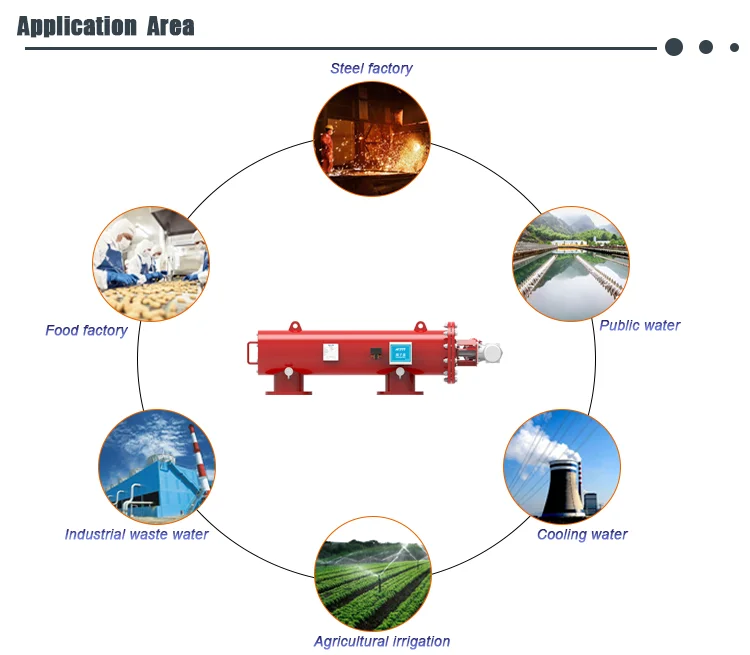

APPLICATION AREA

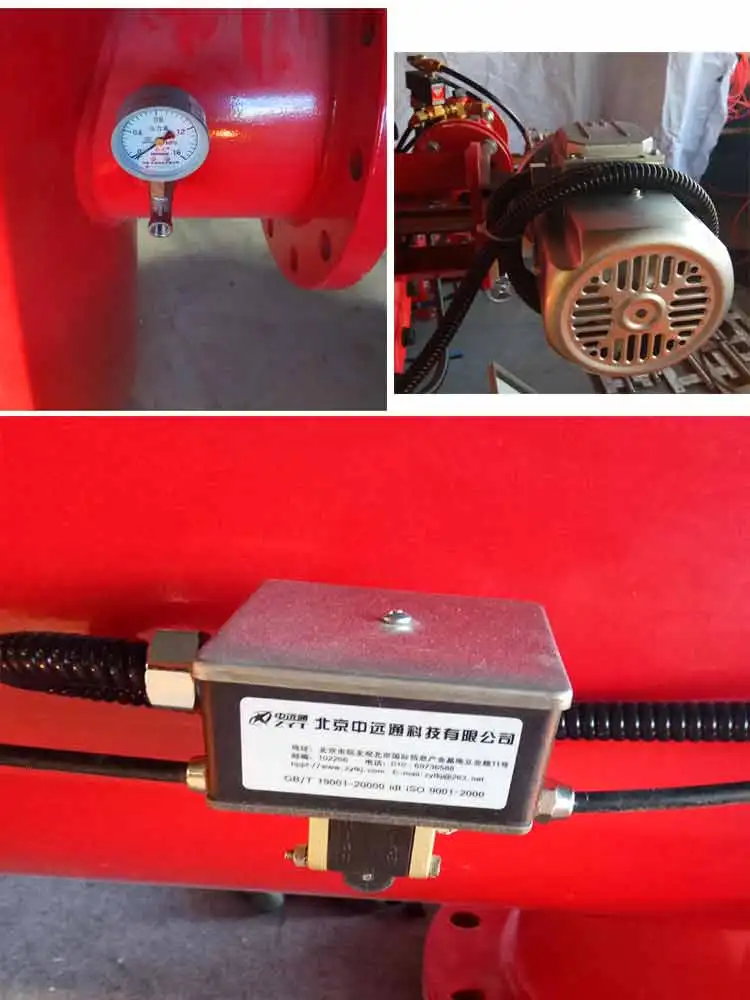

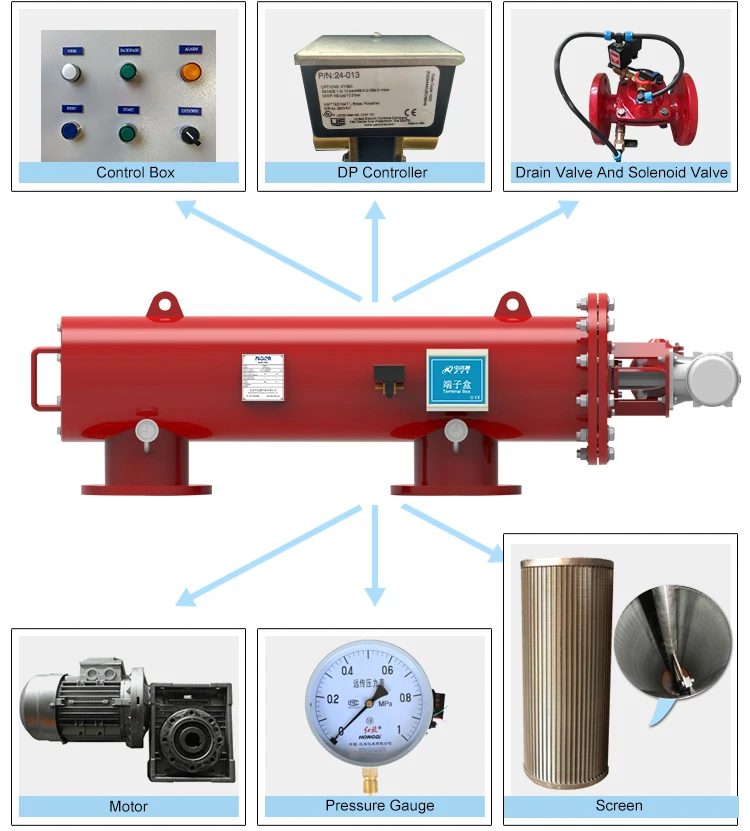

Filter Parts
Feature：
AIGER Farm Irrigation System Self Cleaning Water Filter adopts Israeli advanced and specialized filter technology with characteristics of large flow, auto back flushing, saving water, can fully improve the utilization rate of water. More over it can achieve the advantages:
1)Highest cleaning efficiency
2)Reliable and Compact filter element
3)Super big flowrate ,and best preformance .
1)Highest cleaning efficiency
2)Reliable and Compact filter element
3)Super big flowrate ,and best preformance .

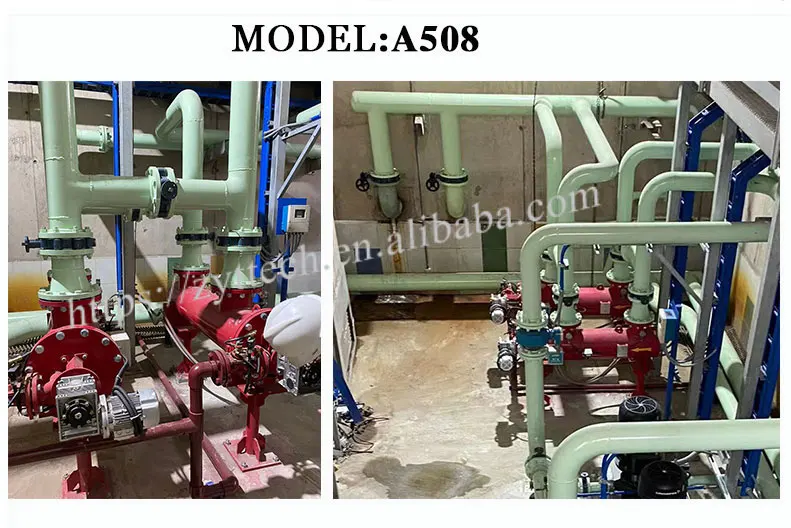

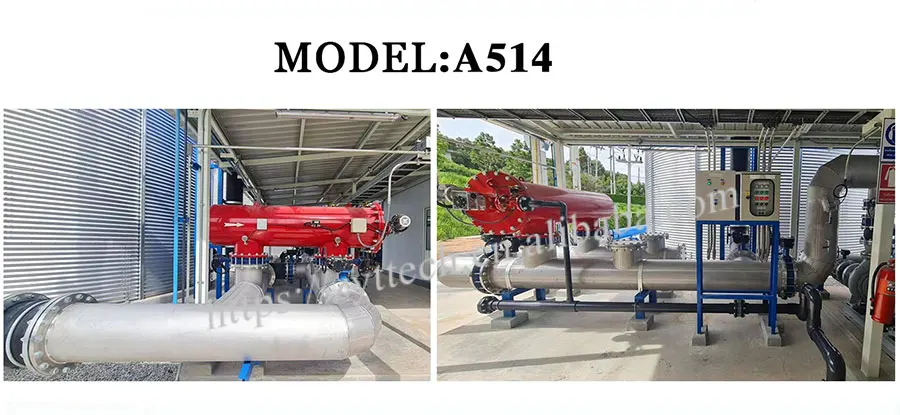

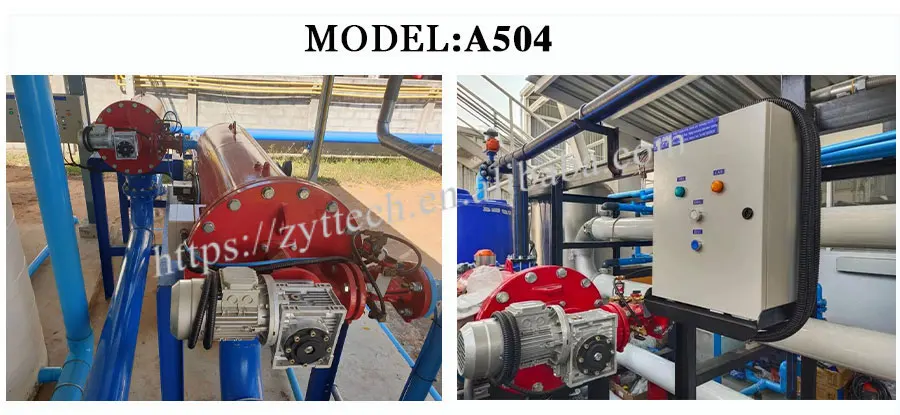

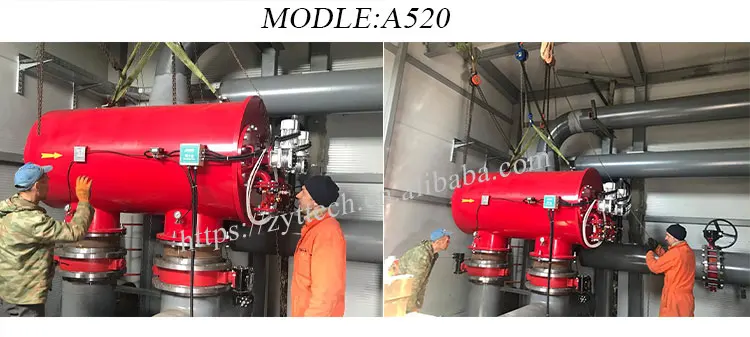

PROJECT CASE

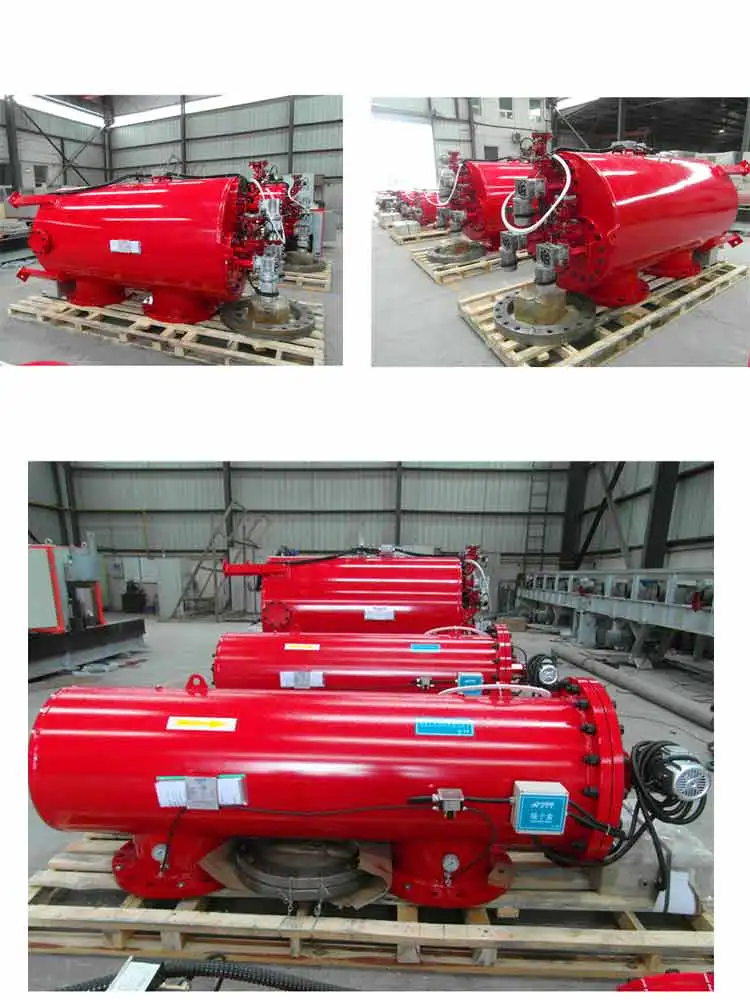

Packaging & shipping
About Us
Why Choose Us
Q:Are you trading company or manufacturer?
A:We are factory.
Q: How long is your delivery time?
A: Generally A100 series automatic self-cleaning filter for environmental water treatment is 2 days, and A100 series automatic self-cleaning filter for environmental water treatment is alsoaccording to quantity.
Q: Do youprovide samples ? is A100 series automatic self-cleaning filter forenvironmental water treatment free or extra?
A: Sorry, we couldnot offer the sample for free charge.
Q: What is your terms of payment?
A: 100% prepayment for amounts below $1000; Over $1000, 30% advance payment, remaining 70% to be paid before shipment.
Q: How long is the warranty period?
A:Quality guarantee: the quality guarantee period shall be 12 months after the equipment operation, and it should be no more than 15 months from the date of shipment, whichever comes first.
