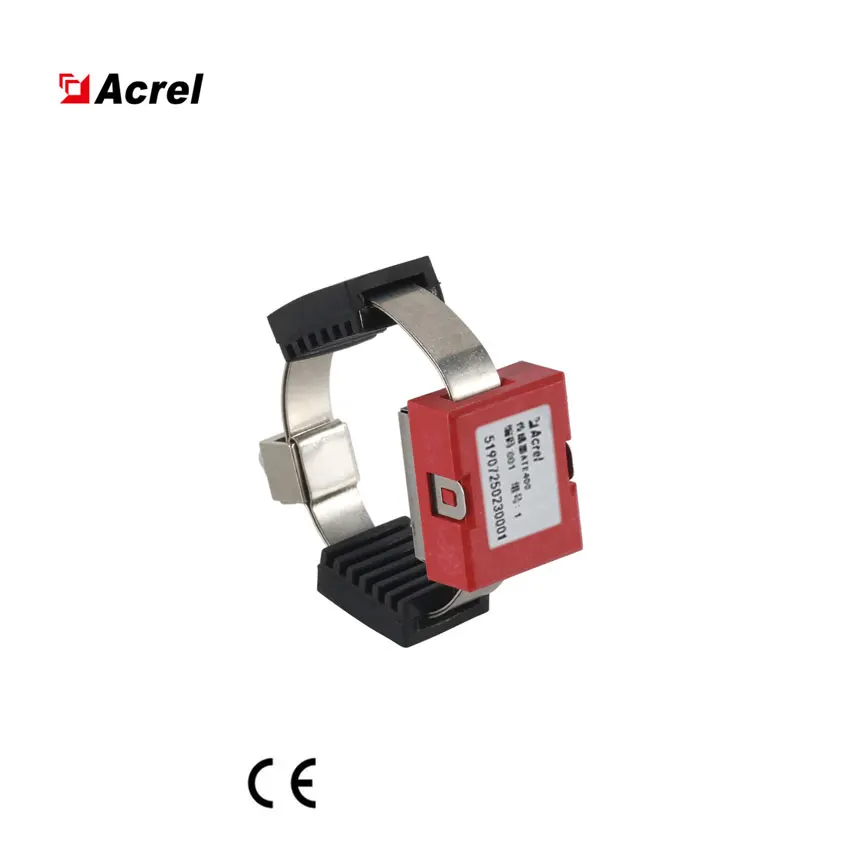

ACREL temperature sensor ATE400 Tied type Passive Wireless Temperature Sensor HV LV Switchgear Busbar
- Category: >>>
- Supplier: Jiangsu Acrel Electrical Manufacturing Co. Ltd.
Share on (1601002568917):
Product Overview
Description
Product Details
ATE series wireless temperature measuring sensor has been developed in compliance with Specification for Wireless Temperature Measuring equipment, NB/T 42086-2016. It is suitable for 3-35kV indoor switchgears, including built-in switchgears, handcart switchgears, fixed switchgears and loop-net switchgears. It is also suitable for 0.4kV low-voltage switchgears such as fixed switchgears and drawer switchgears. The wireless temperature sensors can be installed at any heating point in switchgears, the device utilizes the wireless data transmission technology for real-time transmission of monitored temperature data. In addition, it can be transmitted to display device or remote intelligent monitoring system

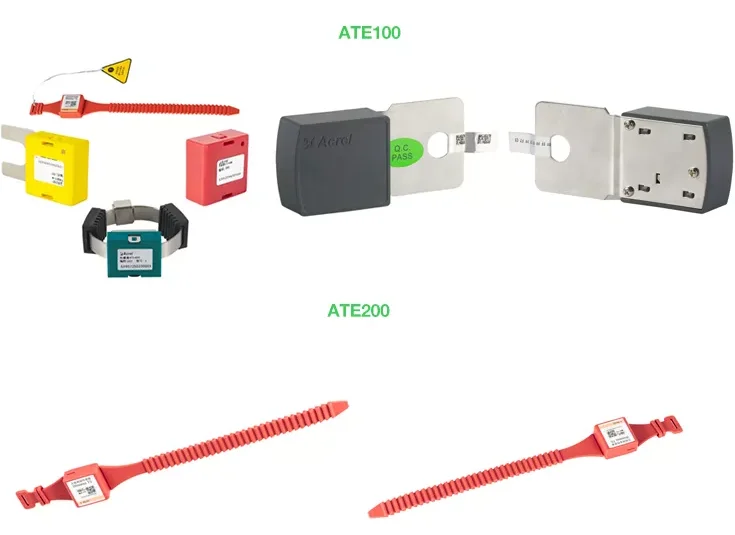

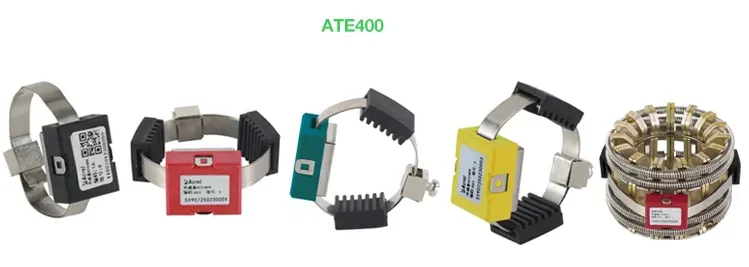

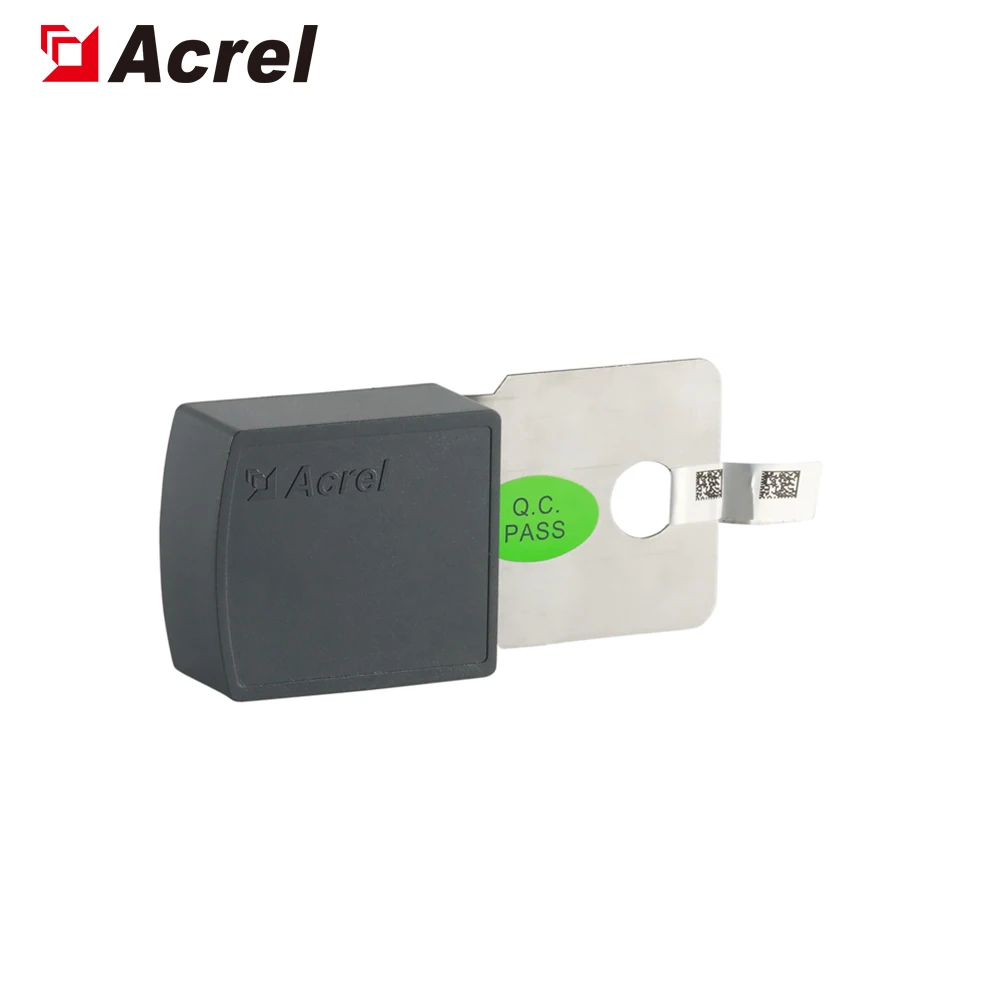

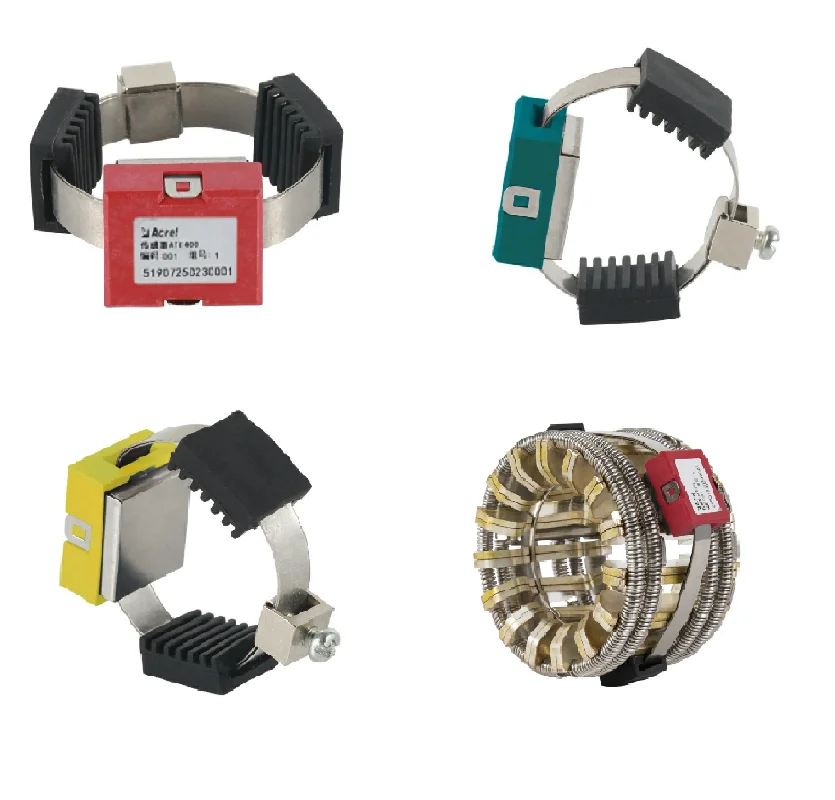

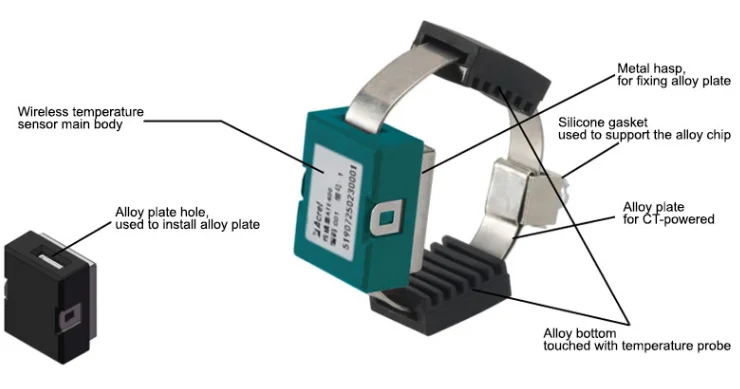

Appearance

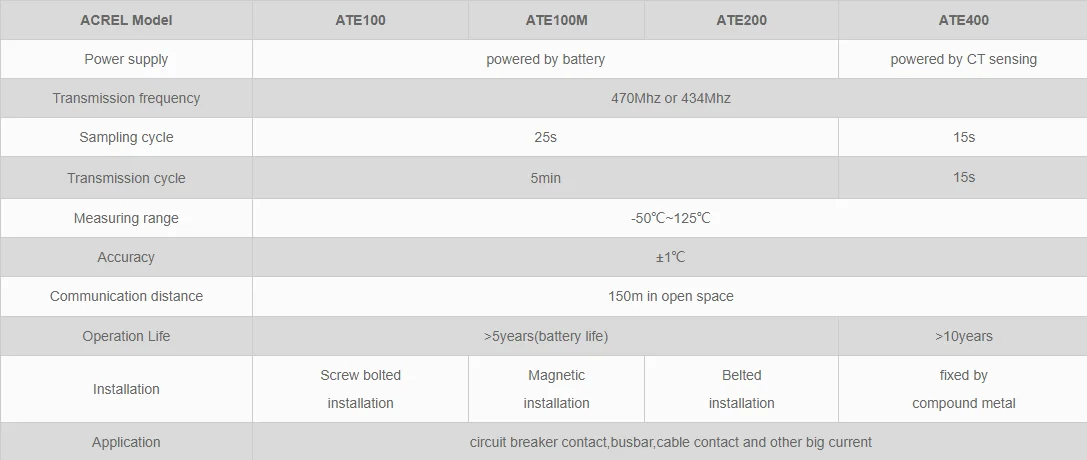

Model Description

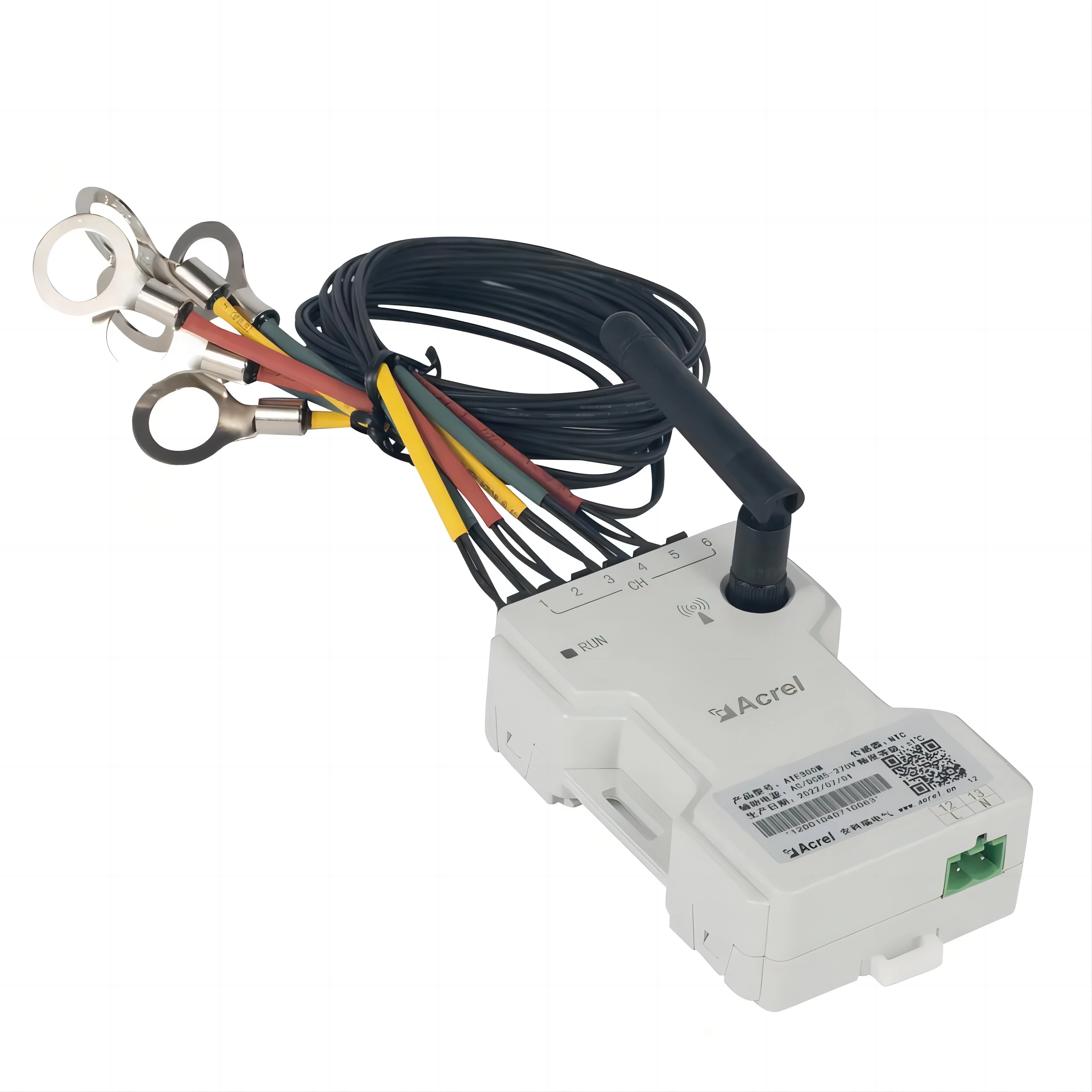

Transceiver | ||||
Acrel model | ATC450-C | ATC-600 | ||
Power supply | DC24V | AC/DC 110V/220V | ||
Installation | Din rail 35mm or screw fixed | Din rail 35mm | ||
Communication | Modbus RTU RS485 | Modbus RTU RS485 | ||
Extra function | No | Alarm output 2DO | ||

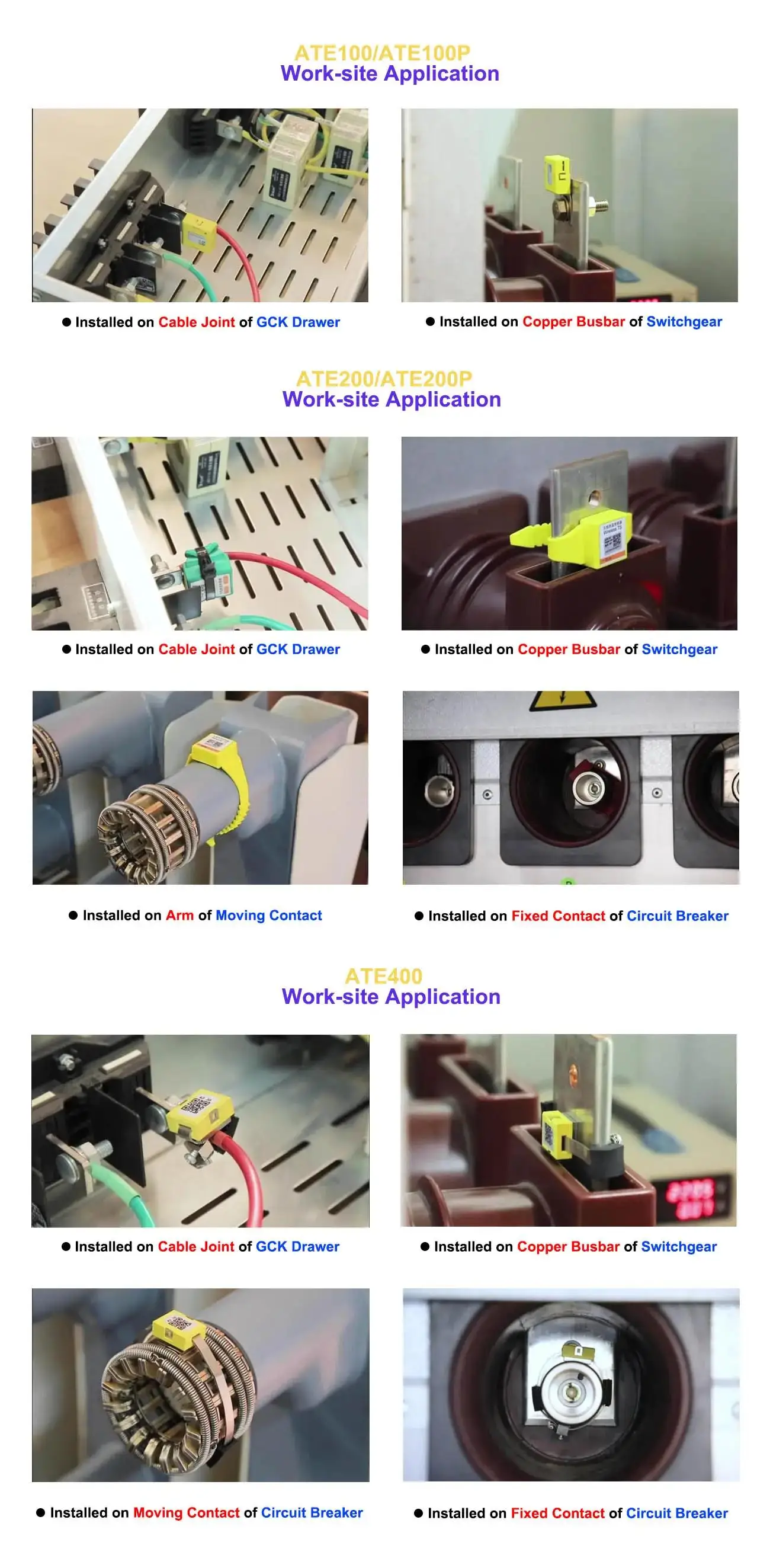

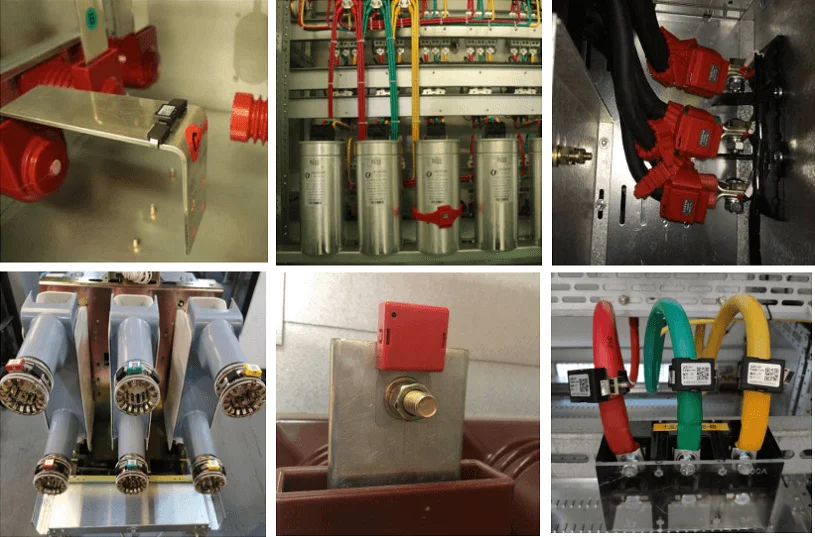

Application
Company Profile
Acrel Co., Ltd. [Stock Code: 300286. SZ] is a high-tech enterprise which concentrates on research, production, sales and services. It mainly provides systemic solutions of energy efficiency management and electrical safety for users. Acrel has equipped with the complete production lines from cloud platform software to sensors. Until now, it has more than 8000 sets systemic solutions used in China to help users realizing energy visual management ,supplying energy data services and improving electrical efficiency and safety.
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
Acrel Energy Efficiency Management System includes various cloud platforms such as substation operation and maintenance, safety power management, environmental protection power supervision and prepaid management, and many kinds of monitoring and management systems such as intelligent transformer and distribution, power quality, building energy consumption, industrial energy, leakage fire alarm, fire power, fire door, emergency lighting and evacuation instructions, charging pile charge, data center power unit and environment variables, intelligent lighting and IT distribution insulation.
