DC12V 30mm Open Hole IP68 Black Wire Flat Cover UCS2904 TM1814 IC RGBW Addressable LED Puck Pixel Light

Part No

TM1814/UCS2904-RGBW-3LEDs-IP68

Color

full color RGBW;each module as one pixel;takes 4

dmx channels

LED Qty

3pcs high bright 5050 SMD RGBW(warm white or cool white) LED

Input Volt

DC12V

Max current

75MA

Max Power

0.9W

IC type

TM1814-RGBW IC or UCS2904-RGBW IC

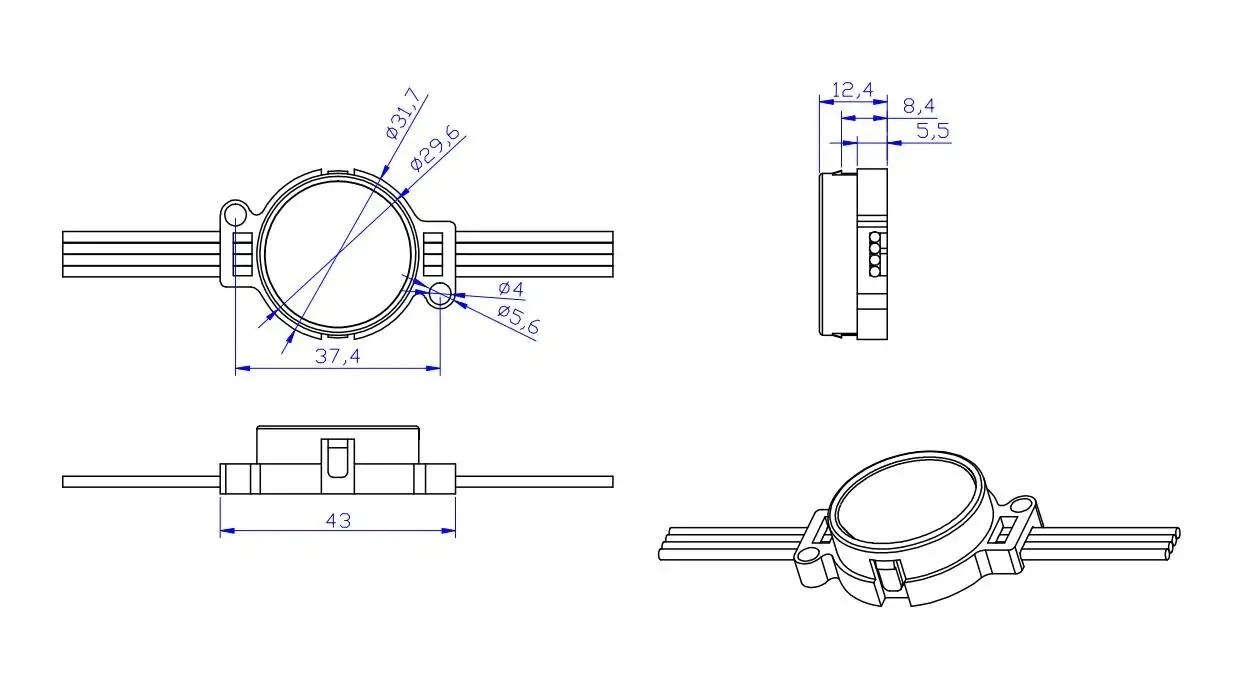

Dimension

30mm diameter

Viewing angle

150-180degree

Protection Level

IP68 waterproof;outdoor used

Certification

CE and RoHS

Quantity of each set

20pcs led together

Standard wire length

100mm/150mm/200mm wire spacing from side to side; 18AWG black wire

Housing

flat clear PC case

Fixed way

screw

Lifespan

35000 hours

Warranty

3years

Operation temperature

-40-50

Store temperature

-50-60
