vinyl cutter machine cutting plotter
US $258.00-$308.00

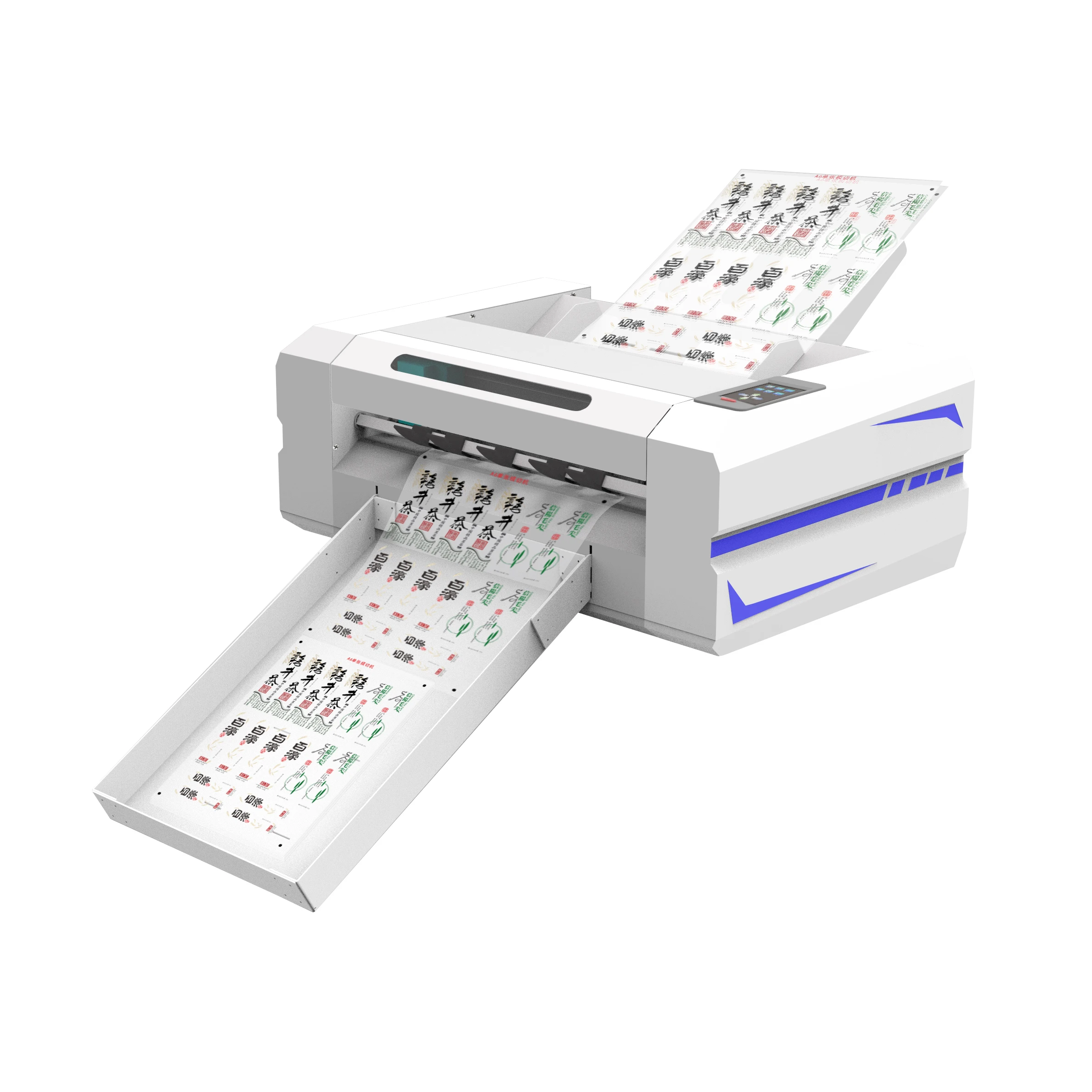

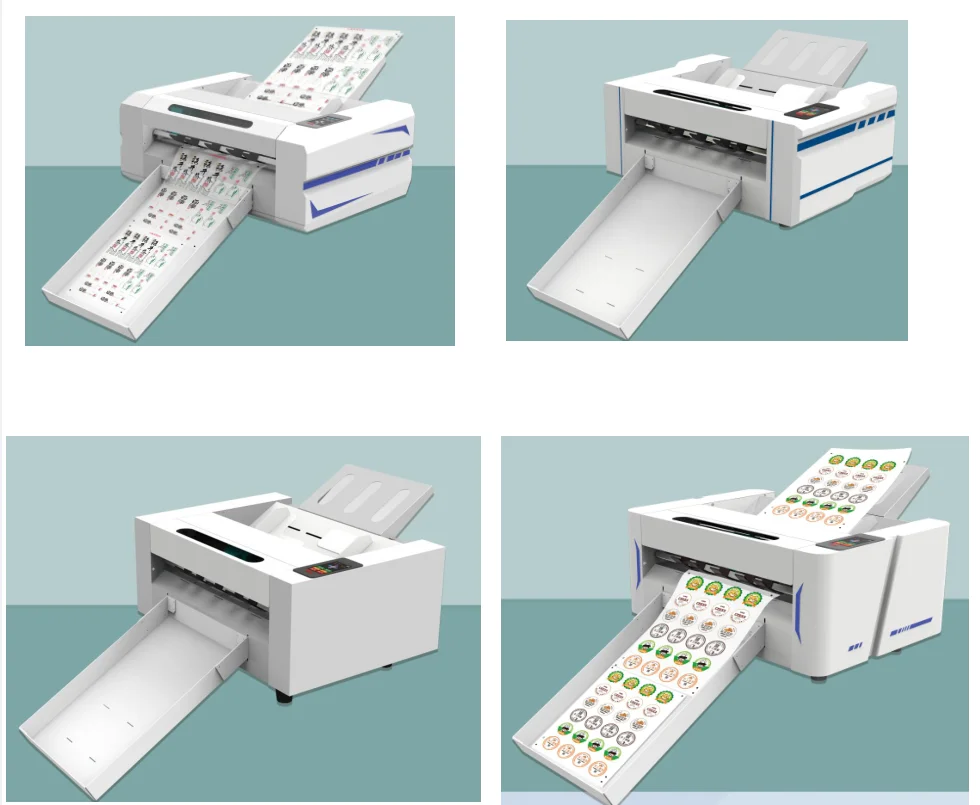

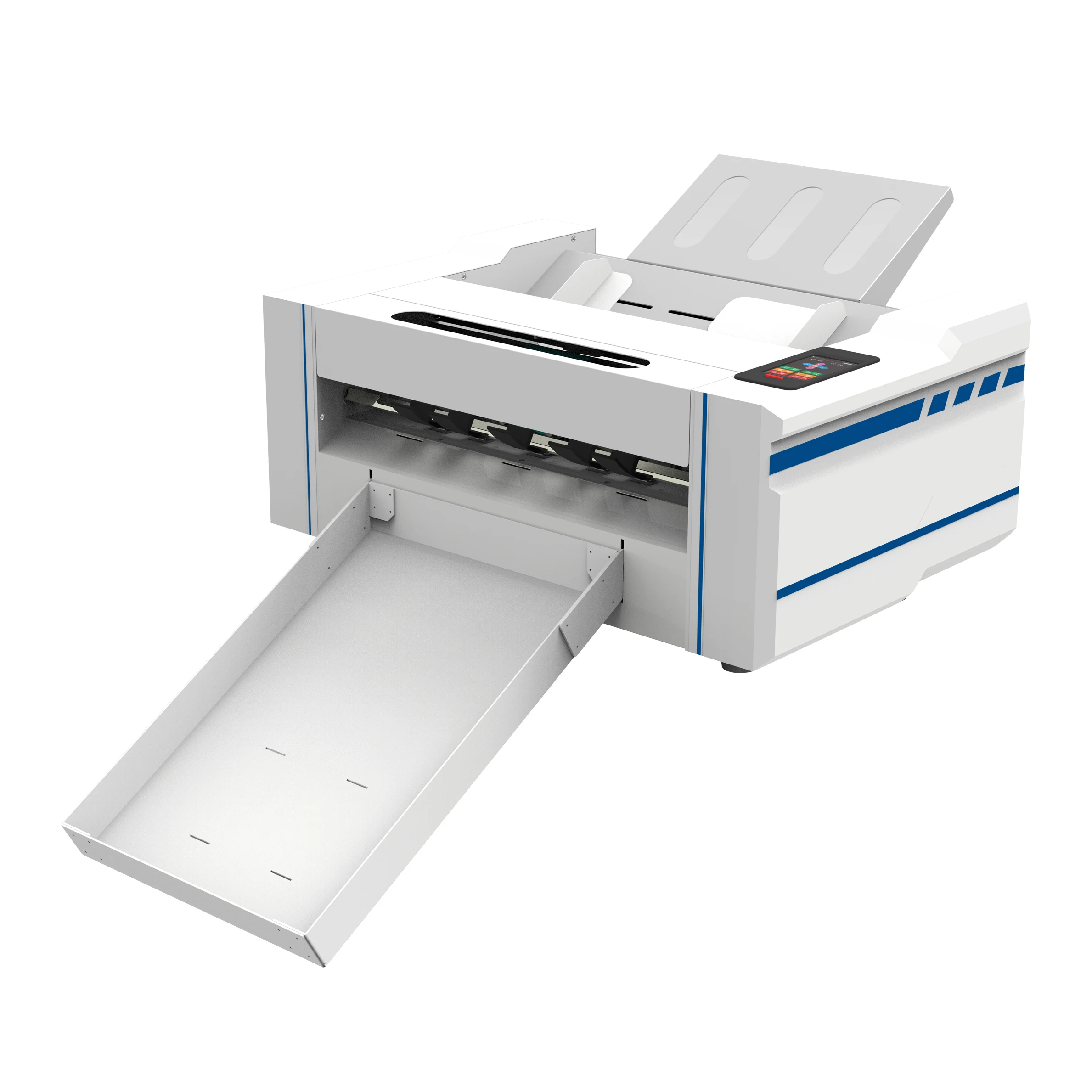

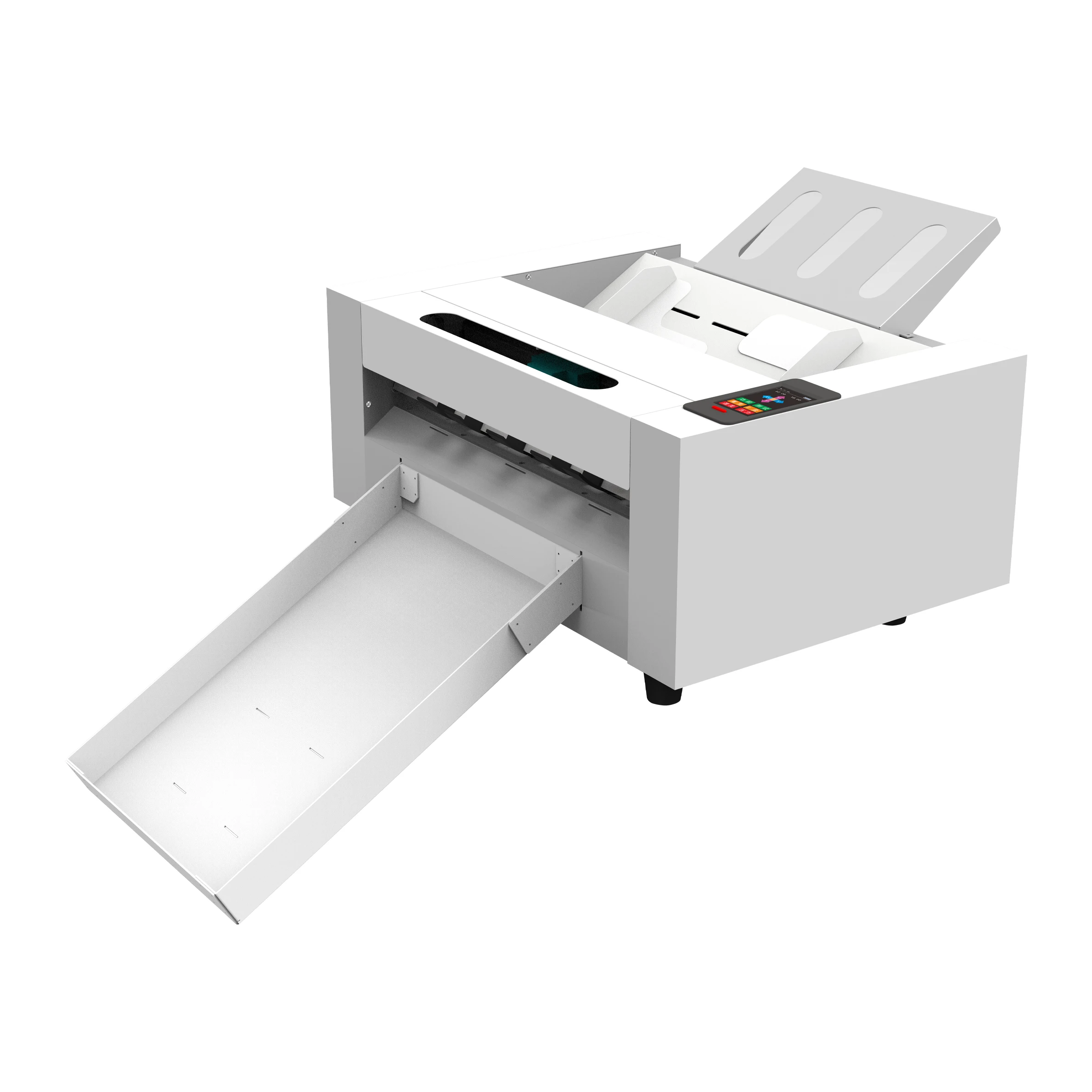

BascocutVery Fast Servo Motor A3 Multi Sheet Label Cutter Auto Feed Paper Cutter Plotter Two Head Cutting Machine
- Category: >>>
- Supplier: Shenzhen Bascocut Technology Co. Ltd.Shenzhen Ltd.
Share on (1601002596774):
Product Overview
Description
Product Description
Model | A6,C6,E6,L6 |
Media way | Auto paper feeding |
Main board | 32-bit ARM7 CPU 168MHz,512Mb High-speed CACHE memory |
Control panel | 4.3 inch tou-ch screen |
Driver | High speed,super silent servo motor |
Max cutting Area | 483*329mm width |
Maximum cutting speed | 1200mm/s |
Cutting force | 10-1000g(digital adjustment) |
Mechanical precision | 0.025mm |
Repeatable precision | <±0.025mm |
Type of plotter pen | All types diameter 11.4mm plotter pen |
Plotter instruction | Compatible DM/PL,HP/GL |
Interface | USB/U disk/Ethernet Port |
Power supply | AC220V/110V,50Hz |
Power consumption | <80W |
Knife (Blade) | Imported hardness alloy steelblade |
Operating environment | Temperature:5-35℃,Relative Humidity:30%-70% |
Package size | 880*720*580mm |
Gross weight | 66kg |
Main Features
1)Auto feeder system can feed different material continuously;
2)Big power motor,faster speed,working noise lower than 50db ;
3)Advanced configuration ,integrated production line,low noise,users away from noise pollution,smooth cutting process;
4)Special QR design for Material.Cut a mixed different files continuously;
5)Automatic contour cutting function, with camera
6)High precision steel axis to ensure accuracy cutting. Save more material with 5mm margin needed ;
7)Cutting force: 10-1000g ( Kiss cut and full cut ,creasing);
8)Support work with Flash drive directly. U disk for offline working, No need to bring the computer everywhere or use long USB cables;
9)Auto paper feeding system,maximum continuous cutting 100pcs;
Detailed Images
Using a CCD camera, the machine can automatically align the marking points,
and the cutting accuracy is very high
and the cutting accuracy is very high

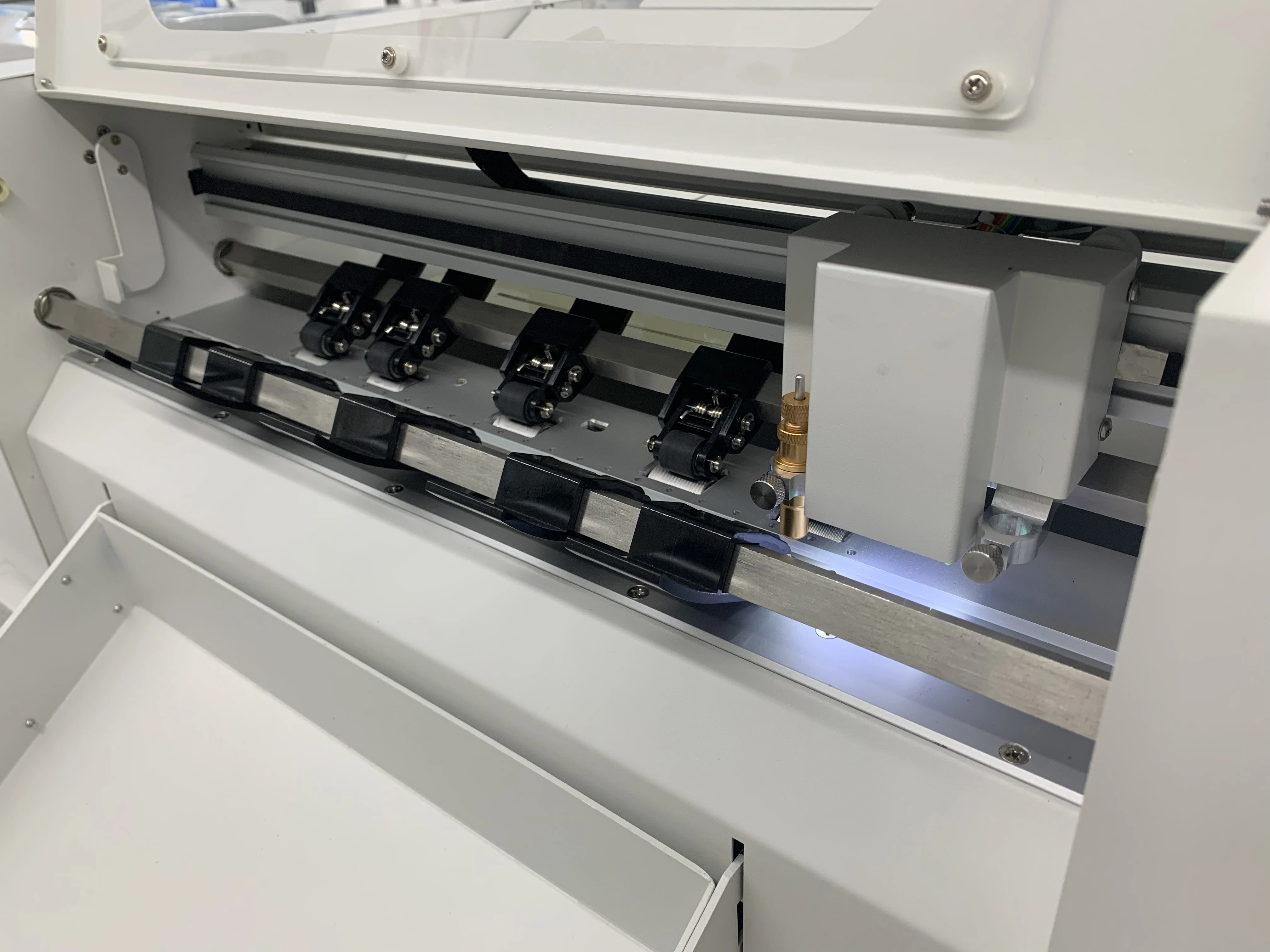

Double cutter head,it can kiss cut and full cut,creasing
Can scan circular markers, QR codes, etc

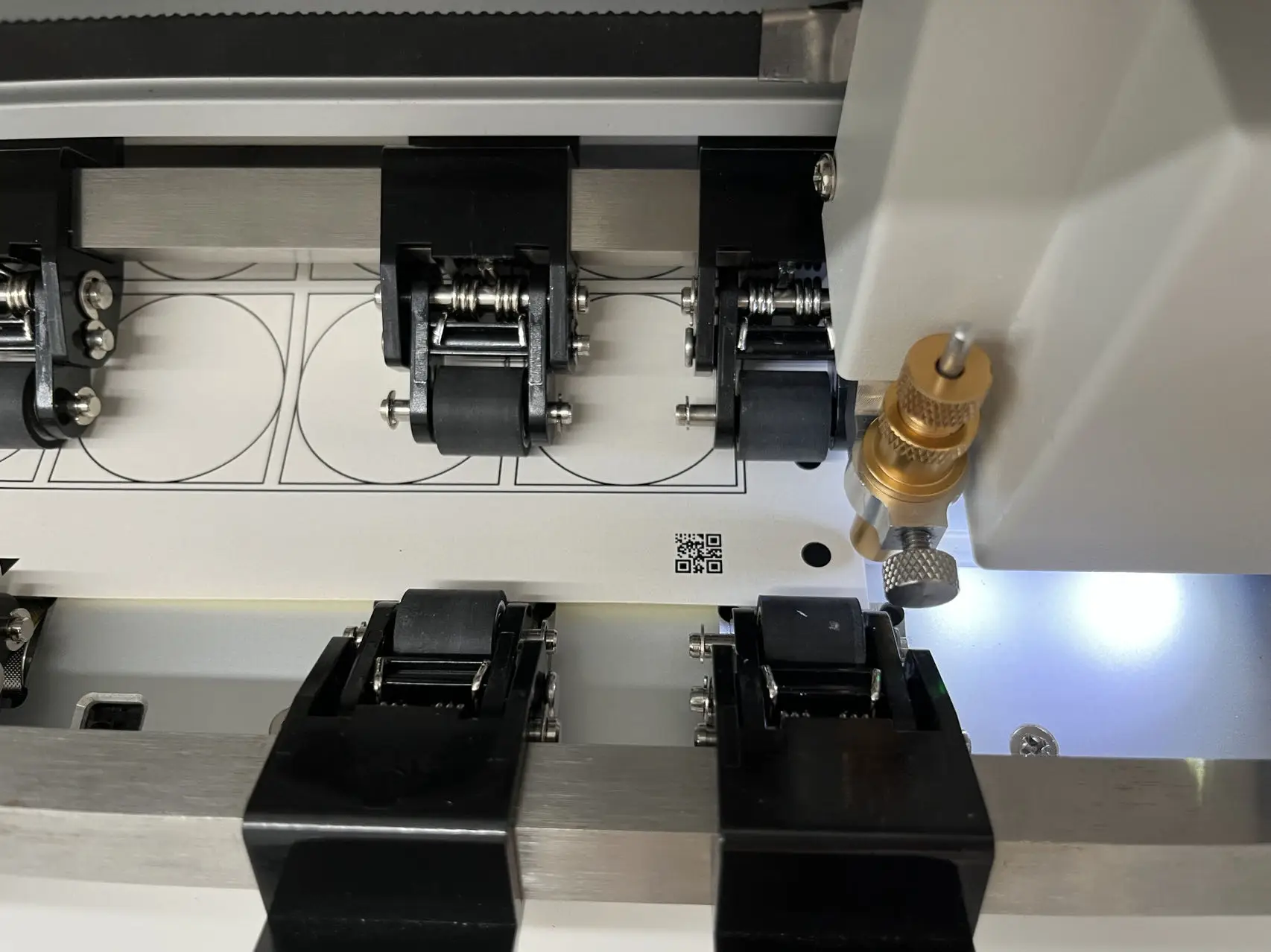

Adopt double pinch wheel design, imported steel barbed shaft,
more stable paper feeding
more stable paper feeding
The new technology

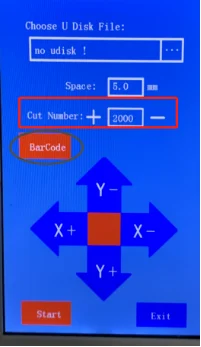

Cut Number:2000+
CCD camera with QR function
Company Profile
Exhibitions
Related Products
Certifications
FAQ
1.What's your delivery time?
Our delivery lead time is within 10 working days after receive full payment.
2.What are your payment methods?
We support T/T,Western union,Paypal,ABC bank etc.
3.How about Warranty?
12 months warranty for our machines.
4.How to order a machine from you?
After you confirm the order details, we will send you Proforma Invoice, including our bank account. We will prepare your order after receive your payment.
5:What can you do with our cutting plotter machine?
Supply and manufacture all kinds of CNC cutting system,cutting products and solutions to fit for different demands.Our products mainly use for Sign-making,heat transfer industry,Electronic film die-cutting,clothing drawing,Advertise sign,paper cutting and other fields.
Packing & Delivery
Package:Standard exporting package, inside is double layer carton package, outside is thick plastic package to keep dry and clean.
Delivery way: air/shipping /express.
Accessories
