Product Overview
Description

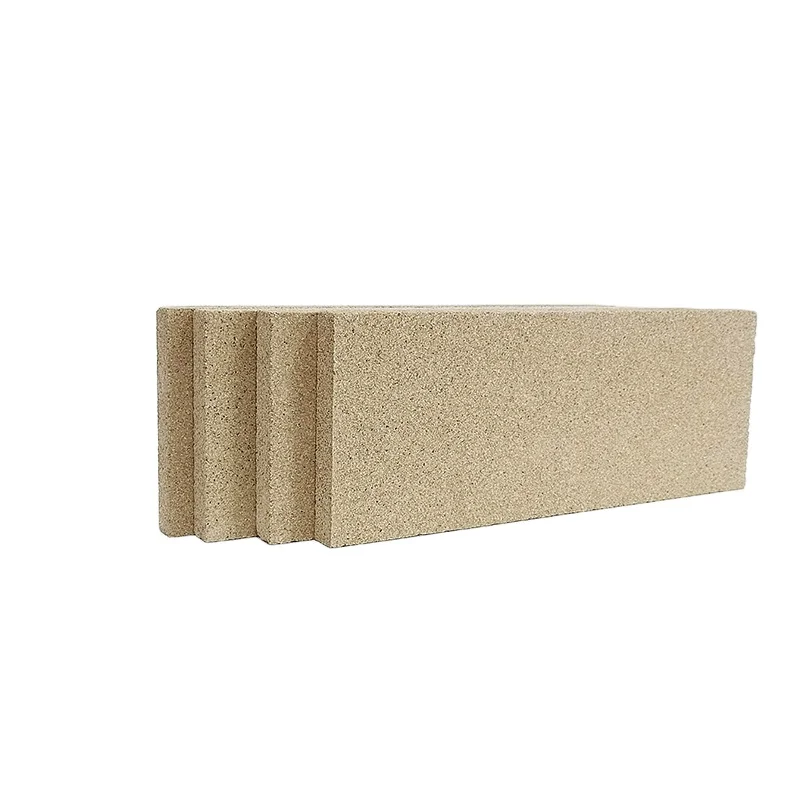

Description of Vermiculite Brick

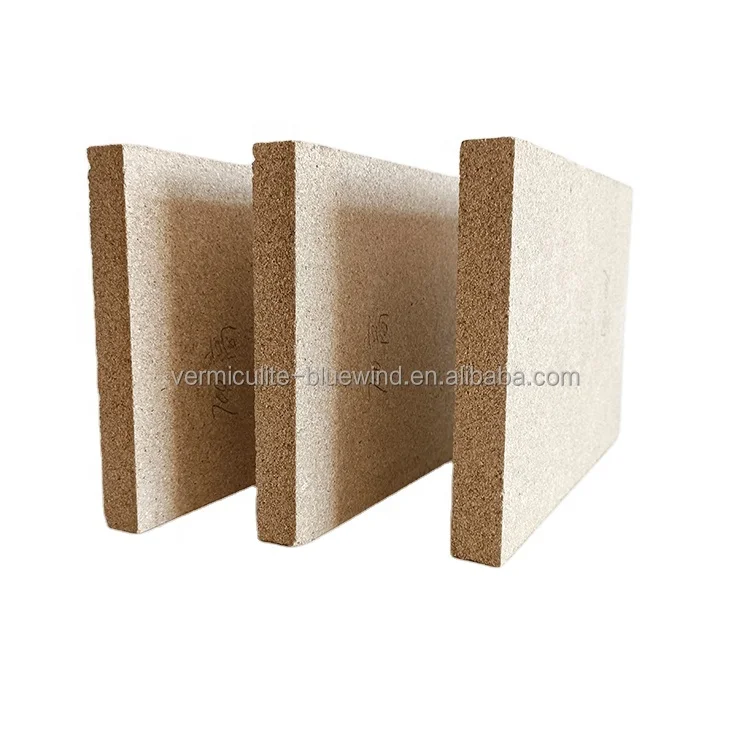

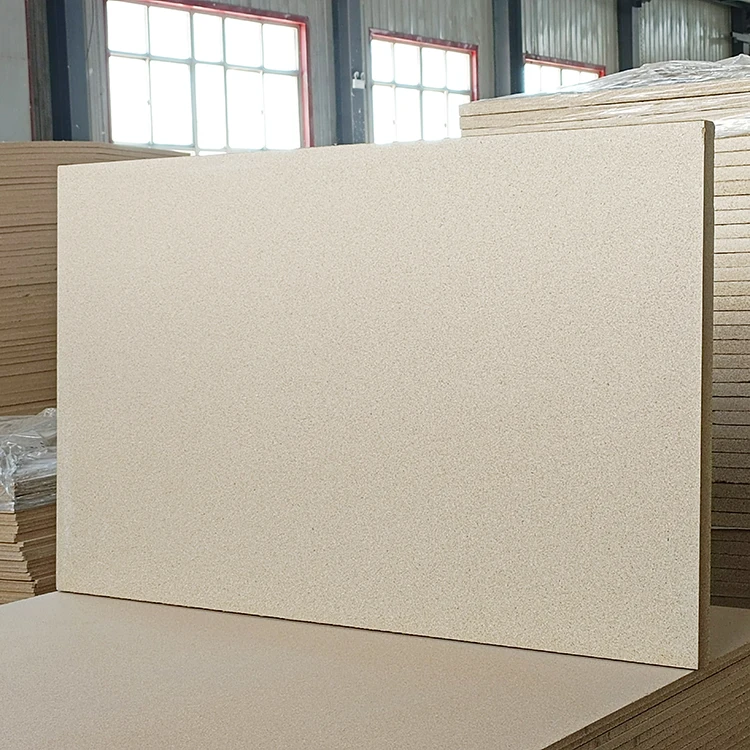

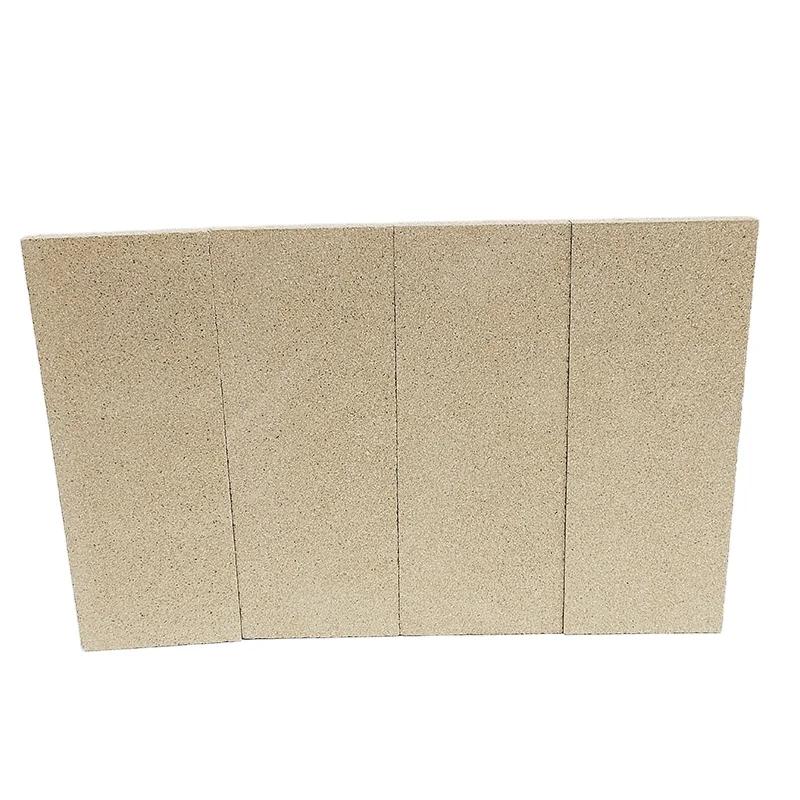

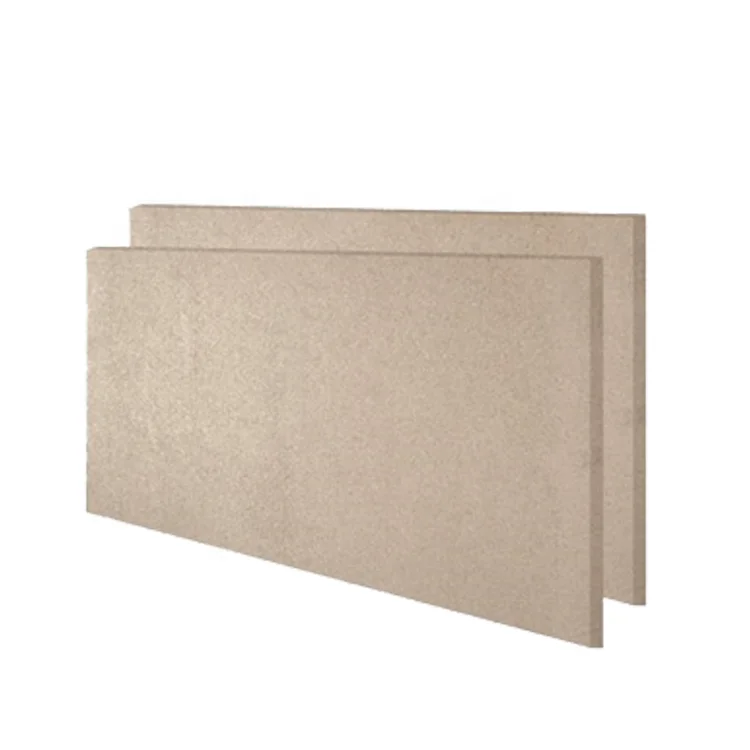

BWV Vermiculite board
Bluewind Vermiculite Light-weight insulating brick is made from non-asbestos expanded silver vermiculite and inorganic fillers to
give a uniform and controlled pore structure. The brick is compressed and sintered under high temperature. Bluewind Vermiculite
Insulating Firebrick is widely used as transition refractory lining or back-up insulation in various kinds of industrial furnaces,
helps improve the service life and better insulation performance.
Insulating Firebrick is widely used as transition refractory lining or back-up insulation in various kinds of industrial furnaces,
helps improve the service life and better insulation performance.
Features
High crushing strength
Excellent thermal shock resistance
Low thermal conductivity
Low heat storage
Long service life
Excellent thermal shock resistance
Low thermal conductivity
Low heat storage
Long service life
Corrosion resistant
Non-combustible
Environmental friendly
Lower emission
Accurate and customized dimension
Aluminum Electrolytic Applying
Electrolytic Aluminum Melting industry
In electrolytic aluminum melting industry, Bluewind refractory and insulation vermiculite products mainly works in following two parts: anti-leakage bricks and insulation layer vermiculite bricks.
Anti-leakage bricks: It requires to stand the high temperature and prevent the aluminum melting liquid leakage. And it can reduce the heat consumption and energy costs.
Bluewind HD Vermiculite brick, can resist max 1,200°C heat, with stable working and insulation performance, in the layer of anti-leakage, forms a ceramic like layer under continuous high temperature heating, which can prevent the liquid aluminum leakage. While the thermal conductivity is below 0.3 W/m.K, which great lower than most refractory bricks, which helps the energy saving and production improving.
Insulation layer vermiculite bricks: In the insulation layer, vermiculite bricks work like a transition layer which prevent the heat spreading fast outside the melting cells. It can resist the high temperature and has a good insulation performance, can take part roles of the clay brick and Calcium Silicate boards, and works in the middle layer of the clay brick and Calcium Silicate bricks.

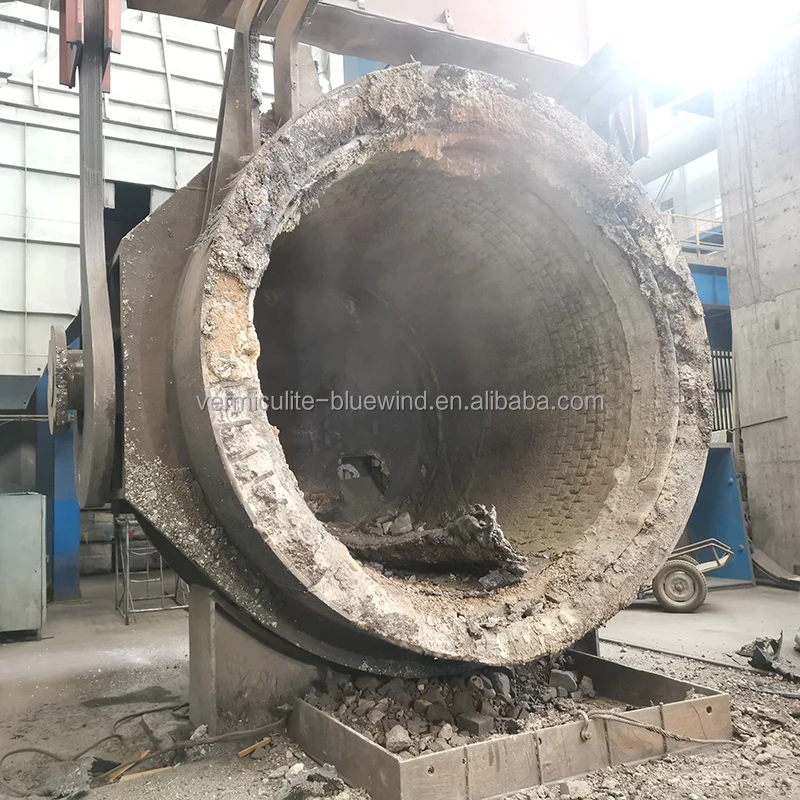

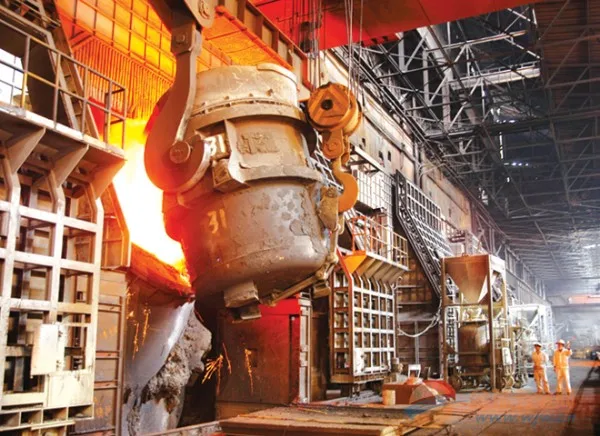

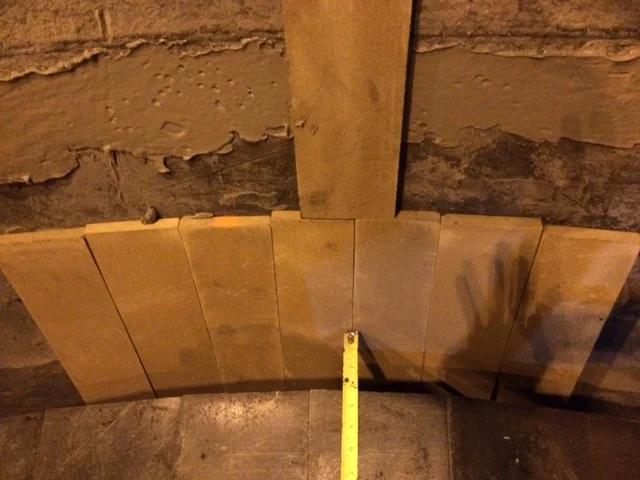

Foundry Ladle

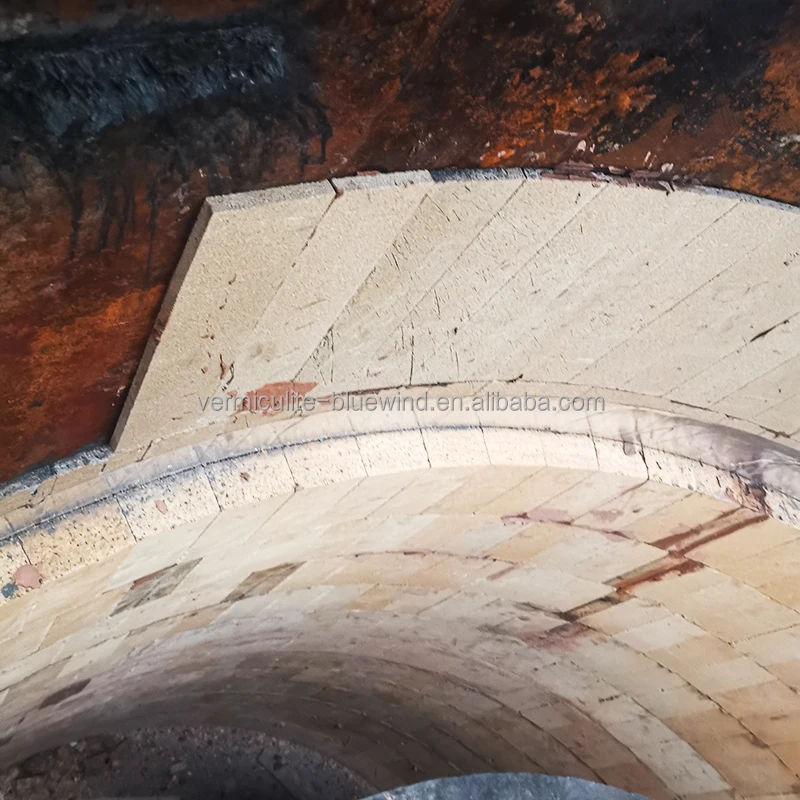

Metallurgy Insulation Layer
Bluewind TRI series aluminum silicate plate, can resist max 1,200 Celsius degree firing, and the thermal conductivity below 0.3 E/m.K. Which in steel melting industry, it has been applied in the liquid ladle insulation layer, for the high temperature resistant and thermal insulation performance.
Thickness: Commonly applying 10/15/18/32 mm plate as the insulation claddings.
Performance: Can keep the outside temperature as designed.
Service Life: Expected to serve for 10 months or longer ( the refractory layer requires refurbished regularly)
Shapes: Rectangle or trapezoid

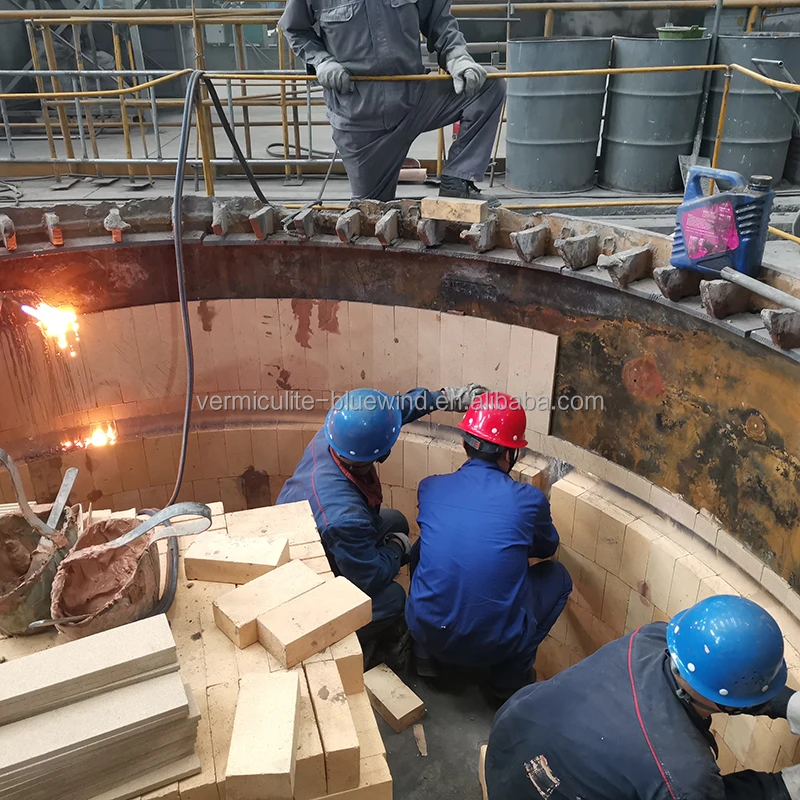

Installation: Past to the inside wall of ladle with refractory clay; then install the permanent layer, and last refractory layer
Gas Boiler Application
Condensing gas boilers
Condensing gas boiler is a new technology products which increased the energy using efficient, and reducing the exhaust gas emission. It is designed to serve for around 15 years, which is a logically energy efficient reducing, environmental friendly and economic products.
The core of the condensing gas boiler is the heat exchange part due to the poor working environment, fast firing and cooling. The refractory and insulation material can not last the designed service life, commonly only works 1-2 years that will damaged inside, which lead the heat exchange unit can not working normally in long years, and requires replacement.
Bluewind vermiculite refractory and insulation blocks, apply natural expanded vermiculite, and inorgainc adhesive, made the 1,200 Celsius degree resistant blocks. With thermal conductivity below 0.28 W/m.K at 800 Celsius, and can continuous working for over 30 days in lab testing, no breaking nor shape changing. In expecting serving for 10+ years.
Product Paramenters
Physical parameter | ||||||
Density (kgs/m3) | 450 | 800 | 1200 | |||
Max temp. | 1050 ℃ | 1150 ℃ | 1200 ℃ | |||
Strength | 2.4/1.0 MPa | 5.5/2.1 MPa | 8/3.5 MPa | |||
Linear shrinkage | 3% | 1% | 1% | |||
Thermal conduct. | ||||||
@ 200 ℃ | 0.11 W/m.k | 0.16 W/m.k | 0.23W/m.k | |||
@ 400 ℃ | 0.13W/m.k | 0.18 W/m.k | 0.26 W/m.k | |||
@ 600 ℃ | 0.15 W/m.k | 0.2 W/m.k | 0.27 W/m.k | |||
Chemical parameter | ||||||
SiO2 | 43-48 % | 43-46 % | 45-48 % | |||
Al2O3 | 10-13 % | 10-13 % | 13-16 % | |||
Fe2O3 | 4-6 % | 4-6 % | 4-6 % | |||
TiO | 1-2 % | 1-2 % | 1-2 % | |||
MgO | 16-23 % | 16-23 % | 14-20 % | |||
K2O | 7-10 % | 7-10 % | 5-8 % | |||
Na2O | 1-2 % | 1-2 % | 1-2 % | |||
LOI @ 1000 C | 4-6 % | 4-6 % | 3-5 % | |||

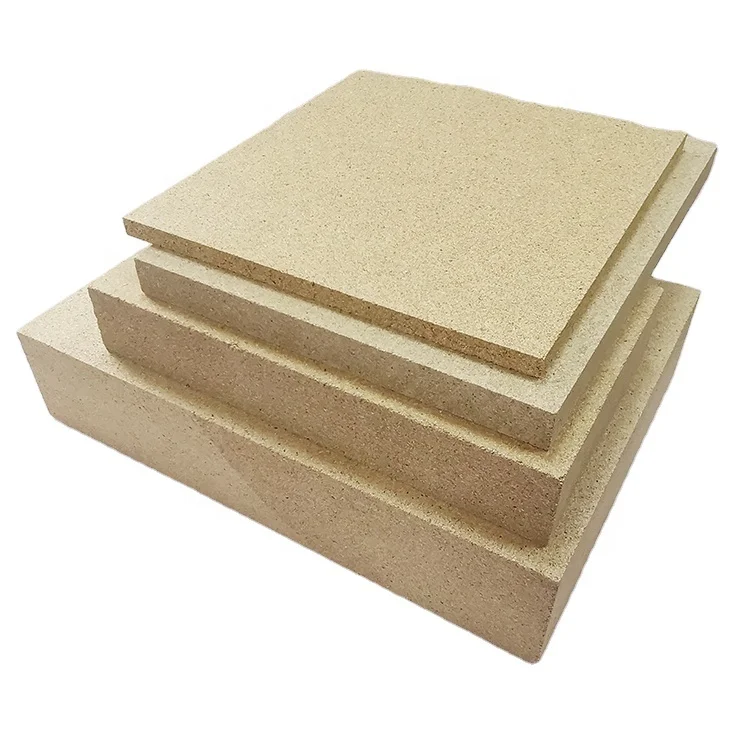

Standard size & Thickness | ||||||
1000*610mm | 10-80 mm thickness | 10-80 mm thickness | 10-80 mm thickness | |||
1200*1000 mm | 30-80 mm thickness | 10-80 mm thickness | 10-80 mm thickness | |||
Production Process
Pressing
Mixed vermiculite material delivered to the press machine to shape into size

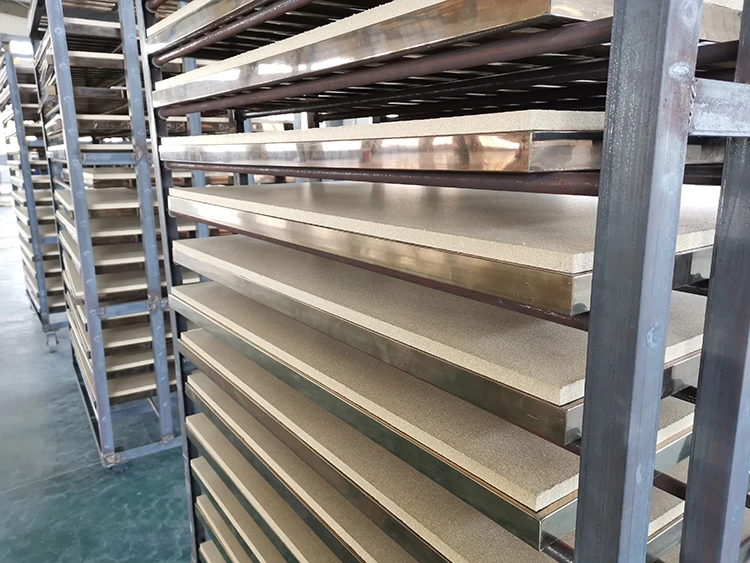

Drying

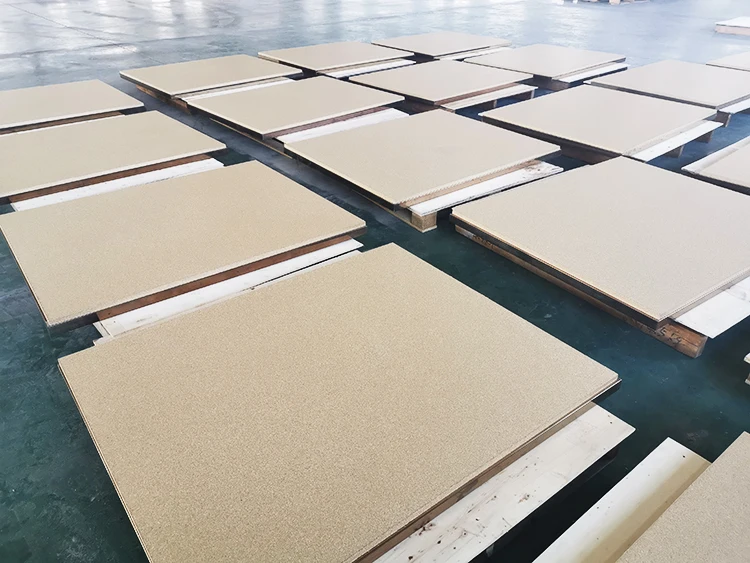

Drying to remove the moisture and make the vermiculite board strong
Parameter testing
Test the parameter of ready board, and confirm the goods qualified for delivery.
Product Packaging

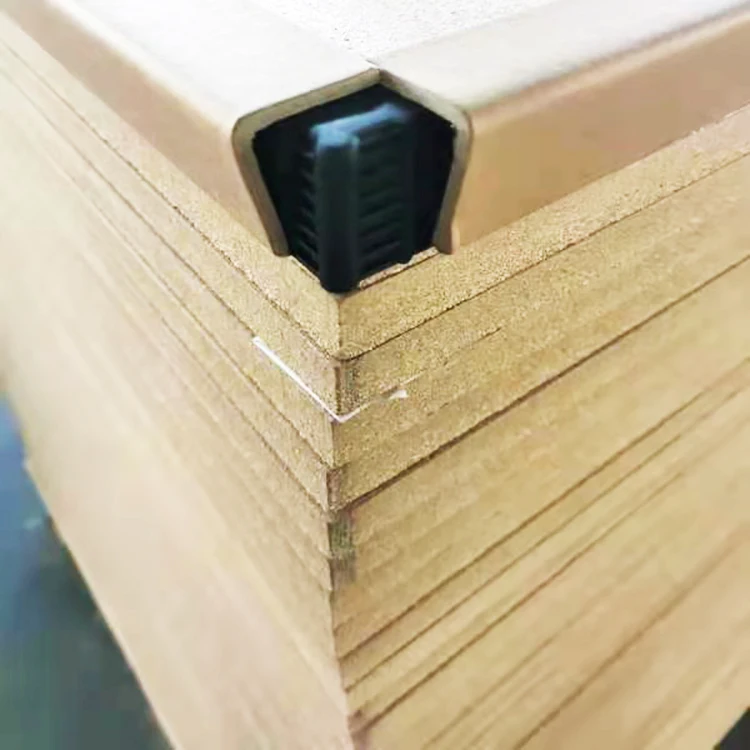

Standard packing method, Plywood pallet with stretch film wrapping to prevent the moisture ; paper angels and then belt fasten

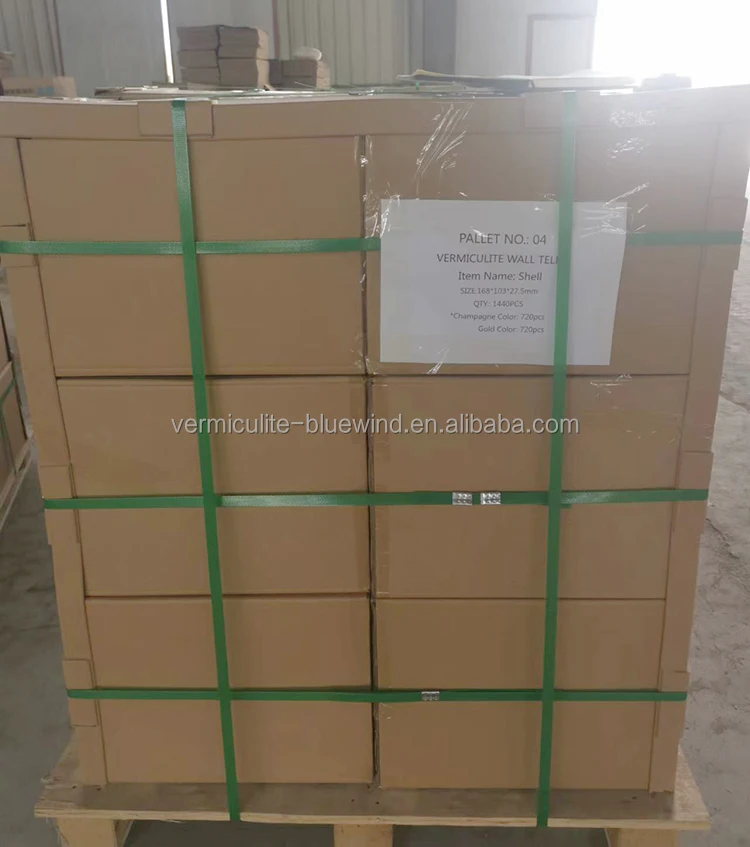

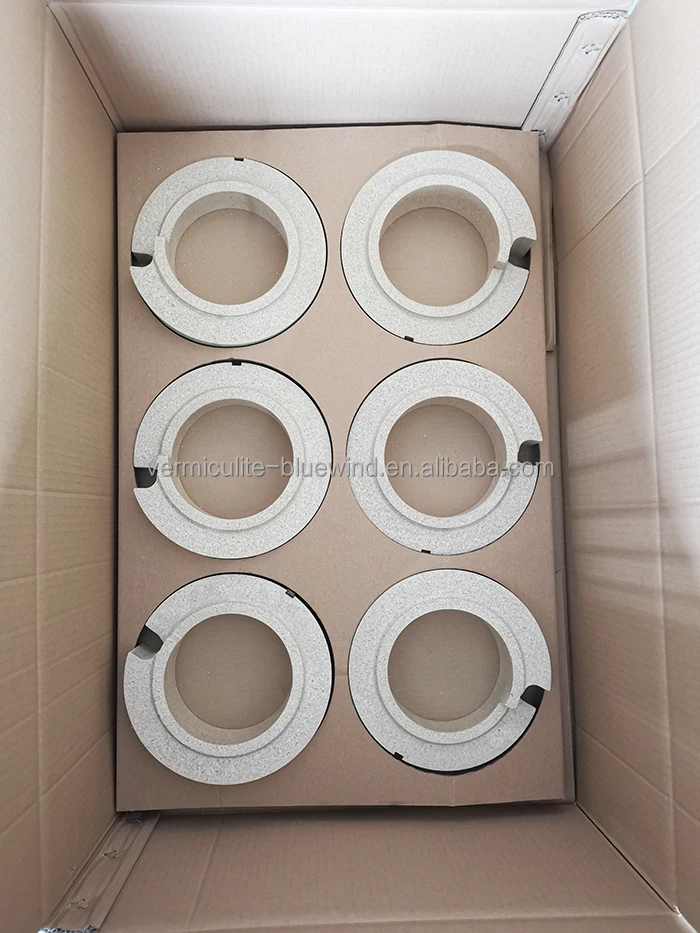

Paper box packing for irregular shapes, to avoid the damage on the uneven surface during transportation
Truck transportation for domestic delivery

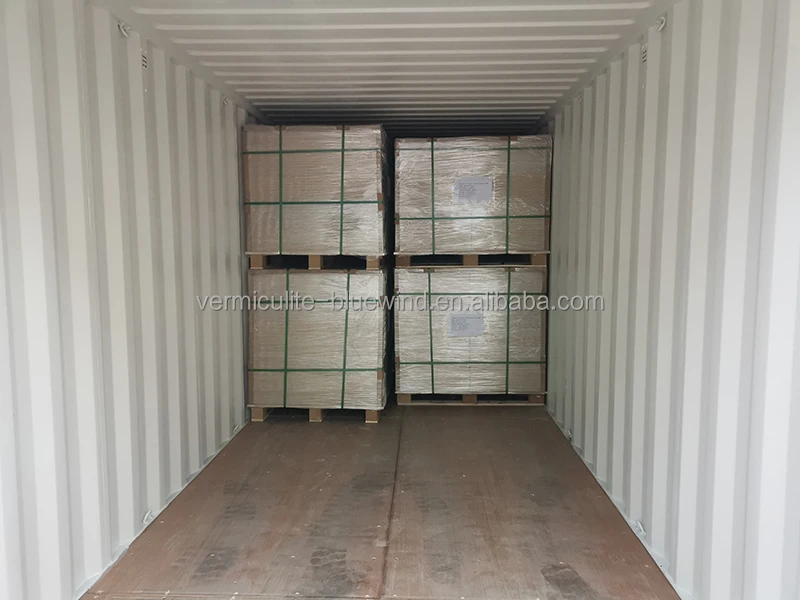

Standard container loading for oversea shipping
FAQ
1> What the material of the refractory and insulation product

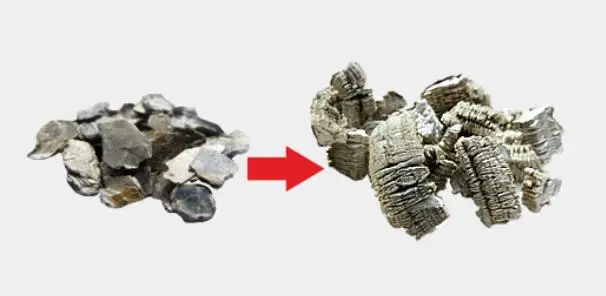

More than 50% of the vermiculite refractory and insulation material is made of expanded silver vermiculite, which is from Xinjiang Province, and free of asbestos, with high quality in expansion times and stable thermal insulation performance.
2> What the features of the vermiculite refractory and insulation material?
Fire resistant temperature 1,000-1,200°C
3> What the MOQ and lead time?
Plain boards: 15-35 days according to amounts
4> Where else you are applying?

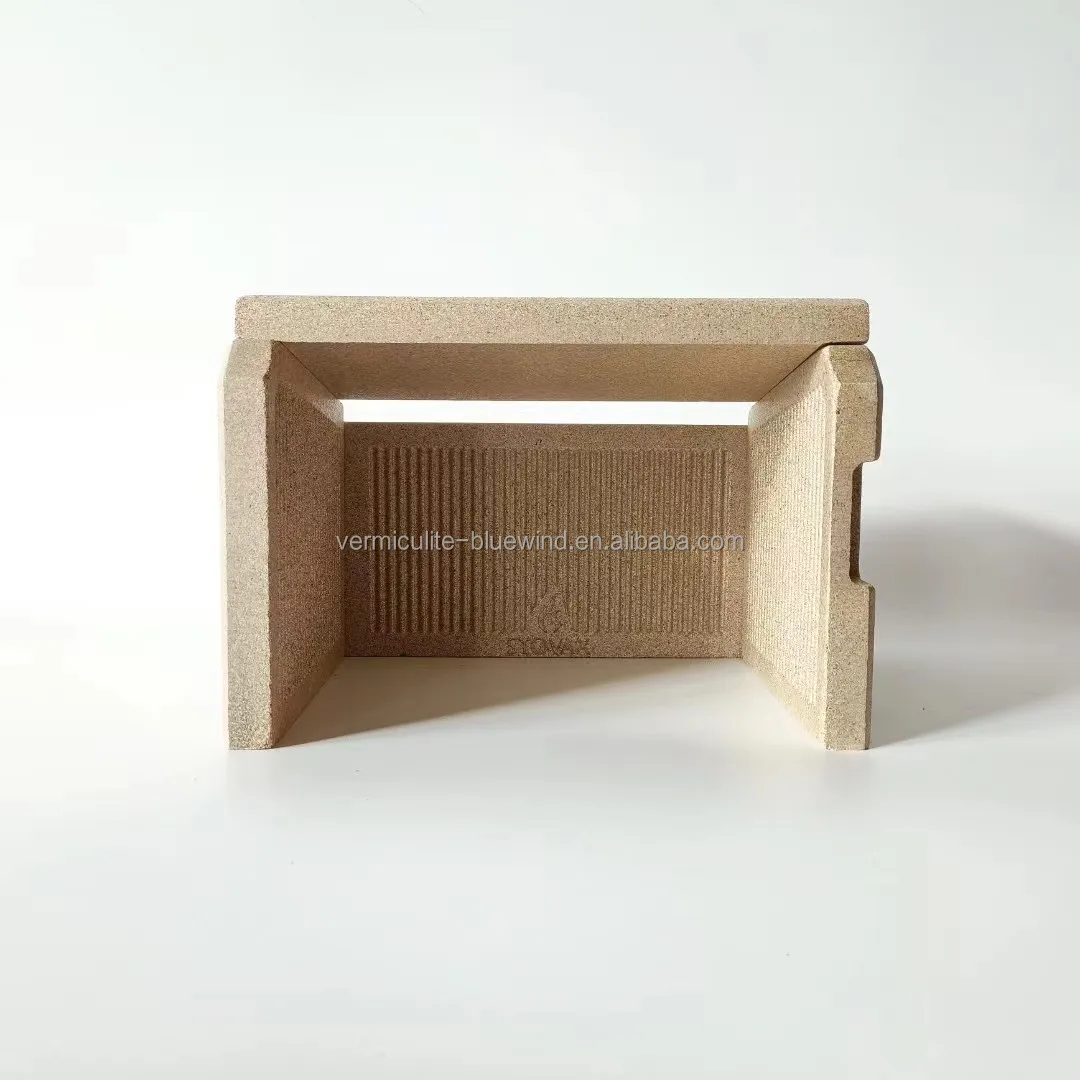

Wood/pellet burning stoves (fireproof and longer service)
5> How to order/inquiry
2> What the features of the vermiculite refractory and insulation material?
Fire resistant temperature 1,000-1,200°C
Thermal conductivity <0.3 W/m.K
Density: 0.4-1.2 g/cm³
3> What the MOQ and lead time?
Plain boards: 15-35 days according to amounts
Customized: 25-35 days, for mold producing, extra 30 days.
4> Where else you are applying?
Wood/pellet burning stoves (fireproof and longer service)
Condensing gas boiler heat cell (insulation and longer service)
Commercial/ Industrial gas boiler ( insulation and stable service performance)
Aluminium reduction cells (for insulation and anti-seepage);
Steel ladle (for insulation and refractory)
5> How to order/inquiry
Please tell us the specifics required, such as density, size, thickness, quantity;
Or tell us the applying equipment so we can have a good suggestion on the density for you;
6> Contact?
You can leave message to us at Alibaba platform, and also following methods valid:
Mobile: +86 182 1817 7568
Email: sales01(@)bluewindvp.com
You can leave message to us at Alibaba platform, and also following methods valid:
Mobile: +86 182 1817 7568
Email: sales01(@)bluewindvp.com
Company Profile
Shenzhen Bluwind Vermiculite Product Co., Ltd., is a manufacturing company strive in vermiculite refractory and insulation products producing and supplying.
We offer 1,100 Celsius degree fire resistant anti-seepage vermiculite bricks for Aluminum Electrolytic Cells, as well as Lightweight Insulation Vermiculite Bricks in the insulation Layers, Refractory and insulation material for 10+ years designed wall mounted condensing gas boilers and long service life industrial boilers, Tundish and steel ladle use refractory and insulation layer vermiculite panels, Wood stove and fireplaces use fireproof and heat insulation baffle boards, 120+ mins 240+ mins fire rated light weight vermiculite door core, Decorative fireproof wall cladding, ventilation duct fire resist light weight panels etc.
Bluewind strive in produce and supply high quality vermiculite refractory and insulation products, the diagonal change is within 2 mm in 1000 mm length, while 95% of vermiculite products at least 10 mm. For unique requirement, we supply panels with patterns like reed, hexagon, brick, diamond etc shapes, and molded parts as well as machining parts for customers requirements. Satisfy different requirement of users, if you have any request on the vermiculite panels, please feel free to contact us for your high requirement on the refractory and insulation material applying.
Bluewind will be your reliable and loyal partner in the cooperation!
