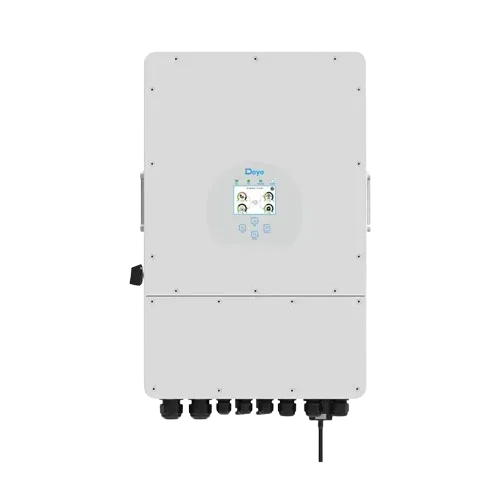

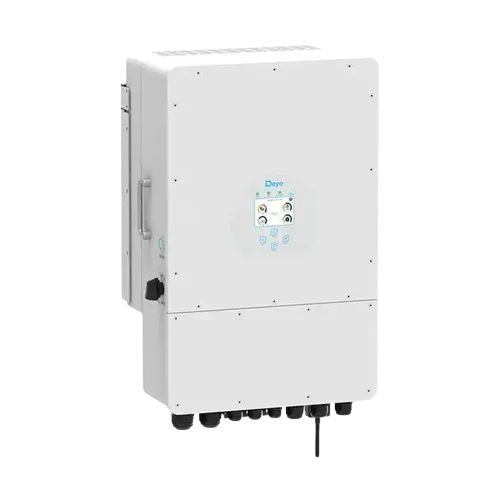

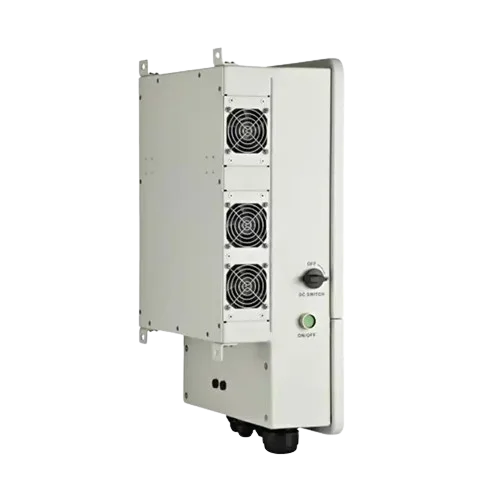

Deye with WIFI 2 Mppt Hybrid Solar Inverter Eu Version 3 Phase Solar Inverter for Home System 5000w 8000w 10kw 12000w
- Category: >>>
- Supplier: Jiangsu Elemac Energy Co. Ltd.
Share on (1601002606521):
Product Overview
Description
Recommend Products

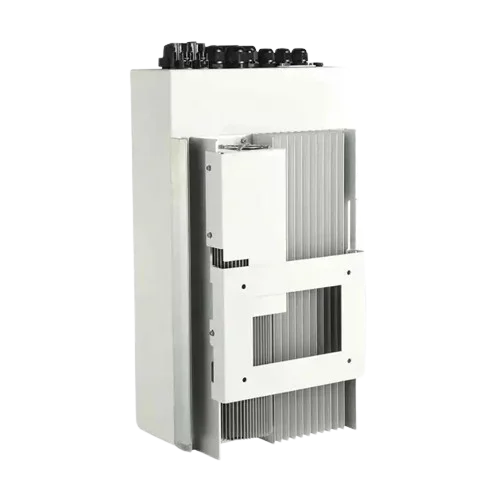

Details Images
SUN-5/6/8/10/12K-SG04LP3 | 5-12KW | Three Phase | 2 MPPT | Hybrid Inverter | Low Voltage Battery

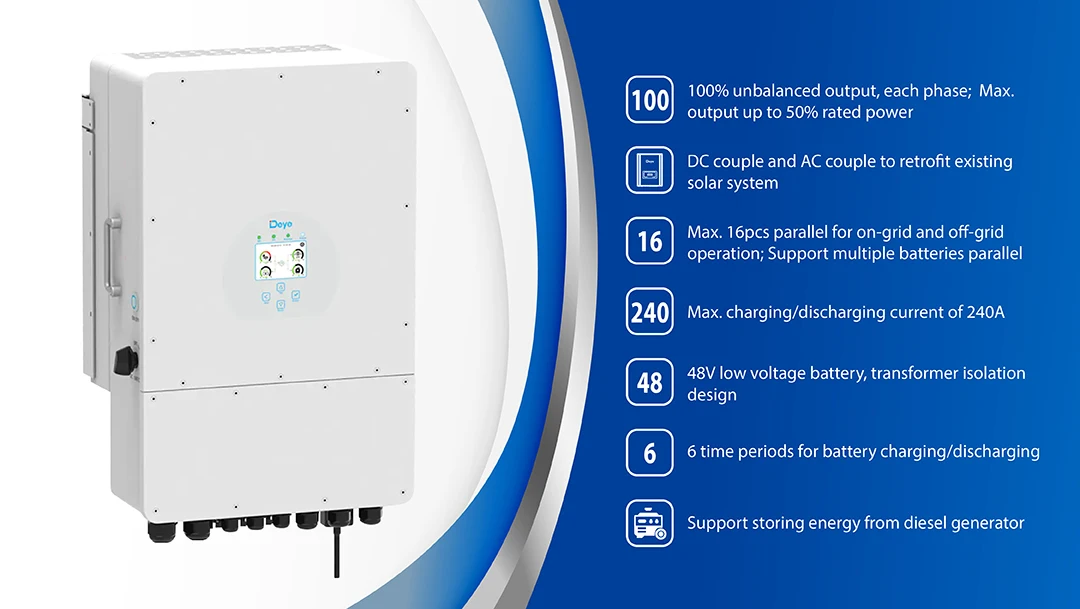

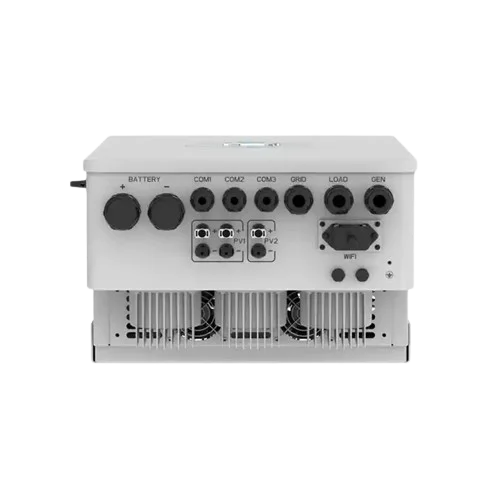

SUN-5/6/8/10/12K-SG04LP3-EU is brand new three phase hybrid inverter with low battery voltage 48V, ensuring system safe and reliable. With compact design and high-power density, this series supports 1.3 DC/AC ratio, saving device investment. It supports three phase unbalanced output, extending the application scenarios. Equipped with CAN port (x2) BMS and parallel, x1 RS485 port for BMS, x1 RS232 port for remotely control, x1 DRM port, which makes the system smart and flexible.
Product Paramenters
Model | SUN-5K-SG04LP3-EU | SUN-6K-SG04LP3-EU | SUN-8K-SG04LP3-EU | SUN-10K-SG04LP3-EU | SUN-12K-SG04LP3-EU | |||||
Battery Input Data | ||||||||||
Battery Type | Lead-acid or Lithium-ion | |||||||||
Battery Voltage Range (V) | 40~60V | |||||||||
Max. Charging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Max. Discharging Current (A) | 120A | 150A | 190A | 210A | 240A | |||||
Charging Curve | 3 Stages / Equalization | |||||||||
External Temperature Sensor | Yes | |||||||||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||||||||
PV String Input Data | ||||||||||
Max. DC Input Power (W) | 6500W | 7800W | 10400W | 13000W | 15600W | |||||
Rated PV Input Voltage (V) | 550V(160V～800V） | |||||||||
Start-up Voltage (V) | 160V | |||||||||
MPPT Range (V) | 200V-650V | |||||||||
Full Load DC Voltage Range (V) | 350V-650V | |||||||||
PV Input Current (A) | 13A+13A | 26A+13A | ||||||||
Max. PV ISC (A) | 17A+17A | 34A+17A | ||||||||
Number of MPPT / Strings per MPPT | 2/1+1 | 2/2+1 | ||||||||
AC Output Data | ||||||||||
Rated AC Output and UPS Power (W) | 5000W | 6000W | 8000W | 10000W | 12000W | |||||
Max. AC Output Power (W) | 5500W | 6600W | 8800W | 11000W | 13200W | |||||
Peak Power (off grid) | 2 times of rated power, 10 S | |||||||||
AC Output Rated Current (A) | 7.6 | 9.1 | 12.1 | 15.2 | 18.2 | |||||
Max. AC Current (A) | 11.4 | 13.6 | 18.2 | 22.7 | 27.3 | |||||
Max. Continuous AC Passthrough (A) | 45A | |||||||||
Output Frequency and Voltage | 50/60Hz;3L/N/PE 220/380Vac，230/400Vac | |||||||||
Grid Type | Three Phase | |||||||||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | |||||||||
Efficiency | ||||||||||
Max. Efficiency | 97.60% | |||||||||
Euro Efficiency | 97.00% | |||||||||
MPPT Efficiency | 99.90% | |||||||||
Protection | ||||||||||
PV Input Lightning Protection | Integrated | |||||||||
Anti-islanding Protection | Integrated | |||||||||
PV String Input Reverse Polarity Protection | Integrated | |||||||||
Insulation Resistor Detection | Integrated | |||||||||
Residual Current Monitoring Unit | Integrated | |||||||||
Output Over Current Protection | Integrated | |||||||||
Output Shorted Protection | Integrated | |||||||||
Output Over Voltage Protection | Integrated | |||||||||
Surge protection | DC Type II / AC Type II | |||||||||
Certifications and Standards | ||||||||||
Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | |||||||||
Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||||||||
General Data | ||||||||||
Operating Temperature Range (℃) | -45~60℃, >45℃ Derating | |||||||||
Cooling | Smart cooling | |||||||||
Noise (dB) | <45 dB | |||||||||
Communication with BMS | RS485; CAN | |||||||||
Weight (kg) | 33.6 | |||||||||
Size (mm) | 422W×699.3H×279D | |||||||||
Protection Degree | IP65 | |||||||||
Installation Style | Wall-mounted | |||||||||
Warranty | 5 years | |||||||||
Company Profile
Elemac Energy Co., Ltd is focusing on the innovation of solar module and inverter technologies and providing the best LCOE (Levelized Cost Energy) solar products to the customers worldwide. The company’s business covers solar cells, modules, inverters, energy storage systems, batteries and photovoltaic power stations.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Being recognized as an emerging international solar brand, Elemac’s FOTOVO brand adheres to the corporate philosophy of delivering reliability and values to the customers. Through its international network with the global presence of its solar modules in more than 90 countries, Elemac is your ideal partner for reliable solar energy.
Our Advantages
Certifications

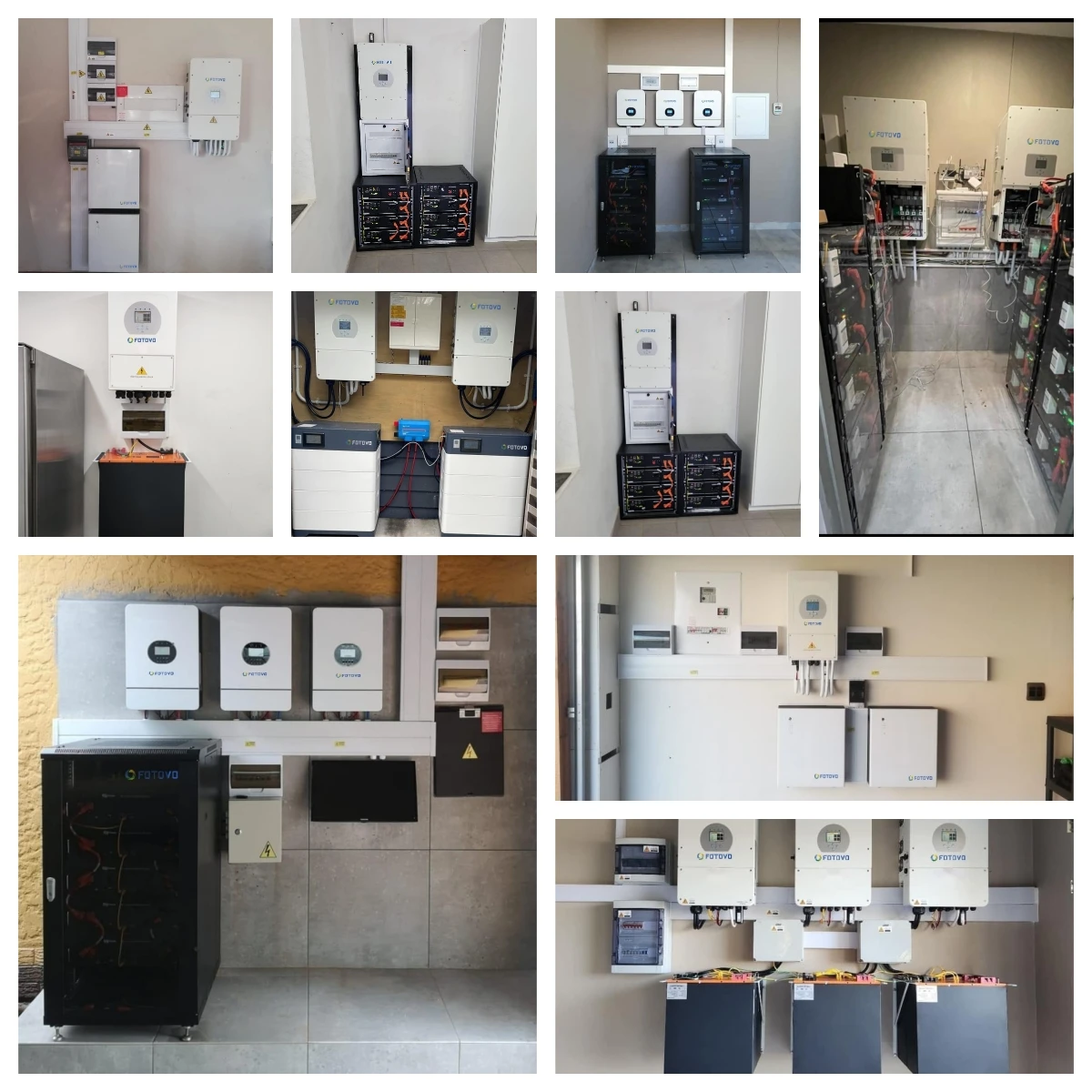

Project Case

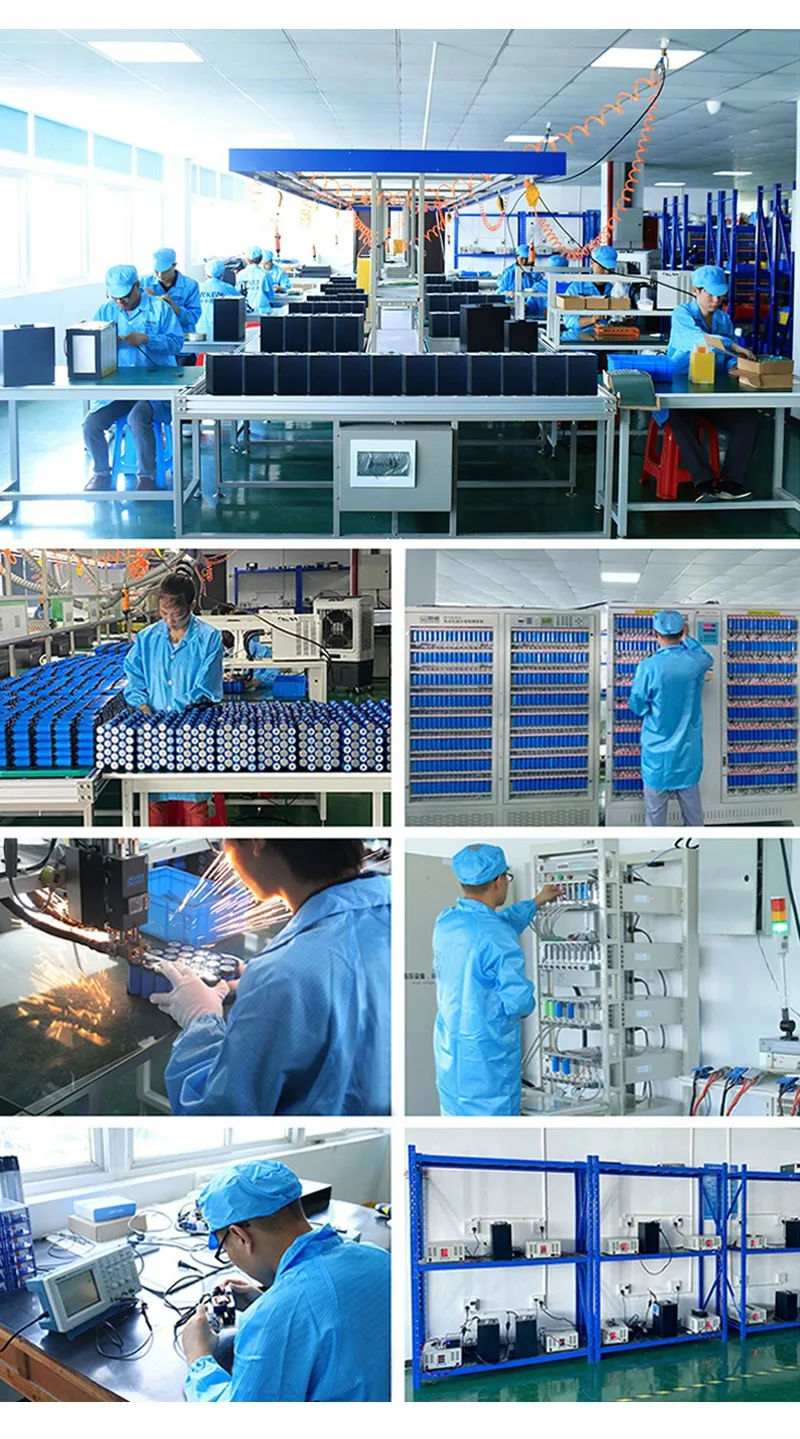

Production Flow
FAQ
A: We pack the goods very well, you will get goods on hand with good condition.
Q: What kind of certificates your products have?
A: CE, FCC, RoHS, PSE, UN38.3, MSDS etc, which is able to satisfy most country's importing requirements.
Q: How much life span of the battery？
A: Our batteries are built with grade A lifepo4 cell, cycle life up to 6000+ at 80% DoD.
Q: What brand inverter are your batteries compatible?
A: Our BMS supports the following communications Canbus/RS485/RS232 and can compatible with most of famous inverters.
Q: What is the delivery time? What is your standard packing？
A: Usually delivery in 7-15 days,but could be changed according to the quantity or other things.
A: 1 unit in a CARTON or 1 unit in a WOODEN.
Q: Do you support customization？
A: YES, LOGO/sticker/OEM/ODM welcomed. Please send us the artwork of your design, we have a professional team which is having rich experience on OEM & ODM, but there is a minimum order quantity required.
Q: Why choose us?
A: FOTOVO have been engaged in new energy power generation for more than 16 years. Our products and services cover more than 39 countries. Our R&D team is composed of top experts in various fields. We are committed to providing first-class solutions for you.
Q: How to solve the technical problem?
A: 24 hours after-service consultancy just for you and to make your problem to solve easily. And we have offices in many countries, if you have problems, we can arrange people to help you solve problem.
Q: What are your terms of payment?
A: The payment term will be 30%T/T for deposit and the balance before shipment.
